Model Whirlpool CRE7600ACW ELECTRIC RANGE – Common Parts & Diagrams

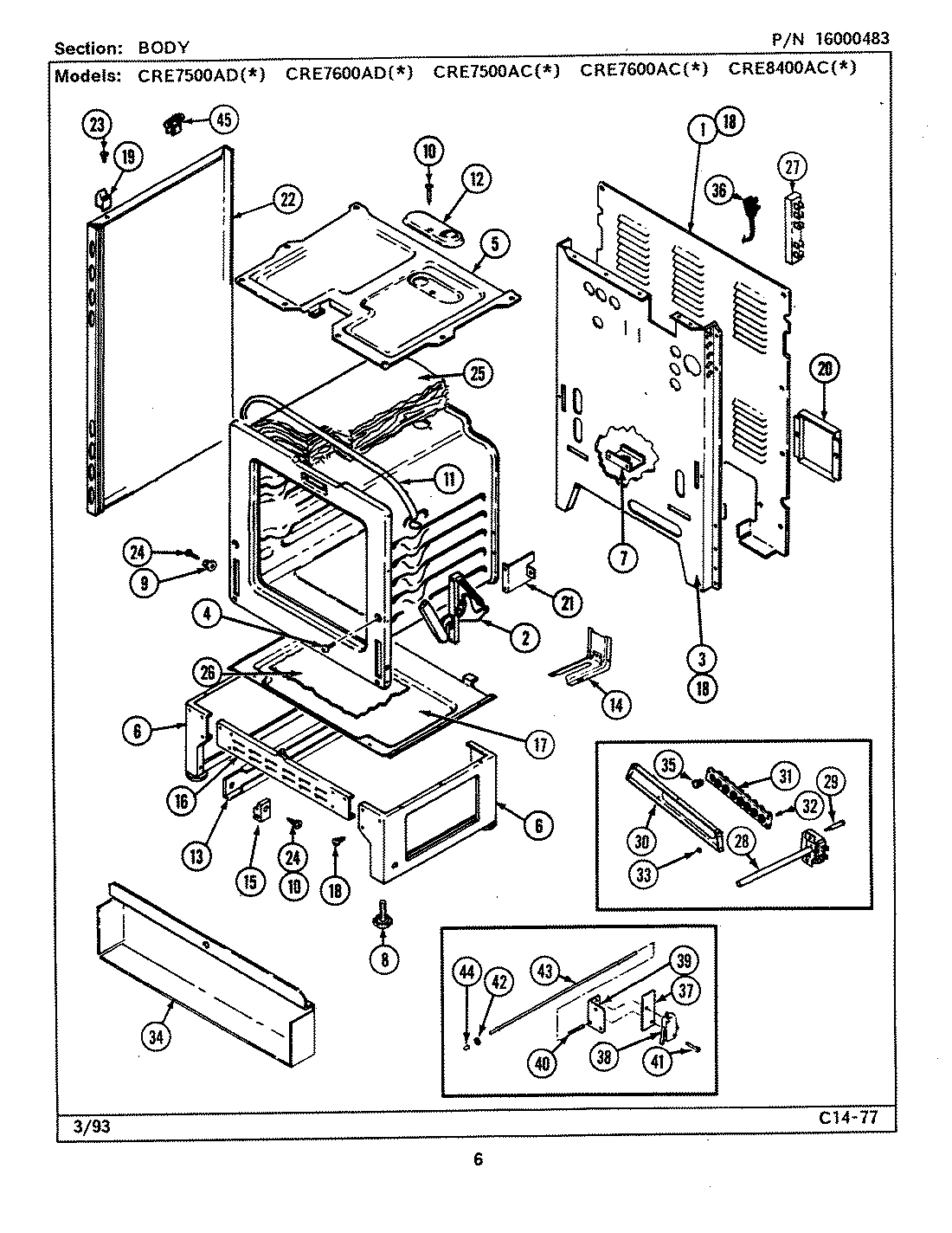

01 - BODY

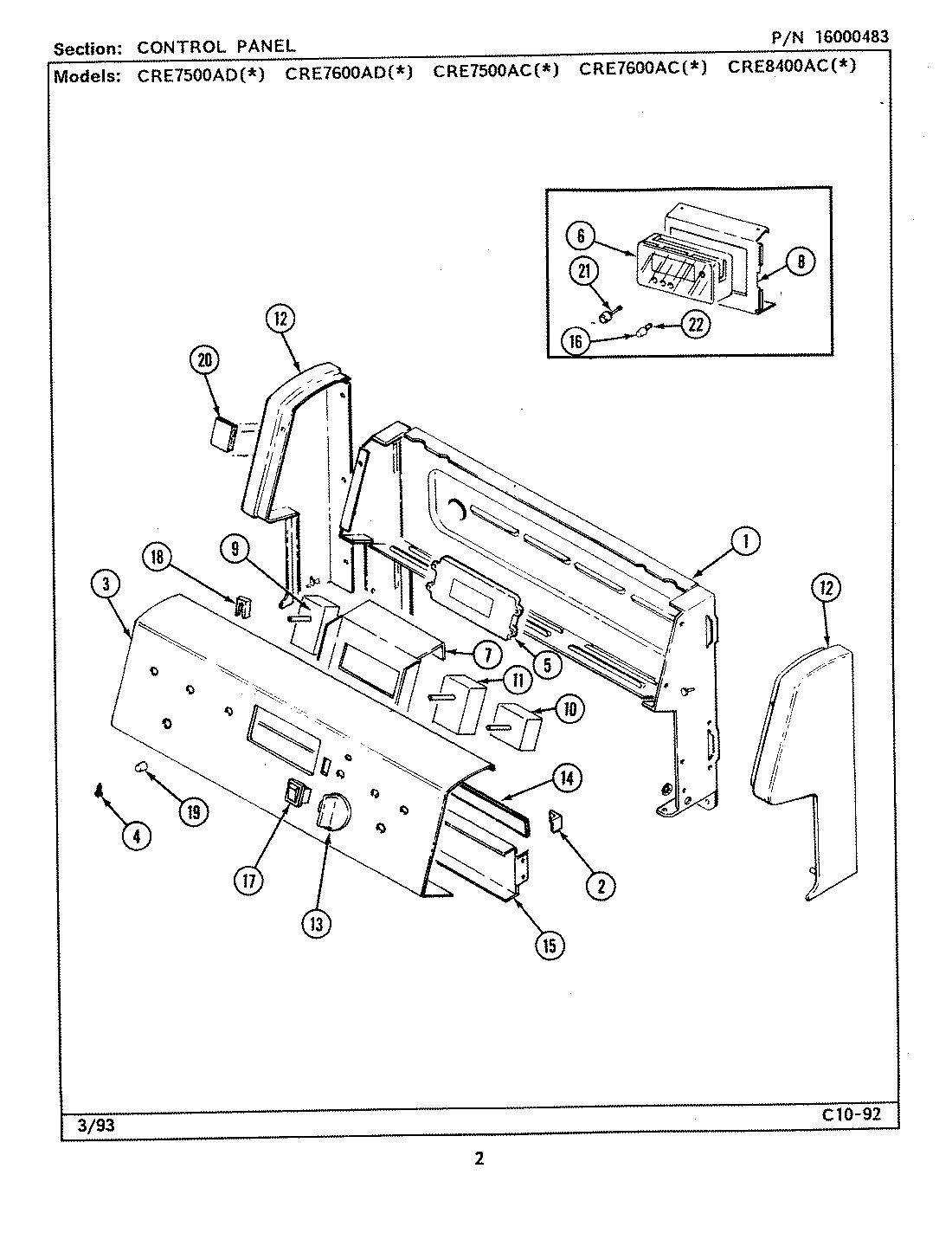

02 - CONTROL PANEL

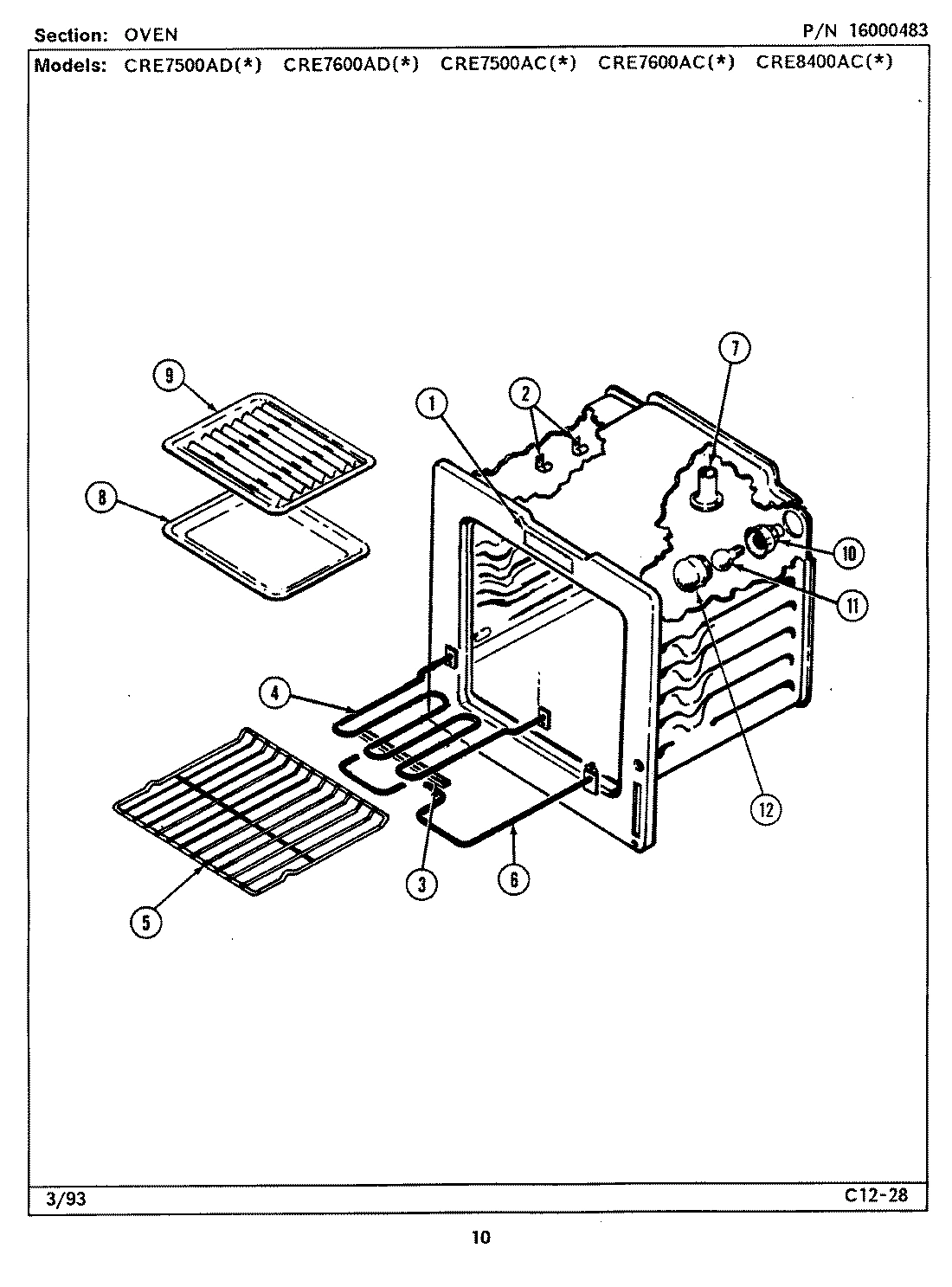

04 - OVEN
03 - DOOR/DRAWER

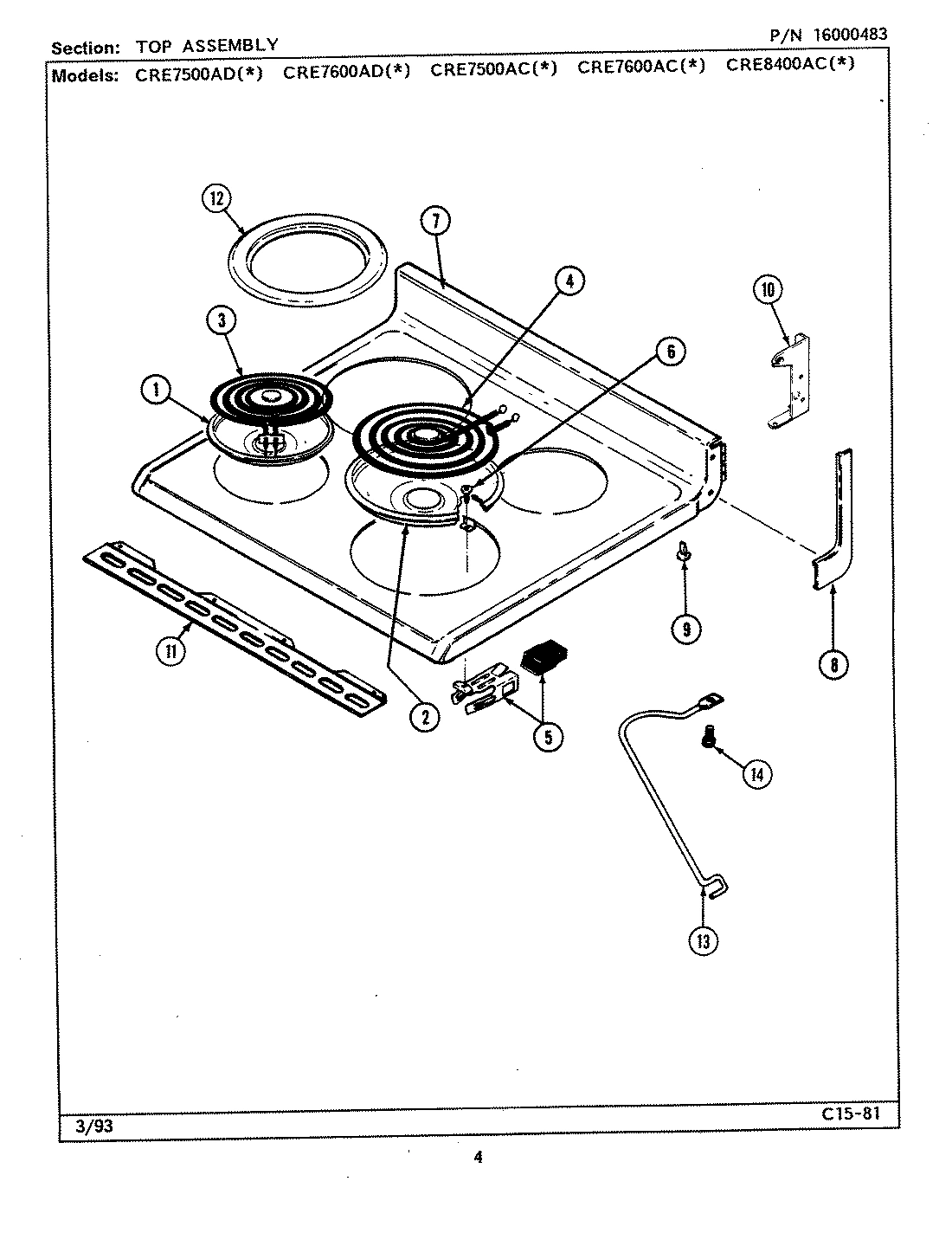

05 - TOP ASSEMBLY
Common parts from model Whirlpool CRE7600ACW ELECTRIC RANGE
1
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09451 Contact Us For Availability
1
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
1
GLASS, DOOR (OUTER/BLK) WPL 7902P36160 Contact Us For Availability
1
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
1
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
2
HINGE, DOOR WPL 7106P04860 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
3
BACK, MAIN WPL 4002F18980 Contact Us For Availability
3
SCREW WPL 7101P33460 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P36760 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
3
ELEMENT (6``) WPL 7406P06960 Contact Us For Availability
4
SCREW WPL 7118P01960 Contact Us For Availability
4
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P07060 Contact Us For Availability
5
BOX, BURNER WPL 4011F20819 Contact Us For Availability
5
CLOCK WPL 7602P11360 Contact Us For Availability
5
RACK----NA WPL 7801P03960 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
6
CLOCK WPL 7601P19060 Contact Us For Availability
7
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
7
TUBE, VENT WPL 8026P01960 Contact Us For Availability
7
HANDLE, OVEN DOOR (BLK) WPL 7701P12760 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W07881 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W07884 Contact Us For Availability
8
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
8
BRACKET, CLOCK WPL 3801F27345 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
9
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
9
SWITCH WPL 7403P25460 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
10
SCREW WPL 7101P10360 Contact Us For Availability
10
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
10
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
10
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
10
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
LINING ASSY WPL 2402W19319 Contact Us For Availability
10
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
10
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
11
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
11
THERMOSTAT WPL 7404P08160 Contact Us For Availability
11
BULB, OVEN WPL 7407P09560 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
12
COVER, VENT WPL 4005F43245 Contact Us For Availability
12
END CAP (RT-BLK) WPL 7726P06160 Contact Us For Availability
12
END CAP (LT-BLK) WPL 7726P06260 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
12
PANEL, SERVICE DWR WPL 2416F04371 Contact Us For Availability
13
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
13
SCREW WPL 7101P30960 Contact Us For Availability
13
KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
13
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
14
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
14
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
14
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
14
DRAWER WPL 3405F01680 Contact Us For Availability
14
HARNESS, COIL TOP WPL 5175D07160 Contact Us For Availability
14
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
15
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
15
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
15
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
KNOB, CLOCK WPL 7711P47860 Contact Us For Availability
16
FRAME, WINDOW WPL 3603F03680 Contact Us For Availability
17
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
17
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
17
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
18
LIGHT, INDICATOR WPL 7407P07760 Contact Us For Availability
18
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
19
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
19
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
19
LENS, INDICATOR LIGHT WPL 7730P01060 Contact Us For Availability
19
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
19
NUT, NYLON WPL 7103P04560 Contact Us For Availability
20
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
20
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
21
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
21
KNOB, CLOCK WPL 1437242 Contact Us For Availability
21
SCREW WPL 7101P31960 Contact Us For Availability
21
FRAME, DOOR (STNLS) WPL 7706P29360 Contact Us For Availability
22
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
22
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
22
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
22
TRIM, TOP WPL 7744P08860 Contact Us For Availability
23
SCREW WPL 7101P29060 Contact Us For Availability
23
SCREW WPL 7118P01360 Contact Us For Availability
24
SCREW WPL 7101P32960 Contact Us For Availability
25
INSULATION, OVEN BACK WPL 4804F03160 Contact Us For Availability
25
INSULATION, OVEN WRAPPER WPL 4804F03260 Contact Us For Availability
25
LINING, DRAWER WPL 2404F03380 Contact Us For Availability
26
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
26
END CAP (WHT) WPL 7744P09360 Contact Us For Availability
27
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
27
TAPE WPL 8270P09860 Contact Us For Availability
38
SWITCH, MICRO WPL 7403P28160 Contact Us For Availability
39
BRACKET, LIGHT SWITCH WPL 3801F31651 Contact Us For Availability
40
SPRING WPL 7803P06760 Contact Us For Availability
41
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
42
WASHER WPL 7109P02060 Contact Us For Availability
43
ROD, LIGHT SWITCH WPL 7809P01760 Contact Us For Availability
44
BUMPER WPL 8003P01260 Contact Us For Availability
45
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
× ![]()
