Model Whirlpool CRE7500BDW ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

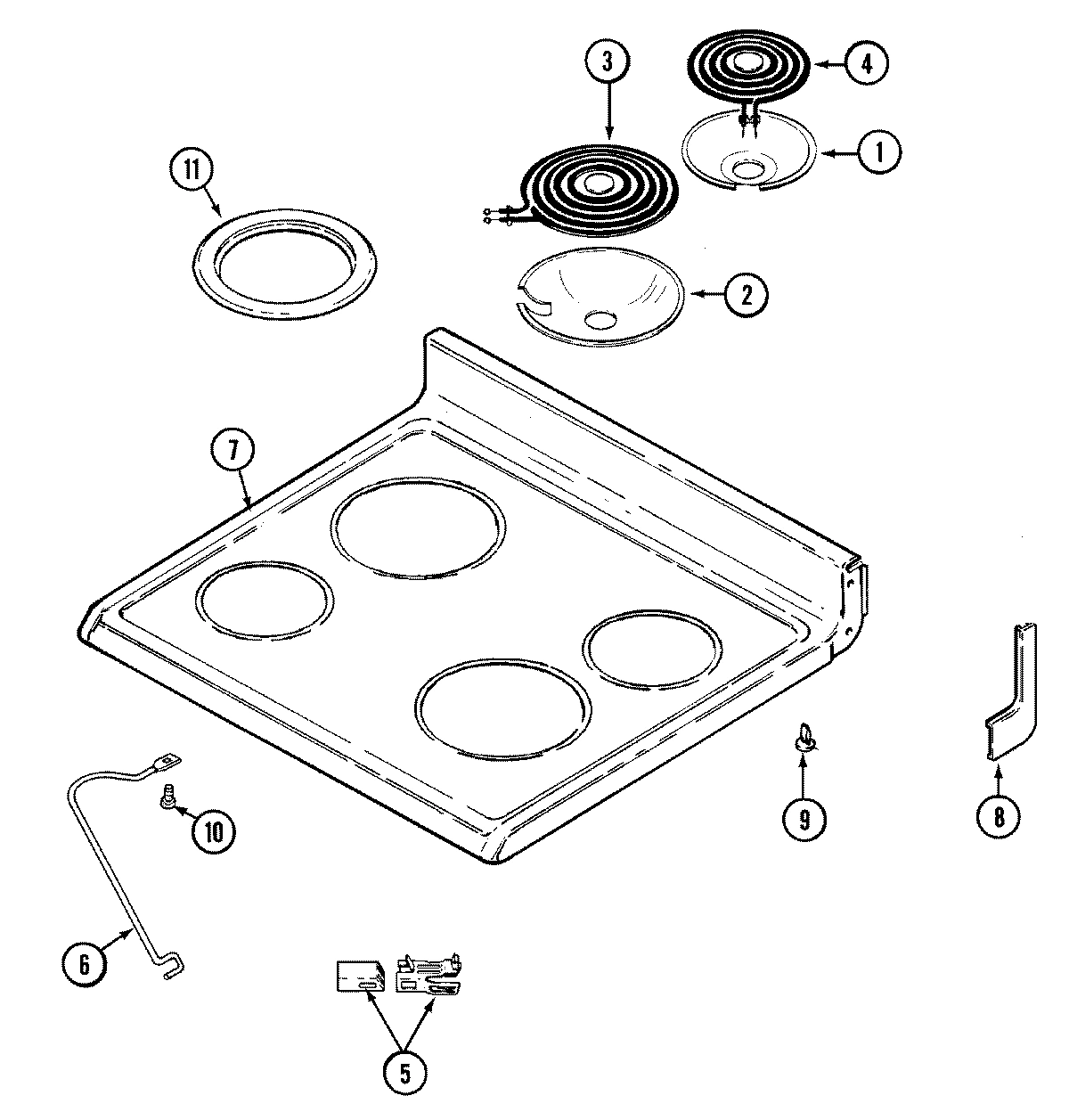

05 - TOP ASSEMBLY

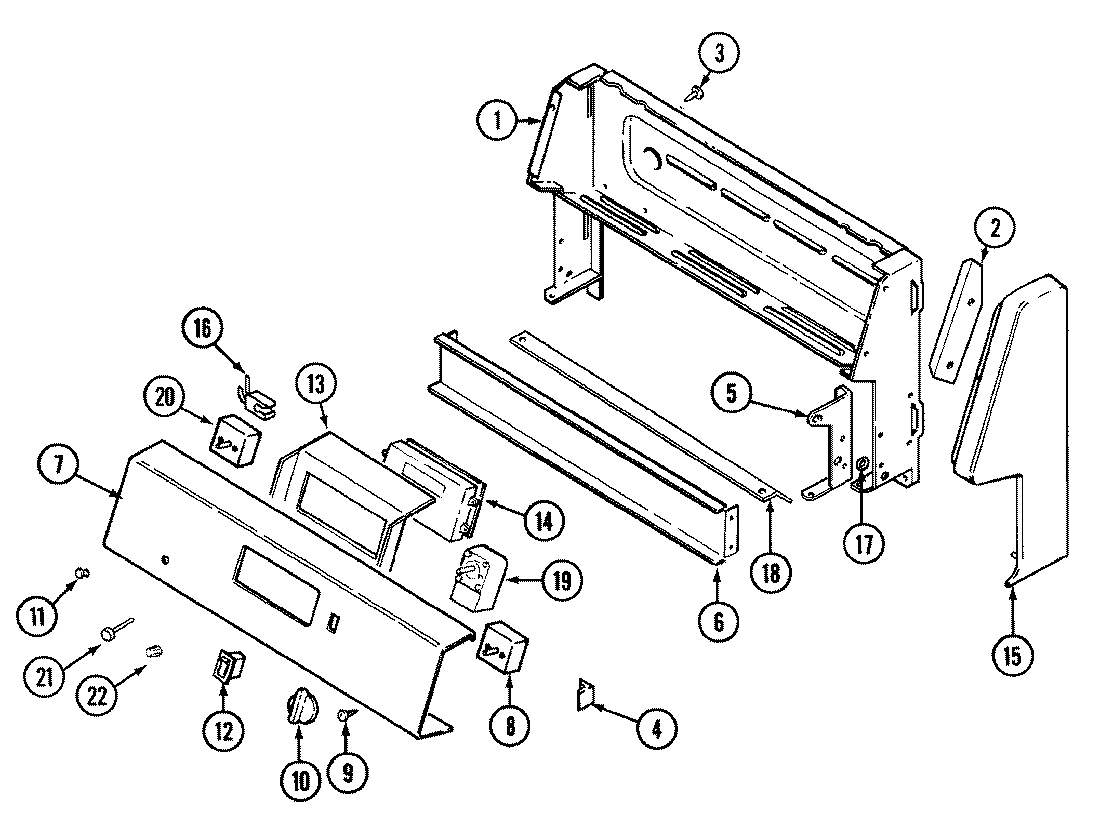

02 - CONTROL PANEL

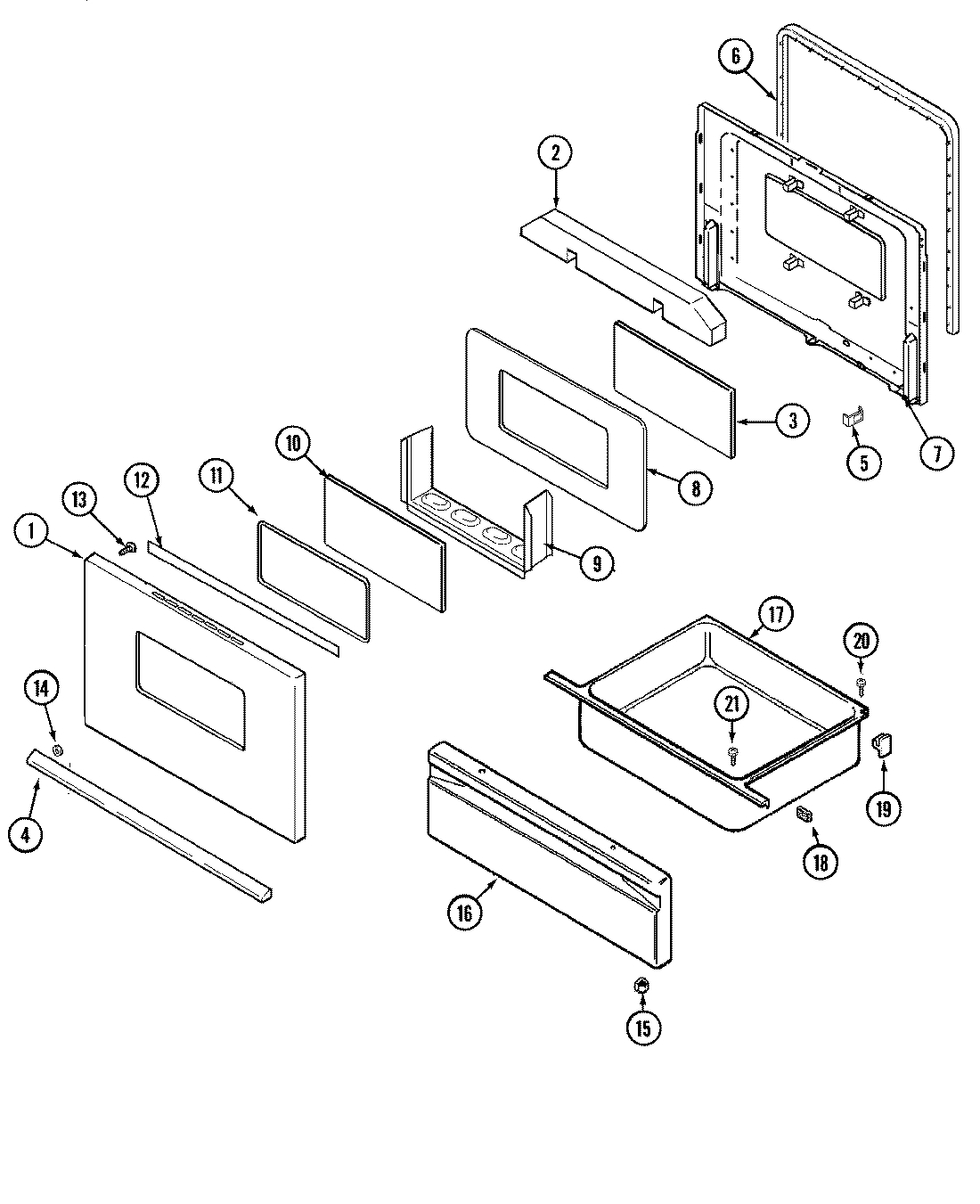

03 - DOOR/DRAWER (CRE7500BDx)

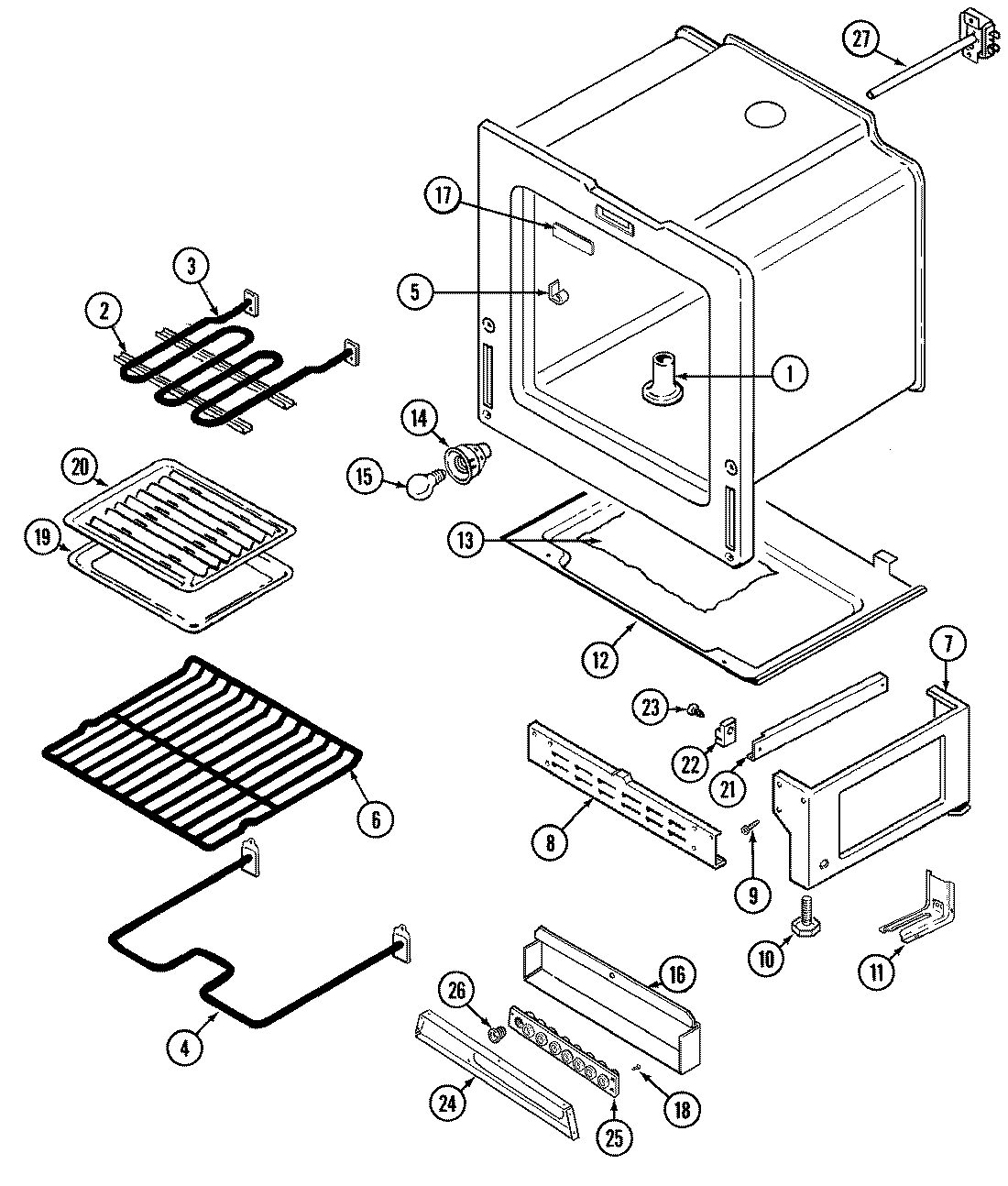

04 - OVEN/BASE

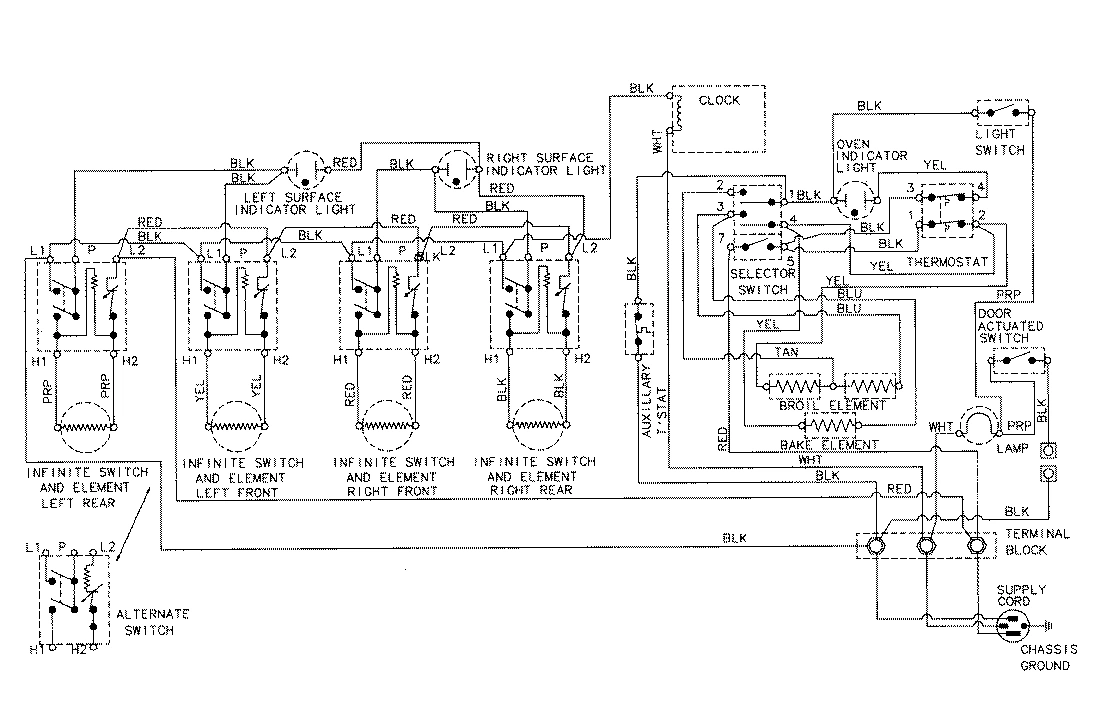

06 - WIRING INFORMATION
Common parts from model Whirlpool CRE7500BDW ELECTRIC RANGE
1
BOWL, DRIP (6`` W/HOLE)(BLK) WPL 7725P01360 Contact Us For Availability
1
BOWL, DRIP (6``) (BLK) WPL 7725P03660 Contact Us For Availability
1
BOWL, DRIP (6``SOLID)(BLK) WPL 7725P03860 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F12171 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
BOWL, DRIP (8``-BLK) WPL 7725P03760 Contact Us For Availability
2
BOWL, DRIP (8``)(BLK) WPL 7725P03960 Contact Us For Availability
2
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
2
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
2
INSULATION, DOOR WPL 74002458 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
3
BOX, BURNER WPL 4011F23919 Contact Us For Availability
3
ELEMENT (8``) (2600WATT) (BLK) WPL 74001781 Contact Us For Availability
3
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
3
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
ELEMENT (6``) (1500WATT) (BLK) WPL 74001780 Contact Us For Availability
4
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P11960 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
5
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
5
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W10381 Contact Us For Availability
7
PANEL, CONTROL WPL 7703P36860 Contact Us For Availability
7
PANEL, CONTROL----NA WPL 7703P67060 Contact Us For Availability
7
LINING, DOOR WPL 74002460 Contact Us For Availability
7
LINING, DOOR WPL 74003248 Contact Us For Availability
7
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
9
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
9
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
SUPPORT, OUTER GLASS WPL 74002462 Contact Us For Availability
10
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability
10
GLASS, DOOR (OUTER-BLK) WPL 74002463 Contact Us For Availability
10
LEG, LEVELING WPL 74001311 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
RING, TRIM (6``) WPL 7744P13060 Contact Us For Availability
11
RING, TRIM (8``) WPL 7744P13160 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
11
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
11
SCREW WPL 7101P34460 Contact Us For Availability
12
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
12
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F27445 Contact Us For Availability
13
BRACKET, CLOCK WPL 74001694 Contact Us For Availability
13
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
HINGE WPL 7106P05560 Contact Us For Availability
14
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
14
CLOCK WPL 7602P11360 Contact Us For Availability
14
CLOCK (BLK) WPL 7602P12160 Contact Us For Availability
14
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
14
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
15
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
15
END CAP (RT-BLK) WPL 7726P06160 Contact Us For Availability
15
END CAP (LT-BLK) WPL 7726P06260 Contact Us For Availability
15
NUT, LOCK WPL 7103P13960 Contact Us For Availability
15
BULB-OVEN WPL 7407P10360 Contact Us For Availability
16
BUSHING, PROP SUPPORT WPL 74001256 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
16
COVER, FUSE BLOCK WPL 4005F44551 Contact Us For Availability
17
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
17
NUT, SPEED WPL 7103P04460 Contact Us For Availability
17
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
17
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
17
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
18
COVER, VENT WPL 4005F43245 Contact Us For Availability
18
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
18
SCREW WPL 7101P06860 Contact Us For Availability
18
NUT WPL 7103P06460 Contact Us For Availability
19
SHIELD, DOOR LIGHT SWITCH WPL 74001598 Contact Us For Availability
19
THERMOSTAT WPL 7404P10560 Contact Us For Availability
19
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
BRACKET, LIGHT SWITCH WPL 3801F31651 Contact Us For Availability
20
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
20
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
20
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
20
SCREW WPL 7101P32960 Contact Us For Availability
20
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
21
KIT, LIGHT SWITCH ACTUATOR WPL 12001053 Contact Us For Availability
21
SWITCH, DOOR LIGHT WPL 74001628 Contact Us For Availability
21
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
22
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
22
INSULATOR, SWITCH WPL 7003P04760 Contact Us For Availability
22
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
22
INSULATOR, DOOR SWITCH WPL 74001626 Contact Us For Availability
22
NUT WPL 7103P08260 Contact Us For Availability
22
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
23
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
23
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
24
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
24
SPRING WPL 7803P06760 Contact Us For Availability
24
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
24
BRACKET, FUSE HOLDER WPL 74001339 Contact Us For Availability
25
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
25
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
25
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
26
BUMPER, ROD WPL 74001631 Contact Us For Availability
26
BUMPER WPL 8003P01260 Contact Us For Availability
26
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
26
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
27
CORD, POWER WPL 7402P05060 Contact Us For Availability
27
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D16960 Contact Us For Availability
NI
HARNESS, WIRE CONTROL PANEL WPL 74001610 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8111P01960 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002230 Contact Us For Availability
× ![]()
