Model Whirlpool CRE7500ADL ELECTRIC RANGE – Common Parts & Diagrams

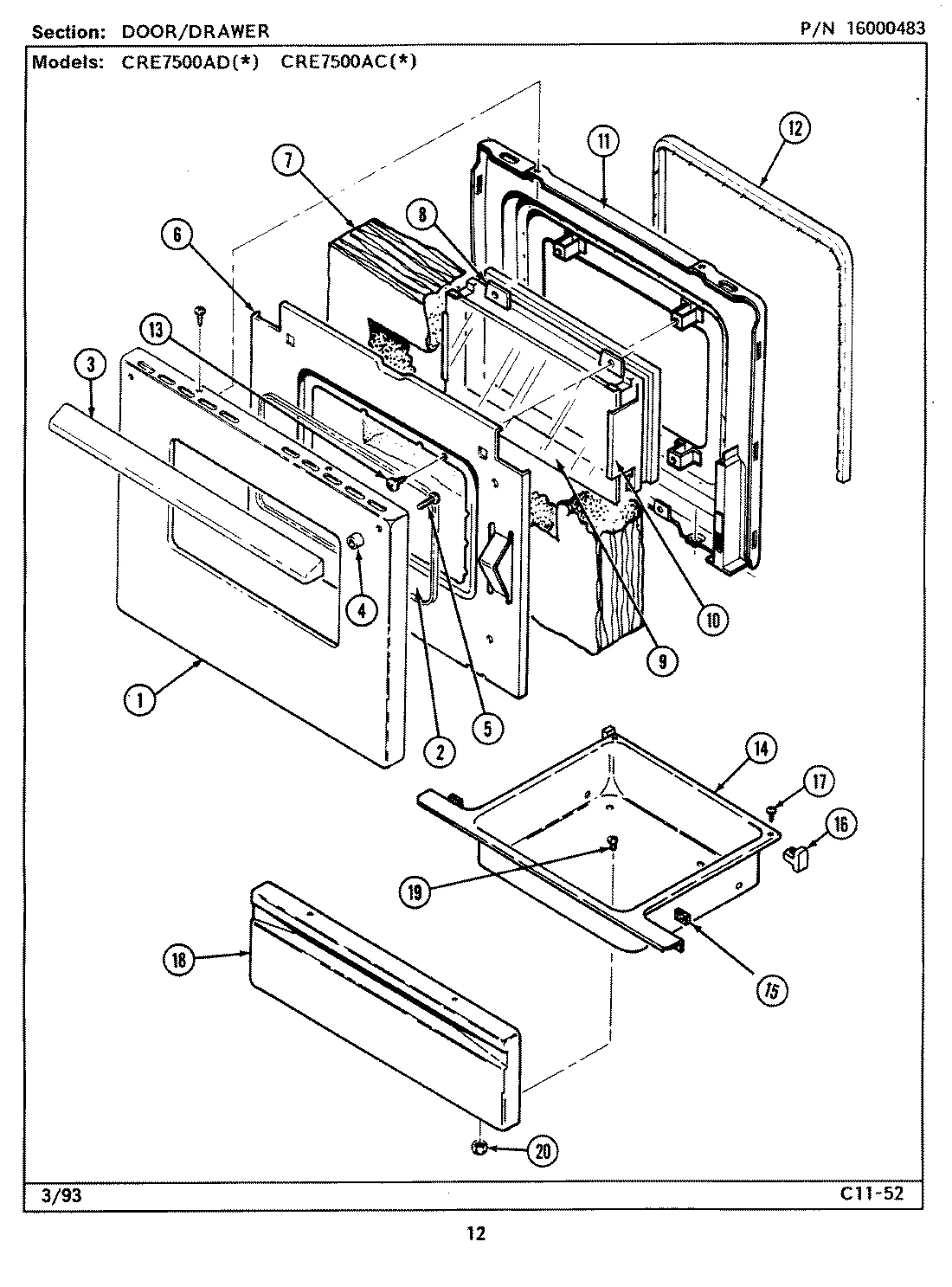

02 - DOOR/DRAWER

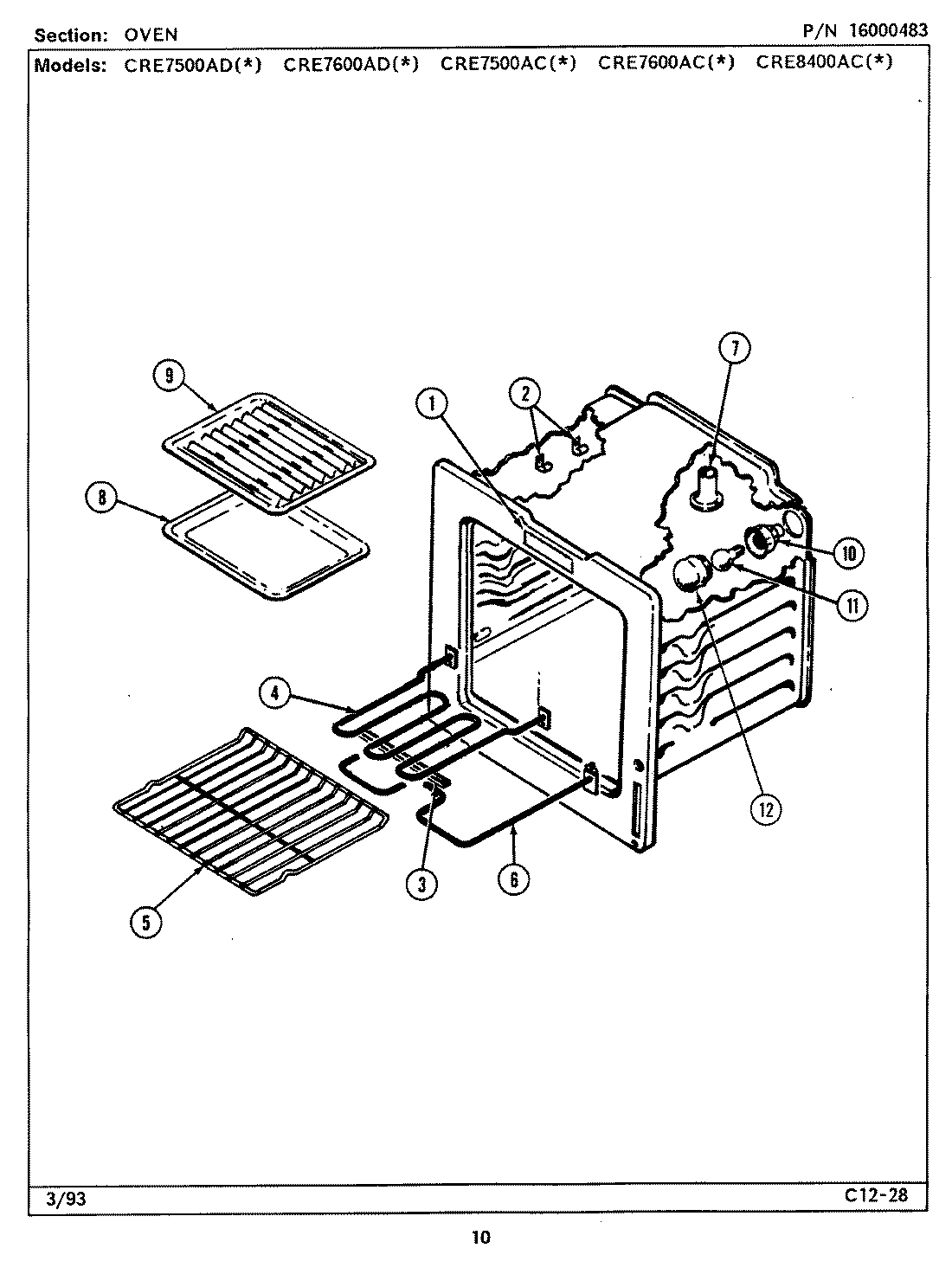

03 - OVEN

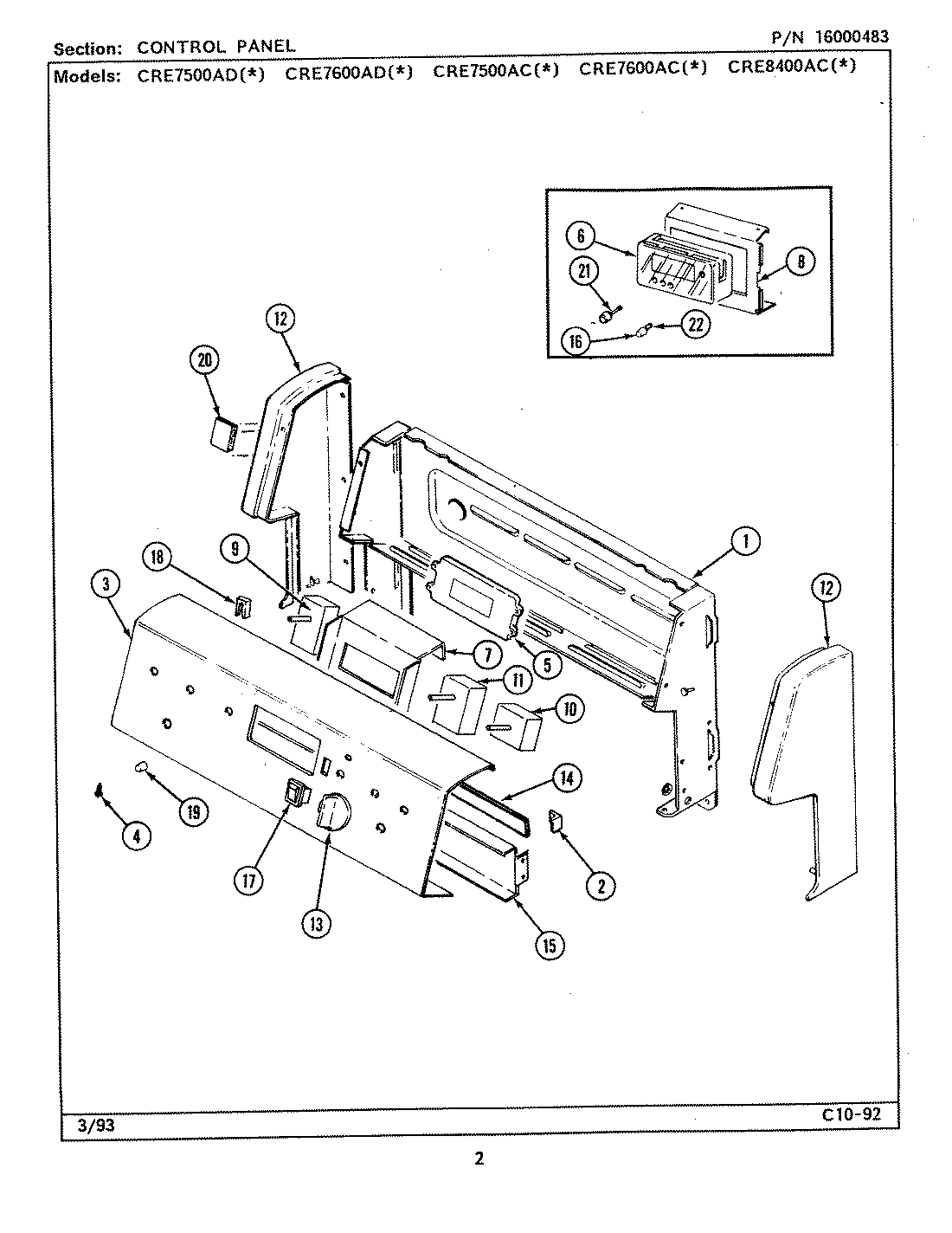

01 - CONTROL PANEL
Common parts from model Whirlpool CRE7500ADL ELECTRIC RANGE
1
PANEL, DOOR (WHT) WPL 2401F09771 Contact Us For Availability
1
PANEL, DOOR (ALM) WPL 2401F09774 Contact Us For Availability
1
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
1
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09451 Contact Us For Availability
2
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
3
HANDLE, DOOR (BLK) WPL 7701P11960 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
3
SCREW WPL 7101P33460 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P36860 Contact Us For Availability
4
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
4
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
4
SCREW WPL 7118P01960 Contact Us For Availability
5
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
5
RACK----NA WPL 7801P03960 Contact Us For Availability
5
CLOCK WPL 7602P11360 Contact Us For Availability
6
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
6
SCREW WPL 7101P29060 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
7
TUBE, VENT WPL 8026P01960 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F27445 Contact Us For Availability
8
FRAME, WINDOW WPL 3603F03780 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
9
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
9
GLASS, SCREENED WPL 7902P32060 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
10
WINDOW ASY. WPL 7907P01560 Contact Us For Availability
10
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
10
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
11
BULB, OVEN WPL 7407P09560 Contact Us For Availability
11
THERMOSTAT WPL 7404P08160 Contact Us For Availability
12
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
12
END CAP (RT-BLK) WPL 7726P06160 Contact Us For Availability
12
END CAP (LT-BLK) WPL 7726P06260 Contact Us For Availability
13
SCREW WPL 7101P30960 Contact Us For Availability
13
KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
14
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
14
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
15
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
15
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
16
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
17
SCREW WPL 7101P32960 Contact Us For Availability
17
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
18
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
18
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
18
LIGHT, INDICATOR WPL 7407P07760 Contact Us For Availability
18
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
19
SCREW WPL 7101P11560 Contact Us For Availability
19
LENS, INDICATOR LIGHT WPL 7730P01060 Contact Us For Availability
19
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
20
NUT, LOCK WPL 7103P08560 Contact Us For Availability
20
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
21
HARNESS, CONTROL PANEL WPL 5170D16960 Contact Us For Availability
× ![]()
