Model Whirlpool CPL1100BDW16 GAS RANGE – Common Parts & Diagrams

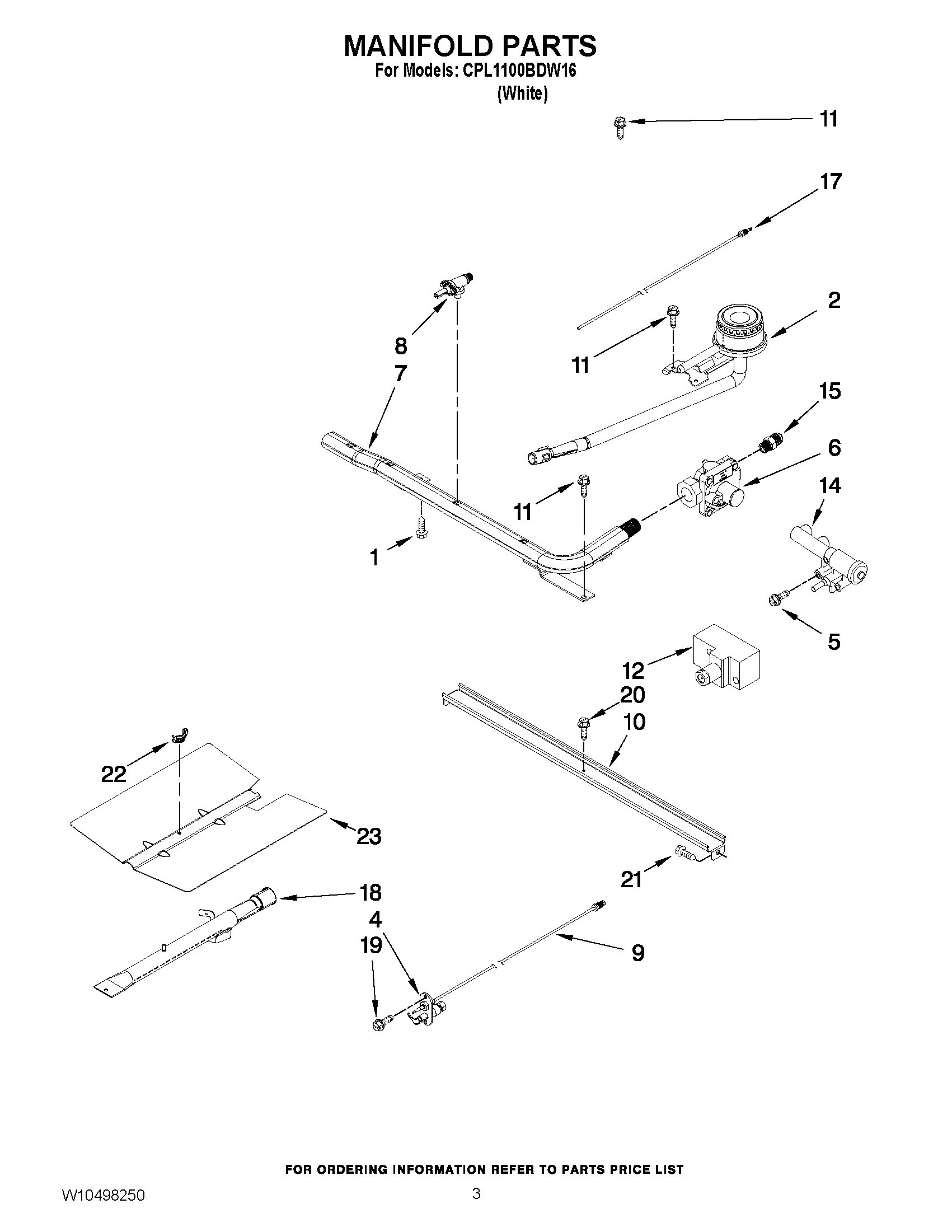

03 - MANIFOLD PARTS

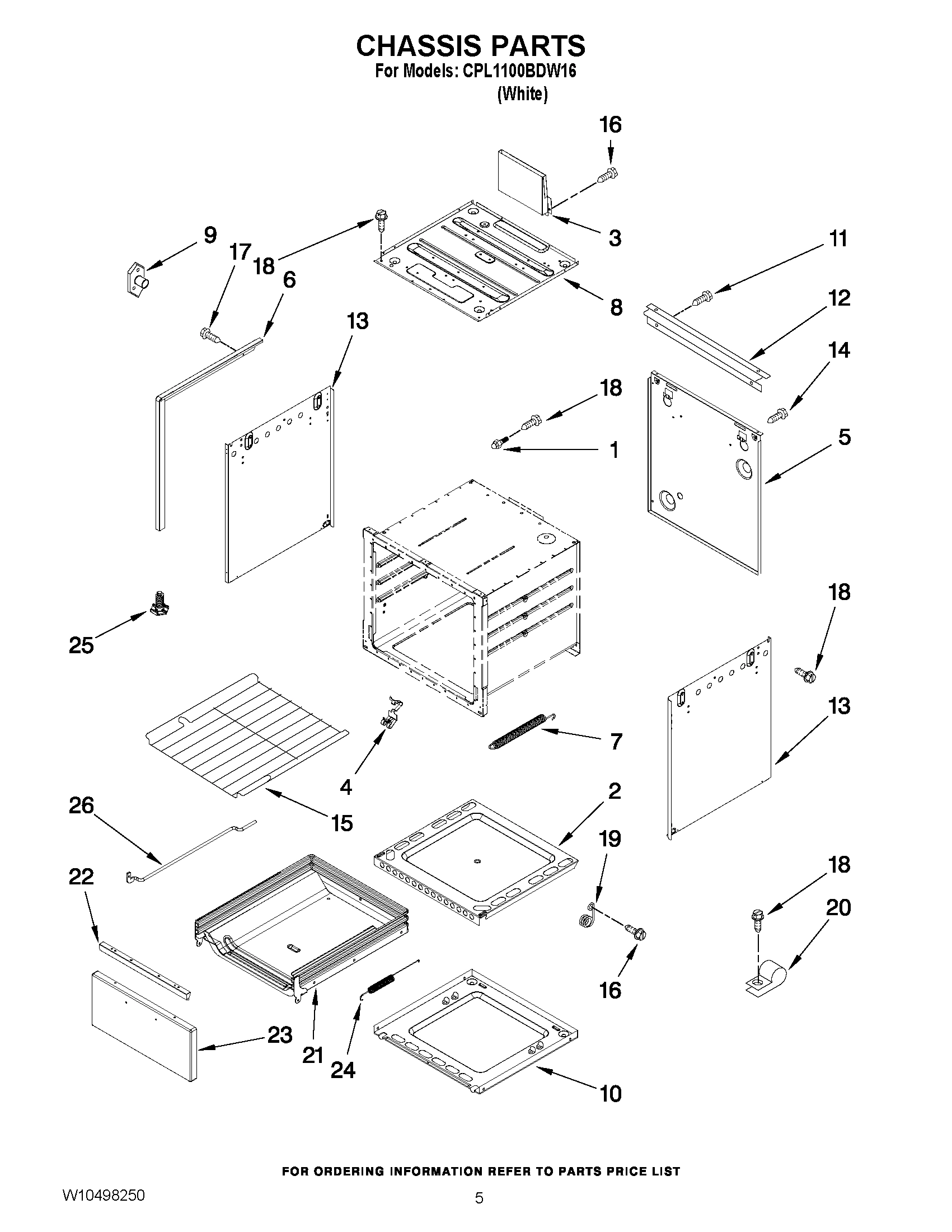

04 - CHASSIS PARTS

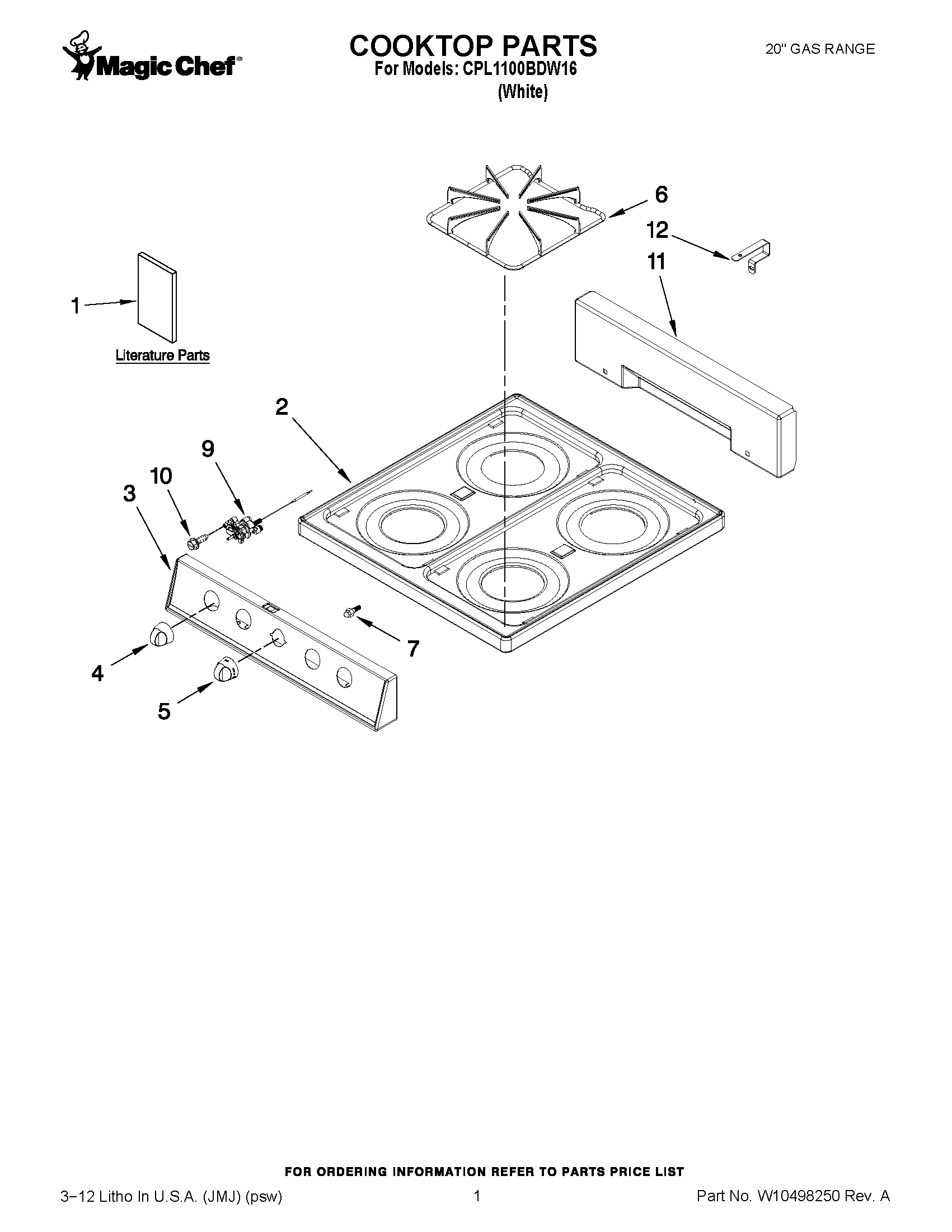

01 - COOKTOP PARTS

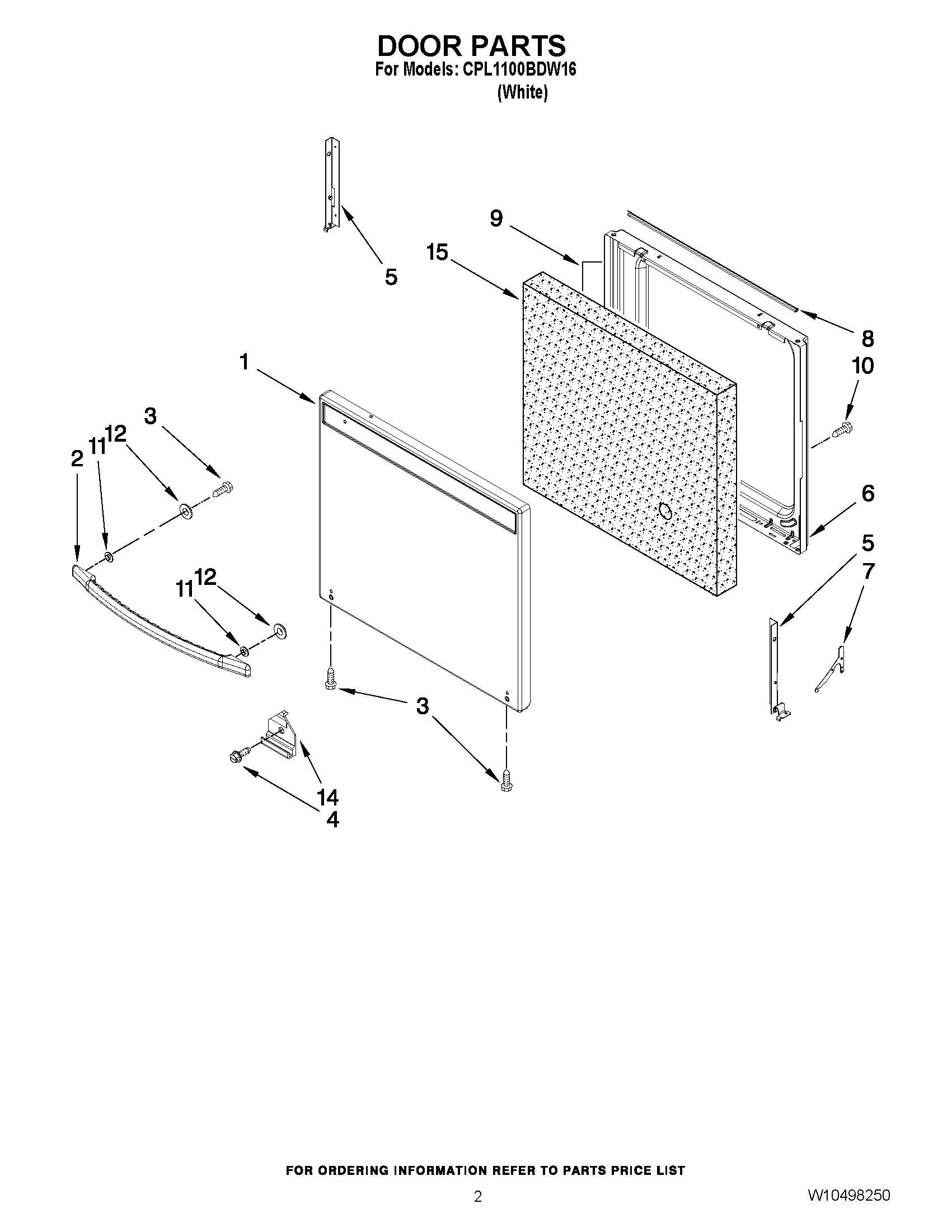

02 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool CPL1100BDW16 GAS RANGE
1
STRIKE, MAIN WPL 8024P00360 Contact Us For Availability
1
INSTRUCTIONS INSTALLATION (FRENCH) WPL 8101P38160 Contact Us For Availability
1
INSTRUCTIONS INSTALLATION (ENGLISH) WPL 8101P63460 Contact Us For Availability
1
USE & CARE GUIDE (ENGLISH) WPL 8113P70560 Contact Us For Availability
1
USE & CARE GUIDE (FRENCH) WPL 8113P70660 Contact Us For Availability
1
Safer Cooking Tips (English) WPL 9762761 Contact Us For Availability
1
Safer Cooking Tips (French) WPL W10065852 Contact Us For Availability
1
PANEL, DOOR WPL 2401W05971 Contact Us For Availability
2
BOTTOM, OVEN WPL 5720A00323 Contact Us For Availability
2
COOKTOP (WHITE) WPL 2001F05081 Contact Us For Availability
2
HANDLE, DOOR WPL 2411F01171 Contact Us For Availability
3
BOX, FLUE WPL 4006W13351 Contact Us For Availability
3
PANEL, MANIFOLD WPL 2616F39671 Contact Us For Availability
3
SCREW WPL 7101P51060 Contact Us For Availability
4
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
4
Screw WPL 7101P63360 Contact Us For Availability
4
KNOB, BURNER WPL 7733P44560 Contact Us For Availability
5
BACK MAIN WPL 4002F35351 Contact Us For Availability
5
KNOB, OVEN WPL 7731P21260 Contact Us For Availability
5
HINGE, DOOR WPL 3818F05334 Contact Us For Availability
6
TRIM, SIDE (RIGHT) WPL 3608F14770 Contact Us For Availability
6
TRIM, SIDE (LEFT) WPL 3608F14870 Contact Us For Availability
6
GRATE, BURNER WPL 7518P46360 Contact Us For Availability
6
LINING, DOOR WPL 2402W10219 Contact Us For Availability
7
SPRING, DOOR WPL 7803P03260 Contact Us For Availability
7
CATCH, TOP WPL 8002P02260 Contact Us For Availability
7
ARM, SPRING WPL 3807F29134 Contact Us For Availability
8
VALVE, BURNER WPL 7502P55160 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL 4011F50751 Contact Us For Availability
8
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
9
TUBING, PILOT WPL 7506P52060 Contact Us For Availability
9
T-NUT WPL 7103P10560 Contact Us For Availability
9
THERMOSTAT WPL 7515P04760 Contact Us For Availability
9
SEAL, DOOR (SIDES) WPL 7212P01560 Contact Us For Availability
10
SUPPORT, BURNER WPL 3807F71851 Contact Us For Availability
10
BOTTOM, MAIN WPL 4011F32551 Contact Us For Availability
10
Screw WPL 7101P50060 Contact Us For Availability
10
SCREW WPL 7101P65160 Contact Us For Availability
11
PANEL, BACKGUARD WPL 2602F36571 Contact Us For Availability
11
SPACER, HANDLE WPL 8010P13660 Contact Us For Availability
12
ELBOW, BLOCK WPL 7527P11560 Contact Us For Availability
12
SHIELD, DEFLECTOR WPL 3604F12245 Contact Us For Availability
12
BRKT, BACKGUARD WPL 3801F93751 Contact Us For Availability
12
SPACER, NYLON WPL 8010P12560 Contact Us For Availability
13
PANEL, SIDE WPL 2618F19371 Contact Us For Availability
14
FITTING, BAKE WPL 7507P42260 Contact Us For Availability
14
Screw WPL 7101P33860 Contact Us For Availability
14
CLIP, GLASS (BLACK MODEL ONLY) WPL 7112P02960 Contact Us For Availability
15
FITTING, UNION WPL 7507P38860 Contact Us For Availability
15
RACK, OVEN WPL 7801P15160 Contact Us For Availability
15
INSULATION, DOOR WPL 7002P42960 Contact Us For Availability
17
TUBING, GAS (OVEN) WPL 7506P51860 Contact Us For Availability
17
SCREW WPL 7101P30160 Contact Us For Availability
18
SCREW WPL 7101P37660 Contact Us For Availability
18
BURNER, OVEN WPL 7505P25260 Contact Us For Availability
19
SCREW WPL 7101P18860 Contact Us For Availability
19
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
20
CLAMP, WIRE WPL 7111P00960 Contact Us For Availability
21
SCREW WPL 7101P49860 Contact Us For Availability
21
DRAWER, BROILER WPL 3407W00519 Contact Us For Availability
22
WING NUT WPL 7103P03060 Contact Us For Availability
22
HANDLE, DRAWER WPL 2411F01271 Contact Us For Availability
23
SPREADER, FLAME WPL 3601P28145 Contact Us For Availability
23
PANEL, DRAWER WPL 2416F10371 Contact Us For Availability
24
SPRING, DRAWER WPL 7803P06860 Contact Us For Availability
25
Leg, Leveling WPL 7101P50760 Contact Us For Availability
26
ROD, RUNNER (LEFT) WPL 3808F00761 Contact Us For Availability
26
ROD, RUNNER (RIGHT) WPL 3808F00861 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P49560 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BRKT, ANTI-TIP) WPL 3801F65651 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (SCREW, ANTI-TIP) WPL 7101P48560 Contact Us For Availability
× ![]()
