Model Whirlpool CLZ8560ADB15 GAS RANGE – Common Parts & Diagrams

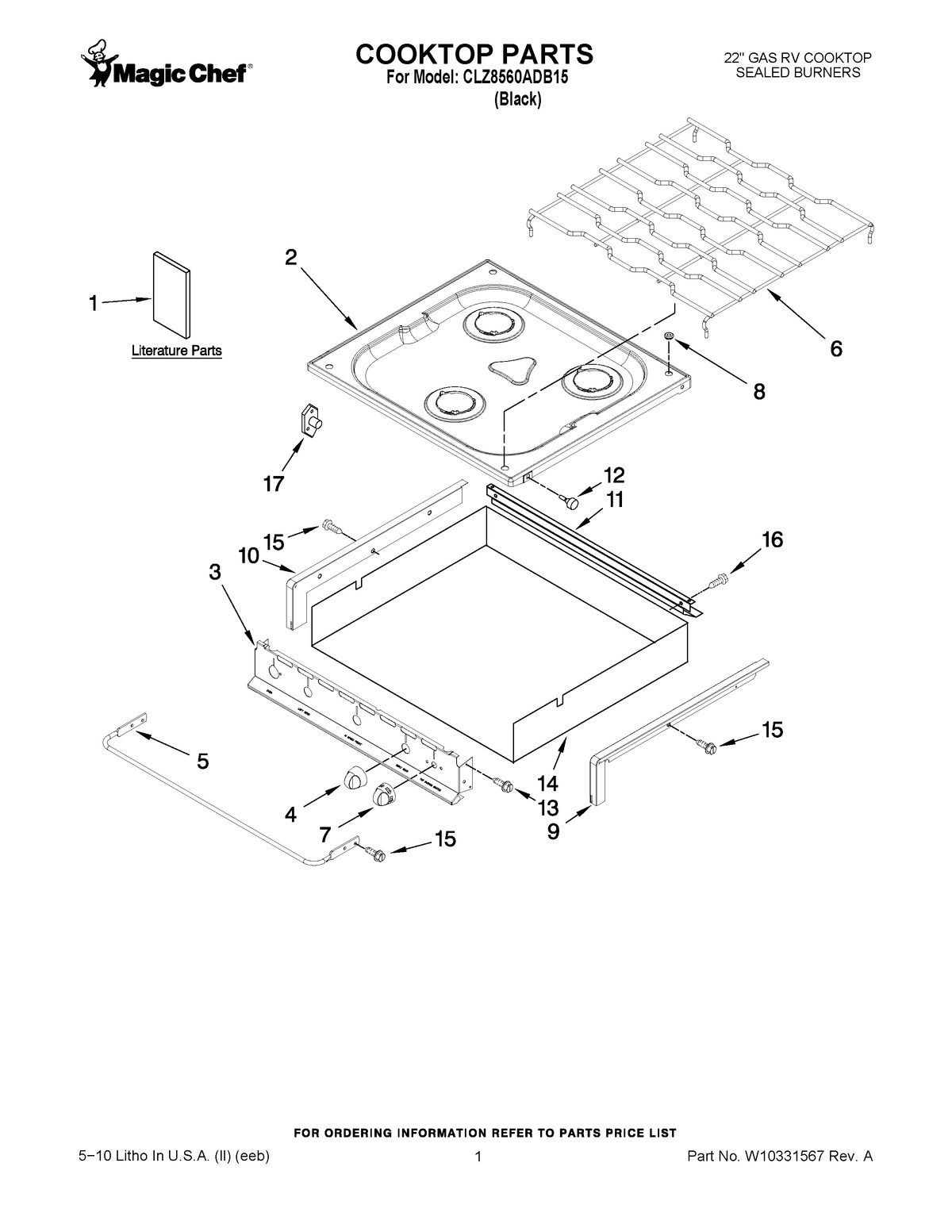

01 - COOKTOP PARTS
03 - OPTIONAL PARTS (NOT INCLUDED)

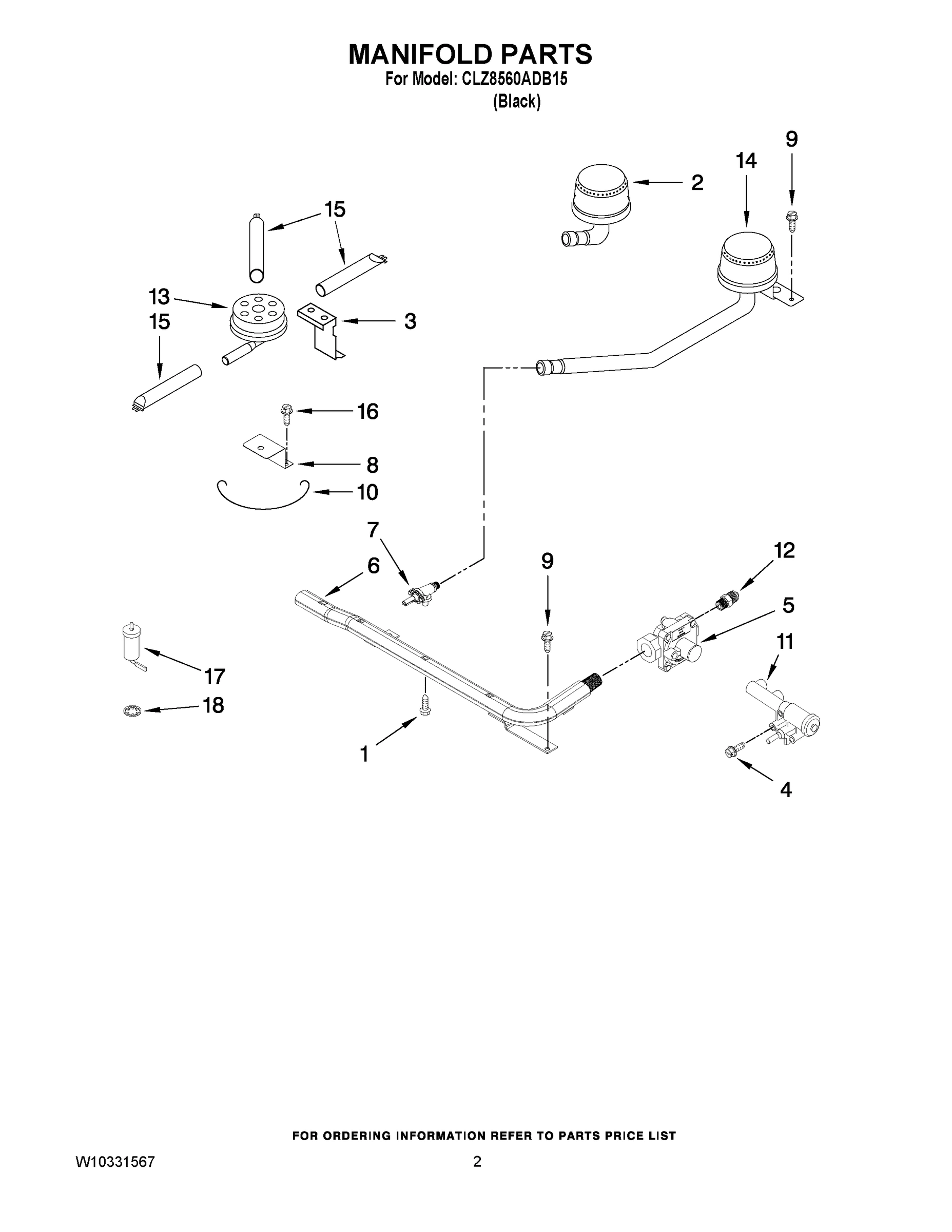

02 - MANIFOLD PARTS
Common parts from model Whirlpool CLZ8560ADB15 GAS RANGE
1
USE & CARE GUIDE WPL 8110P27460 Contact Us For Availability
1
Safer Cooking Tips (English) WPL 9762761 Contact Us For Availability
1
Safer Cooking Tips (French) WPL W10065852 Contact Us For Availability
1
SCREW WPL 7101P63960 Contact Us For Availability
2
COOKTOP (BLACK) WPL 2001F30209 Contact Us For Availability
2
BURNER, FRONT WPL 7505P26360 Contact Us For Availability
3
PANEL, MANIFOLD WPL 2616F31870 Contact Us For Availability
3
SHIELD WPL 3604F21145 Contact Us For Availability
4
KNOB, BURNER (3) (FRONT) WPL 7733P19960 Contact Us For Availability
4
KNOB, BURNER (3) (LR, RR) WPL 7733P20060 Contact Us For Availability
4
Screw WPL 7101P34760 Contact Us For Availability
5
GUARD, FABRIC WPL 3609F00670 Contact Us For Availability
5
REGULATOR WPL 7510P07860 Contact Us For Availability
6
GRATE, BURNER WPL 7518P41860 Contact Us For Availability
6
PIPE, MANIFOLD WPL 7513P47660 Contact Us For Availability
7
KNOB, IGNITOR WPL 7739P11760 Contact Us For Availability
7
VALVE, BURNER (LR, RR) WPL 7502P52360 Contact Us For Availability
7
VALVE, BURNER (FRONT) WPL 7502P52460 Contact Us For Availability
8
SUPPORT, BURNER WPL 3807F46245 Contact Us For Availability
9
TRIM, TOP RIGHT WPL 3608W05170 Contact Us For Availability
9
SCREW WPL 7101P22960 Contact Us For Availability
10
TRIM, TOP LEFT WPL 3608W05270 Contact Us For Availability
10
CLIP WPL 7112P06860 Contact Us For Availability
11
TRIM, TOP REAR WPL 3608F07470 Contact Us For Availability
11
IGNITOR, PIEZO WPL 7432P08560 Contact Us For Availability
12
BUMPER WPL 8003P00860 Contact Us For Availability
12
FITTING, UNION WPL 7507P28060 Contact Us For Availability
13
CUP/TUBE, ASSEMBLY WPL 7506P15460 Contact Us For Availability
14
BOX, BURNER WPL 4011W35551 Contact Us For Availability
14
BURNER, REAR RIGHT WPL 7505P26460 Contact Us For Availability
14
BURNER, REAR LEFT WPL 7505P26560 Contact Us For Availability
15
SCREW WPL 7101P14160 Contact Us For Availability
15
NUT WPL 7103P08260 Contact Us For Availability
15
EXTENSION, TUBING (FRONT) WPL 7506P15260 Contact Us For Availability
15
EXTENSION, TUBING (REAR) WPL 7506P15360 Contact Us For Availability
16
Screw WPL 7101P63360 Contact Us For Availability
16
SCREW WPL 7101P35660 Contact Us For Availability
17
T-NUT WPL 7103P10960 Contact Us For Availability
17
IGNITOR, TOP WPL 7432P07760 Contact Us For Availability
18
CLIP, IGNITOR WPL 7104P00260 Contact Us For Availability
× ![]()
