Model Whirlpool CHEA700BCB ELECTRIC RANGE – Common Parts & Diagrams

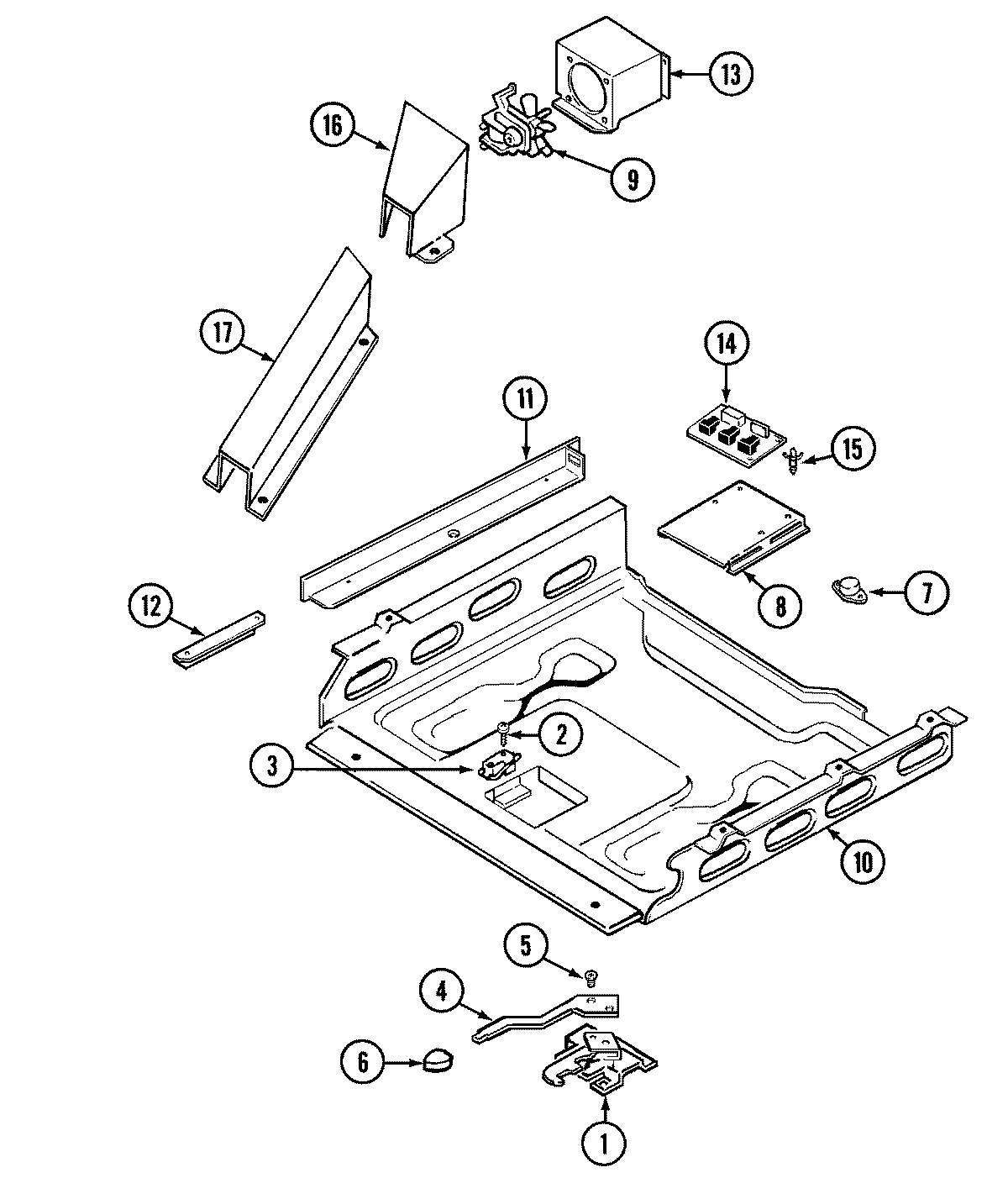

03 - INTERNAL CONTROLS

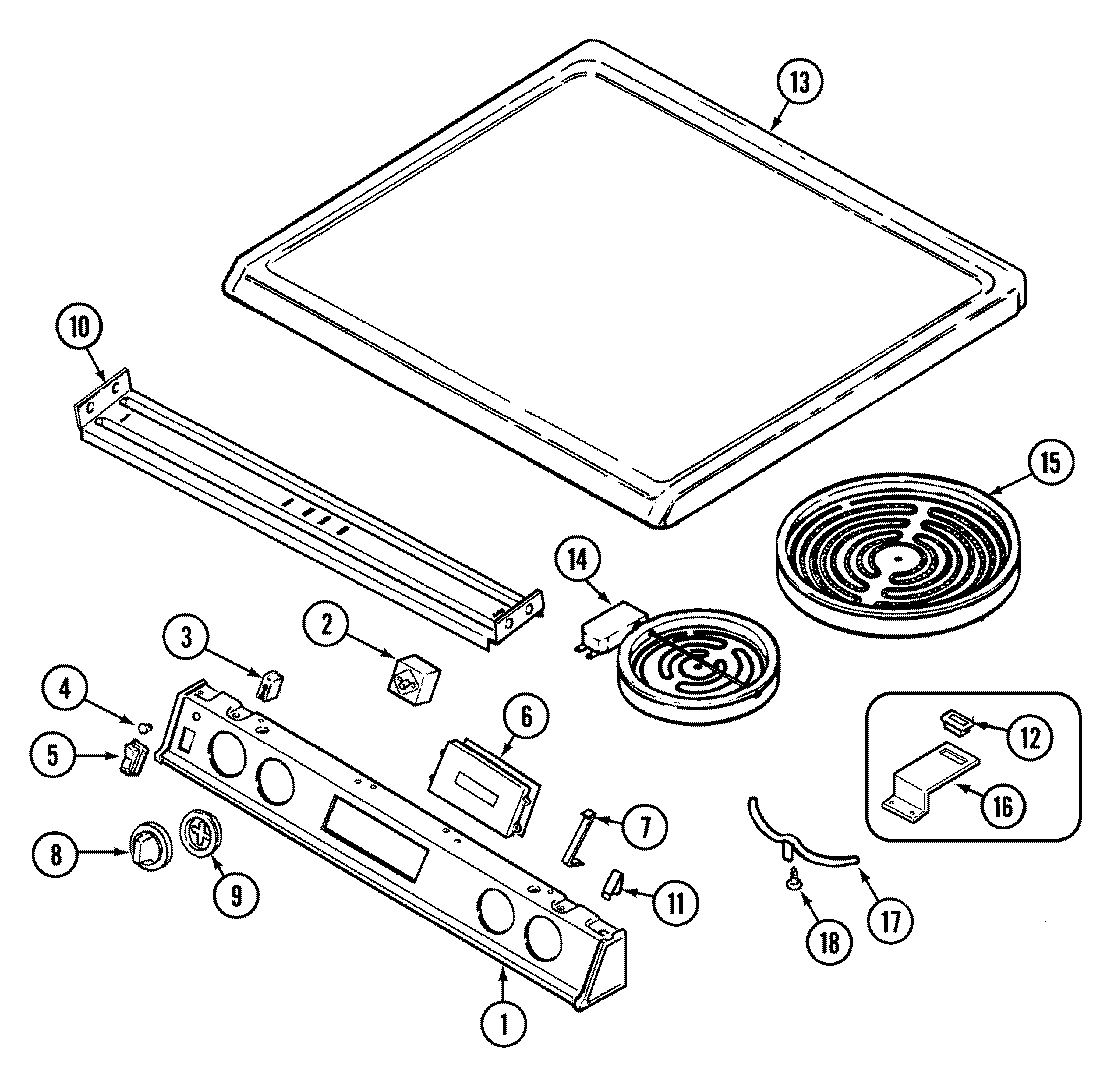

05 - TOP ASSEMBLY

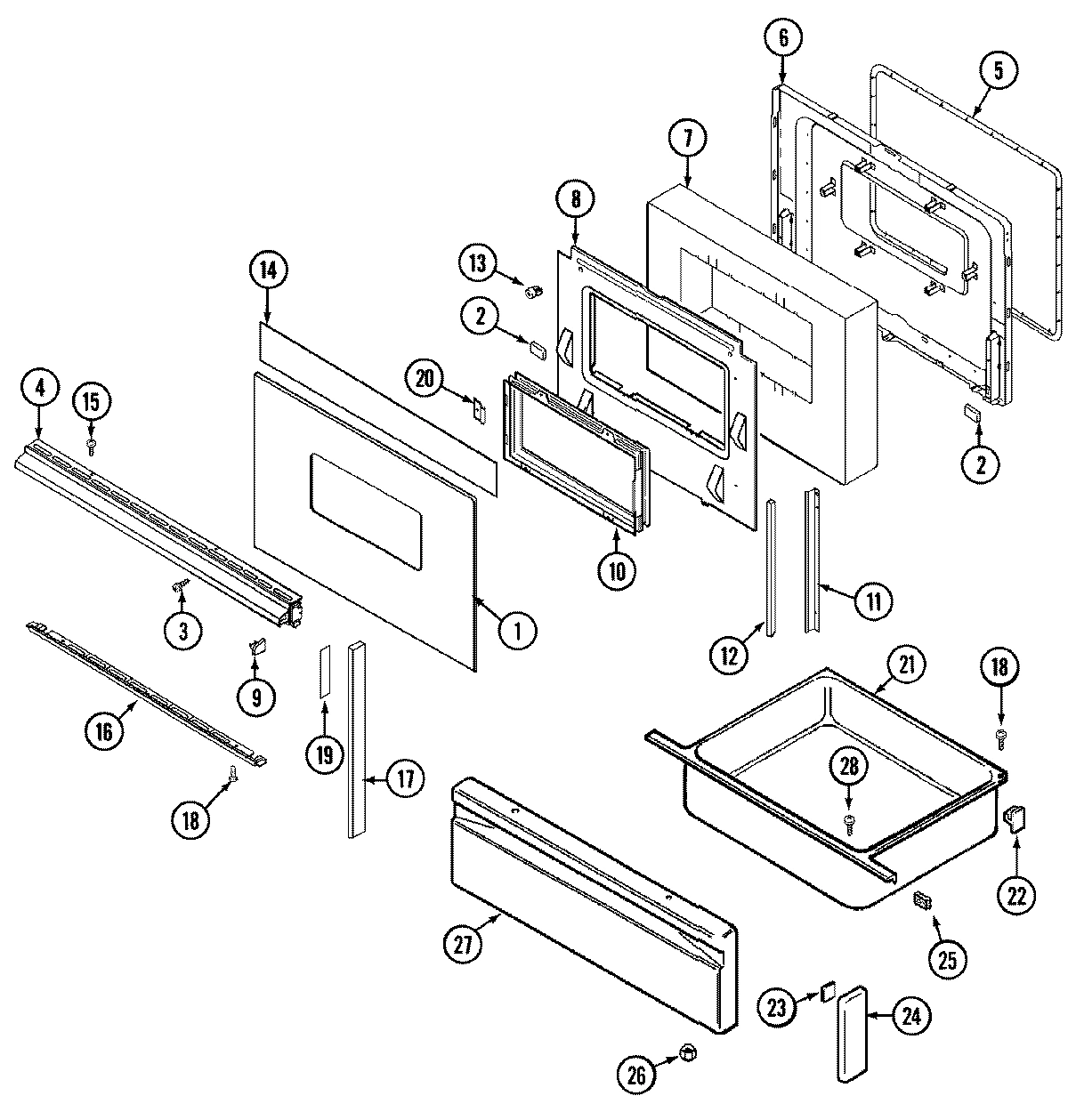

02 - DOOR/DRAWER

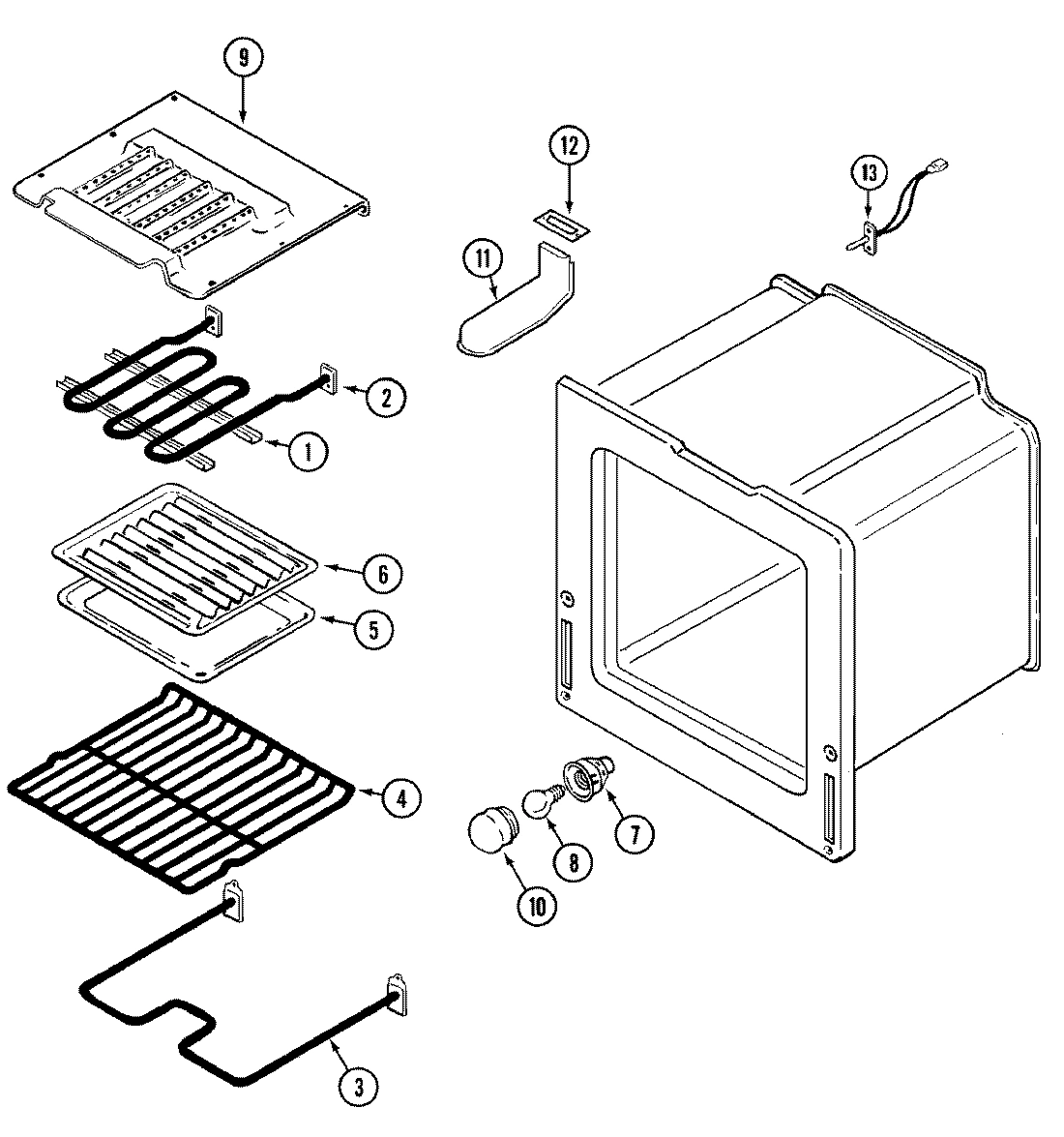

04 - OVEN

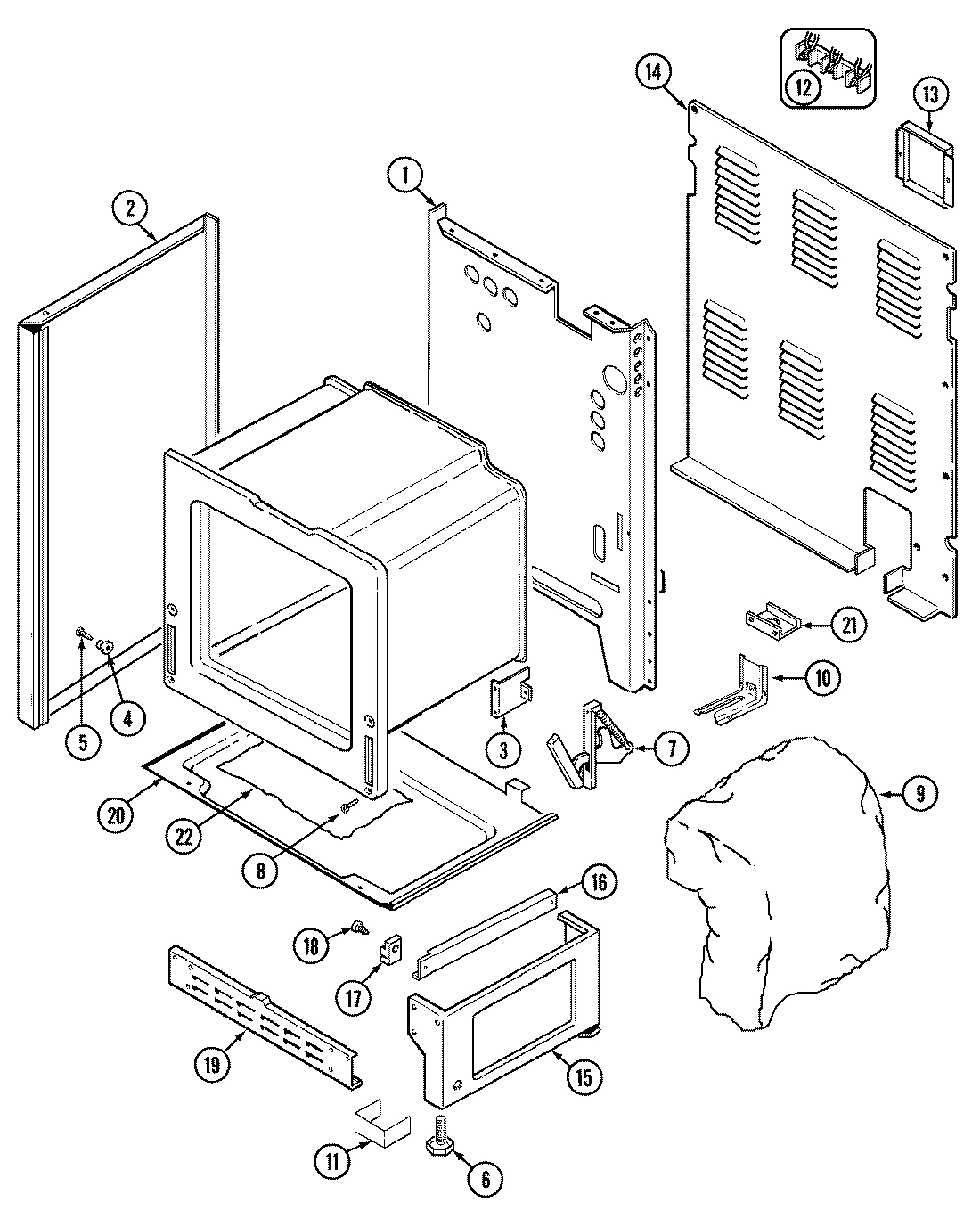

01 - BODY
Common parts from model Whirlpool CHEA700BCB ELECTRIC RANGE
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
1
PANEL, UPPER FRONT (BLK) WPL 74001647 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
BACK, MAIN WPL 74001582 Contact Us For Availability
2
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
PANEL, SIDE (LT-BLK) WPL 2618F10670 Contact Us For Availability
2
PANEL, SIDE (RT-BLK) WPL 2618F10770 Contact Us For Availability
3
SCREW WPL 7101P03160 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
3
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
SCREW WPL 7101P29160 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
4
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW WPL 7101P33460 Contact Us For Availability
6
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
6
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
6
CLOCK (BLK) WPL 74001636 Contact Us For Availability
6
LINING, DOOR WPL 2402W20219 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
LEG, LEVELING WPL 7101P31660 Contact Us For Availability
7
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F34951 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
HINGE WPL 7106P05660 Contact Us For Availability
8
COVER, DOOR LOCK WPL 4005F46651 Contact Us For Availability
8
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
SCREW WPL 7101P11560 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
9
BEZEL, KNOB (BLK) WPL 7740P02060 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
INSULATION, WRAPPER WPL 74001573 Contact Us For Availability
9
INSULATION, BACK WPL 74001800 Contact Us For Availability
10
BOX, BURNER WPL 4011F25080 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
10
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
11
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
11
COVER, VENT WPL 4005F45351 Contact Us For Availability
11
BOX, VENT WPL 4006W11245 Contact Us For Availability
11
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
12
BRACKET WPL 3801F32751 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P09860 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
GASKET, VENT WPL 7201P06060 Contact Us For Availability
12
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
13
CHANNEL, AIR WPL 3818F05951 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09851 Contact Us For Availability
13
TOP ASSY. (BLK GLASS/BLK FRM) WPL 5706S05709 Contact Us For Availability
13
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
13
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
13
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
14
BOARD, RELAY WPL 7428P02160 Contact Us For Availability
14
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
14
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
14
COVER, WIRE WPL 4005F44751 Contact Us For Availability
15
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
15
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
15
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
16
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
16
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
16
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
17
CHANNEL, BOTTOM WPL 3818F05451 Contact Us For Availability
17
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
17
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
18
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
18
SCREW WPL 7101P10360 Contact Us For Availability
19
TAPE, SEALING ROLL WPL 8270P04860 Contact Us For Availability
19
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
20
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
21
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
21
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
22
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
22
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
23
TAPE WPL 8270P09860 Contact Us For Availability
24
END CAP (BLK) WPL 7744P06860 Contact Us For Availability
25
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
26
NUT, LOCK WPL 7103P08560 Contact Us For Availability
27
PANEL, DRAWER (BLK) WPL 2416F03865 Contact Us For Availability
28
SCREW WPL 7101P07260 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P22860 Contact Us For Availability
NI
HARNESS, COOKTOP TO SWITCH WPL 5175D07560 Contact Us For Availability
NI
HARNESS, PANEL WPL 5195D09760 Contact Us For Availability
NI
HARNESS, CLOCK/RELAY WPL 74001583 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74001673 Contact Us For Availability
× ![]()
