Model Whirlpool CHE9800ACE ELECTRIC RANGE – Common Parts & Diagrams

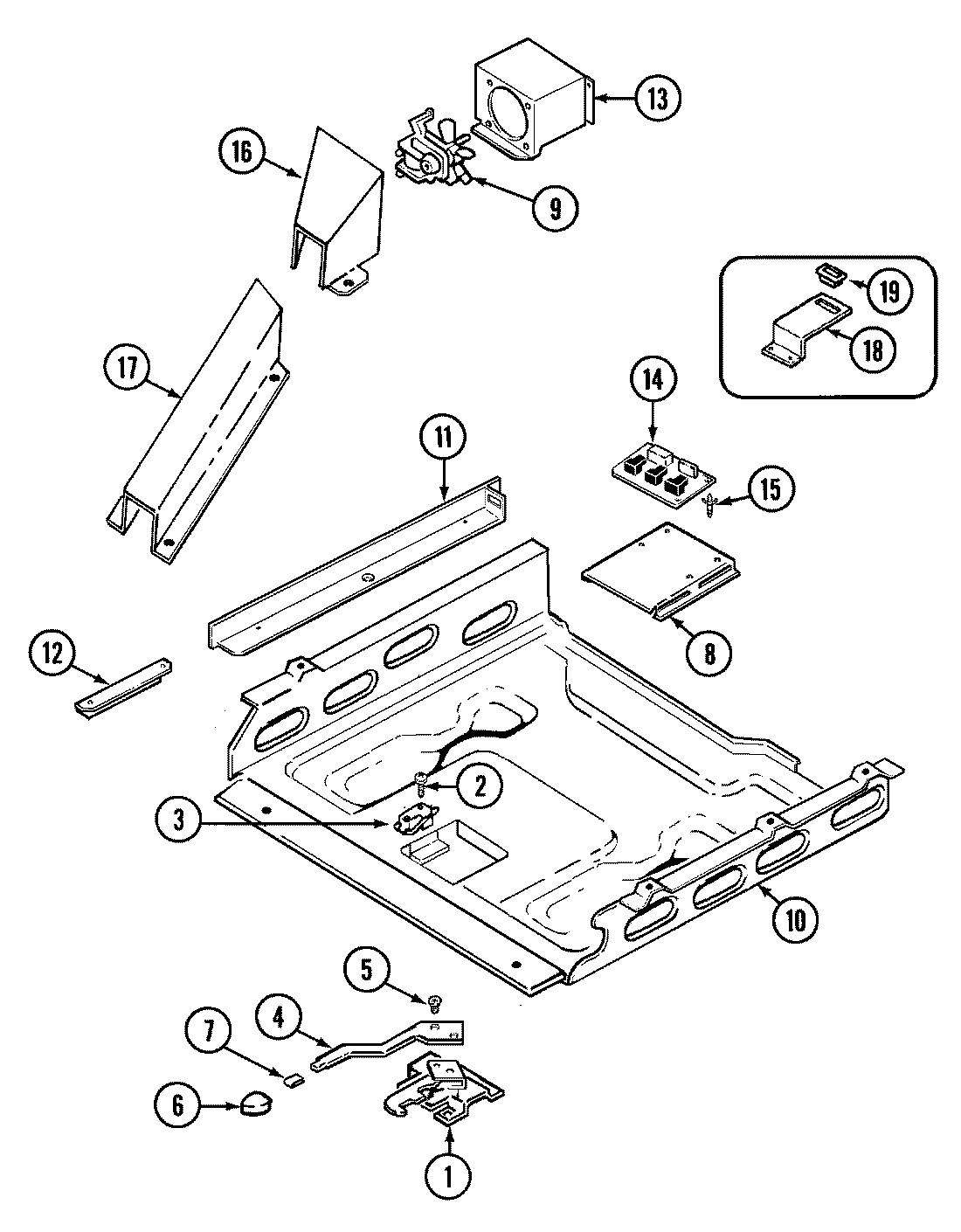

03 - INTERNAL CONTROLS

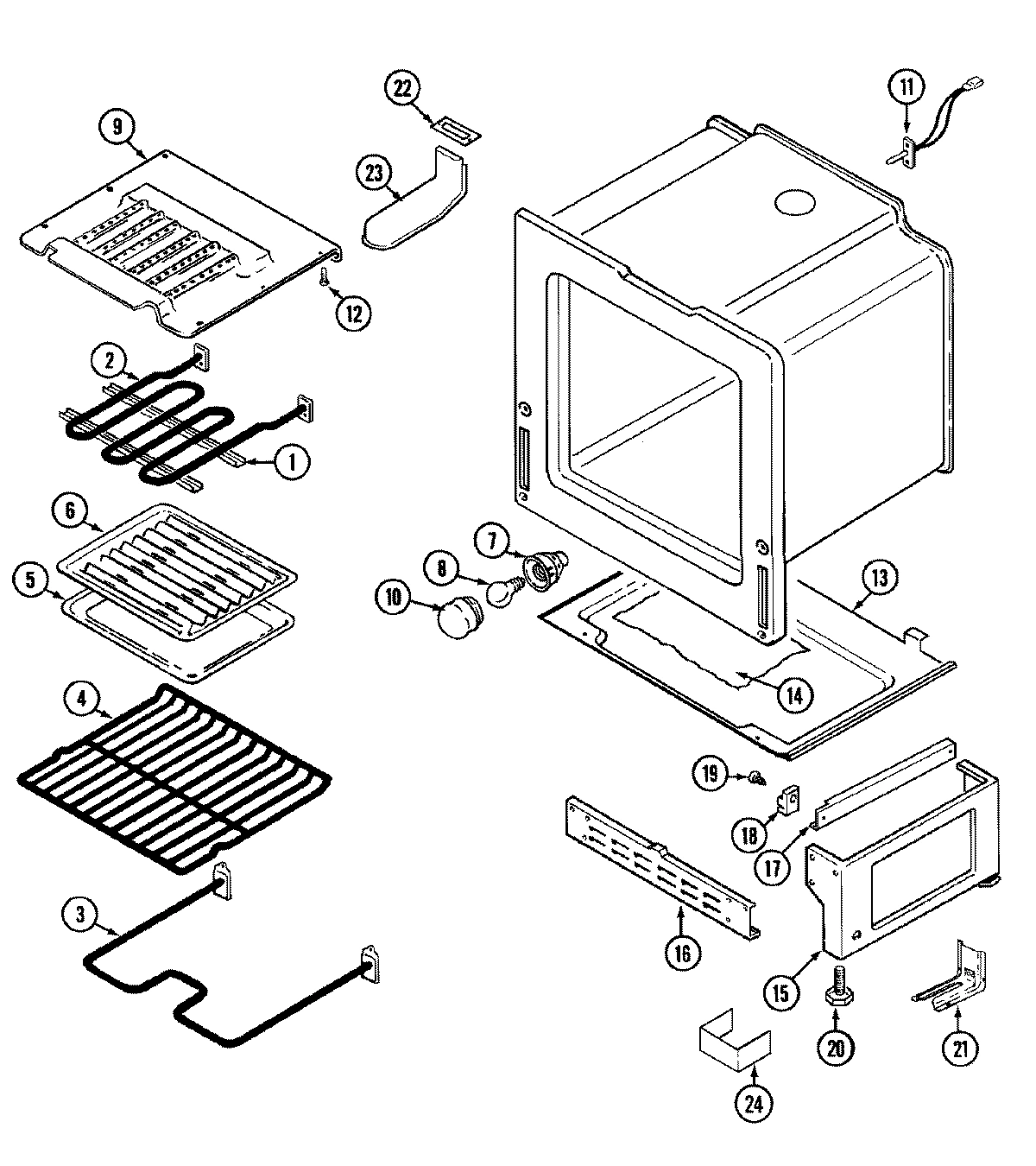

04 - OVEN/BASE

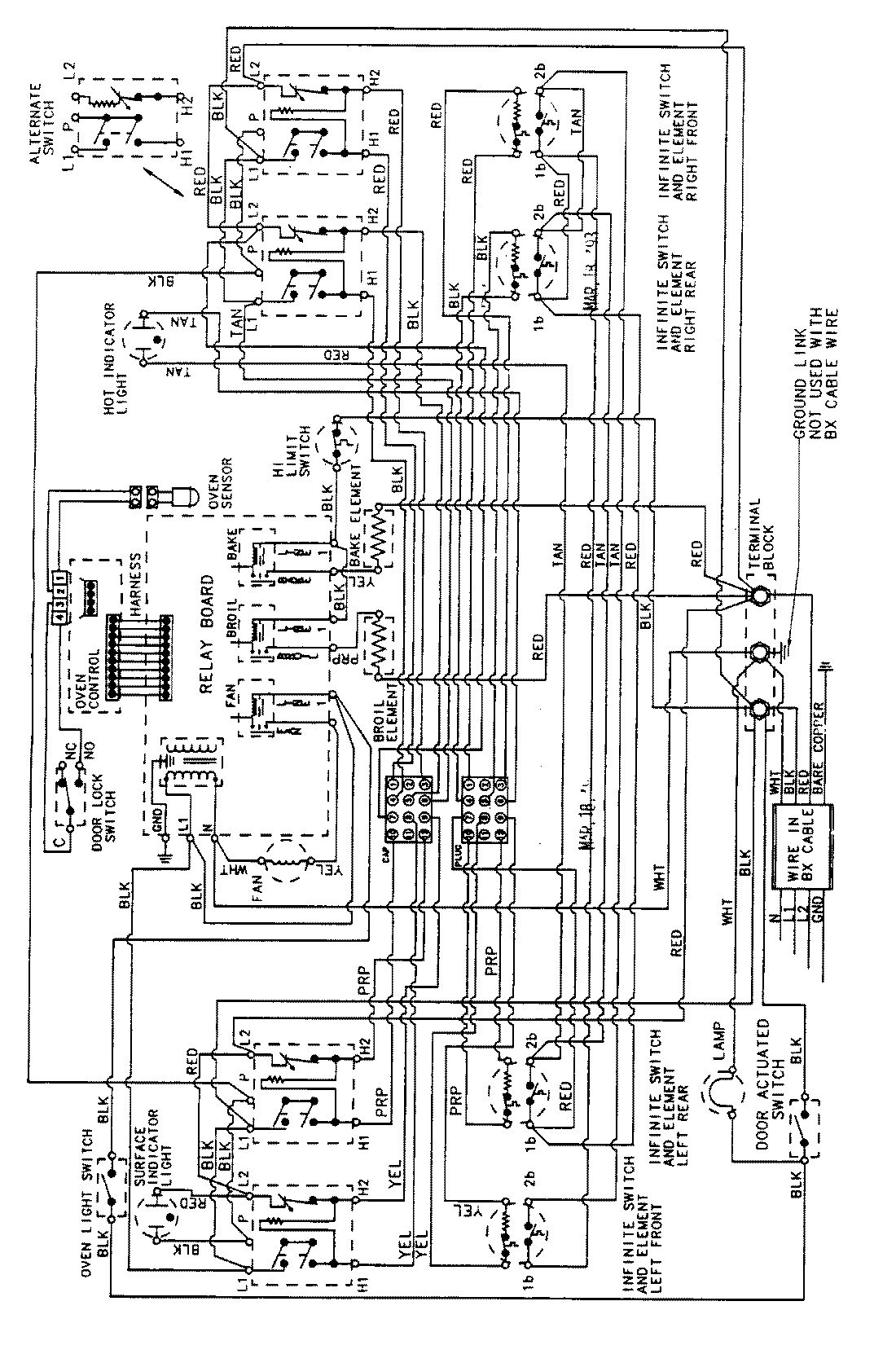

06 - WIRING INFORMATION

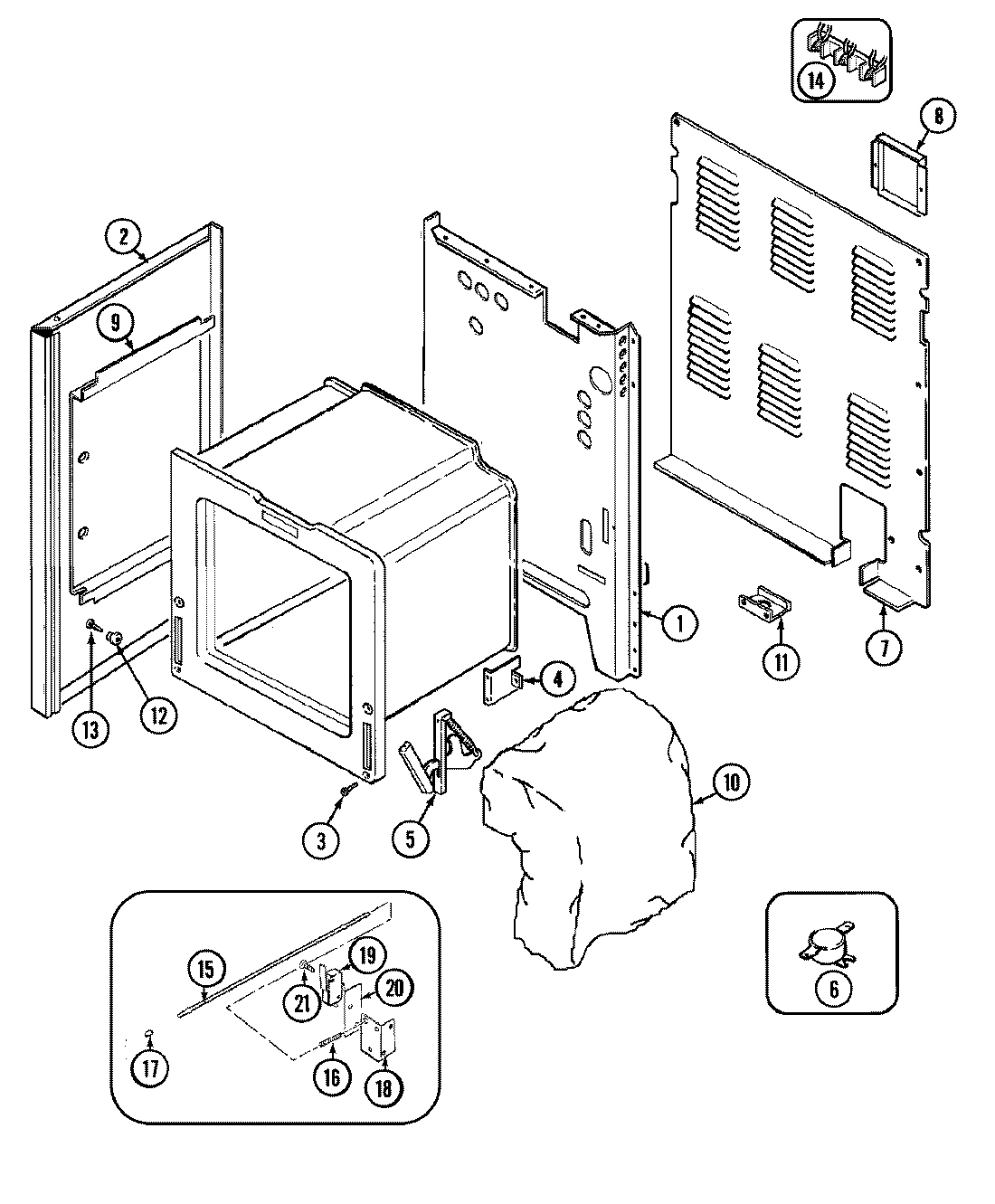

01 - BODY

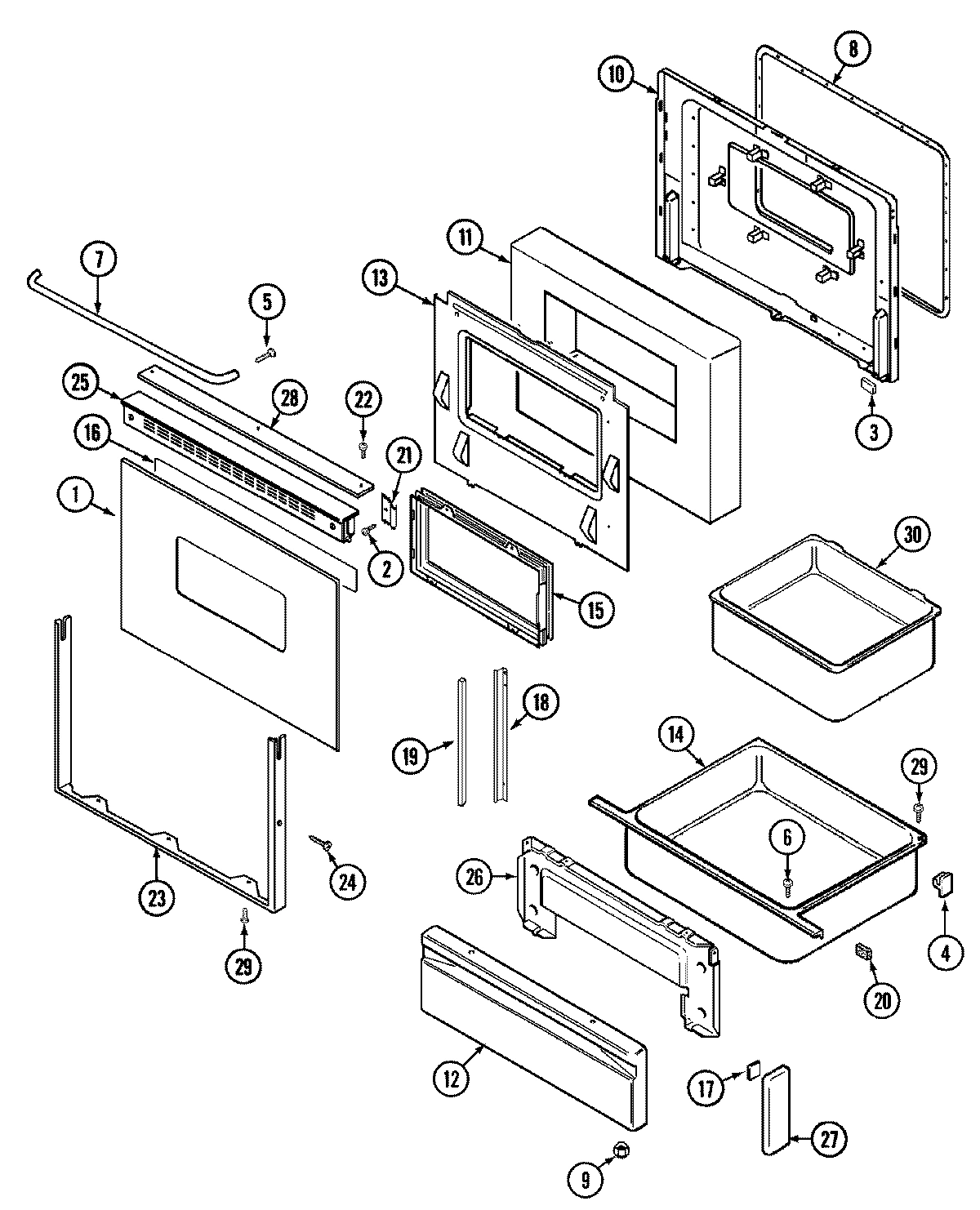

02 - DOOR/DRAWER

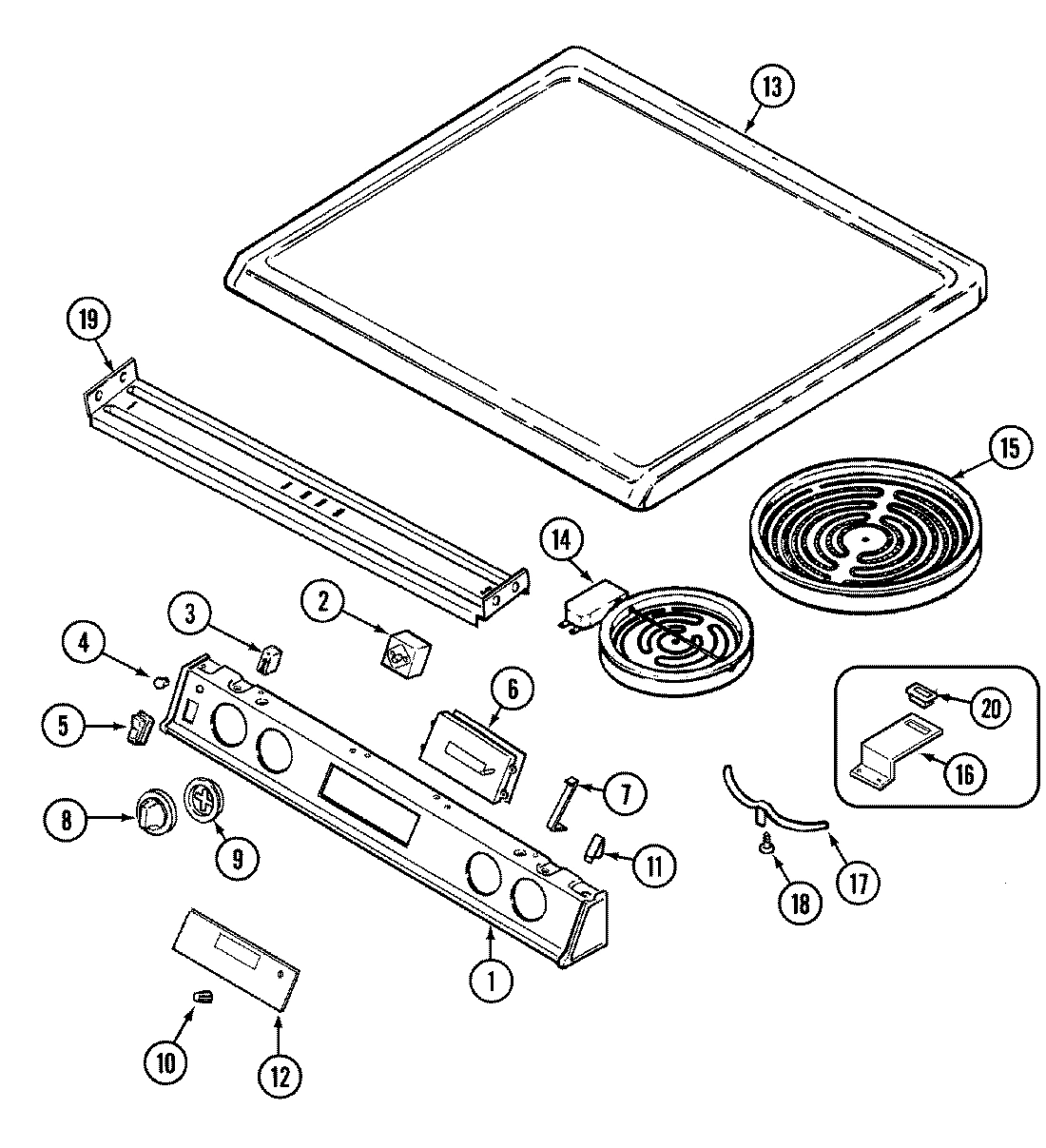

05 - TOP ASSY. (WHT)
Common parts from model Whirlpool CHE9800ACE ELECTRIC RANGE
1
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
BACK, MAIN WPL 4002F19380 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P36060 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 7722P12460 Contact Us For Availability
2
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
2
PANEL, SIDE (LT-WHT) WPL 2618F10671 Contact Us For Availability
2
PANEL, SIDE (RT-WHT) WPL 2618F10771 Contact Us For Availability
2
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
3
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
3
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
4
LEVER, DOOR LATCH WPL 8009P02560 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
HINGE WPL 7106P05660 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
5
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
6
HANDLE, DOOR LATCH (WHT) WPL 7701P15360 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
6
SCREW WPL 7101P07260 Contact Us For Availability
6
CLOCK WPL 7601P20760 Contact Us For Availability
7
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
COVER, WIRE WPL 4005F45451 Contact Us For Availability
7
NUT, NYLON WPL 7103P04560 Contact Us For Availability
7
HANDLE, OVEN DOOR (WHT) WPL 7701P15060 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F22245 Contact Us For Availability
8
COVER, LOCK WPL 4005F40151 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
9
NUT, LOCK WPL 7103P13960 Contact Us For Availability
9
BEZEL, KNOB (WHT) WPL 7740P06760 Contact Us For Availability
10
BOX, BURNER WPL 4011F23180 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
10
INSULATION, BACK WPL 74001159 Contact Us For Availability
10
LINING, DOOR WPL 2402W20919 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
10
NUT, SNAP WPL 7103P11460 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
10
KNOB, CLOCK (WHT) WPL 7711P48760 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
11
PANEL, MANIFOLD (BLK) WPL 7712P08760 Contact Us For Availability
12
BRACKET WPL 3801F32751 Contact Us For Availability
12
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2416W00271 Contact Us For Availability
12
SWITCH, MEMBRANE (WHT) WPL 7403P34160 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09851 Contact Us For Availability
13
SCREW WPL 7101P34560 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23651 Contact Us For Availability
13
TOP ASSY. (WHT TOP/WHT GLASS) WPL 74001184 Contact Us For Availability
13
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
13
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
14
RELAY BOARD WPL 7428P00960 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
14
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
14
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
15
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
15
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
15
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
15
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
15
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
15
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
16
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
16
SPRING WPL 7803P06760 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
17
CHANNEL, BOTTOM WPL 3818F05451 Contact Us For Availability
17
CHANNEL, AIR WPL 3818F05951 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
BUMPER WPL 8003P01260 Contact Us For Availability
17
TAPE WPL 8270P09860 Contact Us For Availability
17
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
18
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
18
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
18
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
18
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
19
SCREW WPL 7101P33460 Contact Us For Availability
19
SWITCH, DOOR LIGHT WPL 4874F00160 Contact Us For Availability
19
SEAL WPL 7208P00260 Contact Us For Availability
19
SUPPORT, ELEMENT WPL 3807F39045 Contact Us For Availability
20
LIGHT, INDICATOR WPL 7407P09860 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
20
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
20
GLIDE WPL 8016P01660 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
21
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
21
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
22
GASKET, VENT WPL 7201P06060 Contact Us For Availability
23
COVER, VENT WPL 4005F45351 Contact Us For Availability
23
BOX, VENT WPL 4006W11245 Contact Us For Availability
23
FRAME, DOOR (WHT) WPL 7706P29860 Contact Us For Availability
23
FRAME, DOOR (WHT) WPL 7706P31060 Contact Us For Availability
24
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
24
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
25
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
25
TRIM, DOOR (UPPER-WHT) WPL 7706P30660 Contact Us For Availability
25
TRIM, DOOR (UPPER-WHT) WPL 7744P12960 Contact Us For Availability
26
LINING, DRAWER----NA WPL 74001464 Contact Us For Availability
27
END CAP, DRAWER (WHT) WPL 7744P09060 Contact Us For Availability
28
SCREW (WHT) WPL 74001278 Contact Us For Availability
28
INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability
29
SCREW WPL 7101P29060 Contact Us For Availability
30
BASKET, DRAWER WPL 74001458 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001261 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 5170P13860 Contact Us For Availability
NI
HARNESS, CONTROL TO RELAY WPL 5170P14760 Contact Us For Availability
NI
HARNESS, COOKTOP TO SWITCH WPL 5175D07660 Contact Us For Availability
NI
HARNESS, CTL PANEL WPL 5195D11660 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8111P02560 Contact Us For Availability
× ![]()
