Model Whirlpool CGW3330ADW GAS WALL OVEN – Common Parts & Diagrams
01 - BODY

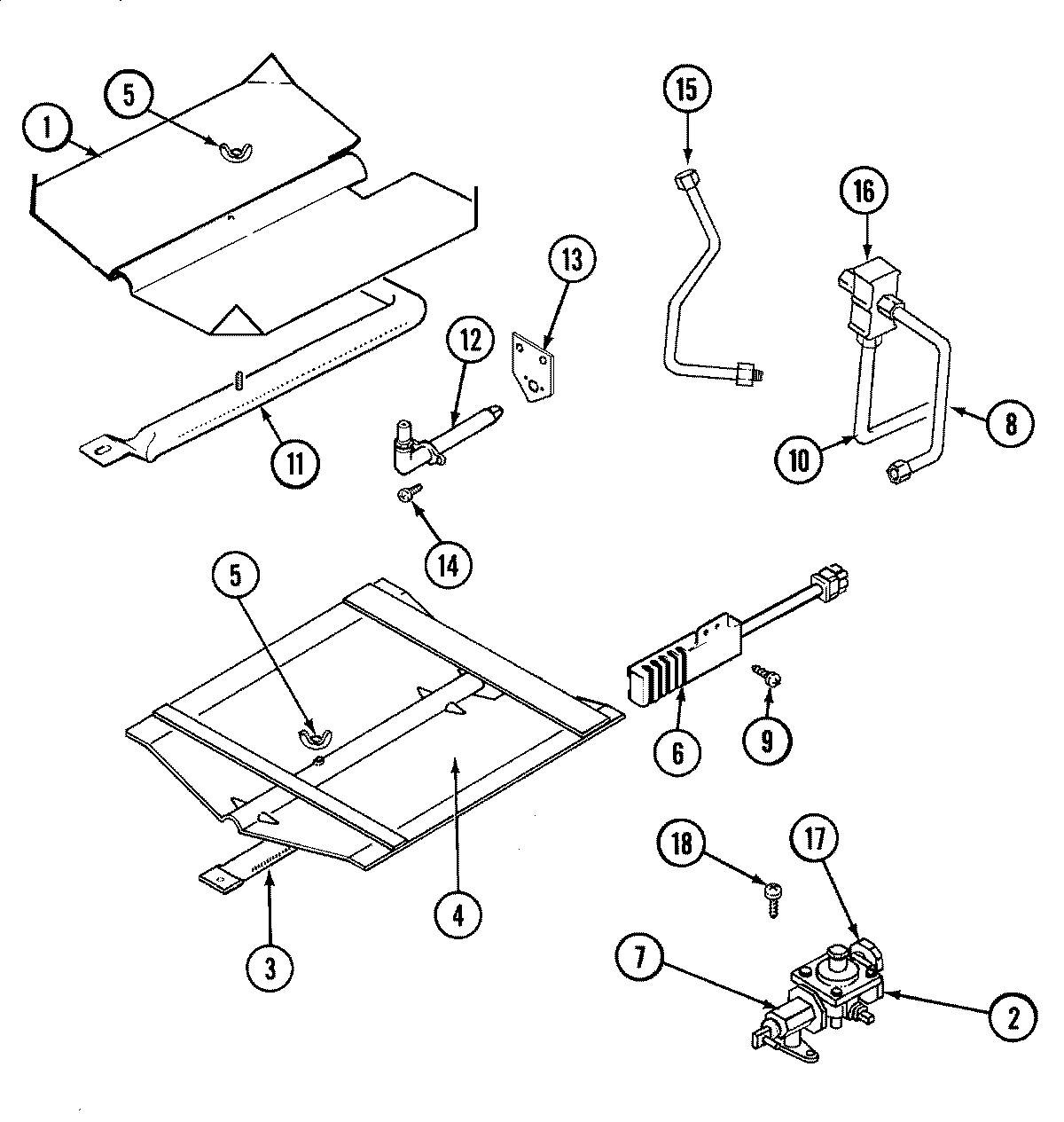

04 - GAS CONTROLS

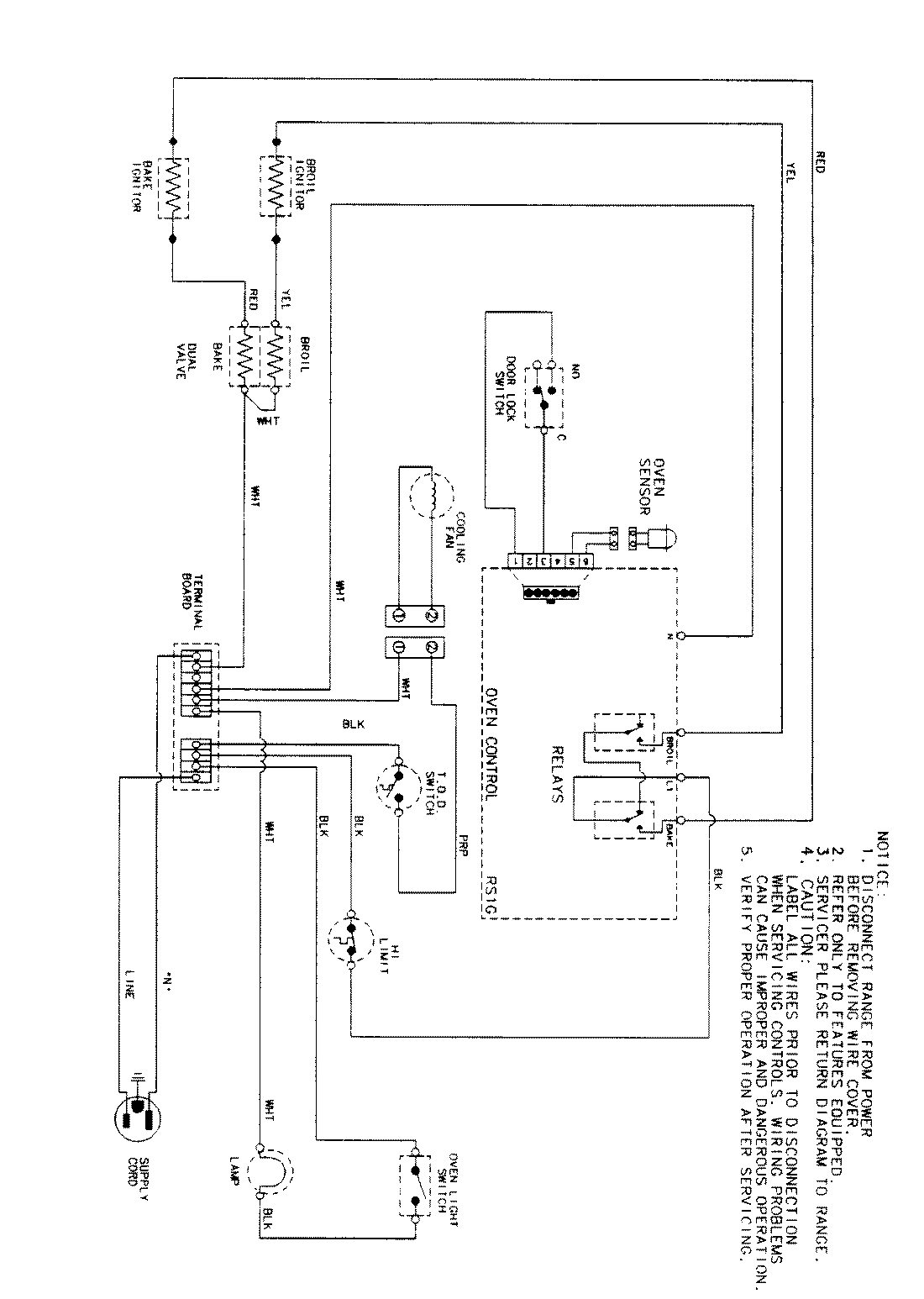

06 - WIRING INFORMATION

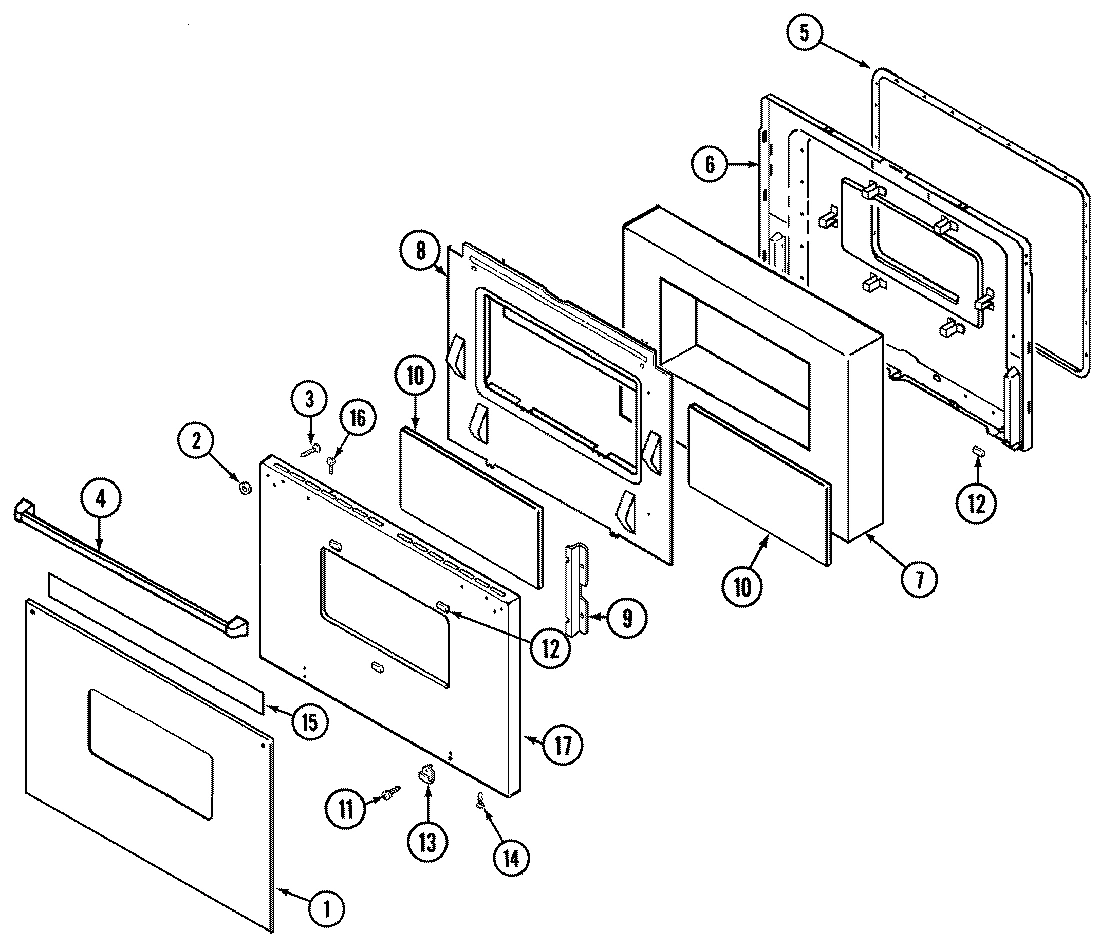

03 - DOOR

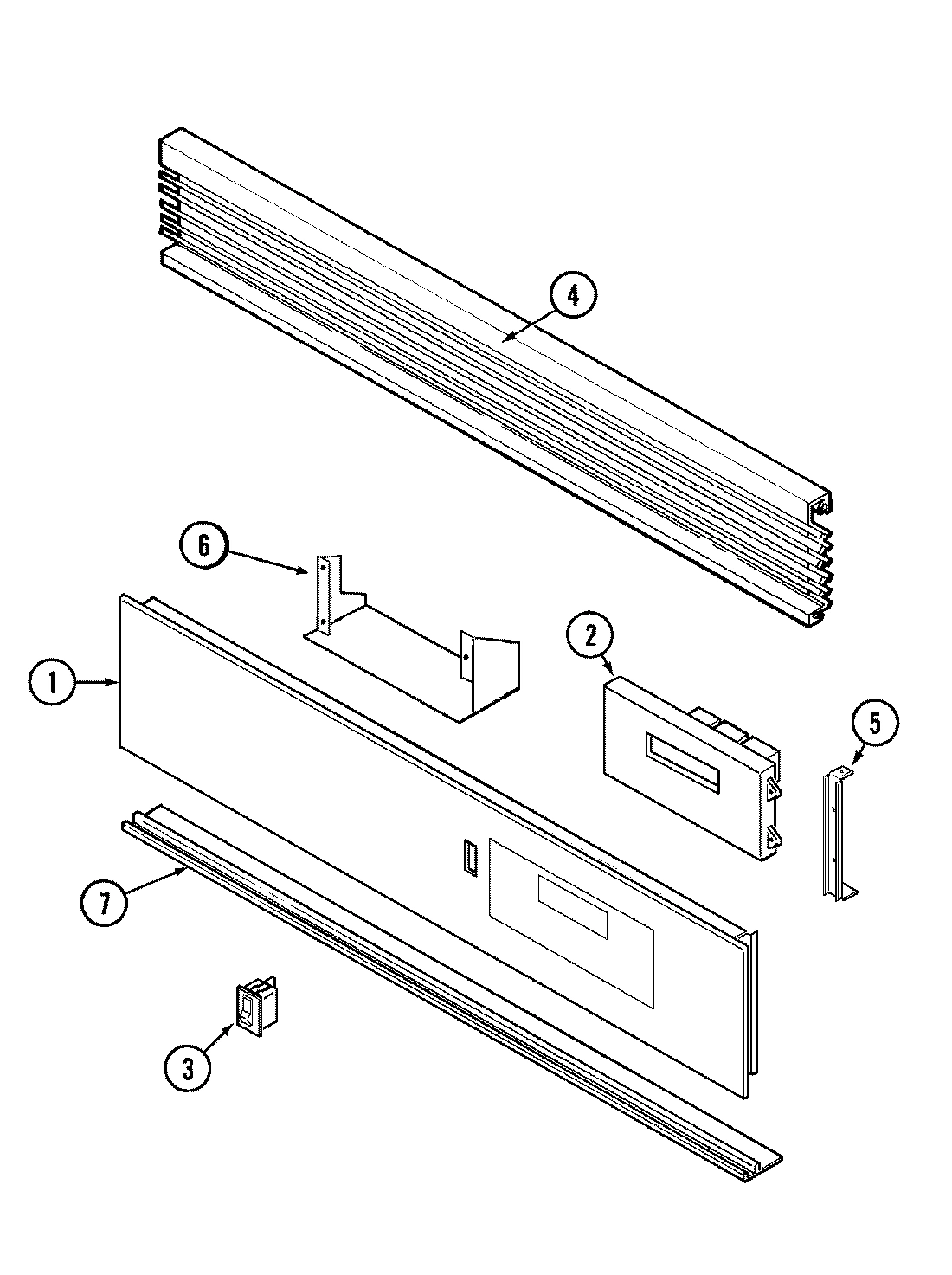

02 - CONTROL PANEL

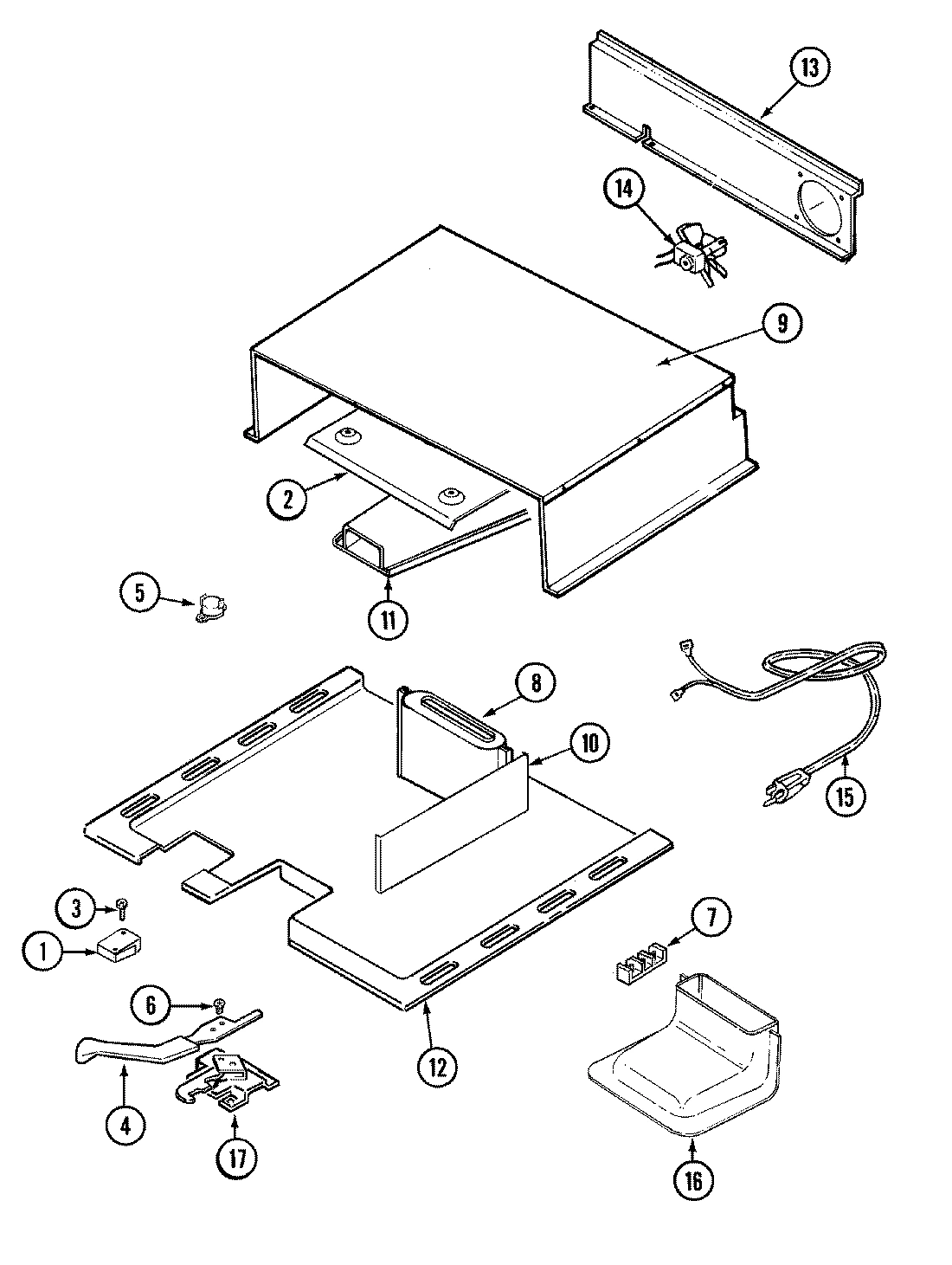

05 - INTERNAL CONTROLS
Common parts from model Whirlpool CGW3330ADW GAS WALL OVEN
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
1
GLASS, OVEN DOOR (WHT) WPL 74004104 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 71003302 Contact Us For Availability
1
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
2
PANEL, BODY WPL 2618F08351 Contact Us For Availability
2
BRACKET, REGULATOR WPL 3801F29051 Contact Us For Availability
2
REGULATOR, PRESSURE WPL 7510P04760 Contact Us For Availability
2
OVERLAY, CLOCK (WHT) WPL 71003311 Contact Us For Availability
2
CLOCK (WHT) WPL 74003880 Contact Us For Availability
2
SHIELD, HEAT WPL 3604F16645 Contact Us For Availability
3
BOTTOM, MAIN WPL 74001742 Contact Us For Availability
3
MIXER, AIR WPL 3411F00635 Contact Us For Availability
3
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
3
BURNER, BAKE WPL 71003008 Contact Us For Availability
3
SCREW WPL 7101P32660 Contact Us For Availability
3
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
3
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
4
COVER, BACK WPL 4005F40551 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
4
HANDLE, OVEN DOOR (WHT) WPL 74003991 Contact Us For Availability
4
EXTRUSION, VENT GRILL (CHR) WPL 74004124 Contact Us For Availability
4
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
5
SUPPORT, CAVITY WPL 3807F42951 Contact Us For Availability
5
NUT, WING WPL 7103P03060 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
5
SUPPORT, CLOCK WPL 74002932 Contact Us For Availability
5
SWITCH, FAN WPL 74004098 Contact Us For Availability
5
SWITCH, HI LIMIT WPL 7403P24960 Contact Us For Availability
6
STRIP, BOTTOM (WHT) WPL 4005F35471 Contact Us For Availability
6
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
6
LINING, DOOR WPL 74003244 Contact Us For Availability
6
INSULATION, FIBERBOARD WPL 7003P05660 Contact Us For Availability
6
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
7
EXTRUSION, VENT (LWR-CHR) WPL 74004130 Contact Us For Availability
7
VALVE, SHUT OFF WPL 7501P04160 Contact Us For Availability
7
INSULATION, DOOR WPL 74001842 Contact Us For Availability
7
EXTRUSION, LOWER (WHT) WPL 7756P07860 Contact Us For Availability
7
BLOCK, DISCONNECT (MALE) WPL 74002230 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
8
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
8
PALNUT WPL 7103P11960 Contact Us For Availability
8
TUBING, BAKE (W/FITTING) WPL 74004138 Contact Us For Availability
8
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
8
RISER, DUCT ASSY. WPL 4006D12845 Contact Us For Availability
9
BOTTOM, OVEN WPL 5504A00319 Contact Us For Availability
9
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
9
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
9
RETAINER, GLASS WPL 74001844 Contact Us For Availability
9
COVER, TOP WPL 4005F40251 Contact Us For Availability
9
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
RETAINER, INSULATION (SIDE) WPL 74001436 Contact Us For Availability
10
TUBING, REG/VALVE (3/8``) WPL 74004137 Contact Us For Availability
10
GLASS, INNER WPL 74001841 Contact Us For Availability
10
SHIELD, AIR WPL 74004127 Contact Us For Availability
11
BURNER, BROIL WPL 74004076 Contact Us For Availability
11
DUCT ASSY. WPL 4006D10145 Contact Us For Availability
11
SUPPORT, DUCT WPL 74004128 Contact Us For Availability
12
FITTING, BROIL BURNER WPL 7507P06760 Contact Us For Availability
12
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
12
RETAINER, TOP INSULATION WPL 74001793 Contact Us For Availability
13
EXTRUSION, SIDE (RT-CHR) WPL 74004135 Contact Us For Availability
13
EXTRUSION, SIDE (LT-CHR) WPL 74004136 Contact Us For Availability
13
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
13
CLIP, GLASS (WHT) WPL 7112P09460 Contact Us For Availability
13
HOUSING, FAN WPL 4001F08351 Contact Us For Availability
14
INSULATION, OVEN WRAP WPL 74003036 Contact Us For Availability
14
INSULATION, OVEN WPL 74003503 Contact Us For Availability
14
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
14
FAN ASSY. WPL 7427P01060 Contact Us For Availability
15
RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability
15
TUBING, BROIL (3/8``) WPL 74004139 Contact Us For Availability
15
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
15
CORD, POWER WPL 7402P04360 Contact Us For Availability
16
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
16
VALVE WPL 7501P11660 Contact Us For Availability
16
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
16
BOX, FLUE WPL 4006W11745 Contact Us For Availability
17
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
17
PANEL, DOOR (WHT) WPL 71002809 Contact Us For Availability
17
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
17
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
17
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
17
LATCH ASSY. WPL 74003502 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
21
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
22
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
23
BULB-OVEN WPL 7407P10360 Contact Us For Availability
24
COVER, BULB WPL 74003389 Contact Us For Availability
25
HOUSING, BULB WPL 74003388 Contact Us For Availability
26
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002482 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16009722 Contact Us For Availability
NI
MANUAL, INSERT CLOCK (FRCH) WPL 74002579 Contact Us For Availability
NI
MANUAL, INSERT CLOCK (FRCH) WPL 74002704 Contact Us For Availability
NI
HARNESS, MAIN WPL 74004125 Contact Us For Availability
NI
HARNESS, SENSOR/HARNESS WPL 74004126 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74004140 Contact Us For Availability
NI
MANUAL, USE & CARE (FCH) WPL 74004141 Contact Us For Availability
NI
INSERT, CLOCK (FCH) WPL 74004142 Contact Us For Availability
× ![]()
