Model Whirlpool CGR3742ADA GAS RANGE – Common Parts & Diagrams
03 - DOOR/DRAWER

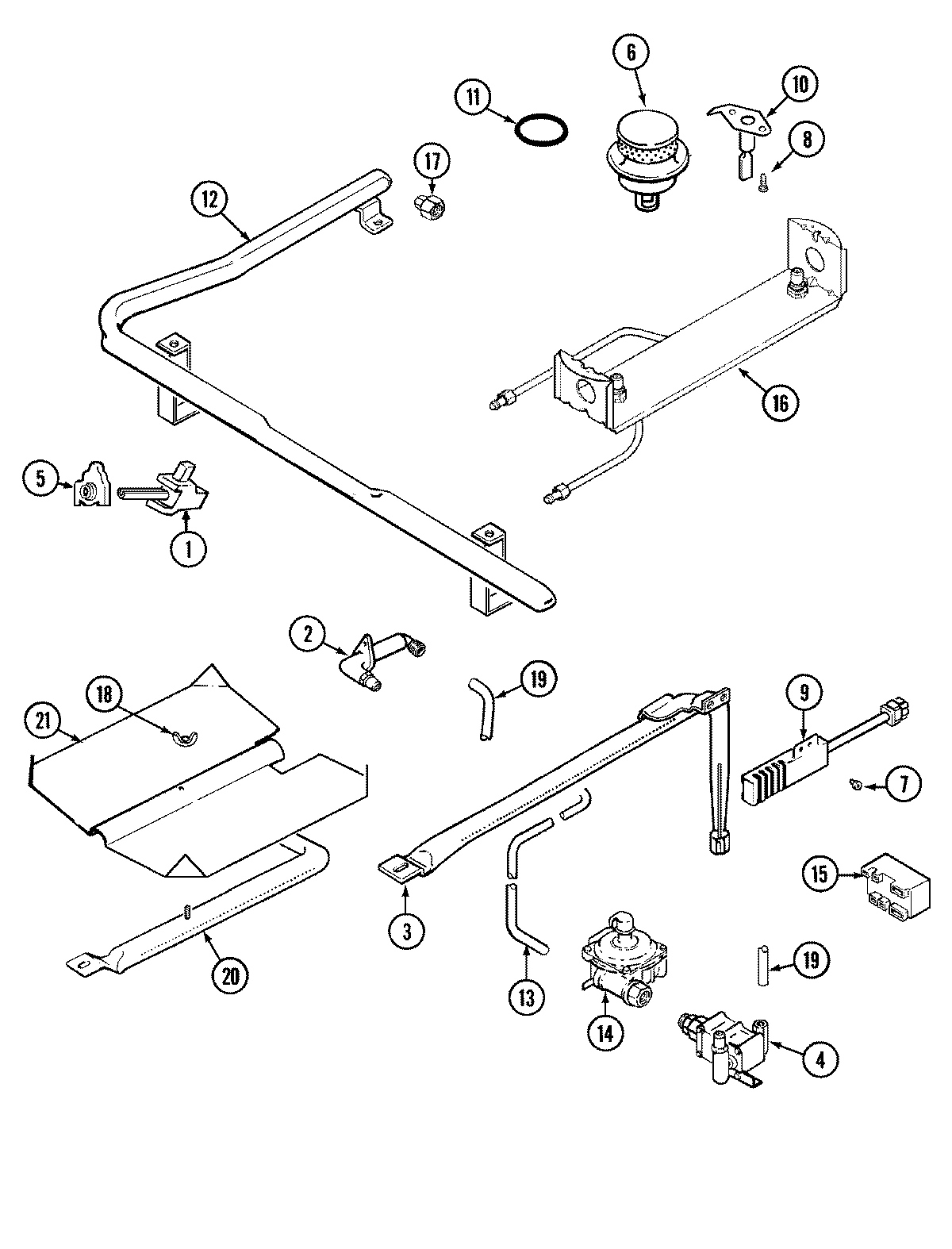

04 - GAS CONTROLS

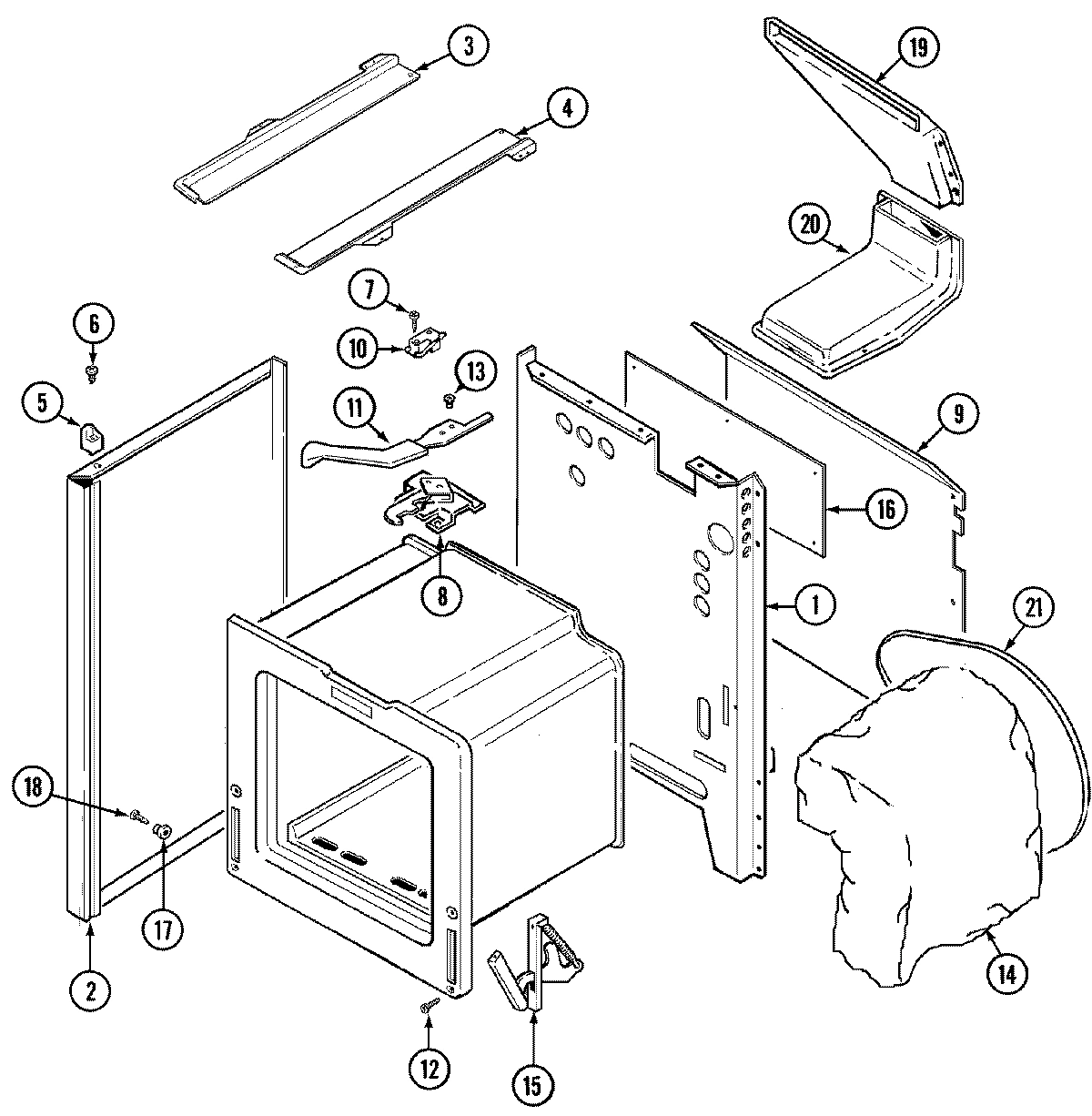

01 - BODY

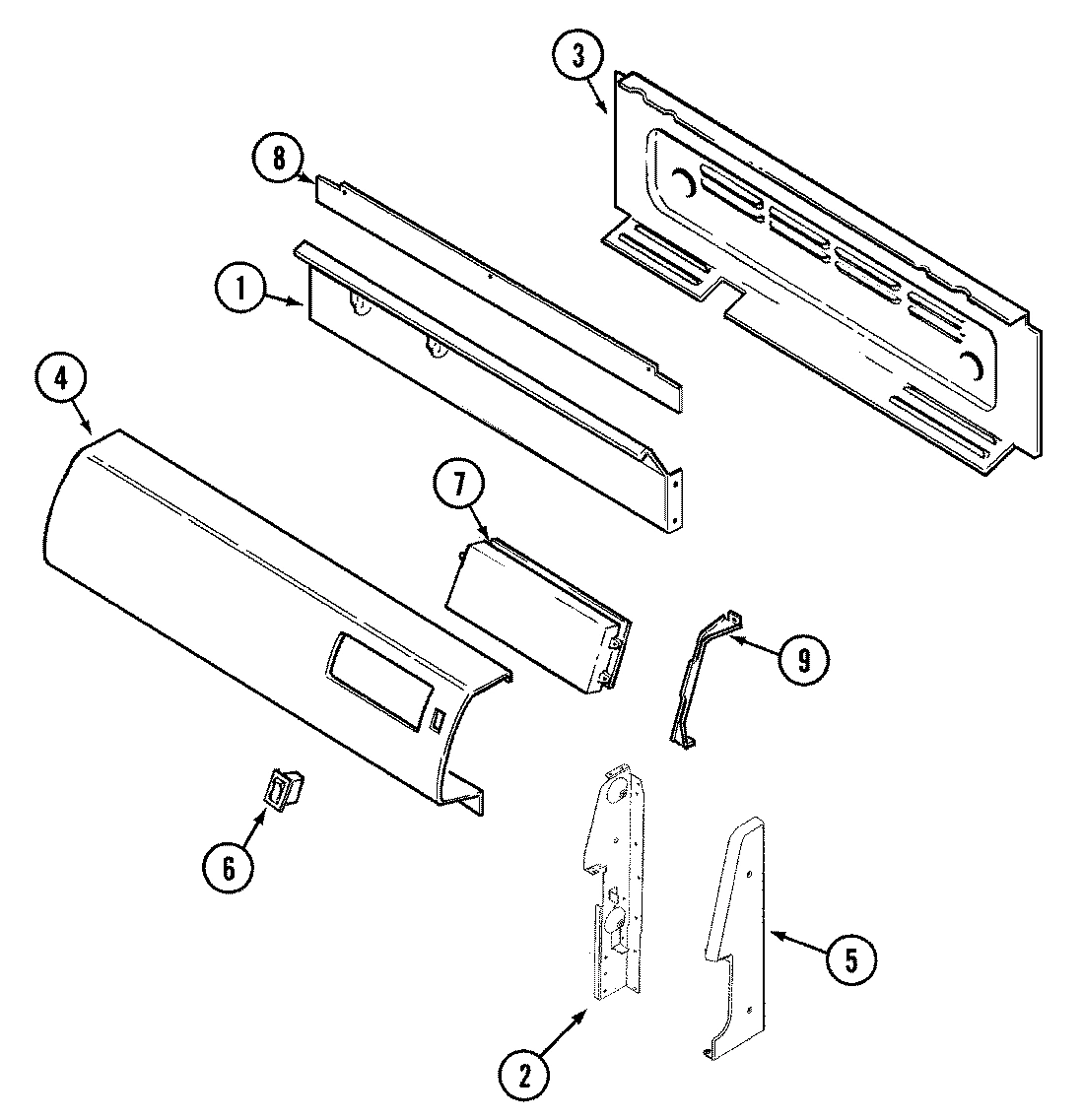

02 - CONTROL PANEL

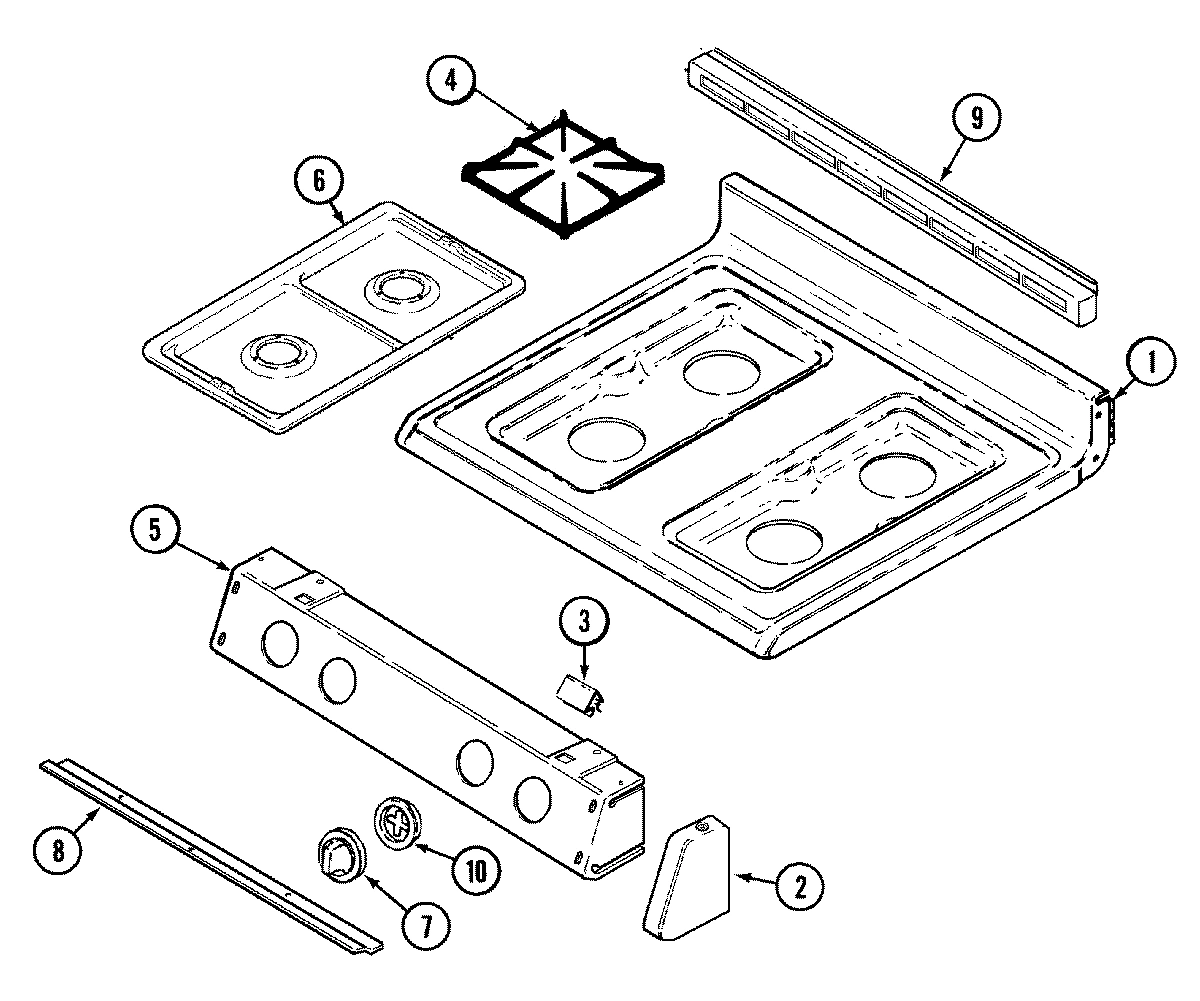

06 - TOP ASSEMBLY
07 - WIRING INFORMATION

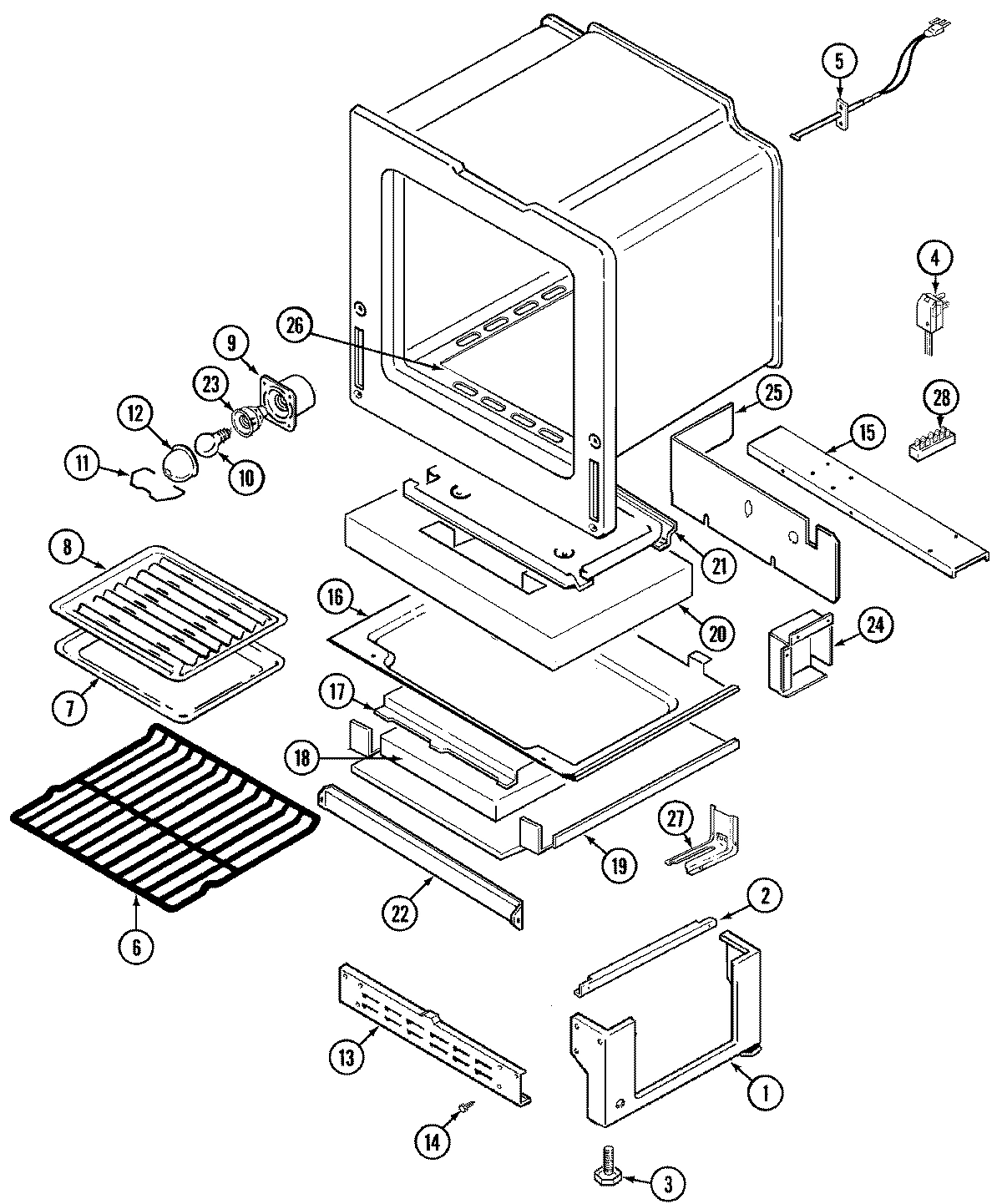

05 - OVEN/BASE
Common parts from model Whirlpool CGR3742ADA GAS RANGE
1
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
BACK, MAIN WPL 74003451 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74003488 Contact Us For Availability
1
SPACER, MAIN TOP WPL 74001428 Contact Us For Availability
1
TOP, MAIN (ALM) WPL 74003513 Contact Us For Availability
1
PEDESTAL, SIDE WPL 74003405 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
2
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
2
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
2
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
2
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 74003237 Contact Us For Availability
2
BRACKET, CONTROL PANEL (LT) WPL 74003489 Contact Us For Availability
2
BRACKET, CONTROL PANEL (RT) WPL 74003490 Contact Us For Availability
2
END CAP, PANEL (RT-ALM) WPL 74003517 Contact Us For Availability
2
END CAP, PANEL (LT-ALM) WPL 74003518 Contact Us For Availability
2
SCREW WPL 74003860 Contact Us For Availability
2
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
3
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
3
BOX, BURNER (LT) WPL 74002633 Contact Us For Availability
3
HOUSING, CONTROL PANEL WPL 74003493 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 74004827 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
4
BOX, BURNER (RT) WPL 74002632 Contact Us For Availability
4
SCREW WPL 7101P34960 Contact Us For Availability
4
PANEL, CONTROL (ALM) WPL 74003881 Contact Us For Availability
4
GRATE, BURNER (BRN) WPL 74001768 Contact Us For Availability
4
CORD, POWER WPL 7402P04360 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
5
SCREW (1 3/16``-ALM) WPL 74002528 Contact Us For Availability
5
END CAP, CONTROL PNL (RT-ALM) WPL 74003448 Contact Us For Availability
5
END CAP, CONTROL PNL (LT-ALM) WPL 74003449 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
PANEL, MANIFOLD (ALM) WPL 74003511 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
SEALED BURNER ASSY. (BRN) WPL 3412D01808 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
SCREW WPL 7101P32860 Contact Us For Availability
7
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
7
CLOCK (ALM) WPL 74003884 Contact Us For Availability
7
KNOB, VALVE (ALM) WPL 7733P10960 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
SCREW WPL 7101P31560 Contact Us For Availability
8
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
8
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
8
LATCH ASSY. WPL 74003502 Contact Us For Availability
8
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
8
SHIELD, SIGHT WPL 74002447 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
GLASS, OUTER (ALM) WPL 74003455 Contact Us For Availability
9
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
9
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
9
BRACKET, CLOCK WPL 74003362 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
TRIM, VENT (BRN) WPL 74003883 Contact Us For Availability
9
HOUSING, BULB WPL 74003388 Contact Us For Availability
10
HANDLE, DOOR (ALM) WPL 74003456 Contact Us For Availability
10
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
10
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
10
BEZEL, KNOB (ALM) WPL 7740P07160 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
11
SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability
11
GASKET, BURNER WPL 74002745 Contact Us For Availability
11
LEVER, LATCH (BRN) WPL 74001057 Contact Us For Availability
11
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
12
TRIM, DOOR (BTM-ALM) WPL 74003457 Contact Us For Availability
12
PIPE, MANIFOLD WPL 74003504 Contact Us For Availability
12
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
12
COVER, BULB WPL 74003389 Contact Us For Availability
13
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
13
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
END CAP, DOOR (ALM) WPL 74003458 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
14
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
15
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
15
SUPPORT, VALVE/REGULATOR WPL 74002593 Contact Us For Availability
16
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
16
FITTING ASSY., ORIFICE (LT) WPL 74003506 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
16
RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability
17
PANEL, DRAWER (ALM) WPL 74003522 Contact Us For Availability
17
LOXIT NUT WPL 7103P12160 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
18
SCREW, STAINLESS WPL 7101P03760 Contact Us For Availability
18
NUT, WING WPL 7103P03060 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
19
NUT, LOCK WPL 7103P13960 Contact Us For Availability
19
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
19
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
20
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
20
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
20
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
20
BOX, VENT WPL 74002367 Contact Us For Availability
20
INSULATION, OVEN WPL 74003503 Contact Us For Availability
21
NUT WPL 7103P08260 Contact Us For Availability
21
ROLLER (W/SHAFT) WPL 74003462 Contact Us For Availability
21
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
21
STRAP, INSULATION WPL 74003385 Contact Us For Availability
21
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
22
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
22
SCREW WPL 74004208 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
23
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
24
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
25
COVER, BURNER VALVE WPL 74003329 Contact Us For Availability
26
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
27
SCREW WPL 7101P34460 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
WIRES, IGNITER WPL 5140D03560 Contact Us For Availability
NI
HARNESS, SPARK (4-OR) WPL 71003540 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74003495 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 74003525 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002242 Contact Us For Availability
× ![]()
