Model Whirlpool CGR3520ADH GAS RANGE – Common Parts & Diagrams

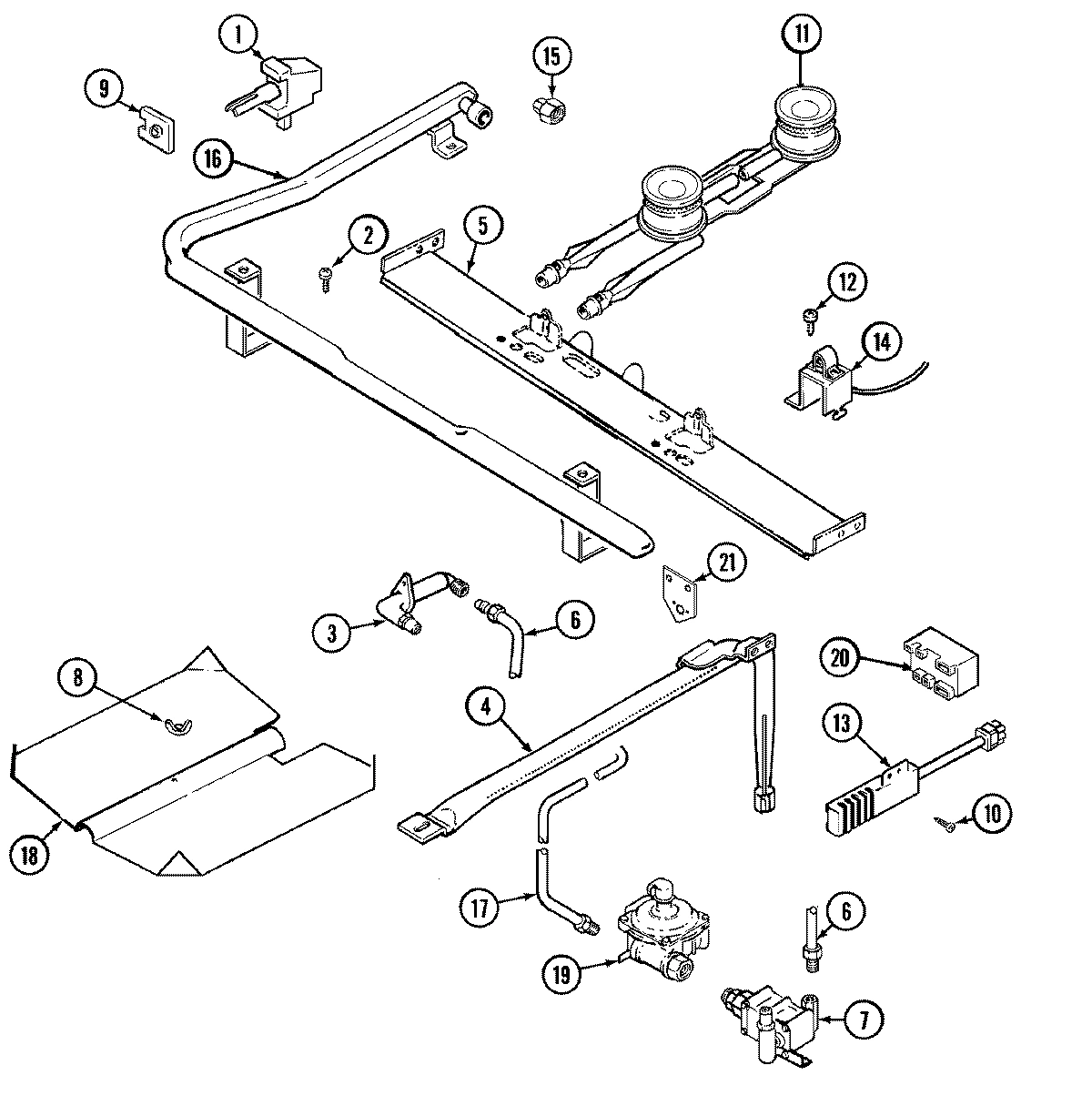

04 - GAS CONTROLS

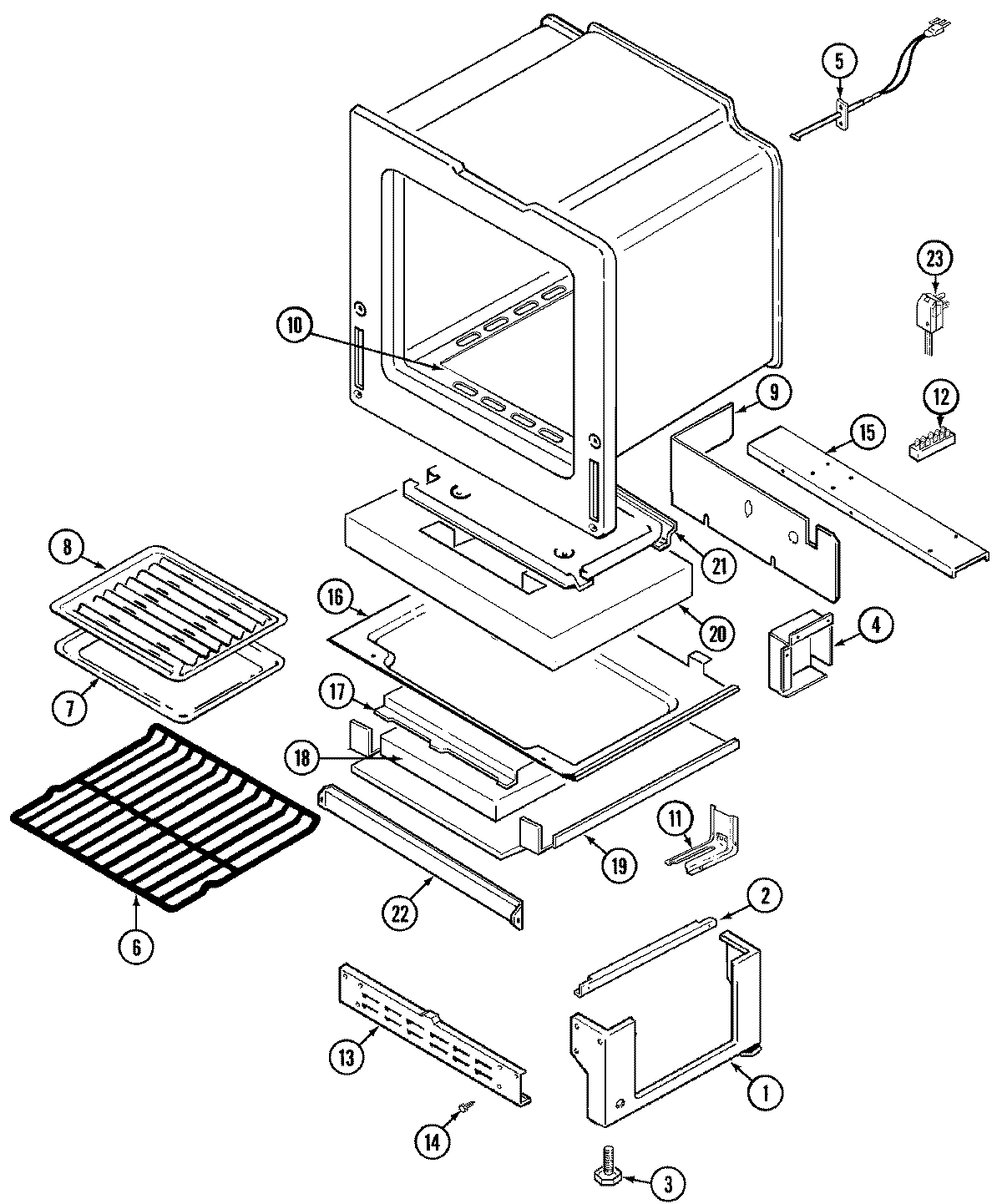

05 - OVEN/BASE

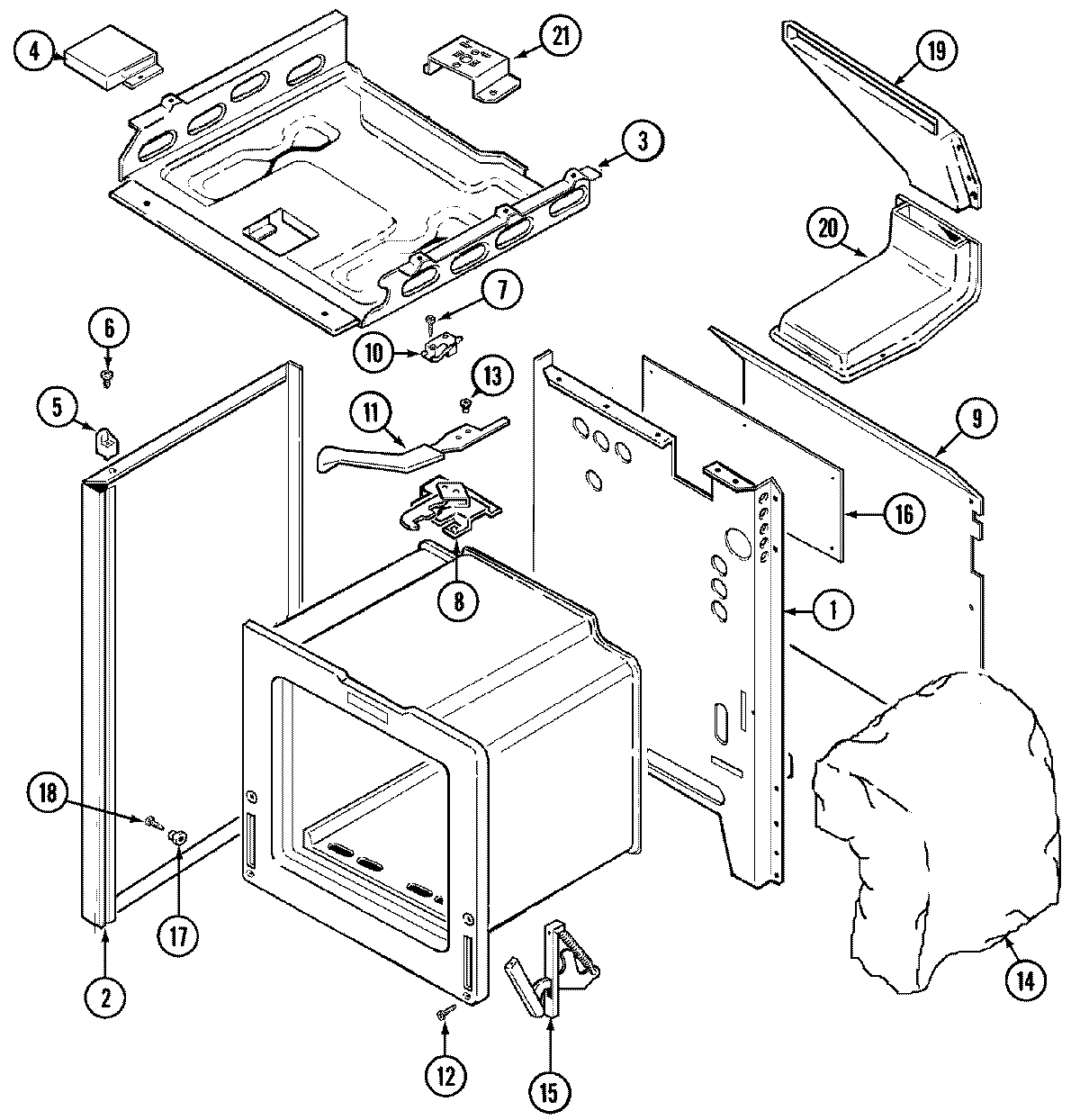

01 - BODY

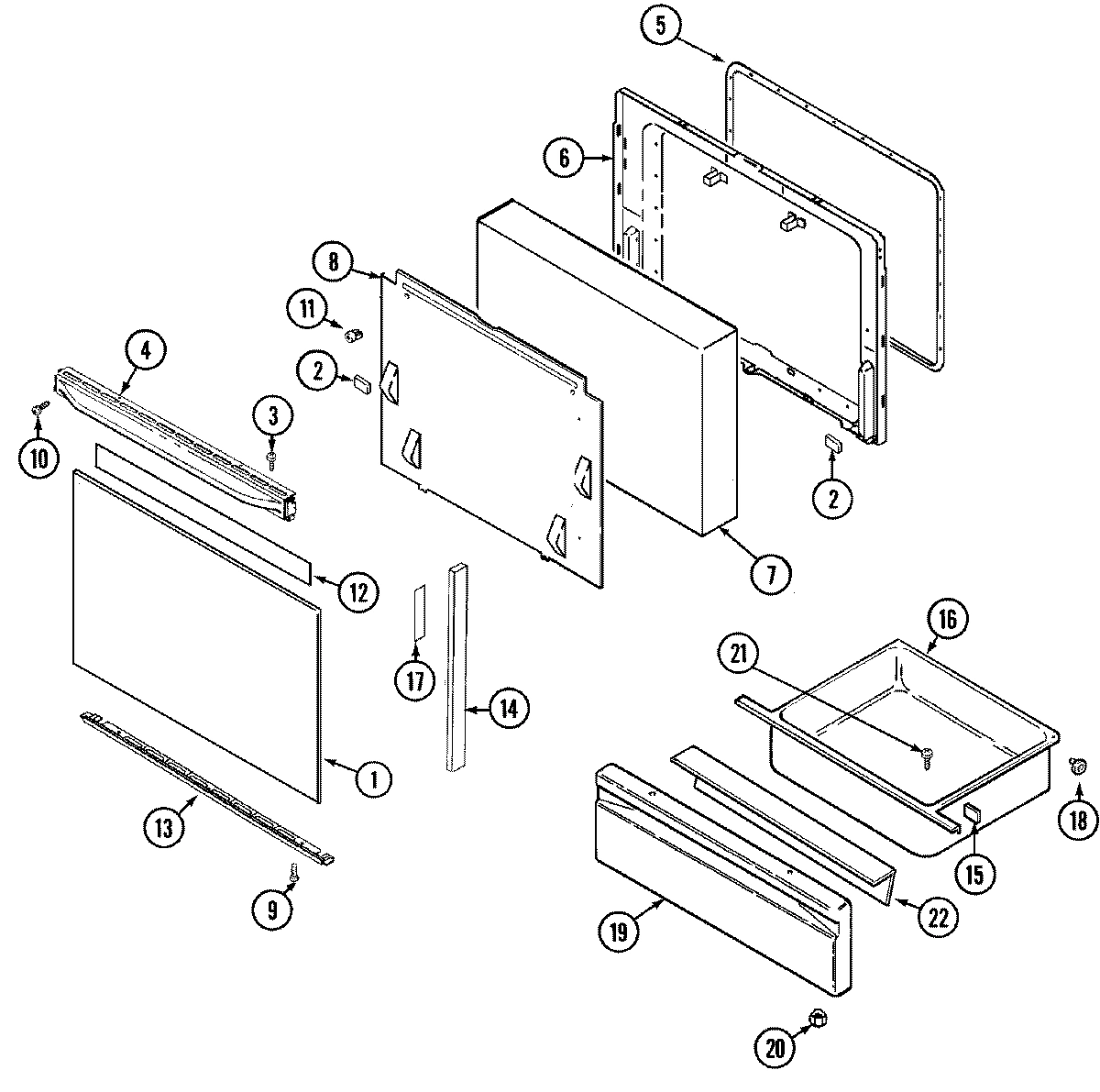

03 - DOOR/DRAWER

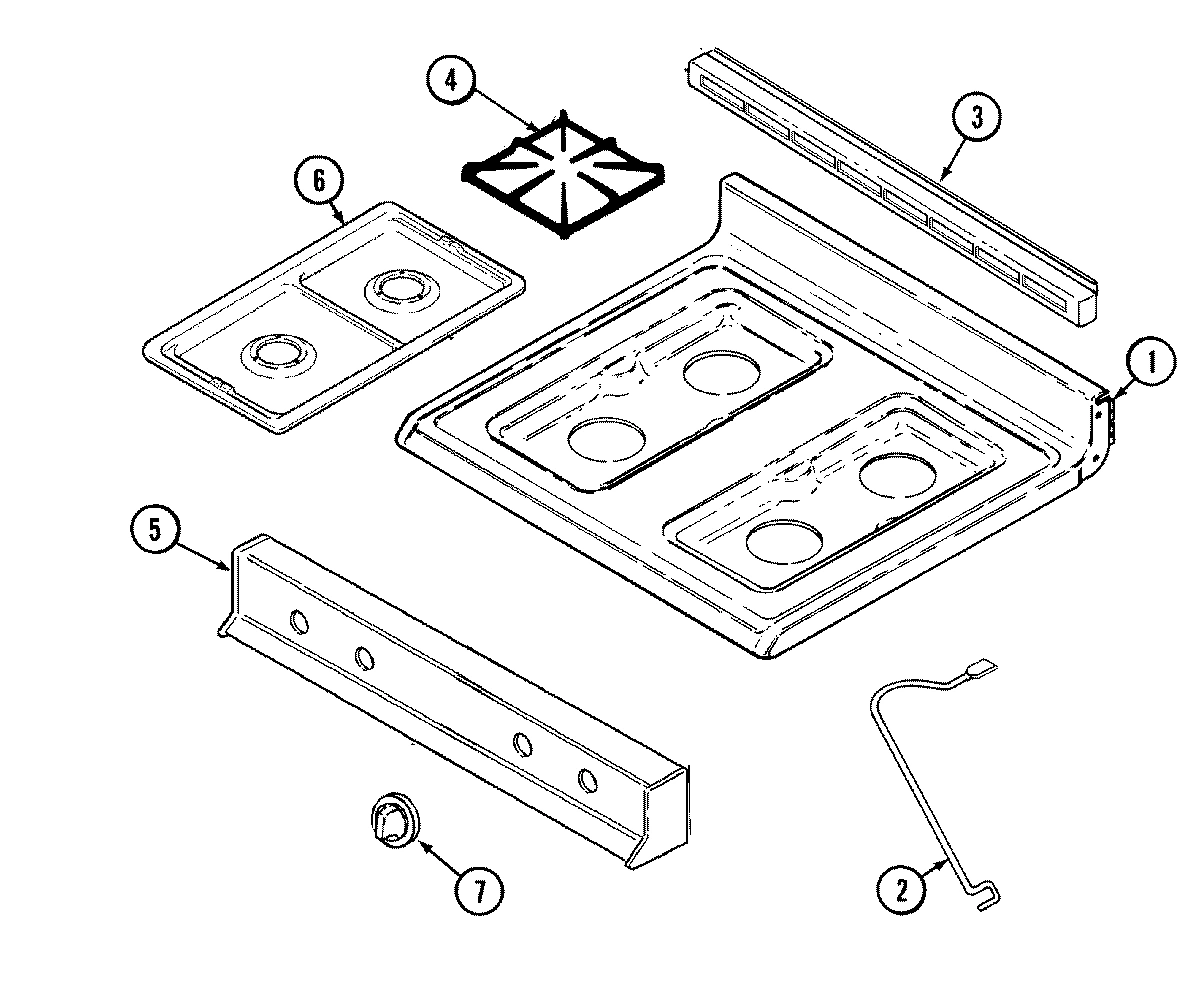

06 - TOP ASSEMBLY

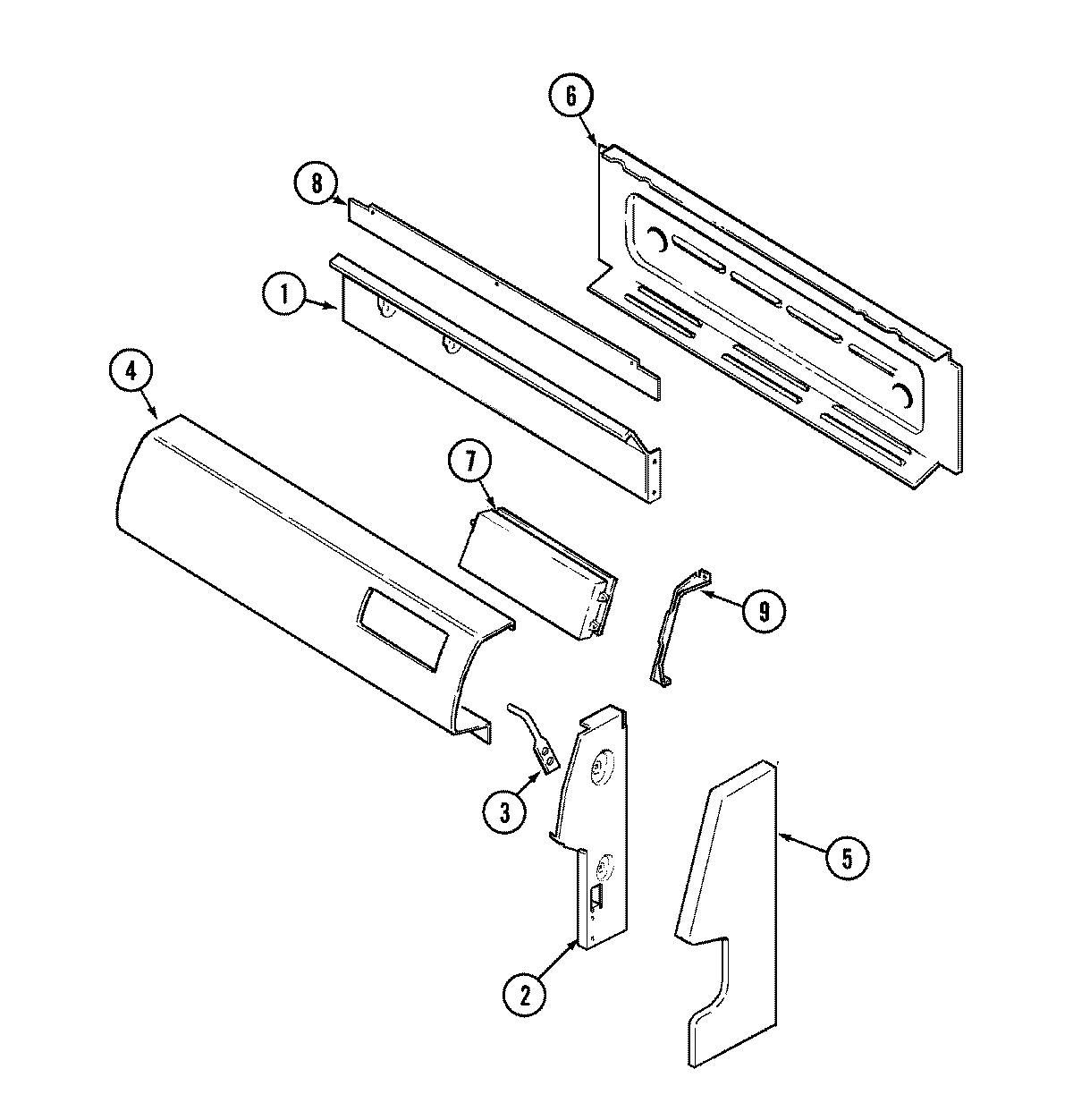

02 - CONTROL PANEL

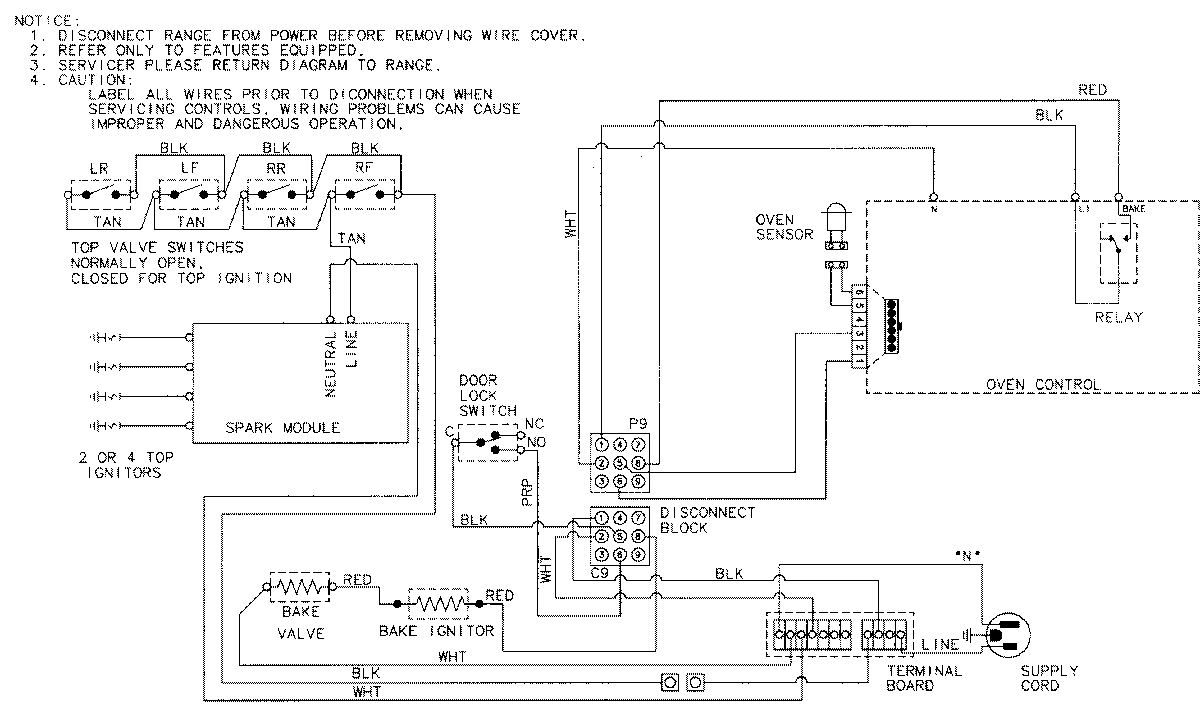

07 - WIRING INFORMATION
Common parts from model Whirlpool CGR3520ADH GAS RANGE
1
VALVE, BURNER WPL 74002383 Contact Us For Availability
1
PEDESTAL, SIDE WPL 74003405 Contact Us For Availability
1
BACK, MAIN WPL 74003451 Contact Us For Availability
1
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 74003704 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74003488 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
SUPPORT, TOP WPL 74001170 Contact Us For Availability
2
BRACKET, CONTROL PANEL (LT) WPL 74003489 Contact Us For Availability
2
BRACKET, CONTROL PANEL (RT) WPL 74003490 Contact Us For Availability
3
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
3
BOX, BURNER WPL 74003328 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
3
TRIM, VENT (BLK) WPL 74003501 Contact Us For Availability
3
HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability
4
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
4
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
4
COVER, LOCK SWITCH WPL 4005F43051 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
4
PANEL, CONTROL (BLK) WPL 74003534 Contact Us For Availability
5
SUPPORT, BURNER WPL 74003539 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 74002485 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 74004072 Contact Us For Availability
5
SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability
5
END CAP, CONTROL PNL (RT-BLK) WPL 74003367 Contact Us For Availability
5
END CAP, CONTROL PNL (LT-BLK) WPL 74003368 Contact Us For Availability
6
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
LINING, DOOR WPL 74003245 Contact Us For Availability
6
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
6
HOUSING, CONTROL PANEL WPL 74003493 Contact Us For Availability
7
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
7
INSULATION, DOOR WPL 74001842 Contact Us For Availability
7
CLOCK (BLK) WPL 74003535 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
8
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
8
LATCH ASSY. WPL 74003502 Contact Us For Availability
8
BAFFLE, DOOR SOLID WPL 3601F21851 Contact Us For Availability
8
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
9
SWITCH, IGNITER WPL 74002384 Contact Us For Availability
9
COVER, BURNER VALVE WPL 74003329 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
9
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
9
BRACKET, CLOCK WPL 74003362 Contact Us For Availability
10
SCREW WPL 7101P32860 Contact Us For Availability
10
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
10
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
10
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
11
BURNER, TOP WPL 74003332 Contact Us For Availability
11
SCREW WPL 7101P34460 Contact Us For Availability
11
LEVER, LATCH (BLK) WPL 74001075 Contact Us For Availability
11
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
11
NUT, NYLON WPL 7103P04560 Contact Us For Availability
12
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
12
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
12
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
13
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
13
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
13
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
14
TOP IGNITER W/WIRES (LT) WPL 74002386 Contact Us For Availability
14
IGNITER, TOP (RT) WPL 74003538 Contact Us For Availability
14
IGNITER, TOP WPL 74004482 Contact Us For Availability
14
SCREW WPL 7101P29060 Contact Us For Availability
14
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
14
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
15
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
15
SUPPORT, VALVE/REGULATOR WPL 74002593 Contact Us For Availability
15
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
16
PIPE, MANIFOLD WPL 74002487 Contact Us For Availability
16
RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
16
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
17
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
17
TUBING, REGULATOR/PIPE (3/8``) WPL 74002553 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
18
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
18
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
18
NUT WPL 7103P08260 Contact Us For Availability
18
ROLLER (W/SHAFT) WPL 74003462 Contact Us For Availability
19
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
19
PANEL, DRAWER (WHT) WPL 74003407 Contact Us For Availability
20
MODULE, SPARK (2+0) WPL 74004282 Contact Us For Availability
20
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
20
INSULATION, OVEN WPL 74003503 Contact Us For Availability
20
BOX, VENT WPL 74002367 Contact Us For Availability
20
NUT, LOCK WPL 7103P13960 Contact Us For Availability
21
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
21
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
21
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
21
SUPPORT, BURNER WPL 74003537 Contact Us For Availability
21
SCREW WPL 7101P07260 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
22
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
22
SCREW WPL 74004208 Contact Us For Availability
23
CORD, POWER WPL 7402P04360 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
NI
MANUAL, USE & CARE (FRCH) WPL 16008701 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 74003525 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74003869 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002280 Contact Us For Availability
× ![]()
