Model Whirlpool CGL1100ADQ GAS RANGE – Common Parts & Diagrams
01 - BODY/OVEN
04 - SUPPLEMENTAL INFORMATION

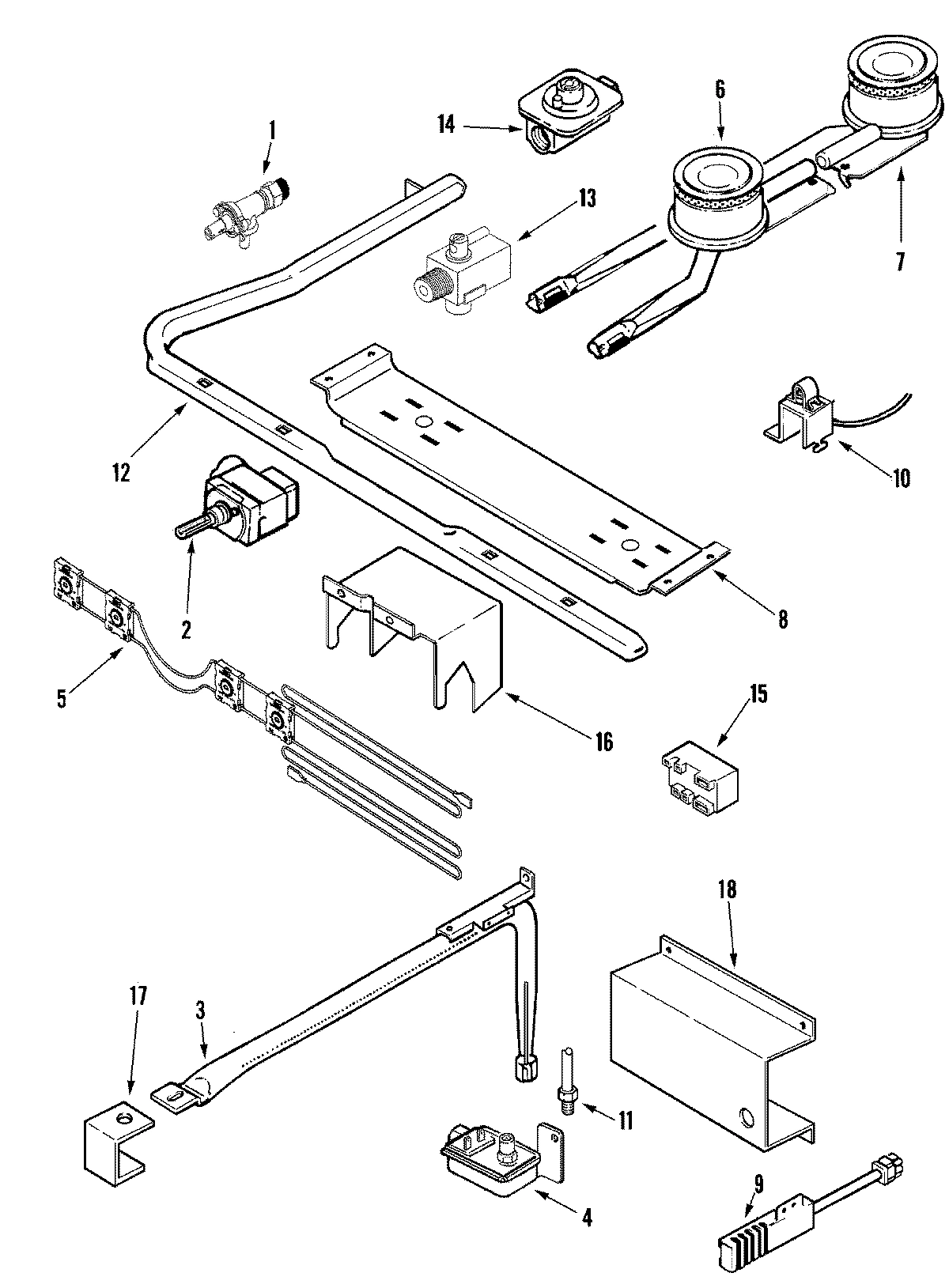

03 - GAS CONTROLS

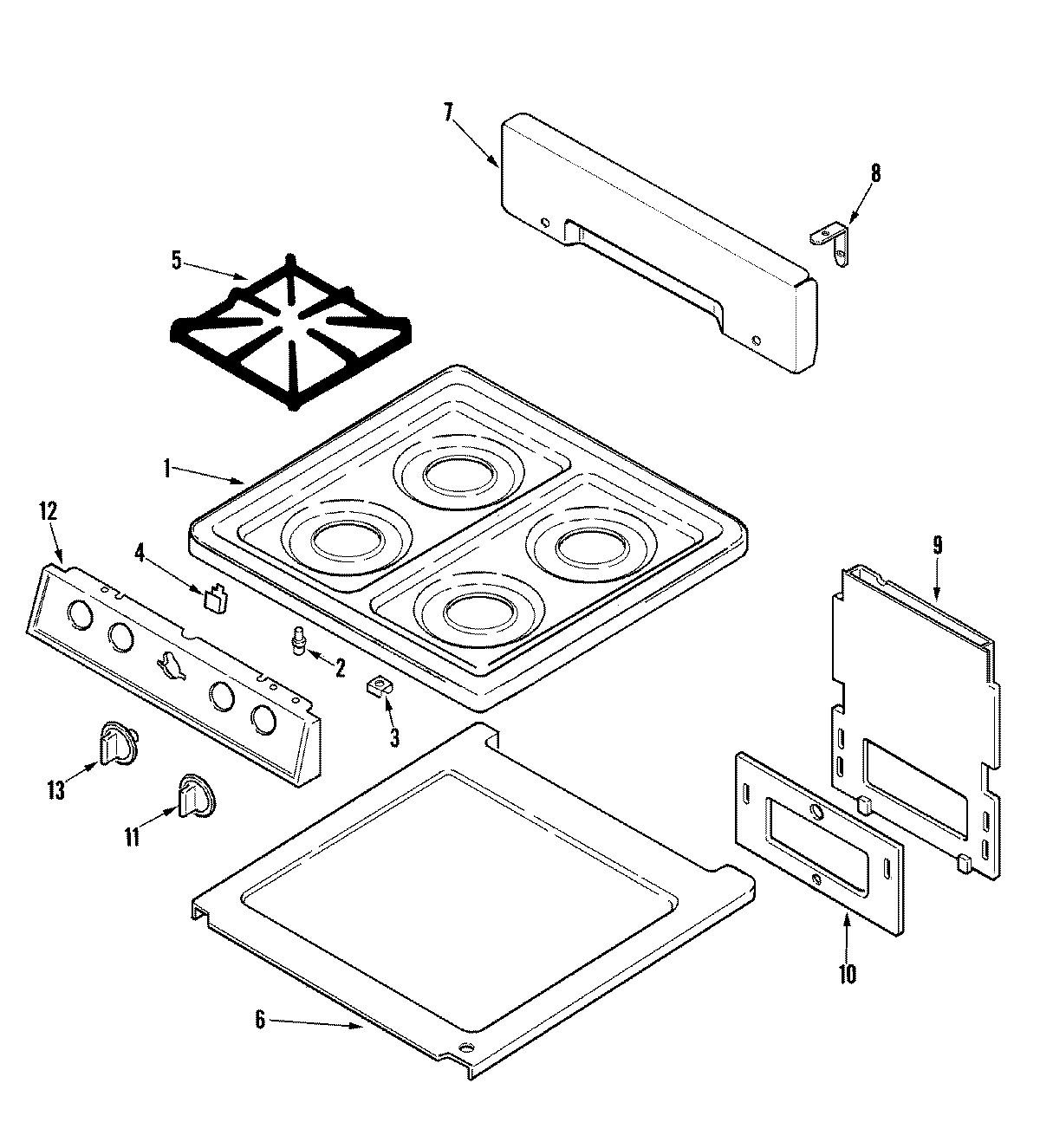

05 - TOP ASSEMBLY

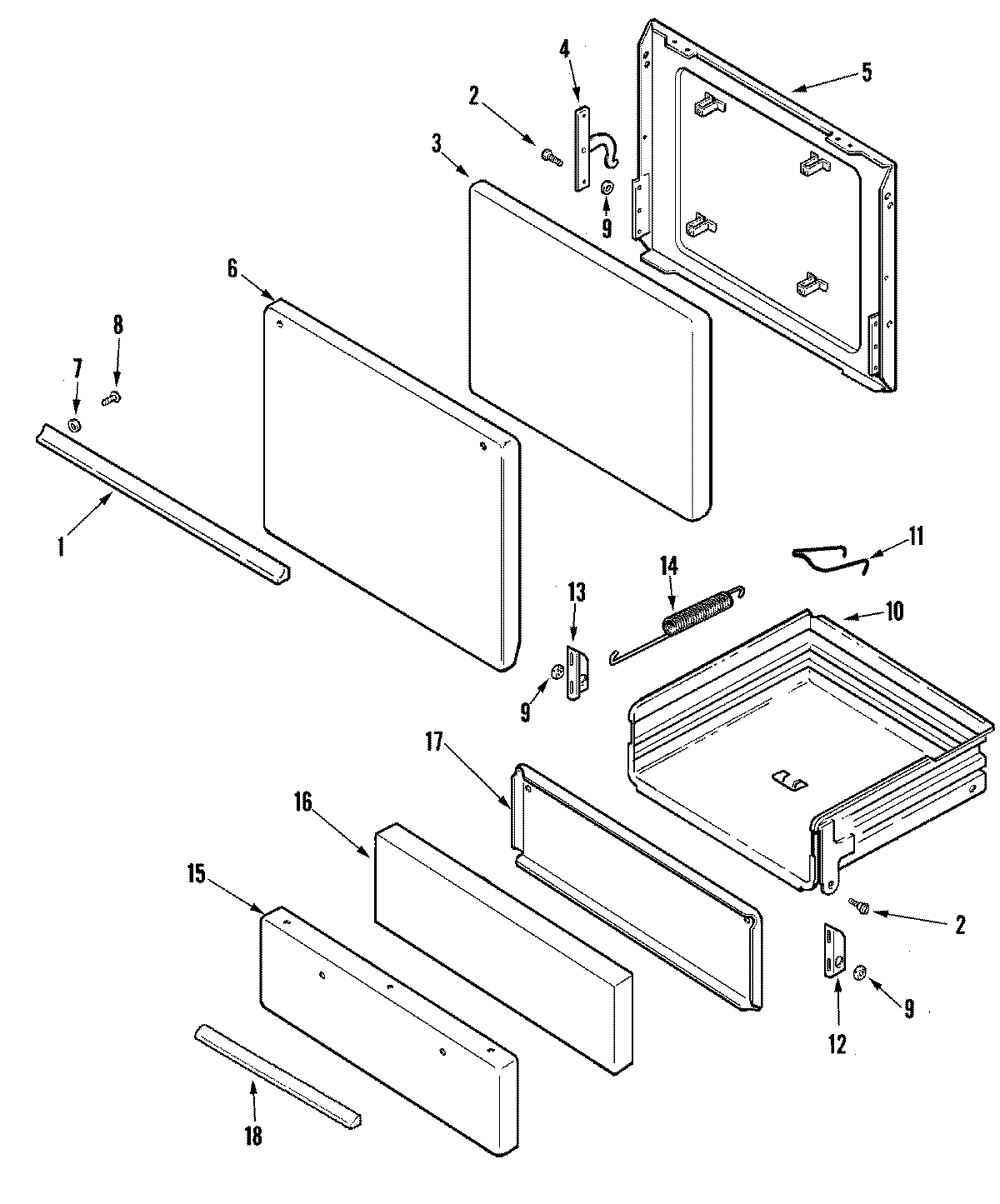

02 - DOOR/DRAWER

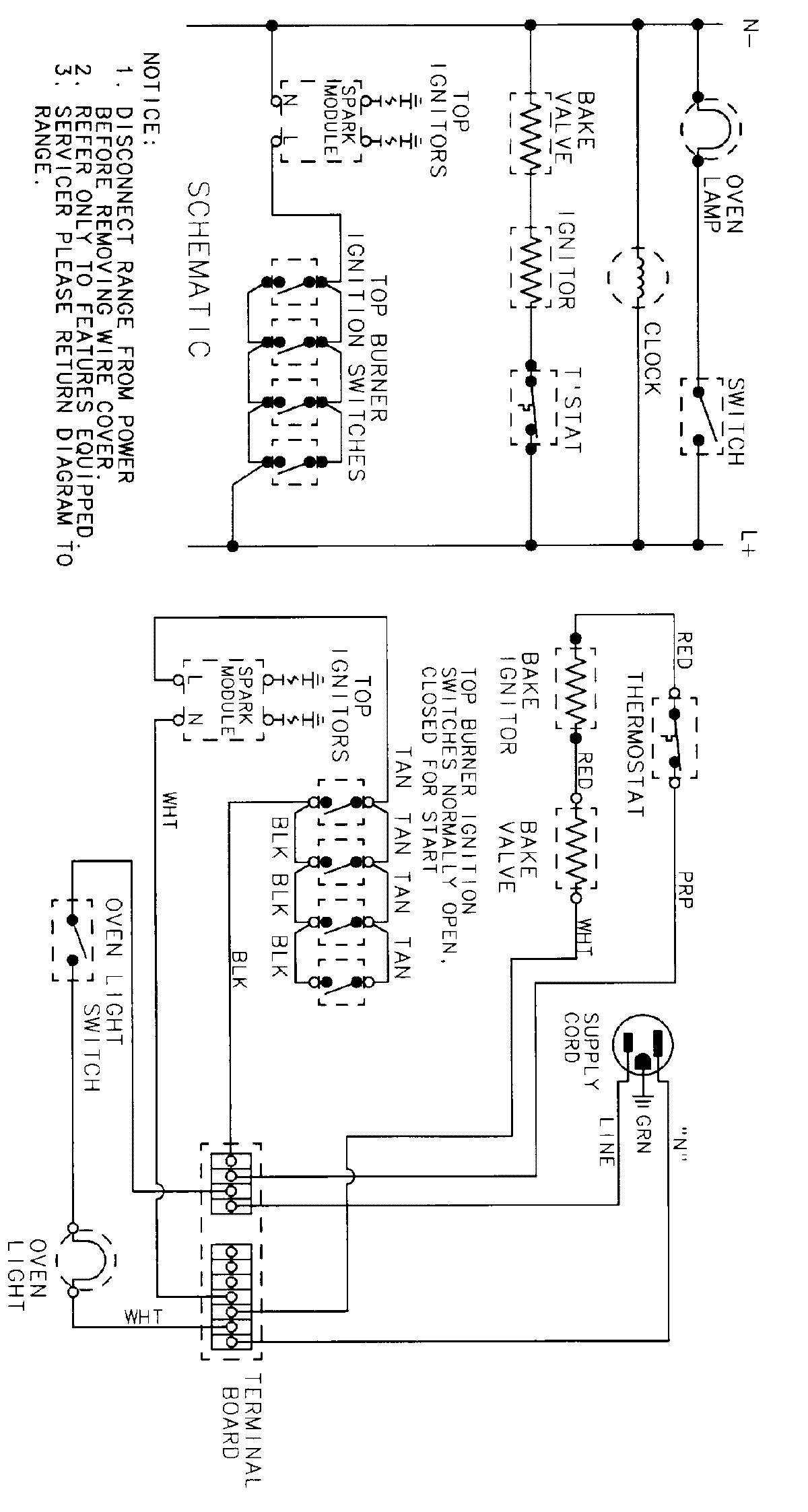

06 - WIRING INFORMATION
Common parts from model Whirlpool CGL1100ADQ GAS RANGE
1
VALVE,(MUELLER) WPL 74009414 Contact Us For Availability
1
SCREW WPL 74009416 Contact Us For Availability
1
NUT, PROJECTION WELD WPL 7103P08960 Contact Us For Availability
1
TOP, MAIN (BSQ) WPL 74006397 Contact Us For Availability
1
HANDLE, DOOR (BSQ) WPL 74010481 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
STRIKE, MAIN TOP WPL 8024P00360 Contact Us For Availability
2
BOLT, SHOULDER WPL 7118P00960 Contact Us For Availability
3
BURNER, OVEN WPL 3403D04845 Contact Us For Availability
3
NUT, STRIKE WPL 7103P10560 Contact Us For Availability
3
INSULATION, OVEN DOOR WPL 7002P10260 Contact Us For Availability
3
INSULATION, (18 X 20) WPL 74009878 Contact Us For Availability
4
ROD, BROILER RUNNER (LT) WPL 3808F00761 Contact Us For Availability
4
ROD, BROILER RUNNER (RT) WPL 3808F00861 Contact Us For Availability
4
SCREW WPL 7101P06860 Contact Us For Availability
4
VALVE, SAFETY (20``) WPL 74009924 Contact Us For Availability
4
SPRING, CATCH - FEMALE WPL 8002P02260 Contact Us For Availability
4
HINGE, OVEN DOOR WPL 3418F05334 Contact Us For Availability
5
INSULATION, OVEN WRAP WPL 74009273 Contact Us For Availability
5
SWITCH, SPARK IGNITOR ASSY. WPL 74009415 Contact Us For Availability
5
LINING, DOOR WPL 2402W10219 Contact Us For Availability
6
INSULATION, OVEN BACK WPL 7002P09160 Contact Us For Availability
6
BOX, BURNER WPL 74003292 Contact Us For Availability
6
SCREW WPL 7101P05960 Contact Us For Availability
6
PANEL, OVEN DOOR (BSQ) WPL 74006392 Contact Us For Availability
7
RACK, OVEN WPL 7801P01960 Contact Us For Availability
7
PANEL, BACKGUARD (BSQ) WPL 74010479 Contact Us For Availability
8
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
8
SUPPORT, TOP BURNER WPL 74010147 Contact Us For Availability
8
BRACKET, SUPPORT WPL 3801F93751 Contact Us For Availability
8
BRACKET, SUPPORT WPL 74003271 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
9
NUT LOCK WPL 7103P07260 Contact Us For Availability
9
CLIP, OVEN BOTTOM PL WPL 3819F01161 Contact Us For Availability
9
DEFLECTOR, VENT BOX WPL 74003294 Contact Us For Availability
10
SCREW WPL 7118P00460 Contact Us For Availability
10
IGNITER, TOP BURNER (RT) WPL 74004467 Contact Us For Availability
10
IGNITER, TOP BURNER (LT) WPL 74004468 Contact Us For Availability
10
GASKET, VENT DEFLECT WPL 7201P03860 Contact Us For Availability
10
DRAWER, BROILER WPL 3407W00519 Contact Us For Availability
11
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
11
TUBING, OVEN (3/8``) WPL 74006867 Contact Us For Availability
11
KNOB, VALVE (BSQ) WPL 74010592 Contact Us For Availability
11
STOP, BROILER DRAWER WPL 7809P00460 Contact Us For Availability
12
CHANNEL AIR SIDE WPL 3818F03451 Contact Us For Availability
12
SCREW WPL 7101P35660 Contact Us For Availability
12
PIPE, MANIFOLD WPL 74003309 Contact Us For Availability
12
NUT, TINNERMAN WPL 7103P10060 Contact Us For Availability
12
PANEL, MANIFOLD (BSQ) WPL 74010574 Contact Us For Availability
12
HINGE, BROILER DRAWER (RT) WPL 3418F03580 Contact Us For Availability
13
COVER, WIRE WPL 74003306 Contact Us For Availability
13
VALVE, SHUT OFF WPL 74006866 Contact Us For Availability
13
KNOB, THERMOSTAT (WHT) WPL 74010593 Contact Us For Availability
13
HINGE, BROILER DRAWER (LT) WPL 3418F03480 Contact Us For Availability
14
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 74006282 Contact Us For Availability
14
SPRING, BROILER DRAWER WPL 7803P06860 Contact Us For Availability
15
SEAL, DOOR (SIDE) WPL 7212P01560 Contact Us For Availability
15
MODULE, SPARK (2+0) WPL 74004282 Contact Us For Availability
15
COVER, SPARK MODULE WPL 74009584 Contact Us For Availability
15
PANEL, DRAWER (BSQ) WPL 74006399 Contact Us For Availability
16
SCREW WPL 7101P35260 Contact Us For Availability
16
COVER, THERMOSTAT WPL 74003310 Contact Us For Availability
16
INSULATION, BROILER DOOR WPL 7002P06760 Contact Us For Availability
17
NUT 10-24 WPL 7103P07160 Contact Us For Availability
17
FRONT, MAIN (GAS) WPL 74007535 Contact Us For Availability
17
SUPPORT, BURNER WPL 3807F33651 Contact Us For Availability
17
LINING DOOR BROILER WPL 2404F02219 Contact Us For Availability
18
HANDLE, DOOR (BSQ) WPL 74010425 Contact Us For Availability
18
PANEL, SIDE (BSQ) WPL 74006391 Contact Us For Availability
18
SUPPORT, OVEN VALVE WPL 3807F36945 Contact Us For Availability
18
HANDLE, DOOR (WHT) WPL 74010424 Contact Us For Availability
19
SPRING, OVEN DOOR WPL 7803P03260 Contact Us For Availability
20
SCREW WPL 7101P07260 Contact Us For Availability
20
SUPPORT, HINGE (LT) WPL 3807F29034 Contact Us For Availability
20
SUPPORT, HINGE (RT) WPL 3807F29134 Contact Us For Availability
20
SCREW, W/WASHER WPL 7101P18860 Contact Us For Availability
20
NUT WPL 7103P06460 Contact Us For Availability
22
PLATE, OVEN BOTTOM WPL 5720A00323 Contact Us For Availability
23
WASHER, ALUM WPL 71001403 Contact Us For Availability
24
NUT, EXPANSION WPL 7103P08060 Contact Us For Availability
25
INSERT PAN WPL 3413F00719 Contact Us For Availability
26
CORD, POWER WPL 74007556 Contact Us For Availability
NI
CONVERSION KIT (LP) WPL 12002560 Contact Us For Availability
NI
SVC MAN, RANGE, GAS WPL 16023522 Contact Us For Availability
NI
MANUAL, USE & CARE (FRENCH) WPL 74002356 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74003054 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P55860 Contact Us For Availability
NI
MANULA, USE & CARE WPL 8113P70560 Contact Us For Availability
NI
MANUAL, USE & CARE (FRENCH) WPL 8113P70660 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001858 Contact Us For Availability
× ![]()
