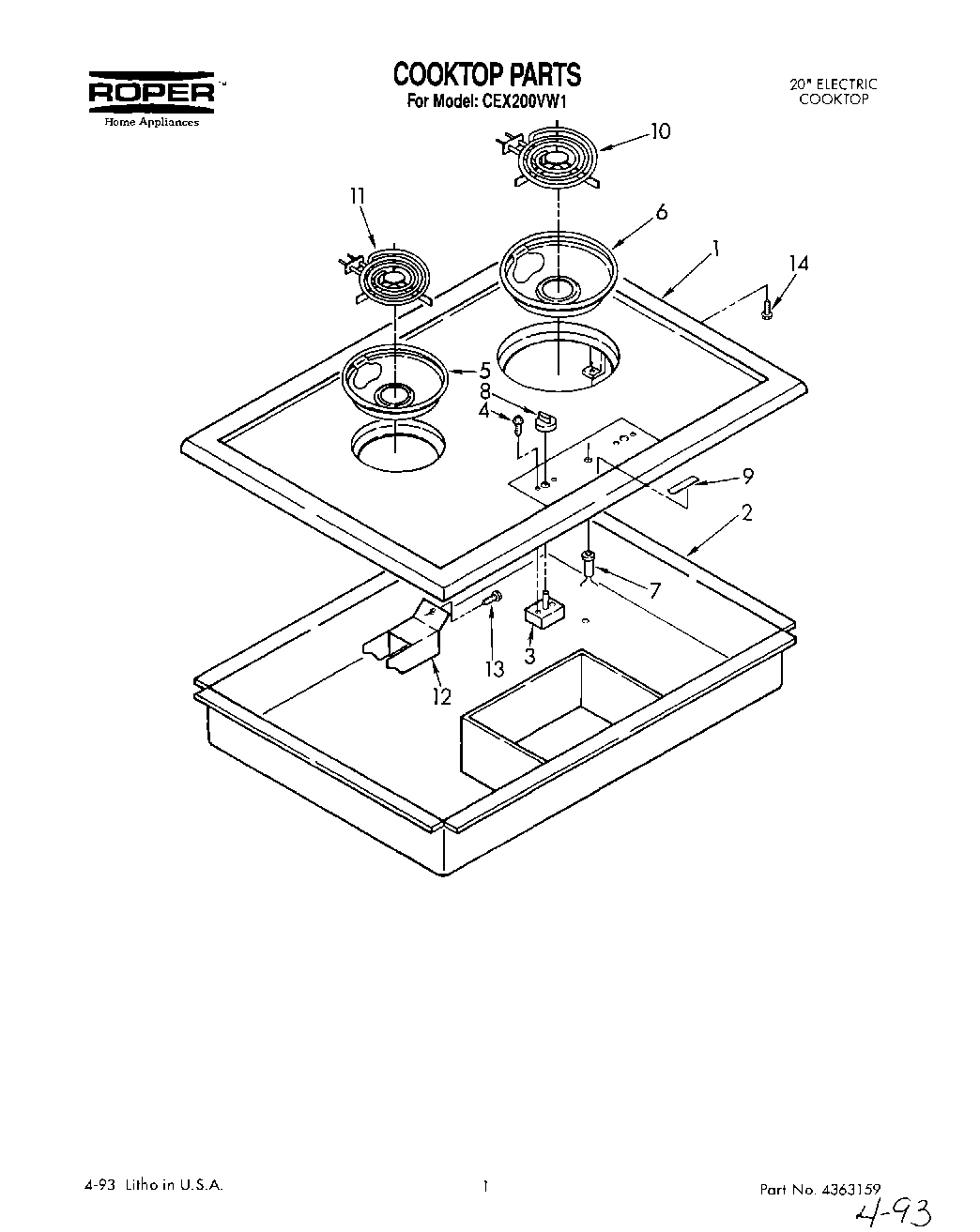

Model Whirlpool CEX200VW1 ELECTRIC COOK-TOP – Common Parts & Diagrams

List, Repair Parts
List, Repair Parts WPL LIT04363159 Contact Us For Availability
View on Model
1
Cooktop (Brushed Chrome)
Cooktop (Brushed Chrome) WPL 4315622 Contact Us For Availability
View on Model
1
Cooktop (Almond)
Cooktop (Almond) WPL 4315630 Contact Us For Availability
View on Model
1
Cooktop (White)
Cooktop (White) WPL 4315631 Contact Us For Availability
View on Model
2
Burner Box
Burner Box WPL 4315623 Contact Us For Availability
View on Model
3
Infinite Switch (2)
Infinite Switch (2) WPL 4315640 Contact Us For Availability
View on Model
4
Screw (4) No.8-32 x 3/18
Screw (4) No.8-32 x 3/18 WPL 786231 Contact Us For Availability
View on Model
5
Drip Bowl, 6``
Drip Bowl, 6`` WPL 4157865 Contact Us For Availability
View on Model
7
Indicator Light
Indicator Light WPL 4315639 Contact Us For Availability
View on Model
8
Knob (2) Infinite
Knob (2) Infinite WPL 4315626 Contact Us For Availability
View on Model
9
Nameplate - Roper
Nameplate - Roper WPL 4315582 Contact Us For Availability
View on Model
10
Surface Element 8`` 120V
Surface Element 8`` 120V WPL 4363157 Contact Us For Availability
View on Model
11
Surface Element 6`` 120V
Surface Element 6`` 120V WPL 4363158 Contact Us For Availability
View on Model
14
Guide, Use & Care
Guide, Use & Care WPL 4315474 Contact Us For Availability
View on Model
14
Installation Guide
Installation Guide WPL 4315475 Contact Us For Availability
View on Model
14
Wiring Diagram
Wiring Diagram WPL 4320359 Contact Us For Availability
View on Model
14
Screw No.8-32 x 3/8
Screw No.8-32 x 3/8 WPL 786232 Contact Us For Availability
View on Model
