Model Whirlpool CER3760BAW ELECTRIC RANGE – Common Parts & Diagrams

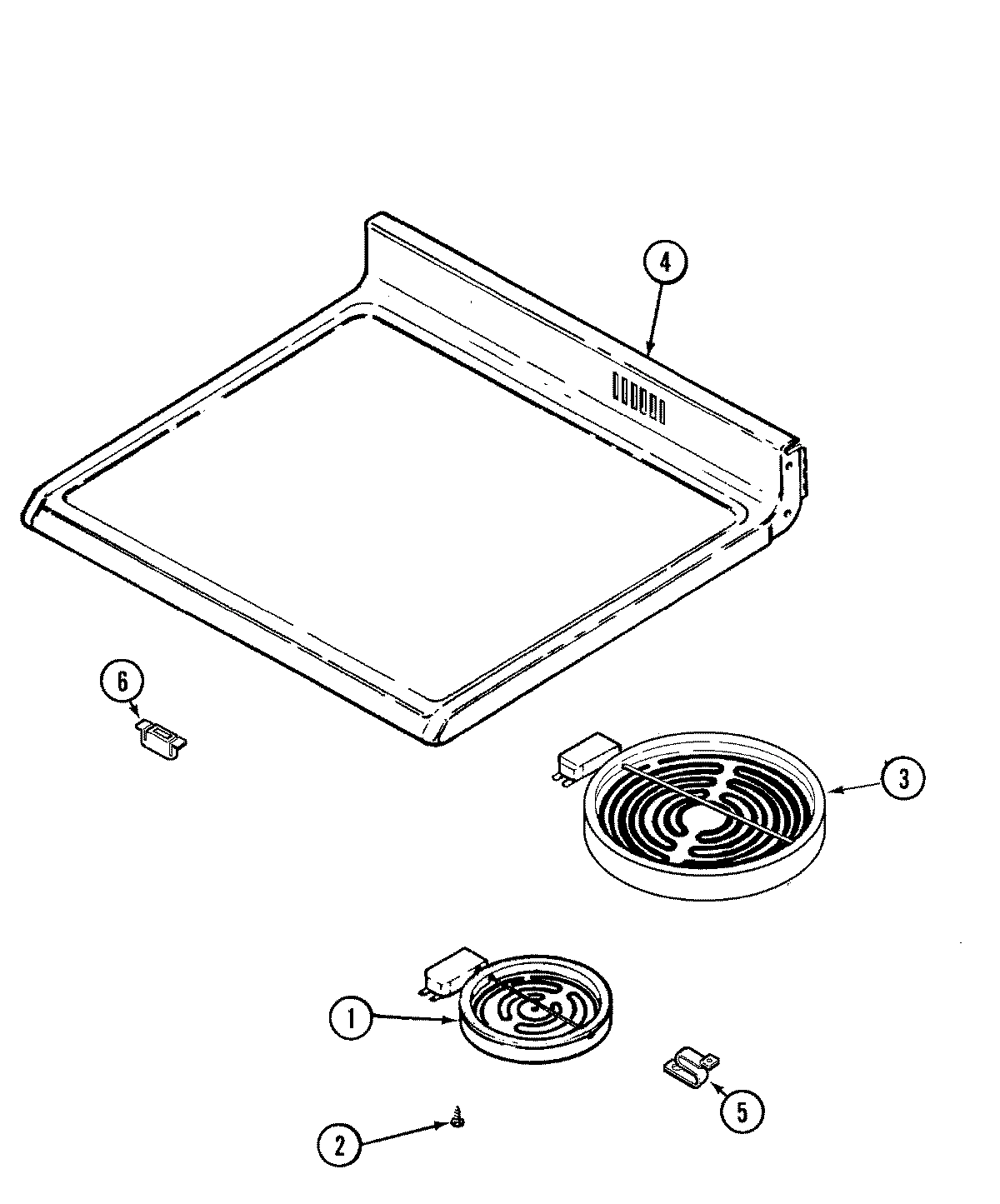

06 - TOP ASSEMBLY

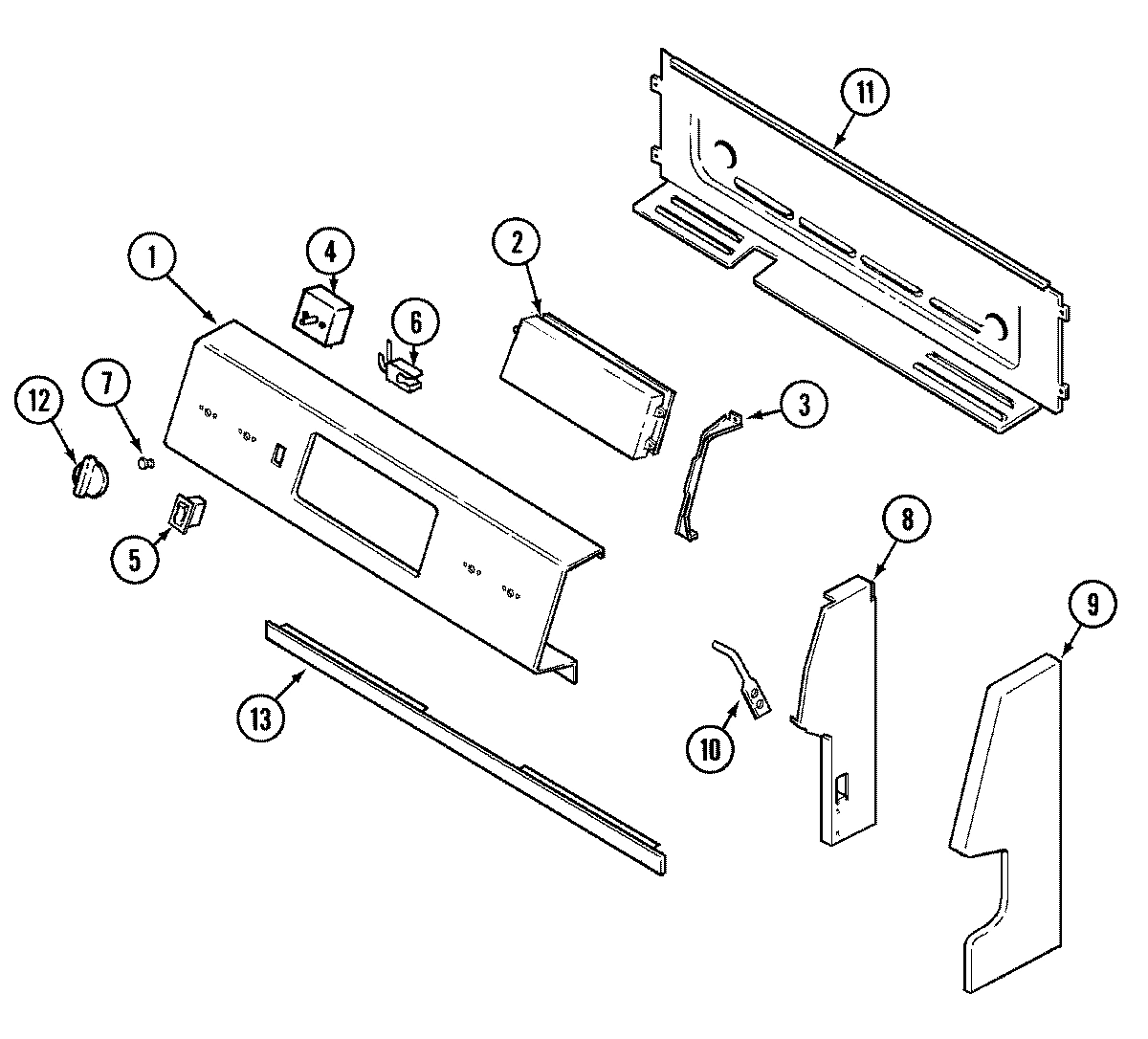

02 - CONTROL PANEL

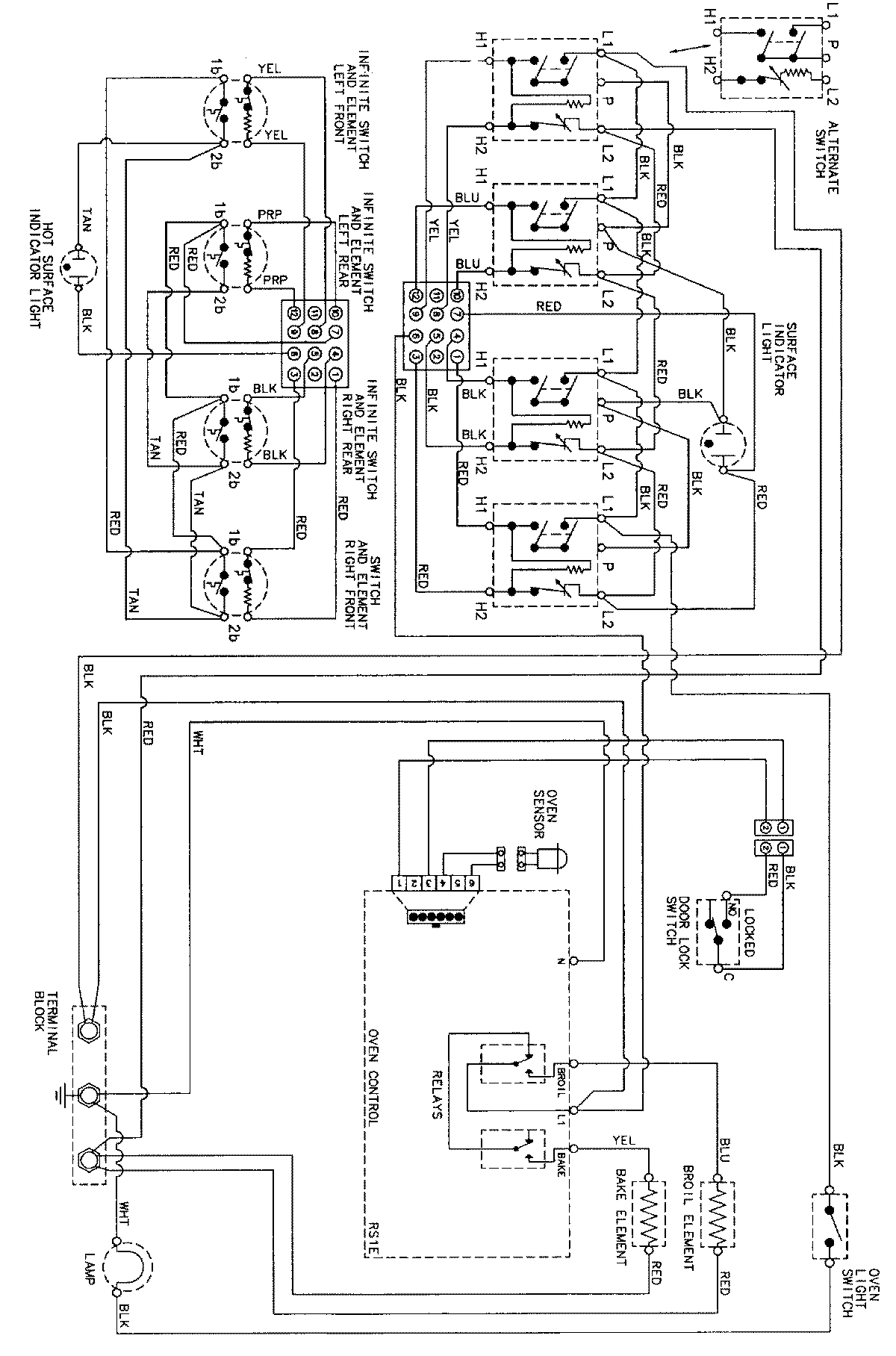

07 - WIRING INFORMATION

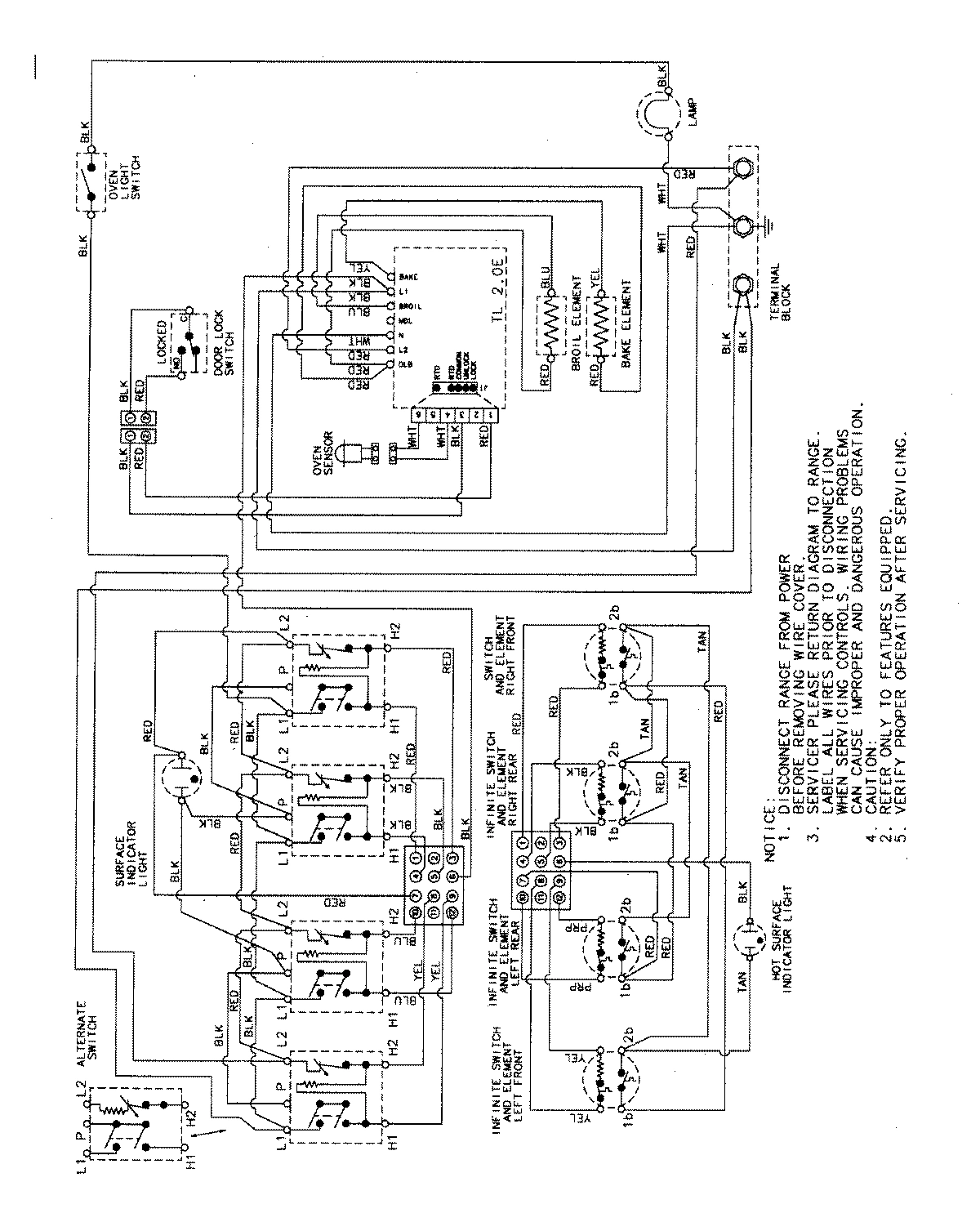

08 - WIRING INFORMATION (AT SERIES 16)

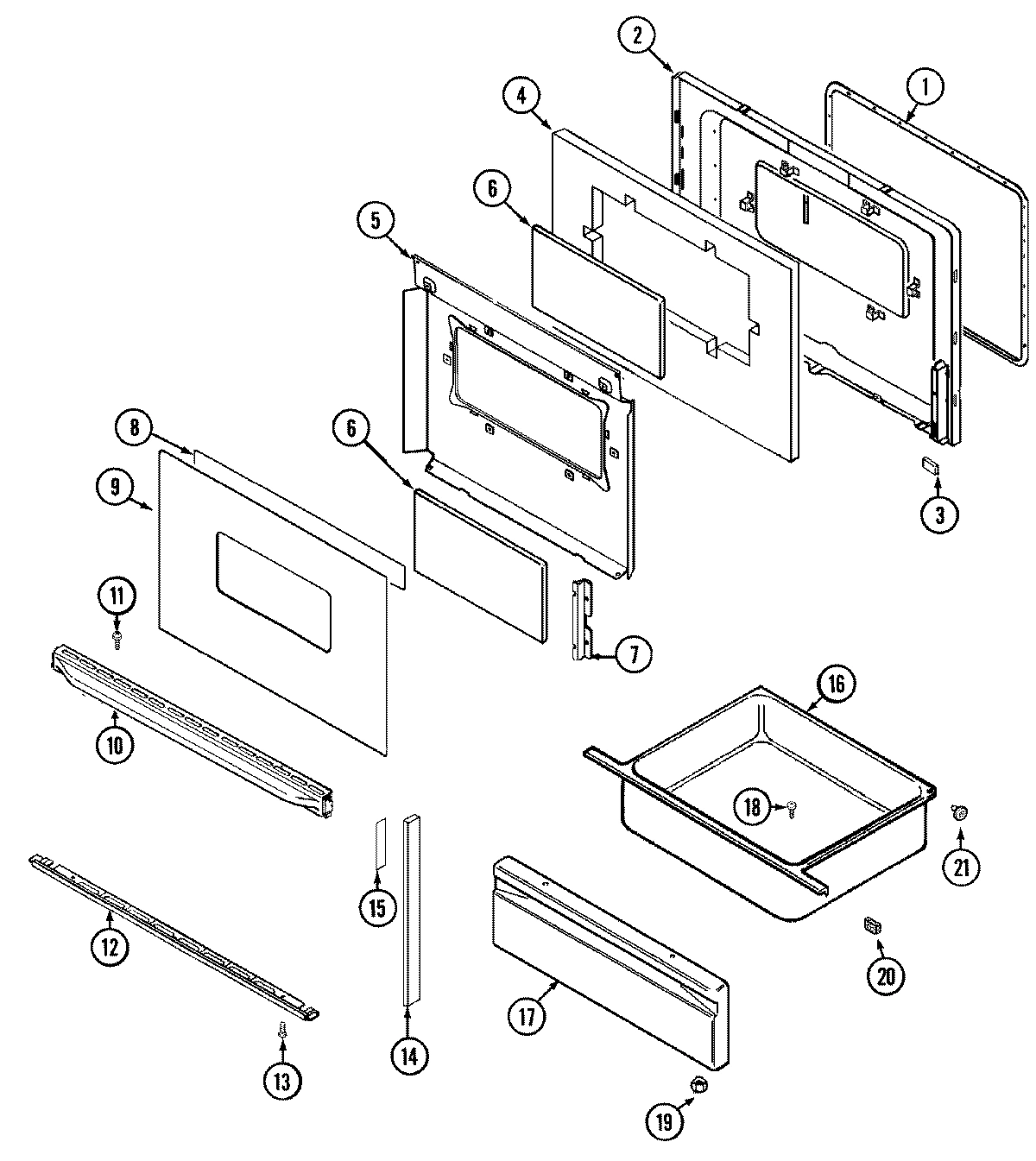

03 - DOOR/DRAWER
05 - SUPPLEMENTAL INFORMATION

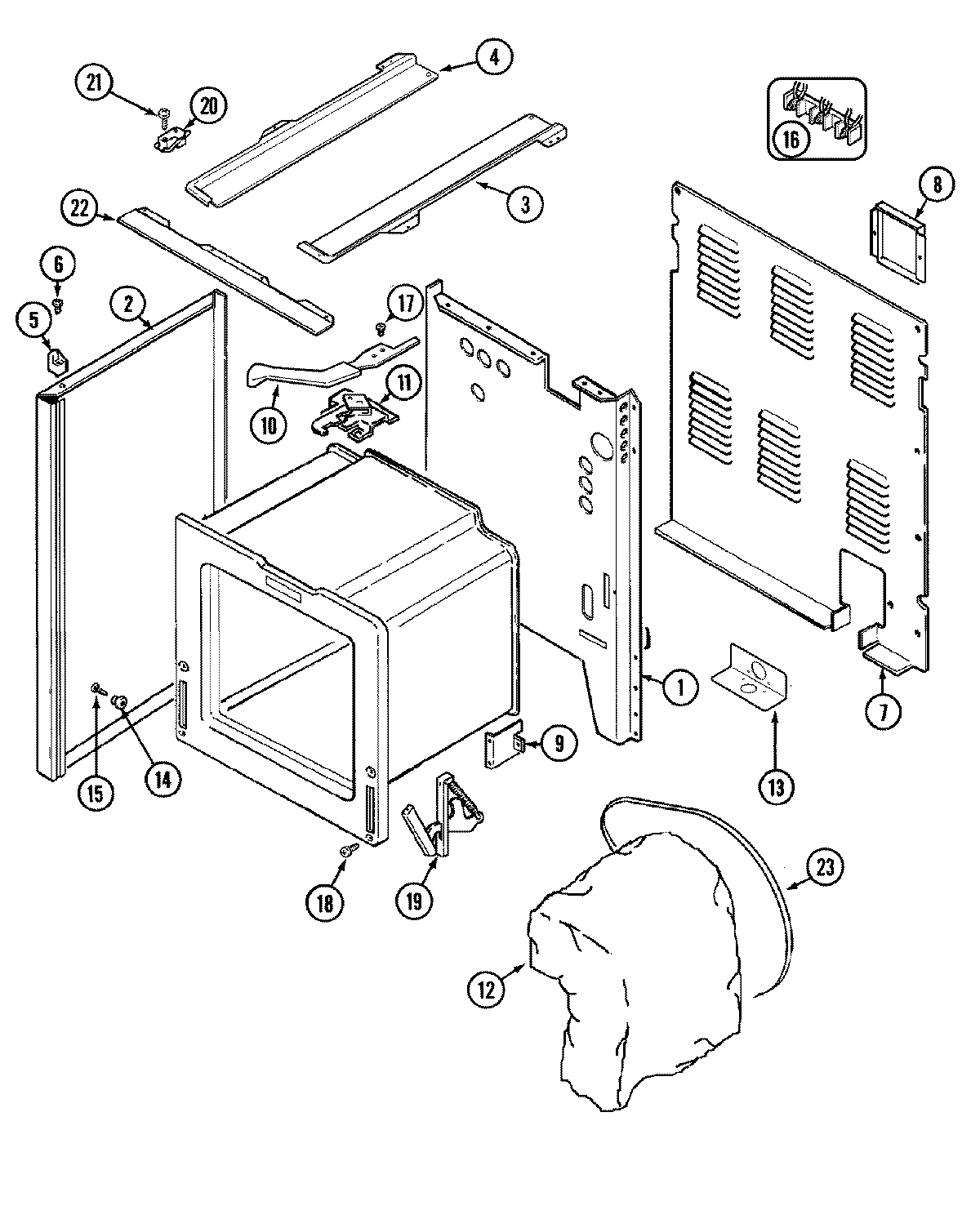

01 - BODY

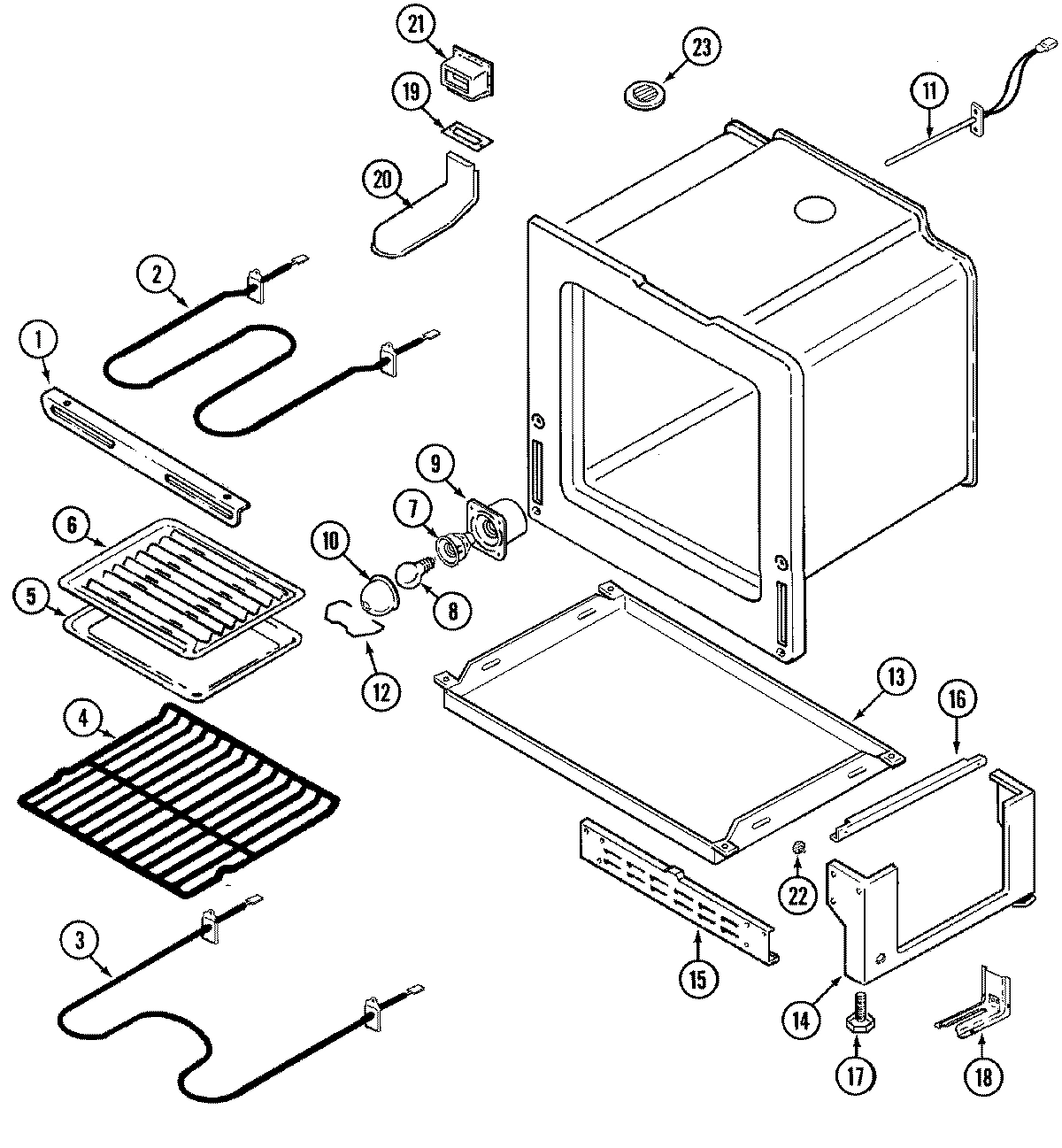

04 - OVEN/BASE
Common parts from model Whirlpool CER3760BAW ELECTRIC RANGE
1
PANEL, CONTROL (WHT) WPL 74003465 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
BACK, MAIN WPL 74006322 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
2
CLOCK (WHT) WPL 74003486 Contact Us For Availability
2
CLOCK W/OVERLAY (WHT) WPL 74009365 Contact Us For Availability
2
LINING, OVEN DOOR WPL 74004972 Contact Us For Availability
2
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability
3
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
3
BRACKET, CLOCK WPL 74004913 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74003378 Contact Us For Availability
4
PAD, SPONGE (NON ABRASIVE) WPL 20001100 Contact Us For Availability
4
TOP, MAIN (WHT) WPL 74006485 Contact Us For Availability
4
SCREW WPL 7101P30960 Contact Us For Availability
4
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
4
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74003379 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
INDICATOR, LIGHT WPL 74006388 Contact Us For Availability
6
GLASS, INNER WPL 74003320 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
9
SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability
9
END CAP, CONTROL PNL (LT-WHT) WPL 74003370 Contact Us For Availability
9
GLASS, OUTER (WHT) WPL 74003395 Contact Us For Availability
9
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
9
HOUSING, BULB WPL 74003388 Contact Us For Availability
10
HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability
10
HANDLE, DOOR (WHT) WPL 74003396 Contact Us For Availability
10
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
10
COVER, BULB WPL 74003389 Contact Us For Availability
11
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
11
HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability
11
DOOR LATCH KIT WPL 12001944 Contact Us For Availability
11
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
11
LATCH, DOOR WPL 74003380 Contact Us For Availability
11
RETAINER, LATCH INSULATION WPL 74006342 Contact Us For Availability
12
TRIM, DOOR (BTM-WHT)----NA WPL 74003397 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 74005771 Contact Us For Availability
12
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
13
SHIELD, SIGHT WPL 74003374 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 74003398 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74006325 Contact Us For Availability
15
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
15
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
15
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
16
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
16
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
17
PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability
18
SCREW, STAINLESS WPL 7101P03760 Contact Us For Availability
18
SCREW WPL 7101P11260 Contact Us For Availability
18
SCREW WPL 7101P35260 Contact Us For Availability
19
NUT, LOCK WPL 7103P13960 Contact Us For Availability
19
GASKET, VENT WPL 74003285 Contact Us For Availability
20
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
20
VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability
21
NUT WPL 7103P08260 Contact Us For Availability
21
SCREW WPL 912012 Contact Us For Availability
21
EXTENSION, OVEN VENT ASSEMBLY WPL 74004535 Contact Us For Availability
22
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
22
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
22
BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability
23
STRAP, INSULATION WPL 74003385 Contact Us For Availability
23
SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002273 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003394 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 74003375 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74003467 Contact Us For Availability
NI
HARNESS, BCKGRD/TOP WPL 74004914 Contact Us For Availability
× ![]()
