Model Whirlpool CER3760ACW ELECTRIC RANGE – Common Parts &amp; Diagrams

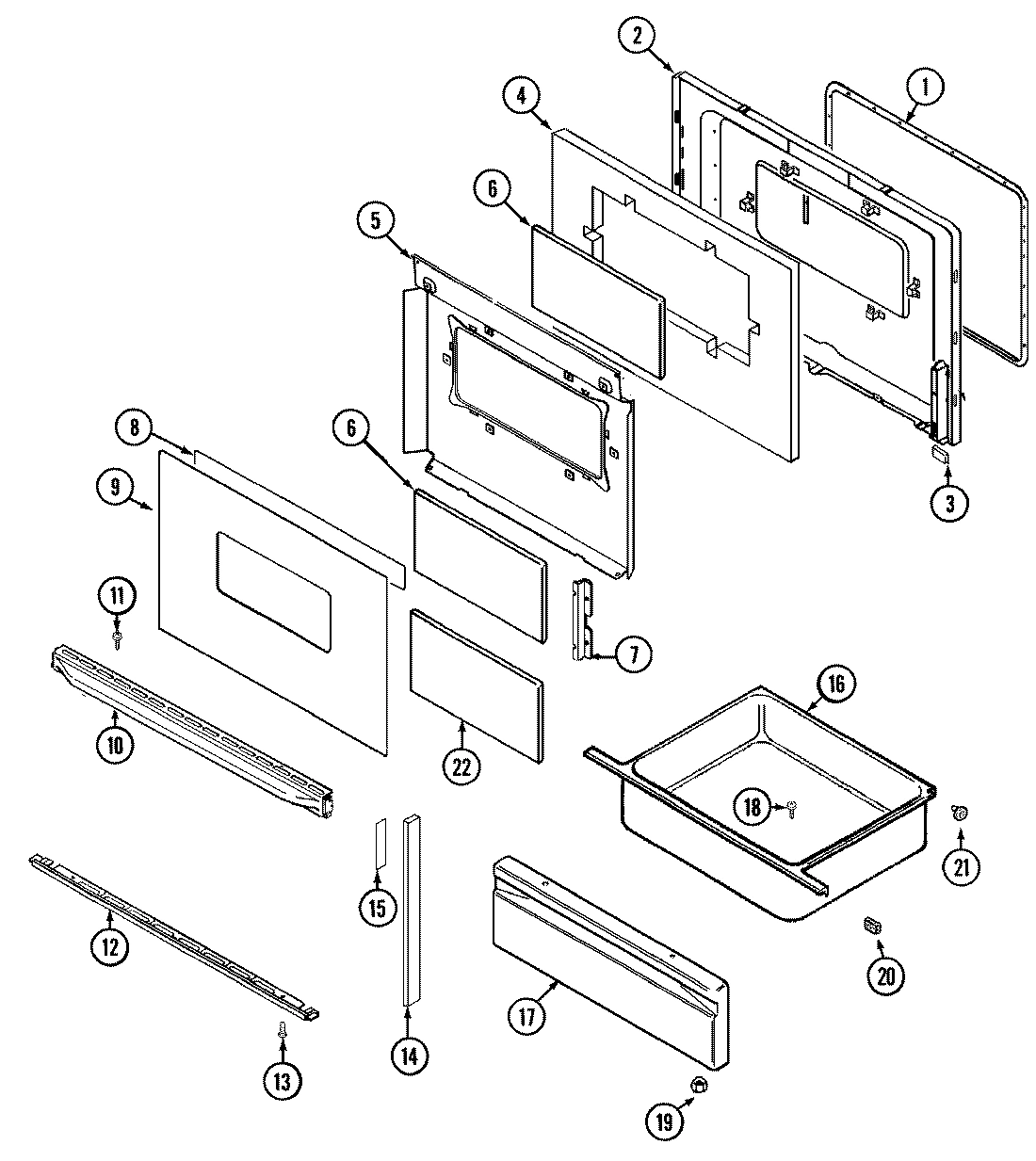

1

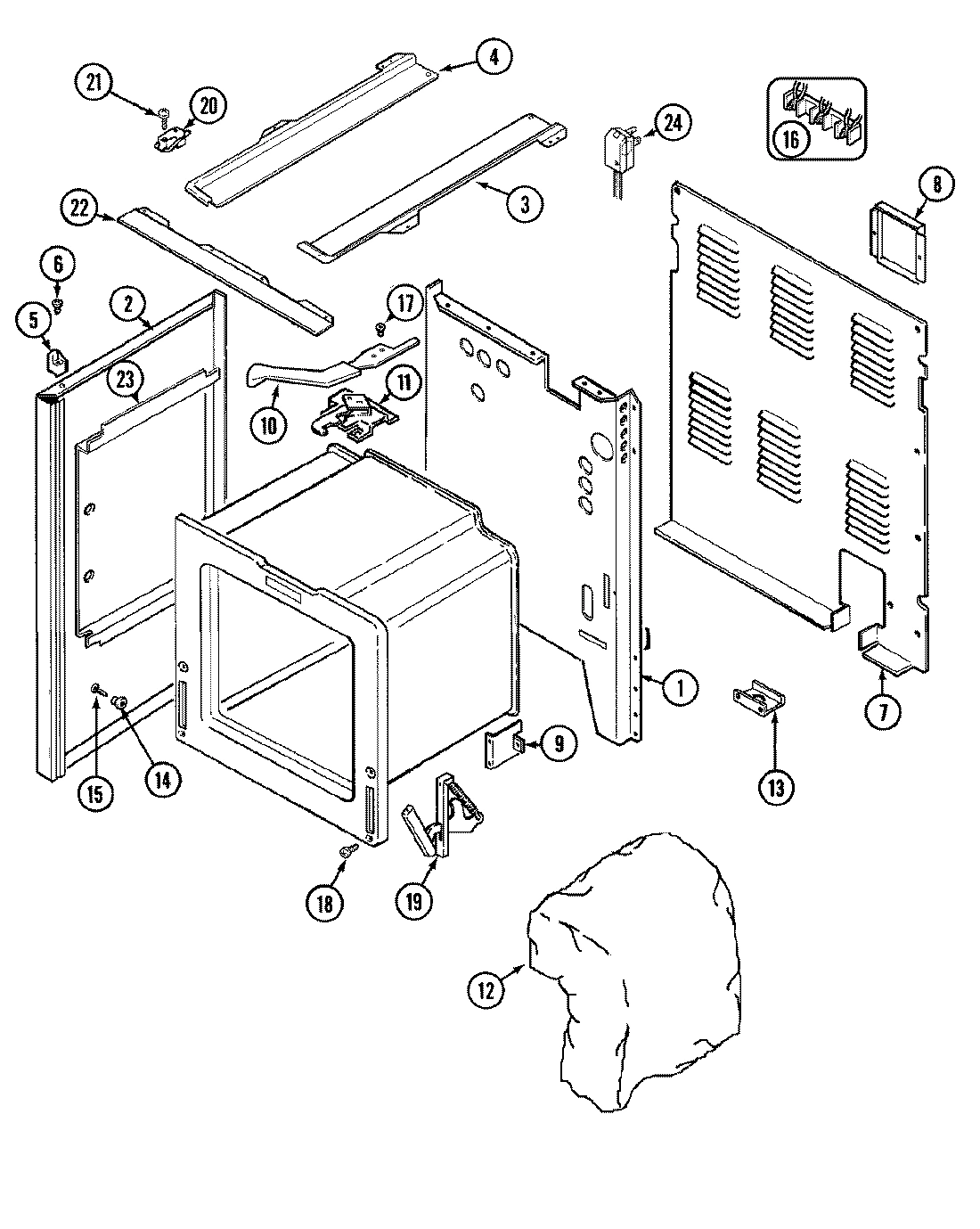

BACK, MAIN WPL 74001772 Contact Us For Availability

1

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

1

PANEL, CONTROL (WHT) WPL 74003360 Contact Us For Availability

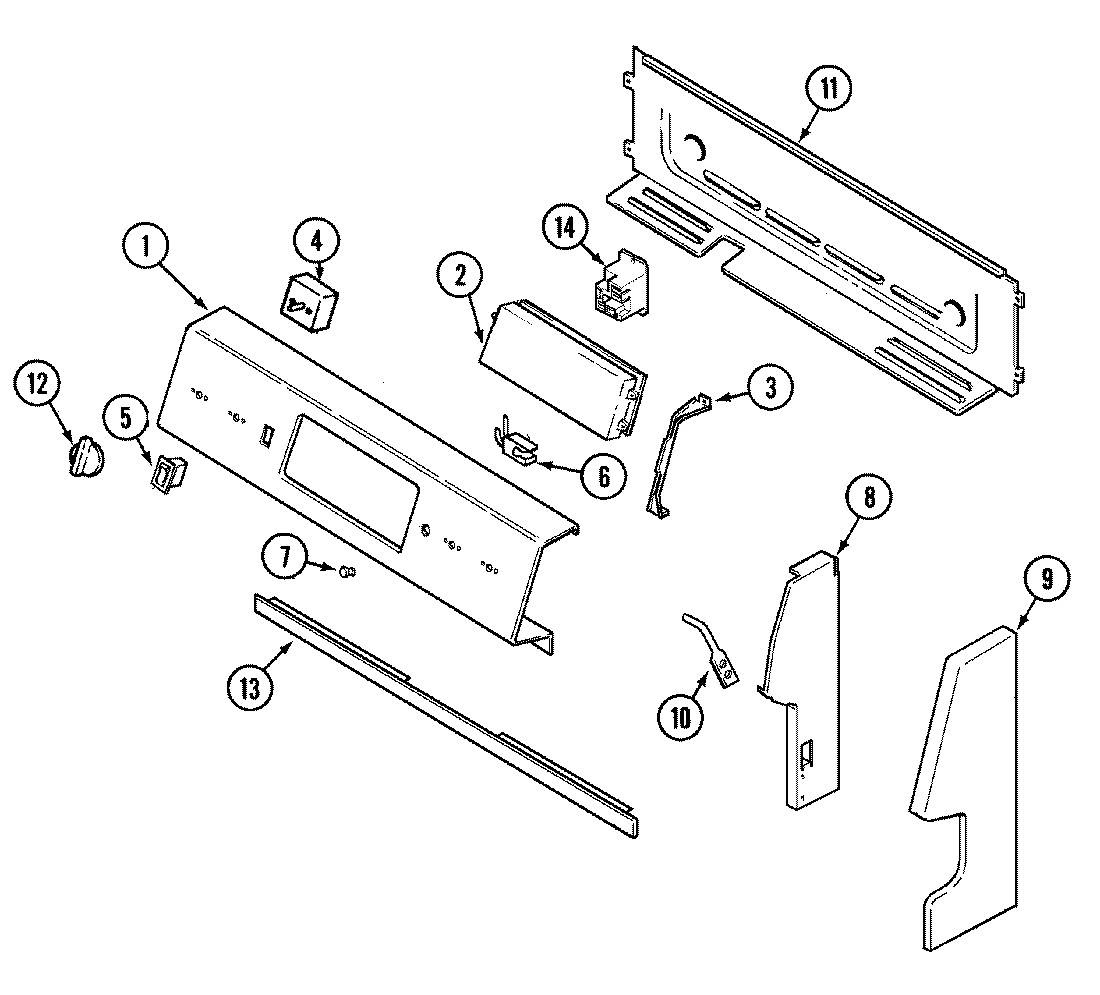

2

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

2

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

LINING, DOOR WPL 74003244 Contact Us For Availability

2

SCREW WPL 7101P34960 Contact Us For Availability

2

CLOCK (WHT) WPL 74003483 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

3

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

3

LIMITER WPL 74004494 Contact Us For Availability

3

LIMITER (8``) WPL 74002652 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

3

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

3

SCREW (WHT) WPL 7101P34860 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003362 Contact Us For Availability

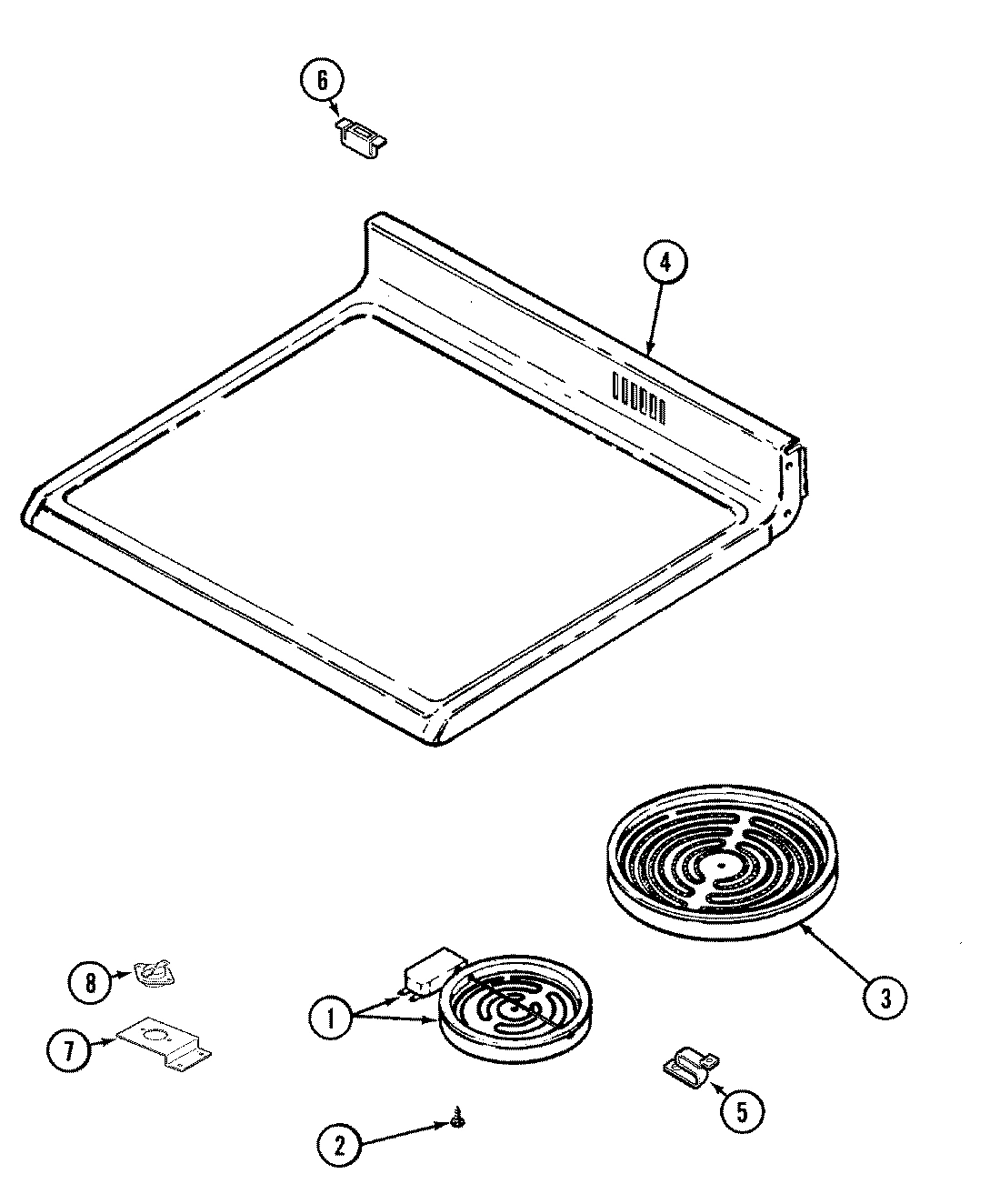

4

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

4

TOP, MAIN (WHT GLASS/WHT TRM) WPL 74003743 Contact Us For Availability

4

CLEANER, ELCO WPL 8308P00260 Contact Us For Availability

4

SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

4

INSULATION, DOOR WPL 74001842 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

5

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $61.72

5

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

BAFFLE, DOOR WPL 74001843 Contact Us For Availability

6

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

6

LIGHT, INDICATOR WPL 74003053 Contact Us For Availability

6

GLASS, INNER WPL 74001841 Contact Us For Availability

6

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

7

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

7

RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability

7

BRACKET, SWITCH WPL 71003077 Contact Us For Availability

7

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

7

RETAINER, GLASS WPL 74001844 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

8

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

8

SWITCH, LIMIT WPL 71003076 Contact Us For Availability

8

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

9

HOUSING, BULB WPL 74003388 Contact Us For Availability

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

9

GLASS, OUTER (WHT) WPL 74003395 Contact Us For Availability

9

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

9

SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability

9

END CAP, CONTROL PNL (LT-WHT) WPL 74003370 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

COVER, BULB WPL 7724P04760 Contact Us For Availability

LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability

HANDLE, DOOR (WHT) WPL 74003396 Contact Us For Availability

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability

LATCH, DOOR WPL 74003380 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability

WP74003373 Whirlpool Knob Switch Backorder WPL WP74003373 $12.06

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability

TRIM, DOOR (BTM-WHT)----NA WPL 74003397 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability

FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

WP74003482 Whirlpool Auxiliary Relay Backorder WPL WP74003482 $118.28

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

END CAP, DOOR (WHT) WPL 74003398 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

TAPE, END CAP WPL 8270P09360 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

17

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

17

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

SCREW WPL 7101P35260 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

SCREW WPL 7101P07260 Contact Us For Availability

19

WP74011140 Whirlpool Range Hinge In Stock WPL WP74011140 $102.61

19

GASKET, VENT WPL 74003285 Contact Us For Availability

19

NUT, LOCK WPL 7103P13960 Contact Us For Availability

20

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

20

SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability

20

SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability

EXTENSION, VENT WPL 3826W01445 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

SCREW WPL 912012 Contact Us For Availability

22

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

22

GLASS, INNER WPL 74002002 Contact Us For Availability

23

SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability

23

RETAINER, INSULATION (SIDE) WPL 74003422 Contact Us For Availability

24

CORD, POWER WPL 7402P05060 Contact Us For Availability

WIRING INFORMATION WPL 15002345 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability

HARNESS, SENSOR/LOCK WPL 74003375 Contact Us For Availability

MANUAL, USE & CARE WPL 74003376 Contact Us For Availability

HARNESS, REMOTE RELAY WPL 74003480 Contact Us For Availability

MANUAL, USE & CARE (FRCH) WPL 74003481 Contact Us For Availability

MANUAL, USE & CARE WPL 74004247 Contact Us For Availability
