Model Whirlpool CER3760ACQ ELECTRIC RANGE – Common Parts &amp; Diagrams

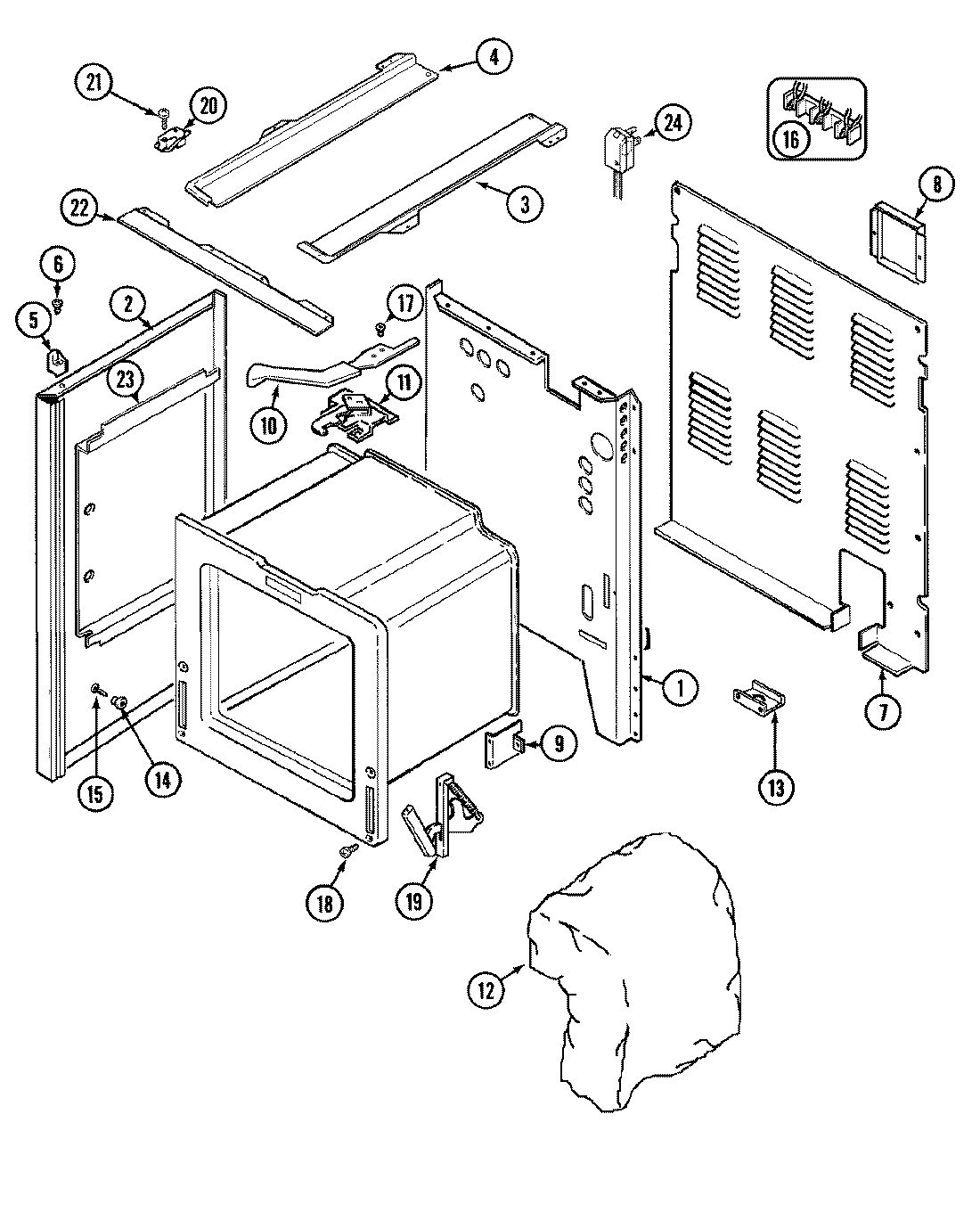

1

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

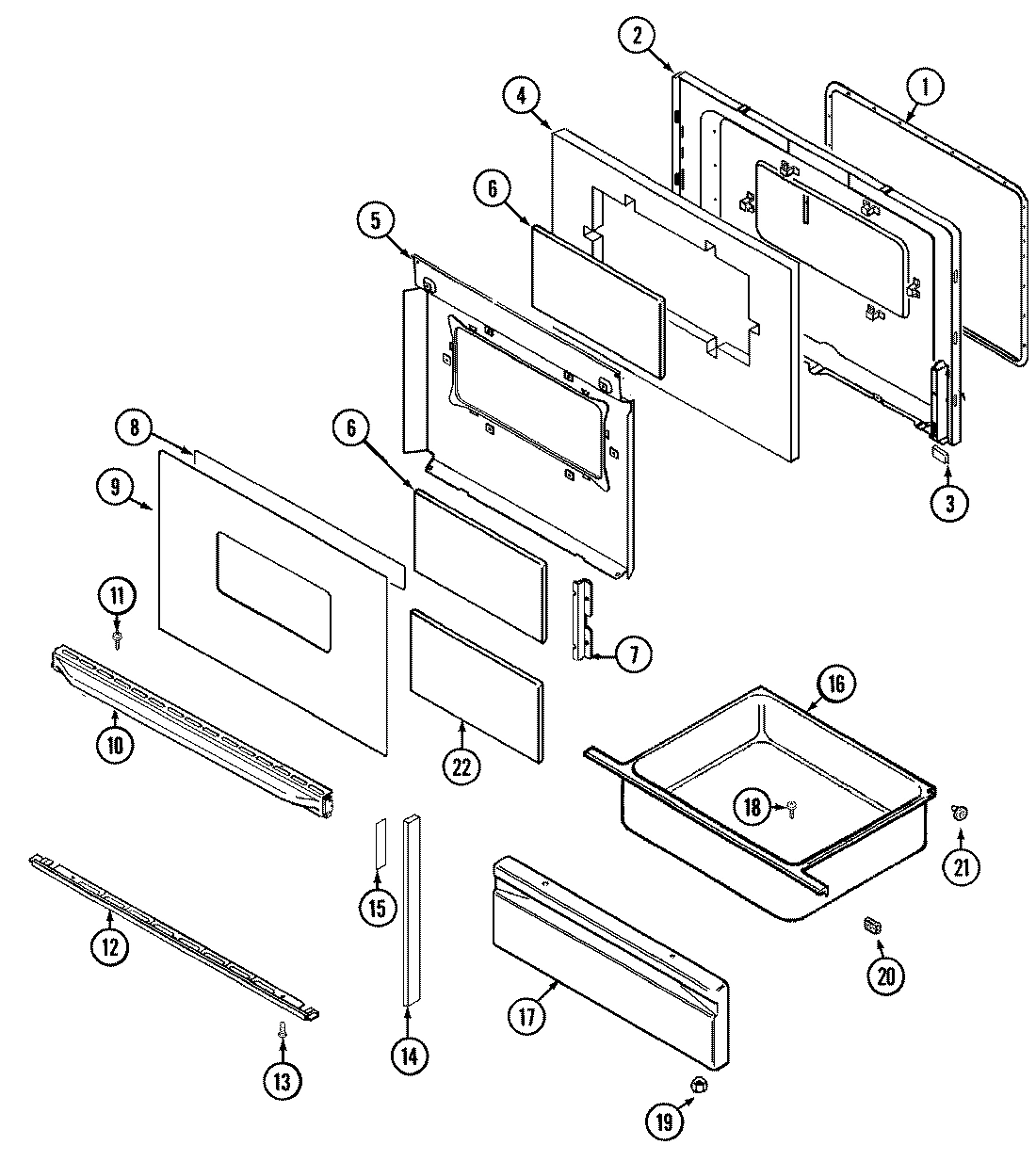

2

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

2

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

2

LINING, OVEN DOOR WPL 74004972 Contact Us For Availability

2

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

2

PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability

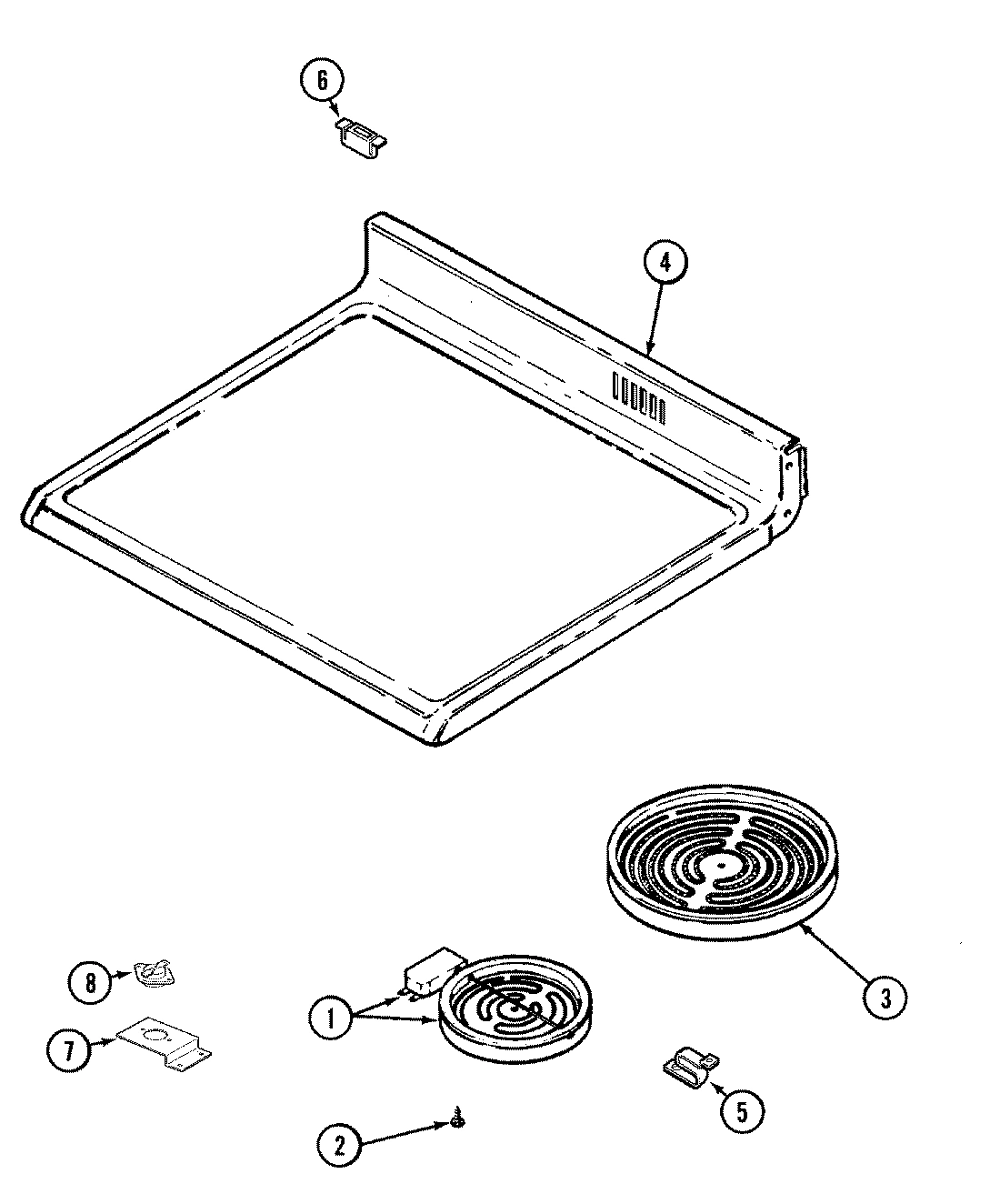

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

3

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

3

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

3

LIMITER WPL 74004494 Contact Us For Availability

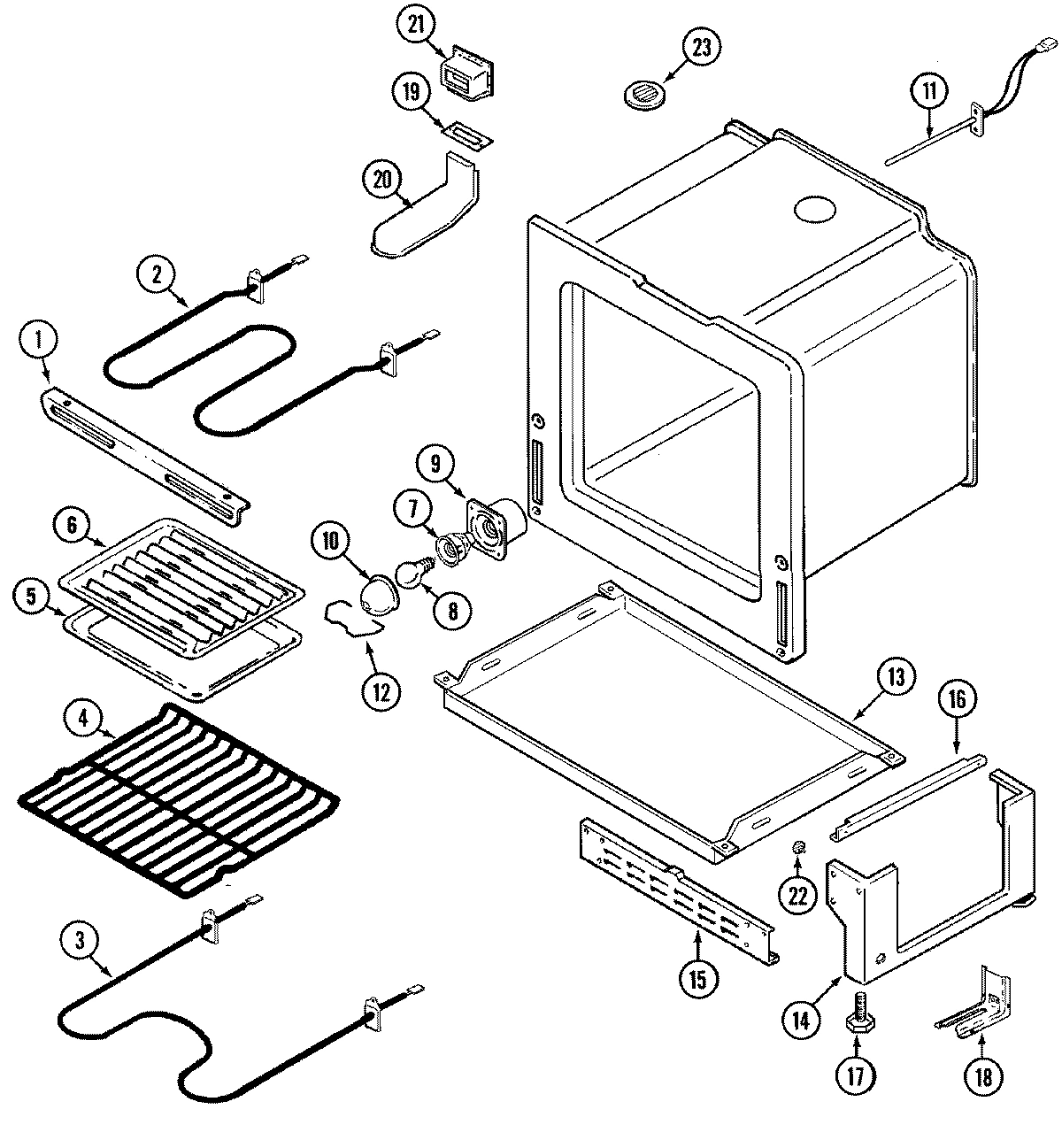

4

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

4

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

4

INSULATION, DOOR WPL 74001842 Contact Us For Availability

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

4

TOP, MAIN (ALM GLASS/BSQ TRM) WPL 74005066 Contact Us For Availability

4

CLEANER, ELCO WPL 8308P00260 Contact Us For Availability

4

SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability

5

BAFFLE, DOOR WPL 74001843 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

GLASS, INNER WPL 74001841 Contact Us For Availability

6

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

6

LIGHT, INDICATOR WPL 74003053 Contact Us For Availability

7

RETAINER, GLASS WPL 74001844 Contact Us For Availability

7

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

7

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

7

BRACKET, SWITCH WPL 71003077 Contact Us For Availability

8

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

8

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

8

SWITCH, LIMIT WPL 71003076 Contact Us For Availability

9

GLASS, DOOR (OUTER-BSQ) WPL 74005041 Contact Us For Availability

9

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

9

HOUSING, BULB WPL 74003388 Contact Us For Availability

10

HANDLE, DOOR (BSQ) WPL 74005042 Contact Us For Availability

10

LEVER, LATCH (BRN) WPL 74003006 Contact Us For Availability

10

COVER, BULB WPL 74003389 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $4.82

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability

LATCH, DOOR WPL 74003380 Contact Us For Availability

TRIM, DOOR (LWR-BSQ) WPL 74005043 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

13

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

13

RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability

13

FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability

14

TRIM, DOOR (SIDE-BSQ) WPL 74005044 Contact Us For Availability

14

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

14

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

TAPE, END CAP WPL 8270P09360 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

17

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

17

PANEL, DRAWER (BSQ) WPL 74005055 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

SCREW WPL 7101P07260 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

19

WP74011140 Whirlpool Range Hinge In Stock WPL WP74011140 $102.61

19

NUT, LOCK WPL 7103P13960 Contact Us For Availability

19

GASKET, VENT WPL 74003285 Contact Us For Availability

20

SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability

20

SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability

20

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

21

SCREW WPL 912012 Contact Us For Availability

21

EXTENSION, VENT WPL 3826W01445 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

GLASS, INNER WPL 74002002 Contact Us For Availability

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

23

RETAINER, INSULATION (SIDE) WPL 74003422 Contact Us For Availability

23

SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability

24

CORD, POWER WPL 7402P05060 Contact Us For Availability
