Model Whirlpool CER3525ACW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

WPW10290353 Whirlpool Drip Bowl 6" ClimaTek In Stock WPL WPW10290353 $15.75

1

WIRING INFORMATION (FRC) WPL 15003612 Contact Us For Availability

1

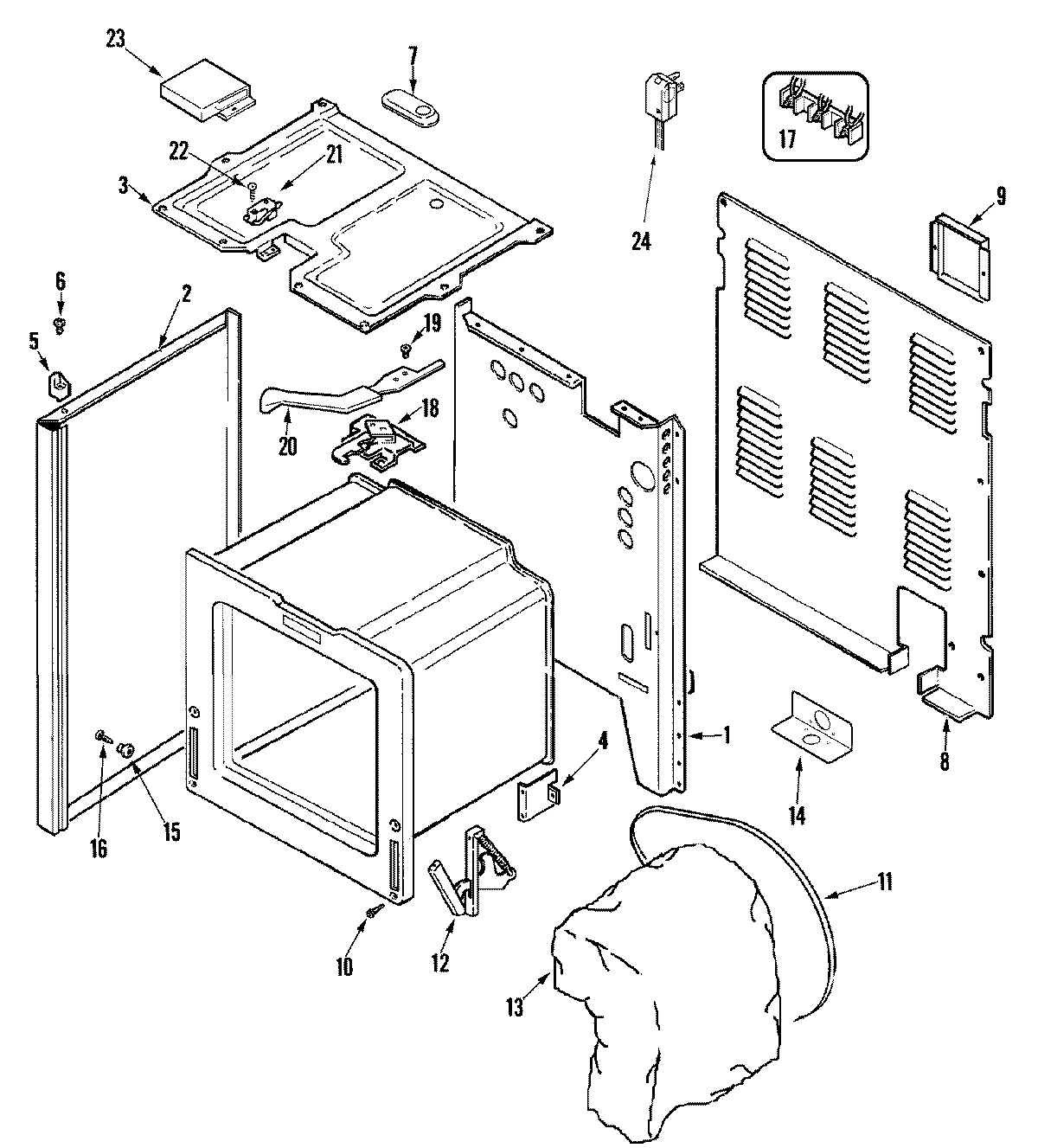

BACK, MAIN (ELEC) WPL 74009677 Contact Us For Availability

1

BACK, MAIN (ELEC) WPL 74010934 Contact Us For Availability

1

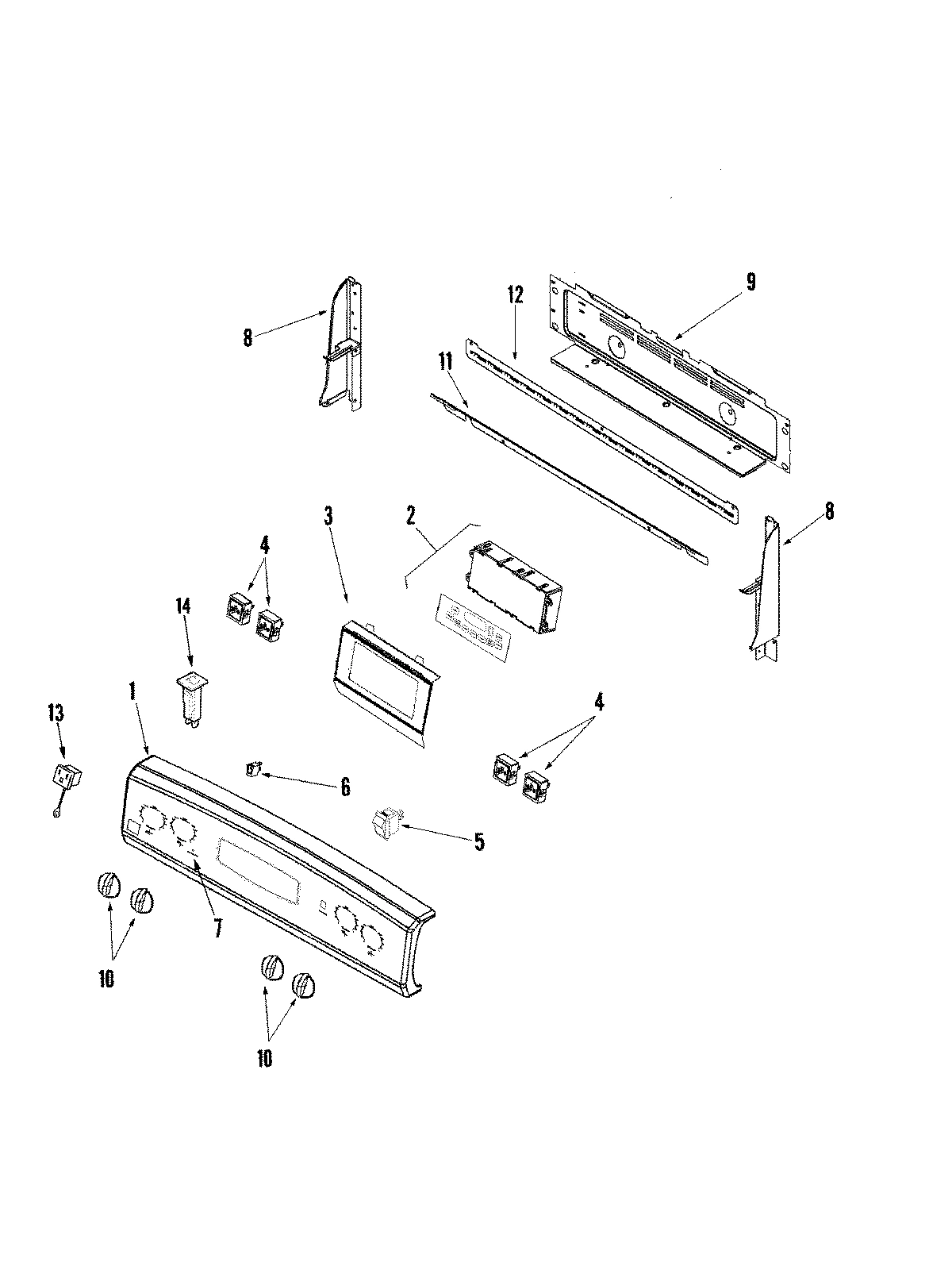

PANEL, CONTROL (WHT) WPL 74010381 Contact Us For Availability

1

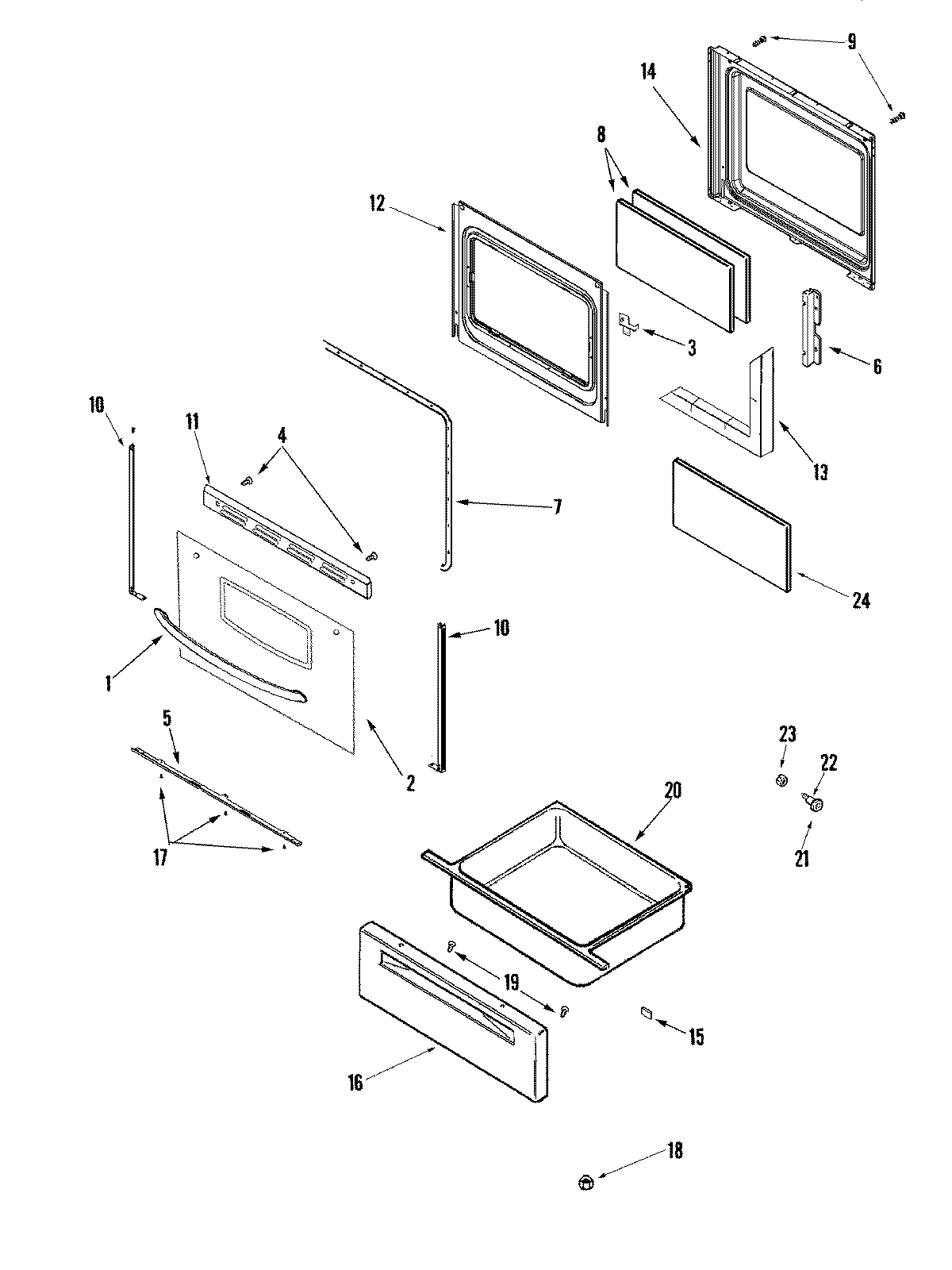

HANDLE, DOOR (WHT) WPL 74010337 Contact Us For Availability

1

TUBE, VENT WPL 74003469 Contact Us For Availability

2

5701M760-60 Whirlpool Electronic Control Boar In Stock WPL 5701M760-60 $308.03

2

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $11.32

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

2

KIT, DOOR (W/TAPE-WHT) WPL 12002503 Contact Us For Availability

2

INSULATION, FOIL BACK WPL 74003146 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

3

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $14.02

3

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $14.02

3

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

3

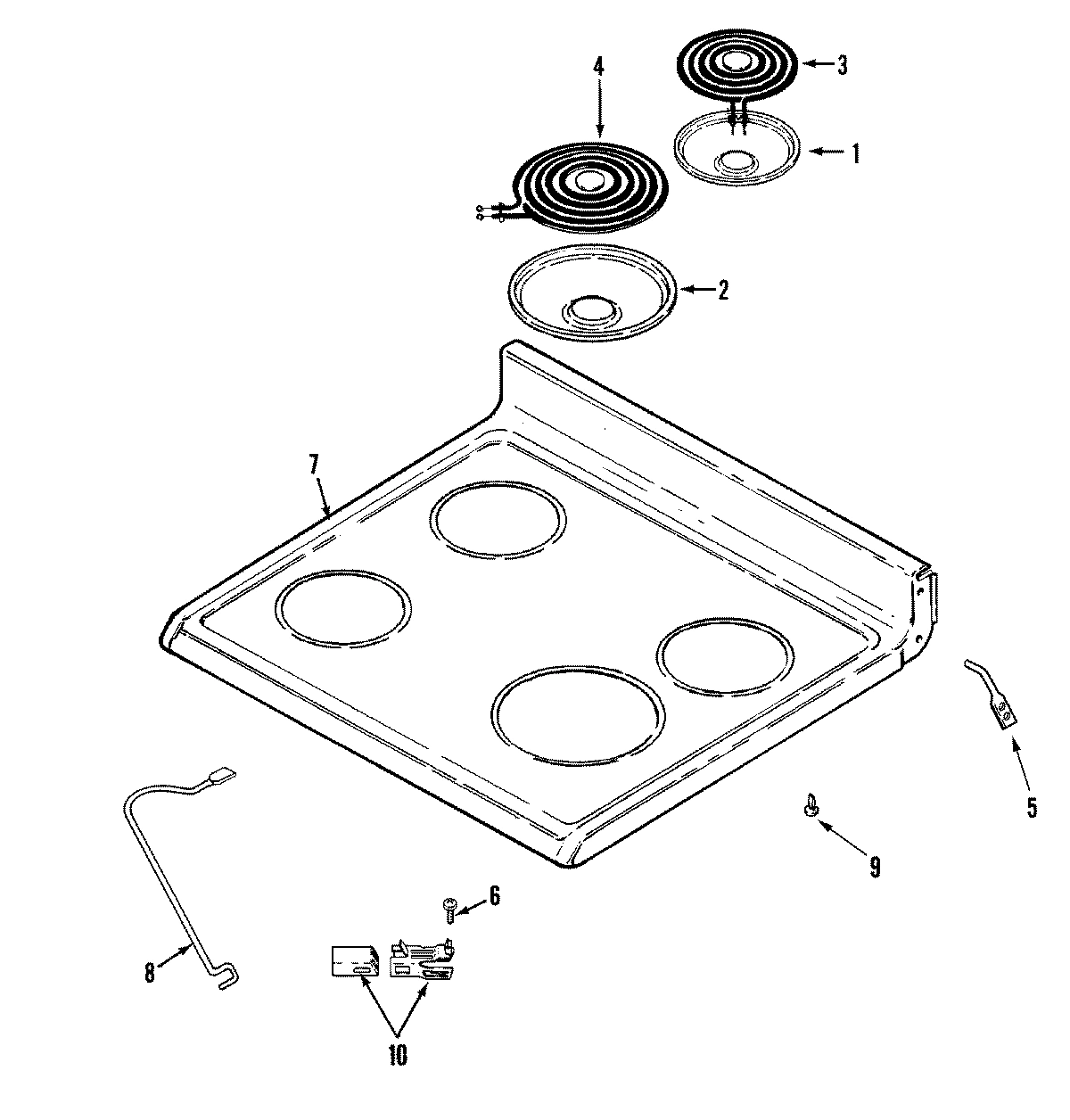

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $84.34

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $82.15

3

BOTTOM, BURNER BOX WPL 74007028 Contact Us For Availability

3

BOTTOM, BURNER BOX (ELEC) WPL 74010936 Contact Us For Availability

3

BRACKET, CLOCK WPL 74008716 Contact Us For Availability

4

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $5.02

4

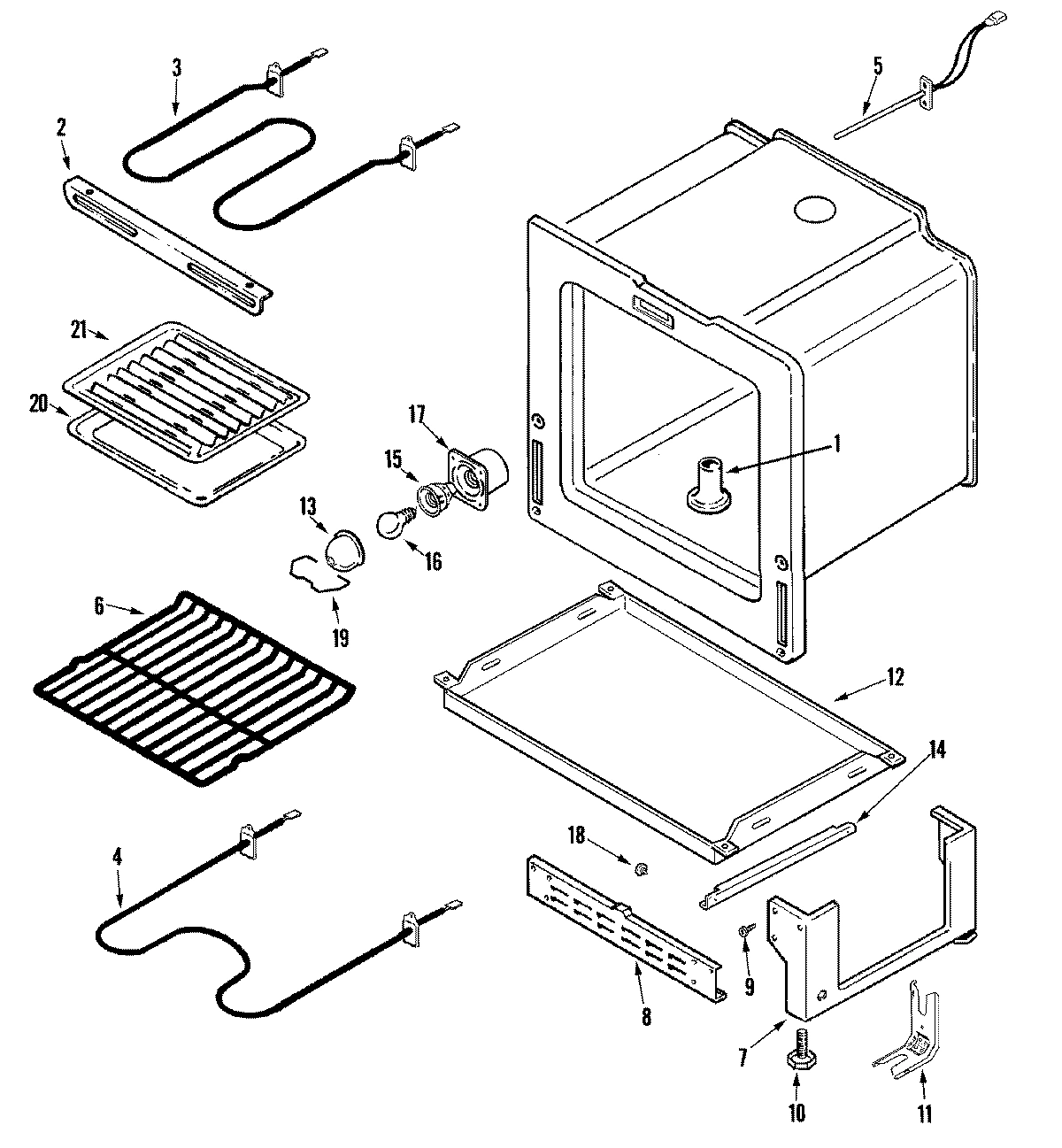

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

WPW10345410 Whirlpool Surface Element Backorder WPL WPW10345410 $150.35

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

WASHER (1``) WPL 74001521 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

5

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $61.72

5

WP3807F708-71 Whirlpool Support In Stock WPL WP3807F708-71 $112.09

5

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

SCREW WPL 7118P01360 Contact Us For Availability

6

RETAINER, GLASS WPL 74001844 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 74003428 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

7

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74006325 Contact Us For Availability

8

8019P013-60 Whirlpool Clip Backorder WPL 8019P013-60 $11.90

8

PROP ROD WPL 74004084 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74009744 Contact Us For Availability

8

SUPPORT, BACKGUARD (LT-WHT) WPL 74010211 Contact Us For Availability

8

SUPPORT, BACKGUARD (RT-WHT) WPL 74010212 Contact Us For Availability

8

GLASS, INNER WPL 74003320 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

9

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

9

COVER, ACCESS WPL 74010256 Contact Us For Availability

9

COVER, REAR WIRE (UPR) WPL 74009943 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

WP3608F116-71 Whirlpool Door Trim Backorder WPL WP3608F116-71 $88.79

WP3608F117-71 Whirlpool Door Trim Backorder WPL WP3608F117-71 $88.63

WP74007474 Whirlpool Dishwasher Element Recep Backorder WPL WP74007474 $98.74

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $9.16

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

STRAP, INSULATION WPL 74003385 Contact Us For Availability

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

SHIELD, REAR SIGHT WPL 74009701 Contact Us For Availability

SCREW WPL 7101P35660 Contact Us For Availability

TRIM, DOOR TOP (WHT) WPL 74010238 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

WP74011140 Whirlpool Range Hinge In Stock WPL WP74011140 $102.61

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

SHIELD, WIRE WPL 74009708 Contact Us For Availability

BAFFLE, OVEN DOOR WPL 74009528 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74009201 Contact Us For Availability

RECEPTACLE, OUTLET (WHT) WPL 71003069 Contact Us For Availability

INSULATION, DOOR WPL 74001842 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

BREAKER, CIRCUIT (WHT) WPL 74009322 Contact Us For Availability

LINING, OVEN DOOR WPL 74004972 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

15

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

15

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

15

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

BULB-OVEN WPL 7407P10360 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $8.02

INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability

LATCH, DOOR LOCK WPL 74009710 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

19

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

19

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

SCREW, LEVER WPL 7101P23060 Contact Us For Availability

LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability

DRAWER, STORAGE WPL 74008333 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL WPL W10124350 Contact Us For Availability

INSULATOR, SWITCH WPL 74003630 Contact Us For Availability

SWITCH, DOOR LATCH WPL 74009591 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

22

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

23

COVER, DOOR LATCH WPL 74003479 Contact Us For Availability

24

CORD, POWER WPL 7402P05060 Contact Us For Availability

24

GLASS, INNER WPL 74002002 Contact Us For Availability

HARNESS, TOP WPL 74010305 Contact Us For Availability

HARNESS, DOOR LOCK WPL 74006792 Contact Us For Availability

BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability

HARNESS, COIL (LT) WPL 74009678 Contact Us For Availability

HARNESS, COIL (RT) WPL 74009679 Contact Us For Availability

HARNESS, MAIN WPL 74010372 Contact Us For Availability

MANUAL, USE & CARE WPL 8111P46860 Contact Us For Availability

MANUAL, USE & CARE WPL 8113P44660 Contact Us For Availability

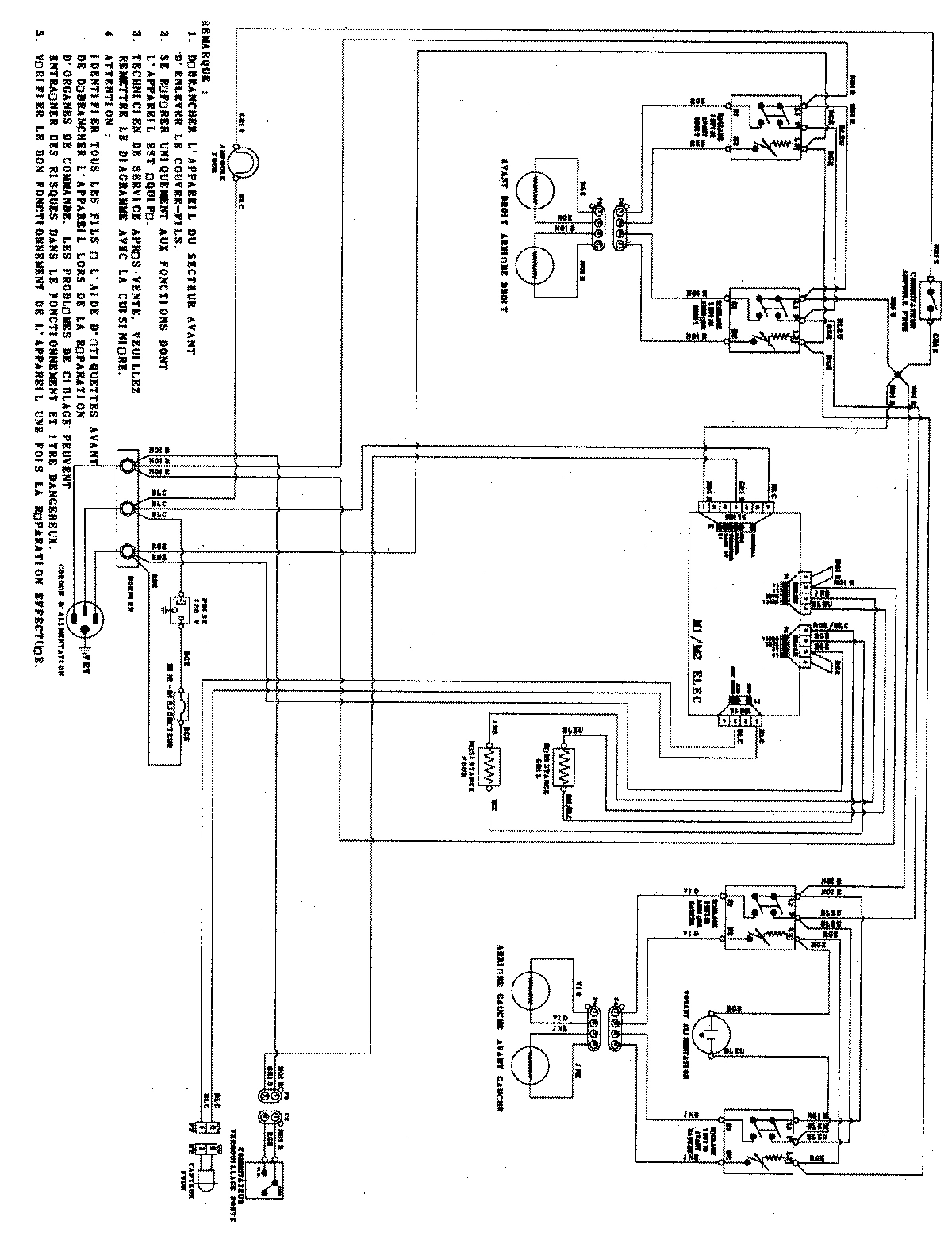

WIRING INFORMATION WPL 15003611 Contact Us For Availability
