Model Whirlpool CER1360ACW ELECTRIC RANGE – Common Parts & Diagrams

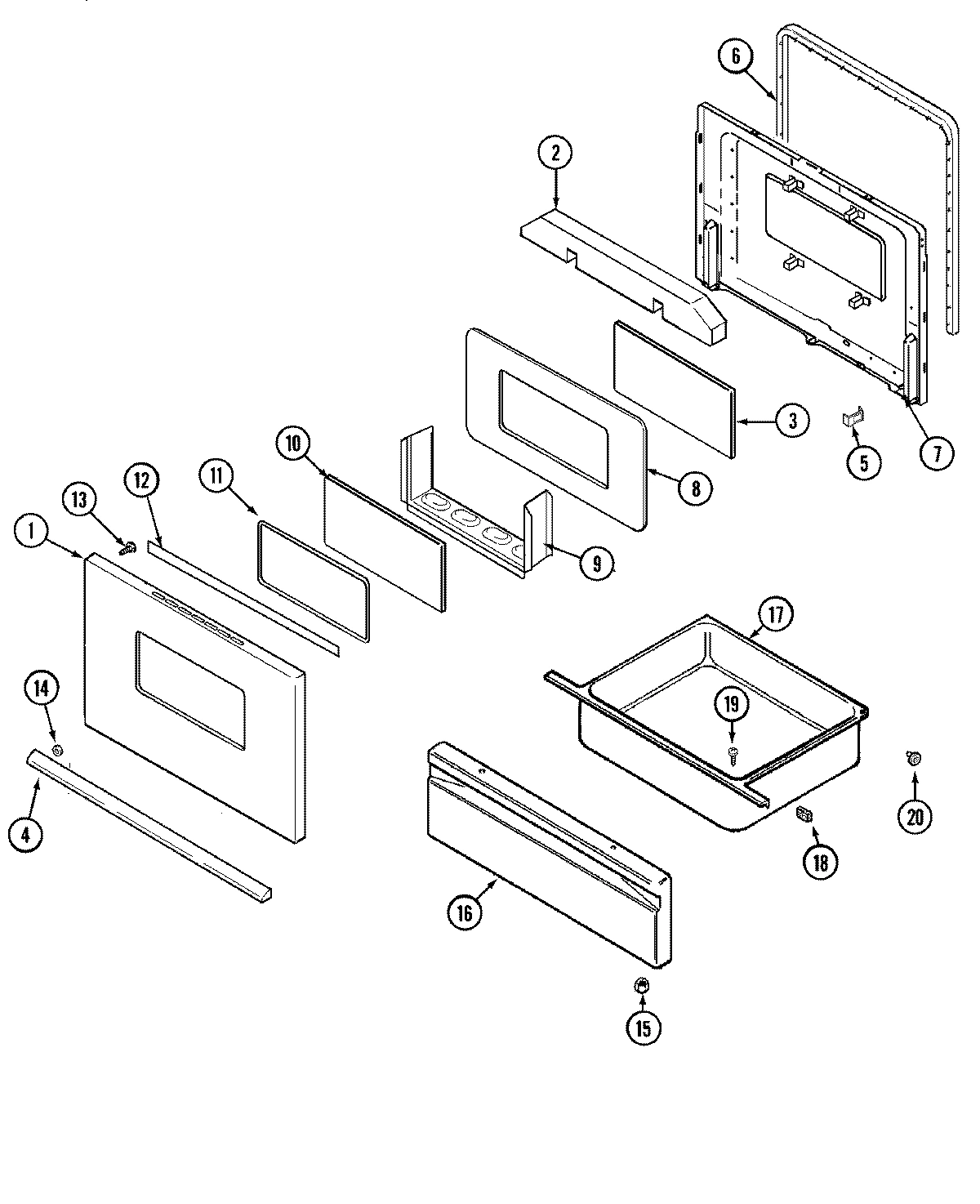

02 - DOOR/DRAWER (ACW)

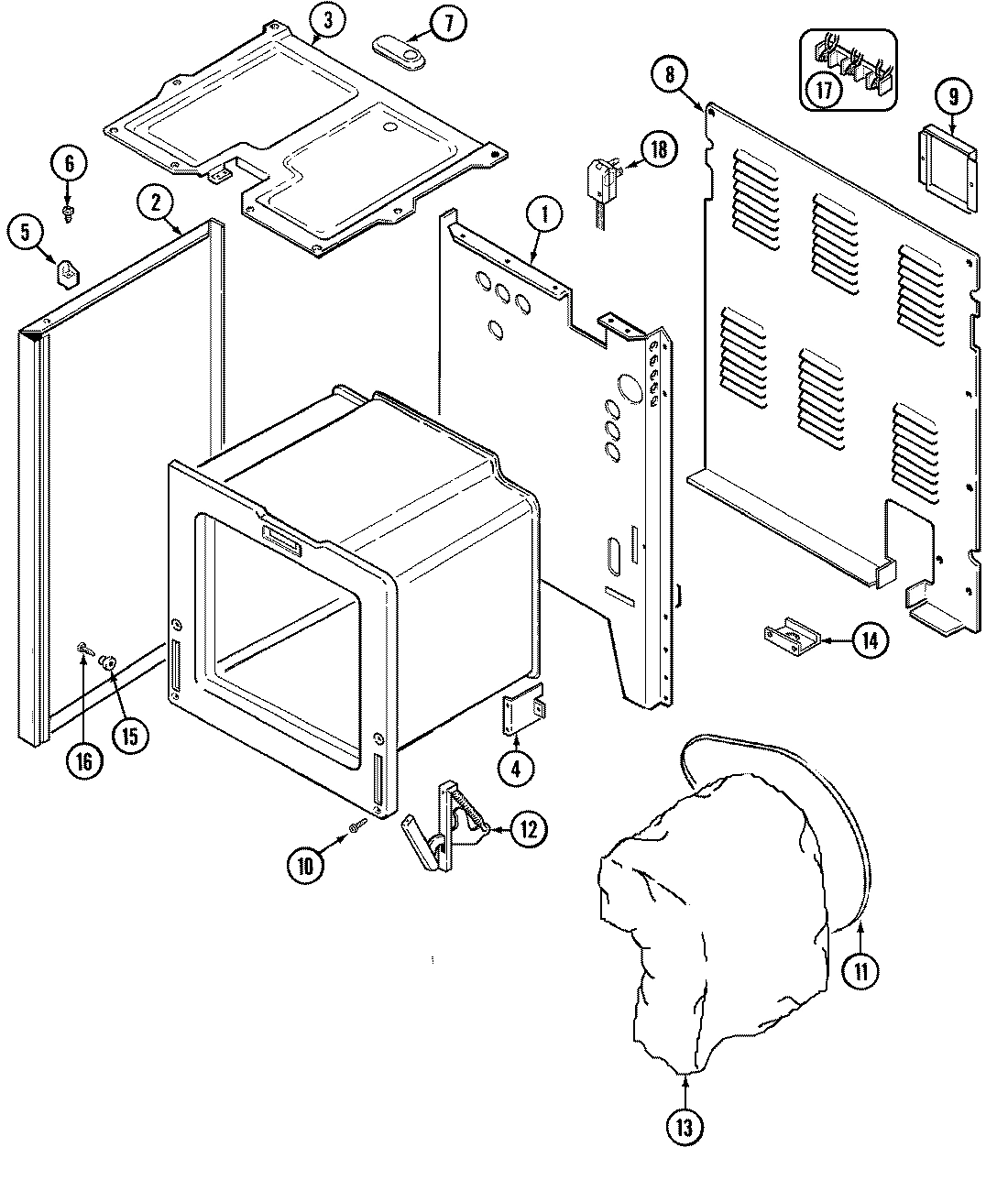

01 - BODY

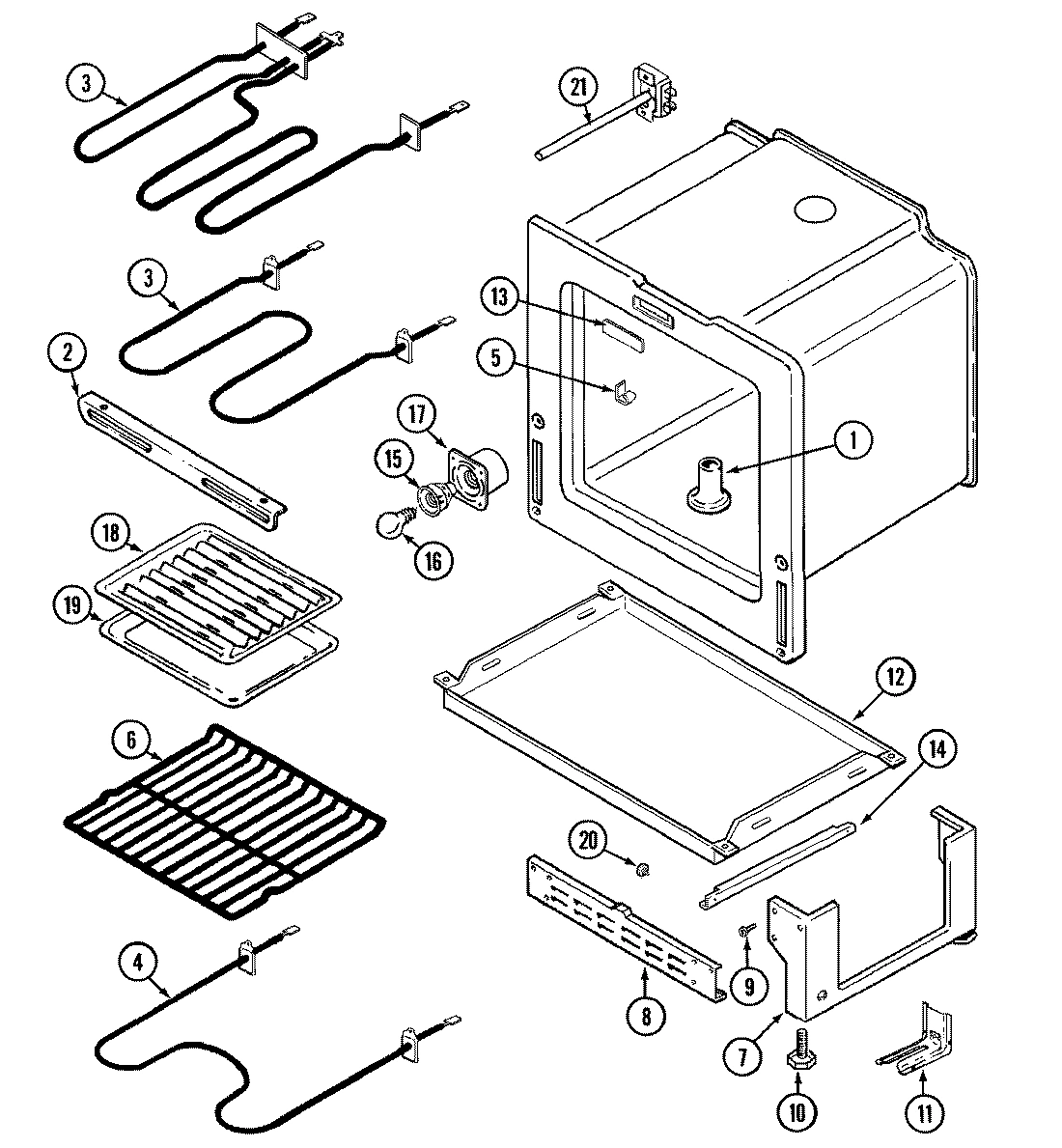

03 - OVEN/BASE

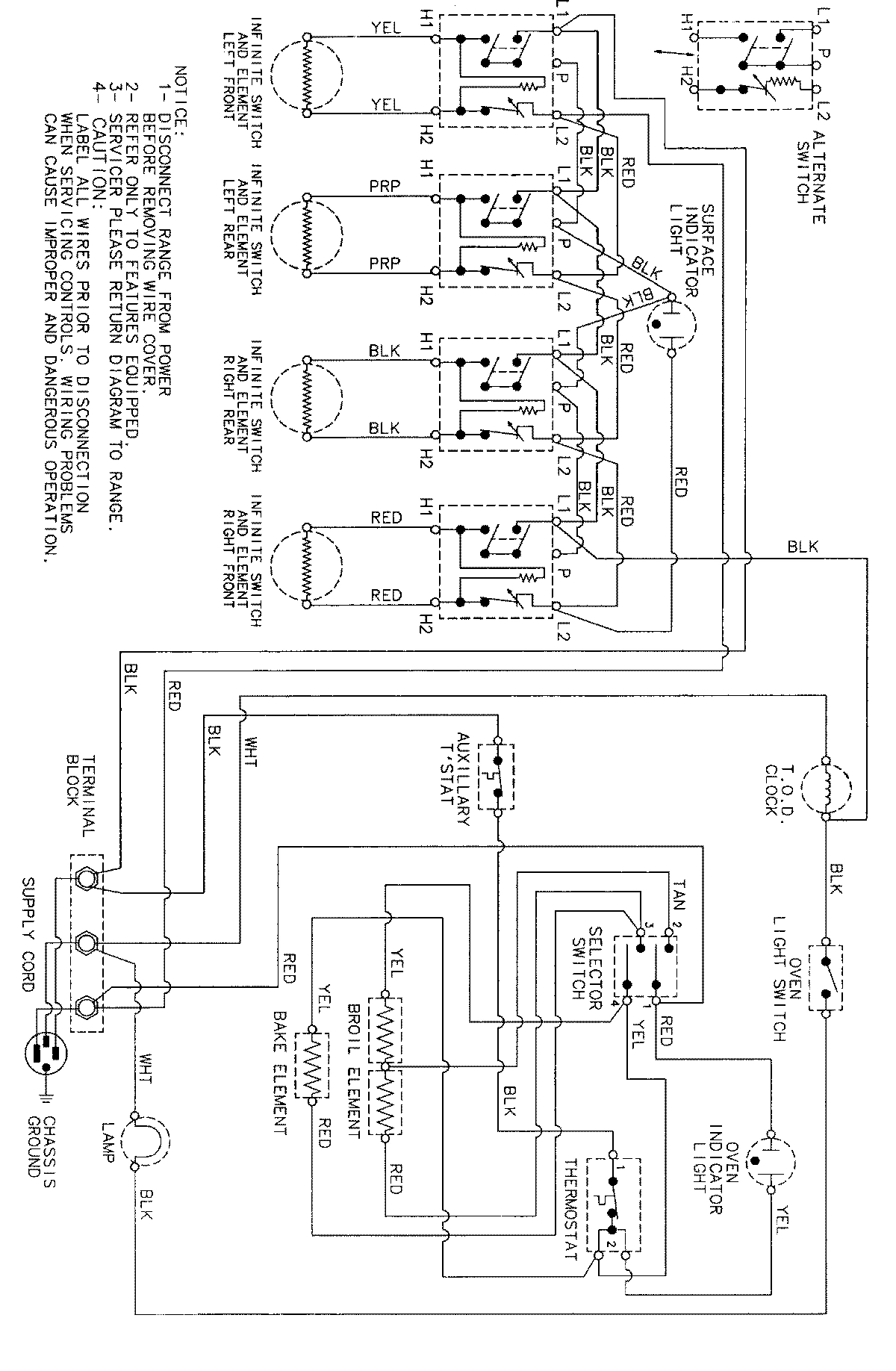

04 - WIRING INFORMATION
Common parts from model Whirlpool CER1360ACW ELECTRIC RANGE
1
PANEL, DOOR (WHT) WPL 2401F12171 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
SHIELD, WIRE WPL 74002334 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
2
INSULATION, DOOR WPL 74002458 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
3
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
3
BOX, BURNER WPL 4011F23919 Contact Us For Availability
3
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 2411F00371 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
6
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
7
LINING, DOOR WPL 74003248 Contact Us For Availability
7
COVER, VENT WPL 4005F43245 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003393 Contact Us For Availability
8
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
8
COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
9
SUPPORT, OUTER GLASS WPL 74002462 Contact Us For Availability
9
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
GLASS, DOOR (OUTER-WHT) WPL 74002464 Contact Us For Availability
10
SCREW WPL 7101P11260 Contact Us For Availability
11
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
11
STRAP, INSULATION WPL 74003385 Contact Us For Availability
11
SCREW WPL 7101P35260 Contact Us For Availability
12
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
12
RETAINER, INSULATION (BOTTOM) WPL 74003392 Contact Us For Availability
13
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
13
INSULATION, WRAP WPL 74003112 Contact Us For Availability
13
PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability
14
SPACER, HANDLE (WHT) WPL 8010P08960 Contact Us For Availability
14
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
14
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
15
NUT, LOCK WPL 7103P13960 Contact Us For Availability
15
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
15
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
15
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
17
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
17
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
17
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
17
HOUSING, BULB WPL 74003388 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
18
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
18
CORD, POWER WPL 7402P05060 Contact Us For Availability
18
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
19
SCREW WPL 7101P07260 Contact Us For Availability
19
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
NUT WPL 7103P08260 Contact Us For Availability
20
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
21
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002289 Contact Us For Availability
× ![]()
