Model Whirlpool CEP3760AAA ELECTRIC RANGE – Common Parts & Diagrams

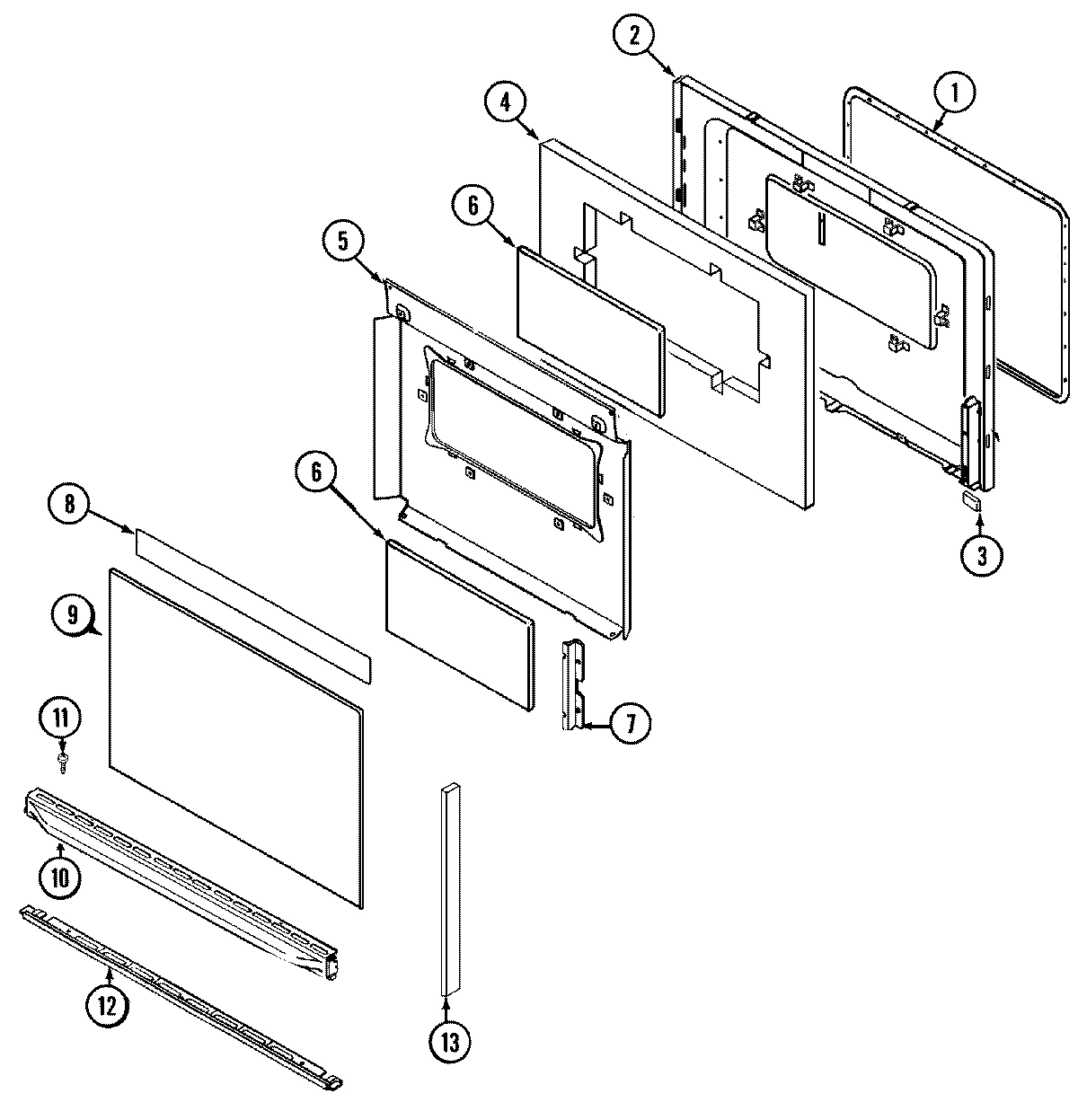

02 - DOOR

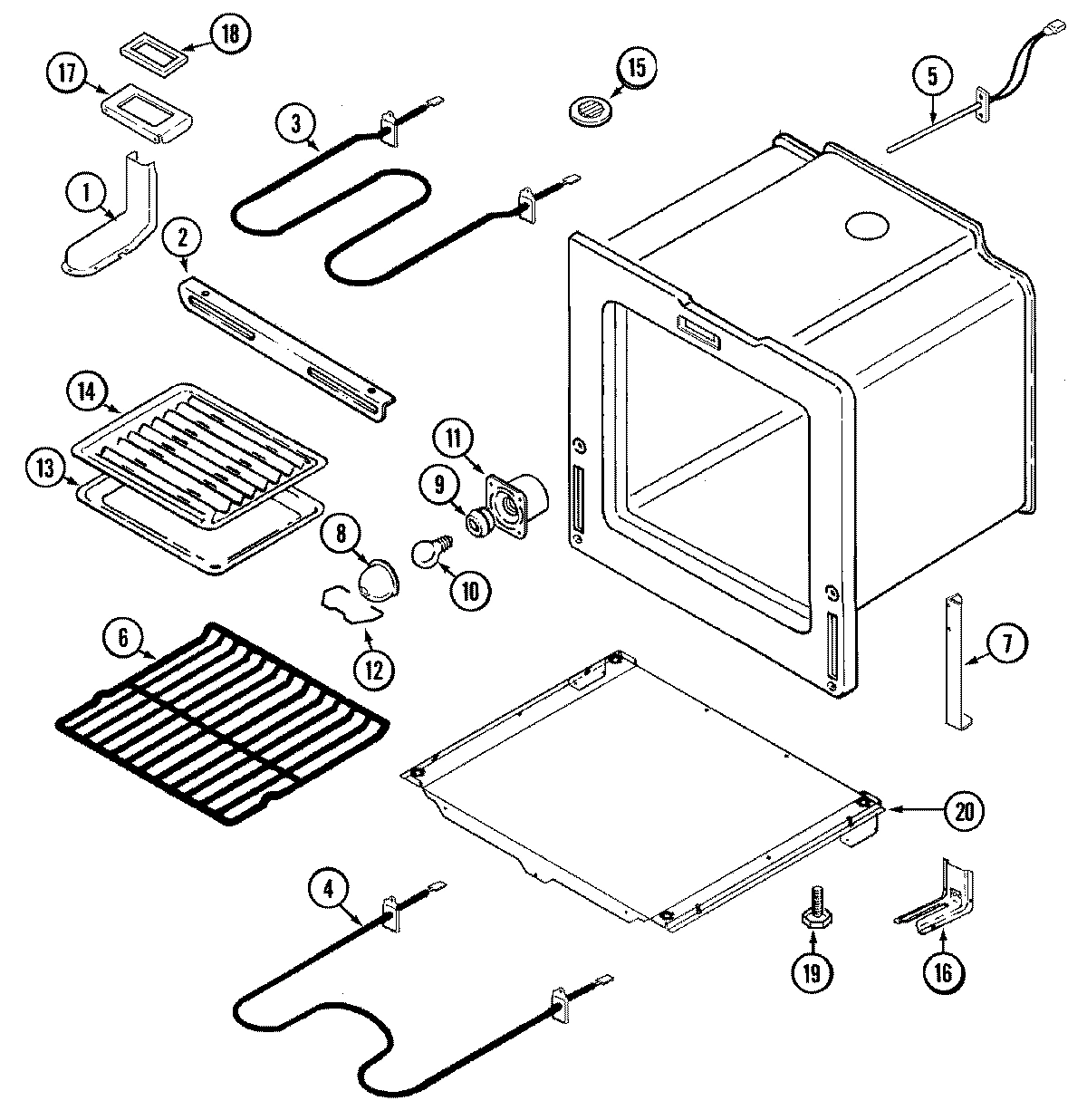

03 - OVEN/BASE

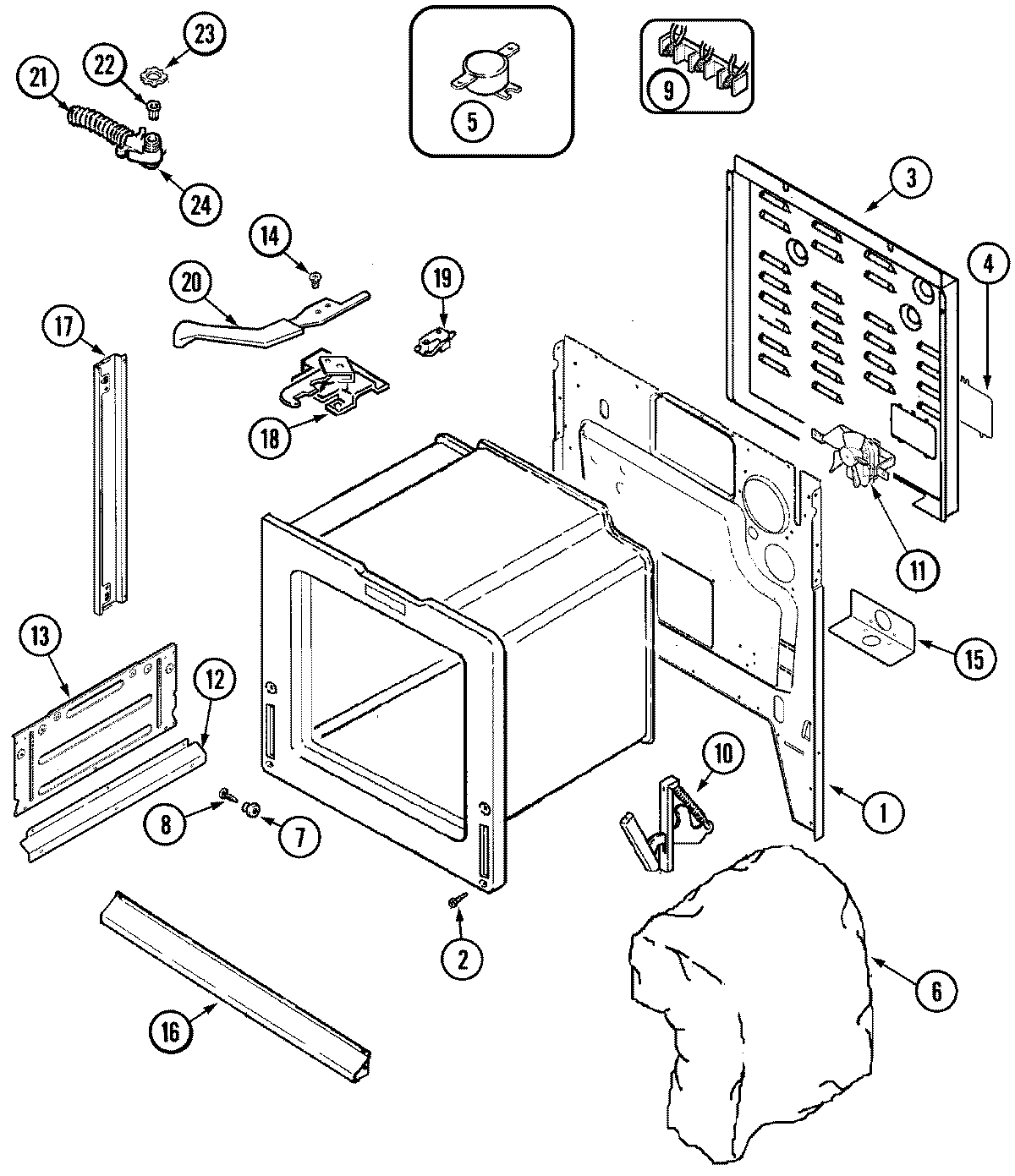

01 - BODY

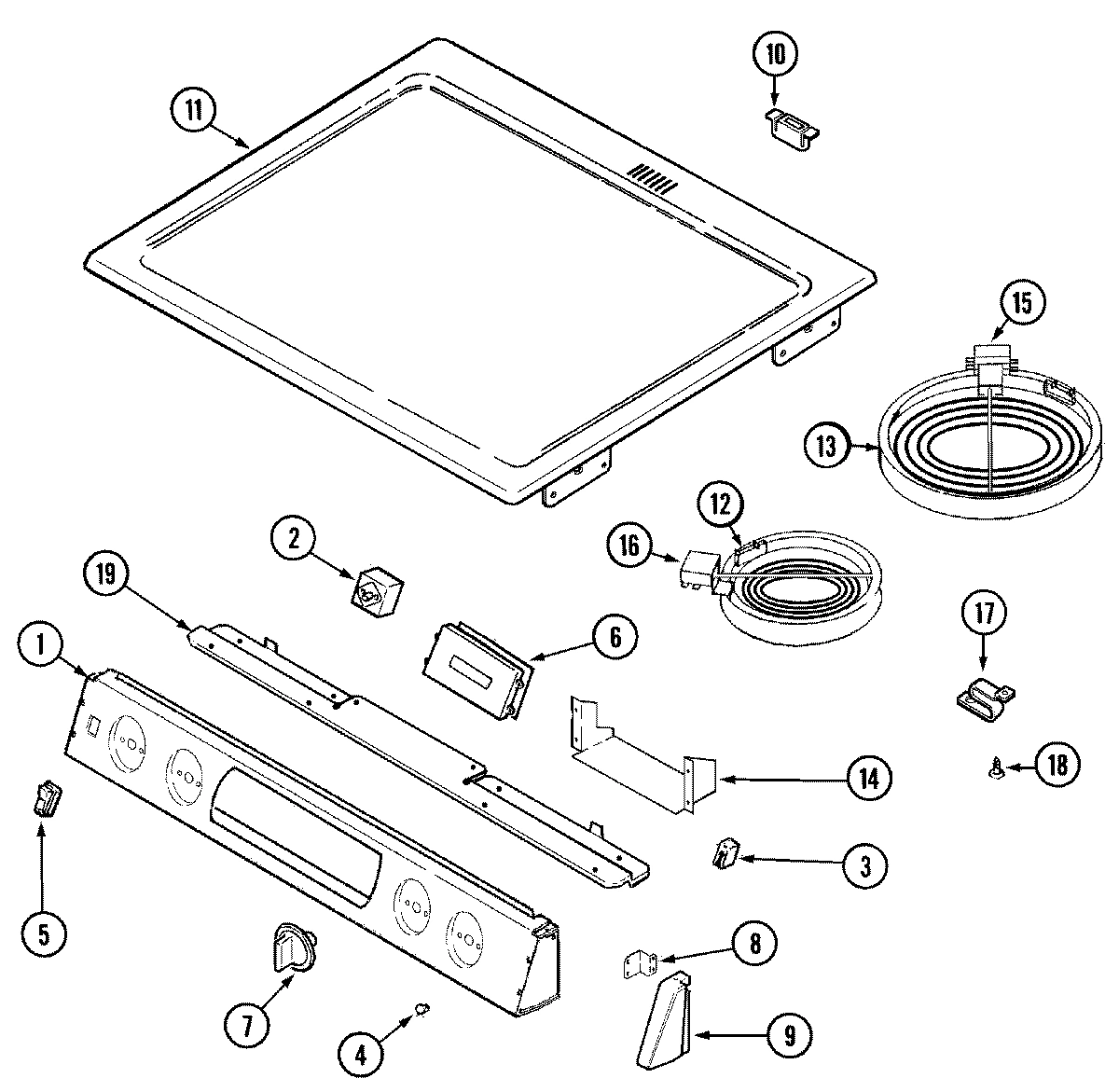

04 - TOP ASSEMBLY

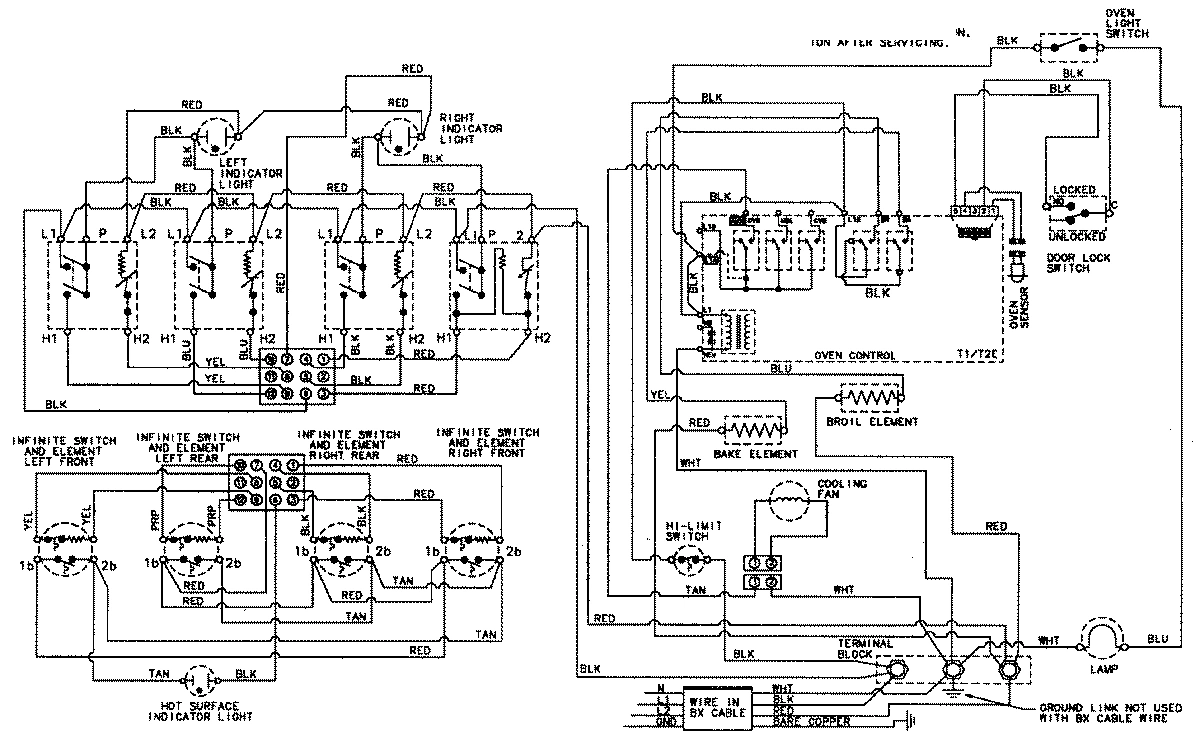

05 - WIRING INFORMATION
Common parts from model Whirlpool CEP3760AAA ELECTRIC RANGE
1
BOX, VENT WPL 74004170 Contact Us For Availability
1
BACK, MAIN WPL 74004215 Contact Us For Availability
1
PANEL, CONTROL (ALM) WPL 74004241 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
2
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74004184 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
6
INSULATION, OVEN WPL 74003503 Contact Us For Availability
6
OVERLAY, CLOCK (ALM) WPL 74004239 Contact Us For Availability
6
CLOCK (ALM) WPL 74004255 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
SUPPORT, OVEN WPL 74004171 Contact Us For Availability
7
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
7
KNOB (ALM) WPL 74003447 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
COVER, BULB WPL 74003389 Contact Us For Availability
8
BRACKET, END CAP WPL 74004186 Contact Us For Availability
8
SCREW WPL 74004208 Contact Us For Availability
9
GLASS, OUTER (ALM) WPL 74003455 Contact Us For Availability
9
SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability
9
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
9
BLOCK, DISCONNECT WPL 74002305 Contact Us For Availability
9
BLOCK, DISCONNECT WPL 74002306 Contact Us For Availability
9
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
9
CAP, END (RT-ALM) WPL 74004200 Contact Us For Availability
9
CAP, END (LT-ALM) WPL 74004201 Contact Us For Availability
9
CAP, END (RT-ALM) WPL 74004605 Contact Us For Availability
9
CAP, END (LT-ALM) WPL 74004606 Contact Us For Availability
9
CAP, END (RT-ALM) WPL 74004823 Contact Us For Availability
9
CAP, END (LT-ALM) WPL 74004824 Contact Us For Availability
10
HANDLE, DOOR (ALM) WPL 74003456 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
10
LIGHT, INDICATOR WPL 74003053 Contact Us For Availability
11
HOUSING, BULB WPL 74003388 Contact Us For Availability
11
FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability
11
FAN MOTOR ASY. WPL 74004947 Contact Us For Availability
11
TOP ASSEMBLY (ALM) WPL 74004245 Contact Us For Availability
11
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
12
TRIM, DOOR (BTM-ALM) WPL 74003457 Contact Us For Availability
12
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
12
EXTENSION, HEAT SHIELD WPL 74004176 Contact Us For Availability
13
END CAP, DOOR (ALM) WPL 74003458 Contact Us For Availability
13
TAPE WPL 74004075 Contact Us For Availability
13
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
13
SHIELD, HEAT WPL 74004177 Contact Us For Availability
14
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
14
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
14
INSULATOR, FIBER BOARD WPL 74004246 Contact Us For Availability
15
SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability
15
LIMITER (8``) WPL 74002652 Contact Us For Availability
16
SCREW WPL 7101P35260 Contact Us For Availability
16
SHIELD, LOWER VENT (ALM) WPL 74003124 Contact Us For Availability
16
LIMITER WPL 74004494 Contact Us For Availability
17
PLATE, VENT WPL 74004178 Contact Us For Availability
17
TRIM, SIDE (ALM) WPL 74004220 Contact Us For Availability
18
GASKET, VENT WPL 74004179 Contact Us For Availability
18
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
18
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
18
LATCH, DOOR WPL 74003380 Contact Us For Availability
19
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
19
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
19
INSULATOR, SWITCH WPL 74003630 Contact Us For Availability
19
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
19
SUPPORT, CONTROL PANEL WPL 74004185 Contact Us For Availability
20
BOTTOM, MAIN WPL 74004225 Contact Us For Availability
20
LEVER, LATCH (BRN) WPL 74001057 Contact Us For Availability
21
TUBING, FLEX WPL 74004221 Contact Us For Availability
22
GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability
23
WASHER WPL 7109P00260 Contact Us For Availability
24
CONNECTOR, RT ANGLE WPL 74004223 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 74004237 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74004247 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 74004250 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002526 Contact Us For Availability
× ![]()
