Model Whirlpool CEP3540AAW ELECTRIC RANGE – Common Parts & Diagrams

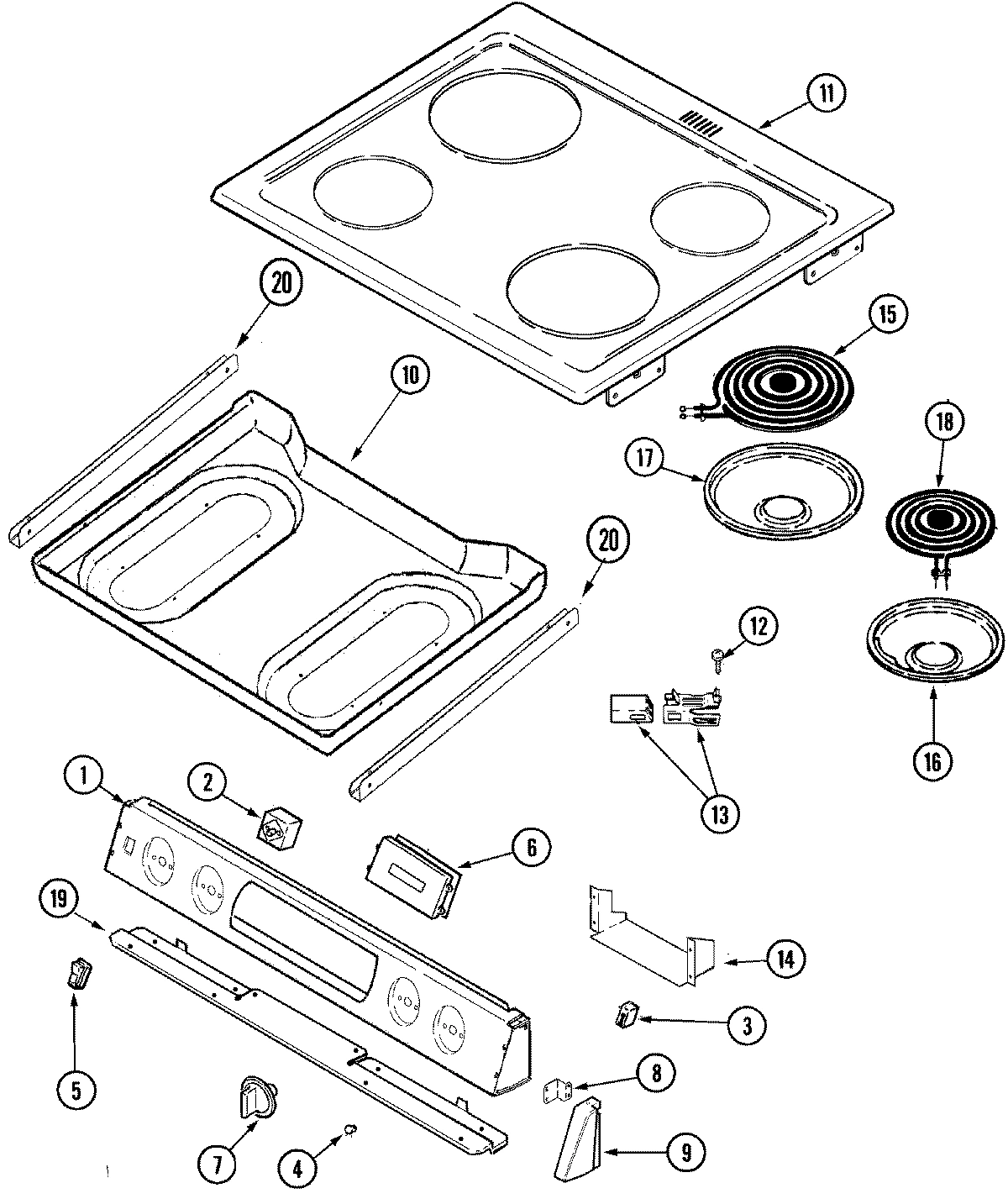

04 - TOP ASSEMBLY

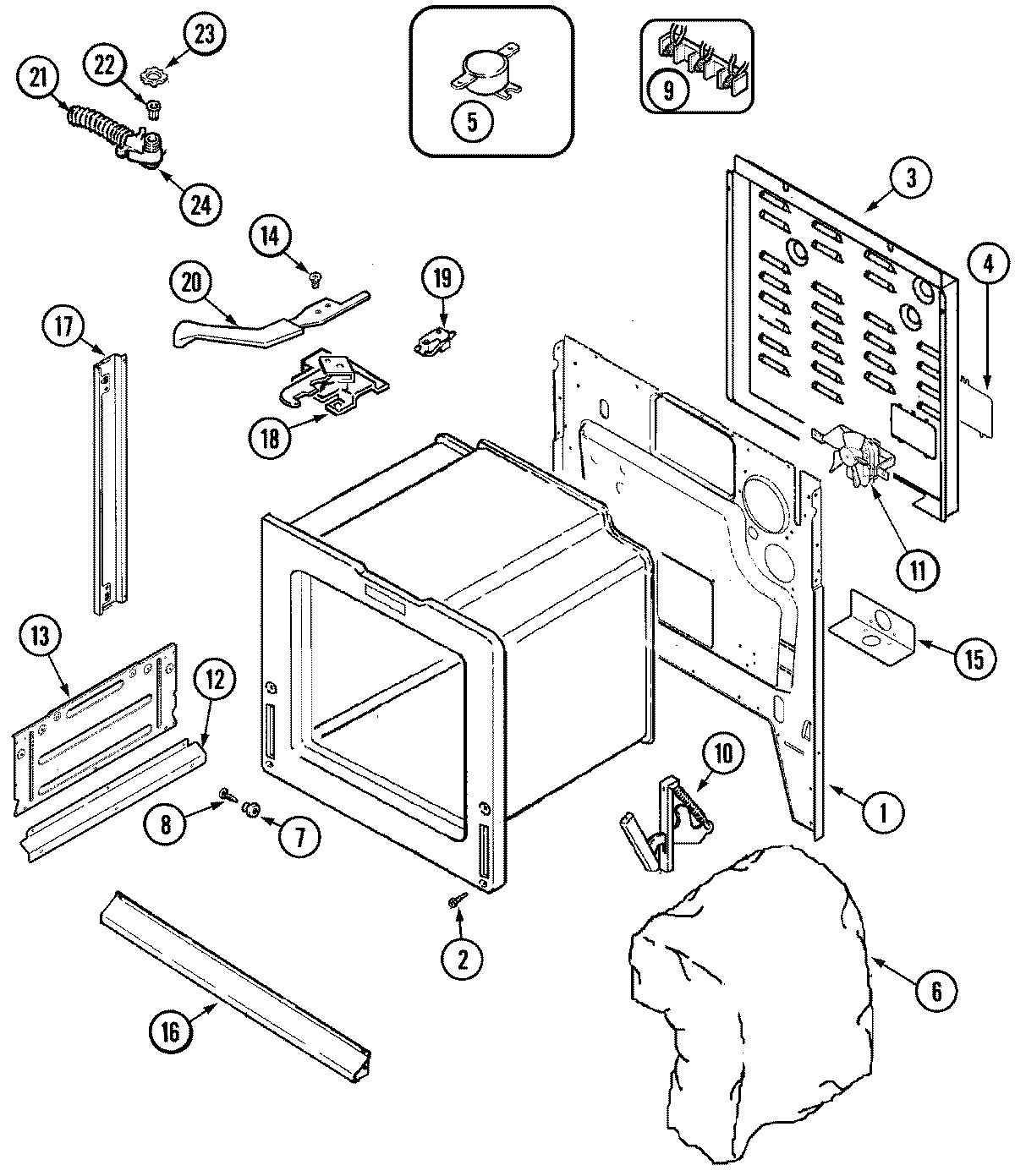

01 - BODY

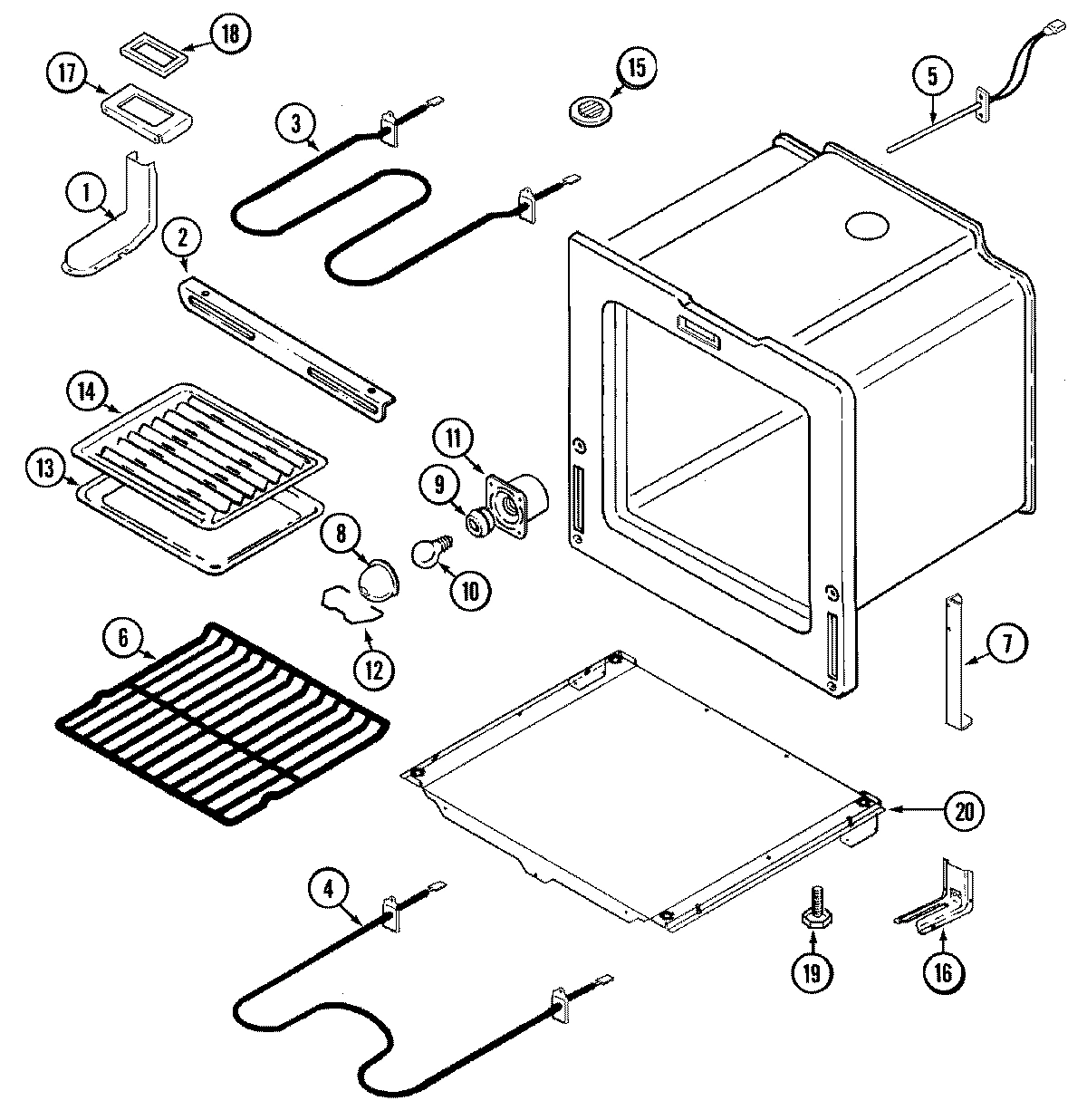

03 - OVEN/BASE

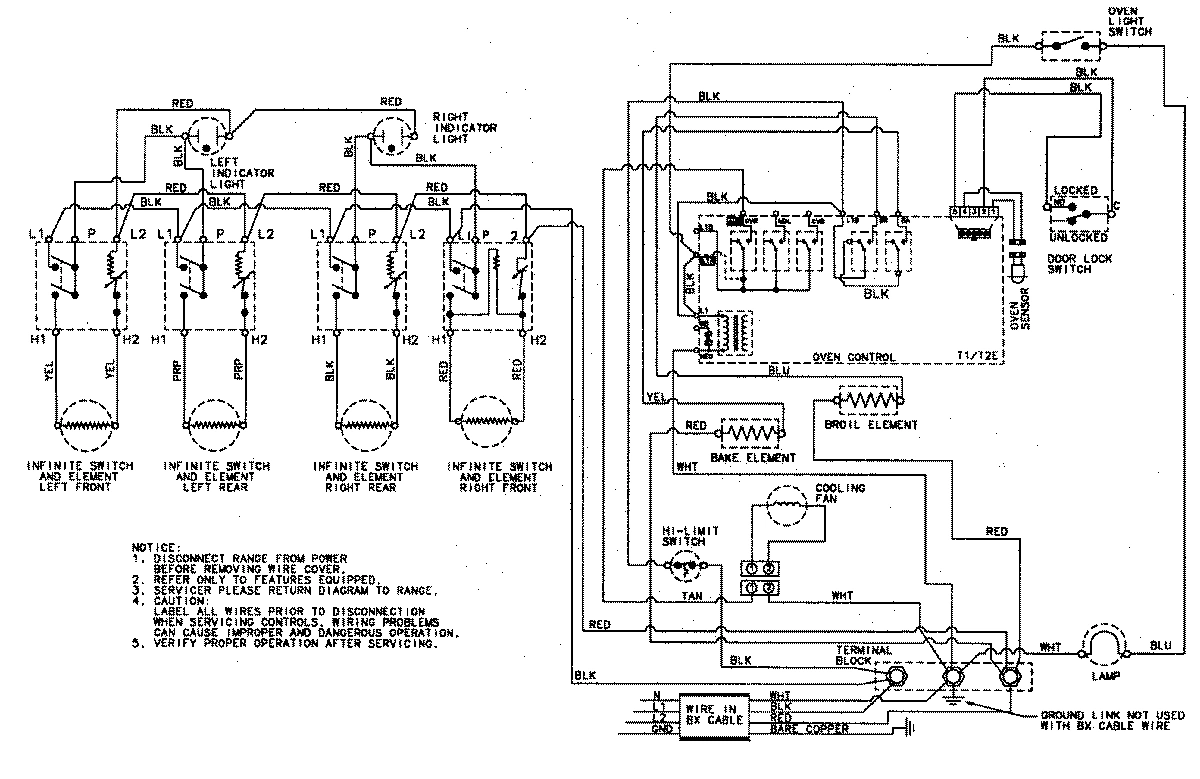

05 - WIRING INFORMATION

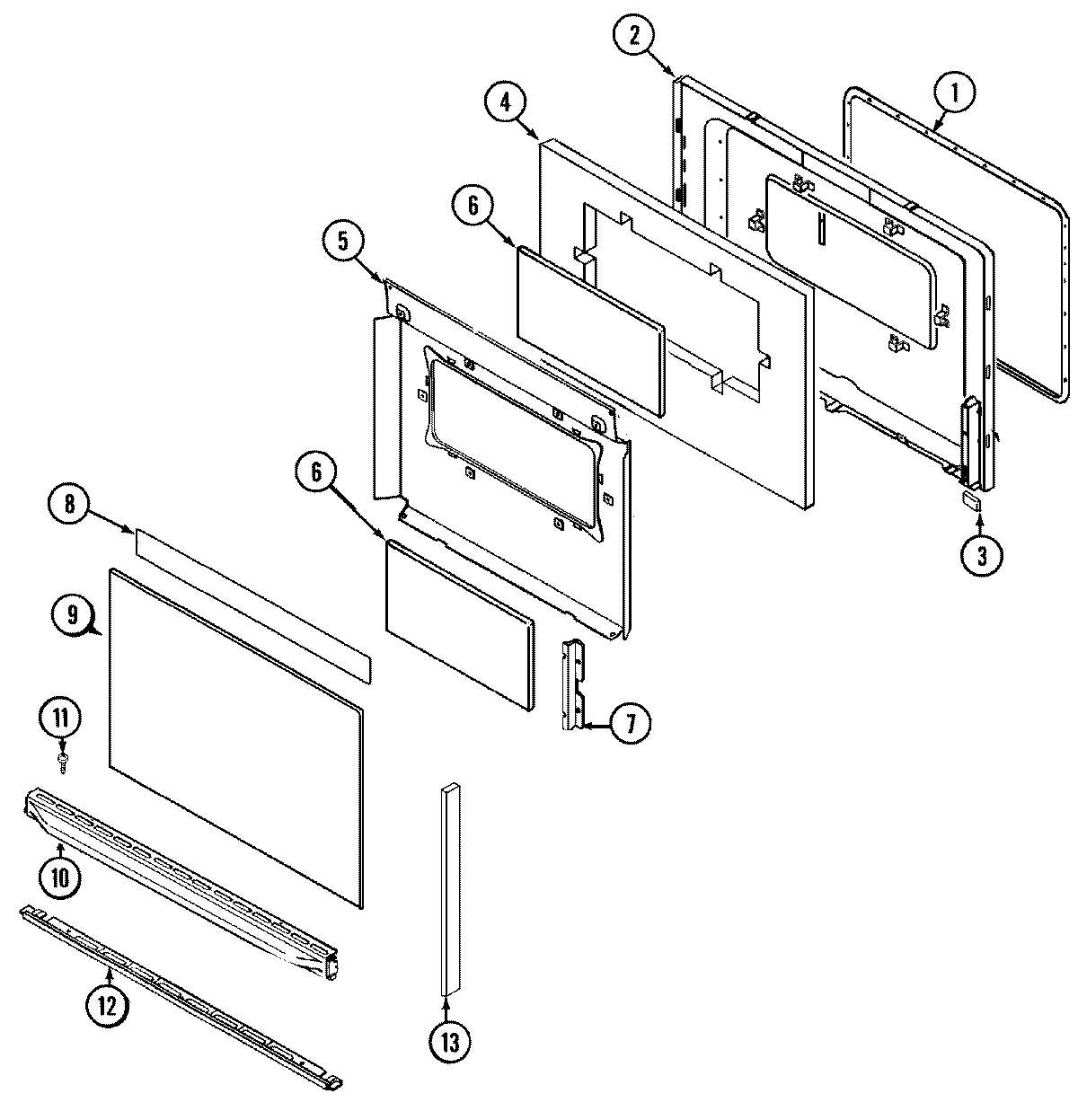

02 - DOOR
Common parts from model Whirlpool CEP3540AAW ELECTRIC RANGE
1
BACK, MAIN WPL 74004215 Contact Us For Availability
1
BOX, VENT WPL 74004170 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
2
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74004184 Contact Us For Availability
4
COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
OVERLAY, CLOCK (WHT) WPL 74004102 Contact Us For Availability
6
CLOCK (WHT) WPL 74004253 Contact Us For Availability
6
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
6
INSULATION, OVEN WPL 74003503 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
7
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
7
SUPPORT, OVEN WPL 74004171 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
8
BRACKET, END CAP WPL 74004186 Contact Us For Availability
8
SCREW WPL 74004208 Contact Us For Availability
8
BRACKET, END CAP WPL 74005671 Contact Us For Availability
8
COVER, BULB WPL 74003389 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
9
CAP, END (RT-WHT) WPL 74004198 Contact Us For Availability
9
CAP, END (LT-WHT) WPL 74004199 Contact Us For Availability
9
CAP, END (RT-WHT) WPL 74004603 Contact Us For Availability
9
CAP, END (LT-WHT) WPL 74004604 Contact Us For Availability
9
CAP, END (WHT-RT) WPL 74004821 Contact Us For Availability
9
CAP, END (WHT-LT) WPL 74004822 Contact Us For Availability
9
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
9
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
9
GLASS, OUTER (WHT) WPL 74003395 Contact Us For Availability
10
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
10
NUT WPL 7103P12560 Contact Us For Availability
10
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
10
BOTTOM, BURNER BOX WPL 74004251 Contact Us For Availability
10
BOTTOM, BURNER BOX WPL 74006046 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE NUT NOT REQUIRE WPL W10124350 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
10
HANDLE, DOOR (WHT) WPL 74003396 Contact Us For Availability
11
TOP, MAIN (WHT) WPL 74004248 Contact Us For Availability
11
TOP, MAIN (WHT) WPL 74007600 Contact Us For Availability
11
FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability
11
FAN MOTOR ASY. WPL 74004947 Contact Us For Availability
11
HOUSING, BULB WPL 74003388 Contact Us For Availability
12
SCREW WPL 7118P01360 Contact Us For Availability
12
EXTENSION, HEAT SHIELD WPL 74004176 Contact Us For Availability
12
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
12
TRIM, DOOR (BTM-WHT)----NA WPL 74003397 Contact Us For Availability
13
SHIELD, HEAT WPL 74004177 Contact Us For Availability
13
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
13
END CAP, DOOR (WHT) WPL 74003398 Contact Us For Availability
13
TAPE WPL 74004075 Contact Us For Availability
14
INSULATOR, FIBER BOARD WPL 74004246 Contact Us For Availability
14
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
14
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
15
SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability
16
SHIELD, VENT (WHT) WPL 74001338 Contact Us For Availability
16
SCREW WPL 7101P35260 Contact Us For Availability
17
TRIM, SIDE (WHT) WPL 74004219 Contact Us For Availability
17
PLATE, VENT WPL 74004178 Contact Us For Availability
18
DOOR LATCH KIT WPL 12001943 Contact Us For Availability
18
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
18
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
18
LATCH, DOOR WPL 74003380 Contact Us For Availability
18
GASKET, VENT WPL 74004179 Contact Us For Availability
19
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
19
SUPPORT, CONTROL PANEL WPL 74004185 Contact Us For Availability
19
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
19
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
19
INSULATOR, SWITCH WPL 74003630 Contact Us For Availability
20
BRACKET, SUPPORT WPL 74005822 Contact Us For Availability
20
LEVER, LATCH (GRY) WPL 74002974 Contact Us For Availability
20
BOTTOM, MAIN WPL 74004225 Contact Us For Availability
21
TUBING, FLEX WPL 74004221 Contact Us For Availability
22
GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability
23
WASHER WPL 7109P00260 Contact Us For Availability
24
CONNECTOR, RT ANGLE WPL 74004223 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74004247 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 74004250 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002527 Contact Us For Availability
× ![]()
