Model Electrolux CEC3M2WXB RANGE – Common Parts & Diagrams

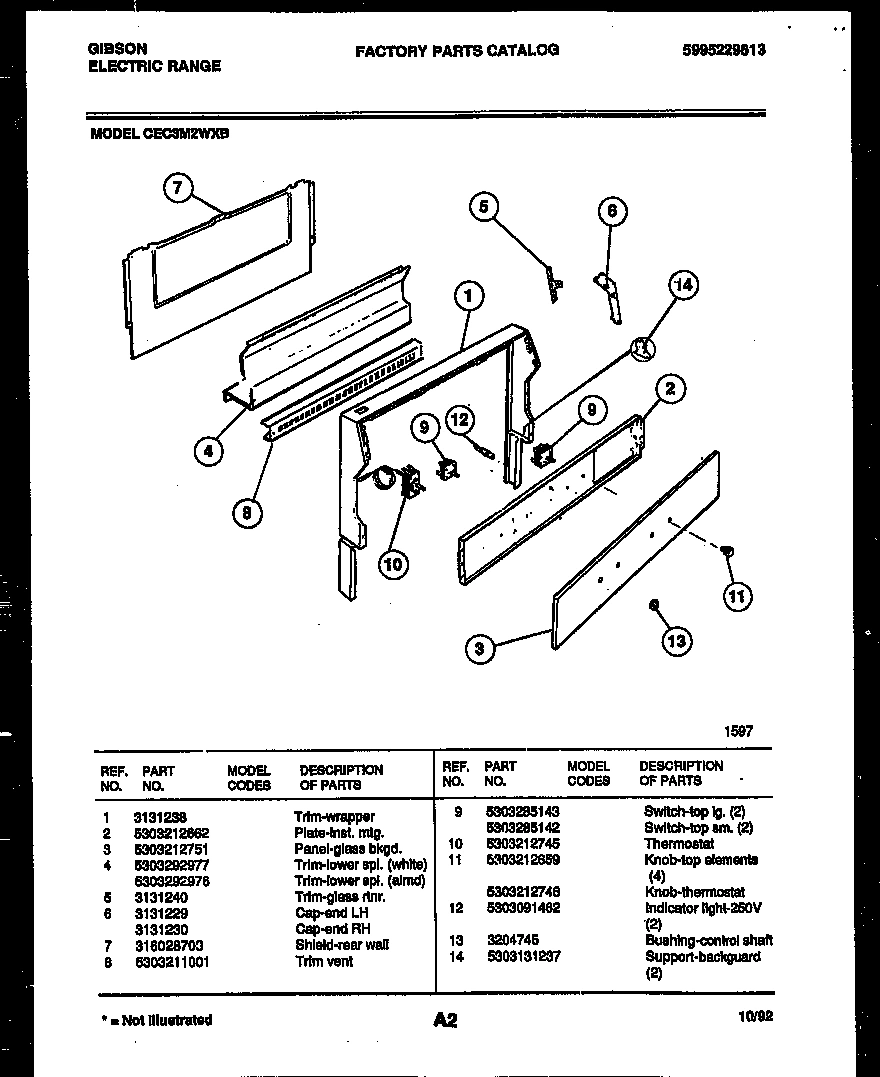

02 - BACKGUARD

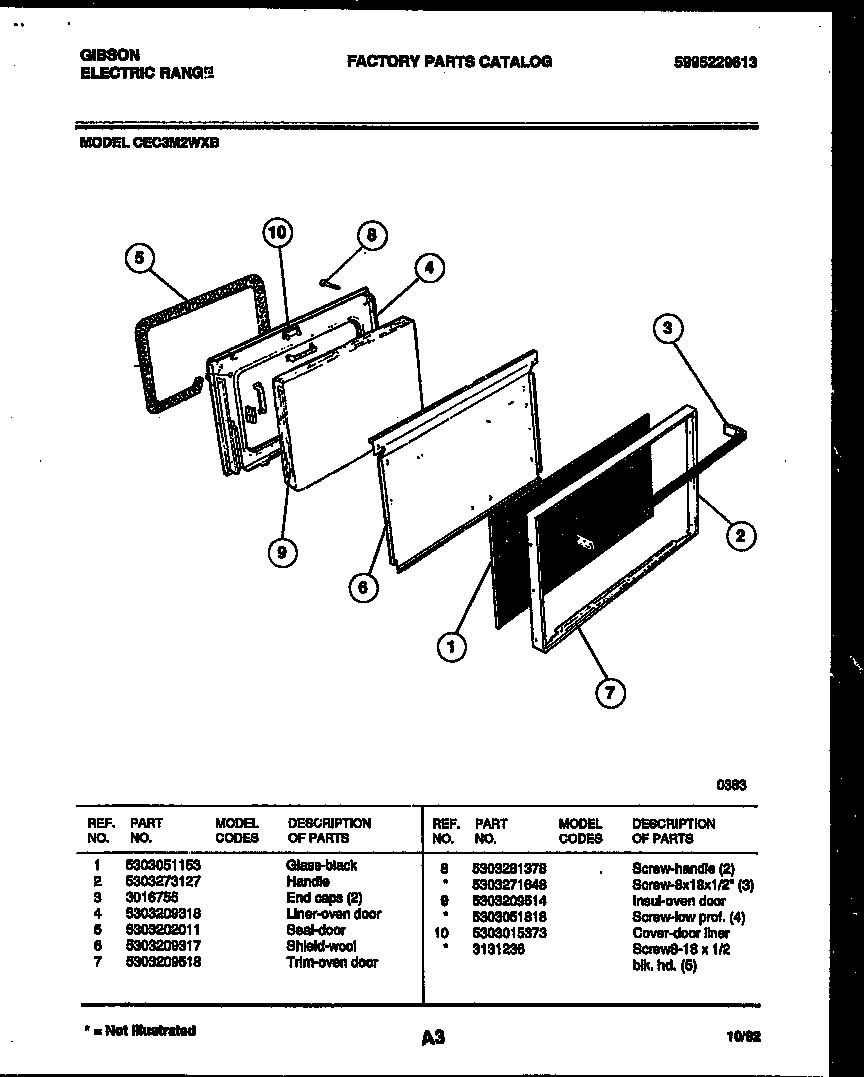

03 - DOOR PARTS

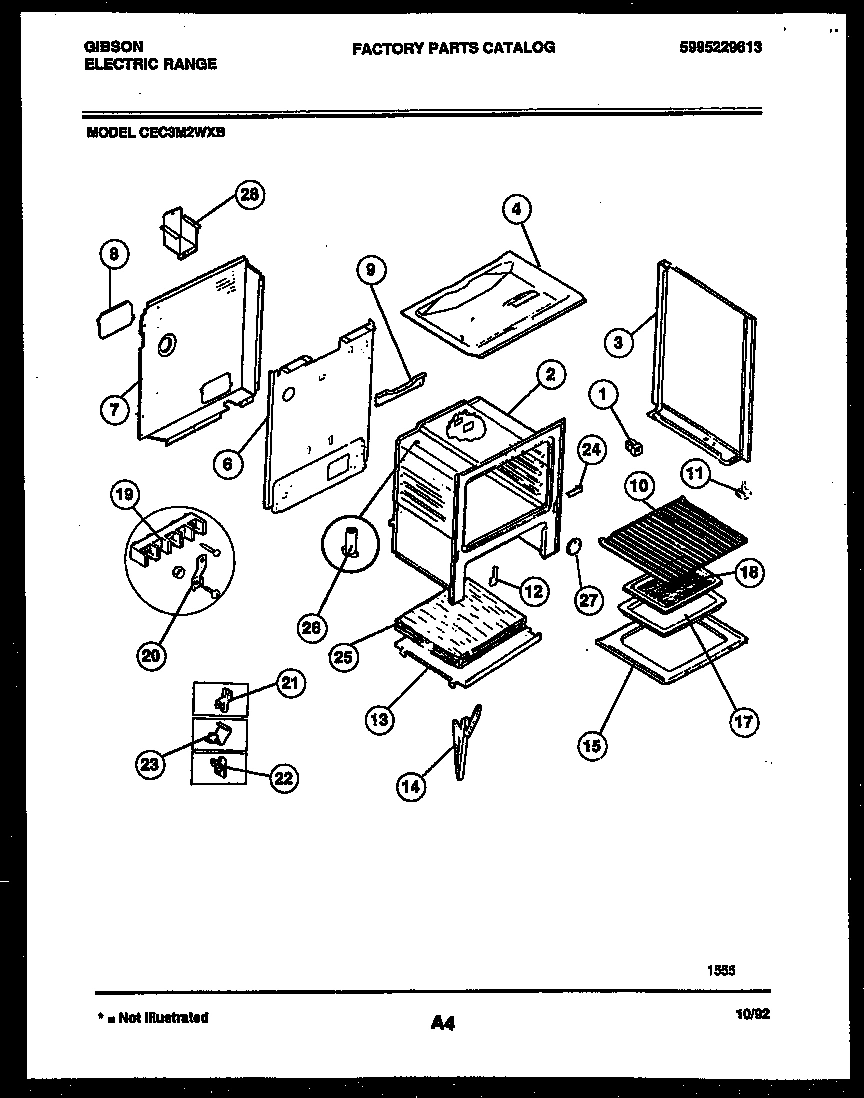

04 - BODY PARTS

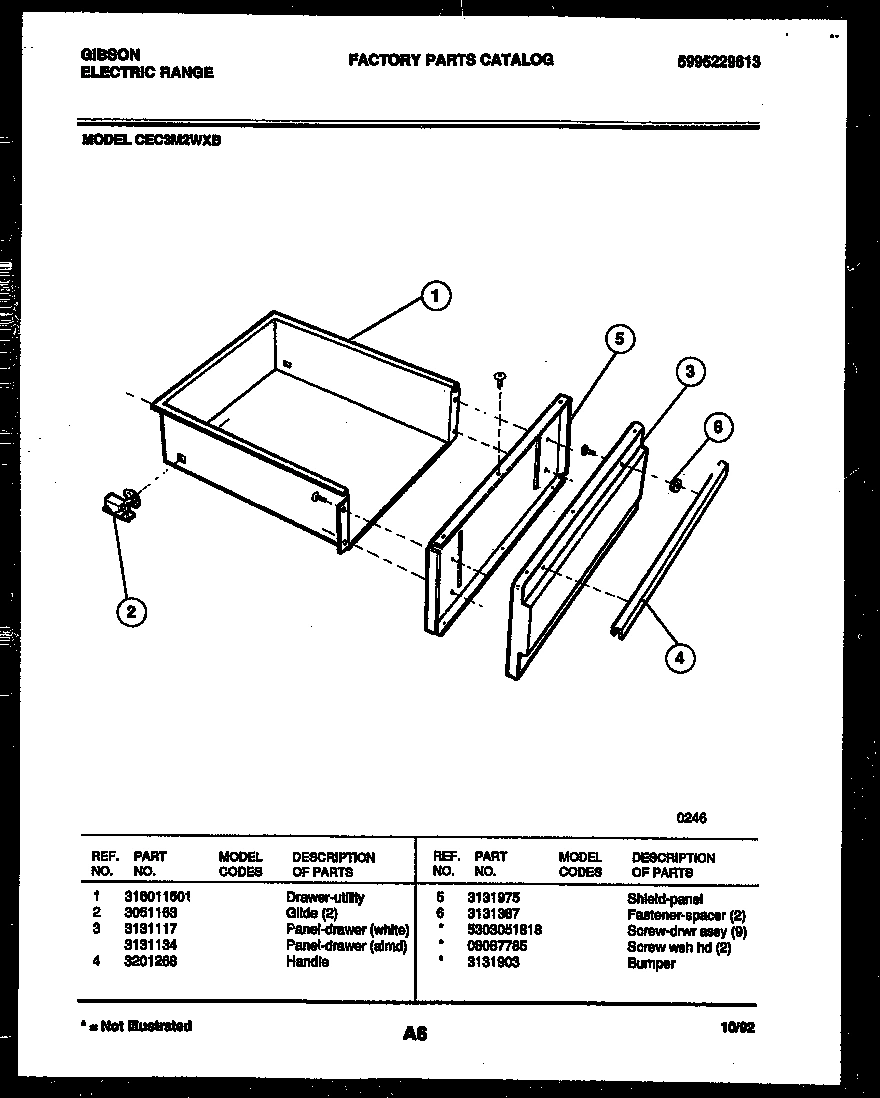

05 - DRAWER PARTS

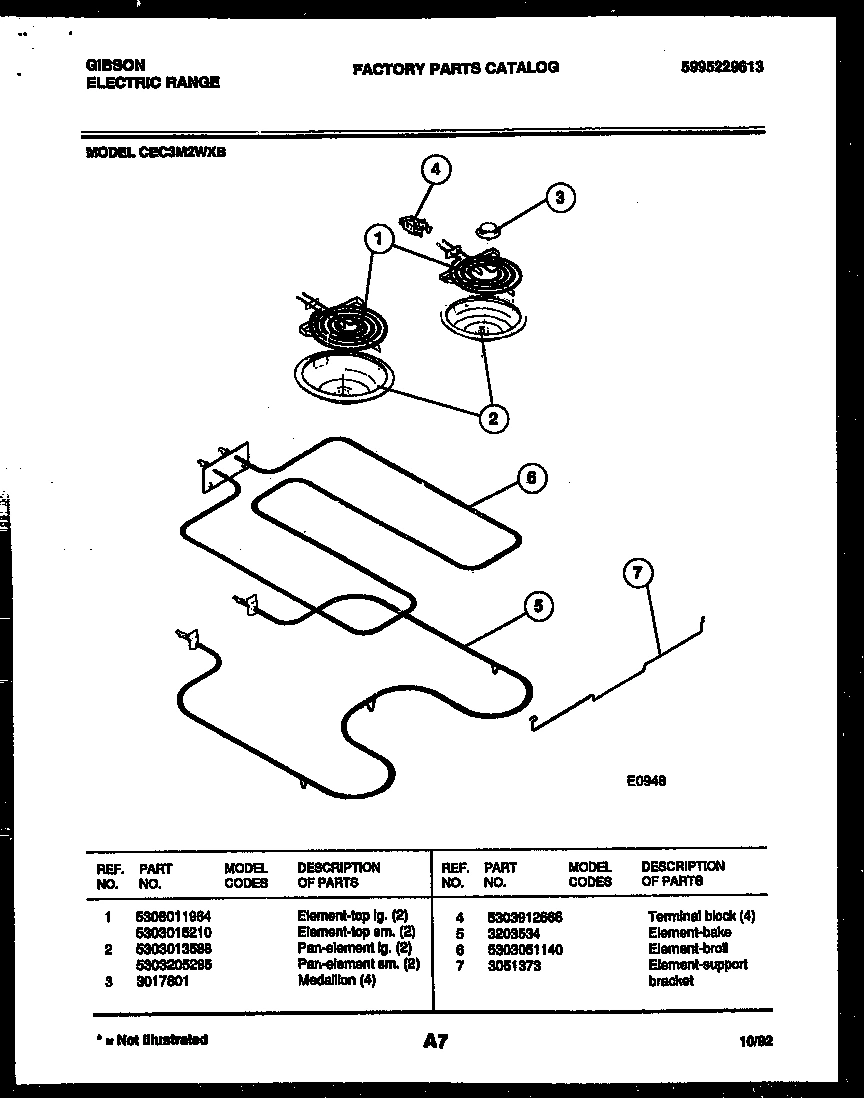

06 - BROILER PARTS

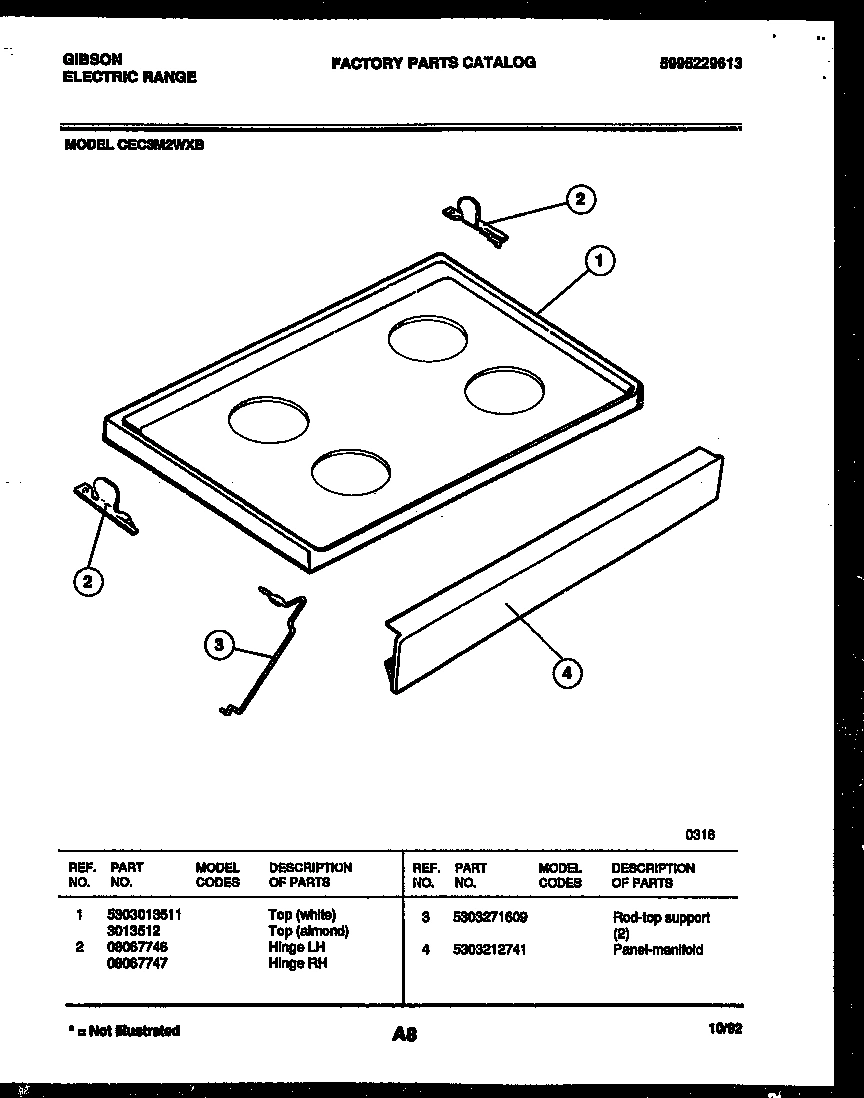

07 - COOKTOP PARTS
Common parts from model Electrolux CEC3M2WXB RANGE
*48674
INSULATION-WRAP WCI 3017142 Contact Us For Availability
*48674
SCREW-HINGE (6) WCI 5303280311 Contact Us For Availability
*48674
WCI 3131252 WCI 3131252 Contact Us For Availability
*48674
INSULATION-BACK WCI 3204582 Contact Us For Availability
*48674
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*48674
WCI 5303206618 WCI 5303206618 Contact Us For Availability
*48675
SCREW WSH HD (2) WCI 08067785 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
GLASS-BLACK WCI 5303051153 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
TOP-ALMOND WCI 3013512 Contact Us For Availability
1
TOP-WHITE WCI 5303013511 Contact Us For Availability
2
HINGE LH WCI 08067746 Contact Us For Availability
2A
HINGE RH WCI 08067747 Contact Us For Availability
3
PANEL-SIDE LH-WHITE WCI 5303269519 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
PANEL, DRAWER, (ALMD) WCI 3131134 Contact Us For Availability
3
WCI 3017801 WCI 3017801 Contact Us For Availability
3
ROD-TOP SUPPORT (2) WCI 5303271609 Contact Us For Availability
3A
PANEL-SIDE RH-WHITE WCI 5303269518 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
4
WCI 5303212741 WCI 5303212741 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 5303209317 WCI 5303209317 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
7
WCI 5303209518 WCI 5303209518 Contact Us For Availability
7
SHIELD-LOW WALL WCI 3203549 Contact Us For Availability
8
SCREW, HANDLE (2) WCI 5303281378 Contact Us For Availability
8
COVER-LOW ACCESS WCI 3203405 Contact Us For Availability
9
INSUL OVEN DOOR WCI 5303209514 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
THERMOSTAT WCI 5303212745 Contact Us For Availability
10
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11
SCREW-LEVE (4) WCI 3206285 Contact Us For Availability
12
COVER-HINGE (2) WCI 3131570 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
CHANNEL-HINGE (2) WCI 316007001 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15A
WCI 19100210079 WCI 19100210079 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT WCI 5303015372 Contact Us For Availability
26
WCI 5303283907 WCI 5303283907 Contact Us For Availability
27
WCI 3051218 WCI 3051218 Contact Us For Availability
28
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
