Model Electrolux CEC1M2WXC RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS
04 - BROILER PARTS

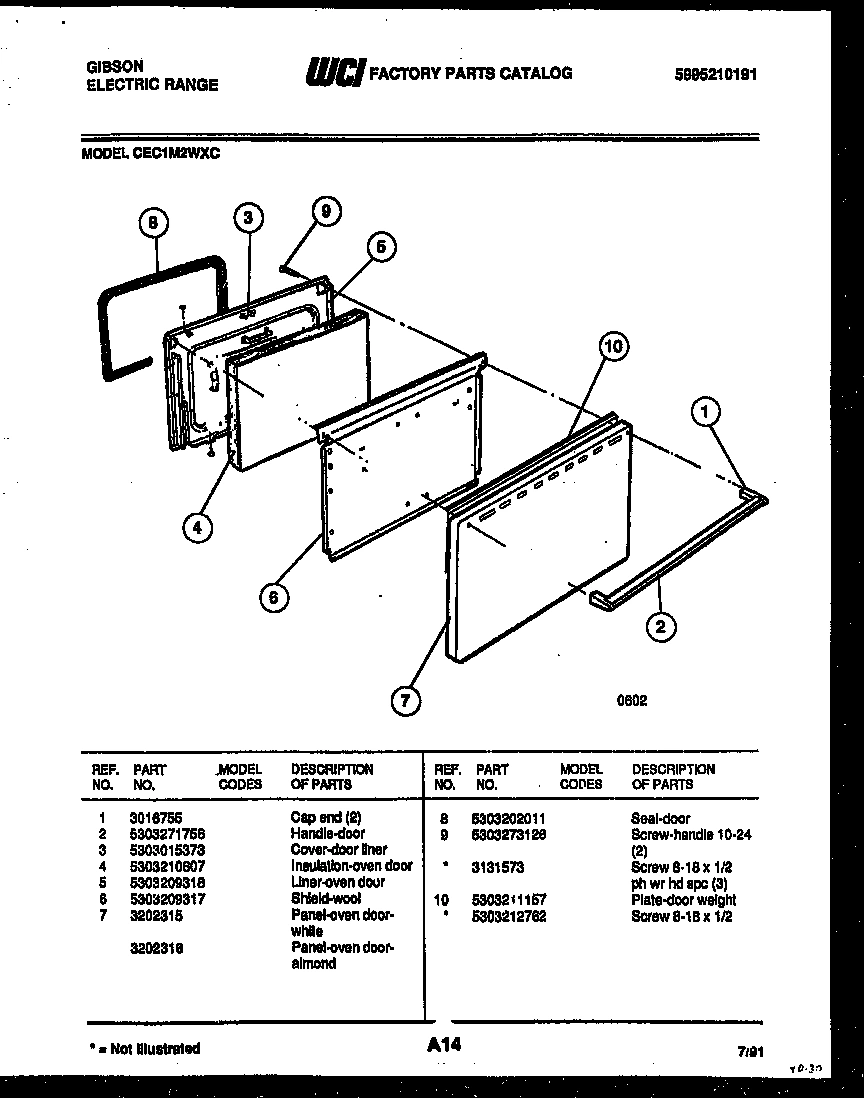

05 - DOOR PARTS

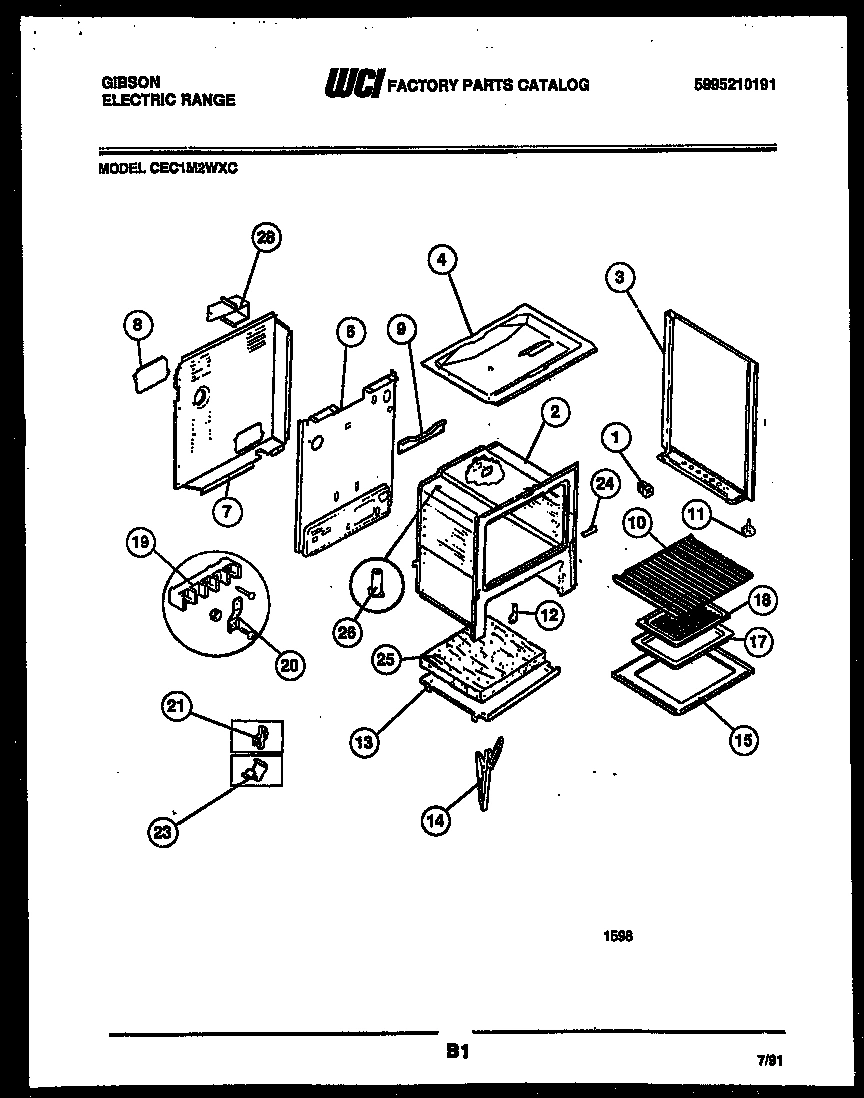

06 - BODY PARTS

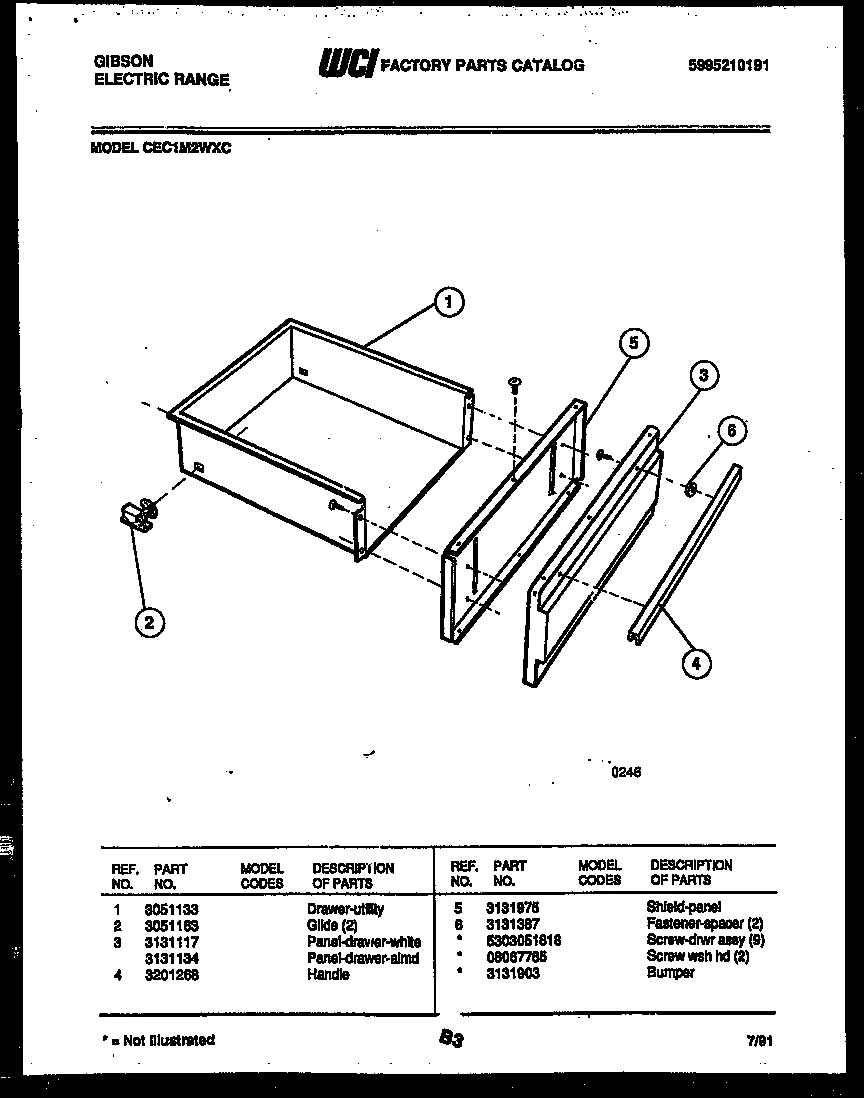

07 - DRAWER PARTS
Common parts from model Electrolux CEC1M2WXC RANGE
*46780
BRACKET-RANGE WCI 5303206618 Contact Us For Availability
*46781
WCI 08067961 WCI 08067961 Contact Us For Availability
*46782
SCREW WSH HD (2) WCI 08067785 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
TOP (WHITE) WCI 3051379 Contact Us For Availability
1
TOP (ALMOND) WCI 3051380 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
HINGE LH WCI 08067746 Contact Us For Availability
2A
HINGE RH WCI 08067747 Contact Us For Availability
3
ROD-TOP SUPPORT (2) WCI 3013818 Contact Us For Availability
3
WCI 5303017810 WCI 5303017810 Contact Us For Availability
3
WCI 5303015373 WCI 5303015373 Contact Us For Availability
3
WCI 5303269519 WCI 5303269519 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
PANEL, DRAWER, (ALMD) WCI 3131134 Contact Us For Availability
3A
WCI 5303269518 WCI 5303269518 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
WCI 5303212741 WCI 5303212741 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
5
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 5303209317 WCI 5303209317 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
7
PANEL, OVEN DOOR, WHITE WCI 3202315 Contact Us For Availability
7
Panel,oven door ,almond WCI 3202316 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
SCREW-HANDLE 10-24 (2) WCI 5303273126 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9A
SCREW 8-18 X 1/2 PH WR HD SPC (3) (NON-ILLUST WCI 3131573 Contact Us For Availability
10
WCI 5303211157 WCI 5303211157 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
13
THERMOSTAT WCI 5303212745 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
CHANNEL-DOOR HINGE (2) WCI 5303131569 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
17A
WCI 19100210079 WCI 19100210079 Contact Us For Availability
18
BUSHING, CONTROL SHAFT WCI 3204745 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
19
SPRT-BACKGUARD (2) WCI 5303131237 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 5303015372 WCI 5303015372 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26A
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
26B
WCI 3203541 WCI 3203541 Contact Us For Availability
28
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
