Model Whirlpool CE3878VVW ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

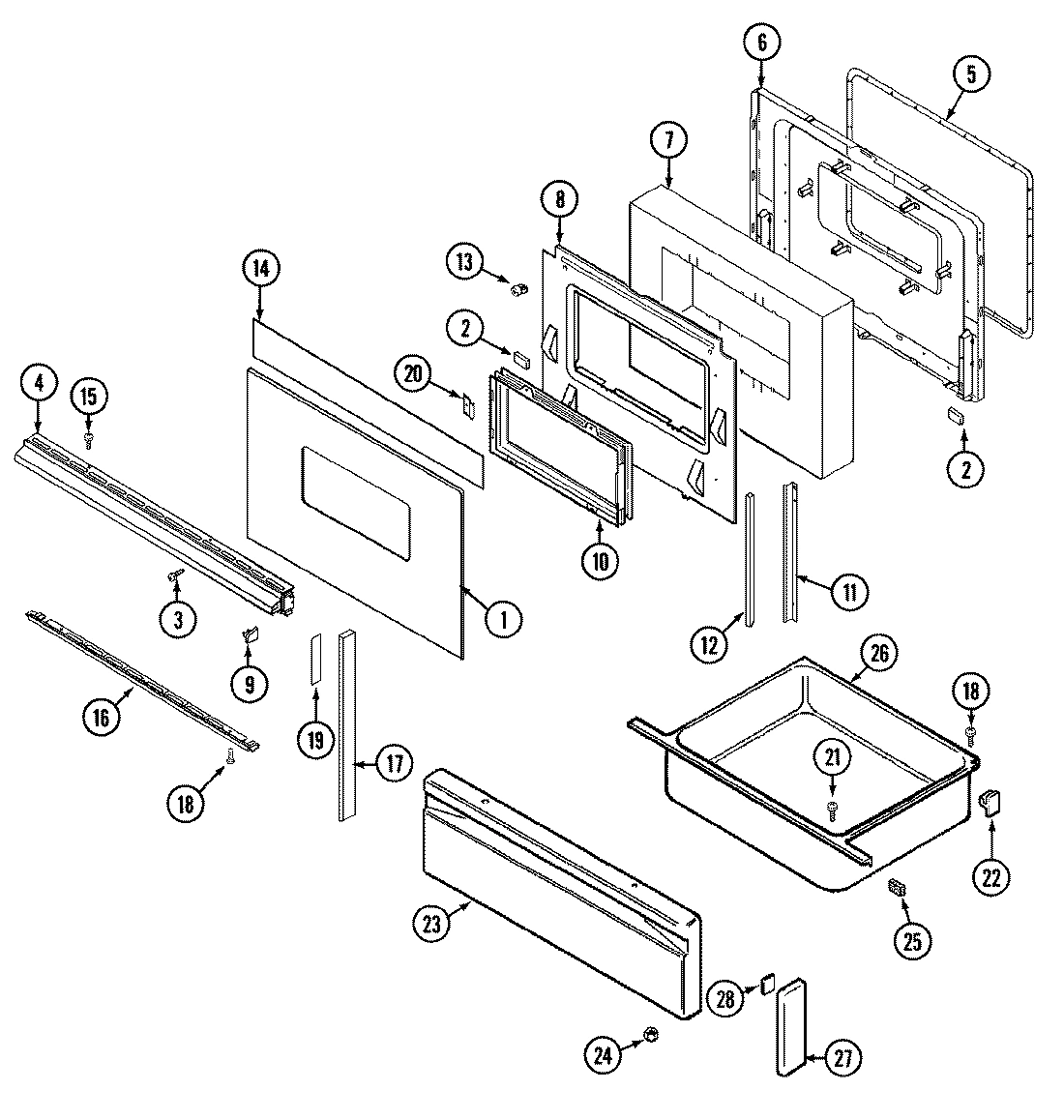

03 - DOOR/DRAWER (VVx SER. PRE. 10)

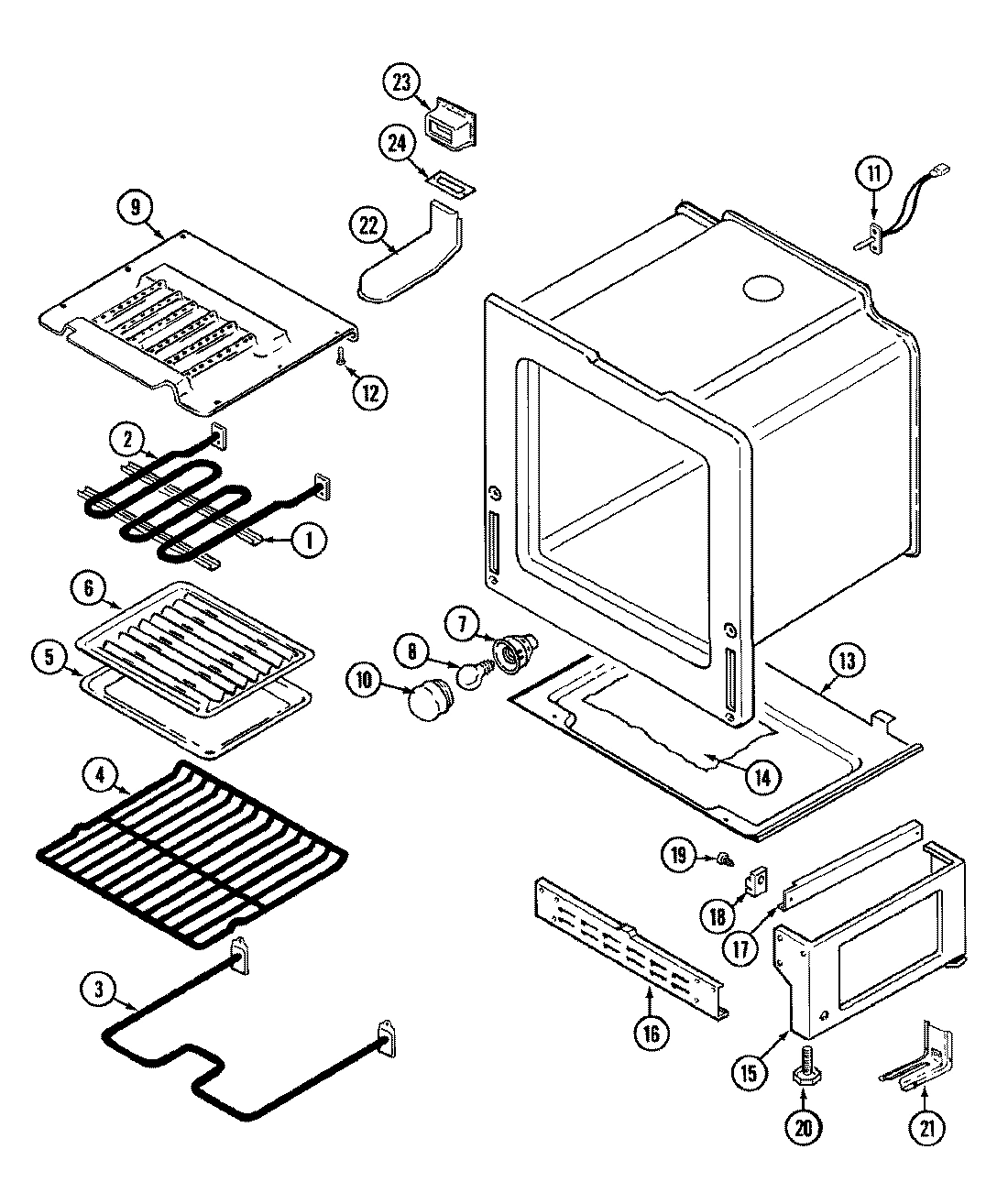

05 - OVEN/BASE

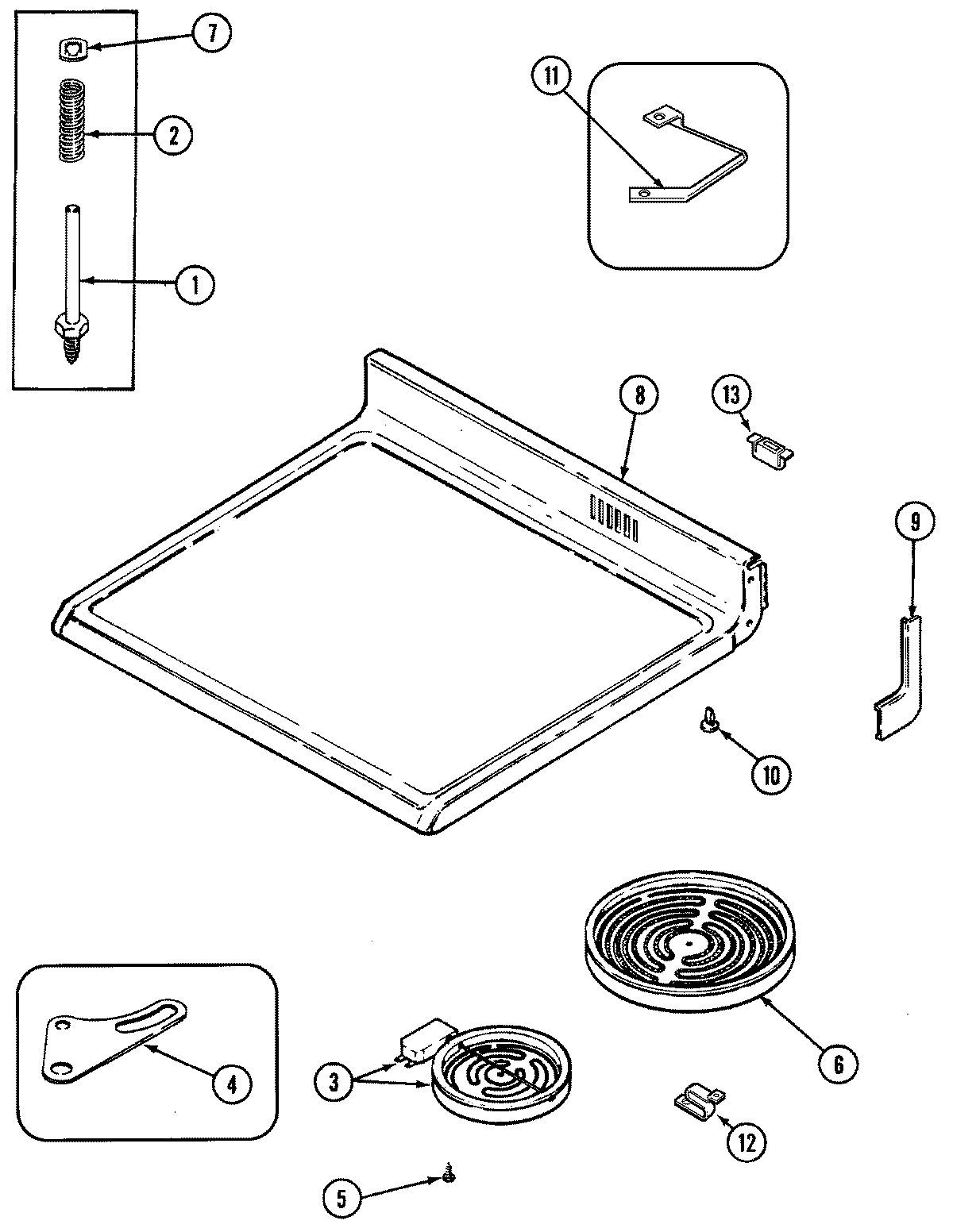

06 - TOP ASSEMBLY

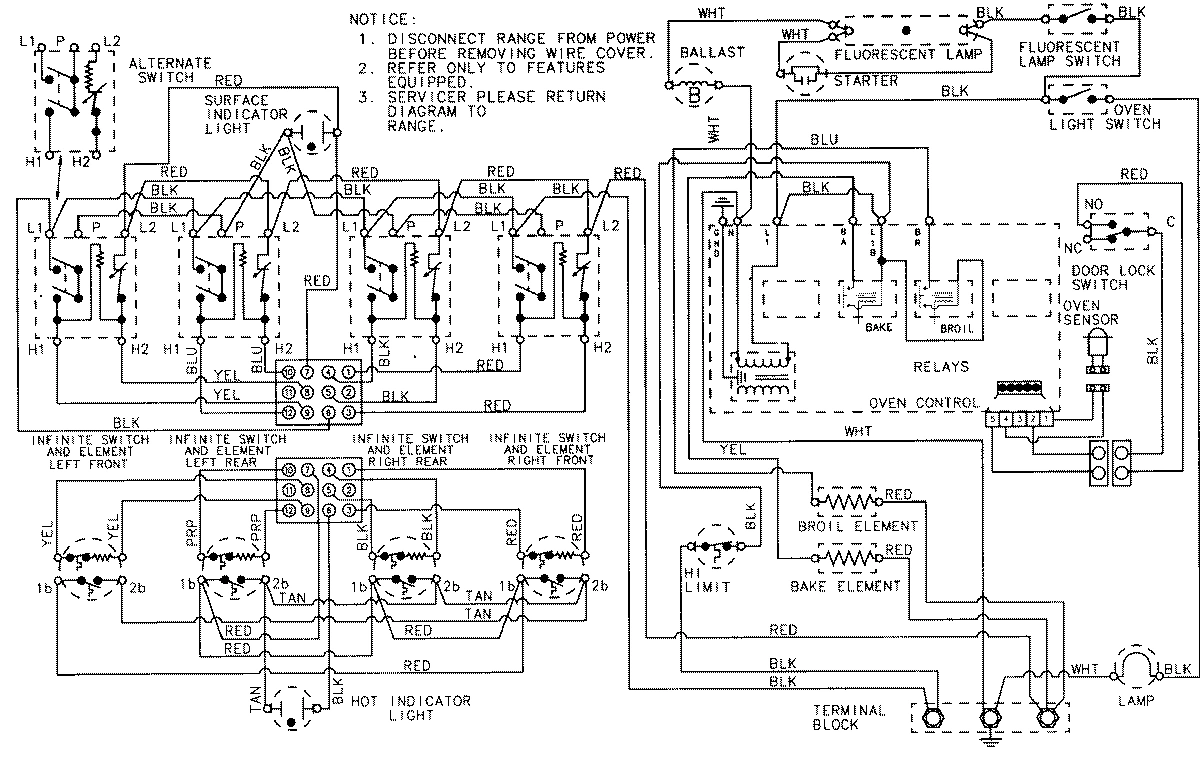

07 - WIRING INFORMATION

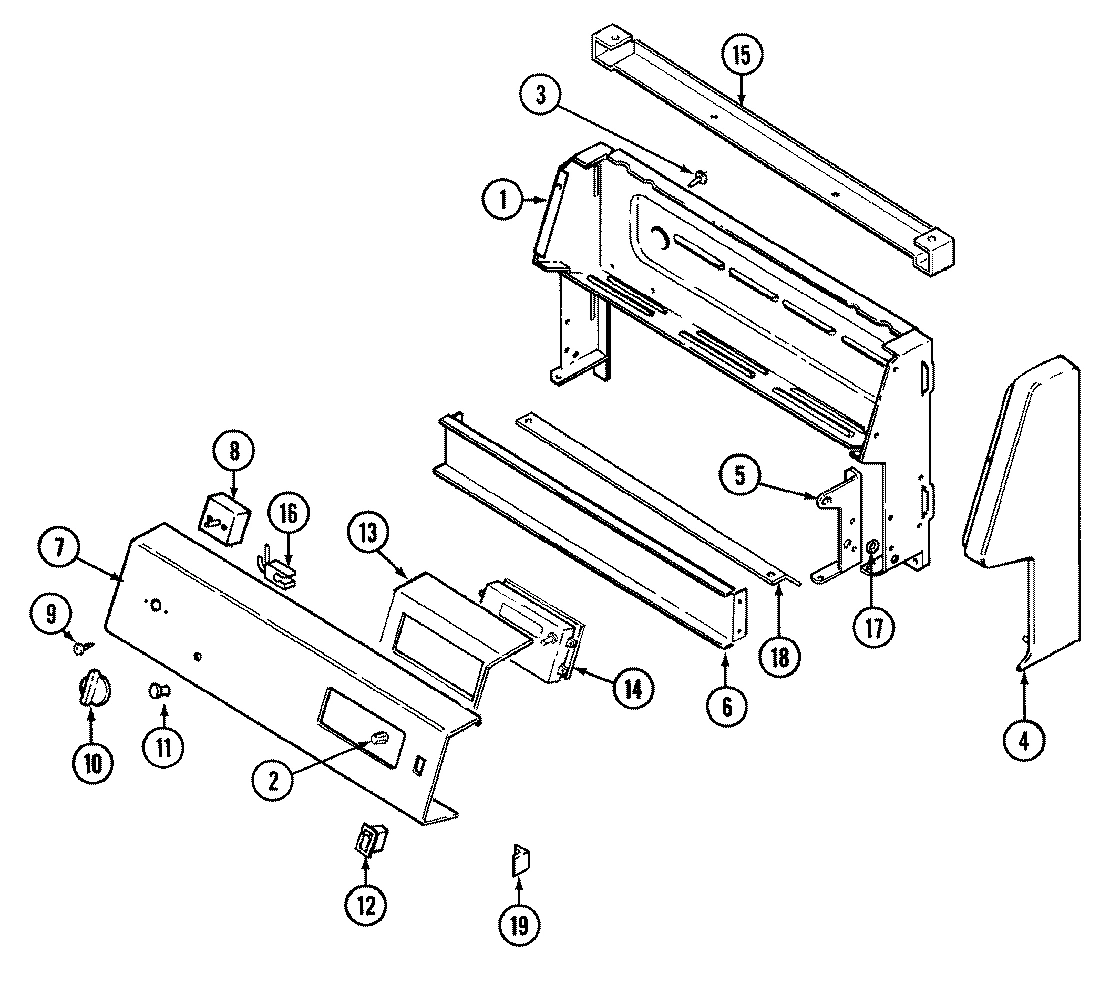

02 - CONTROL PANEL

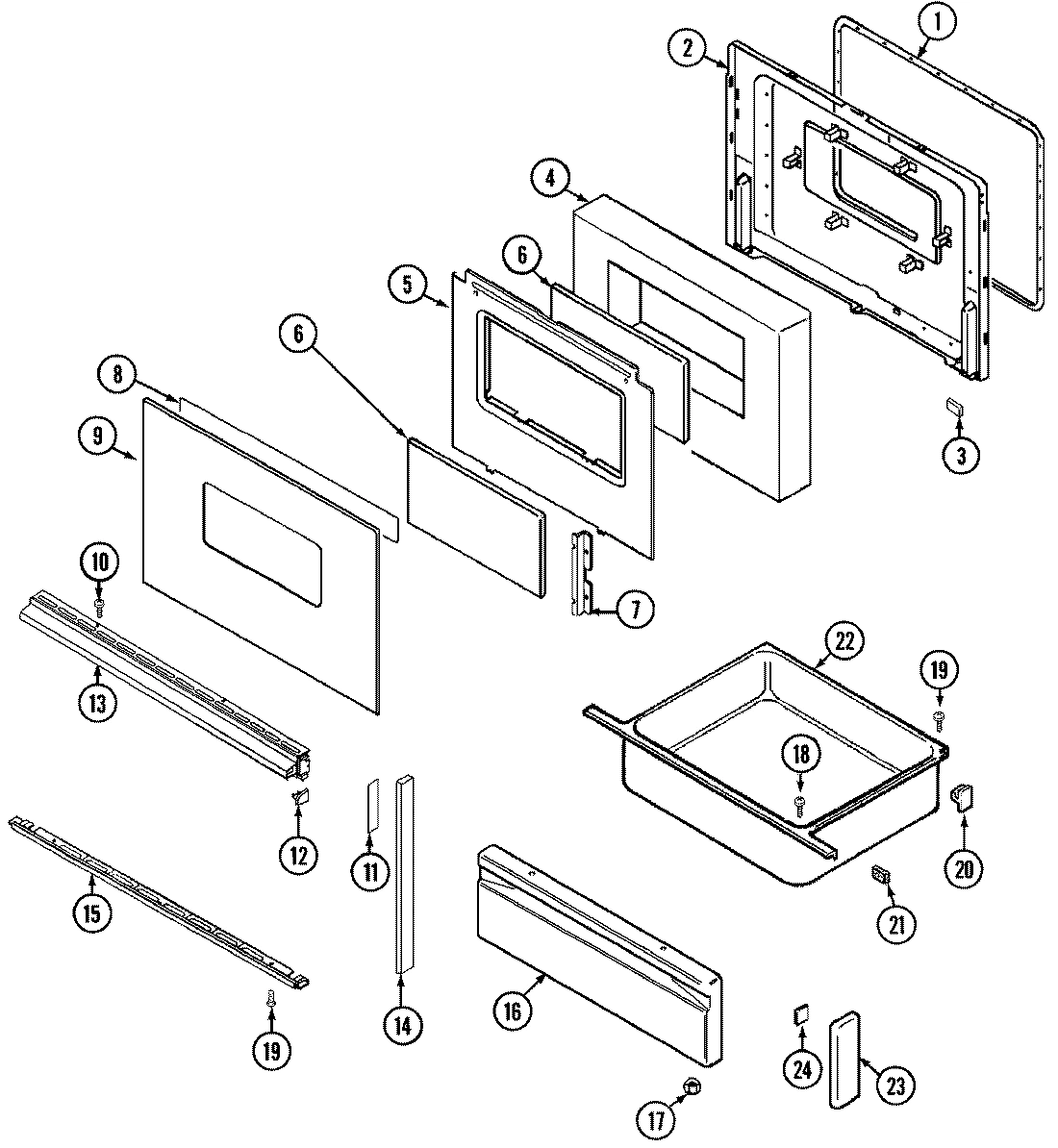

04 - DOOR/DRAWER (VVx SER. PRE. 21)
Common parts from model Whirlpool CE3878VVW ELECTRIC RANGE
1
SCREW WPL 7101P34560 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
2
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
KNOB, CLOCK (BLK) WPL 7711P49260 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
3
BOX, BURNER WPL 74001707 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
END CAP (LT-BLK) WPL 74001352 Contact Us For Availability
4
END CAP (RT-BLK) WPL 74001355 Contact Us For Availability
4
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
4
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
5
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
LIMITER (8``) WPL 74002652 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
CLIP, SPRING GRIP WPL 7112P09260 Contact Us For Availability
7
PANEL, CONTROL WPL 7703P57460 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
TOP ASSY. (BLK GLASS/WHT FRM) WPL 5706S07681 Contact Us For Availability
8
TOP, MAIN (WHT/GRY GLASS) WPL 74002349 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 74001719 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
SPACER, MAIN TOP WPL 74001428 Contact Us For Availability
10
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
10
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
SPRING, CERAMIC ELEMENT WPL 74001437 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
11
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 74001800 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
SCREW WPL 7101P29060 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 7701P10560 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
13
BRACKET, CLOCK WPL 74001703 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 7744P06560 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
CLOCK (BLK) WPL 74002729 Contact Us For Availability
14
CLOCK WPL 7601P23660 Contact Us For Availability
15
SCREW (WHT) WPL 7101P30860 Contact Us For Availability
15
TRIM, BOTTOM (WHT) WPL 7744P10360 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
15
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
NUT, SPEED WPL 7103P04460 Contact Us For Availability
18
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
SCREW WPL 7101P07260 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
18
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
TAPE, SEALING ROLL WPL 8270P04860 Contact Us For Availability
19
SCREW WPL 7101P33460 Contact Us For Availability
19
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
19
SPACER WPL 8010P08360 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
22
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
23
END CAP, DRAWER (WHT) WPL 7744P06960 Contact Us For Availability
23
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
24
TAPE WPL 8270P09860 Contact Us For Availability
24
GASKET, VENT WPL 7201P05460 Contact Us For Availability
25
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
26
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P09760 Contact Us For Availability
26
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
27
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001430 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 16007454 Contact Us For Availability
NI
HARNESS, LOOSE WIRE WPL 5125A38160 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D19960 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 5170P20560 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 5175D05260 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D06360 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P06860 Contact Us For Availability
× ![]()
