Model Whirlpool CE38700AAQ ELECTRIC RANGE – Common Parts & Diagrams

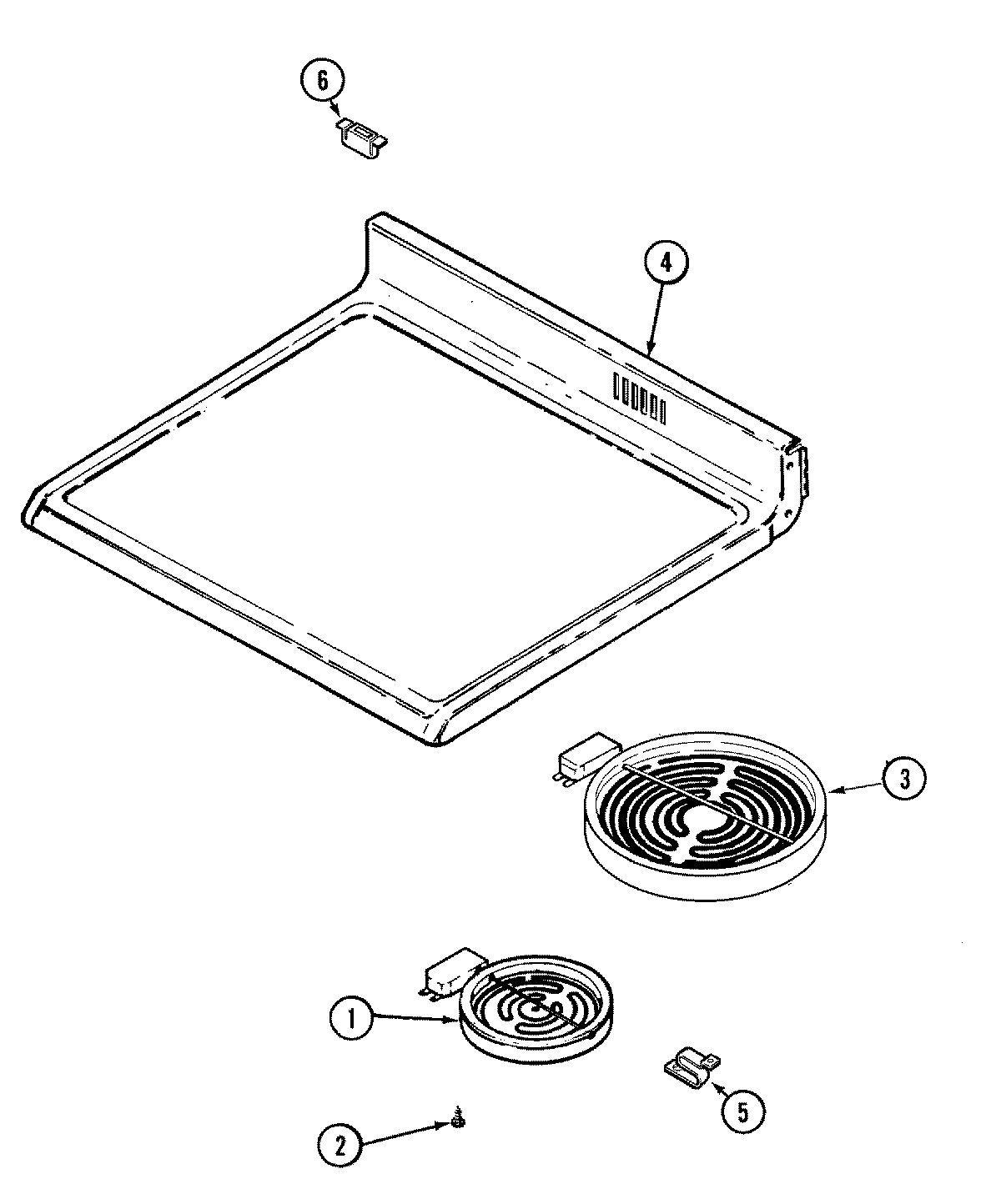

05 - TOP ASSEMBLY

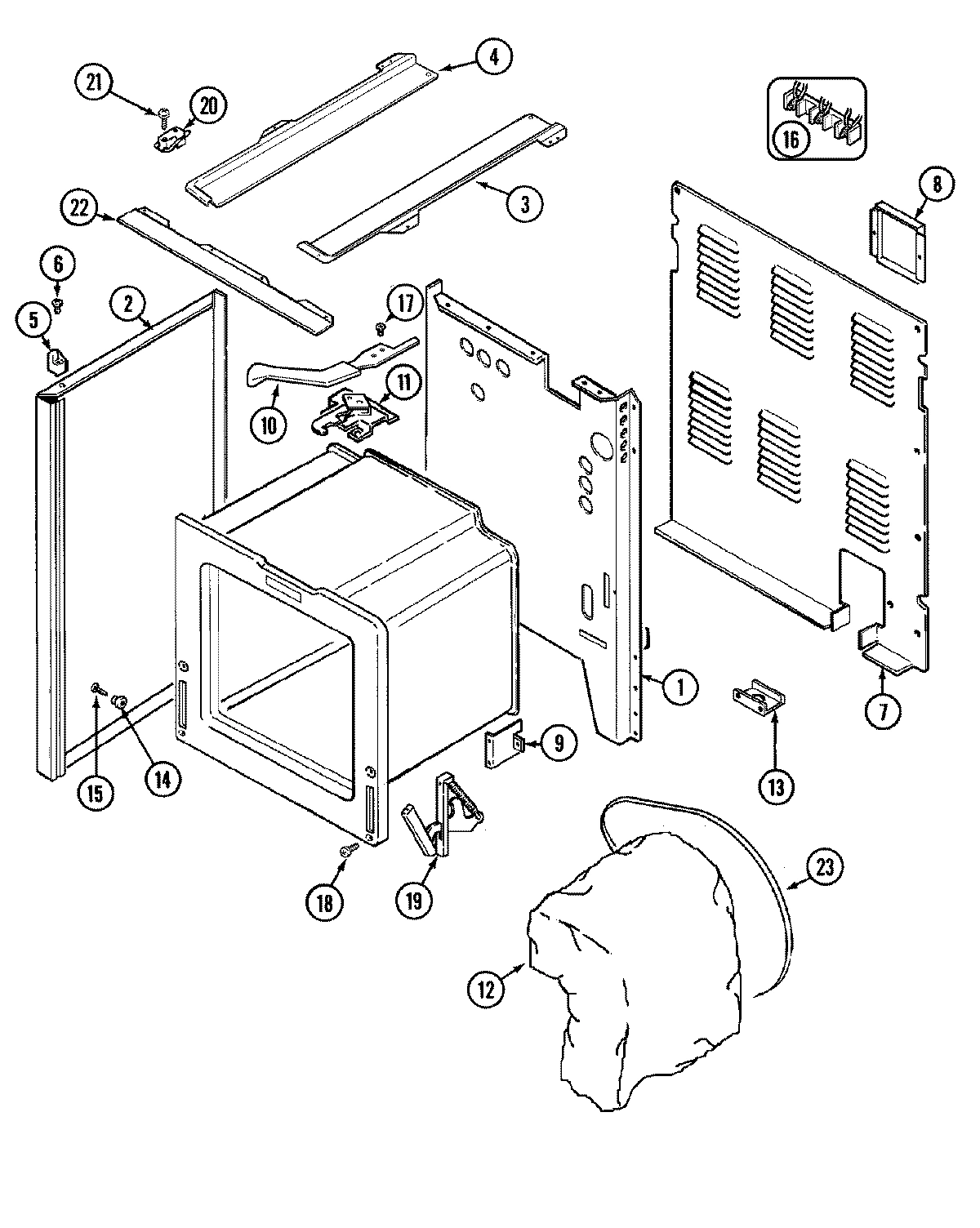

01 - BODY

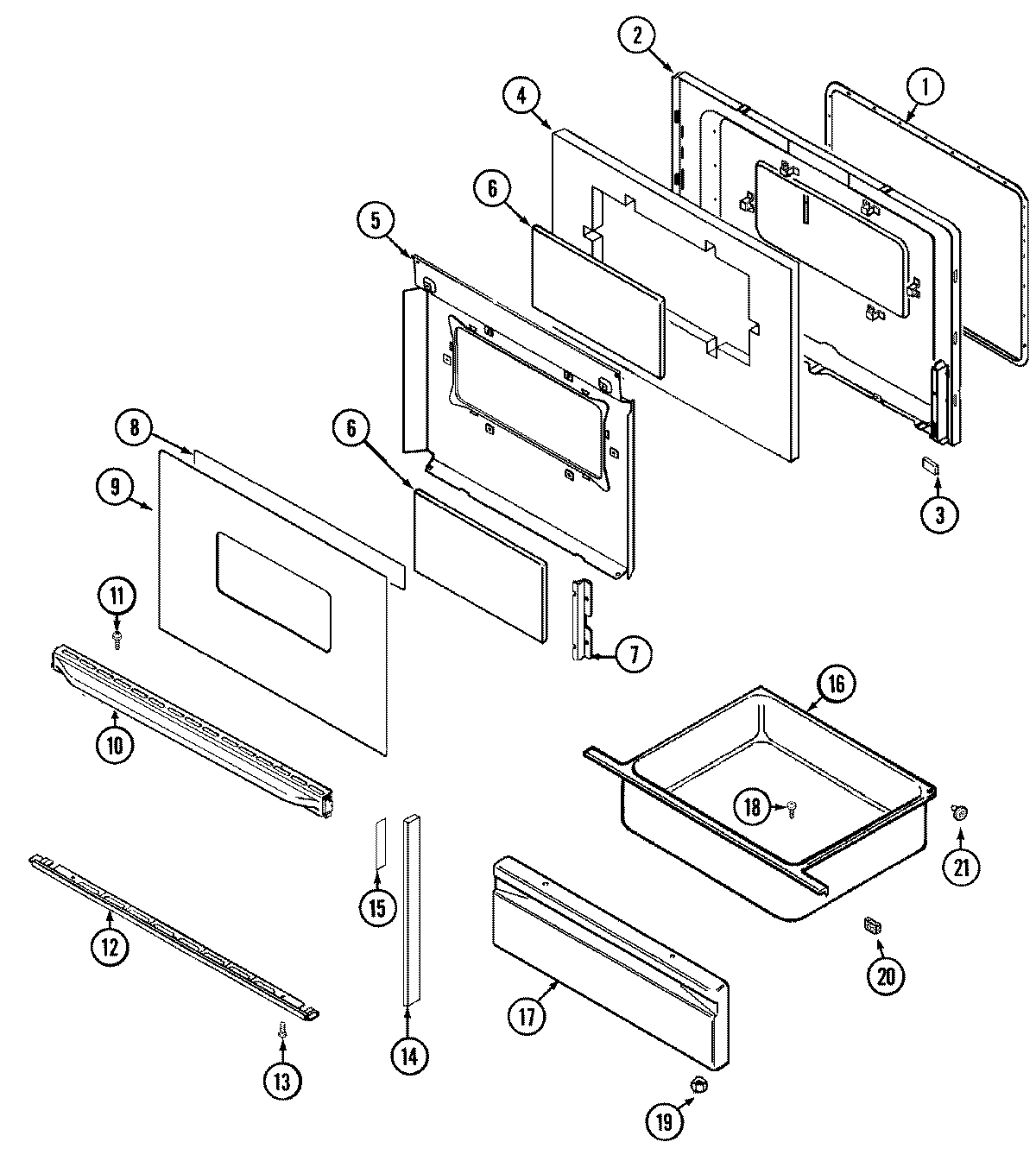

03 - DOOR/DRAWER

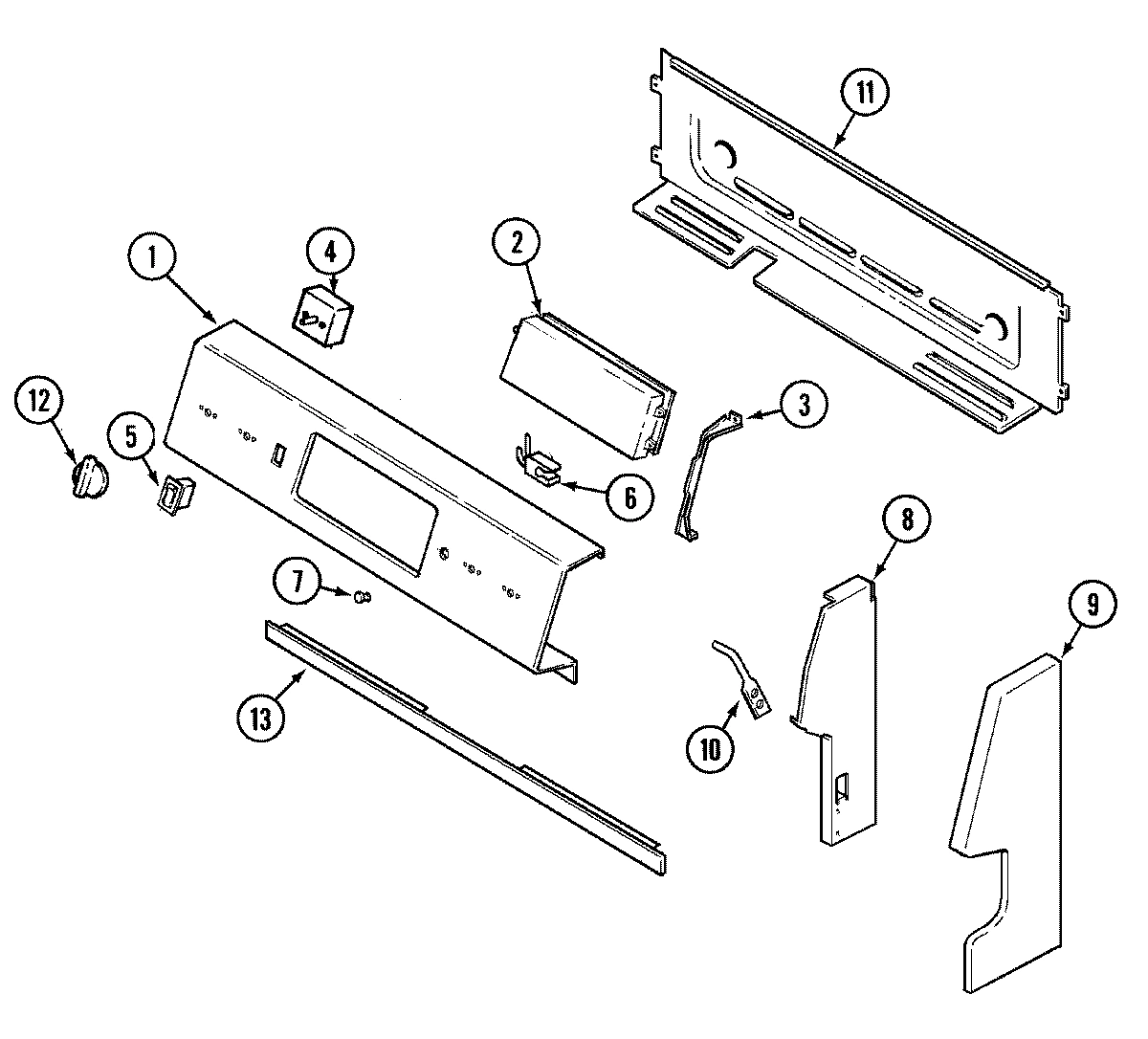

02 - CONTROL PANEL

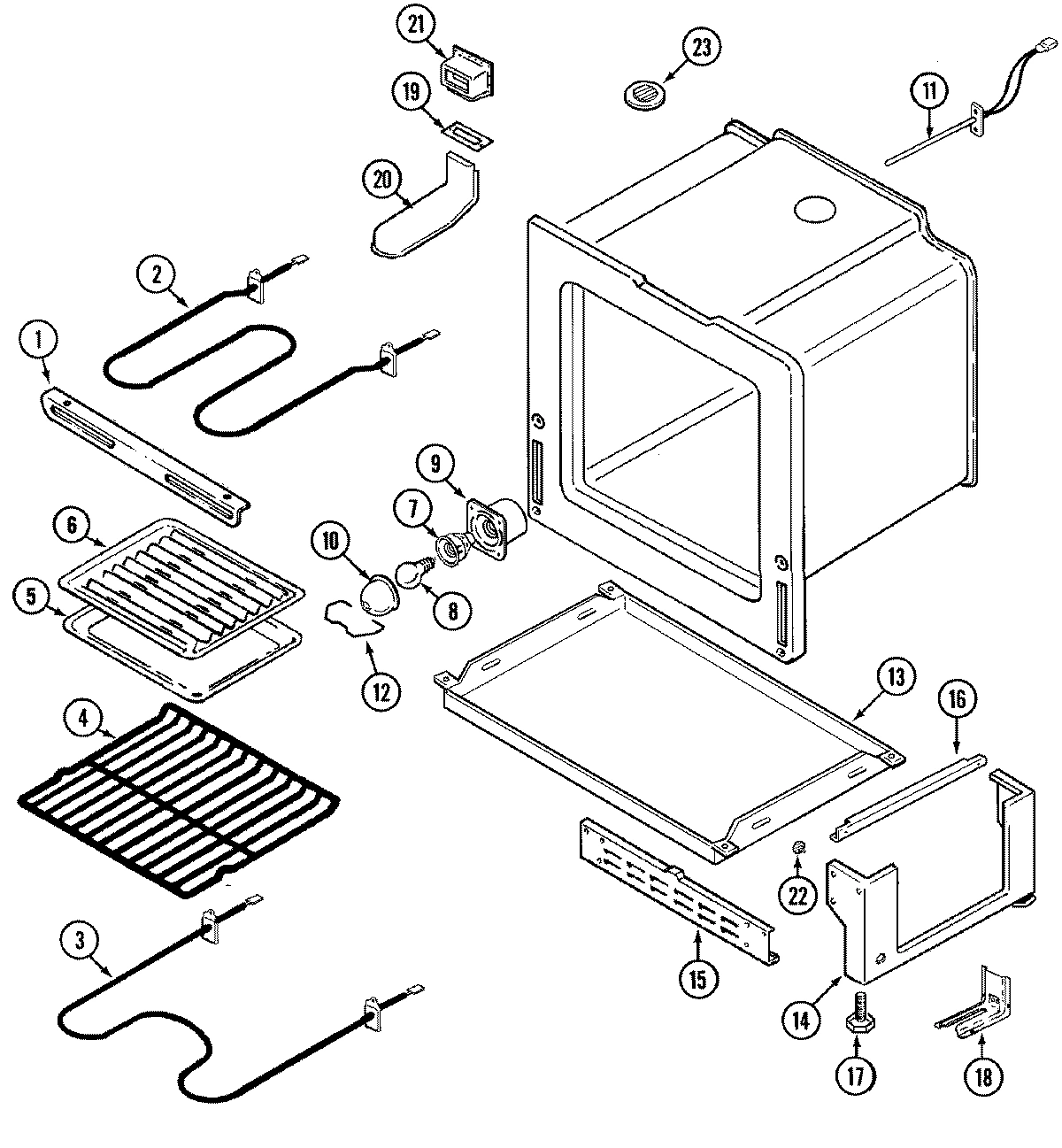

04 - OVEN/BASE

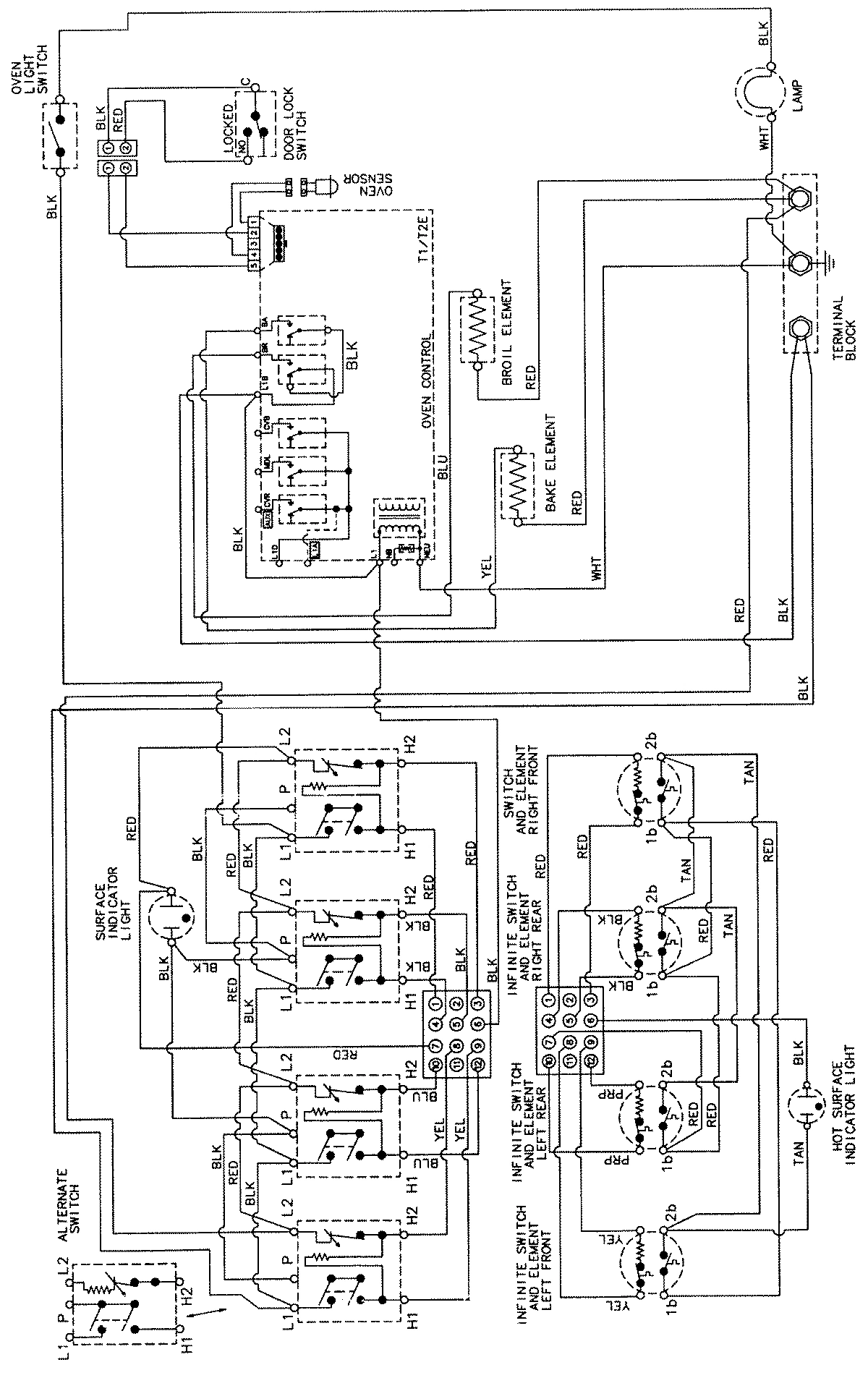

06 - WIRING INFORMATION
Common parts from model Whirlpool CE38700AAQ ELECTRIC RANGE
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
PANEL, CONTROL (BSQ) WPL 74005251 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
2
PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
2
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
2
CLOCK W/OVERLAY (BSQ) WPL 74005257 Contact Us For Availability
3
LIMITER WPL 74004494 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74003378 Contact Us For Availability
3
BRACKET, CLOCK WPL 74003362 Contact Us For Availability
3
SCREW (8ABX3/8) BSQ WPL 74004985 Contact Us For Availability
4
TOP, MAIN (BRN GLASS/BSQ TRM) WPL 74005253 Contact Us For Availability
4
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
4
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74003379 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
SCREW WPL 7101P30960 Contact Us For Availability
4
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
4
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
LIGHT, INDICATOR WPL 74003053 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability
9
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
9
GLASS, DOOR (OUTER-BSQ) WPL 74005041 Contact Us For Availability
9
SCREW (6ABX1/2 3/16) WPL 74004982 Contact Us For Availability
9
END CAP, CONTROL PNL (RT-BSQ) WPL 74005034 Contact Us For Availability
9
END CAP, CONTROL PNL (LT-BSQ) WPL 74005035 Contact Us For Availability
10
LEVER, LATCH (BRN) WPL 74003006 Contact Us For Availability
10
HANDLE, DOOR (BSQ) WPL 74005042 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
11
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
11
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
11
LATCH, DOOR WPL 74003380 Contact Us For Availability
11
HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
12
TRIM, DOOR (LWR-BSQ) WPL 74005043 Contact Us For Availability
12
KNOB (BSQ) WPL 74005228 Contact Us For Availability
13
SHIELD, SIGHT WPL 74003374 Contact Us For Availability
13
RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability
13
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
TRIM, DOOR (SIDE-BSQ) WPL 74005044 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74003393 Contact Us For Availability
15
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
15
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
15
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
16
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
16
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
17
PANEL, DRAWER (BSQ) WPL 74005055 Contact Us For Availability
18
SCREW WPL 7101P11260 Contact Us For Availability
18
SCREW, STAINLESS WPL 7101P03760 Contact Us For Availability
18
SCREW WPL 7101P35260 Contact Us For Availability
19
NUT, LOCK WPL 7103P13960 Contact Us For Availability
19
GASKET, VENT WPL 74003285 Contact Us For Availability
20
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
20
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
20
VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability
21
SCREW WPL 912012 Contact Us For Availability
21
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
22
BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability
22
NUT WPL 7103P08260 Contact Us For Availability
22
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
23
STRAP, INSULATION WPL 74003385 Contact Us For Availability
23
SCREEN, SMOKE ELIMINATOR WPL 74003633 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 74003375 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74004247 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002205 Contact Us For Availability
× ![]()
