Model Whirlpool CE38300AAV ELECTRIC RANGE – Common Parts & Diagrams

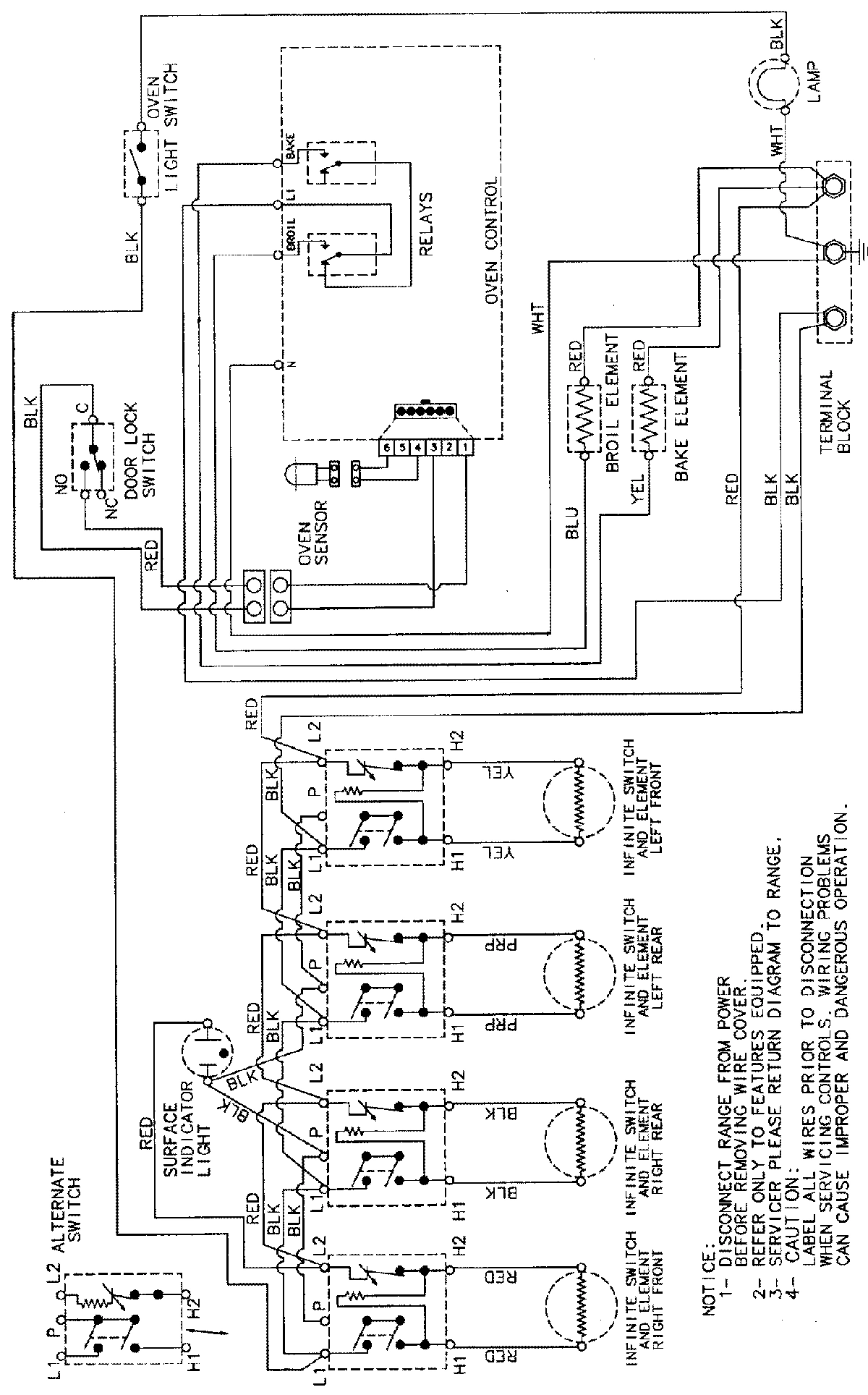

05 - WIRING INFORMATION

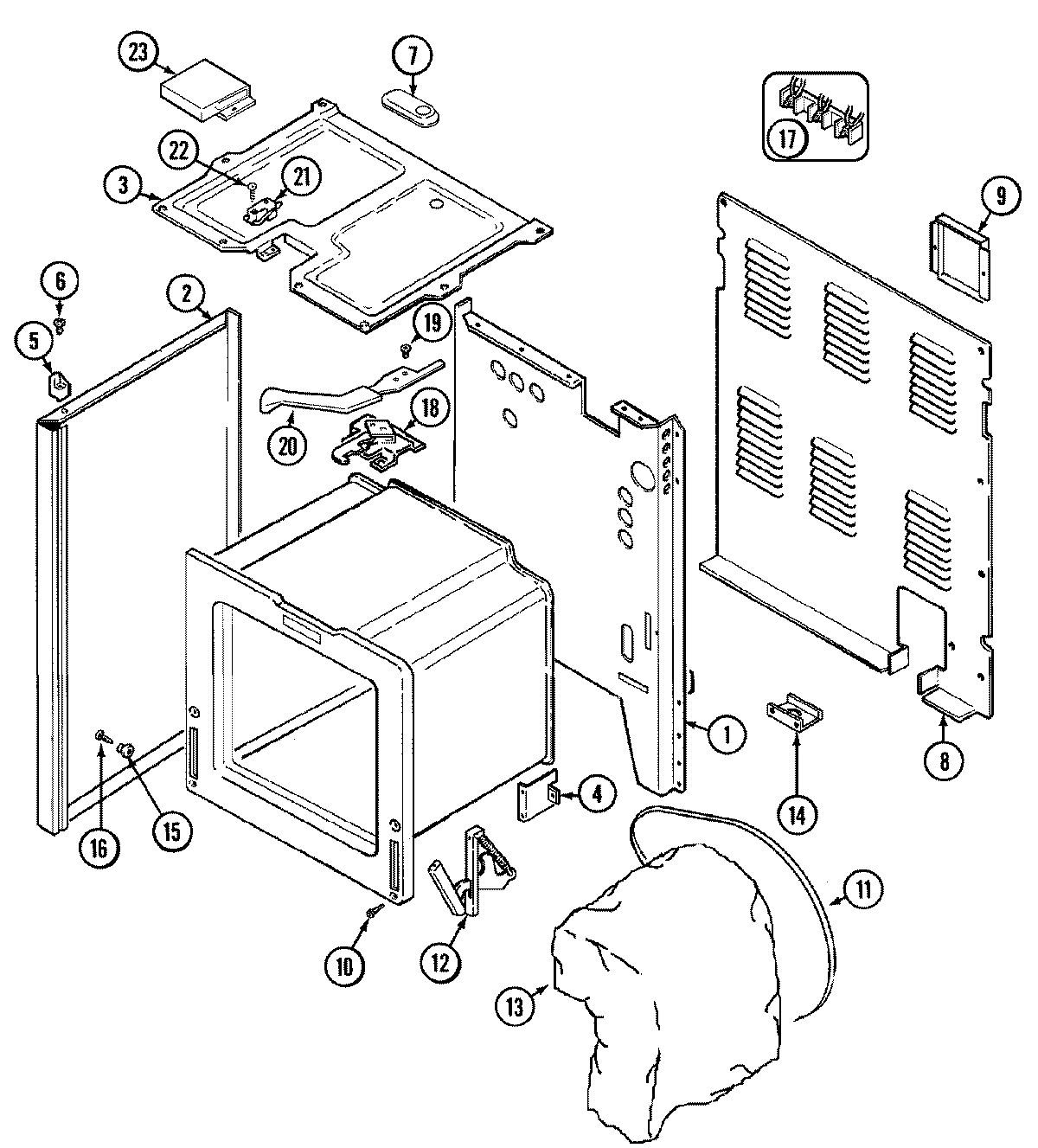

01 - BODY

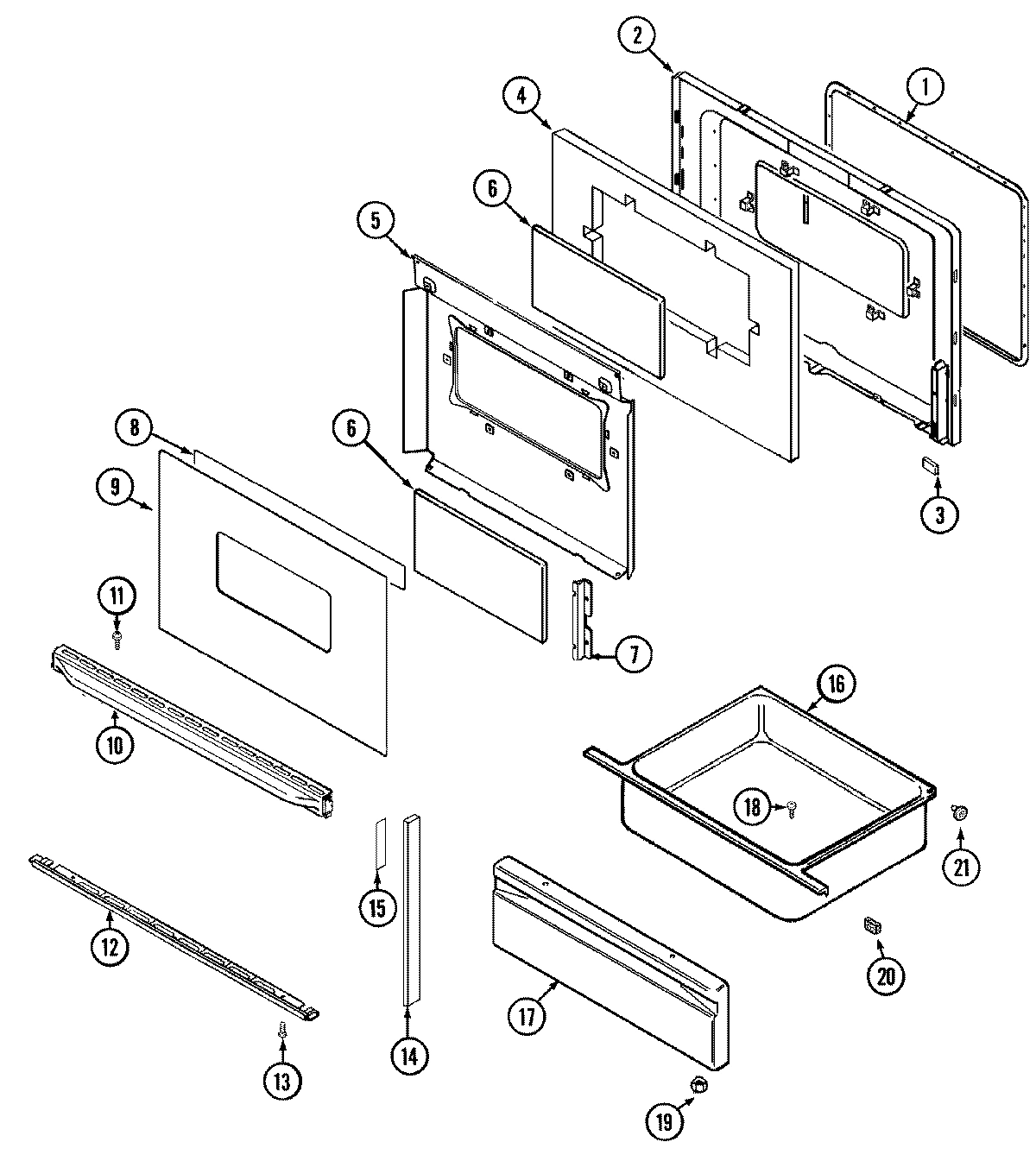

03 - DOOR/DRAWER

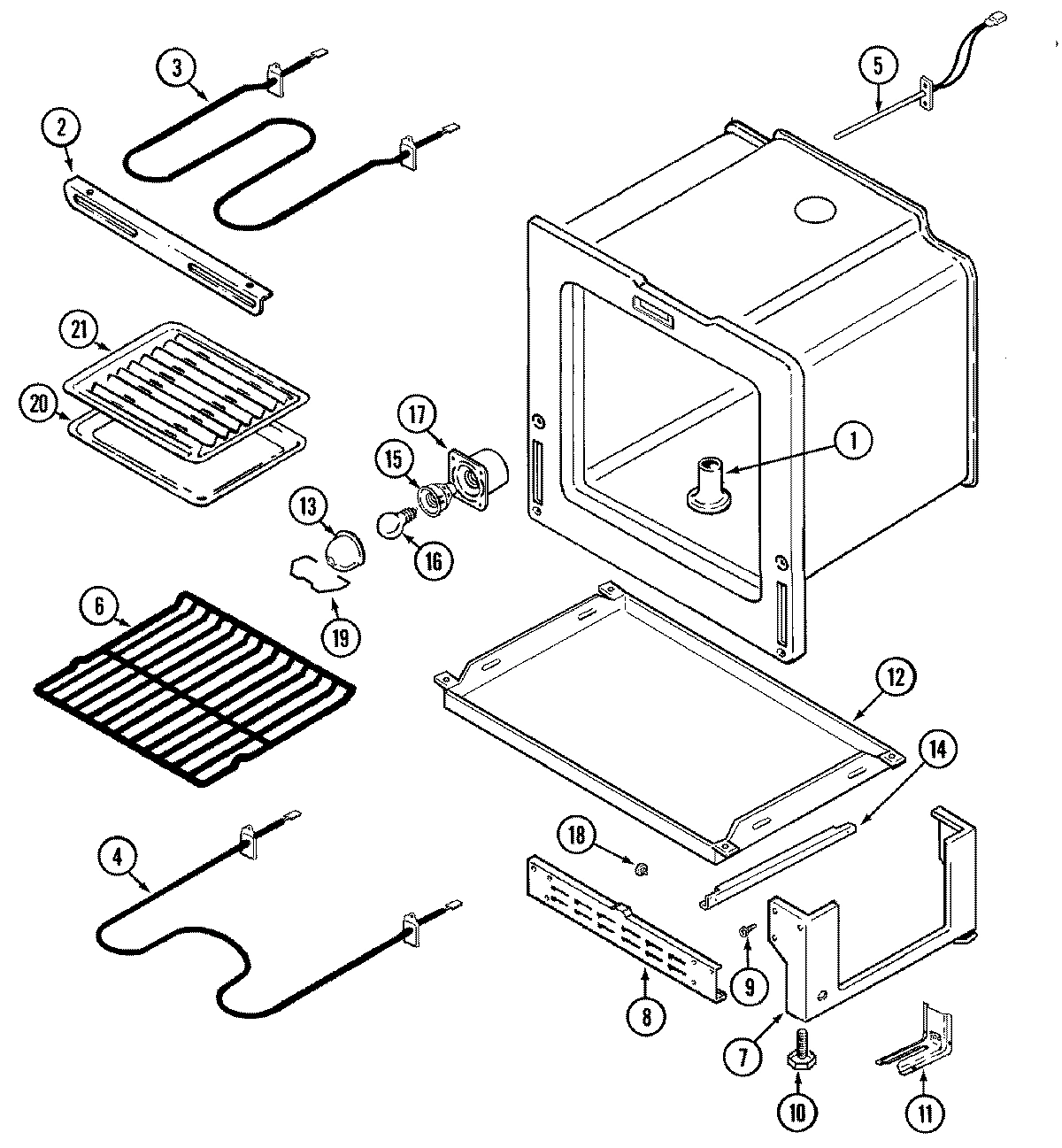

04 - OVEN/BASE

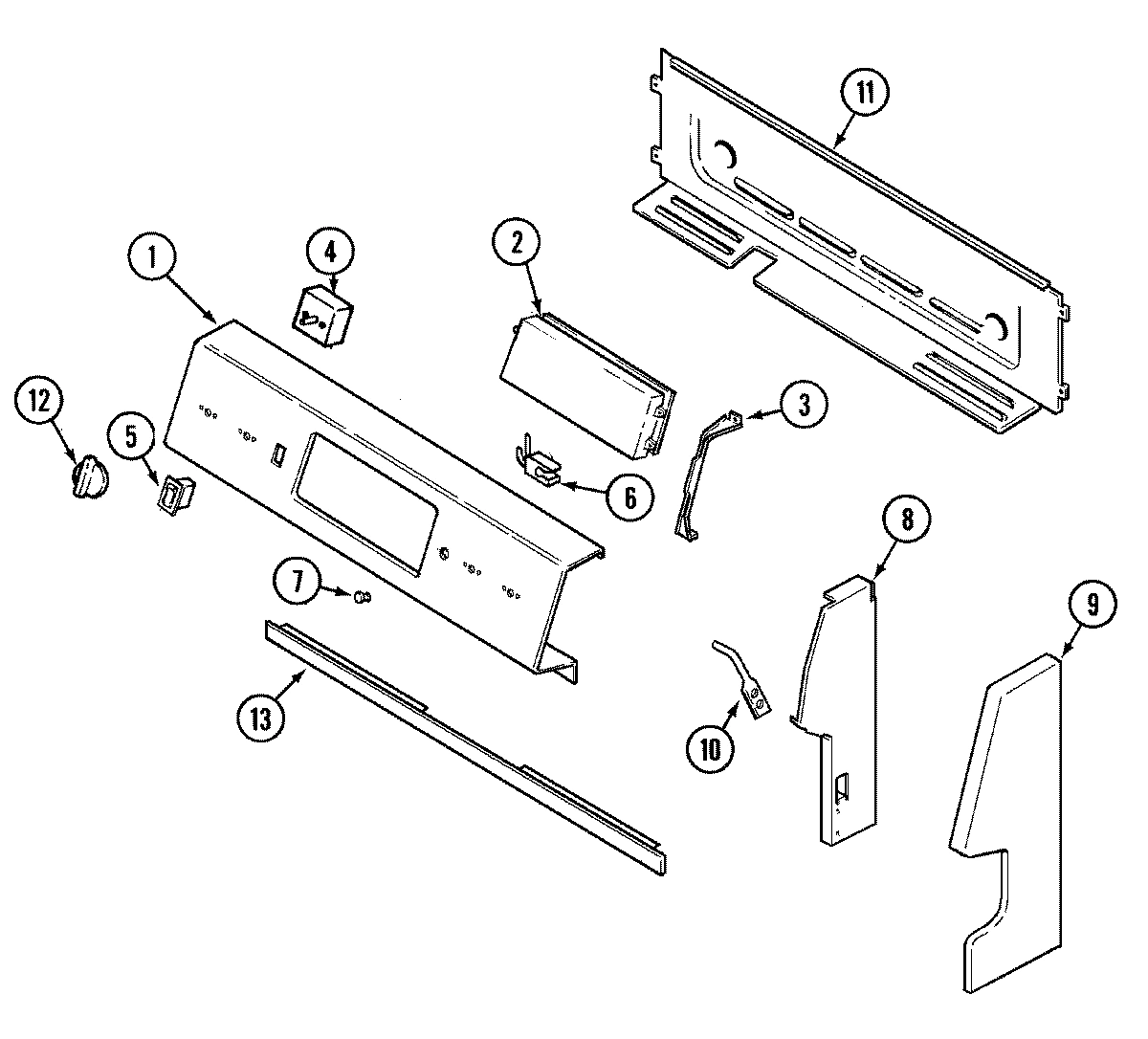

02 - CONTROL PANEL
Common parts from model Whirlpool CE38300AAV ELECTRIC RANGE
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
SHIELD, WIRE WPL 74002334 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
TUBE, VENT WPL 74003469 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 74003710 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
2
CLOCK (WHT) WPL 74003715 Contact Us For Availability
3
BOX, BURNER WPL 74003403 Contact Us For Availability
3
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
3
BRACKET, CLOCK WPL 74003362 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
SCREW WPL 7101P30960 Contact Us For Availability
4
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
4
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
7
COVER, VENT WPL 4005F43245 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003393 Contact Us For Availability
7
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
8
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
8
COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability
9
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
9
GLASS, OUTER (WHT) WPL 74003395 Contact Us For Availability
9
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
9
SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability
9
END CAP, CONTROL PNL (LT-WHT) WPL 74003370 Contact Us For Availability
10
HANDLE, DOOR (WHT) WPL 74003396 Contact Us For Availability
10
HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability
11
STRAP, INSULATION WPL 74003385 Contact Us For Availability
11
SCREW WPL 7101P35260 Contact Us For Availability
11
HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability
12
TRIM, DOOR (BTM-WHT)----NA WPL 74003397 Contact Us For Availability
12
RETAINER, INSULATION (BOTTOM) WPL 74003392 Contact Us For Availability
13
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
13
COVER, BULB WPL 74003389 Contact Us For Availability
13
COVER, BULB WPL 7724P04760 Contact Us For Availability
13
SHIELD, SIGHT WPL 74003374 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 74003398 Contact Us For Availability
14
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
15
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
15
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
15
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
15
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
17
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
17
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
17
PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability
17
HOUSING, BULB WPL 74003388 Contact Us For Availability
18
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
18
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
18
LATCH, DOOR WPL 74003380 Contact Us For Availability
18
SCREW, STAINLESS WPL 7101P03760 Contact Us For Availability
18
NUT WPL 7103P08260 Contact Us For Availability
18
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
19
SCREW WPL 7101P11260 Contact Us For Availability
19
NUT, LOCK WPL 7103P13960 Contact Us For Availability
19
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
20
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
20
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
21
SWITCH, DOOR LATCH WPL 74003383 Contact Us For Availability
21
INSULATOR, SWITCH WPL 74003630 Contact Us For Availability
21
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
22
SCREW WPL 912012 Contact Us For Availability
23
COVER, DOOR LATCH WPL 74003479 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002232 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74003467 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 74003468 Contact Us For Availability
× ![]()
