Model Whirlpool CE3537XRA ELECTRIC RANGE – Common Parts & Diagrams

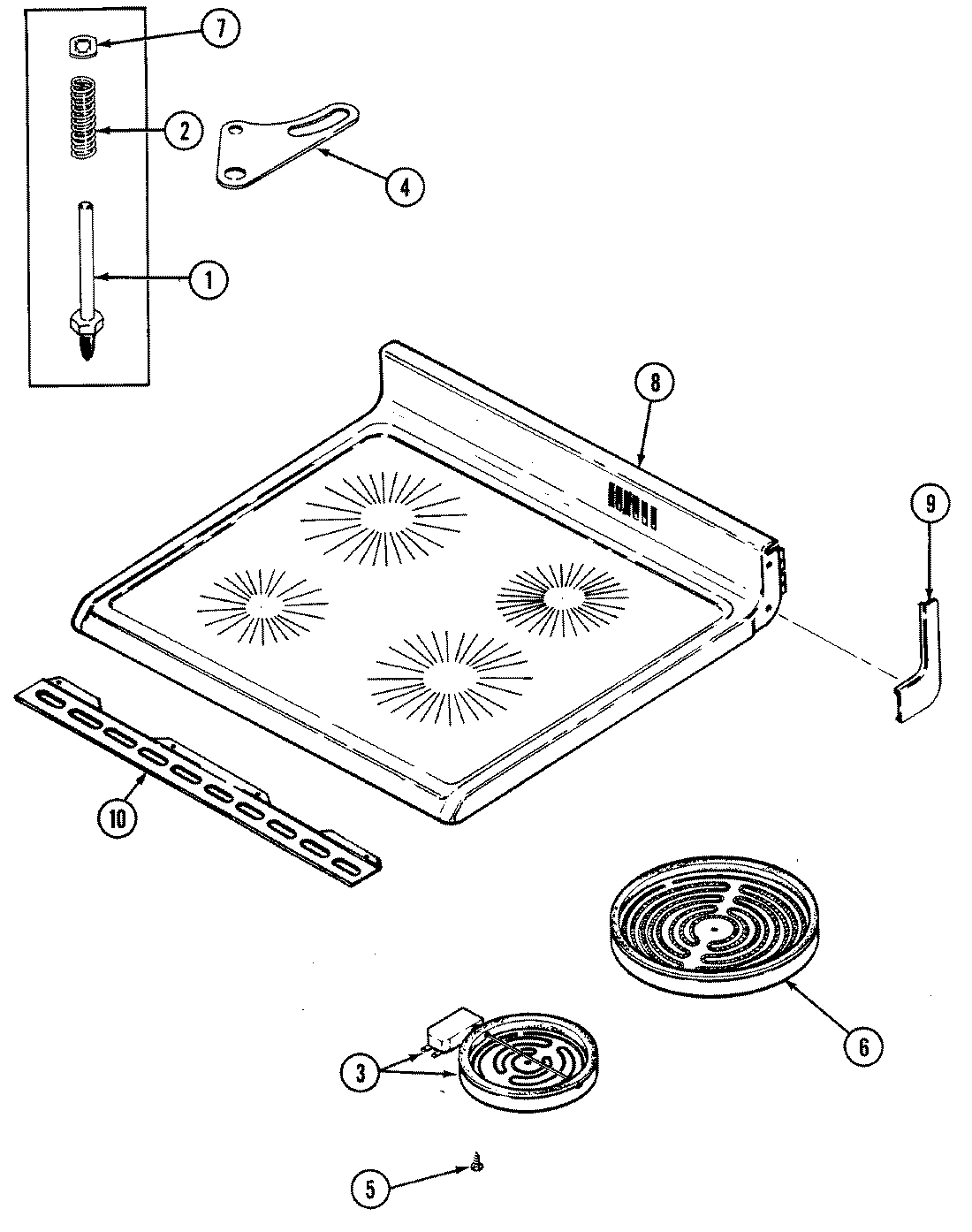

05 - TOP ASSEMBLY
01 - BODY
02 - CONTROL PANEL
04 - OVEN
03 - DOOR/DRAWER
Common parts from model Whirlpool CE3537XRA ELECTRIC RANGE
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
1
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
PANEL, CONTROL WPL 4876S07159 Contact Us For Availability
2
SCREW WPL 7101P33260 Contact Us For Availability
2
GASKET, VENT WPL 7201P05460 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
3
BOX, BURNER WPL 4011F20719 Contact Us For Availability
3
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
3
SCREW WPL 7101P30060 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
4
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
4
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
4
SCREW WPL 7101P29160 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
THERMOSTAT WPL 7404P08160 Contact Us For Availability
5
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
MEDALLION, ELEMENT CHROME WPL Y04000053 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SCREW WPL 7101P30960 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
6
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
6
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
7
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
7
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
7
RACK WPL 7801P04060 Contact Us For Availability
7
SPACER WPL 8010P07560 Contact Us For Availability
8
TOP ASSY (BLK GLASS/WHT FRAME) WPL 5706S01781 Contact Us For Availability
8
TOP ASSY (BLK GLASS/ALM FRAME) WPL 5706S01784 Contact Us For Availability
8
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
8
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
8
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
9
SCREW WPL 7101P29060 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
10
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
10
GLIDE, MAIN TOP WPL 8016P01460 Contact Us For Availability
10
TAPE, 1`` ROLL WPL 8270P06960 Contact Us For Availability
10
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
10
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
11
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
11
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
11
BULB, OVEN WPL 7407P02660 Contact Us For Availability
11
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
12
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
12
BUTTON, SET (BLK) WPL 7711P46860 Contact Us For Availability
12
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
12
END CAP (RT) WPL 7744P07560 Contact Us For Availability
12
END CAP (LT) WPL 7744P07660 Contact Us For Availability
13
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
13
BUTTON, SLIDE (BLK) WPL 7711P46960 Contact Us For Availability
13
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
14
NUT, SPEED WPL 7103P12960 Contact Us For Availability
14
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
15
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
15
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
15
LINING, OVEN DOOR WPL 2402W20316 Contact Us For Availability
16
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
16
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
16
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
17
SCREW WPL 7101P33460 Contact Us For Availability
17
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
18
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
18
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
18
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
18
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
18
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
19
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
19
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
19
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
20
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
20
SCREW WPL 7101P29360 Contact Us For Availability
20
CLOCK WPL 7602P10460 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
21
COVER LOCK SLOT WPL 8114P33660 Contact Us For Availability
21
SCREW WPL 7101P11560 Contact Us For Availability
21
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
22
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
22
BRACKET CLOCK SUPPORT WPL 3801F26645 Contact Us For Availability
22
NUT, LOCK WPL 7103P08560 Contact Us For Availability
23
HINGE, DOOR WPL 7106P04860 Contact Us For Availability
23
SCREW WPL 7118P01960 Contact Us For Availability
24
HARNESS, CONTROL PANEL WPL 5170D11860 Contact Us For Availability
24
HARNESS, COOKTOP WPL 5175D07760 Contact Us For Availability
24
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
25
INSULATION, OVEN BACK WPL 4804F03160 Contact Us For Availability
25
INSULATION, OVEN WRAPPER WPL 4804F03260 Contact Us For Availability
26
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P09760 Contact Us For Availability
27
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 5175D05260 Contact Us For Availability
NI
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
NI
MANUAL, USE & CARE-INSERT WPL 8112P10560 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P00260 Contact Us For Availability
× ![]()
