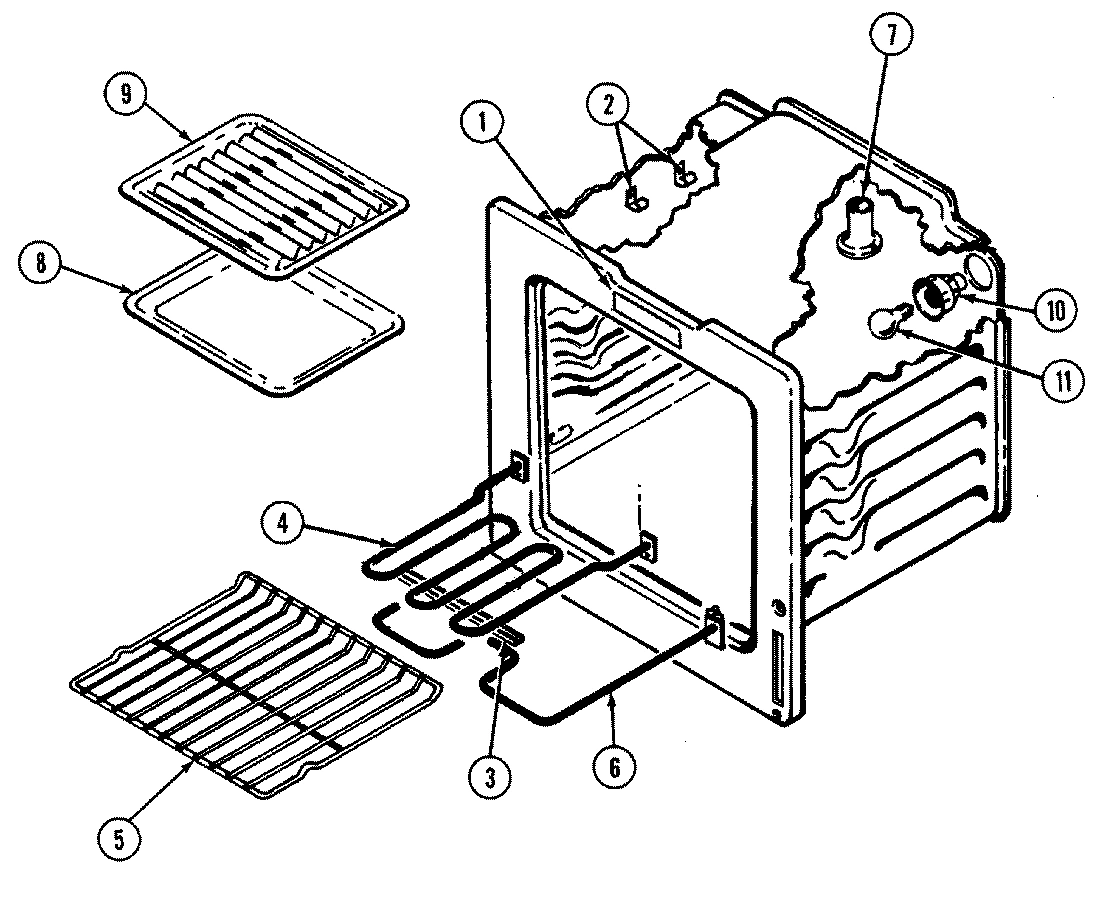

05 - OVEN (CE3531WR, CE3531XR, CE3531WRV)

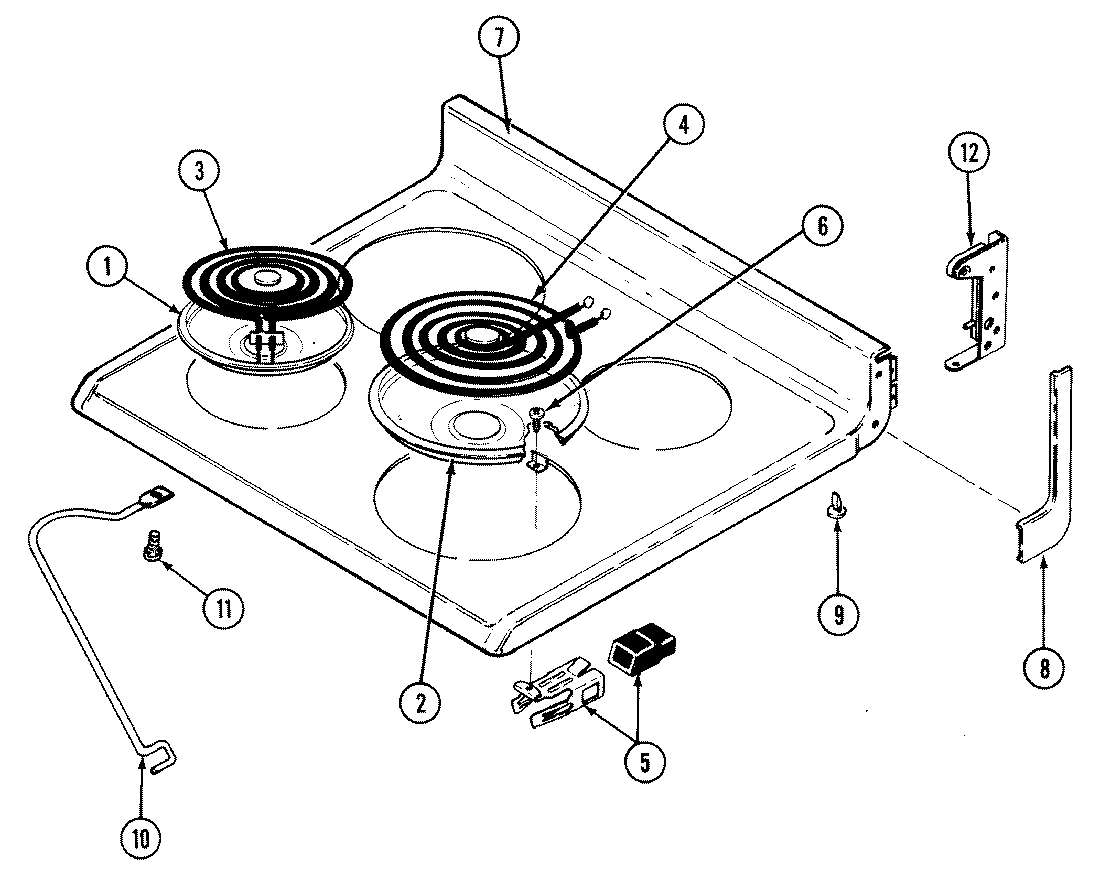

06 - TOP ASSY.(CE3531WR, CE3531XR, CE3531WRV)
02 - BODY (CE3552XR)

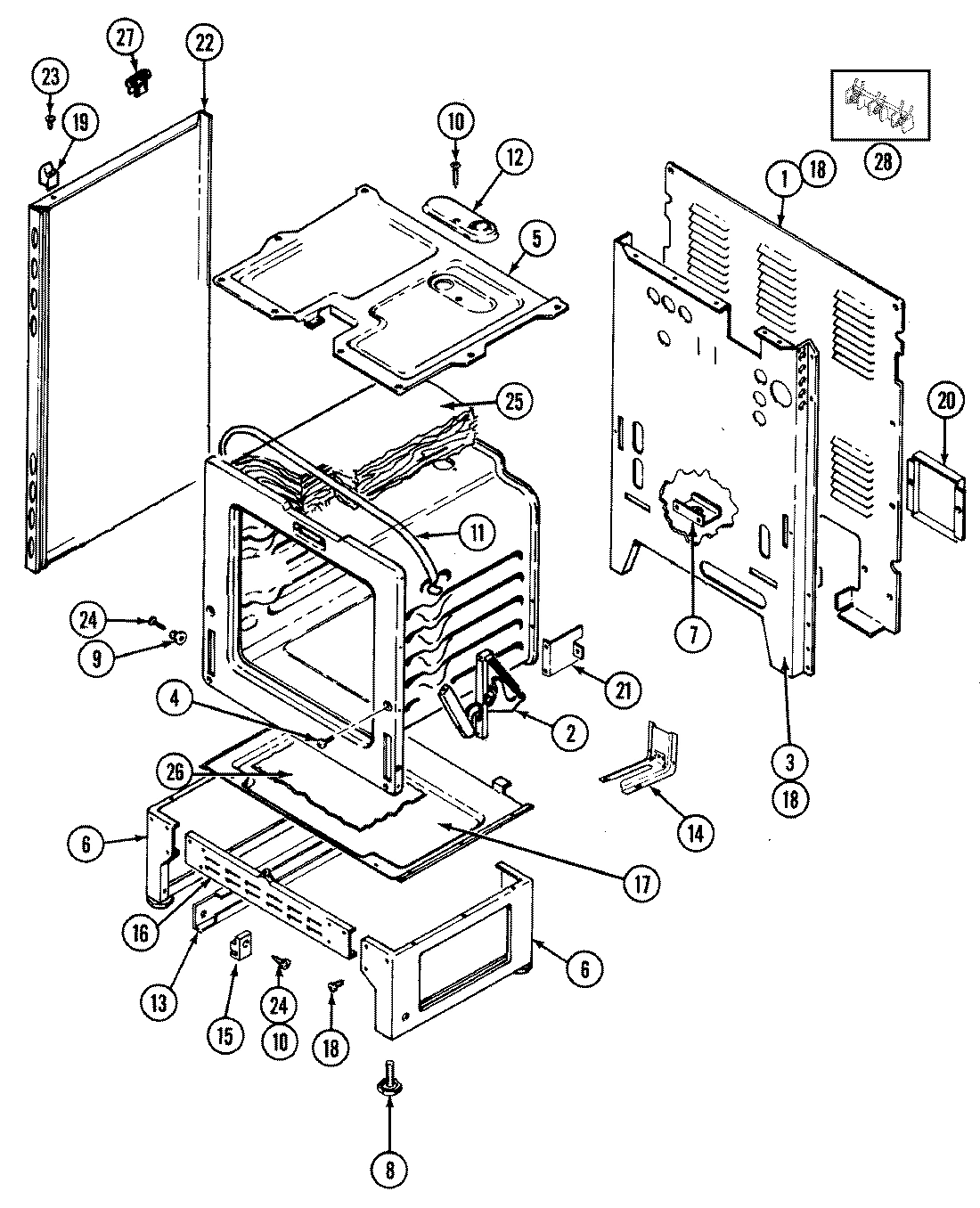

01 - BODY (CE3531WR, CE3531XR, CE3531WRV)

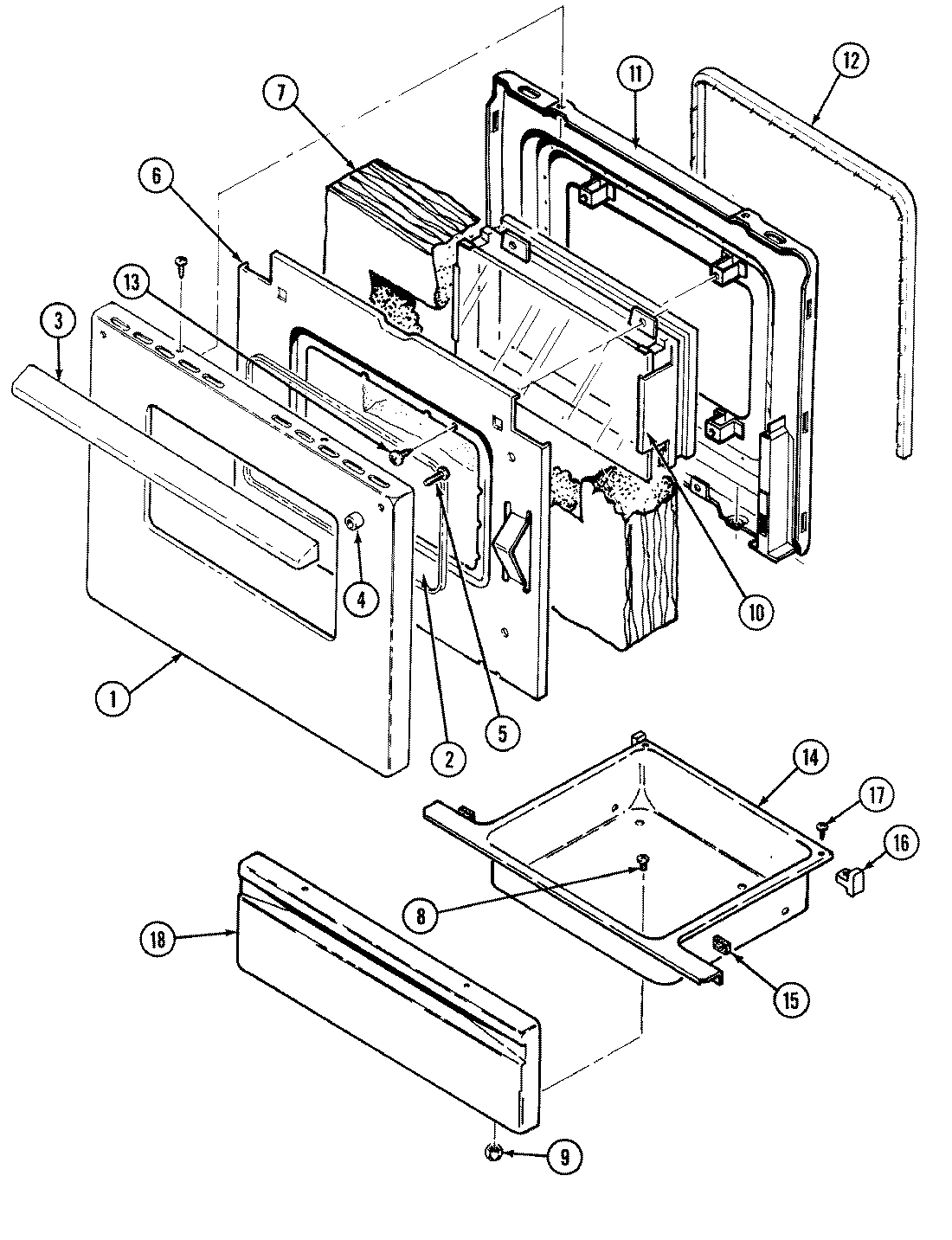

04 - DOOR/DRAWER (CE3531WRx)
Common parts from model Whirlpool CE3531WRV ELECTRIC RANGE
1
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
1
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
1
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
1
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F09771 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
2
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
2
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
2
SEAL, DOOR WPL 7212P04260 Contact Us For Availability
3
SCREW (WHT) WPL 7101P33360 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P55760 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
3
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
3
BACK, MAIN WPL 4002F18480 Contact Us For Availability
3
HANDLE, DOOR (WHT) WPL 2411F00371 Contact Us For Availability
4
SCREW WPL 7101P29360 Contact Us For Availability
4
CLOCK WPL 7602P10460 Contact Us For Availability
4
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
4
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
4
SPACER, HANDLE (WHT) WPL 8010P08960 Contact Us For Availability
5
BRACKET CLOCK SUPPORT WPL 3801F26645 Contact Us For Availability
5
WASHER WPL 7109P02060 Contact Us For Availability
5
SCREW WPL 7118P01960 Contact Us For Availability
5
RACK, OVEN WPL 7801P03660 Contact Us For Availability
5
BOX, BURNER WPL 4011F20819 Contact Us For Availability
5
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
6
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
6
BAFFLE, DOOR WPL 3601F21945 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
TUBE, VENT WPL 8026P01960 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W07881 Contact Us For Availability
7
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
8
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
8
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
9
END CAP (LT-WHT) WPL 7726P08560 Contact Us For Availability
9
END CAP (RT-WHT) WPL 7726P08660 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
9
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
10
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
10
SCREW WPL 7101P10360 Contact Us For Availability
10
WINDOW ASY. WPL 7907P01760 Contact Us For Availability
11
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
11
SCREW WPL 7101P30960 Contact Us For Availability
11
BULB, OVEN WPL 7407P02660 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
11
LINING ASSY WPL 2402W19319 Contact Us For Availability
12
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
12
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
12
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
12
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
12
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
12
COVER VENT WPL 4005F35045 Contact Us For Availability
12
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
13
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
13
SCREW WPL 7101P29060 Contact Us For Availability
13
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
14
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
14
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
15
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
15
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
15
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
17
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
17
SCREW WPL 7101P29160 Contact Us For Availability
18
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
18
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
19
BUTTON, SLIDE (WHT)----NA WPL 7711P47260 Contact Us For Availability
19
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
19
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
20
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
21
SWITCH, ROCKER (WHT) WPL 7403P31460 Contact Us For Availability
21
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
22
BUTTON, SET (WHT) WPL 7711P47360 Contact Us For Availability
22
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
22
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
23
SCREW WPL 7118P01360 Contact Us For Availability
24
SCREW WPL 7101P30060 Contact Us For Availability
25
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
25
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
26
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
27
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
28
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
NI
WIRES, LOOSE WPL 5125A37160 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D11860 Contact Us For Availability
NI
TRIM, INLAY WPL 7703P55860 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
NI
SCREW WPL 7101P11560 Contact Us For Availability
NI
NUT, LOCK WPL 7103P08560 Contact Us For Availability
× ![]()
