Model Whirlpool CE3520SPA ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL/TOP ASSEMBLY

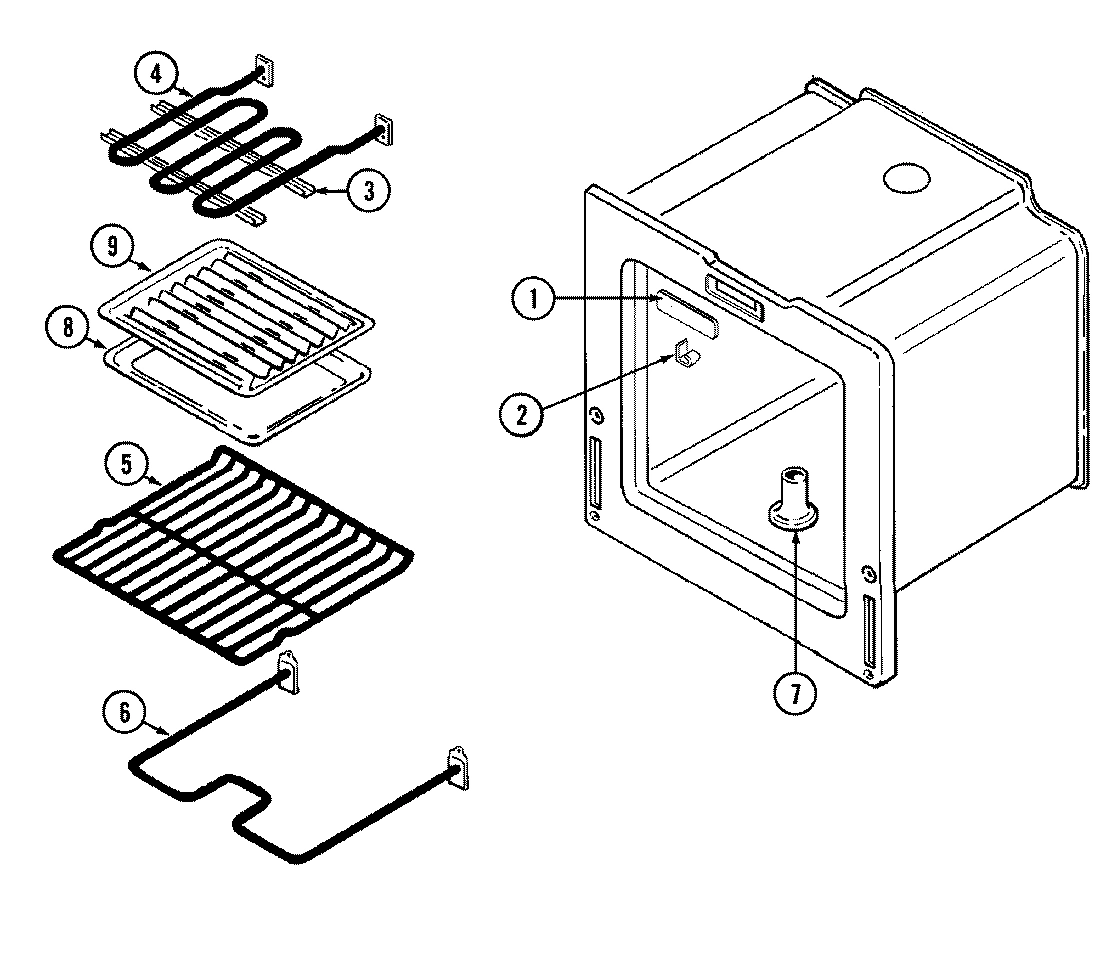

04 - OVEN

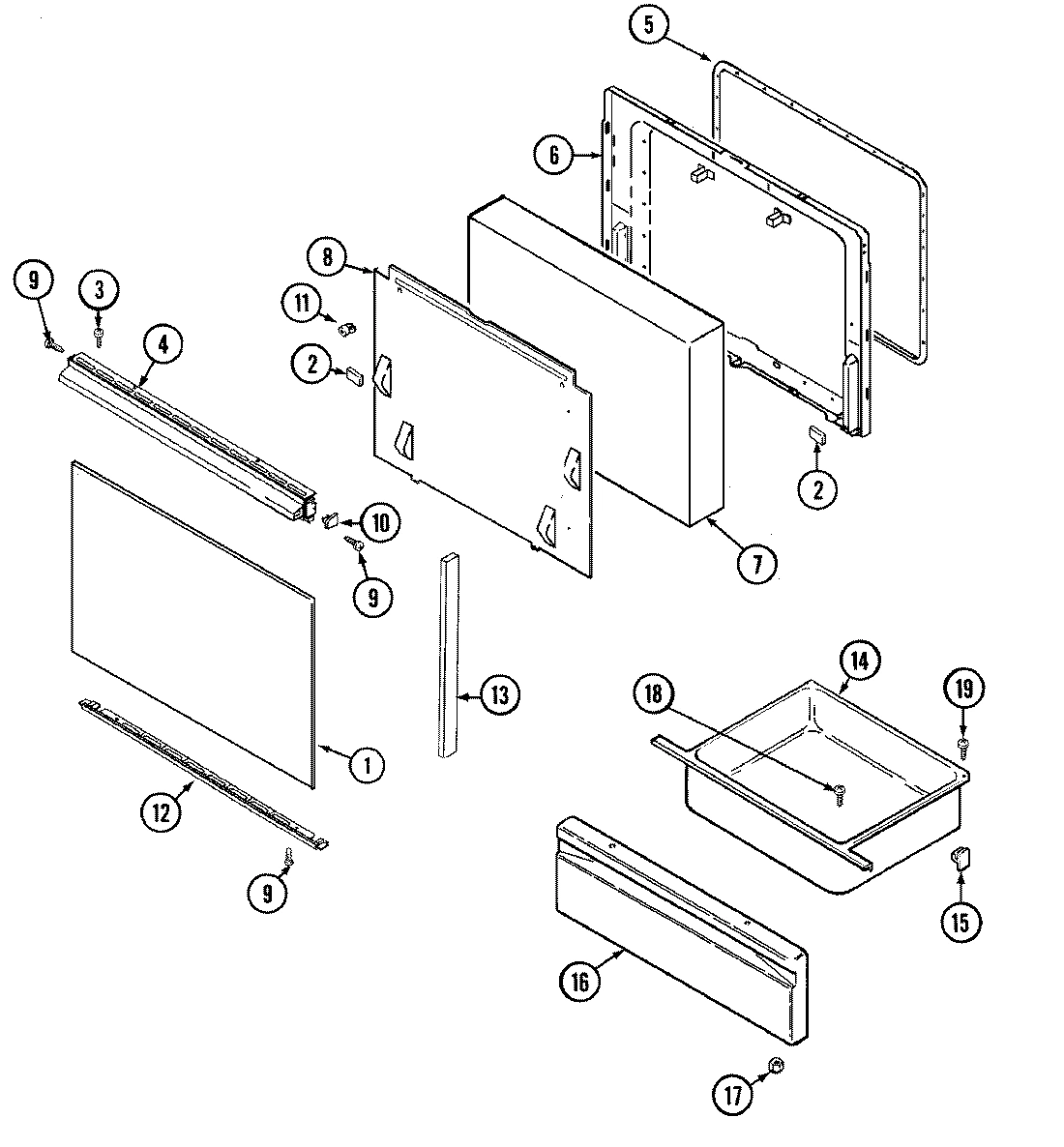

03 - DOOR/DRAWER (CE3520SPx)

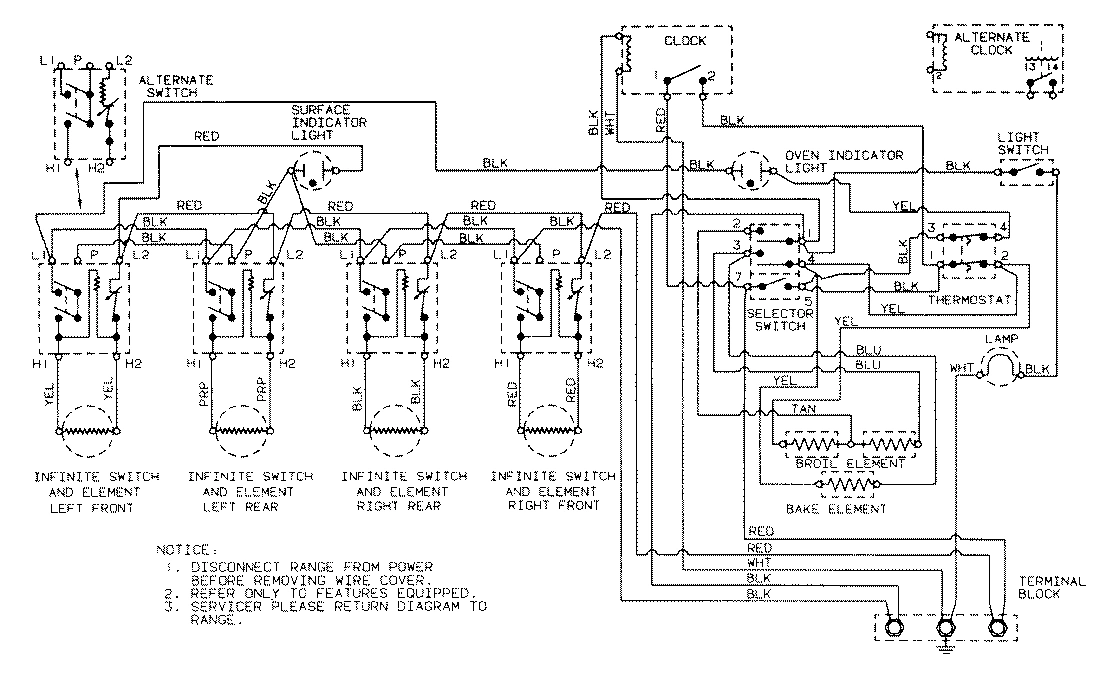

05 - WIRING INFORMATION

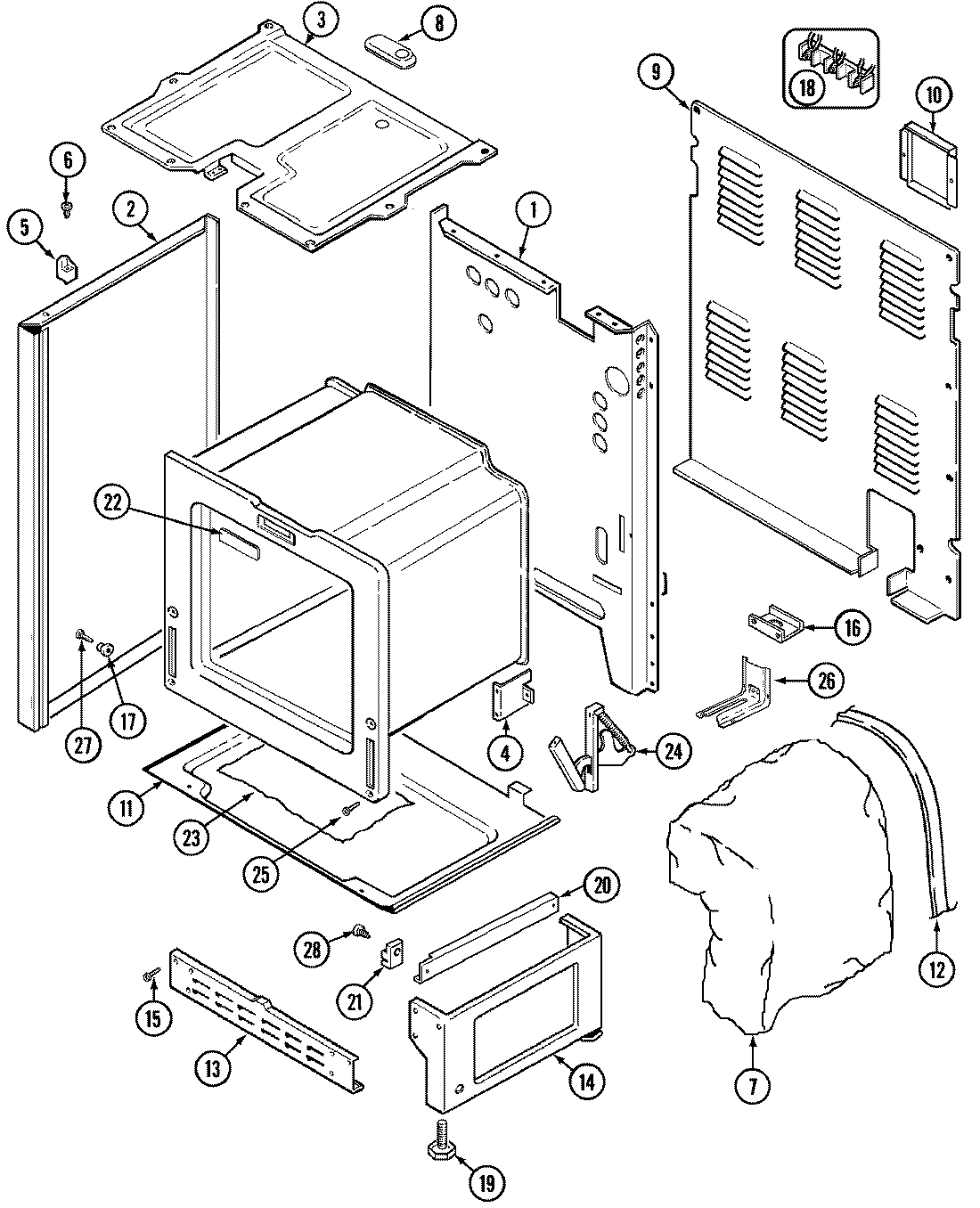

01 - BODY
Common parts from model Whirlpool CE3520SPA ELECTRIC RANGE
1
SCREW WPL 7101P30960 Contact Us For Availability
1
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
1
KNOB WPL 7735P03960 Contact Us For Availability
1
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
1
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
1
BACK, MAIN WPL 4002F17780 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
3
PANEL, CONTROL WPL 2601F40109 Contact Us For Availability
3
INLAY, TRIM (CROSLEY) WPL 7703P43760 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
3
SCREW WPL 7101P33460 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
4
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
4
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
SUPPORT, CONTROL PNL (RT) WPL 3807F43545 Contact Us For Availability
5
SUPPORT, CONTROL PNL (LT) WPL 3807F43645 Contact Us For Availability
5
RACK, OVEN WPL 7801P03660 Contact Us For Availability
5
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
LINING, DOOR WPL 2402W20119 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
TUBE, VENT WPL 8026P01960 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
7
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
7
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
8
THERMOSTAT WPL 7404P08160 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21845 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
8
SCREW WPL 7101P10360 Contact Us For Availability
9
SCREW WPL 7101P03260 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P06960 Contact Us For Availability
9
TRIM, END CAP WPL 7726P07060 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
10
HOUSING WPL 4001F08551 Contact Us For Availability
10
END CAP (RT) WPL 7744P07560 Contact Us For Availability
10
END CAP (LT) WPL 7744P07660 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
11
SPACER WPL 8010P07560 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
13
PANEL, BACKSPLASH (ALM) WPL 2612F03684 Contact Us For Availability
13
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020F00280 Contact Us For Availability
15
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
15
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
15
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
16
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
17
NUT, LOCK WPL 7103P08560 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
18
SCREW WPL 7101P11560 Contact Us For Availability
18
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
TOP, MAIN (ALM) WPL 2002W07384 Contact Us For Availability
20
TOP, MAIN (ALM) WPL 2002W07484 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
21
BRACE WPL 3802F08580 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
22
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
HINGE, DOOR WPL 7106P03260 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
26
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
27
SCREW WPL 7101P30060 Contact Us For Availability
28
SCREW WPL 7101P29060 Contact Us For Availability
NI
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
NI
HARNESS, LOOSE WIRE WPL 5125A31660 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D11960 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001468 Contact Us For Availability
× ![]()
