Model Whirlpool CDG20P6W GAS DRYER – Common Parts & Diagrams
06 - EXTERIOR (ORIG. REV. A-D)
08 - GAS CARRYING (REV. E-F)

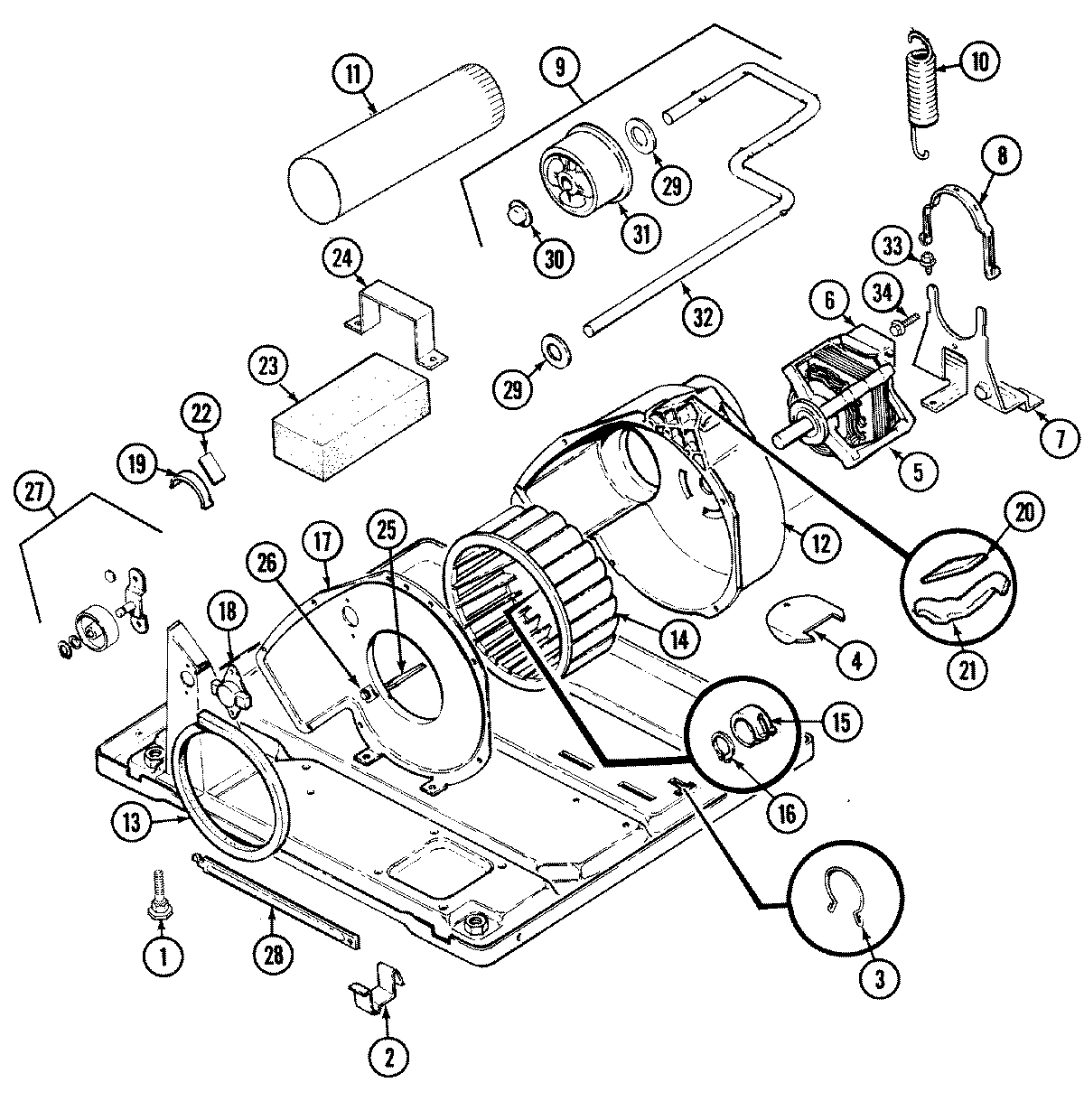

09 - MOTOR & DRIVE (REV. E-F)

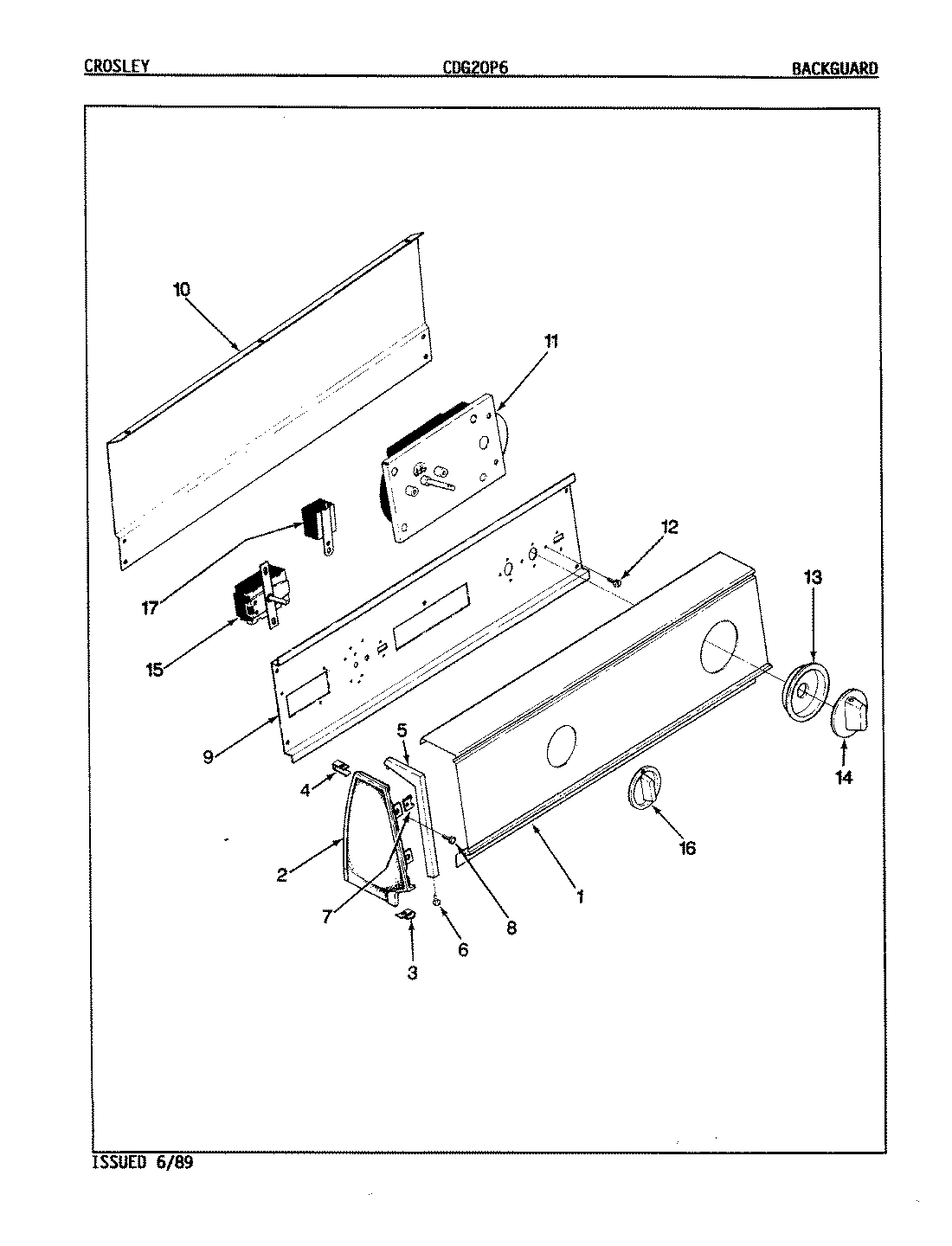

02 - CONTROL PANEL (ORIG. REV. A-D)

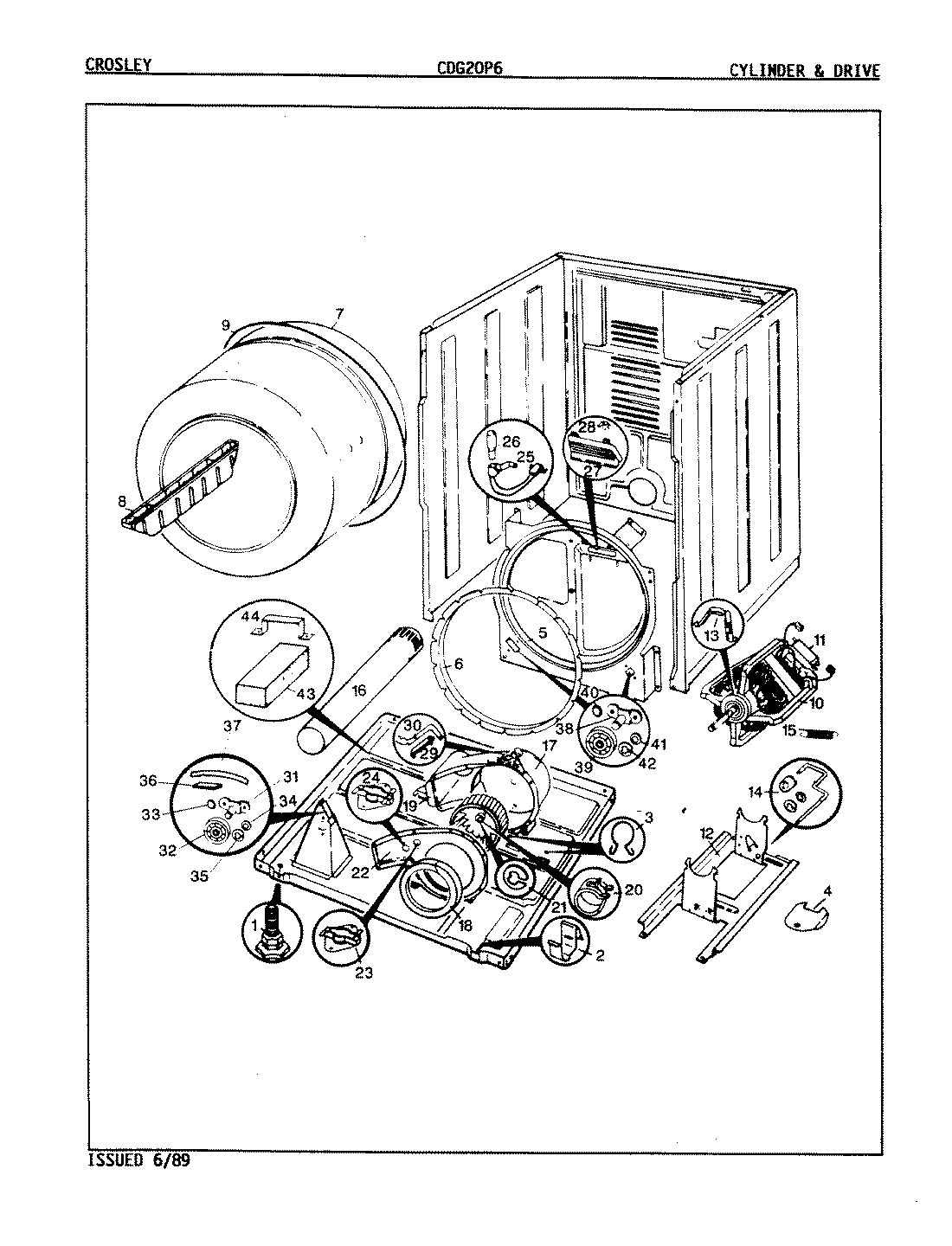

04 - CYLINDER & DRIVE (ORIG.-REV. A-D)

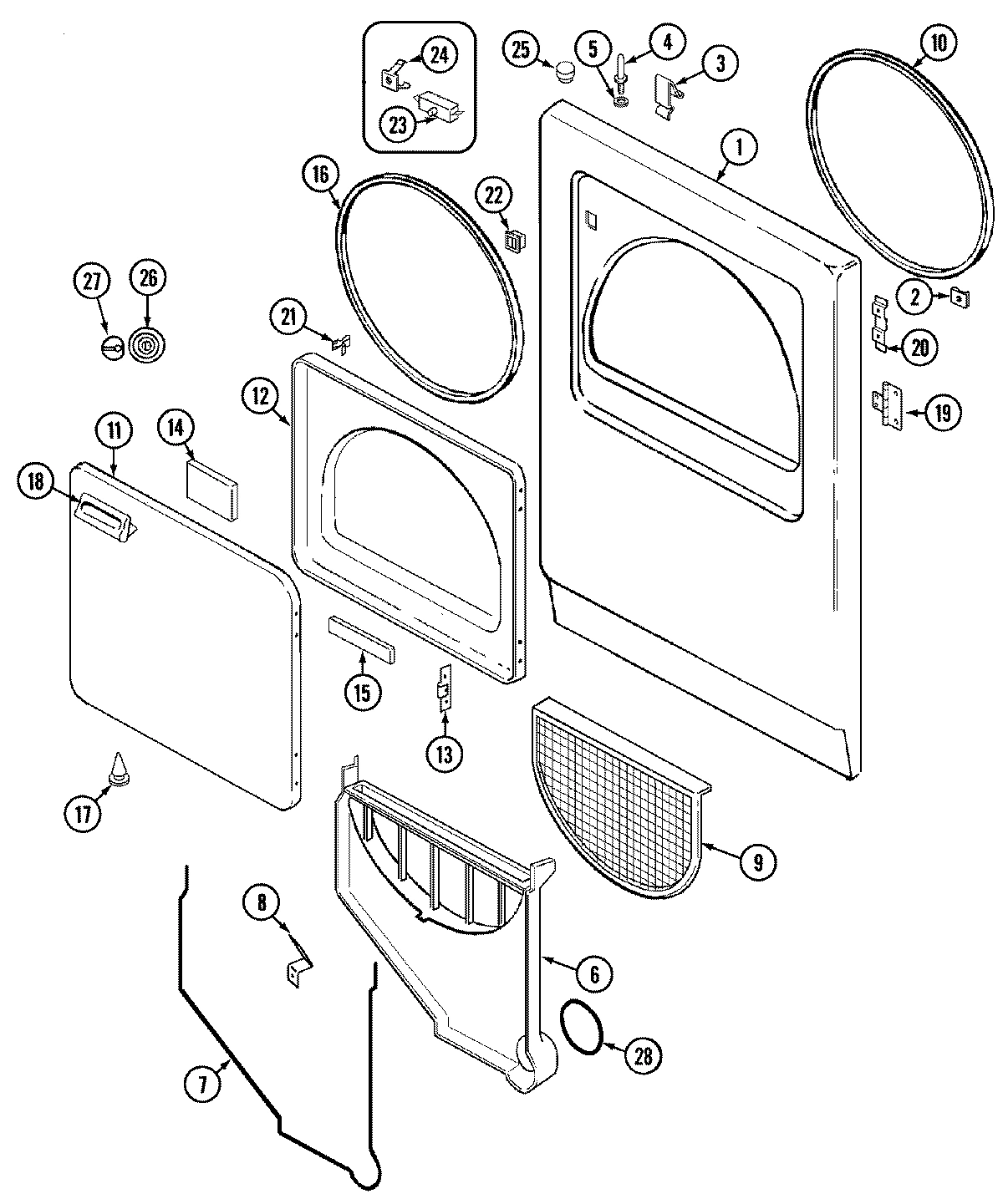

05 - DOOR (REV. E-F)

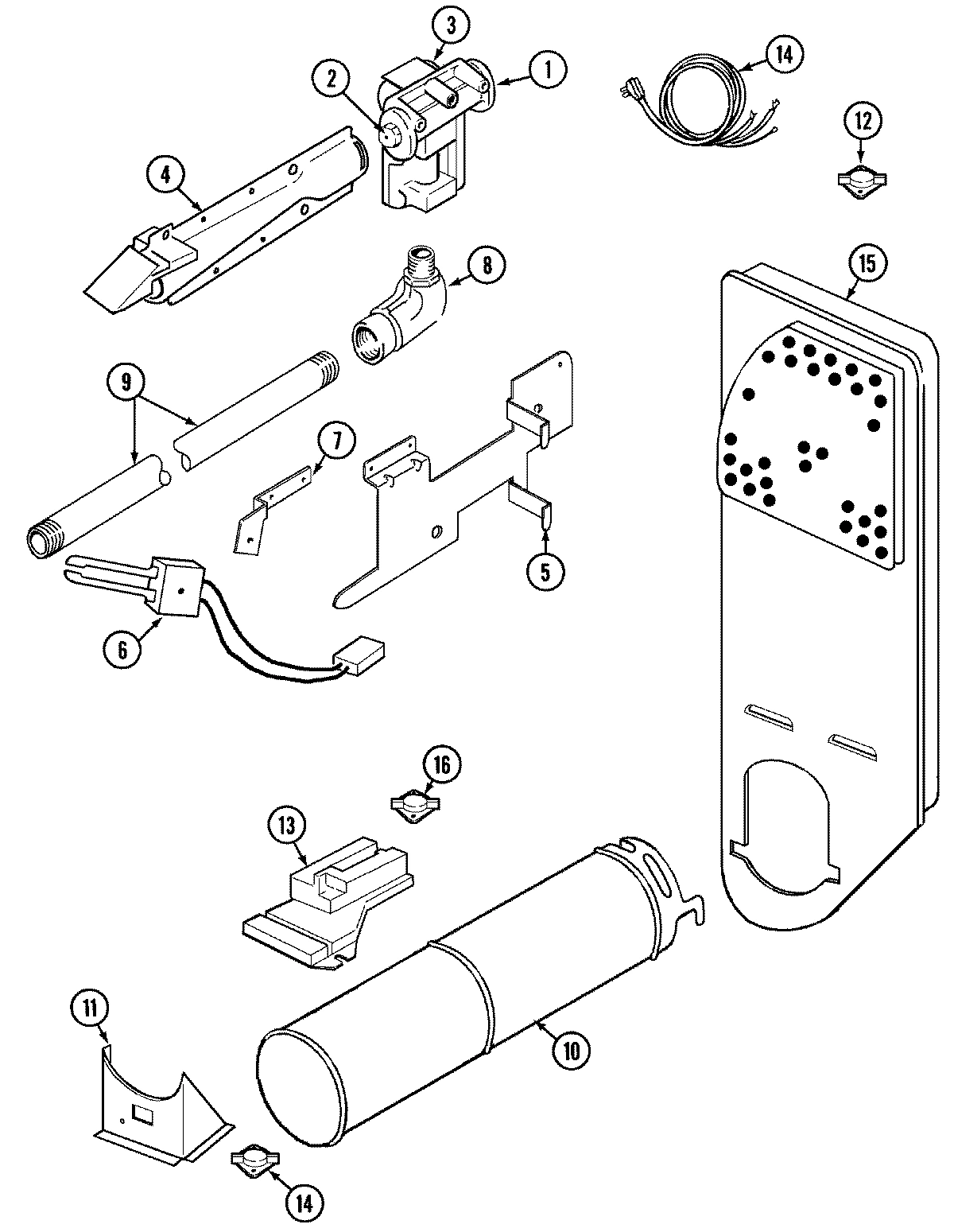

07 - GAS CARRYING (ORIG. REV. A-D)

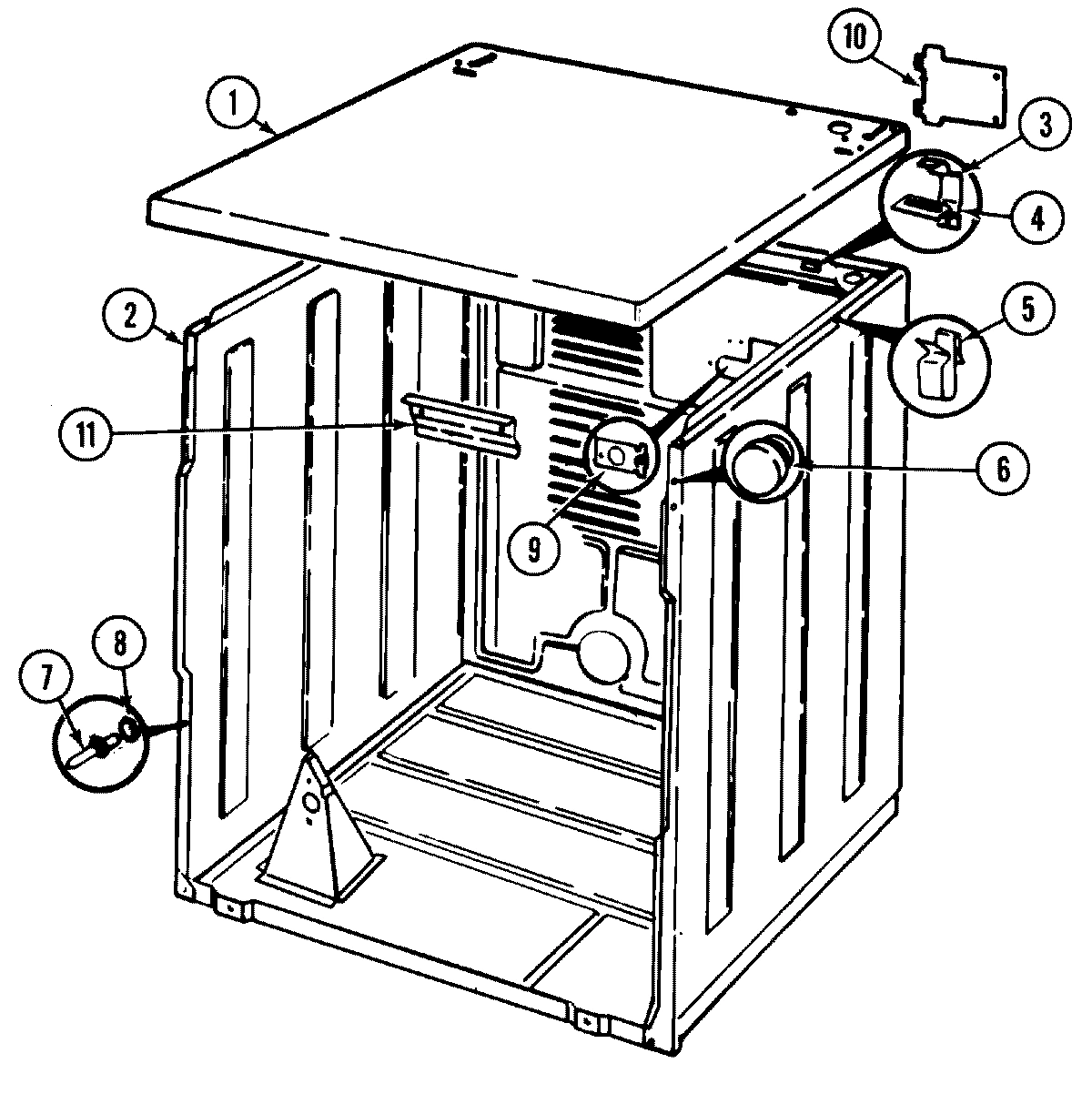

01 - CABINET (REV. E-F)

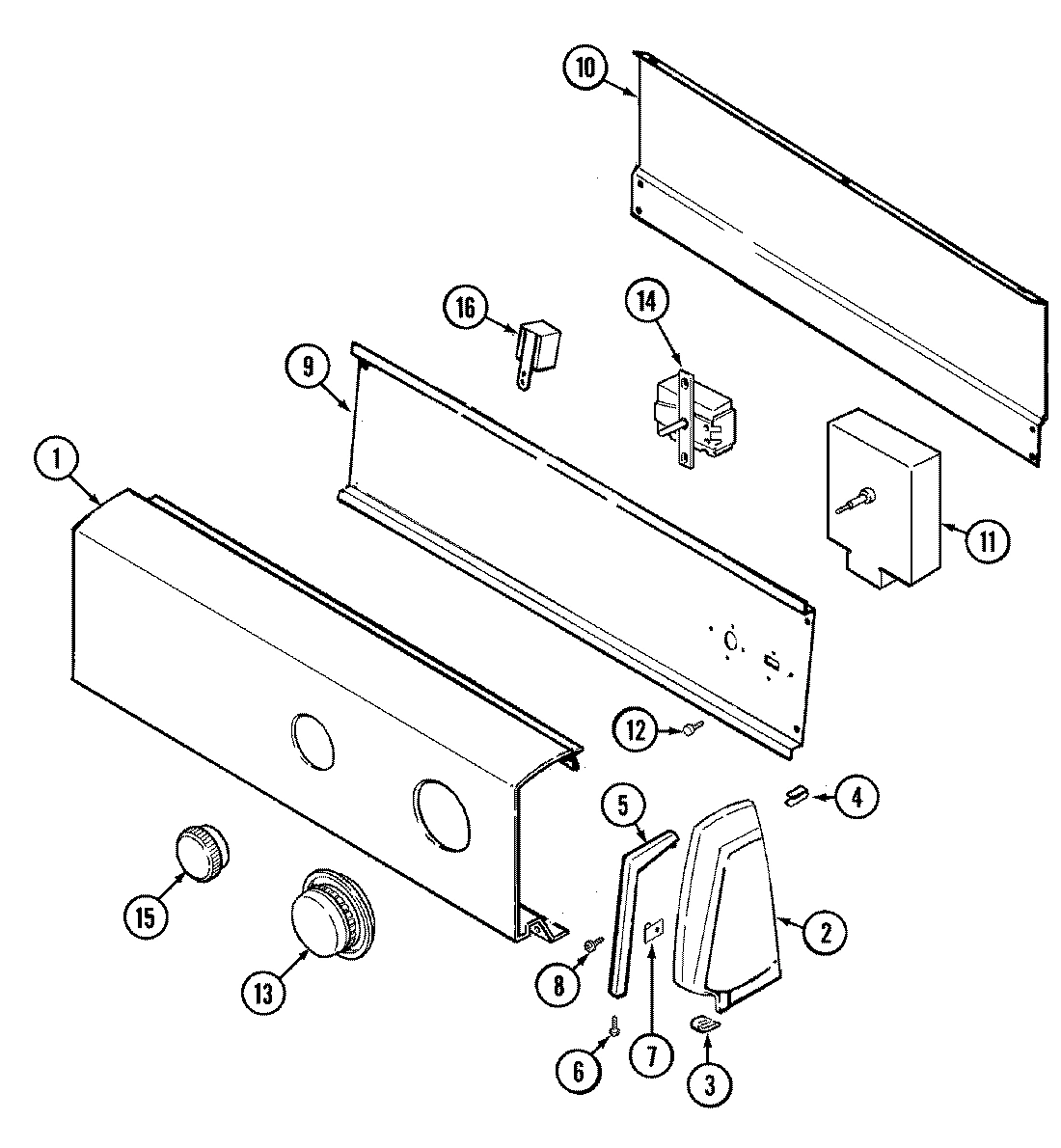

03 - CONTROL PANEL (REV. E-F)

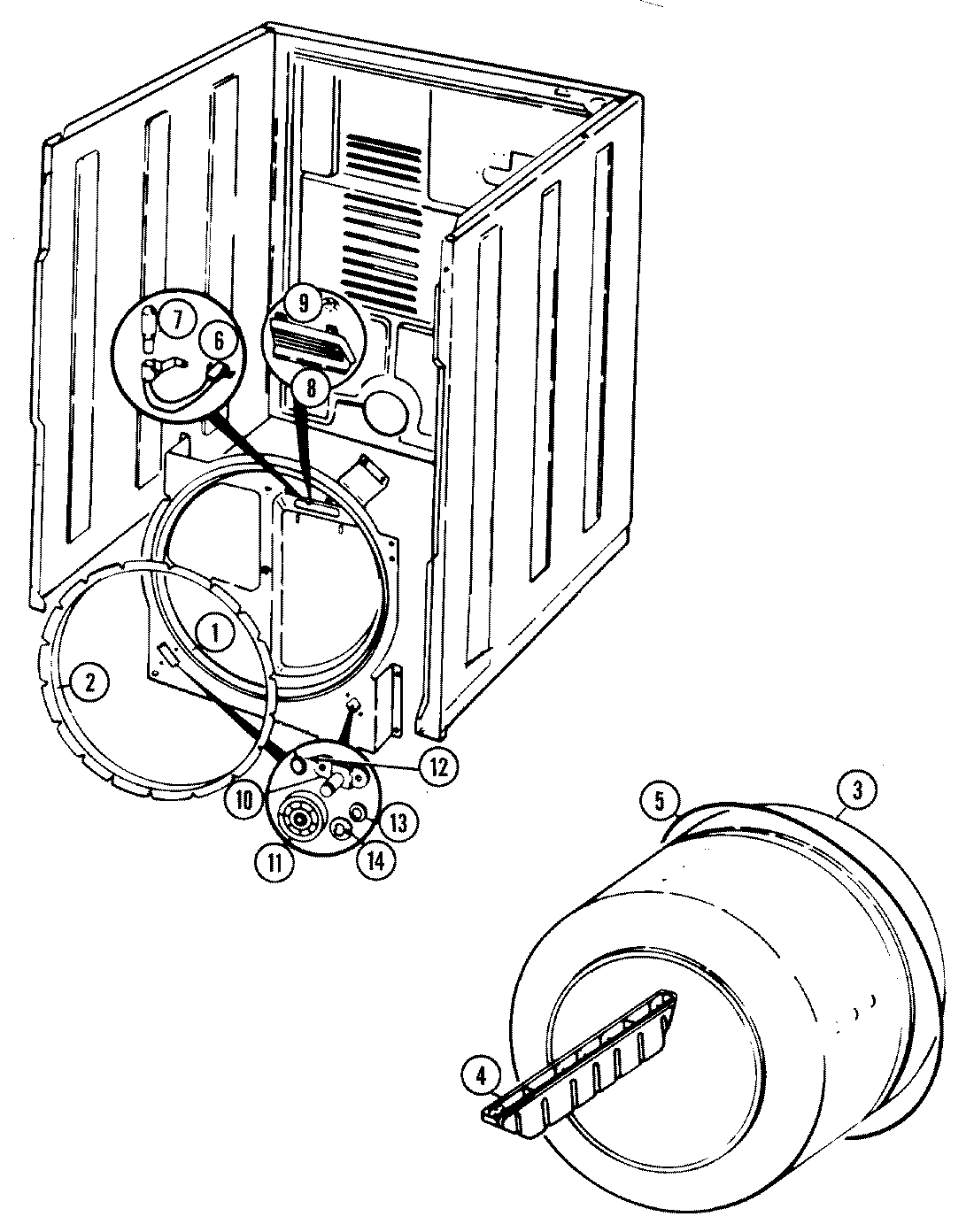

10 - TUMBLER (REV. E-F)
Common parts from model Whirlpool CDG20P6W GAS DRYER
1
CABINET TOP WPL 530314 Contact Us For Availability
1
CABINET TOP (DRYER) WPL 531711 Contact Us For Availability
1
PANEL, FRONT (WHT)GAS WPL 530727 Contact Us For Availability
1
GAS CONTROL VALVE WPL 530194 Contact Us For Availability
1
LEG, LEVELING WPL 635834 Contact Us For Availability
1
CONTROL PANEL WPL 531287 Contact Us For Availability
1
LEG, LEVELING WPL 635519 Contact Us For Availability
1
SCREW WPL 257733 Contact Us For Availability
1
DRYER BULKHEAD KIT WPL LA1054 Contact Us For Availability
2
CABINET ASM WPL 530160 Contact Us For Availability
2
CLIP, U-TYPE WPL 257817 Contact Us For Availability
2
SCREW, FRONT PANEL TO CABINET WPL 257820 Contact Us For Availability
2
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
2
BURNER ORIFICE WPL 633570 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
SCREW WPL 257793 Contact Us For Availability
2
CAP, END (RT) WPL 352487 Contact Us For Availability
2
CAP, END (LT) WPL 352488 Contact Us For Availability
2
RH ENDCAP WPL 530264 Contact Us For Availability
2
LH ENDCAP WPL 530265 Contact Us For Availability
2
SCREW WPL 257697 Contact Us For Availability
2
CABINET & BASE ASSY. (WHT) WPL 531644 Contact Us For Availability
2
SCREW WPL 257649 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
3
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
3
DUAL COIL WPL 636615 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
SCREW, END CAP TO TOP WPL 257691 Contact Us For Availability
3
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
4
PAD, TOP HINGE WPL 330930 Contact Us For Availability
4
BURNER ASM WPL 636682 Contact Us For Availability
4
SHIELD, WIRING WPL 530153 Contact Us For Availability
4
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BAFFLE, WHITE WPL 531249 Contact Us For Availability
5
CLIP, WIRING WPL 253034 Contact Us For Availability
5
MTG BRACKET WPL 530140 Contact Us For Availability
5
MOTOR & PULLEY ASSY (115V,60HZ WPL 532275 Contact Us For Availability
5
TRIM, END CAP (RT) WPL 530277 Contact Us For Availability
5
TRIM, END CAP (LT) WPL 530278 Contact Us For Availability
5
BULKHEAD WPL Y02100001 Contact Us For Availability
5
BELT, CYLINDER WPL 531589 Contact Us For Availability
6
BUMPER, CABINET WPL 332653 Contact Us For Availability
6
COLLECTOR DUCT WPL 531299 Contact Us For Availability
6
IGNITER WPL 530689 Contact Us For Availability
6
SWITCH, MOTOR WPL 530693 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
7
PIN, LOCATOR WPL 636148 Contact Us For Availability
7
SCREW WPL 257744 Contact Us For Availability
7
BRACKET WPL 530686 Contact Us For Availability
7
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
7
TUMBLER ASSY. WPL 530178 Contact Us For Availability
7
SEAL WPL 530204 Contact Us For Availability
8
PLUG, GAS ACCESS (ALM) WPL 530161 Contact Us For Availability
8
CHROME PLUG WPL 530592 Contact Us For Availability
8
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
8
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
8
CLIP WPL 530123 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
8
SHUTOFF VALVE WPL 530101 Contact Us For Availability
8
BAFFLE (WHT) WPL Y02100002 Contact Us For Availability
9
BUTTON, GAS ACCESS (ALM) WPL 530162 Contact Us For Availability
9
CHROME BUTTON WPL 530593 Contact Us For Availability
9
FILTER, LINT WPL 530918 Contact Us For Availability
9
SUPPORT, POWER CORD WPL 530135 Contact Us For Availability
9
GAS PIPE WPL 530173 Contact Us For Availability
9
CYLINDER BELT WPL 531080 Contact Us For Availability
9
MOTOR MTG. KIT (DRYER) WPL LA1004 Contact Us For Availability
9
IDLER ASSY WPL 531650 Contact Us For Availability
9
IDLER ASSY. WPL 532287 Contact Us For Availability
9
CONTROL SHIELD WPL 530365 Contact Us For Availability
9
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
10
SCREW WPL 257857 Contact Us For Availability
10
SCREW, SEMS WPL 253457 Contact Us For Availability
10
WIRING CLIP WPL 253032 Contact Us For Availability
10
HOUSING, HEATER WPL 531884 Contact Us For Availability
10
MOTOR ASM WPL 531041 Contact Us For Availability
10
IDLER SPRING WPL 531648 Contact Us For Availability
10
SPRING, IDLER WPL 532209 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
10
REAR SHIELD WPL 530268 Contact Us For Availability
10
SCREW WPL 257101 Contact Us For Availability
10
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
10
HEATER HOUSING WPL 530138 Contact Us For Availability
10
COVER, SUPPLY CORD WPL 530136 Contact Us For Availability
11
PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability
11
SHIELD, HEAT WPL 530133 Contact Us For Availability
11
HEATER SUPPORT WPL 530139 Contact Us For Availability
11
SCREW WPL 257741 Contact Us For Availability
11
TIMER MOTOR WPL 530635 Contact Us For Availability
11
TIMER WPL 531302 Contact Us For Availability
11
TIMER WPL 531548 Contact Us For Availability
11
MOTOR WPL 530936 Contact Us For Availability
11
CYL ROLLER WPL 530642 Contact Us For Availability
11
SOCKET WPL 531804 Contact Us For Availability
12
PANEL, INNER DOOR (WHT) WPL 530912 Contact Us For Availability
12
SCREW WPL 250168 Contact Us For Availability
12
HI LMT TSTAT WPL 530143 Contact Us For Availability
12
SCREW WPL 257811 Contact Us For Availability
12
MOTOR BRACKET WPL 530852 Contact Us For Availability
12
HOUSING, BLOWER WPL 531801 Contact Us For Availability
12
SCREW WPL 257435 Contact Us For Availability
12
SCREW WPL 250205 Contact Us For Availability
12
SPACER WPL 257813 Contact Us For Availability
13
CLIP, HINGE WPL 530119 Contact Us For Availability
13
SCREW WPL 252134 Contact Us For Availability
13
SENSOR WPL 635013 Contact Us For Availability
13
CLAMP, MOTOR WPL 530214 Contact Us For Availability
13
SCREW WPL 257674 Contact Us For Availability
13
WASHER WPL 257814 Contact Us For Availability
13
KNOB & SKIRT ASSY. WPL 531533 Contact Us For Availability
14
COLLECTOR DUCT WPL 530917 Contact Us For Availability
14
PAD, DOOR WPL 530251 Contact Us For Availability
14
CORD, POWER WPL 636259 Contact Us For Availability
14
ROLLER WPL LA1008 Contact Us For Availability
14
KNOB WPL 530653 Contact Us For Availability
14
SWITCH, TEMPERATURE WPL 530344 Contact Us For Availability
14
RING, RETAINING WPL 257854 Contact Us For Availability
15
PAD, DOOR WPL 530252 Contact Us For Availability
15
INLET AIR DUCT WPL 530169 Contact Us For Availability
15
SELECTOR KNOB WPL 352256 Contact Us For Availability
15
IDLER SPRING WPL 530207 Contact Us For Availability
16
SCREW WPL 253092 Contact Us For Availability
16
SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability
16
DOOR SEAL WPL 530112 Contact Us For Availability
16
THRMST-FIX WPL 531096 Contact Us For Availability
16
CONVERSION KIT (NAT-LP) WPL 636766 Contact Us For Availability
16
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
16
DUCT, EXHAUST WPL 530134 Contact Us For Availability
16
SELECTOR KNOB WPL 350145 Contact Us For Availability
16
BUZZER ASSY. WPL 531639 Contact Us For Availability
17
PLUG BUTTON, DOOR WPL 253534 Contact Us For Availability
17
BLOWER HOUSING WPL 530774 Contact Us For Availability
17
COVER, BLOWER HOUSING WPL 531933 Contact Us For Availability
17
BUZZER WPL 636731 Contact Us For Availability
18
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
18
HANDLE, DOOR (CHR) WPL 530928 Contact Us For Availability
18
BLOWER HSG COVER & SEAL WPL 531103 Contact Us For Availability
19
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
19
HINGE, DOOR WPL 530122 Contact Us For Availability
19
BLOWER WHEEL WPL 530106 Contact Us For Availability
20
TWIN NUT WPL 530121 Contact Us For Availability
20
CLAMP WPL 257823 Contact Us For Availability
20
RH GLD CUSHION WPL 530724 Contact Us For Availability
21
STRIKE, DOOR WPL 730033 Contact Us For Availability
21
RING, RETAINING WPL 257855 Contact Us For Availability
22
CATCH, DOOR WPL 530187 Contact Us For Availability
22
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
22
SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability
22
SCREW WPL 257807 Contact Us For Availability
22
BLOWER COVER WPL 531024 Contact Us For Availability
22
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
23
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
23
SWITCH, DOOR WPL 530148 Contact Us For Availability
24
CLIP, SWITCH WPL 635990 Contact Us For Availability
24
THERMOSTAT, LO-LIMIT (120/110) WPL 530170 Contact Us For Availability
24
SCREW WPL 257732 Contact Us For Availability
26
PLUG, GAS ACCESS (WHT) WPL 530155 Contact Us For Availability
27
BUTTON, GAS ACCESS (WHT) WPL 530156 Contact Us For Availability
28
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
28
CYL SUPT REINFORCE BRACE KIT WPL LA2010 Contact Us For Availability
29
WASHER WPL 257815 Contact Us For Availability
29
RH GLD CUSHION WPL 530182 Contact Us For Availability
30
RH CYL GLIDE WPL 530183 Contact Us For Availability
30
PUSHNUT WPL 257957 Contact Us For Availability
31
PULLEY, IDLER WPL 531628 Contact Us For Availability
32
COVER, TERMINAL WPL 530284 Contact Us For Availability
32
ARM, IDLER WPL 532250 Contact Us For Availability
33
STRAIN RELIEF WPL 257699 Contact Us For Availability
35
SWITCH, DOOR WPL 530147 Contact Us For Availability
36
LH GLIDE CUSHION WPL 530723 Contact Us For Availability
37
LH CYL GLIDE WPL 530185 Contact Us For Availability
43
COUNTERWEIGHT WPL 530645 Contact Us For Availability
44
BRACKET WPL 530644 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 531040 Contact Us For Availability
× ![]()
