Model Whirlpool CDE20M8A ELECTRIC DRYER – Common Parts & Diagrams

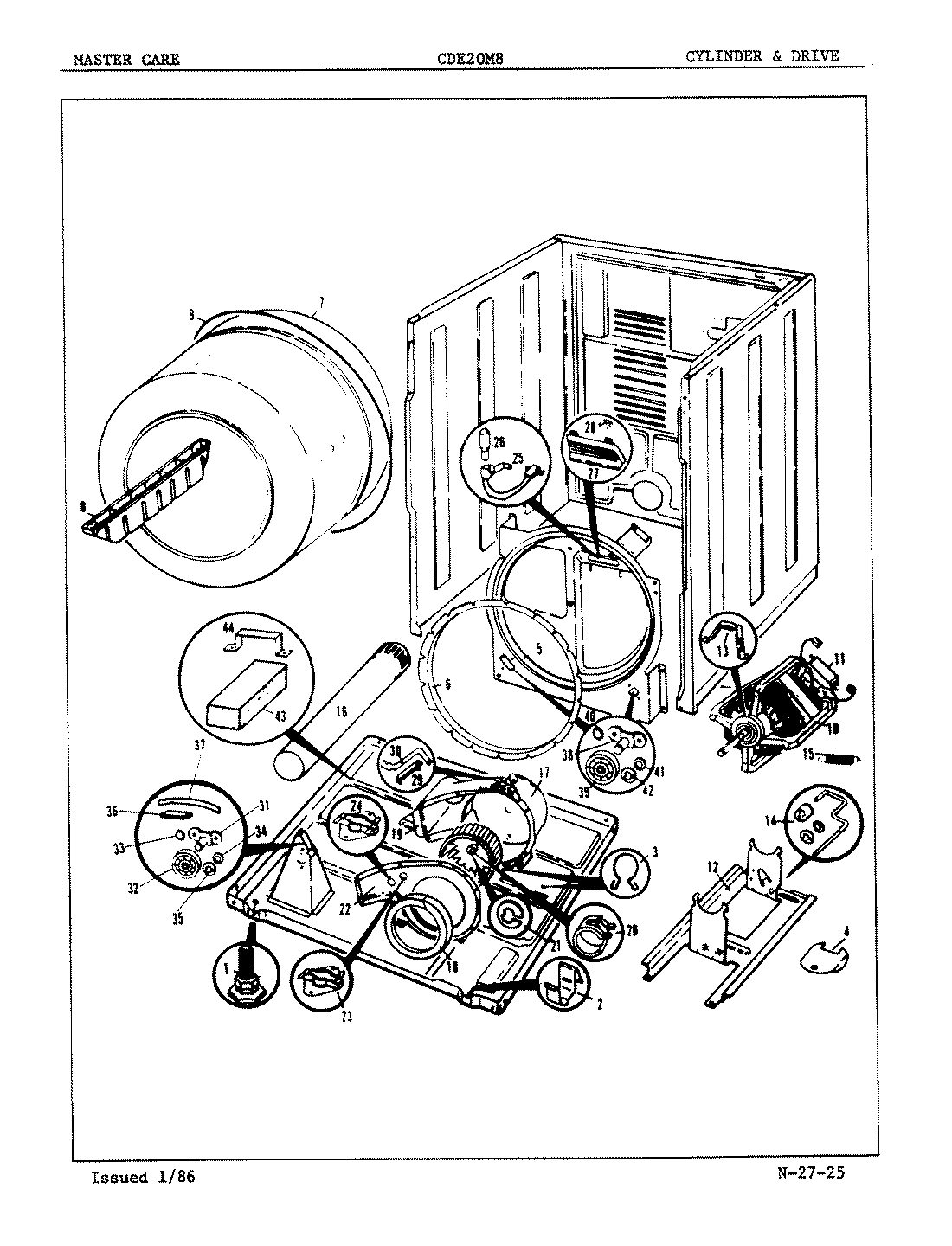

03 - CYLINDER & DRIVE (ORIG.-REV. A-D)
05 - HEATER (ORIG. REV. A-D)

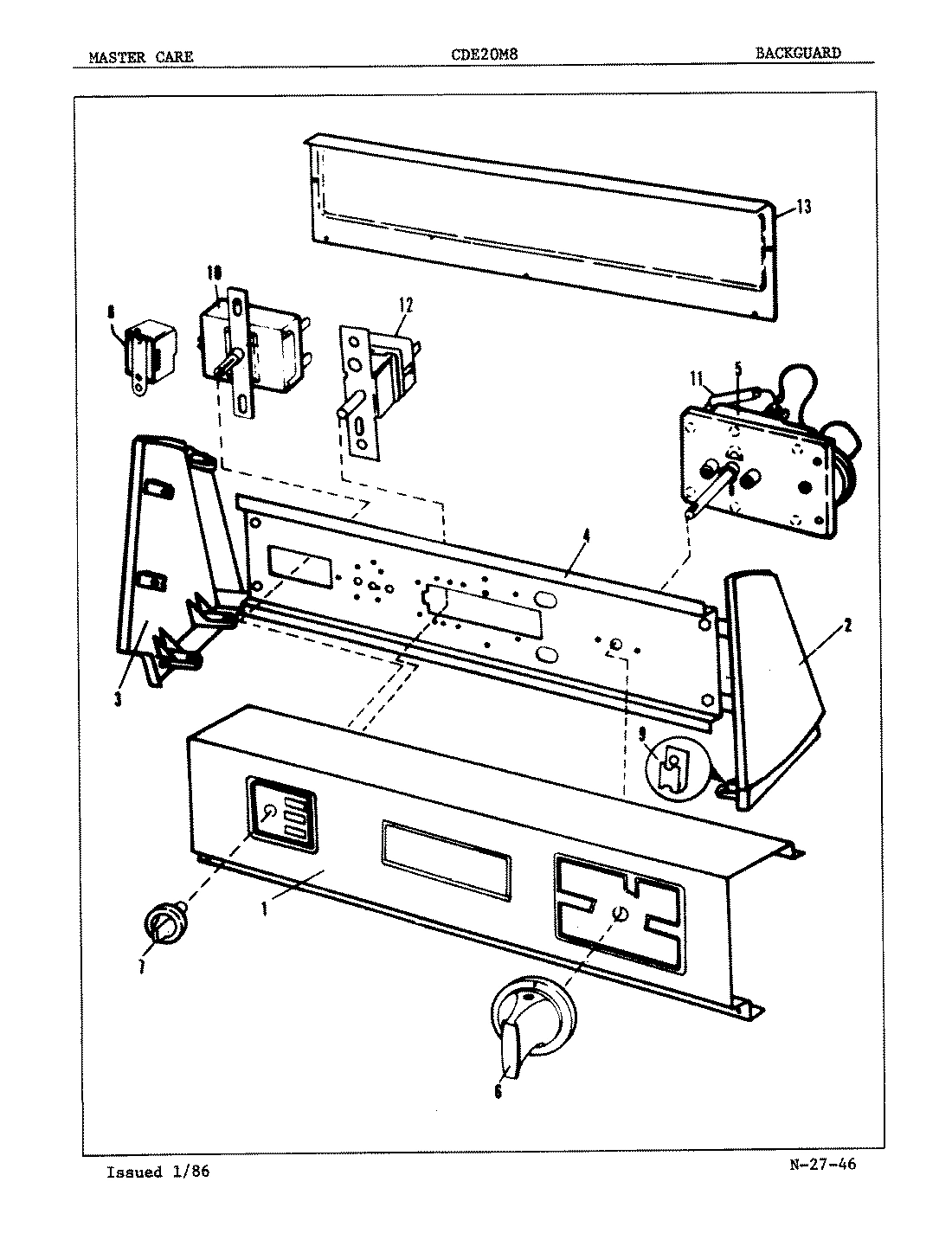

02 - CONTROL PANEL (REV. E-F)
04 - CYLINDER & DRIVE (REV. E-F)

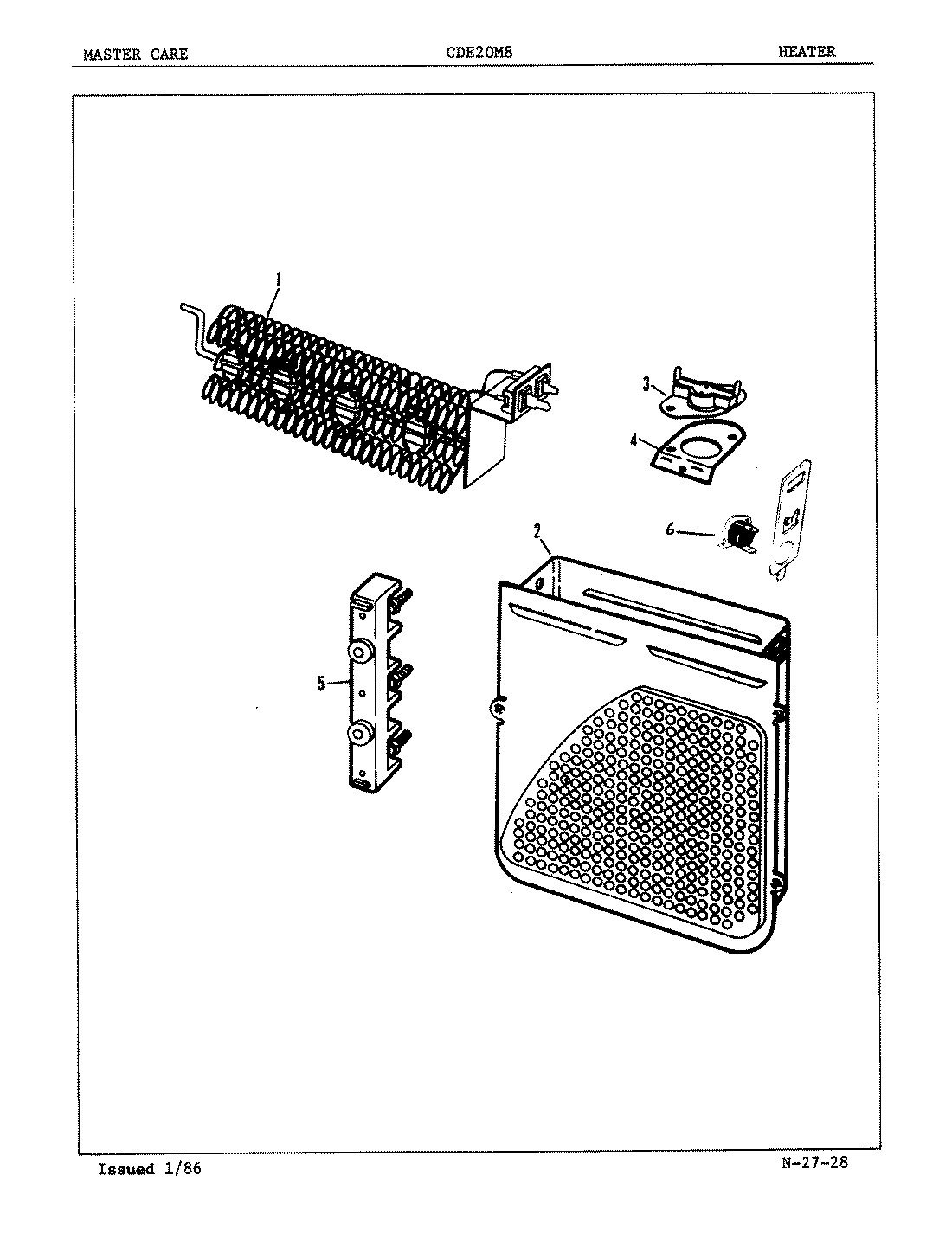

06 - HEATER (REV. E-F)

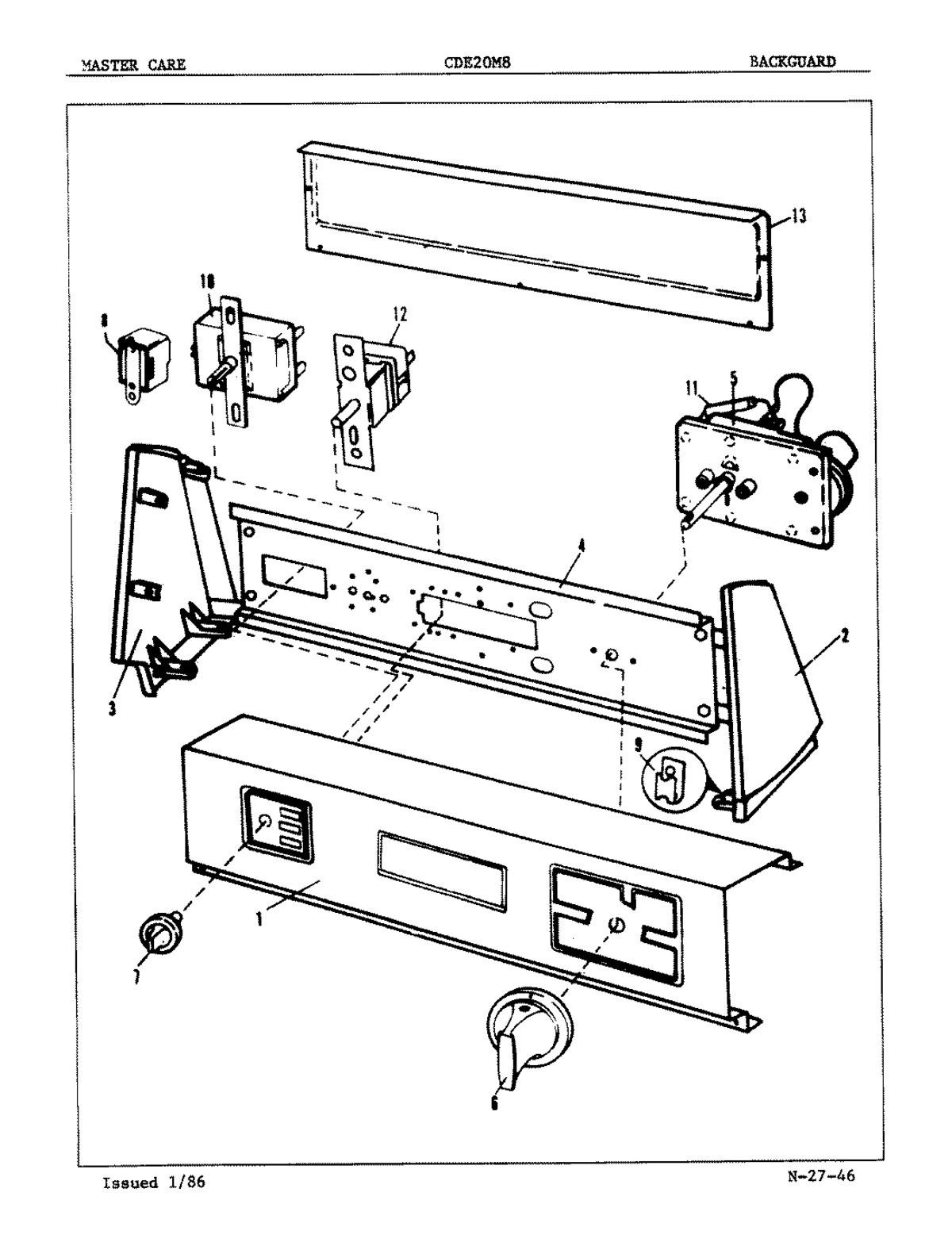

01 - CONTROL PANEL (ORIG. REV. A-D)
Common parts from model Whirlpool CDE20M8A ELECTRIC DRYER
1
LEG, LEVELING WPL 635519 Contact Us For Availability
1
SCREW WPL 257863 Contact Us For Availability
1
HEATER ELEMENT WPL 530919 Contact Us For Availability
1
HEATER ELEMENT WPL 530920 Contact Us For Availability
1
SCREW WPL 257649 Contact Us For Availability
1
CONTROL PANEL WPL 530834 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
2
HTR HOUSING ASM WPL 530191 Contact Us For Availability
2
RH ENDCAP WPL 530264 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
NOT REQUIRED PART OR SEE NOTE SCREW- PURCHASE WPL W10124350 Contact Us For Availability
3
HI LMT TSTAT WPL 530306 Contact Us For Availability
3
THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability
3
SCREW WPL 257760 Contact Us For Availability
3
LH ENDCAP WPL 530265 Contact Us For Availability
3
TRIM, END CAP (RT) WPL 530277 Contact Us For Availability
3
TRIM, END CAP (LT) WPL 530278 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
SHIELD, WIRING WPL 530153 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
4
CONTROL SHIELD WPL 530365 Contact Us For Availability
4
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
5
SCREW WPL 257733 Contact Us For Availability
5
BULKHEAD ASM WPL 530691 Contact Us For Availability
5
NUT (No.10-32) WPL 250027 Contact Us For Availability
5
WASHER, FLAT WPL 253122 Contact Us For Availability
5
WASHER, CUP WPL 253123 Contact Us For Availability
5
NUT WPL 256124 Contact Us For Availability
5
SCREW WPL 257803 Contact Us For Availability
5
TERMINAL BLOCK WPL 530166 Contact Us For Availability
5
SCREW WPL 250205 Contact Us For Availability
5
TIMER WPL 530659 Contact Us For Availability
5
TIMER MOTOR WPL 635685 Contact Us For Availability
6
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
6
TIMER KNOB ASM WPL 530729 Contact Us For Availability
7
TUMBLER ASSY. WPL 530178 Contact Us For Availability
7
SELECTOR KNOB WPL 350167 Contact Us For Availability
8
SCREW WPL 257759 Contact Us For Availability
8
BAFFLE, GRAY WPL 530117 Contact Us For Availability
8
BUZZER WPL 636731 Contact Us For Availability
9
CYL DRIVE BELT WPL 530186 Contact Us For Availability
9
MOTOR MTG. KIT (DRYER) WPL LA1004 Contact Us For Availability
9
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
10
MOTOR/PULLY ASM WPL 530189 Contact Us For Availability
10
SELECTOR SWITCH WPL 530392 Contact Us For Availability
11
MOTOR SWITCH WPL 730467 Contact Us For Availability
11
RESISTOR ASSY. WPL 636743 Contact Us For Availability
12
SCREW WPL 257811 Contact Us For Availability
12
BRACKET WPL 530105 Contact Us For Availability
12
SWITCH, WRINKLE OUT WPL 530346 Contact Us For Availability
13
CLAMP, MOTOR WPL 530214 Contact Us For Availability
13
SCREW, SEMS WPL 253457 Contact Us For Availability
13
SCREW WPL 253092 Contact Us For Availability
13
SCREW WPL 257435 Contact Us For Availability
13
SCREW WPL 257697 Contact Us For Availability
13
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
13
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
13
PLATE, REINFORCEMENT WPL 349487 Contact Us For Availability
13
REAR SHIELD WPL 530268 Contact Us For Availability
14
IDLER ARM WPL 530199 Contact Us For Availability
15
IDLER SPRING WPL 530207 Contact Us For Availability
16
DUCT, EXHAUST WPL 530134 Contact Us For Availability
17
BLOWER HOUSING WPL 530774 Contact Us For Availability
18
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
18
BLOWER HSG&SEAL WPL 530205 Contact Us For Availability
18
COVER & SEAL WPL 530206 Contact Us For Availability
19
BLOWER WHEEL WPL 530106 Contact Us For Availability
20
CLAMP WPL 257823 Contact Us For Availability
21
RETAINING RING WPL 257812 Contact Us For Availability
22
SCREW WPL 252134 Contact Us For Availability
22
SCREW WPL 257807 Contact Us For Availability
22
BLOWER HOUSING WPL 530751 Contact Us For Availability
22
BLOWR HSG COVER WPL 530752 Contact Us For Availability
22
BLOWER COVER WPL 531024 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
23
THERMOSTAT WPL 530263 Contact Us For Availability
24
THERMOSTAT WPL 530262 Contact Us For Availability
25
LAMP SOCKET WPL 530152 Contact Us For Availability
26
BULB, LIGHT WPL 530177 Contact Us For Availability
27
LENS, BULB WPL 530174 Contact Us For Availability
28
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
29
RH GLD CUSHION WPL 530182 Contact Us For Availability
30
RH CYL GLIDE WPL 530183 Contact Us For Availability
31
SUPPORT ASM WPL 530198 Contact Us For Availability
32
FRONT ROLLER WPL 530665 Contact Us For Availability
36
LH GLD CUSHION WPL 530184 Contact Us For Availability
37
LH CYL GLIDE WPL 530185 Contact Us For Availability
37
ROLLER WPL LA1008 Contact Us For Availability
38
SCREW WPL 257101 Contact Us For Availability
38
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
39
CYLINDER ROLLER WPL 530163 Contact Us For Availability
40
SPACER WPL 257813 Contact Us For Availability
41
WASHER WPL 257814 Contact Us For Availability
42
RETAINING RING WPL 257574 Contact Us For Availability
43
COUNTERWEIGHT WPL 530645 Contact Us For Availability
44
SCREW WPL 257732 Contact Us For Availability
44
BRACKET WPL 530644 Contact Us For Availability
× ![]()
