Model Whirlpool CDE20C7H ELECTRIC DRYER – Common Parts & Diagrams

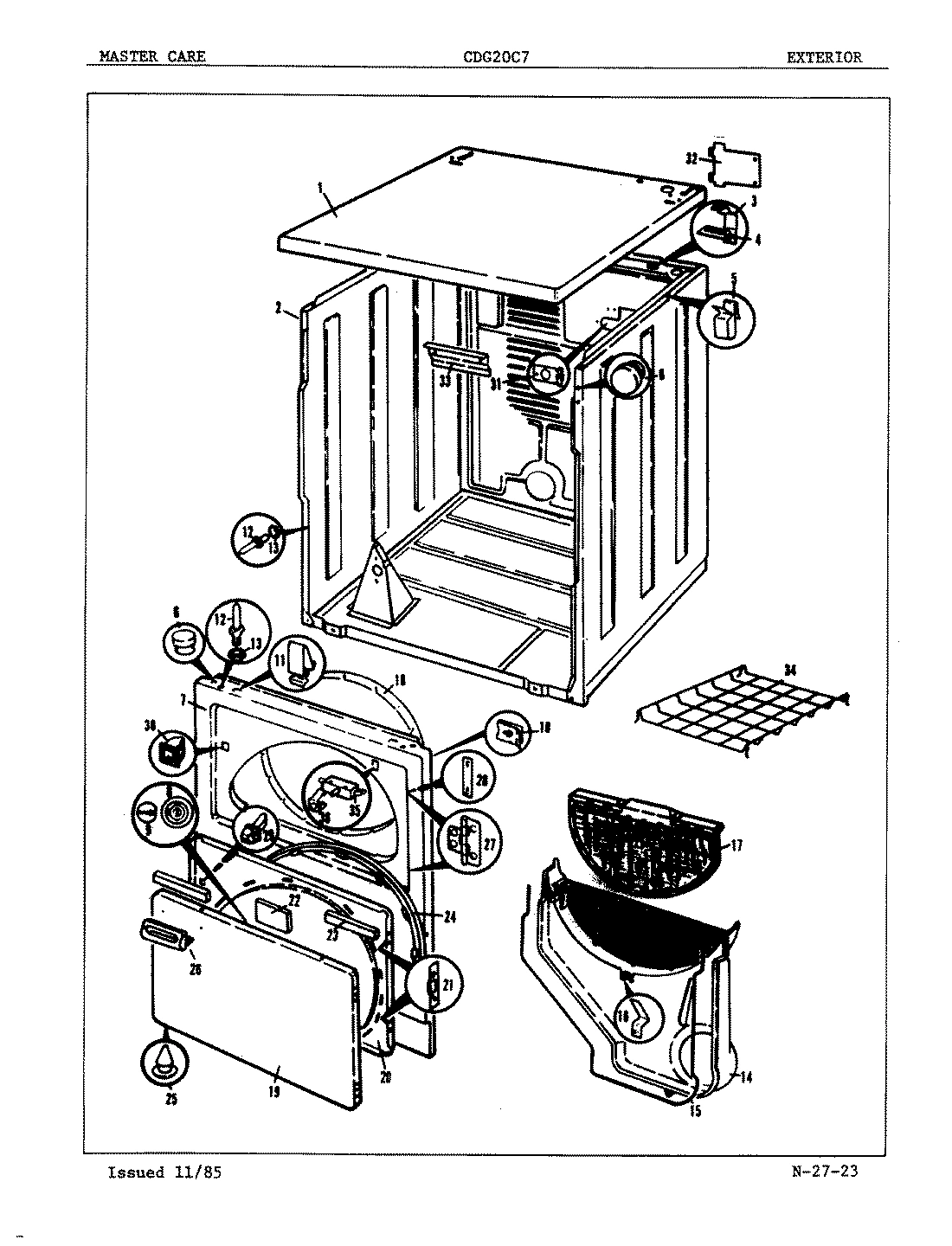

02 - CYLINDER & DRIVE (ORIG.-REV. A-C)

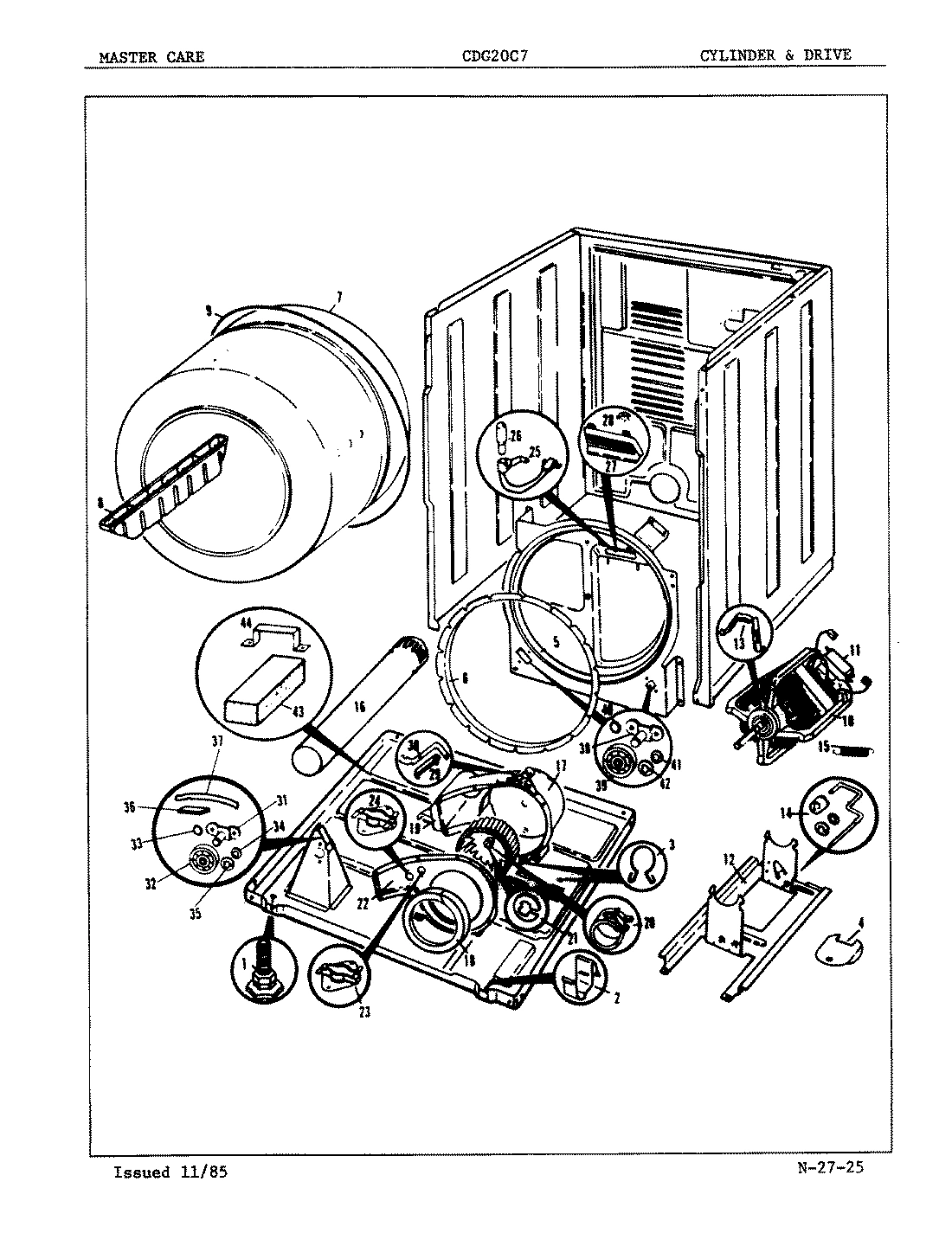

03 - HEATER (ORIG. REV. A-C)

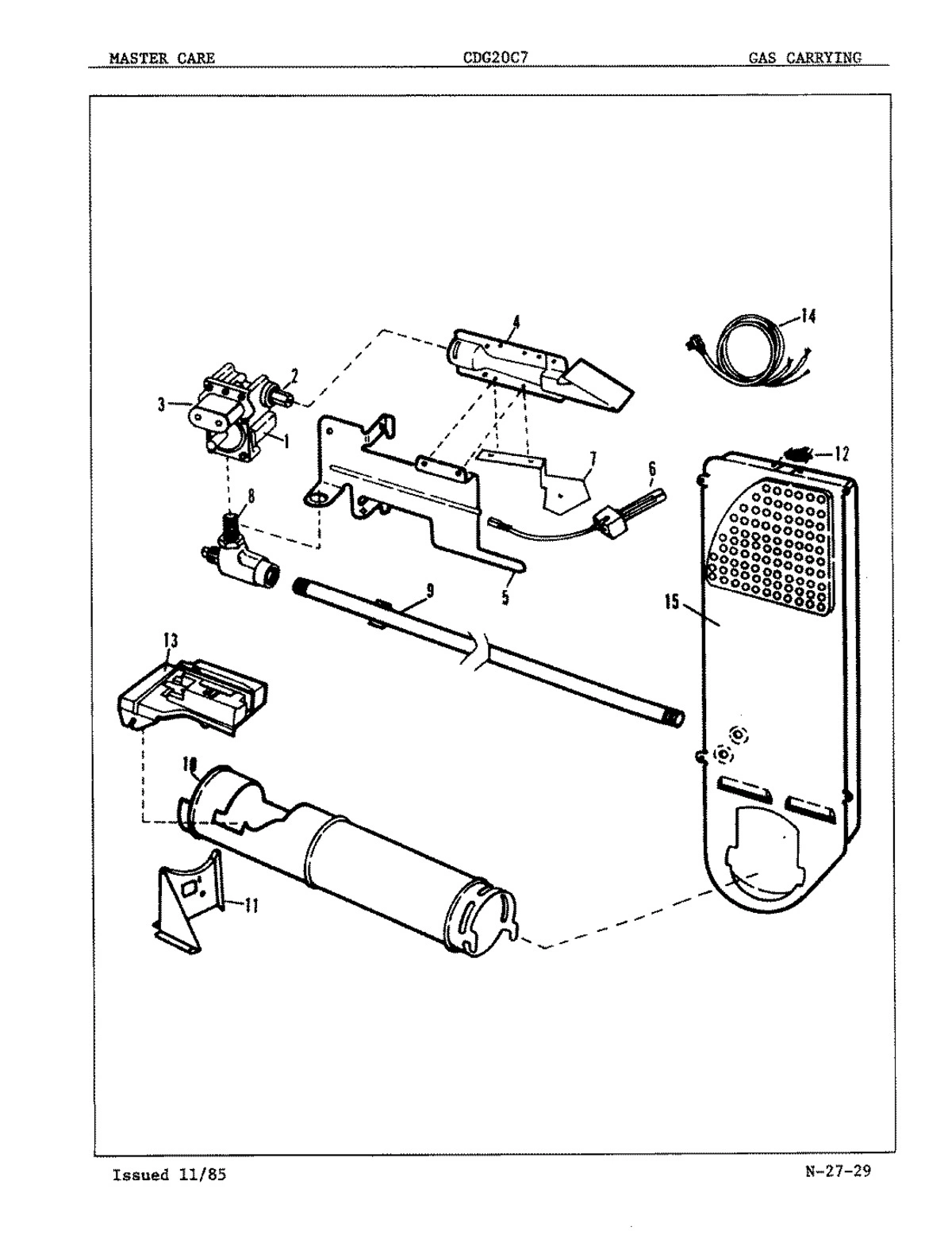

01 - CONTROL PANEL (ORIG. REV. A-C)
Common parts from model Whirlpool CDE20C7H ELECTRIC DRYER
1
LEG, LEVELING WPL 635519 Contact Us For Availability
1
SCREW WPL 257863 Contact Us For Availability
1
HEATING ELEMENT WPL 530500 Contact Us For Availability
1
WRAPPER WPL 339668 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
2
HTR HOUSING ASM WPL 530191 Contact Us For Availability
2
SCREW WPL 257649 Contact Us For Availability
2
CONTROL PANEL WPL 530320 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
3
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
3
HI LMT TSTAT WPL 530306 Contact Us For Availability
3
RH END CAP WPL 336766 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
SHIELD, WIRING WPL 530153 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
4
SCREW WPL 257760 Contact Us For Availability
4
LH END CAP WPL 336765 Contact Us For Availability
5
SCREW WPL 257733 Contact Us For Availability
5
BULKHEAD ASM WPL 530691 Contact Us For Availability
5
NUT (No.10-32) WPL 250027 Contact Us For Availability
5
WASHER, FLAT WPL 253122 Contact Us For Availability
5
WASHER, CUP WPL 253123 Contact Us For Availability
5
NUT WPL 256124 Contact Us For Availability
5
SCREW WPL 257803 Contact Us For Availability
5
TERMINAL BLOCK WPL 530166 Contact Us For Availability
5
CONTROL SHIELD WPL 530243 Contact Us For Availability
6
SEAL WPL 530218 Contact Us For Availability
6
SCREW WPL 250205 Contact Us For Availability
6
TIMER WPL 530546 Contact Us For Availability
6
TIMER MOTOR WPL 635685 Contact Us For Availability
6
TIMER WPL 636690 Contact Us For Availability
7
TUMBLER ASSY. WPL 530178 Contact Us For Availability
7
SET SCREW WPL 256044 Contact Us For Availability
7
KNOB ASM WPL 530386 Contact Us For Availability
7
KNOB/SKIRT ASM WPL 530671 Contact Us For Availability
8
SCREW WPL 257759 Contact Us For Availability
8
BAFFLE, GRAY WPL 530117 Contact Us For Availability
8
SELECTOR KNOB WPL 350158 Contact Us For Availability
9
CYL DRIVE BELT WPL 530186 Contact Us For Availability
9
MOTOR MTG. KIT (DRYER) WPL LA1004 Contact Us For Availability
9
BUZZER WPL 636731 Contact Us For Availability
10
MOTOR/PULLY ASM WPL 530189 Contact Us For Availability
10
CLIP WPL 257461 Contact Us For Availability
11
MOTOR SWITCH WPL 730467 Contact Us For Availability
11
SELECTOR SWITCH WPL 530392 Contact Us For Availability
12
SCREW WPL 257811 Contact Us For Availability
12
BRACKET WPL 530105 Contact Us For Availability
12
SHIELD WPL 338909 Contact Us For Availability
13
CLAMP, MOTOR WPL 530214 Contact Us For Availability
13
RESISTOR ASSY. WPL 636743 Contact Us For Availability
14
IDLER ARM WPL 530199 Contact Us For Availability
14
SCREW WPL 253092 Contact Us For Availability
14
SWITCH, WRINKLE OUT WPL 530346 Contact Us For Availability
15
IDLER SPRING WPL 530207 Contact Us For Availability
16
DUCT, EXHAUST WPL 530134 Contact Us For Availability
17
BLOWER HOUSING WPL 530157 Contact Us For Availability
18
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
18
BLOWER HSG&SEAL WPL 530205 Contact Us For Availability
18
COVER & SEAL WPL 530206 Contact Us For Availability
19
BLOWER WHEEL WPL 530106 Contact Us For Availability
20
CLAMP WPL 257823 Contact Us For Availability
21
RETAINING RING WPL 257812 Contact Us For Availability
22
SCREW WPL 257807 Contact Us For Availability
22
HOUSING COVER WPL 530103 Contact Us For Availability
23
THERMOSTAT WPL 530263 Contact Us For Availability
24
THERMOSTAT WPL 530262 Contact Us For Availability
25
LAMP SOCKET WPL 530152 Contact Us For Availability
26
SCREW, SEMS WPL 253457 Contact Us For Availability
26
BULB, LIGHT WPL 530177 Contact Us For Availability
27
LENS, BULB WPL 530174 Contact Us For Availability
28
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
29
RH GLD CUSHION WPL 530182 Contact Us For Availability
30
RH CYL GLIDE WPL 530183 Contact Us For Availability
31
SUPPORT ASM WPL 530198 Contact Us For Availability
32
FRONT ROLLER WPL 530665 Contact Us For Availability
36
LH GLD CUSHION WPL 530184 Contact Us For Availability
37
LH CYL GLIDE WPL 530185 Contact Us For Availability
37
ROLLER WPL LA1008 Contact Us For Availability
38
SCREW WPL 257101 Contact Us For Availability
38
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
39
CYLINDER ROLLER WPL 530163 Contact Us For Availability
40
SPACER WPL 257813 Contact Us For Availability
41
WASHER WPL 257814 Contact Us For Availability
42
RETAINING RING WPL 257574 Contact Us For Availability
× ![]()
