  • Whirlpool CCGX2420W Parts List

Model Whirlpool CCGX2420W GAS COOK-TOP – Common Parts & Diagrams

1
GRATE (GRAY)
GRATE (GRAY) WPL 71001006 Contact Us For Availability
View on Model
2
CAP, BURNER (SMR-GRY)
CAP, BURNER (SMR-GRY) WPL 71002790 Contact Us For Availability
View on Model
3
CAP, BURNER (LG-GRY)
CAP, BURNER (LG-GRY) WPL 71002739 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL Y705019 Contact Us For Availability
View on Model
5
PAN, AERATION (WHT)
PAN, AERATION (WHT) WPL 71002789 Contact Us For Availability
View on Model
6
PIPE, MANIFOLD (4-BURNER)
PIPE, MANIFOLD (4-BURNER) WPL 71002953 Contact Us For Availability
View on Model
6
TOP (STNLS)
TOP (STNLS) WPL 71002940 Contact Us For Availability
View on Model
7
TUBE (CF)
TUBE (CF) WPL 71002944 Contact Us For Availability
View on Model
7
TUBE (CR)
TUBE (CR) WPL 71002945 Contact Us For Availability
View on Model
8
HOLDER W/ORIFICE (6.5K)
HOLDER W/ORIFICE (6.5K) WPL 71002720 Contact Us For Availability
View on Model
8
HOLDER W/ORIFICE (10K)
HOLDER W/ORIFICE (10K) WPL 71002722 Contact Us For Availability
View on Model
8
NUT, BURNER BASE
NUT, BURNER BASE WPL 74006032 Contact Us For Availability
View on Model
8
BASE, BURNER (LG)
BASE, BURNER (LG) WPL 71002743 Contact Us For Availability
View on Model
9
BRACKET, CONTROL PANEL
BRACKET, CONTROL PANEL WPL 71002566 Contact Us For Availability
View on Model
10
VALVE, BURNER (LG)
VALVE, BURNER (LG) WPL 71002775 Contact Us For Availability
View on Model
10
VALVE, BURNER
VALVE, BURNER WPL 71002776 Contact Us For Availability
View on Model
10
KNOB, BURNER (WHT)
KNOB, BURNER (WHT) WPL 71002373 Contact Us For Availability
View on Model
11
GROMMET, SPILL (GRY)
GROMMET, SPILL (GRY) WPL 71002371 Contact Us For Availability
View on Model
12
RELIEF, STRAIN
RELIEF, STRAIN WPL 705833 Contact Us For Availability
View on Model
12
LENS, LIGHT
LENS, LIGHT WPL 71002580 Contact Us For Availability
View on Model
13
CORD, POWER
CORD, POWER WPL 71002748 Contact Us For Availability
View on Model
13
PANEL, CONTROL (WHT)
PANEL, CONTROL (WHT) WPL 71002931 Contact Us For Availability
View on Model
14
BOX, LIGHT
BOX, LIGHT WPL Y706061 Contact Us For Availability
View on Model
16
PLATE, SWITCH
PLATE, SWITCH WPL 71002559 Contact Us For Availability
View on Model
16
PLATE, SWITCH
PLATE, SWITCH WPL 71002568 Contact Us For Availability
View on Model
16
FASTENER, PUSH-IN
FASTENER, PUSH-IN WPL 71003219 Contact Us For Availability
View on Model
NI
GUIDE, QUICK REF - JENN-AIR
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
View on Model
NI
WIRE, BROWN (38``)
WIRE, BROWN (38``) WPL 71001159 Contact Us For Availability
View on Model
NI
GUIDE, COOKING
GUIDE, COOKING WPL 71002782 Contact Us For Availability
View on Model
NI
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 71002936 Contact Us For Availability
View on Model
NI
MANUAL, USE & CARE (FCH)
MANUAL, USE & CARE (FCH) WPL 71002937 Contact Us For Availability
View on Model
NI
GUIDE, COOKING (FCH)
GUIDE, COOKING (FCH) WPL 71002938 Contact Us For Availability
View on Model
NI
KIT, LP ORIFICE
KIT, LP ORIFICE WPL 71002941 Contact Us For Availability
View on Model
NI
HARNESS (LIGHT/UPR)
HARNESS (LIGHT/UPR) WPL 71002942 Contact Us For Availability
View on Model
NI
HARNESS (SPARK/LWR)
HARNESS (SPARK/LWR) WPL 71002943 Contact Us For Availability
View on Model
NI
WIRE, ORANGE (18``)
WIRE, ORANGE (18``) WPL Y04100378 Contact Us For Availability
View on Model
NI
WIRE, WHITE (18``)
WIRE, WHITE (18``) WPL Y04100535 Contact Us For Availability
View on Model
NI
WIRE, WHITE (30``)
WIRE, WHITE (30``) WPL Y04100536 Contact Us For Availability
View on Model
NI

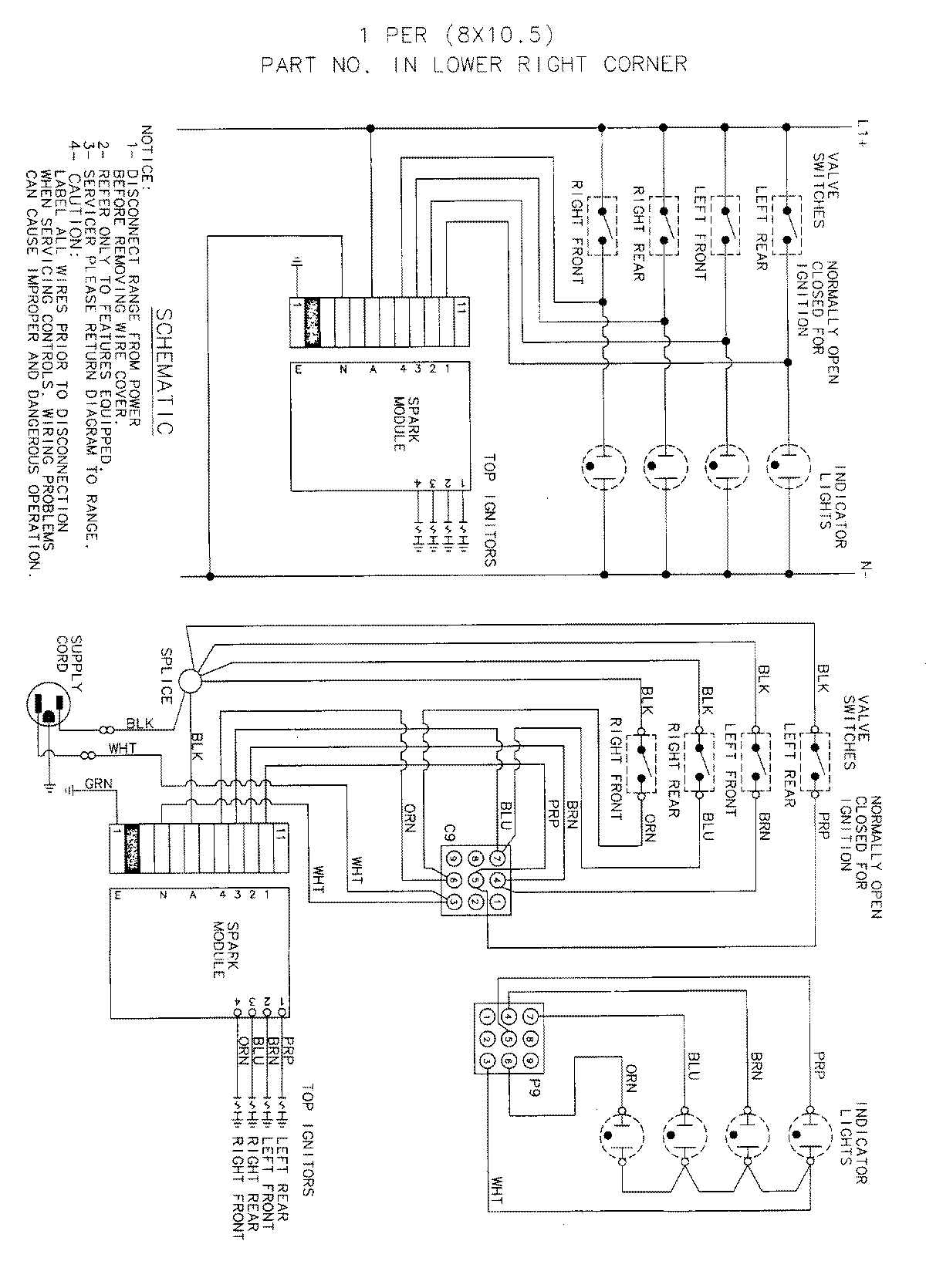

WIRING INFORMATION
WIRING INFORMATION WPL 15002200 Contact Us For Availability
View on Model
