Model Whirlpool CCGP2820PR GAS COOK-TOP – Common Parts & Diagrams

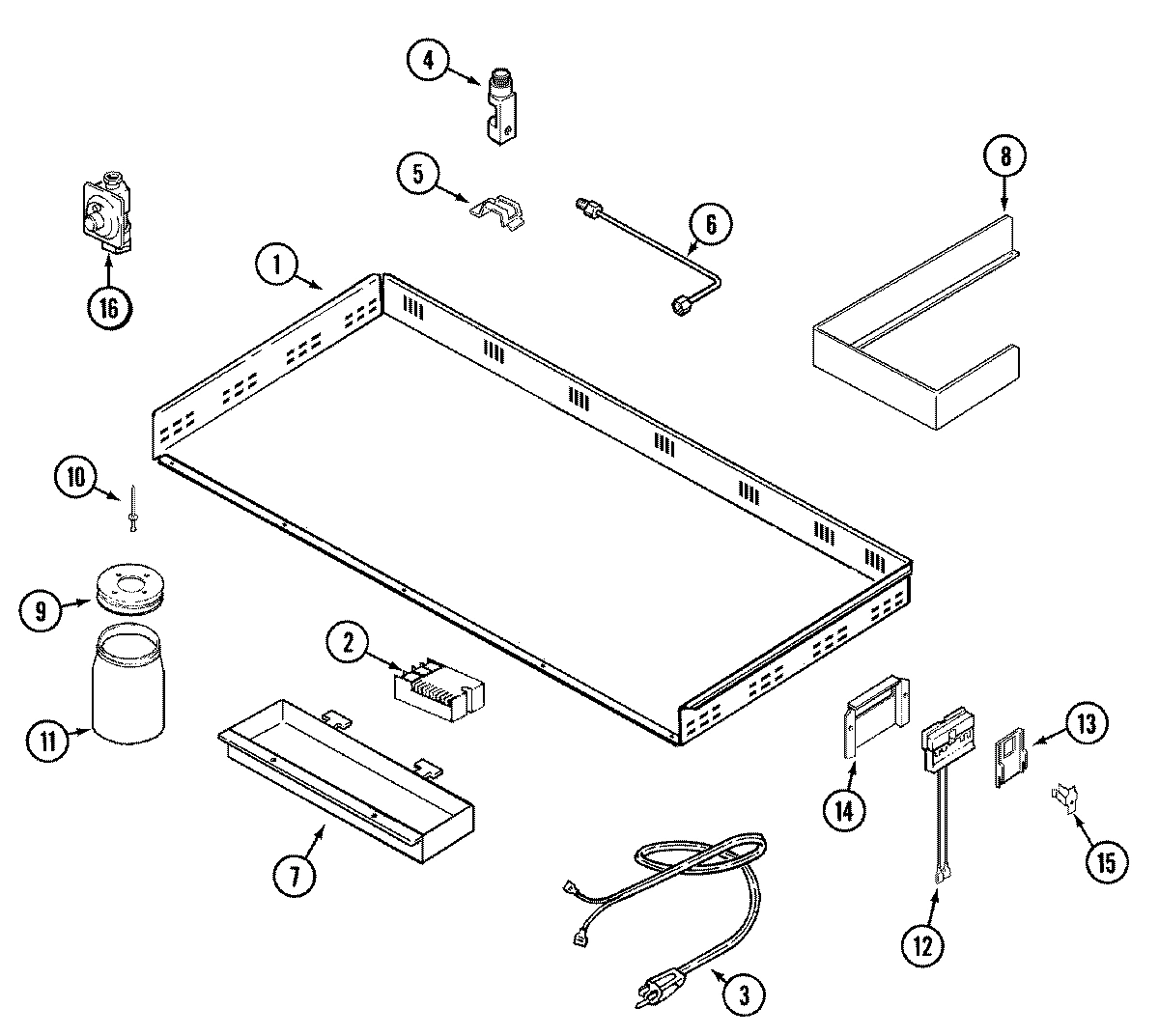

01 - BURNER BOX

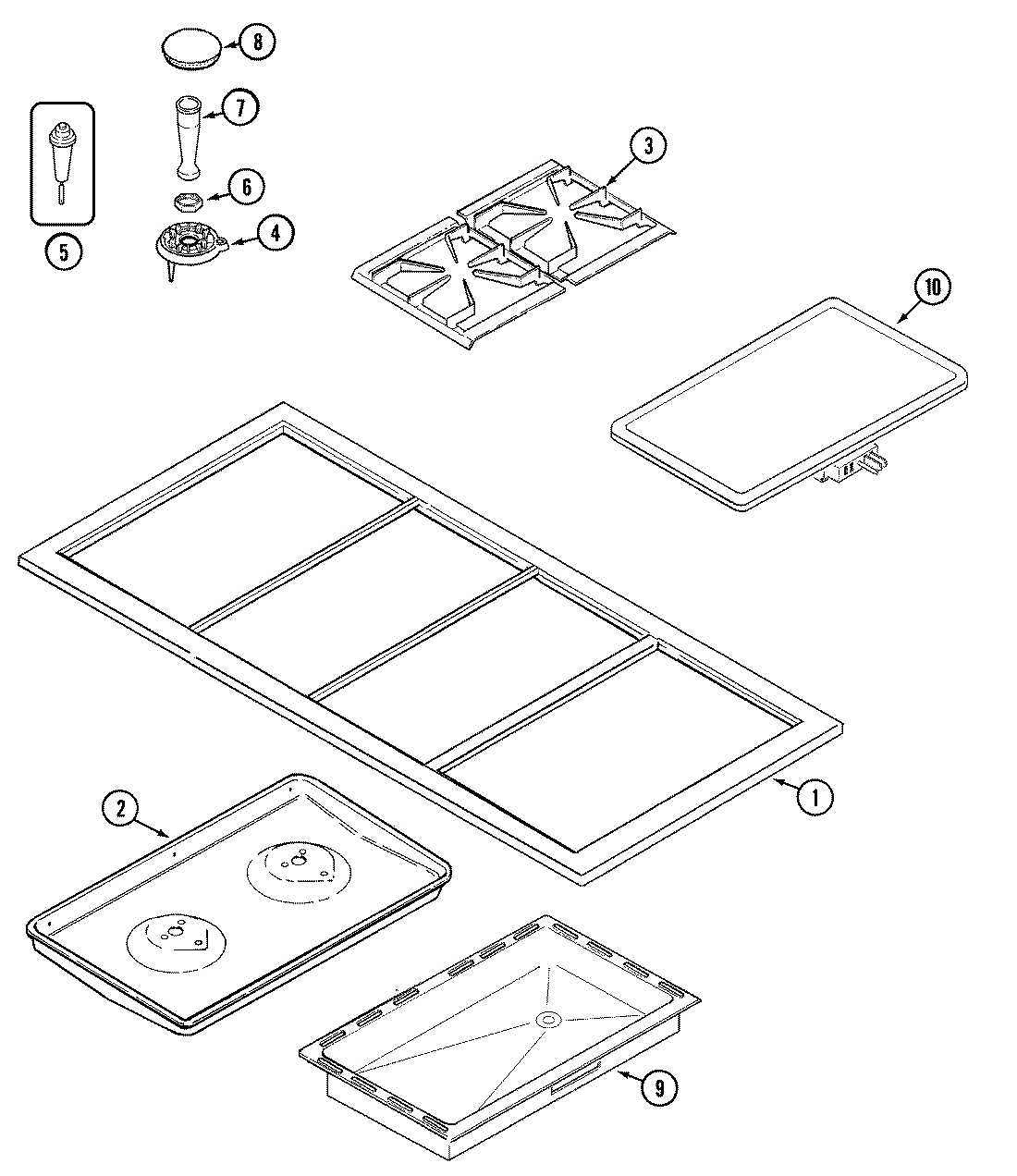

03 - TOP ASSEMBLY

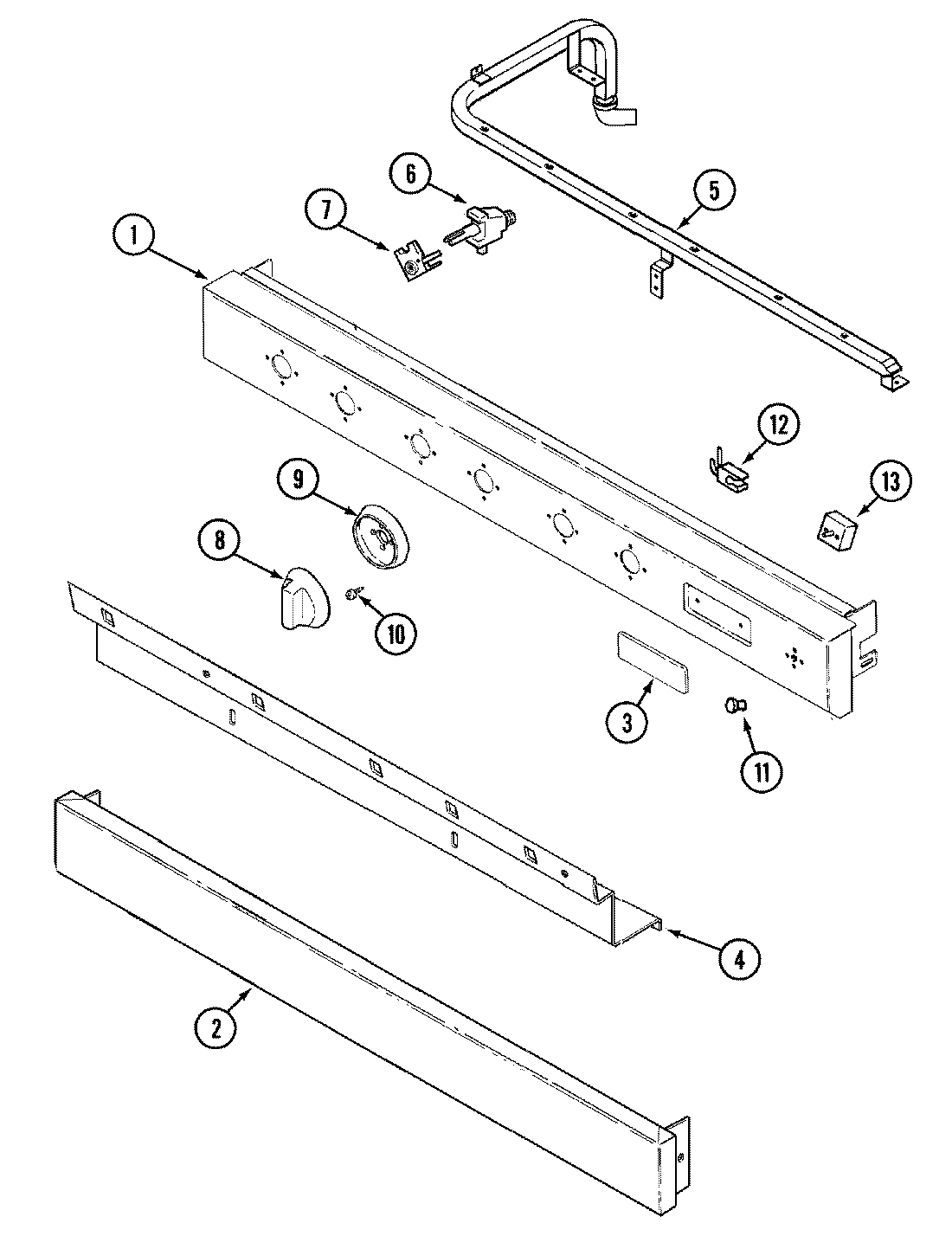

02 - CONTROL PANEL

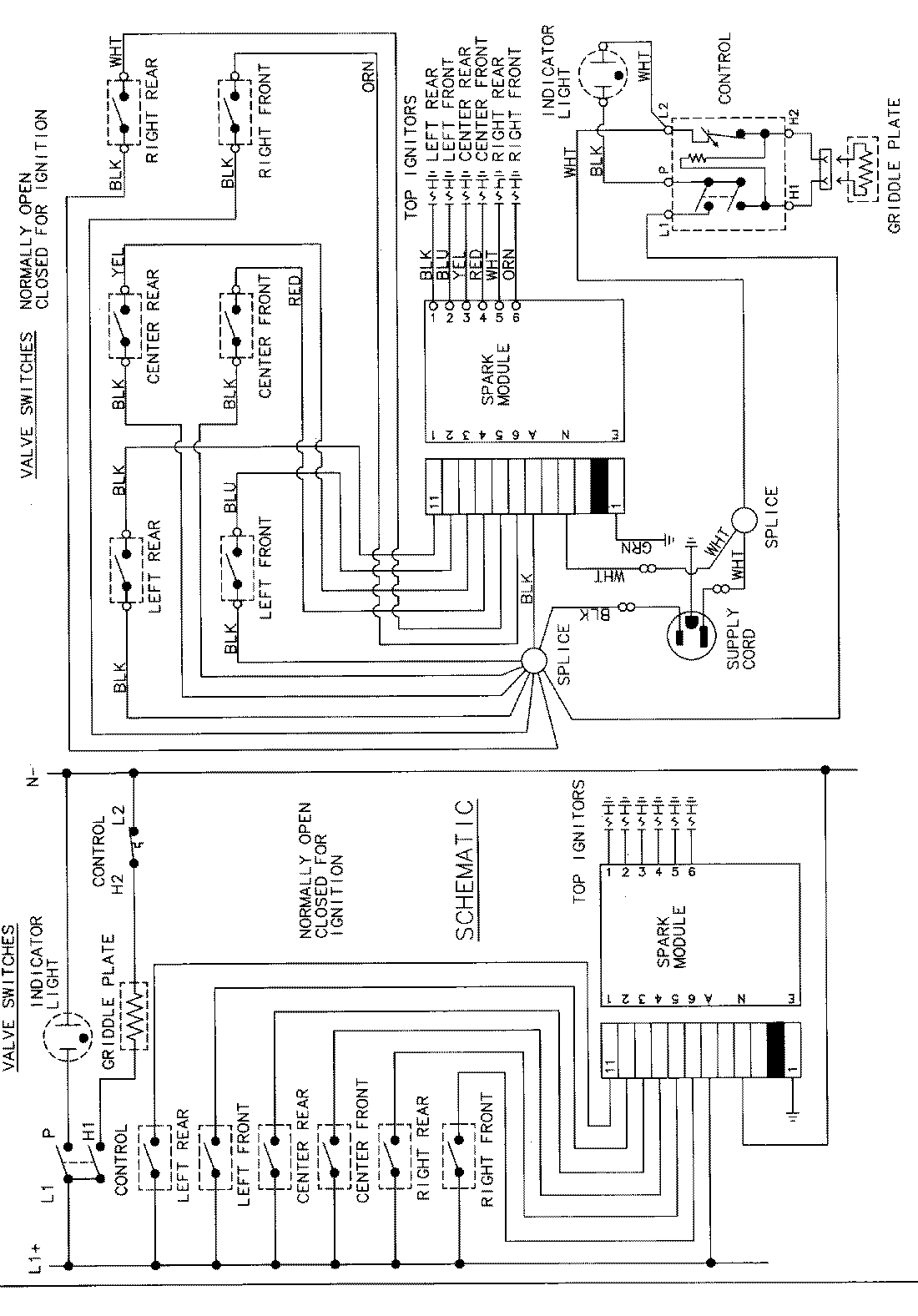

04 - WIRING INFORMATION
Common parts from model Whirlpool CCGP2820PR GAS COOK-TOP
1
TOP, MAIN (STNLS) WPL 71003126 Contact Us For Availability
1

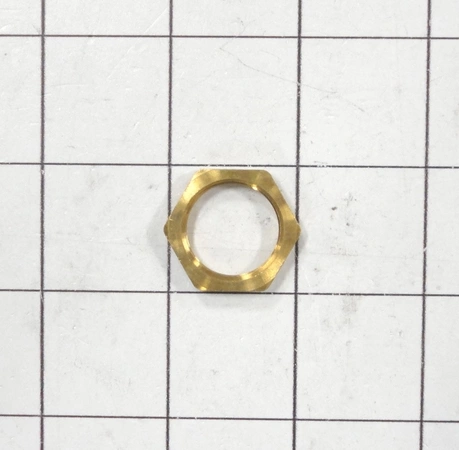

NUT, RETAINER (1/4) WPL 71001054 Contact Us For Availability
1
PANEL, CONTROL (UPR-RED) WPL 71003179 Contact Us For Availability
2
PAN, BURNER (LG-BLK) WPL 71003155 Contact Us For Availability
2
PAN, BURNER (SM-BLK)----NA WPL 71003156 Contact Us For Availability
2
PANEL, CONTROL (LWR-RED) WPL 71001902 Contact Us For Availability
3
GRATE, BURNER (BLK) WPL 71003158 Contact Us For Availability
3
NAMEPLATE (J/A) WPL 71001894 Contact Us For Availability
3
NAMEPLATE (STL) WPL 74006889 Contact Us For Availability
4
HOLDER W/ORIFICE (6.5K) WPL 71002720 Contact Us For Availability
4
HOLDER W/ORIFICE (9.1K) WPL 71002721 Contact Us For Availability
4
HOLDER W/ORIFICE (10K) WPL 71002722 Contact Us For Availability
4
HOLDER W/ORIFICE (15K) WPL 71003150 Contact Us For Availability
4

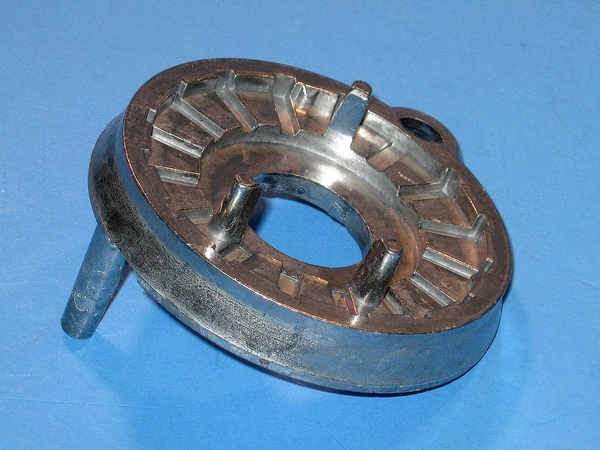

BASE, BURNER (LG) WPL 71002743 Contact Us For Availability
4
BASE, BURNER (SM) WPL 71002744 Contact Us For Availability
4
SUPPORT, CONTROL PANEL WPL 71001048 Contact Us For Availability
4
GROMMET, SCREW WPL Y04100776 Contact Us For Availability
5
BRACKET, ORIFICE HOLDER WPL 71003147 Contact Us For Availability
5
PIPE, MANIFOLD WPL 71003128 Contact Us For Availability
6
TUBE, BURNER (FT) WPL 71003148 Contact Us For Availability
6
TUBE, BURNER (RR) WPL 71003149 Contact Us For Availability
6
VALVE, BURNER (LG) WPL 71003134 Contact Us For Availability
6
VALVE, BURNER (SMR) WPL 71003135 Contact Us For Availability
6
VALVE, BURNER (SM) WPL 71003136 Contact Us For Availability
6
SCREW & WASHER WPL Y712320 Contact Us For Availability
7
COVER, MODULE WPL 71003146 Contact Us For Availability
7
RELIEF, STRAIN WPL Y04100254 Contact Us For Availability
8
SUPPORT, GRIDDLE----NA WPL 71003154 Contact Us For Availability
8
CAP, BURNER (SM-BLK) WPL 71002738 Contact Us For Availability
8
CAP, BURNER (LG-BLK) WPL 71002740 Contact Us For Availability
8
CAP, BURNER (SMR-BLK) WPL 71002787 Contact Us For Availability
8
KNOB, GRIDDLE WPL 71003143 Contact Us For Availability
9
LID, JAR WPL Y707870 Contact Us For Availability
9
PAN, GRILL (BLK) WPL 71003157 Contact Us For Availability
9
BEZEL, KNOB WPL 71002978 Contact Us For Availability
10
GRIDDLE WPL 71003159 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
12
BLOCK, TERMINAL WPL 71003151 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P10060 Contact Us For Availability
13
SPACER, TERMINAL BLOCK WPL 71003152 Contact Us For Availability
14
COVER, TERMINAL BLOCK WPL 71003153 Contact Us For Availability
15
CLIP, GROUND WPL Y706064 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
WIRE WHT (25``) WPL 71001740 Contact Us For Availability
NI
GUIDE, COOKING WPL 71002782 Contact Us For Availability
NI
GUIDE, COOKING (FCH) WPL 71002938 Contact Us For Availability
NI
WIRE, HARNESS WPL 71003133 Contact Us For Availability
NI
WIRE, WHITE (24``) WPL 71003137 Contact Us For Availability
NI
WIRE, WHITE (18``) WPL 71003138 Contact Us For Availability
NI
WIRE, WHITE (14``) WPL 71003139 Contact Us For Availability
NI
WIRE, WHITE (16``) WPL 71003140 Contact Us For Availability
NI
LP CONVERSION KIT WPL 71003142 Contact Us For Availability
NI
MANUAL, USE & CARE (BLUECREEK) WPL 71003173 Contact Us For Availability
NI
WIRE, ORANGE (18``) WPL Y04100378 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002408 Contact Us For Availability
× ![]()
