Model Whirlpool CCG2423W GAS COOK-TOP – Common Parts & Diagrams
01 - BODY

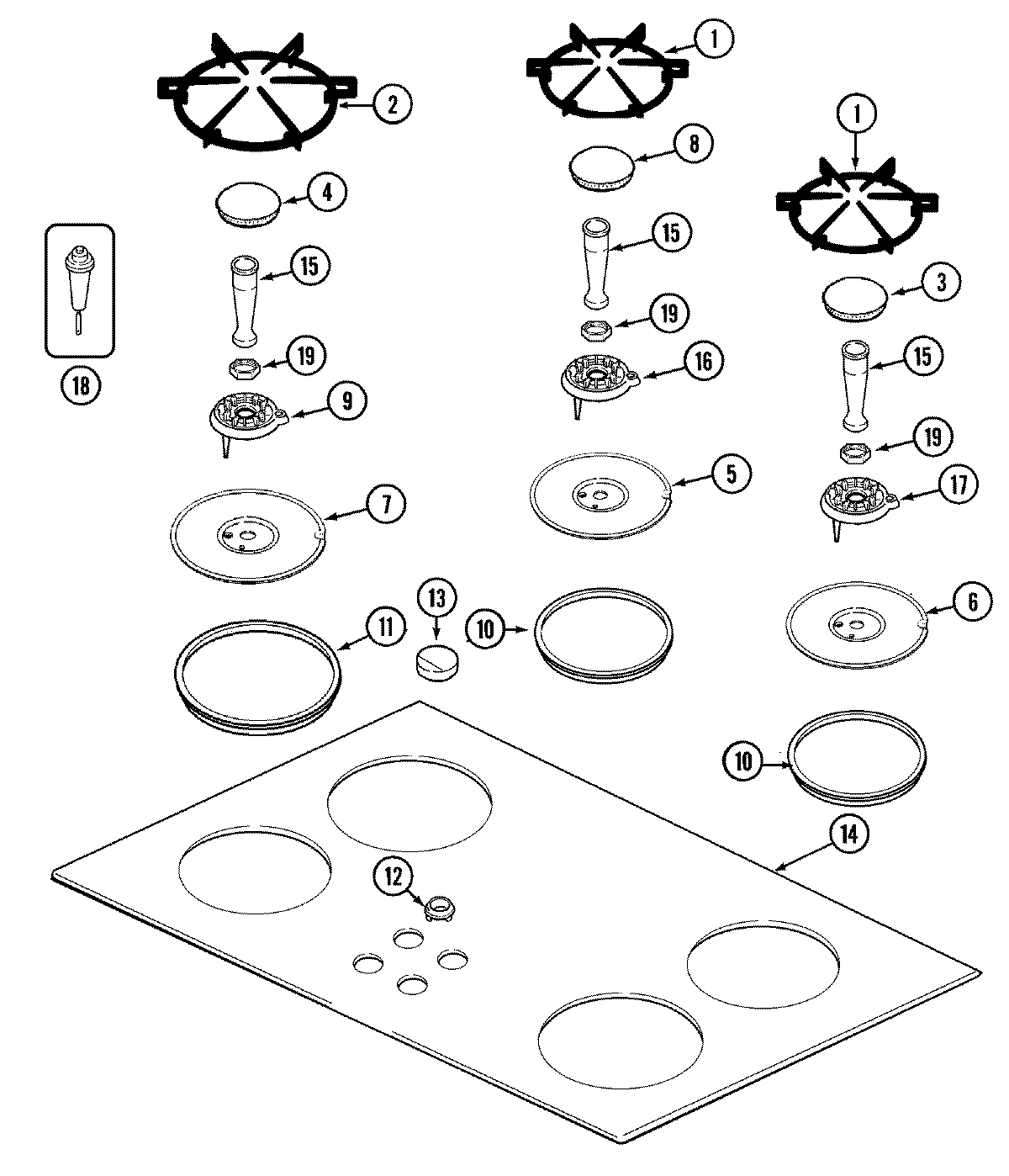

02 - TOP ASSEMBLY

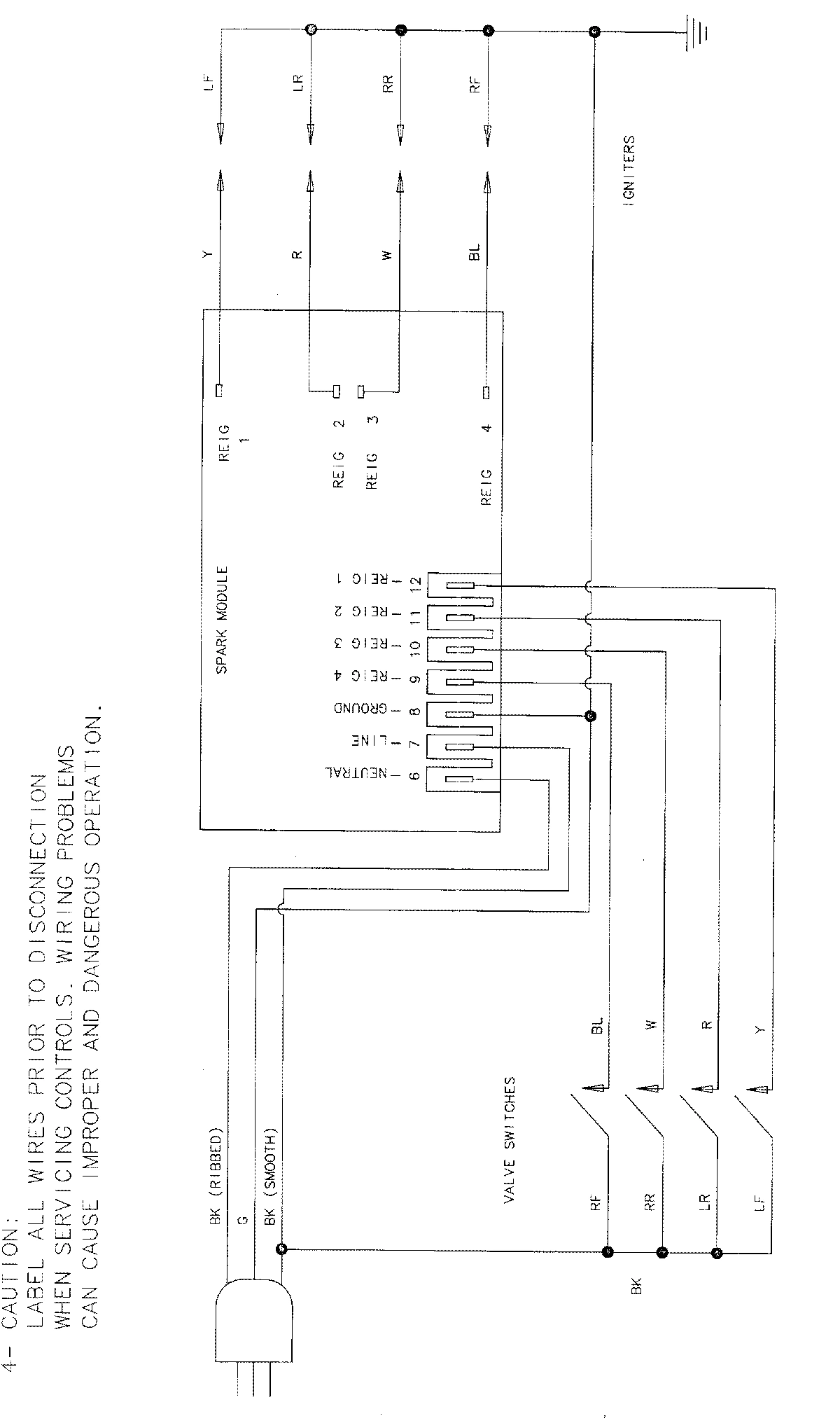

03 - WIRING INFORMATION
Common parts from model Whirlpool CCG2423W GAS COOK-TOP
1
GRATE (SM) WPL 71001661 Contact Us For Availability
2
CORD, POWER WPL Y705805 Contact Us For Availability
2
GRATE (GRY/LG) WPL 71001662 Contact Us For Availability
3
RELIEF, STRAIN WPL 705833 Contact Us For Availability
3
CAP, BURNER (SM-GRY) WPL 71002737 Contact Us For Availability
3
CAP, BURNER (SM-GRY) WPL 74007194 Contact Us For Availability
4
MODULE, SPARK----NA WPL 71001926 Contact Us For Availability
4
CAP, BURNER (LG-GRY) WPL 71002739 Contact Us For Availability
4
CAP, BURNER (LG-GRY) WPL 74007200 Contact Us For Availability
5
SCREW WPL 708765 Contact Us For Availability
5
PAN, BURNER (SMR-WHT) WPL 71002733 Contact Us For Availability
5
PAN, BURNER (SMR-WHT) WPL 71003000 Contact Us For Availability
6
TUBE, BURNER (RR) WPL 71002717 Contact Us For Availability
6
TUBE, BURNER (LF) WPL 71002718 Contact Us For Availability
6
TUBE, BURNER (LR) WPL 71002719 Contact Us For Availability
6
TUBE, BURNER (RF) WPL 74003230 Contact Us For Availability
6
TUBE, BURNER (RF) WPL 74006946 Contact Us For Availability
6
PAN, BURNER (SM-WHT) WPL 71002731 Contact Us For Availability
7
SUPPORT, CROSS WPL 71002715 Contact Us For Availability
7
SUPPORT, CROSS WPL 71003001 Contact Us For Availability
7
SUPPORT, CROSS WPL 74006947 Contact Us For Availability
7
PAN, BURNER (LG-WHT) WPL 71002730 Contact Us For Availability
8
TUBE, SUPPLY WPL 71002555 Contact Us For Availability
8
CAP, BURNER (SMR-GRY) WPL 71002735 Contact Us For Availability
8
CAP, BURNER (SMR-GRY) WPL 71002790 Contact Us For Availability
8
CAP, BURNER (SMR-GRY) WPL 74007188 Contact Us For Availability
9
SWITCH, VALVE WPL 74005032 Contact Us For Availability
9
BASE, BURNER (LG) WPL 71002743 Contact Us For Availability
9
BURNER, BASE (LRG) WPL 74007183 Contact Us For Availability
10
VALVE, BURNER (LGR) WPL 71002671 Contact Us For Availability
10
VALVE, BURNER (SM) WPL 71002672 Contact Us For Availability
10
VALVE, BURNER (SMR) WPL 71002673 Contact Us For Availability
11
PIPE, MANIFOLD WPL 71002680 Contact Us For Availability
12
GROMMET, SPILL (GRY) WPL 71002371 Contact Us For Availability
13
TAPE BURNER BOX SEAL 107`` WPL 12400021 Contact Us For Availability
13
KNOB, BURNER (WHT) WPL 71002373 Contact Us For Availability
14
SCREW WPL Y705019 Contact Us For Availability
14
GLASS, COOKTOP (WHT) WPL 71002379 Contact Us For Availability
15
HOLDER W/ORIFICE (6.5K) WPL 71002720 Contact Us For Availability
15
HOLDER W/ORIFICE (9.1K) WPL 71002721 Contact Us For Availability
15
HOLDER W/ORIFICE (10K) WPL 71002722 Contact Us For Availability
15
ORIFICE, LP (6000) WPL 71002727 Contact Us For Availability
16
BASE, BURNER (SMR) WPL 71002745 Contact Us For Availability
17
BRACKET, SPARK MODULE WPL 71002779 Contact Us For Availability
17
BASE, BURNER (SM) WPL 71002744 Contact Us For Availability
17
BURNER, BASE (SM) WPL 74007182 Contact Us For Availability
NI
WIRE, WHT (14``) WPL 71001737 Contact Us For Availability
NI
WIRE, WHT (LR-27``) WPL 71001738 Contact Us For Availability
NI
WIRE WHT (25``) WPL 71001740 Contact Us For Availability
NI
HARNESS, WIRE WPL 71002381 Contact Us For Availability
NI
WIRE, WHT (29``) WPL 71002828 Contact Us For Availability
NI
NAT-LP ORIFICE KIT (30``) WPL 71002725 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71002741 Contact Us For Availability
NI
MANUAL, USE & CARE (FCH) WPL 71002742 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002163 Contact Us For Availability
× ![]()
