Model Whirlpool CCE9300PL ELECTRIC COOK-TOP – Common Parts & Diagrams

Common parts from model Whirlpool CCE9300PL ELECTRIC COOK-TOP

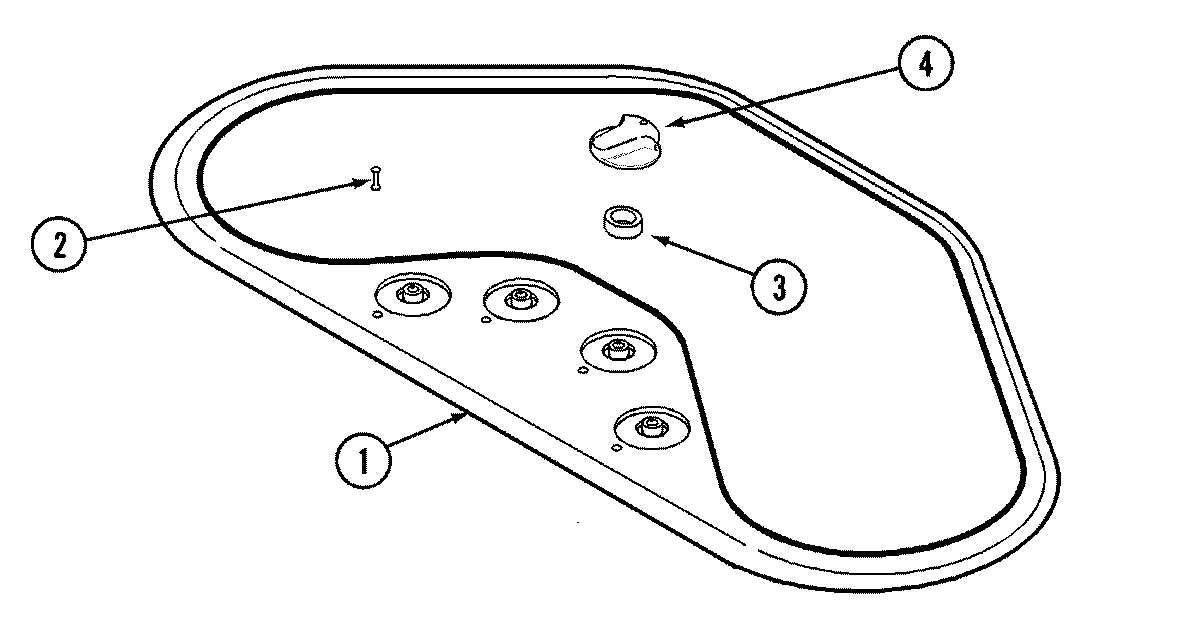

01 - BODY (CCE9300BF/BG/GG/JD/PL)

Print

• This Diagram
• All Diagrams

1

TOP, GLASS ASSY. (PLUM) WPL 71002878 Contact Us For Availability

View on Model

2

BRACKET, SWITCH MTG. WPL 71002896 Contact Us For Availability

View on Model

2

LENS, INDICATOR LIGHT WPL 71002886 Contact Us For Availability

View on Model

3

W11088181 Whirlpool Surface Element Switch In Stock WPL W11088181 View Details $70.95

View on Model

3

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

View on Model

3

RING, KNOB SEAL WPL 71002895 Contact Us For Availability

View on Model

4

12002125 Whirlpool Range Oven Cooktop Dual In In Stock WPL 12002125 View Details $51.45

View on Model

4

KNOB, INFINITE (PLUM) WPL 71002887 Contact Us For Availability

View on Model

5

STUD, BURNER BOX WPL 71002901 Contact Us For Availability

View on Model

6

STUD, ELEMENT MOUNTING WPL 71002902 Contact Us For Availability

View on Model

7

SPRING, ELEMENT WPL 71002900 Contact Us For Availability

View on Model

8

W10823704 Whirlpool Range Cooktop Radiant Sur In Stock WPL W10823704 View Details $140.81

View on Model

9

LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability

View on Model

10

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 View Details $144.85

View on Model

11

LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability

View on Model

12

W10823709 Whirlpool Range Dual Radiant Surfac In Stock WPL W10823709 View Details $147.51

View on Model

13

LIMITER WPL 74004494 Contact Us For Availability

View on Model

13

LIMITER (DUAL) WPL 74002176 Contact Us For Availability

View on Model

14

CONNECTOR, RIGHT ANG WPL 7417P00460 Contact Us For Availability

View on Model

15

TUBING, CONDUIT (FLEXIBLE) WPL 3414F03544 Contact Us For Availability

View on Model

15

WIRES, CONDUIT WPL 5130A01460 Contact Us For Availability

View on Model

16

SLEEVE, TUBE WPL 8018P00160 Contact Us For Availability

View on Model

17

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

View on Model

18

BLOCK, TERMINAL WPL 790187 Contact Us For Availability

View on Model

19

WP74004005 Whirlpool Screw Backorder WPL WP74004005 View Details $4.82

View on Model

19

BRACKET, MOUNT (2200W) WPL 71002897 Contact Us For Availability

View on Model

19

BRACKET, MOUNT (1200W) WPL 71002898 Contact Us For Availability

View on Model

20

SPACER, DUAL ELEMENT WPL 71002899 Contact Us For Availability

View on Model

21

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 View Details $5.30

View on Model

NI

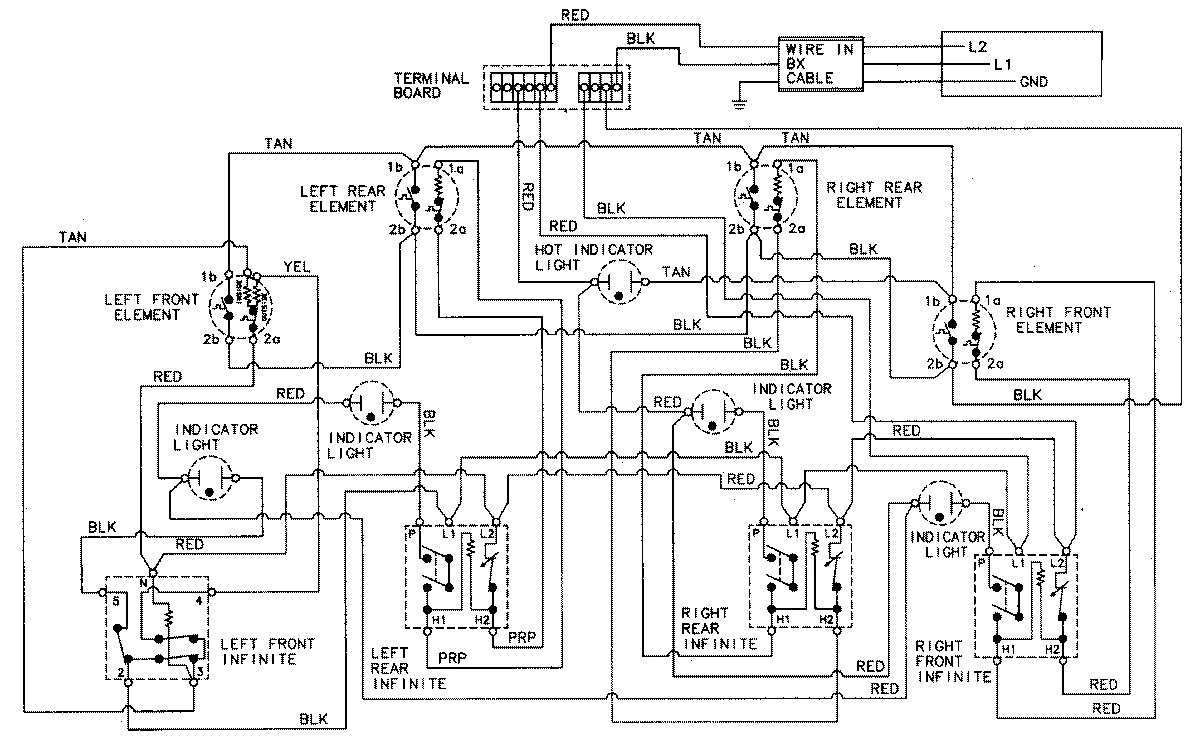

WIRING INFORMATION WPL 15002145 Contact Us For Availability

View on Model

NI

MANUAL, SERVICE WPL 16010241 Contact Us For Availability

View on Model

NI

CREAM, ELCO CLEANING (10 0Z) WPL 71001431 Contact Us For Availability

View on Model

NI

POLISH, BLUE CREEK WPL 71002668 Contact Us For Availability

View on Model

NI

GUIDE, COOKING WPL 71002782 Contact Us For Availability

View on Model

NI

MANUAL, USE & CARE WPL 71002905 Contact Us For Availability

View on Model

NI

HARNESS, HOT LIGHT WPL 71002906 Contact Us For Availability

View on Model

NI

HARNESS, CONTROL/ELEMENTS WPL 71002907 Contact Us For Availability

View on Model

NI

TEMPLET, CUTOUT WPL 71002910 Contact Us For Availability

View on Model

NI

WIRE, INDICATOR LIGHT (BLK) WPL 71002911 Contact Us For Availability

View on Model

×
