Model Whirlpool CAWC529PQ1 COMPACT AUTOMATIC WASHER – Common Parts & Diagrams

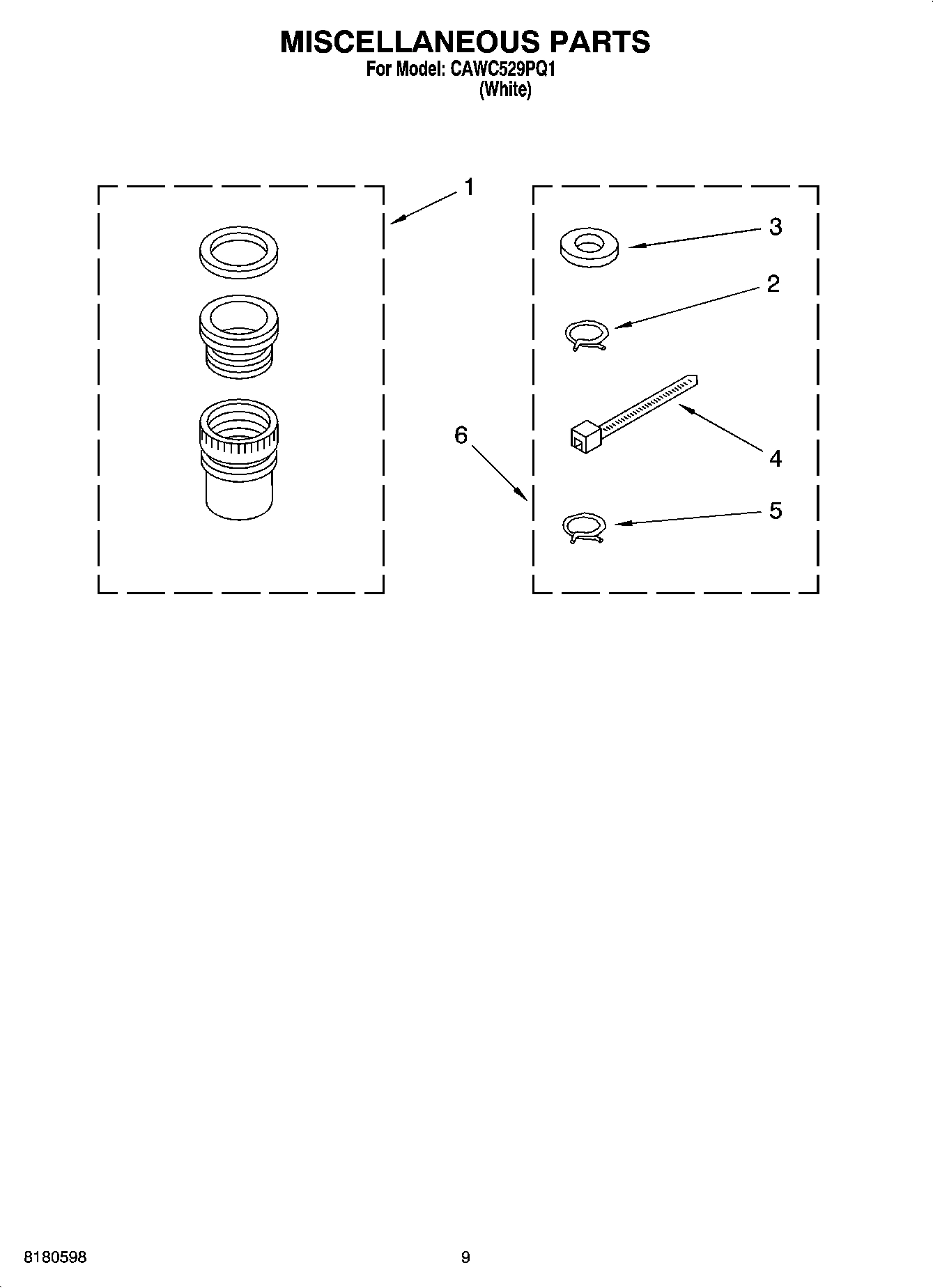

06 - MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED)

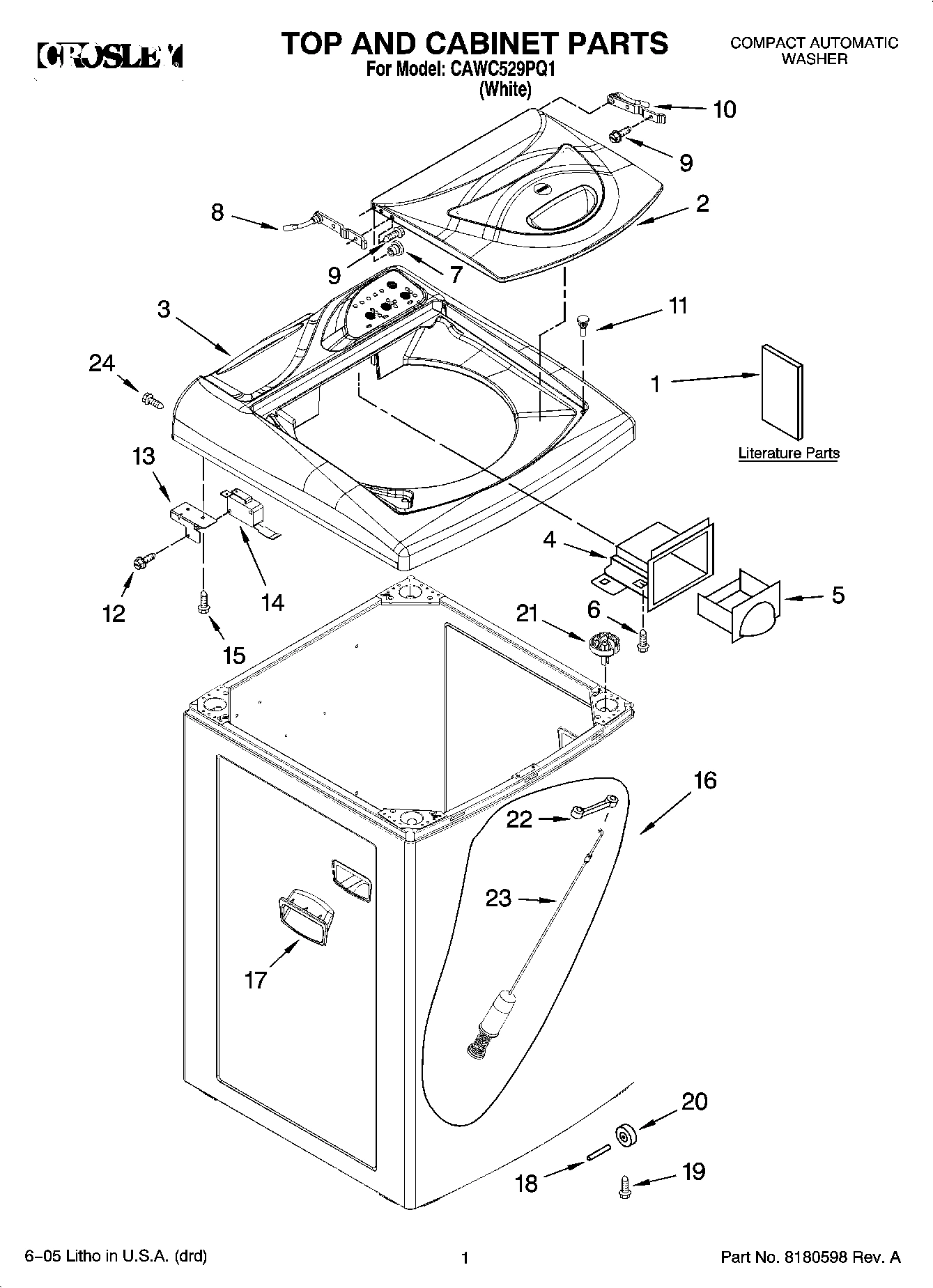

01 - TOP AND CABINET PARTS

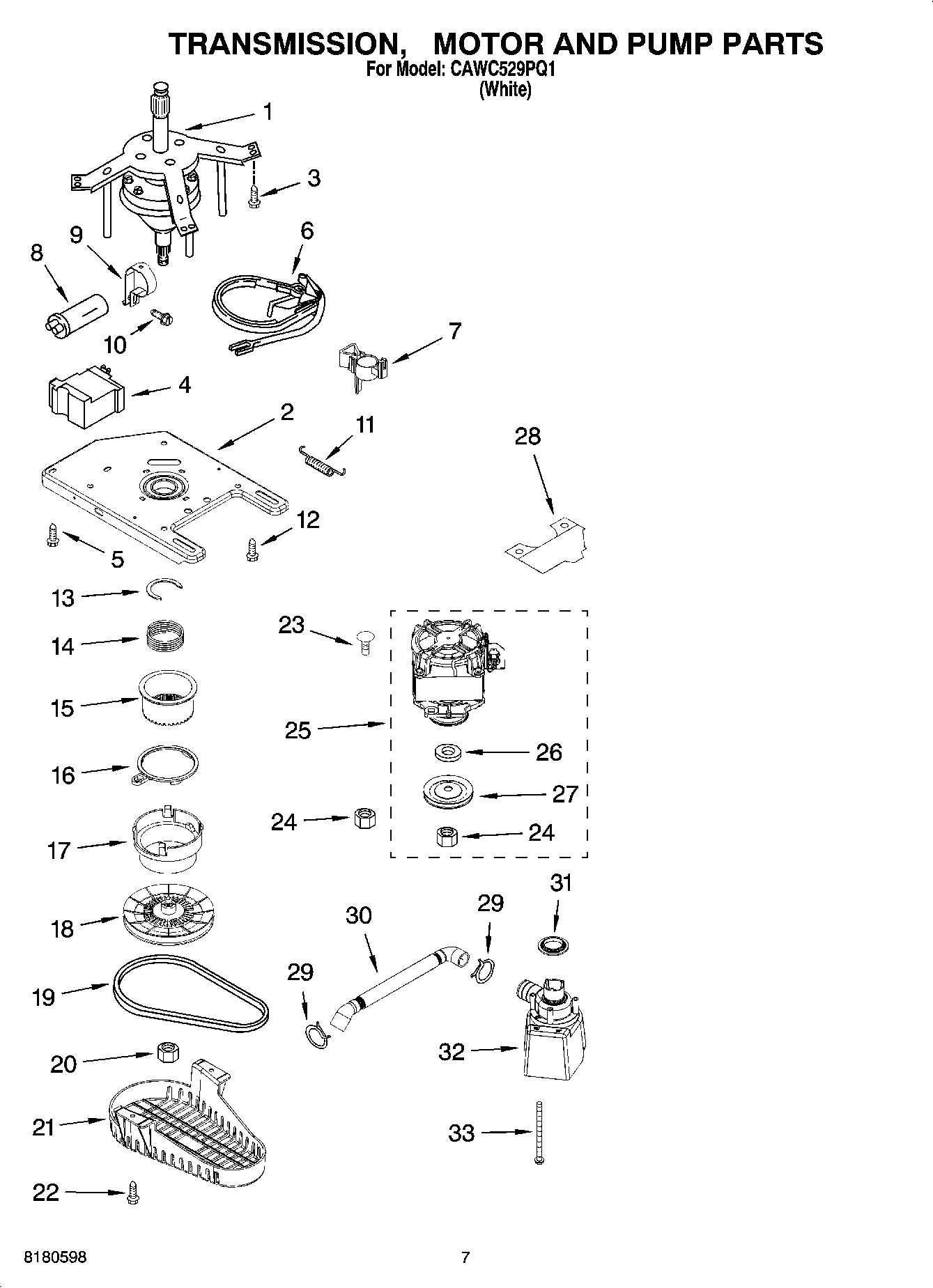

04 - TRANSMISSION, MOTOR AND PUMP PARTS

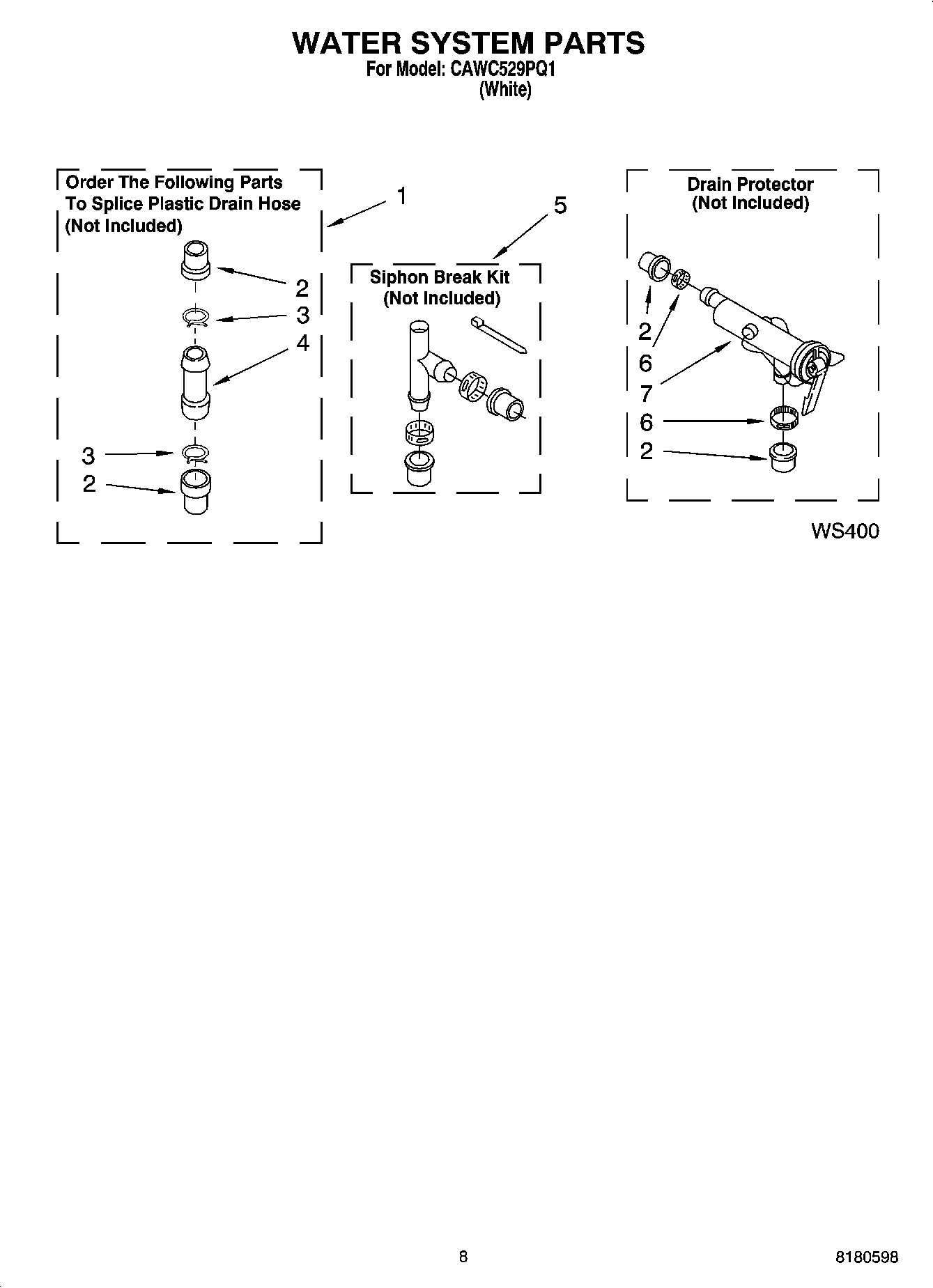

05 - WATER SYSTEM PARTS

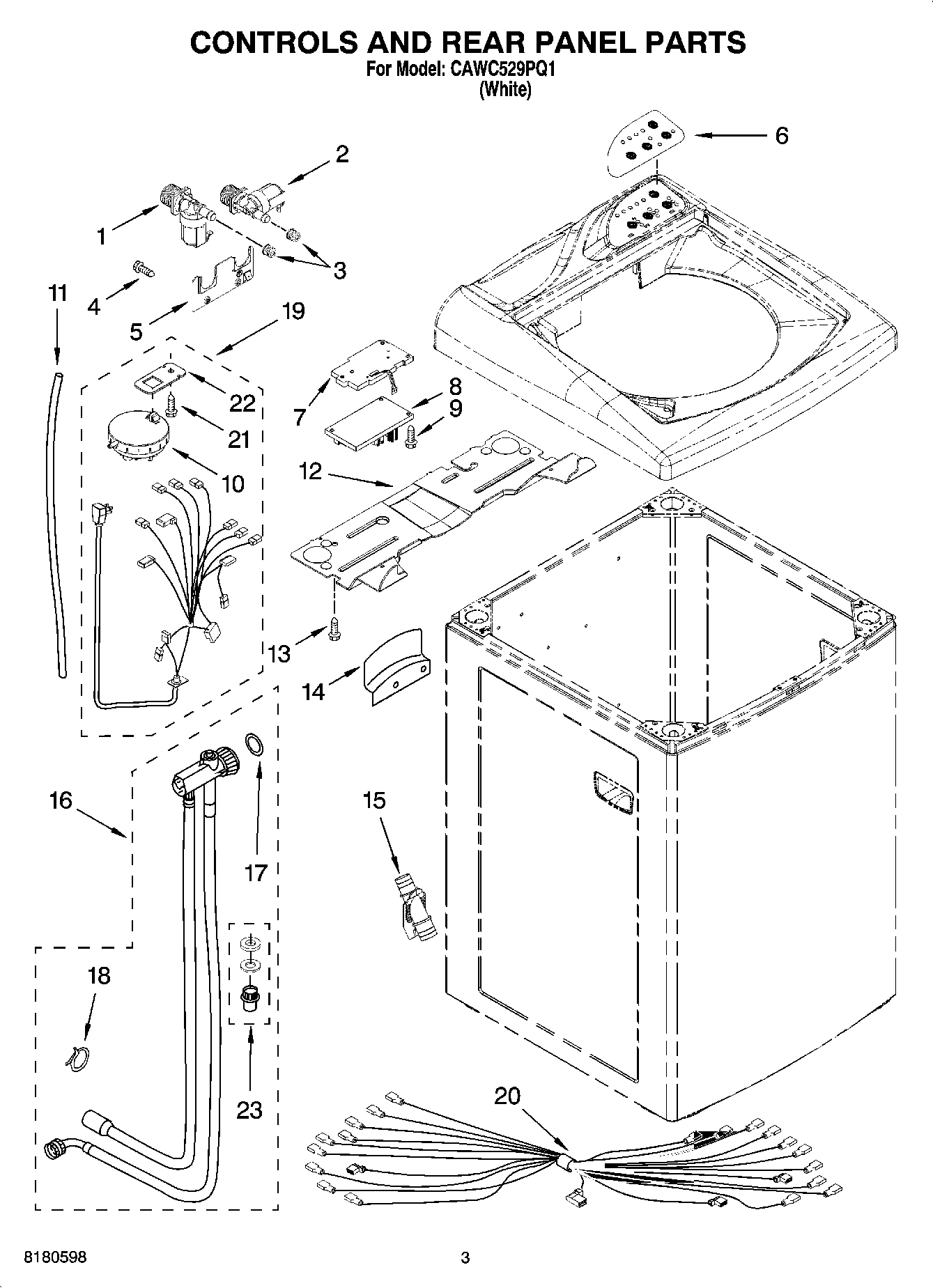

02 - CONTROLS AND REAR PANEL PARTS

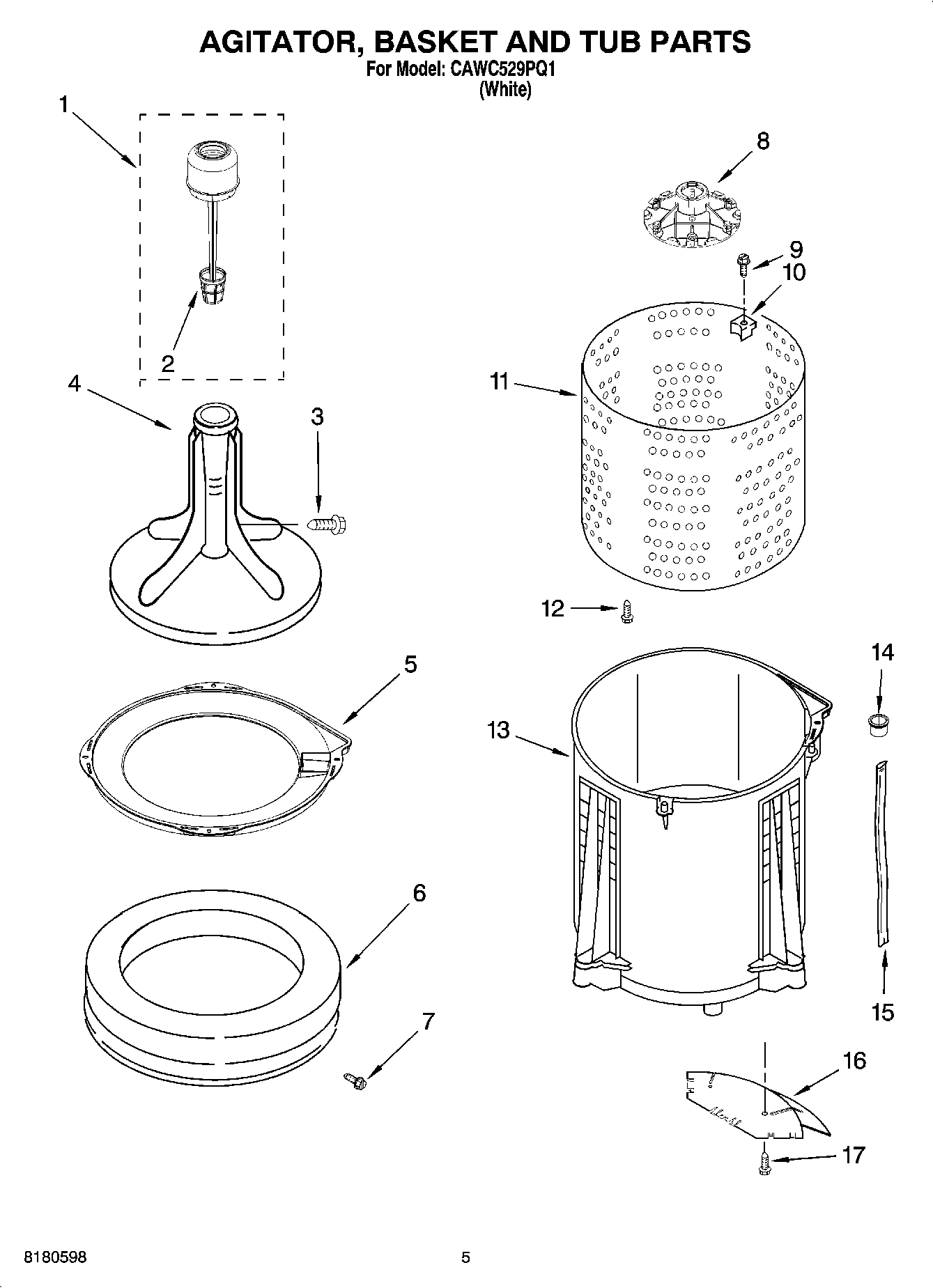

03 - AGITATOR, BASKET AND TUB PARTS
Common parts from model Whirlpool CAWC529PQ1 COMPACT AUTOMATIC WASHER
Stationary To Portable WPL 285768 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Inlet Valve (Hot) WPL 326032994 Contact Us For Availability
2
Motor Plate & Bearing Assembly WPL 326042919 Contact Us For Availability
2
Inlet Valve (Cold) WPL 326032997 Contact Us For Availability
2
Filter, Lint WPL 8182228 Contact Us For Availability
3
Seal, Inlet Valve (2) WPL 326033919 Contact Us For Availability
3
Screw, Agitator WPL 8182296 Contact Us For Availability
4
Brake Actuator WPL 326042226 Contact Us For Availability
4
Housing, Dispenser WPL 326033918 Contact Us For Availability
4
Screw (2) WPL 326018823 Contact Us For Availability
5
Bracket, Inlet Valve WPL 326027101 Contact Us For Availability
5
Tub Ring WPL 326000116 Contact Us For Availability
6
Overlay WPL 326037164 Contact Us For Availability
6
Balance Ring WPL 8182229 Contact Us For Availability
7
Support, Brake Band WPL 326016785 Contact Us For Availability
7
Interface Board WPL 326048437 Contact Us For Availability
7
Drain Protector (Not Included) WPL 367031 Contact Us For Availability
8
Control, Electronic WPL 326048436 Contact Us For Availability
8
Hub, Drive WPL 8182302 Contact Us For Availability
9
SCREW WPL 8182301 Contact Us For Availability
10
Switch, Water Level WPL 326034589 Contact Us For Availability
10
Saddle Block WPL 8182303 Contact Us For Availability
11
BASKET WPL 8182230 Contact Us For Availability
12
Shield, Controls WPL 326034866 Contact Us For Availability
12
Screw (6) WPL 8182300 Contact Us For Availability
13
Clip WPL 8182268 Contact Us For Availability
13
Tub WPL 326033908 Contact Us For Availability
14
Switch, Lid WPL 326033879 Contact Us For Availability
14
Bracket, Hose Storage WPL 326034862 Contact Us For Availability
14
Sleeve, Tub Overflow WPL 326036378 Contact Us For Availability
15
Connector, Drain Hose WPL 326034647 Contact Us For Availability
15
Slider, Splutch WPL 8182263 Contact Us For Availability
15
Bag, Tub Overflow WPL 326036377 Contact Us For Availability
16
Cam Ring, Splutch WPL 8182265 Contact Us For Availability
16
Shield, Tub/Motor WPL 326033906 Contact Us For Availability
17
Cam, Splutch WPL 8182266 Contact Us For Availability
17
Screw (3) WPL 326010229 Contact Us For Availability
18
Pulley, Splutch WPL 8182264 Contact Us For Availability
19
Drive Belt WPL 8182226 Contact Us For Availability
20
NUT WPL 8182297 Contact Us For Availability
21
Shield, Pulley WPL 326044746 Contact Us For Availability
21
Screw WPL 326041720 Contact Us For Availability
22
Strap, Snubber WPL 326000047 Contact Us For Availability
22
Screw (2) WPL 8182295 Contact Us For Availability
22
Bracket, Pressure Switch Mounting WPL 326044485 Contact Us For Availability
23
Bolt, Motor Mounting (2) WPL 8182304 Contact Us For Availability
25
Motor, Main Drive WPL 326032993 Contact Us For Availability
26
WASHER WPL 8182305 Contact Us For Availability
27
Pulley, Motor WPL 8182281 Contact Us For Availability
28
Shield, Motor WPL 326033905 Contact Us For Availability
30
Hose, Pump to Tub WPL 326036549 Contact Us For Availability
31
Seal, Pump to Tub WPL 326031821 Contact Us For Availability
32
Pump (Complete) WPL 326032991 Contact Us For Availability
33
Screw, Pump (3) WPL 326029005 Contact Us For Availability
× ![]()
