Model Whirlpool CAWC529PQ0 COMPACT AUTOMATIC WASHER – Common Parts & Diagrams
04 - TRANSMISSION, MOTOR AND PUMP PARTS
02 - CONTROLS AND REAR PANEL PARTS

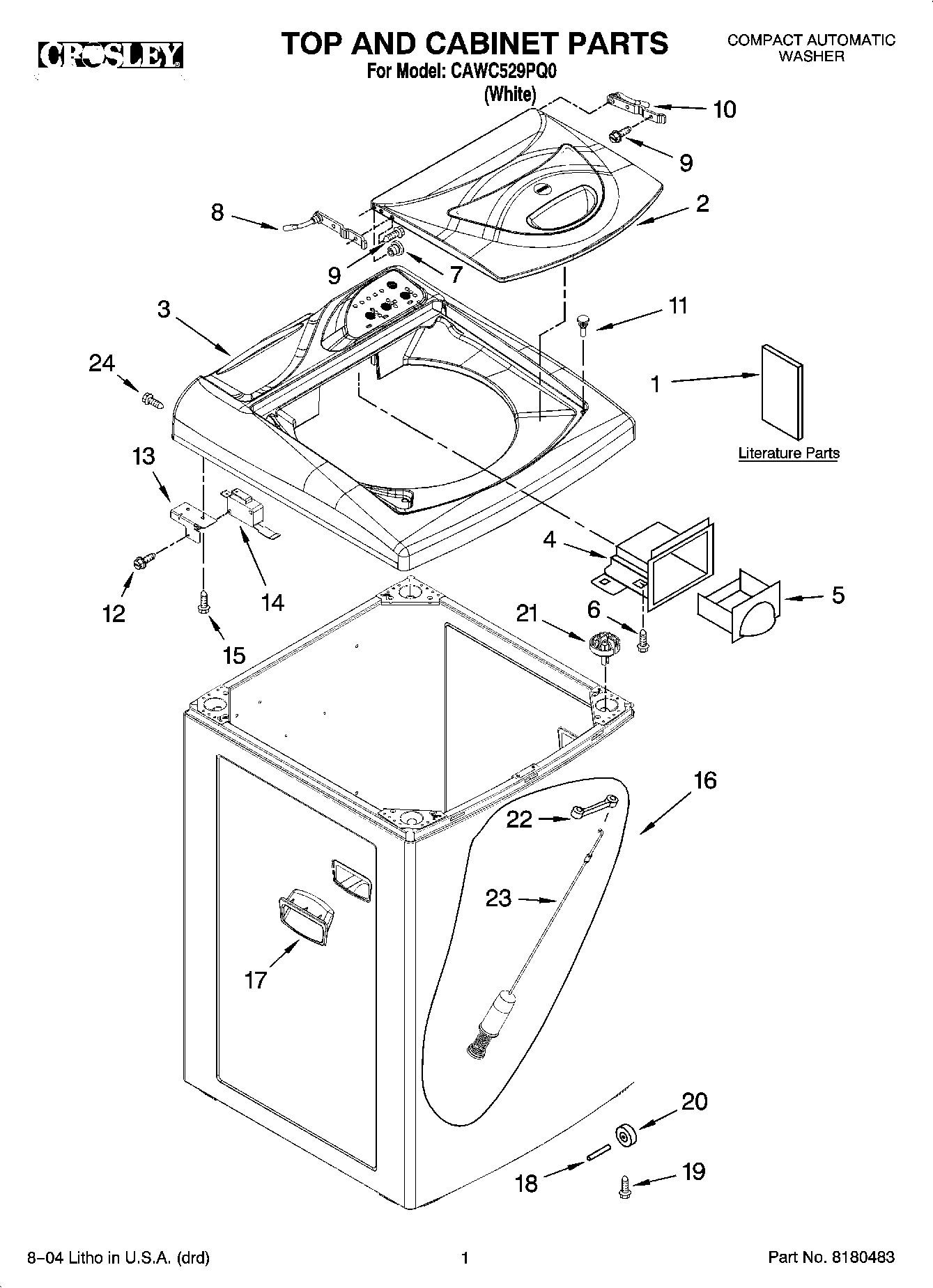

01 - TOP AND CABINET PARTS

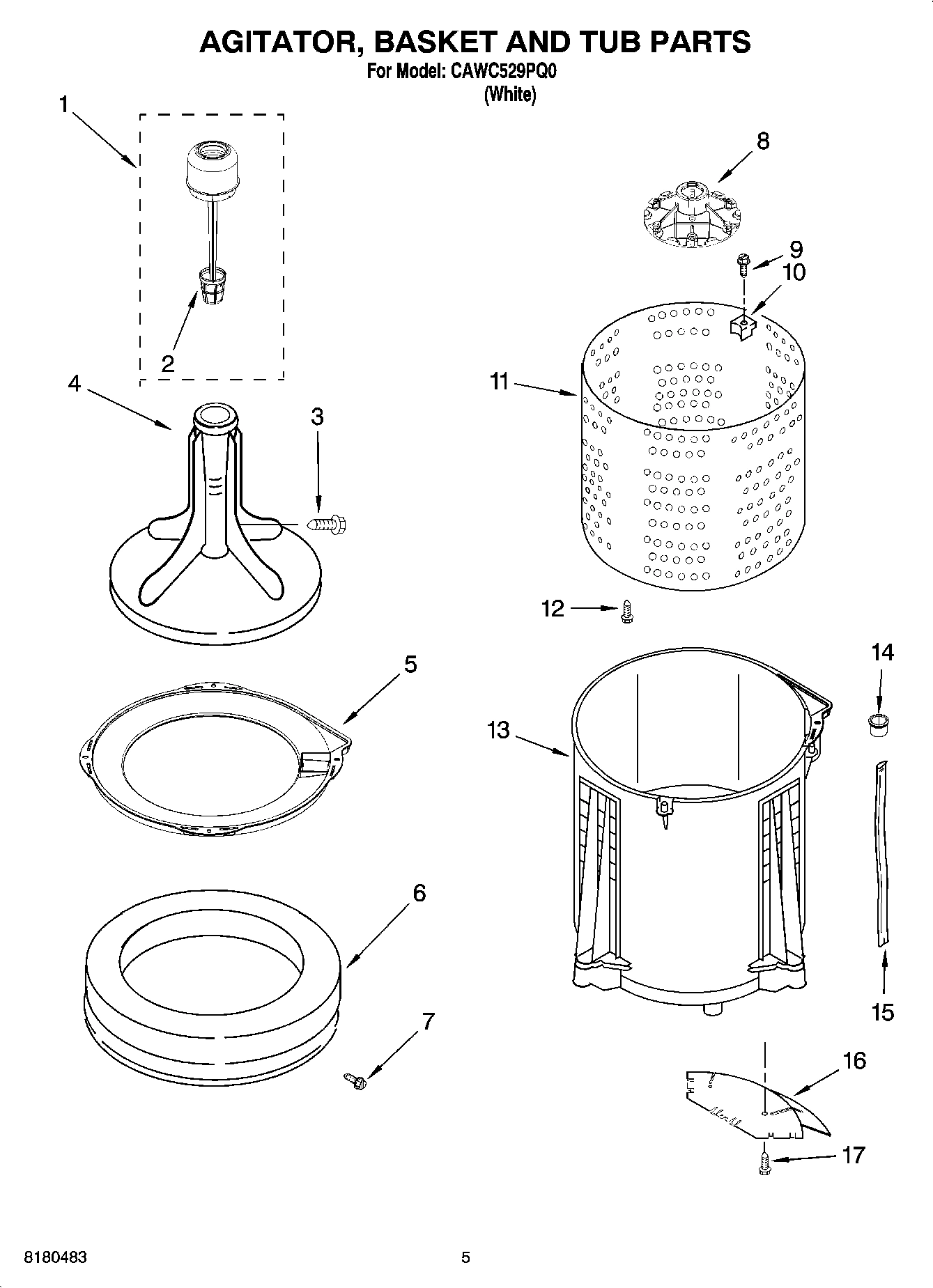

03 - AGITATOR, BASKET AND TUB PARTS

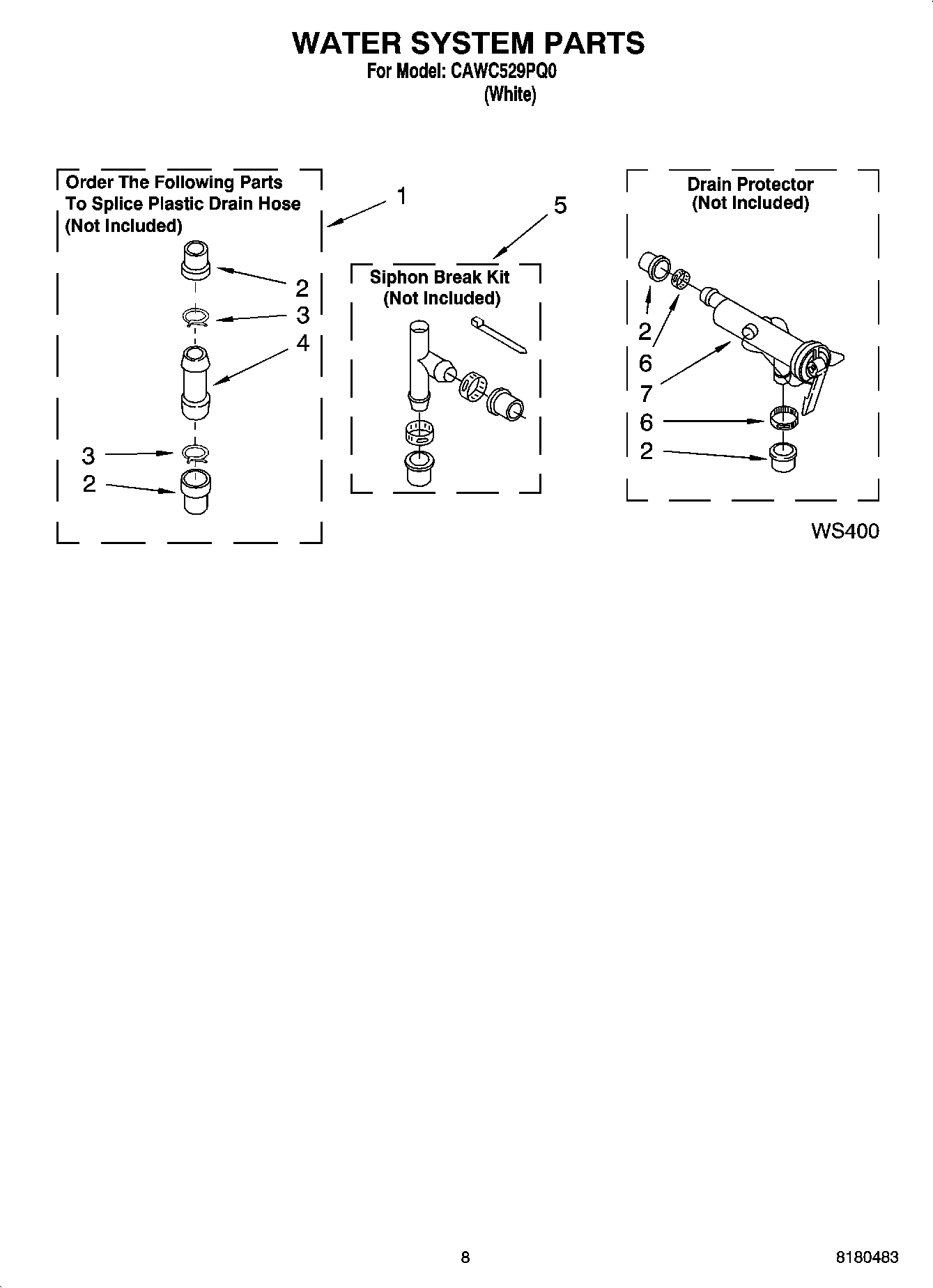

05 - WATER SYSTEM PARTS, MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool CAWC529PQ0 COMPACT AUTOMATIC WASHER
Stationary To Portable WPL 285768 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Portable To Fixed WPL 4396746 Contact Us For Availability
COUPLING WPL ARI144551A Contact Us For Availability
CONVERSION KIT WPL ARI144552A Contact Us For Availability
DRYER STACK STAND WPL ARI144553A Contact Us For Availability
1
Inlet Valve (Hot) WPL 326032994 Contact Us For Availability
1
Use & Care Guide WPL 326035917 Contact Us For Availability
1
Wiring Diagram & Tech Sheet Assy WPL 326038711 Contact Us For Availability
2
Motor Plate & Bearing Assembly WPL 326042919 Contact Us For Availability
2
Inlet Valve (Cold) WPL 326032997 Contact Us For Availability
2
Lid WPL 326042228 Contact Us For Availability
2
Filter, Lint WPL 8182228 Contact Us For Availability
3
Top WPL 326040946 Contact Us For Availability
3
Screw, Agitator WPL 8182296 Contact Us For Availability
4
Brake Actuator WPL 326042226 Contact Us For Availability
4
Housing, Dispenser WPL 326033918 Contact Us For Availability
5
Drawer, Dispenser WPL 326040949 Contact Us For Availability
5
Tub Ring WPL 326000116 Contact Us For Availability
5
Clamp, Hose WPL 661581 Contact Us For Availability
6
Overlay WPL 326037164 Contact Us For Availability
6
Balance Ring WPL 8182229 Contact Us For Availability
6
Miscellaneous Parts Bag Miscellaneous parts m WPL 3428855 Contact Us For Availability
7
Support, Brake Band WPL 326016785 Contact Us For Availability
7
Bearing, Hinge WPL 326034817 Contact Us For Availability
7
Drain Protector (Not Included) WPL 367031 Contact Us For Availability
8
Hinge, Lid (LH) WPL 326038394 Contact Us For Availability
8
Hub, Drive WPL 8182302 Contact Us For Availability
9
Screw, Lid Hinge (4) WPL 326035414 Contact Us For Availability
9
SCREW WPL 8182301 Contact Us For Availability
10
Switch, Water Level WPL 326034589 Contact Us For Availability
10
Hinge, Lid (RH) WPL 326037103 Contact Us For Availability
10
Saddle Block WPL 8182303 Contact Us For Availability
11
BUMPER WPL 326034790 Contact Us For Availability
11
BASKET WPL 8182230 Contact Us For Availability
12
Screw (6) WPL 8182300 Contact Us For Availability
13
Bracket, Lid Switch WPL 326036494 Contact Us For Availability
13
Tub WPL 326033908 Contact Us For Availability
14
Switch, Lid WPL 326033879 Contact Us For Availability
14
Bracket, Hose Storage WPL 326034862 Contact Us For Availability
14
Sleeve, Tub Overflow WPL 326036378 Contact Us For Availability
15
Connector, Drain Hose WPL 326034647 Contact Us For Availability
15
Screw (2) WPL 326041720 Contact Us For Availability
15
Bag, Tub Overflow WPL 326036377 Contact Us For Availability
16
Cam Ring, Splutch WPL 8182265 Contact Us For Availability
16
Cabinet (Includes 17) WPL 326040943 Contact Us For Availability
16
Shield, Tub/Motor WPL 326033906 Contact Us For Availability
17
Cam, Splutch WPL 8182266 Contact Us For Availability
17
Handle, Cabinet WPL 326033911 Contact Us For Availability
17
Screw (3) WPL 8182292 Contact Us For Availability
18
Shaft, Wheel (4) WPL 326033978 Contact Us For Availability
19
Drive Belt WPL 8182226 Contact Us For Availability
19
Screw (4) WPL 8182295 Contact Us For Availability
20
Wheel (4) WPL 326033979 Contact Us For Availability
22
Strap, Snubber WPL 326000047 Contact Us For Availability
25
Motor, Main Drive WPL 326032993 Contact Us For Availability
30
Hose, Pump to Tub WPL 326036549 Contact Us For Availability
31
Seal, Pump to Tub WPL 326031821 Contact Us For Availability
× ![]()
