Model Whirlpool C3581XRW ELECTRIC RANGE – Common Parts & Diagrams

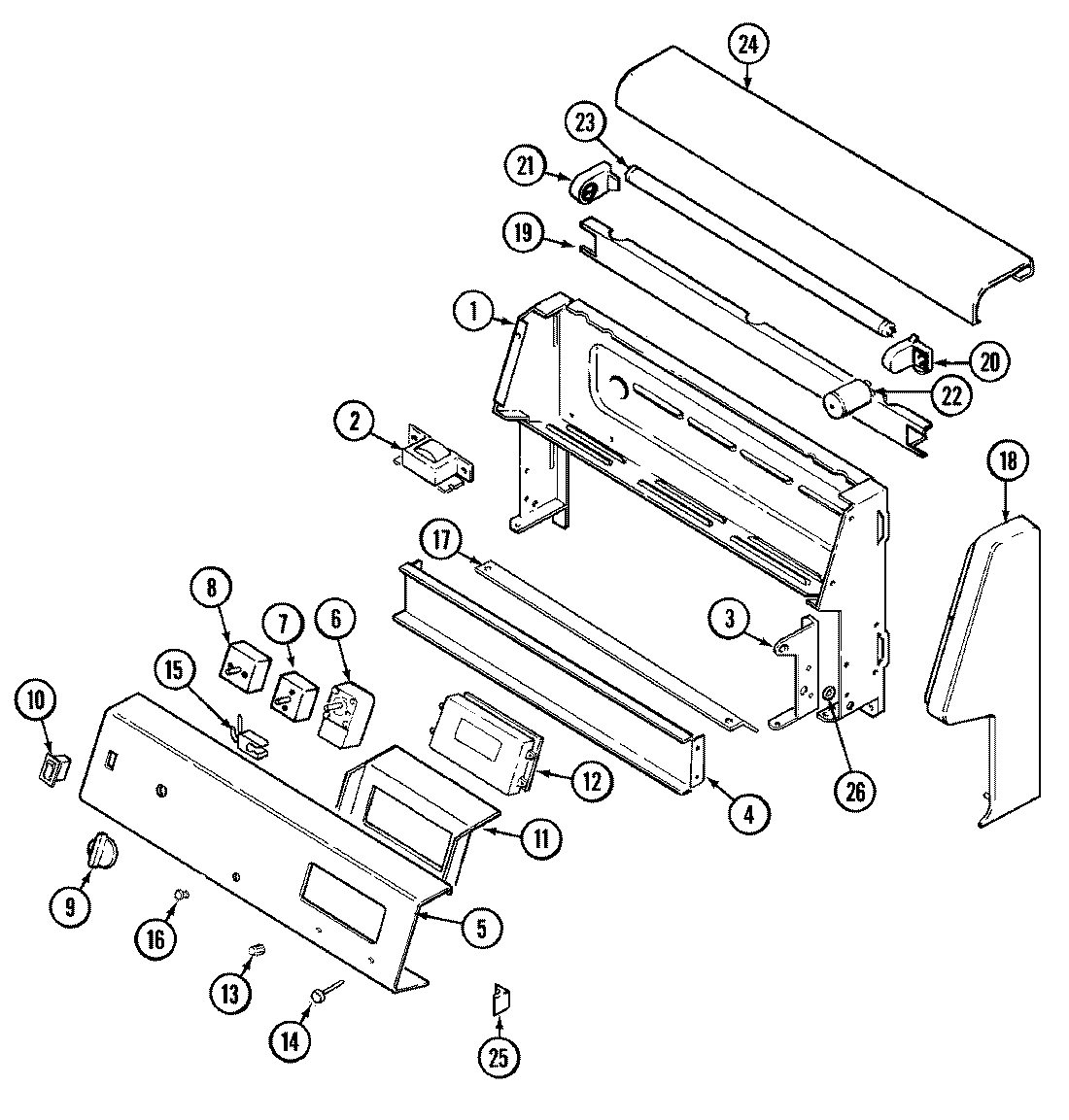

02 - CONTROL PANEL

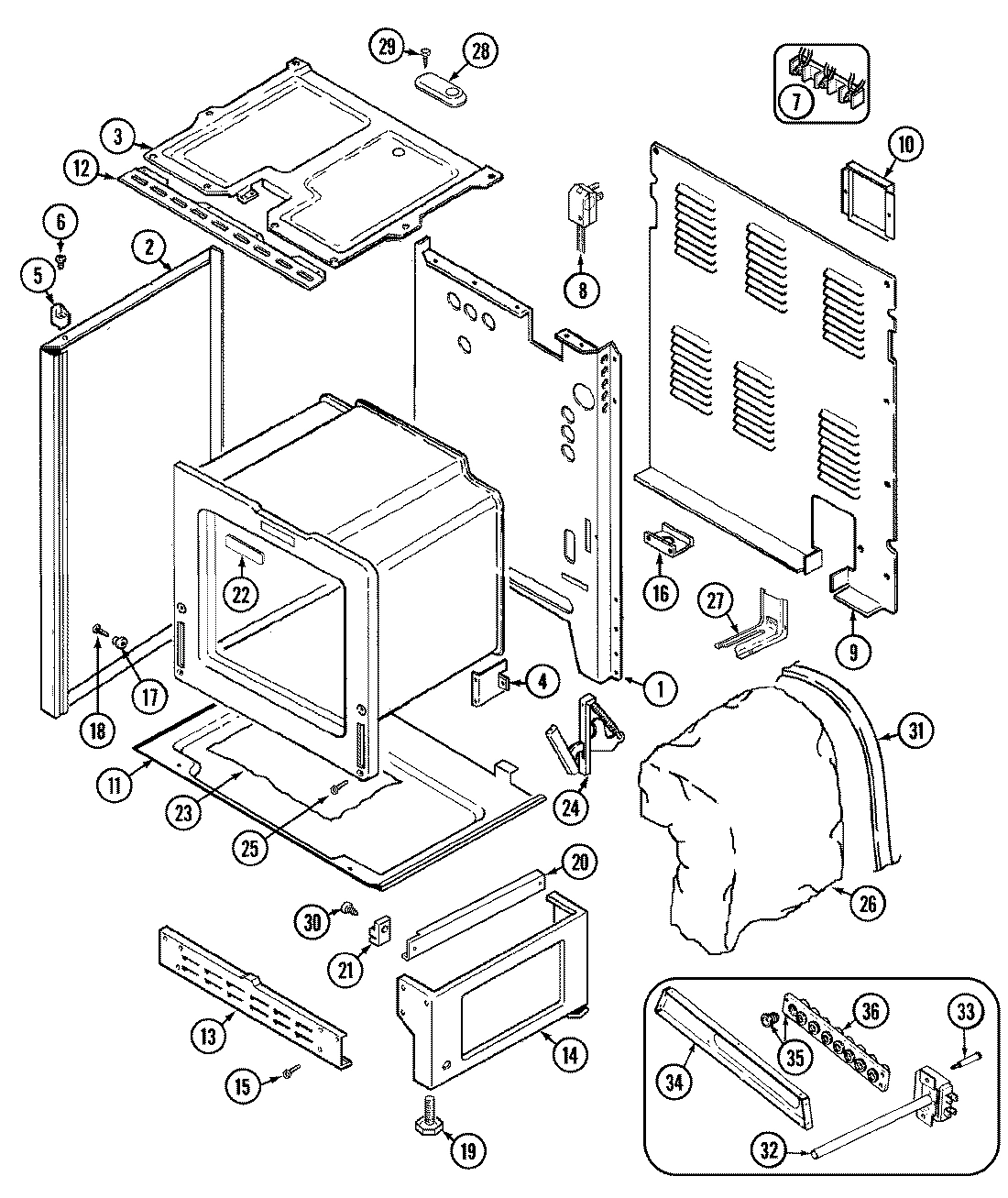

01 - BODY

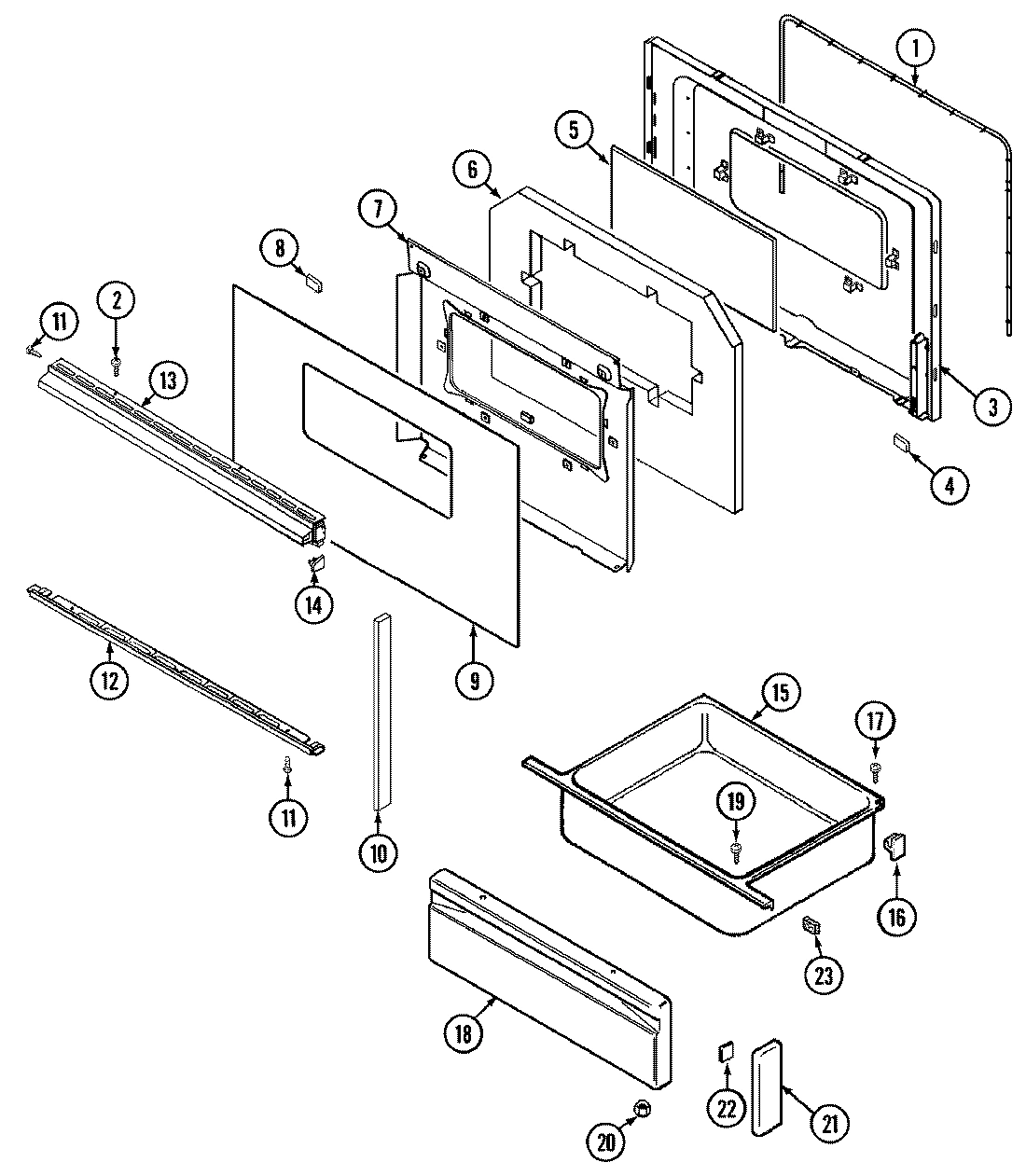

04 - DOOR/DRAWER (SER. PRE. 24)

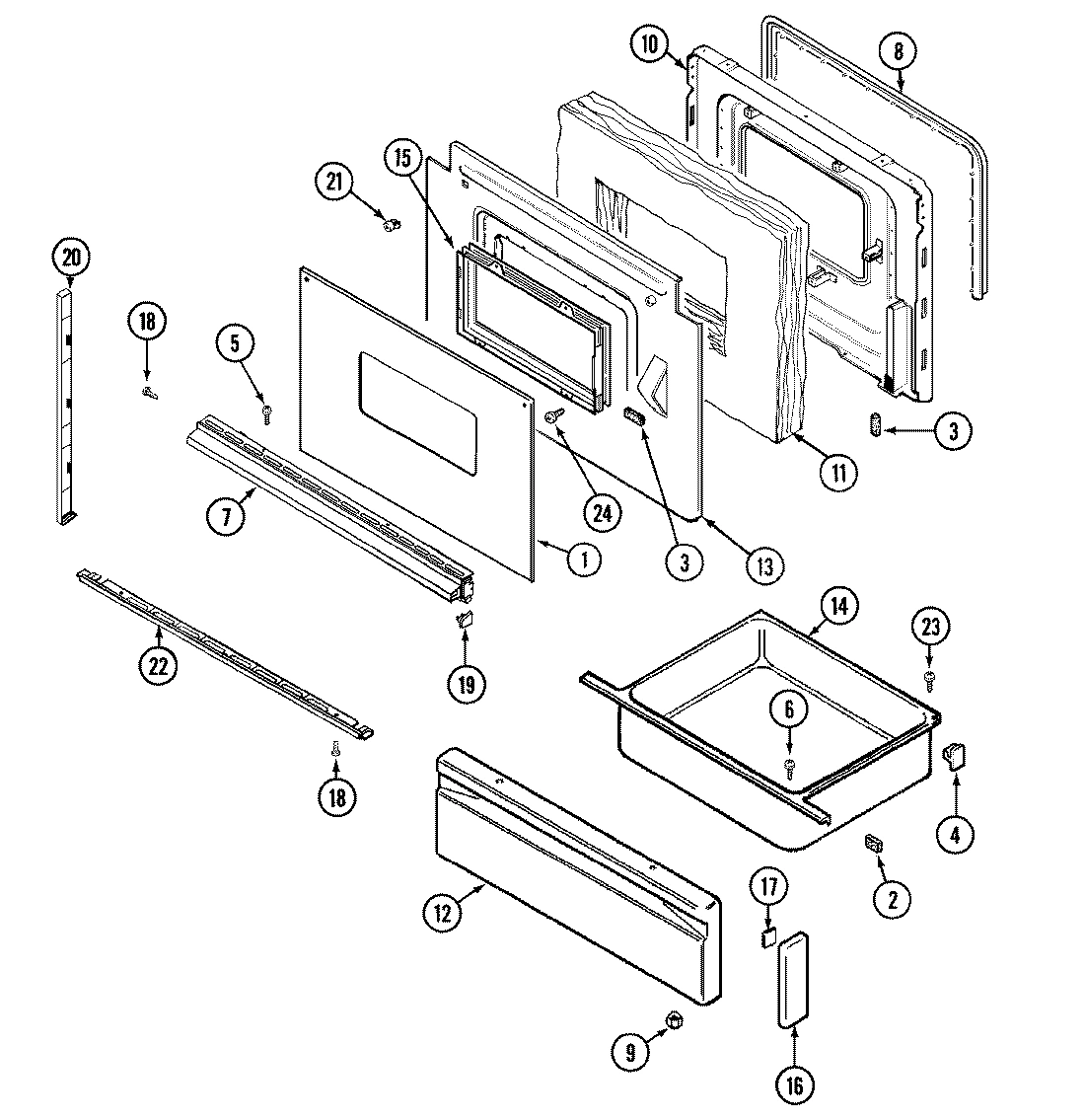

03 - DOOR/DRAWER

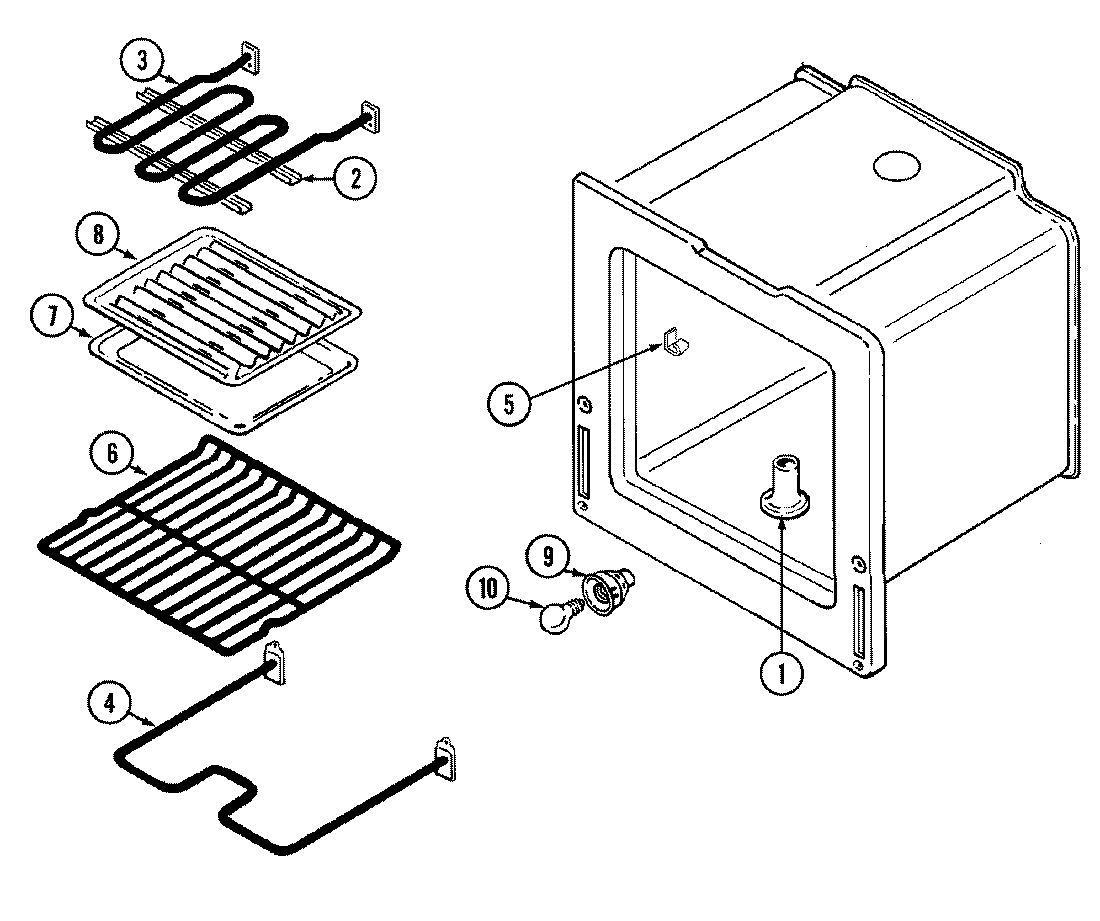

05 - OVEN

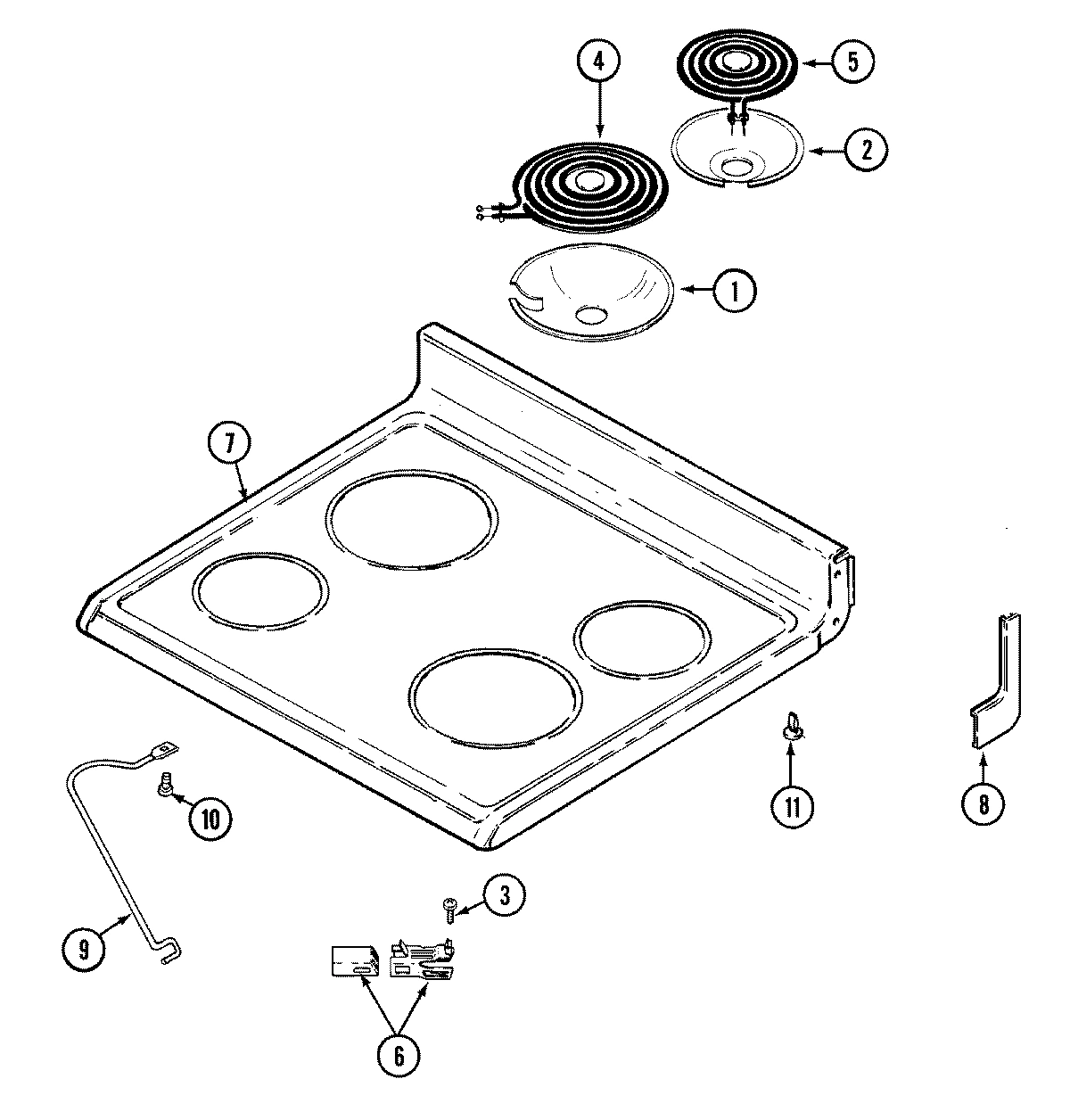

06 - TOP ASSEMBLY
Common parts from model Whirlpool C3581XRW ELECTRIC RANGE
1
HOUSING, CONTROL PANEL WPL 4001F09451 Contact Us For Availability
1
SHIELD, WIRE WPL 3604F21851 Contact Us For Availability
1
SCREW WPL 7101P33760 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
SCREW WPL 7101P29060 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
BOWL, DRIP (8``-BLK) WPL 7725P03760 Contact Us For Availability
1
RING, TRIM (8``) WPL 7744P05460 Contact Us For Availability
2
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
2
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
2
SCREW WPL 7101P30060 Contact Us For Availability
2
BOWL, DRIP (6``) (BLK) WPL 7725P03660 Contact Us For Availability
2
RING, TRIM (6``) WPL 7744P05360 Contact Us For Availability
3
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
3
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
BOX, BURNER WPL 4011F23919 Contact Us For Availability
3
LINING, DOOR WPL 2402W21319 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
4
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P07060 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P08860 Contact Us For Availability
5
PANEL, CONTROL (BLK) WPL 4876S05959 Contact Us For Availability
5
SCREW WPL 7118P01960 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
5
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P06960 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P08760 Contact Us For Availability
6
SCREW WPL 7101P30960 Contact Us For Availability
6
THERMOSTAT WPL 7404P10560 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
INSULATION, DOOR WPL 7002P15860 Contact Us For Availability
6
SCREW WPL 7101P07260 Contact Us For Availability
6
RACK, OVEN WPL 7801P04760 Contact Us For Availability
7
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
7
BAFFLE, DOOR WPL 3601F24080 Contact Us For Availability
7
SCREW WPL 7101P20960 Contact Us For Availability
7
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W07881 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
CORD, POWER WPL 7402P03660 Contact Us For Availability
8
CORD, POWER WPL 7402P05060 Contact Us For Availability
8
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
8
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
8
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
8
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
9
KNOB, INFINITE WPL 7737P02860 Contact Us For Availability
9
COVER, WIRE WPL 4005F45451 Contact Us For Availability
9
NUT, LOCK WPL 7103P13960 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
10
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
LINING, DOOR WPL 2402W20319 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
BRACKET, CLOCK WPL 3801F24745 Contact Us For Availability
11
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
11
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
11
GLIDE WPL 8016P01360 Contact Us For Availability
12
CLOCK WPL 7602P09560 Contact Us For Availability
12
SUPPORT, CLOCK WPL 8004P03560 Contact Us For Availability
12
SHAFT, BIT GENERATOR WPL 8312P01560 Contact Us For Availability
12
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
12
PANEL, DRAWER (BLK) WPL 2416F03865 Contact Us For Availability
13
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23651 Contact Us For Availability
14
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
14
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01480 Contact Us For Availability
15
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
15
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
15
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
15
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
16
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
16
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
END CAP (BLK) WPL 7744P06860 Contact Us For Availability
17
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
TAPE WPL 8270P09860 Contact Us For Availability
18
END CAP (RT-BLK) WPL 7726P04760 Contact Us For Availability
18
END CAP (LT-BLK) WPL 7726P04860 Contact Us For Availability
18
SCREW WPL 7101P33660 Contact Us For Availability
19
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
19
LEG, LEVELING WPL 74001311 Contact Us For Availability
19
END CAP (RT) WPL 7744P07560 Contact Us For Availability
19
END CAP (LT) WPL 7744P07660 Contact Us For Availability
20
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
20
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
21
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
21
NUT, NYLON WPL 7103P04560 Contact Us For Availability
22
STARTER WPL 7415P00160 Contact Us For Availability
22
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
22
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
23
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
COVER, LIGHT (BLK) WPL 7724P05460 Contact Us For Availability
24
HINGE WPL 7106P05560 Contact Us For Availability
25
SPACER WPL 8010P08360 Contact Us For Availability
25
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
26
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
26
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
27
WIRES, LOOSE WPL 5125A33660 Contact Us For Availability
27
HARNESS, CONTROL PANEL WPL 5170D14560 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW WPL 7101P34460 Contact Us For Availability
28
MANUAL, USE & CARE WPL 8113P03060 Contact Us For Availability
28
COVER, VENT WPL 4005F43245 Contact Us For Availability
30
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
31
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
32
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
34
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
34
BRACKET, FUSE HOLDER WPL 74001339 Contact Us For Availability
35
SCREW WPL 7101P06860 Contact Us For Availability
35
NUT WPL 7103P06460 Contact Us For Availability
35
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
36
COVER, FUSE BLOCK WPL 4005F44551 Contact Us For Availability
36
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
× ![]()
