Model Whirlpool C31315VBM GAS RANGE – Common Parts & Diagrams

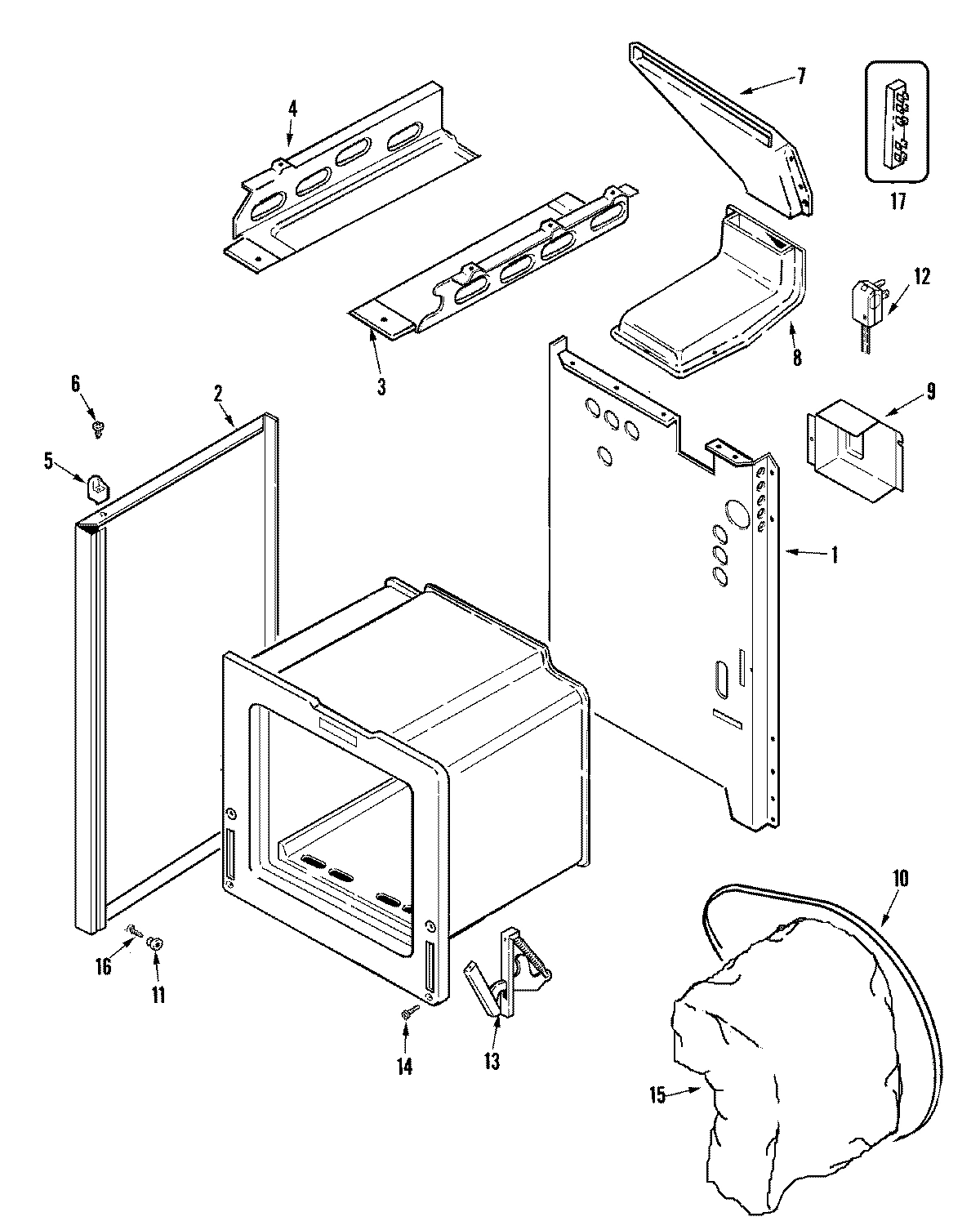

01 - BODY

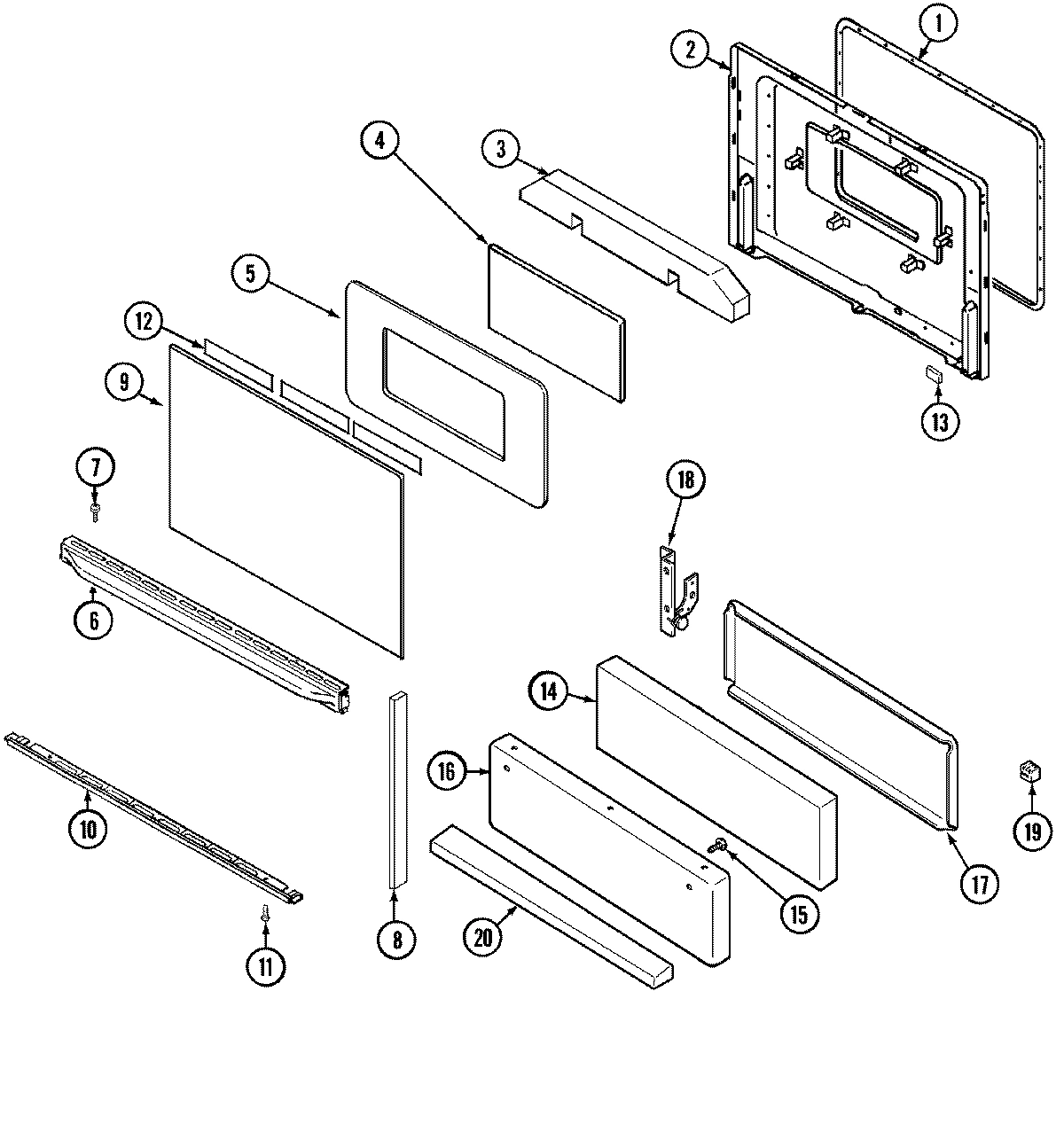

03 - DOOR/DRAWER

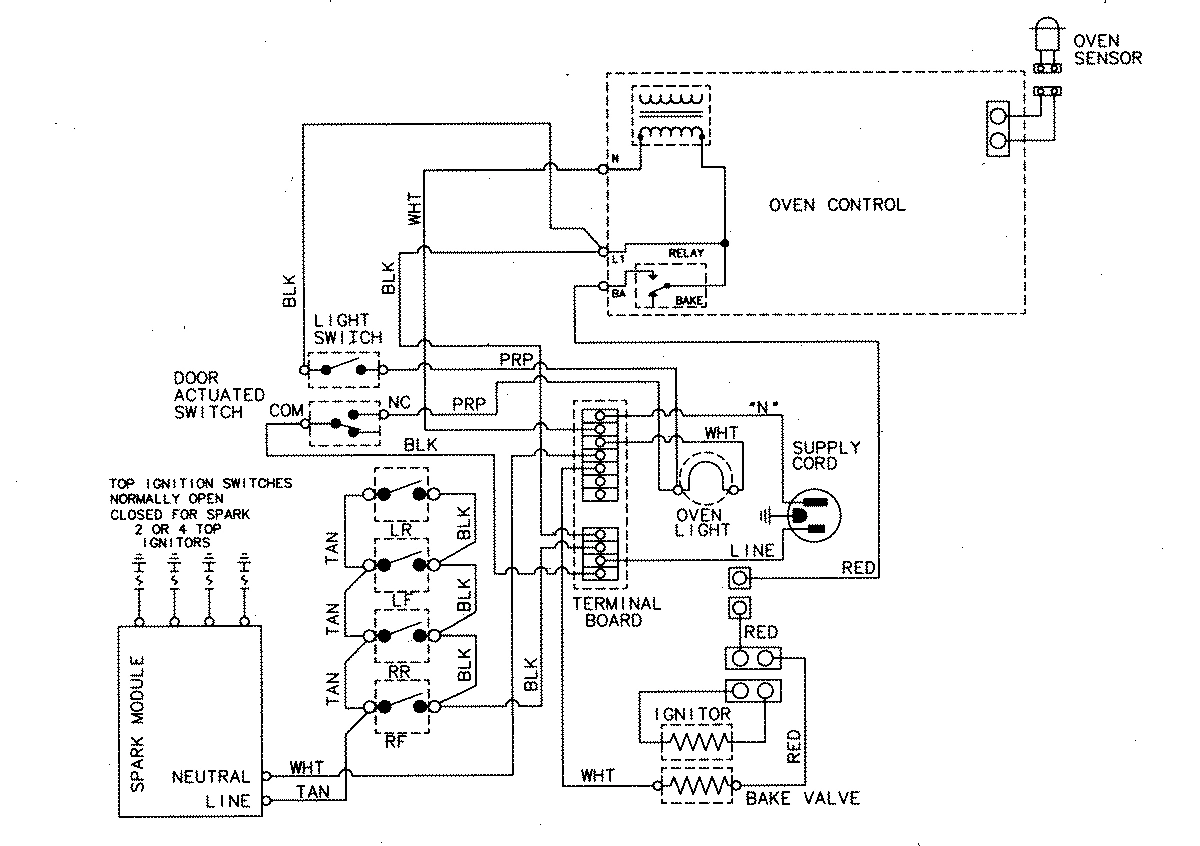

07 - WIRING INFORMATION

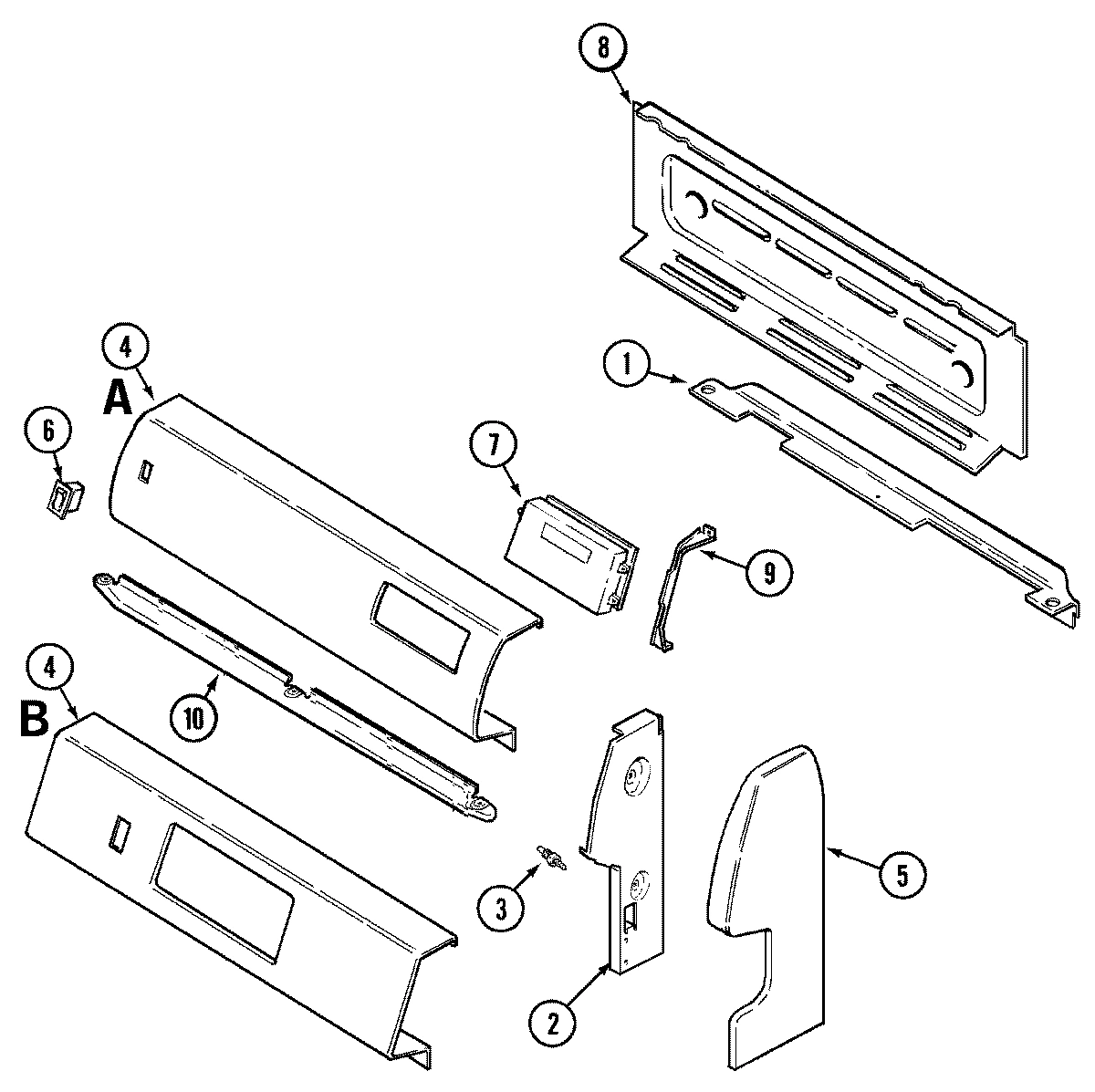

02 - CONTROL PANEL

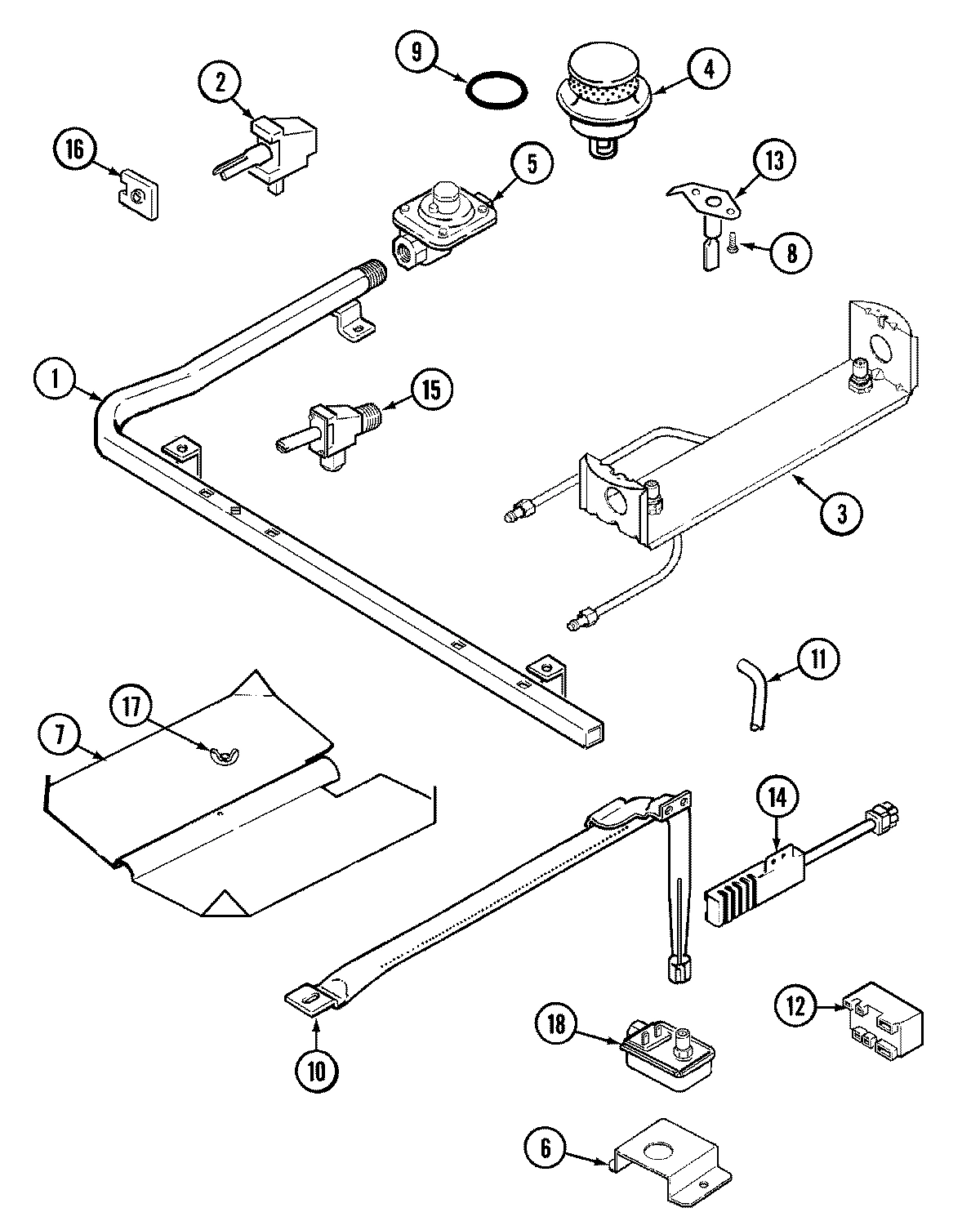

04 - GAS CONTROLS

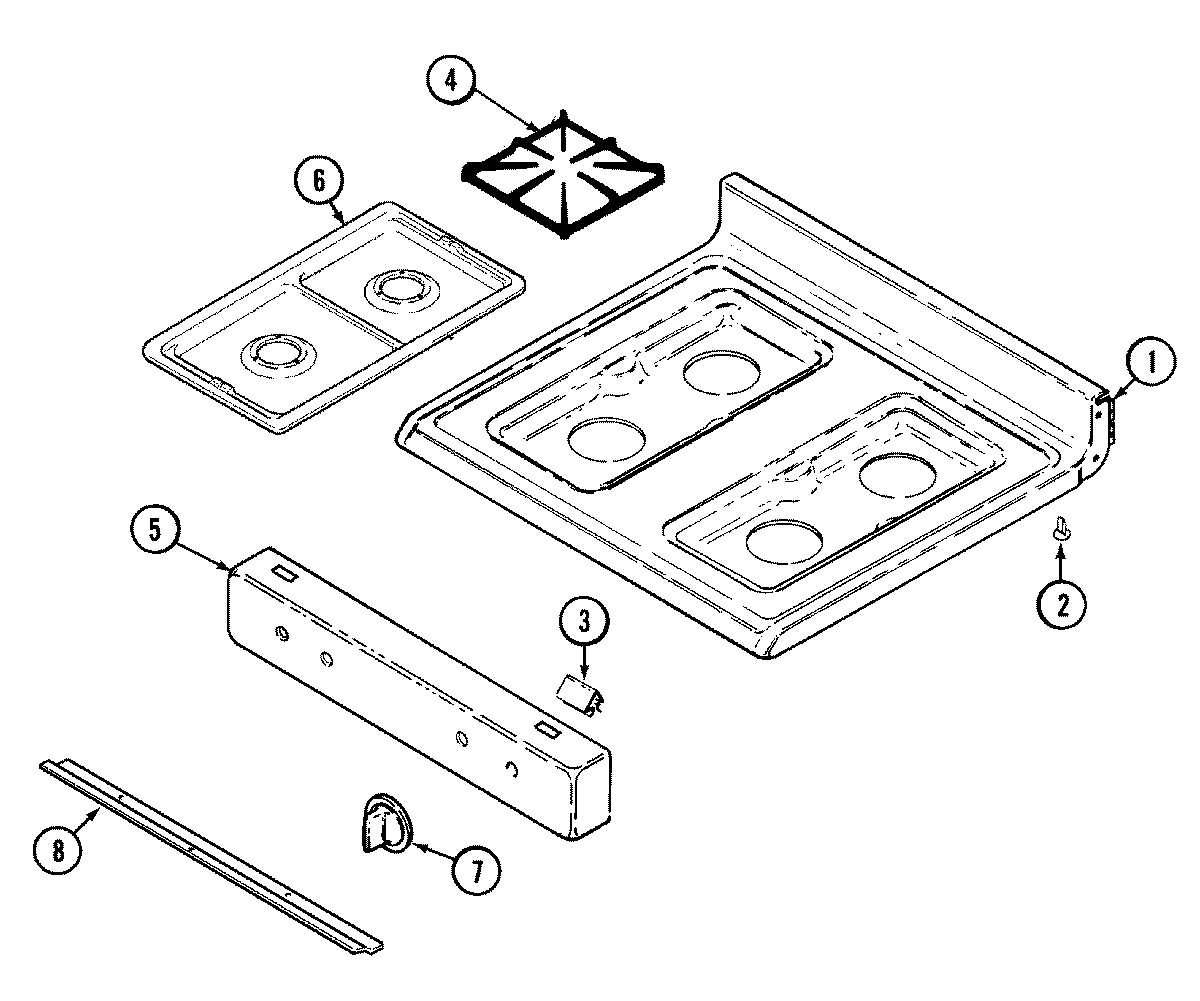

06 - TOP ASSEMBLY

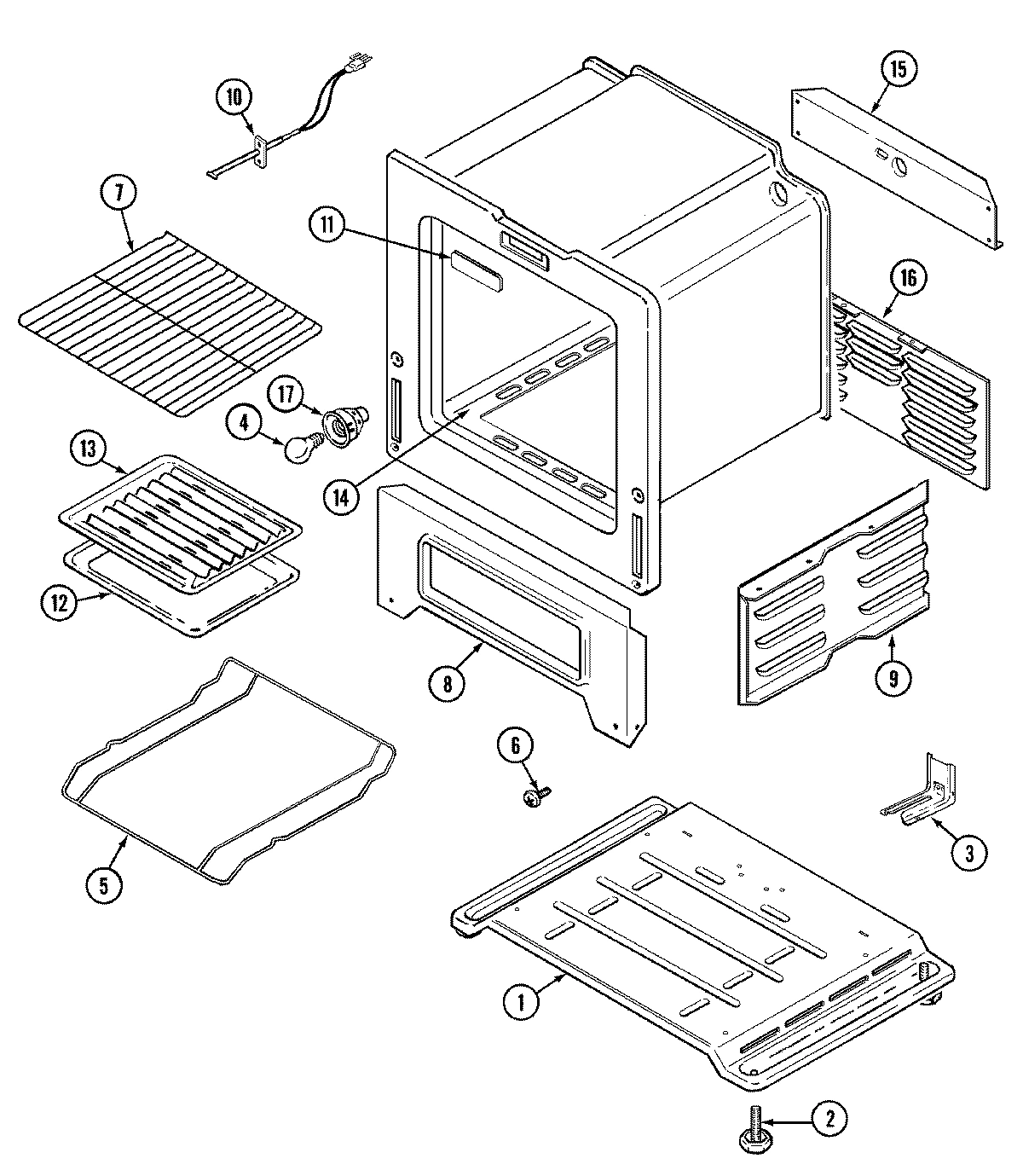

05 - OVEN/BASE
Common parts from model Whirlpool C31315VBM GAS RANGE
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74003182 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74002531 Contact Us For Availability
1
TOP, MAIN (ALM) WPL 74002441 Contact Us For Availability
1
BASE, MAIN WPL 74002372 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability
2
LINING, DOOR WPL 74003248 Contact Us For Availability
2
GLIDE WPL 8016P01560 Contact Us For Availability
2
BRACKET, PANEL (LT) WPL 74002402 Contact Us For Availability
2
BRACKET, PANEL (RT) WPL 74002403 Contact Us For Availability
2
VALVE, BURNER WPL 74002532 Contact Us For Availability
2
VALVE, BURNER WPL 7502P25260 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74002452 Contact Us For Availability
3
INSULATION, DOOR WPL 74002458 Contact Us For Availability
3
PIN, MAIN TOP HINGE WPL 74002404 Contact Us For Availability
3
FITTING, ORIFICE (LT) WPL 74002534 Contact Us For Availability
3
FITTING, ORIFICE (RT) WPL 74002535 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
3
SCREW WPL 7101P35260 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74002453 Contact Us For Availability
4
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
4
SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability
4
PANEL, CONTROL (ALM) WPL 74003438 Contact Us For Availability
4
SEALED BURNER ASSY. (BRN) WPL 3412D01808 Contact Us For Availability
4
SEALED BURNER ASSY. (TAUPE) WPL 74003521 Contact Us For Availability
4
BURNER, SEALED (TAUPE) WPL 74003966 Contact Us For Availability
4
GRATE (BRN) WPL 74001060 Contact Us For Availability
4
GRATE (TAUPE) WPL 74003514 Contact Us For Availability
4
BULB-OVEN WPL 7407P10360 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
5
SCREW WPL 7101P20960 Contact Us For Availability
5
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
5
END CAP, PANEL (RT-ALM) WPL 74002500 Contact Us For Availability
5
END CAP, PANEL (LT-ALM) WPL 74002501 Contact Us For Availability
5
SCREW (1 3/16``-ALM) WPL 74002528 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
WASHER WPL 7109P01560 Contact Us For Availability
5
PANEL, MANIFOLD (ALM) WPL 74002848 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
6
HANDLE, DOOR (ALM) WPL 74002537 Contact Us For Availability
6
HANDLE, DOOR (ALM) WPL 74003741 Contact Us For Availability
6
SWITCH, ROCKER (ALM) WPL 7403P35860 Contact Us For Availability
6
BRACKET, OVEN VALVE WPL 74002394 Contact Us For Availability
6
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002412 Contact Us For Availability
7
SCREW (ALM) WPL 74002502 Contact Us For Availability
7
CLOCK (ALM) WPL 74003418 Contact Us For Availability
7
OVERLAY, CLOCK (ALM) WPL 74004955 Contact Us For Availability
7
CLOCK W/OVERLAY (ALM) WPL 74005221 Contact Us For Availability
7
BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability
7
KNOB, VALVE (ALM) WPL 74002524 Contact Us For Availability
7
KNOB, VALVE (ALM) WPL 74002530 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
8
END CAP, DOOR (ALM) WPL 74002343 Contact Us For Availability
8
END CAP, DOOR (ALM) WPL 74003458 Contact Us For Availability
8
HOUSING, CONTROL PANEL WPL 74002450 Contact Us For Availability
8
SHIELD, SIGHT WPL 74002447 Contact Us For Availability
8
FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability
9
COVER, MAIN WIRE WPL 74002368 Contact Us For Availability
9
GLASS, OUTER (ALM) WPL 74003455 Contact Us For Availability
9
GLASS, DOOR (ALM) WPL 7902P35860 Contact Us For Availability
9
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
9
BRACKET, CLOCK WPL 74002449 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
TRIM, DOOR (BTM-ALM) WPL 74003457 Contact Us For Availability
10
TRIM, BOTTOM (ALM) WPL 7744P10460 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
11
TUBING, VALVE (3/8``) WPL 74002456 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
12
CORD, POWER WPL 7402P04360 Contact Us For Availability
12
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
13
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
14
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
14
SCREW WPL 7101P32860 Contact Us For Availability
14
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 74002371 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
PANEL, DRAWER (ALM) WPL 74002316 Contact Us For Availability
16
SWITCH, IGNITER WPL 74002533 Contact Us For Availability
16
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
LINING, DRAWER WPL 74002397 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
17
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
17
RECEPTACLE, BULB WPL 7408P03760 Contact Us For Availability
18
HINGE, DRAWER WPL 74002398 Contact Us For Availability
18
VALVE, OVEN WPL 74002387 Contact Us For Availability
18
VALVE, OVEN WPL 74005329 Contact Us For Availability
20
HANDLE, DRAWER (ALM) WPL 2411F00374 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002211 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002639 Contact Us For Availability
NI
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
HARNESS, SENSOR WPL 74003412 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74003419 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74004396 Contact Us For Availability
NI
HARNESS, SENSOR WPL 74004677 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
NI
WIRES, MODULE/SWITCHES WPL 74002362 Contact Us For Availability
NI
WIRES, SWITCH (BLK/TN) WPL 74002363 Contact Us For Availability
NI
WIRES, IGNITER (4-OR) WPL 74002457 Contact Us For Availability
× ![]()
