Model Whirlpool C31103SAT GAS RANGE – Common Parts &amp; Diagrams

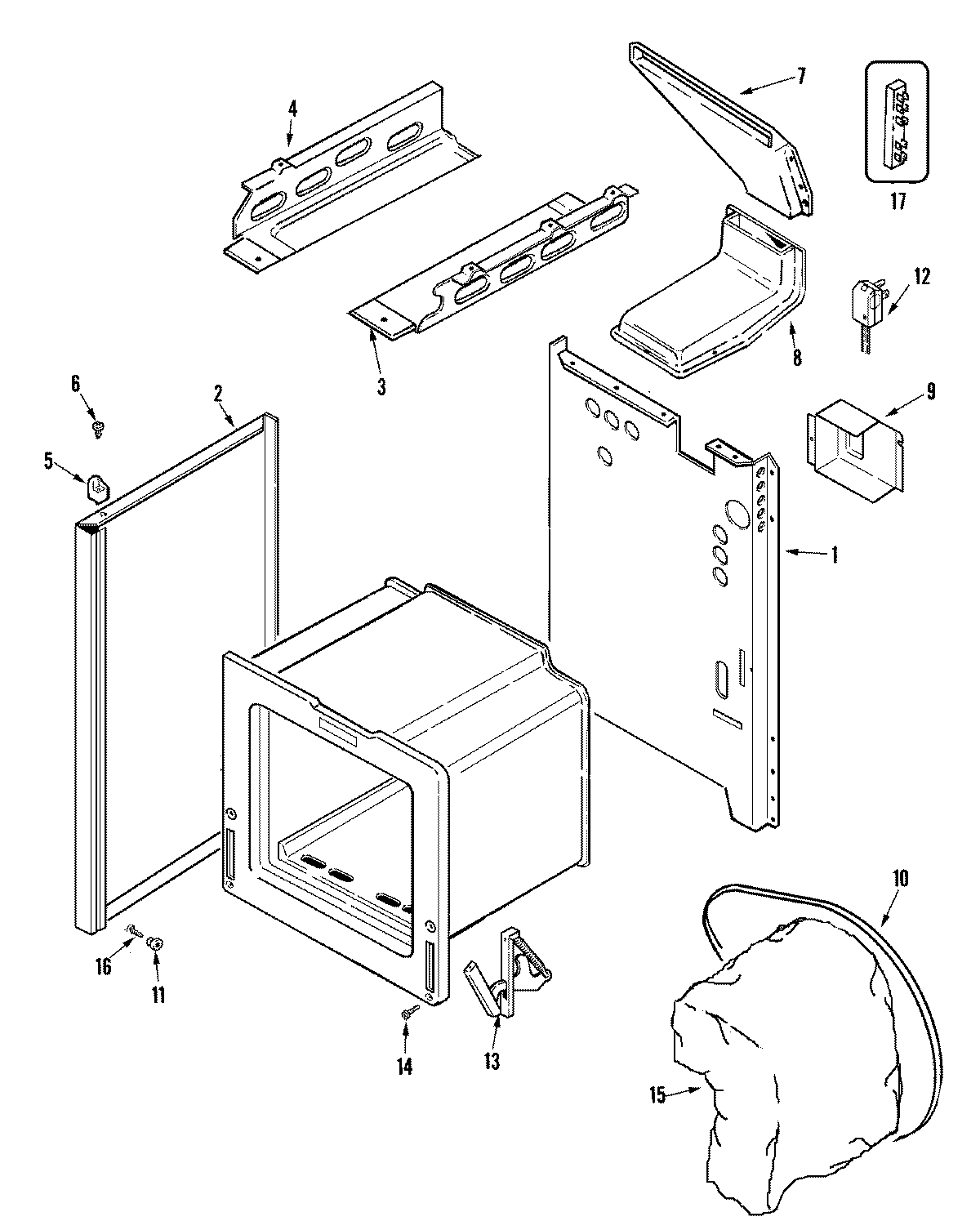

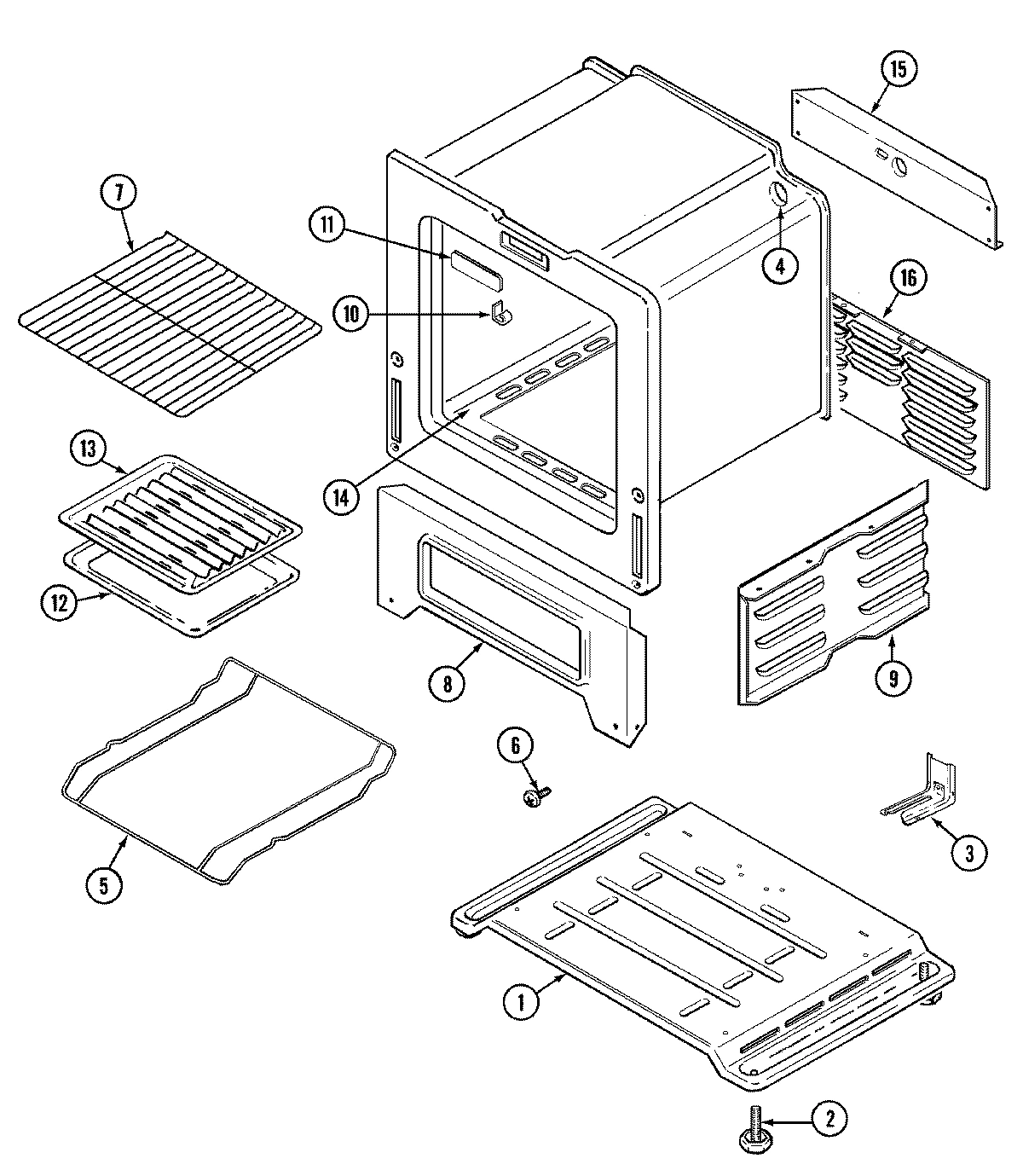

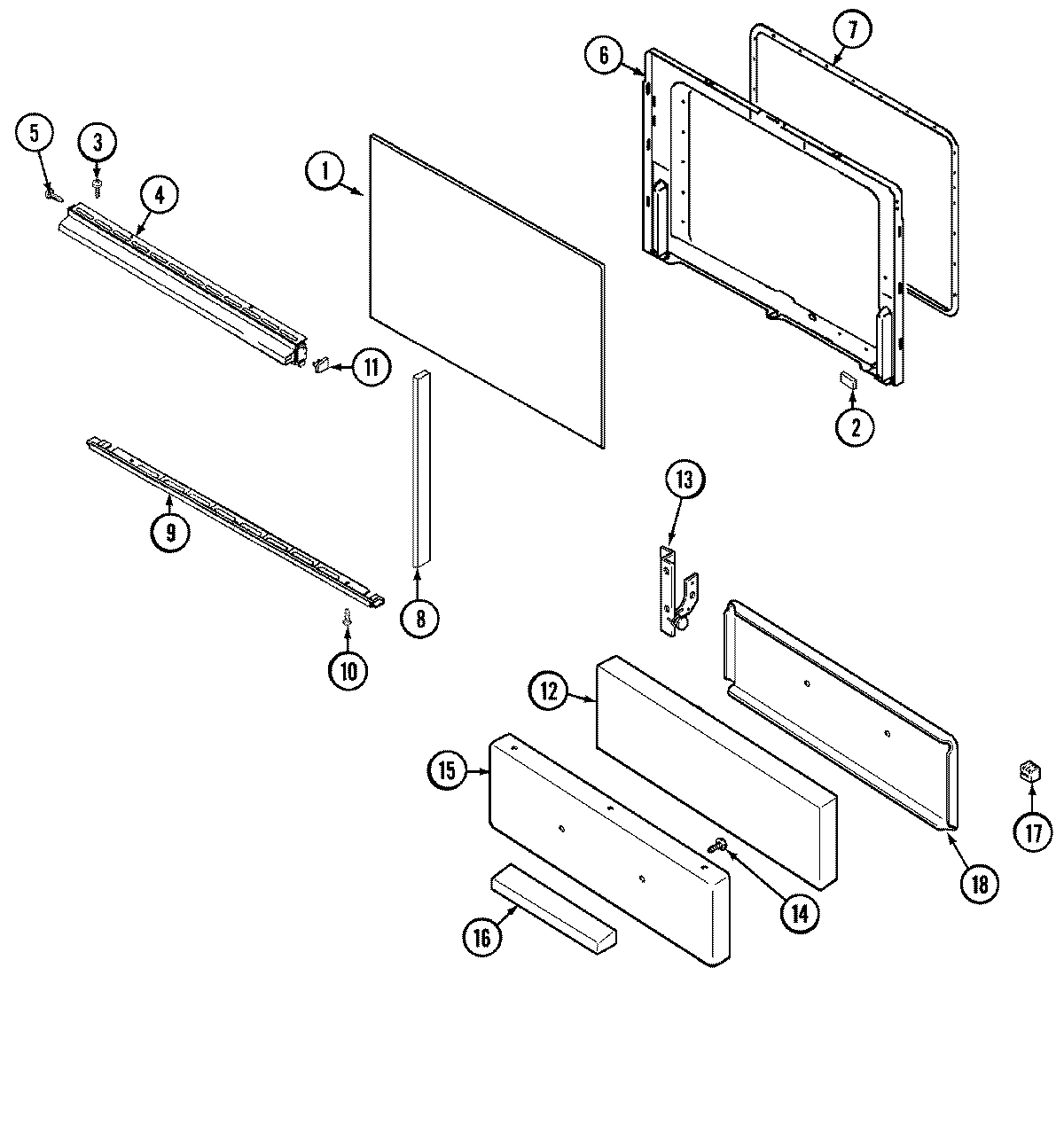

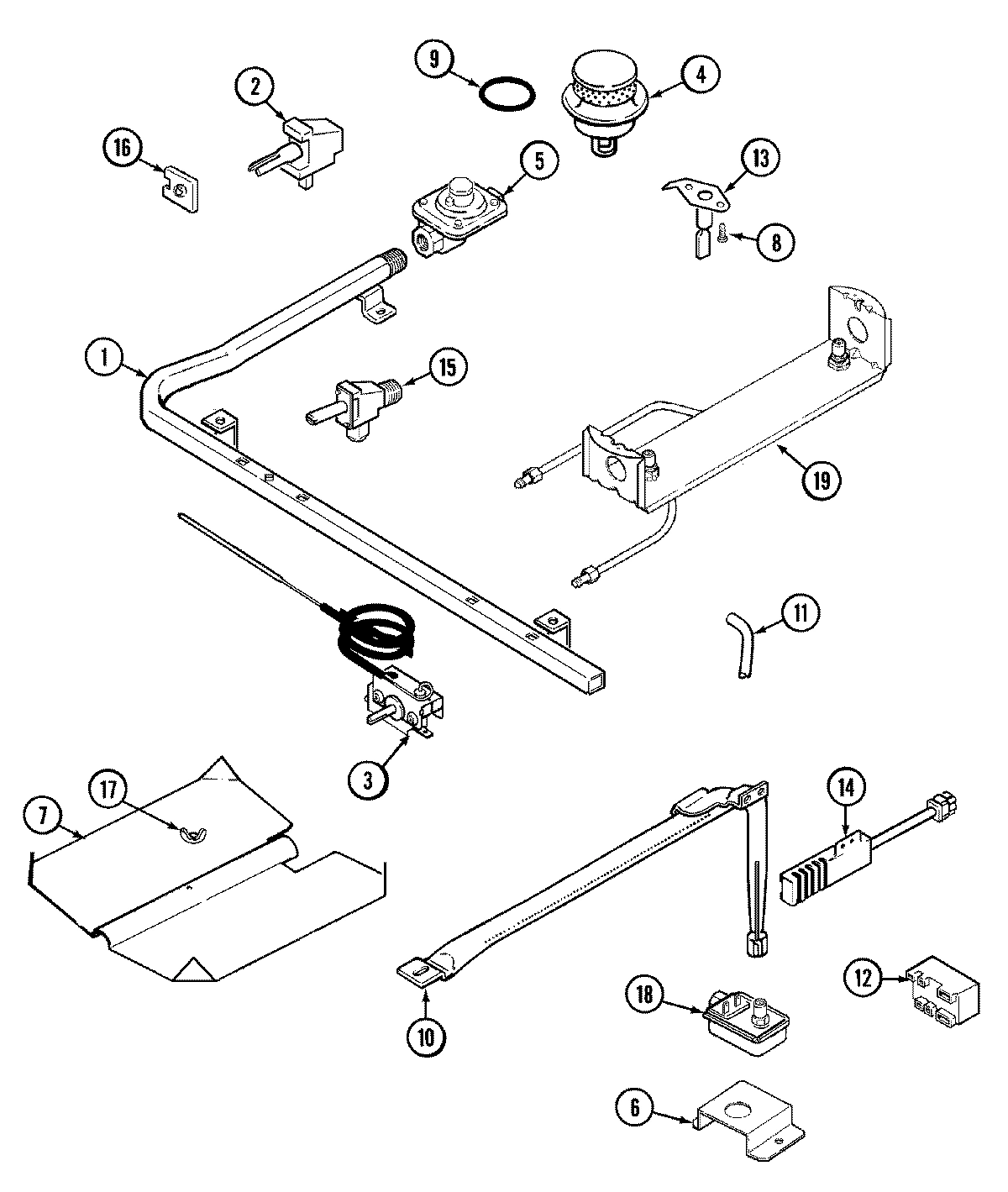

1

GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability

1

BASE, MAIN WPL 74001064 Contact Us For Availability

1

BACK, MAIN WPL 74003451 Contact Us For Availability

1

BACK, MAIN WPL 74006548 Contact Us For Availability

1

GROMMET WPL 8008P01060 Contact Us For Availability

1

GROMMET, SNAP WPL 8008P02160 Contact Us For Availability

2

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

2

VALVE, BURNER WPL 74002455 Contact Us For Availability

2

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

2

PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability

3

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

3

WP74002390 Whirlpool Range Thermostat In Stock WPL WP74002390 $170.25

3

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

3

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

3

SCREW WPL 7101P35260 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74002632 Contact Us For Availability

4

WP3412D024-09 Whirlpool Oven Burner Head In Stock WPL WP3412D024-09 $52.38

4

HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability

4

COVER, HOLE WPL 74002380 Contact Us For Availability

4

BOX, BURNER (LT) WPL 74002633 Contact Us For Availability

5

REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability

5

RACK, BROILER WPL 74002381 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

BRACKET, OVEN VALVE WPL 74005051 Contact Us For Availability

6

LINING, DOOR WPL 74003240 Contact Us For Availability

6

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

6

SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability

7

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

7

BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability

7

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

7

EXTENSION, VENT BOX WPL 74002412 Contact Us For Availability

8

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $5.02

8

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

8

END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability

8

OVEN FRONT, LOWER WPL 74003007 Contact Us For Availability

8

BOX, VENT WPL 74002367 Contact Us For Availability

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

9

GASKET, BURNER WPL 7201P05060 Contact Us For Availability

9

TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability

9

SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability

9

SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability

9

COVER, ACCESS WPL 74004591 Contact Us For Availability

10

BURNER, OVEN WPL 74002434 Contact Us For Availability

10

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

10

STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability

NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability

TUBING, VALVE (3/8``) WPL 74002456 Contact Us For Availability

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

8215557 Whirlpool Gas Stove Range Oven Cookto In Stock WPL 8215557 $141.83

INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

CORD, POWER WPL 7402P04360 Contact Us For Availability

74004053 Whirlpool Range Cooktop Top Burner E In Stock WPL 74004053 $17.15

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $91.57

HINGE, DRAWER WPL 74002398 Contact Us For Availability

HINGE, DRAWER WPL 74007560 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

74002481 Whirlpool Screw Backorder WPL 74002481 $4.41

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

IGNITER, OVEN WPL 7432P07560 Contact Us For Availability

BOTTOM, OVEN WPL 74002376 Contact Us For Availability

CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability

SCREW, VALVE WPL 71003231 Contact Us For Availability

PANEL, DRAWER (BSQ) WPL 74005046 Contact Us For Availability

SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability

INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability

INSULATION, OVEN BACK WPL 74002634 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

SWITCH, IGNITER WPL 74002384 Contact Us For Availability

HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability

BACK, BROILER WPL 74002379 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

NUT, WING WPL 7103P03060 Contact Us For Availability

GLIDE WPL 8016P01560 Contact Us For Availability

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability

VALVE, OVEN WPL 74002387 Contact Us For Availability

VALVE, OVEN WPL 74005329 Contact Us For Availability

VALVE, OVEN WPL 74006281 Contact Us For Availability

LINING, DRAWER WPL 74002397 Contact Us For Availability

LINING, DRAWER WPL 74007553 Contact Us For Availability

19

ORIFICE FITTING ASSEMBLY WPL 5187D02660 Contact Us For Availability

NI

NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability

NI

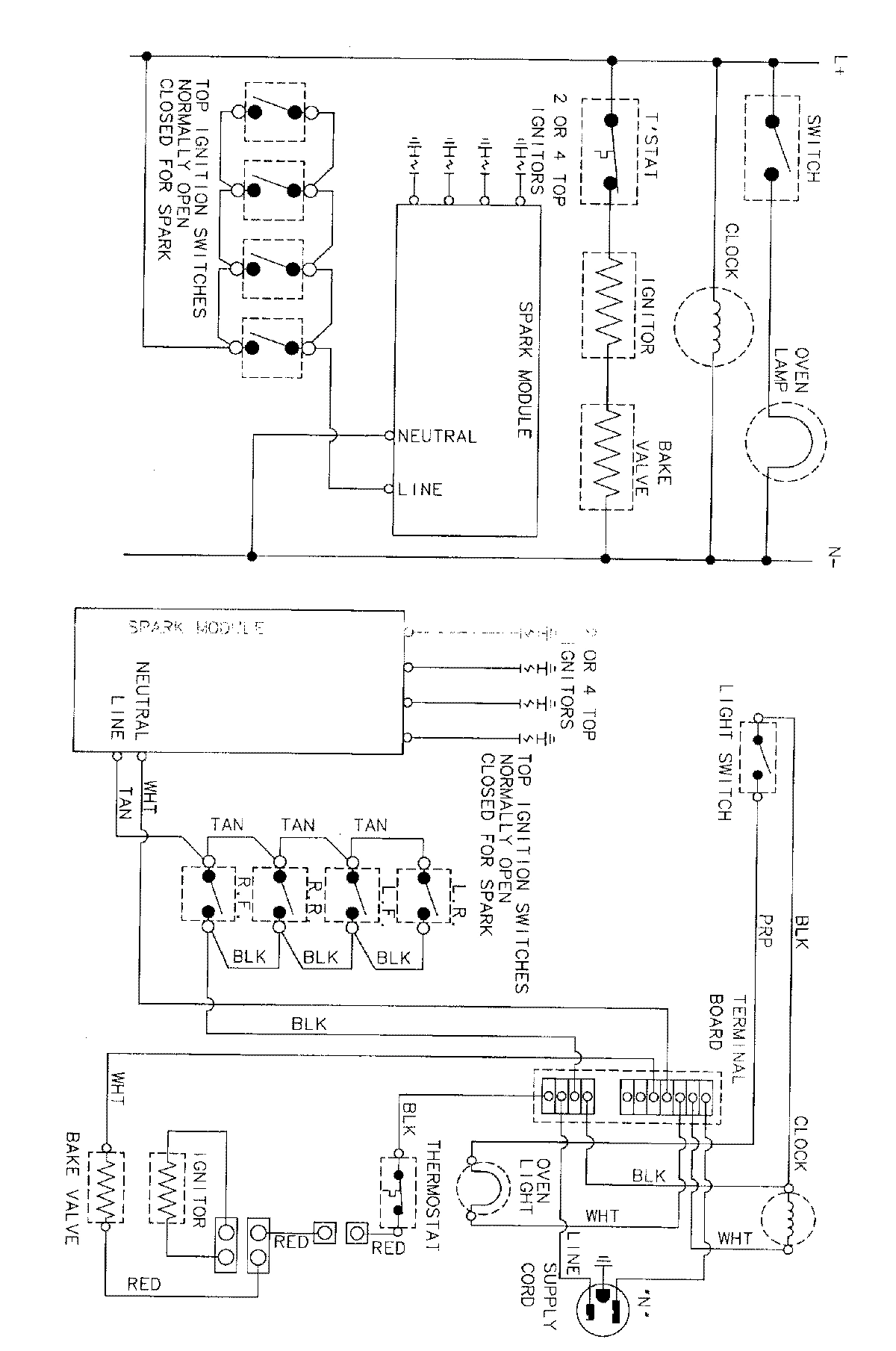

WIRING INFORMATION WPL 15001767 Contact Us For Availability
