Model Whirlpool C201-C ELECTRIC COOK-TOP – Common Parts & Diagrams

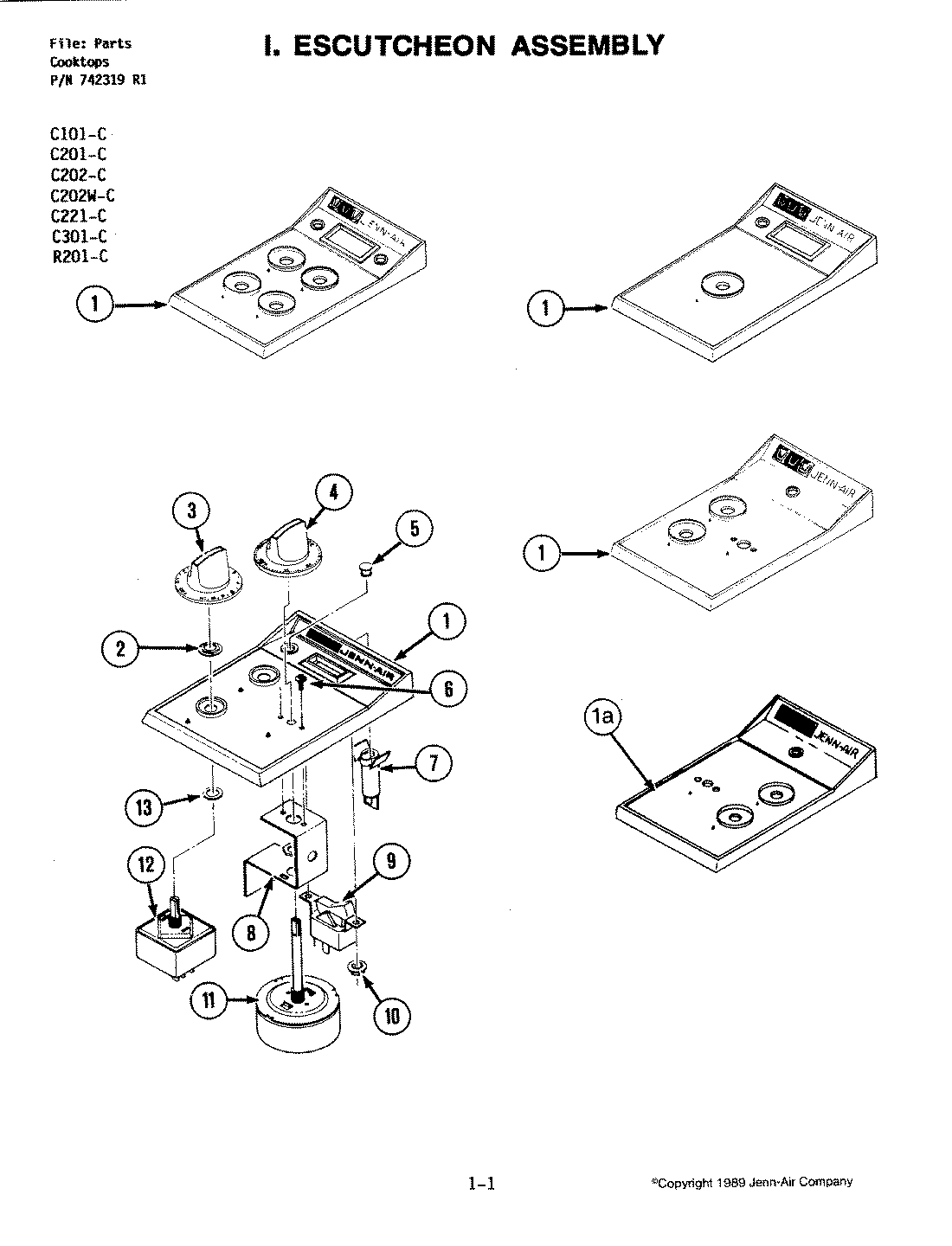

03 - ESCUTCHEON ASSEMBLY (C201-C)

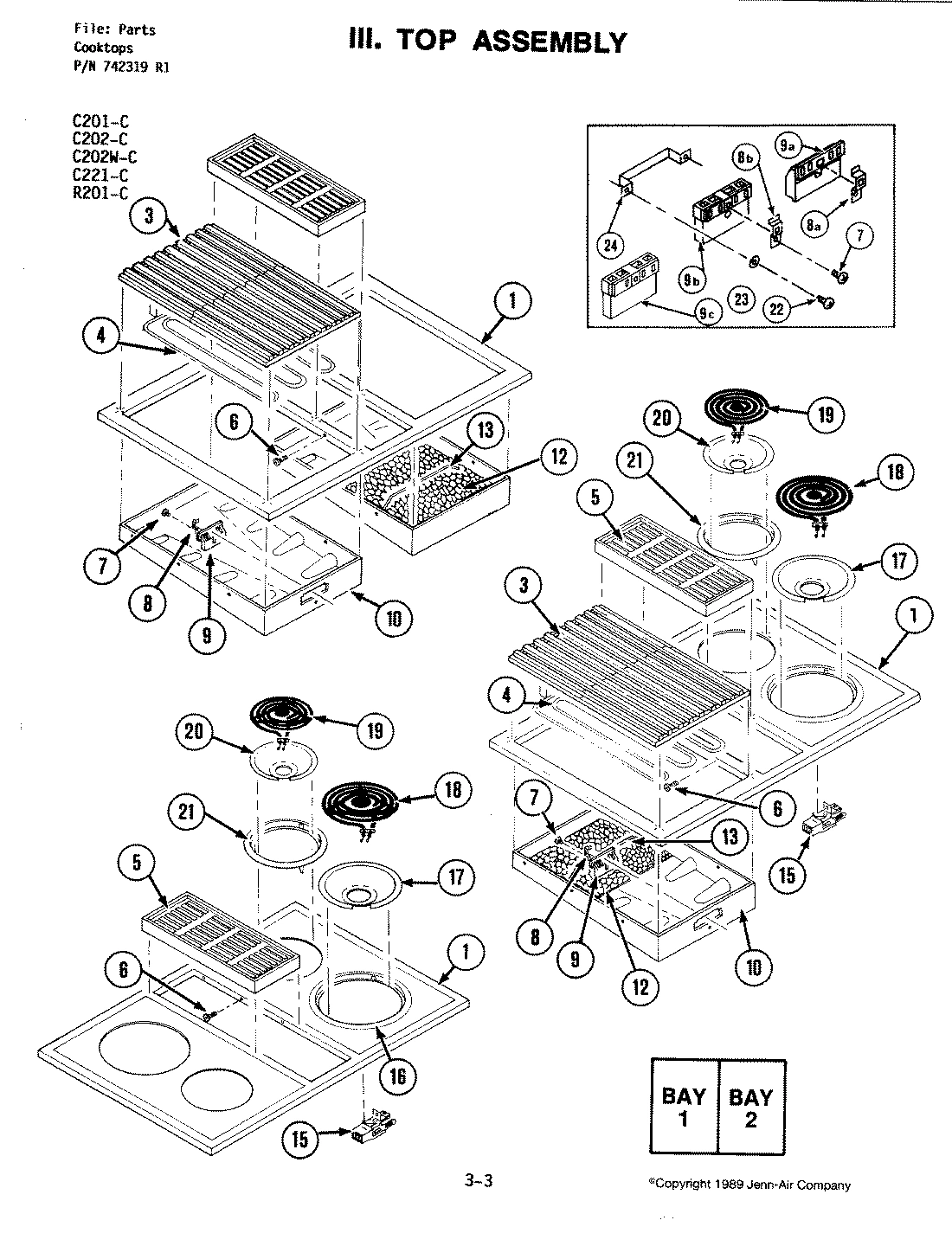

04 - TOP ASSEMBLY (C201-C)

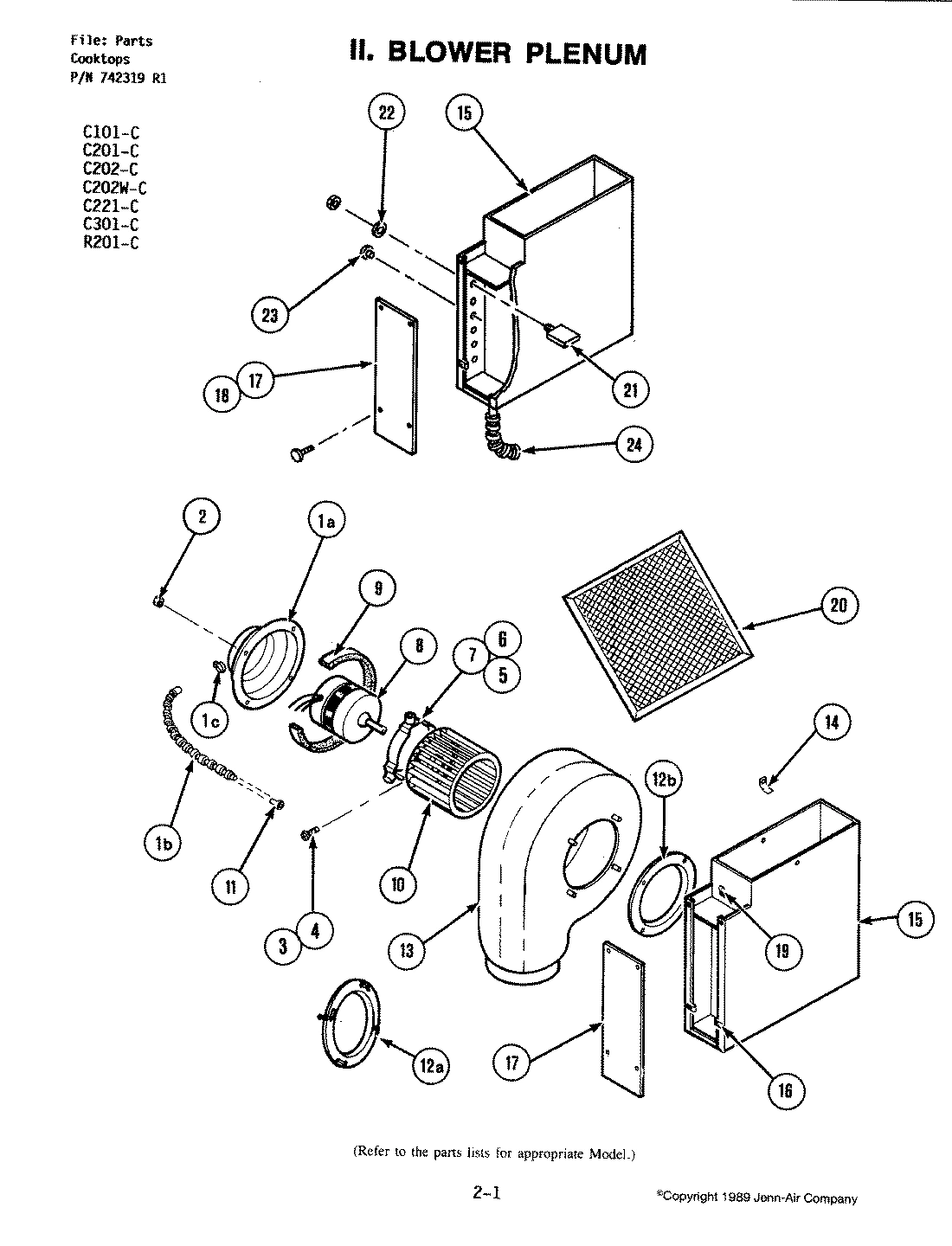

01 - BLOWER ASSEMBLY (C201-C)

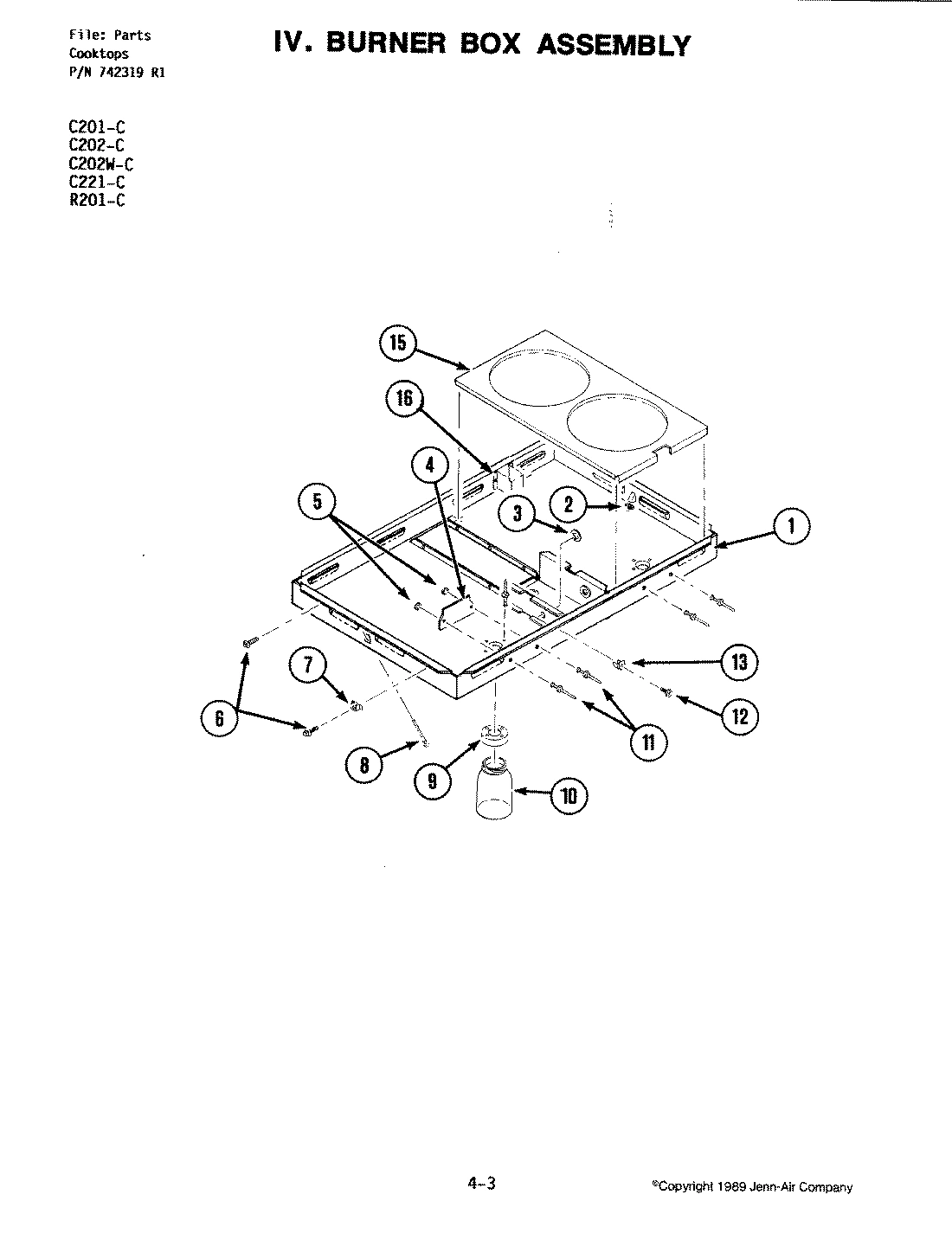

02 - BURNER BOX ASSEMBLY (C201-C)
Common parts from model Whirlpool C201-C ELECTRIC COOK-TOP
1
TOP WPL 700669 Contact Us For Availability
1
TOP WPL 702777 Contact Us For Availability
1
MOTOR COVER ASSEMBLY WPL 700027 Contact Us For Availability
1
CONNECTOR WPL 707766 Contact Us For Availability
1
COVER,MOTOR WPL 708863 Contact Us For Availability
1
CLAMP, CABLE WPL 715780 Contact Us For Availability
1
CLIP WPL Y707335 Contact Us For Availability
1
CONDUIT WPL Y707758 Contact Us For Availability
1
BOX, BURNER WPL 702009 Contact Us For Availability
1
BOX, BURNER WPL 712057 Contact Us For Availability
3
GRATE WPL 707886 Contact Us For Availability
3
NUT WPL 707161 Contact Us For Availability
3
BUSHING WPL Y707695 Contact Us For Availability
4
ELEMENT, GRILL WPL 701845 Contact Us For Availability
4
SCREW WPL Y707402 Contact Us For Availability
4
INSULATOR WPL 701995 Contact Us For Availability
5
GRILL, AIR WPL 700667 Contact Us For Availability
5
WASHER WPL Y707664 Contact Us For Availability
6
SCREW WPL 707407 Contact Us For Availability
7
BAND, MOTOR WPL Y707393 Contact Us For Availability
7
CLIP, RETAINER WPL Y700503 Contact Us For Availability
8
SCREW WPL Y707121 Contact Us For Availability
9
SWITCH, FAN WPL 715397 Contact Us For Availability
9
RECEPTACLE WPL Y715120 Contact Us For Availability
9
FOAM, URETHANE WPL Y715957 Contact Us For Availability
9
LID, JAR WPL Y707870 Contact Us For Availability
10
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
10
WIRE, BLACK WPL Y701490 Contact Us For Availability
10
WIRE, RED WPL Y701491 Contact Us For Availability
10
WIRE, YELLOW WPL Y701492 Contact Us For Availability
10
WIRE, BLUE WPL Y701899 Contact Us For Availability
10
PAN, GRILL (W/BRACKETS) WPL Y701953 Contact Us For Availability
10
WIRE, YELLOW WPL Y712014 Contact Us For Availability
10
WIRE, RED WPL Y712015 Contact Us For Availability
10
WIRE, BLACK WPL Y712017 Contact Us For Availability
10
WIRE, BLUE WPL Y712030 Contact Us For Availability
11
BUSHING WPL 708185 Contact Us For Availability
12
PLATE, ROCK WPL 708929 Contact Us For Availability
12
RING, INLET (WITH STUDS) WPL 786316 Contact Us For Availability
12
RING, INLET WPL Y702295 Contact Us For Availability
13
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
13
O RING WPL Y700833 Contact Us For Availability
13
BLOWER SCROLL KIT WPL Y712053 Contact Us For Availability
14
RETAINER, FILTER WPL Y707688 Contact Us For Availability
15
PLENUM WPL Y701840 Contact Us For Availability
15
INSERT, BURNER BOX WPL Y707822 Contact Us For Availability
16
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
16
LIMITER, THERMAL WPL 701925 Contact Us For Availability
16
BRACKET, TOP SUPPORT WPL 703008 Contact Us For Availability
17
PLATE, COVER WPL Y707681 Contact Us For Availability
19
CLIP WPL Y707831 Contact Us For Availability
21
BREAKER CIRCUIT, 20AMP WPL 702006 Contact Us For Availability
24
BRACKET WPL Y702698 Contact Us For Availability
24
CABLE, WIRE ASSEMBLY WPL 700739 Contact Us For Availability
24
BOX, BREAKER WPL 702005 Contact Us For Availability
NI
MANUAL, SERVICE-NO REFUND WPL 16000448 Contact Us For Availability
× ![]()
