Model Whirlpool AWM531 WASHER – Common Parts & Diagrams

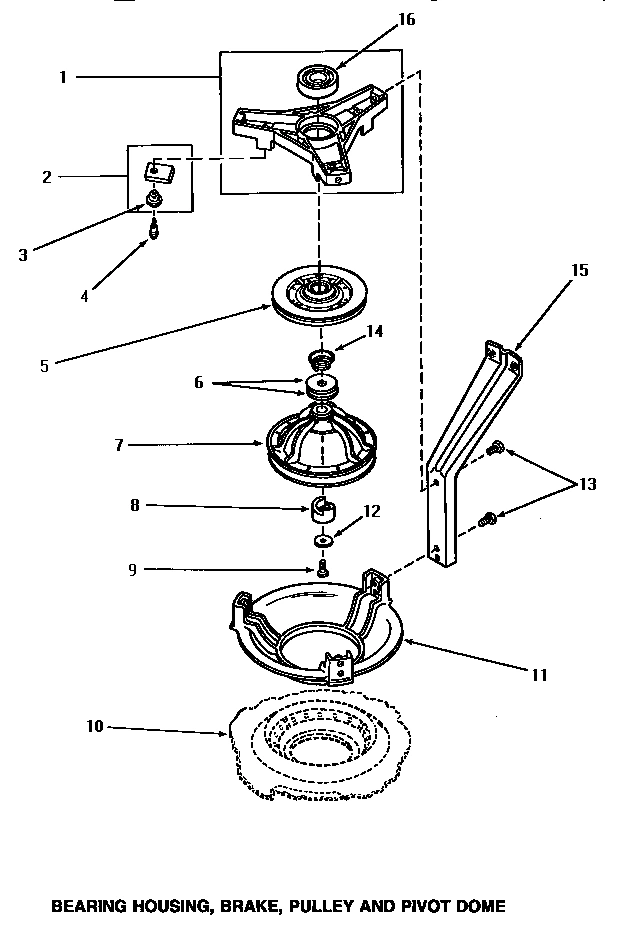

04 - BRG HSG/BRAKE/PULLEY & PIVOT DOME

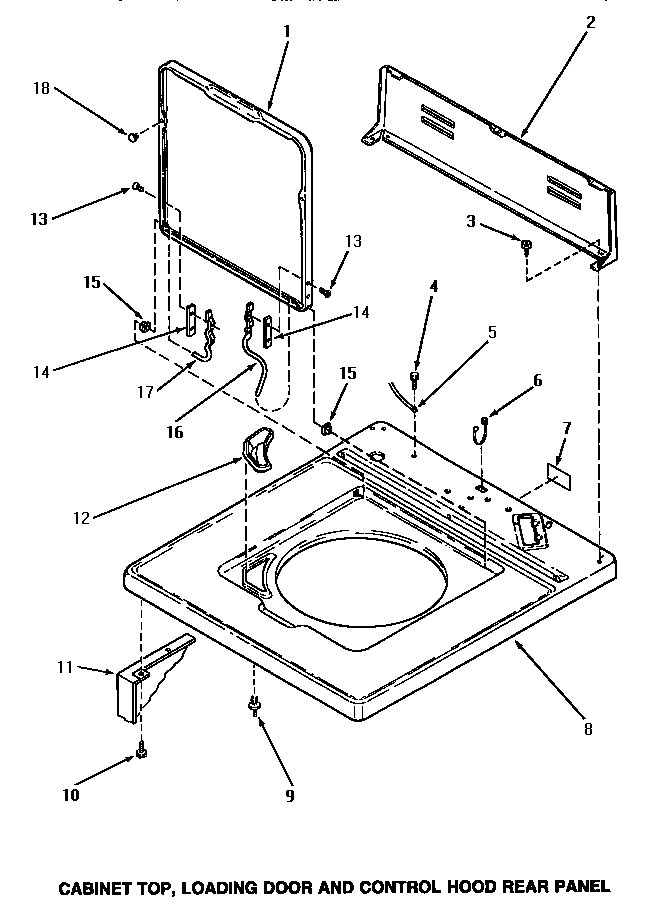

05 - CAB TOP/LOADING DR & CTRL HOOD REAR PAN

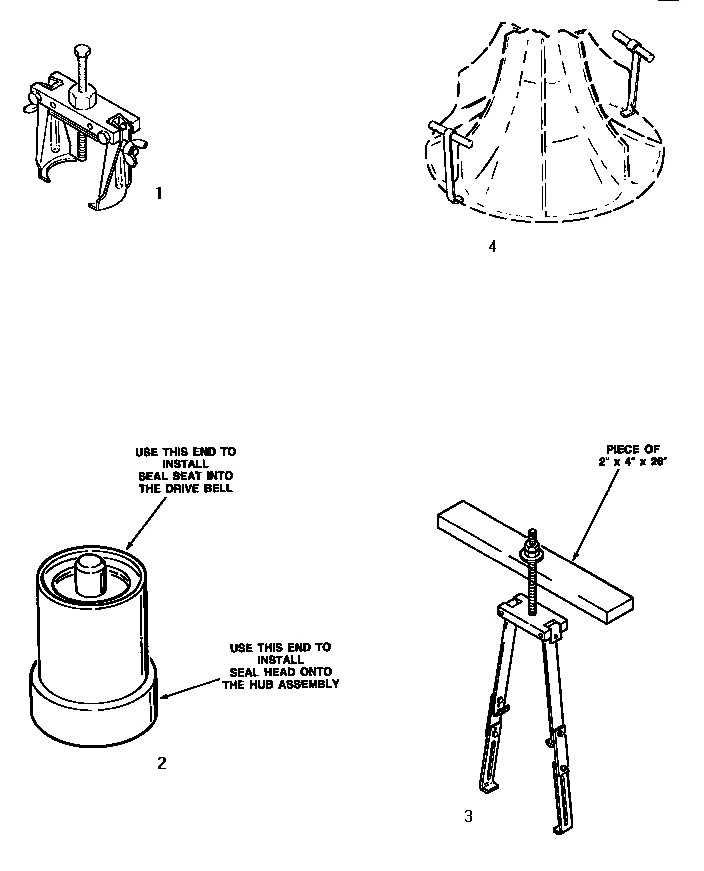

19 - SPECIAL TOOLS

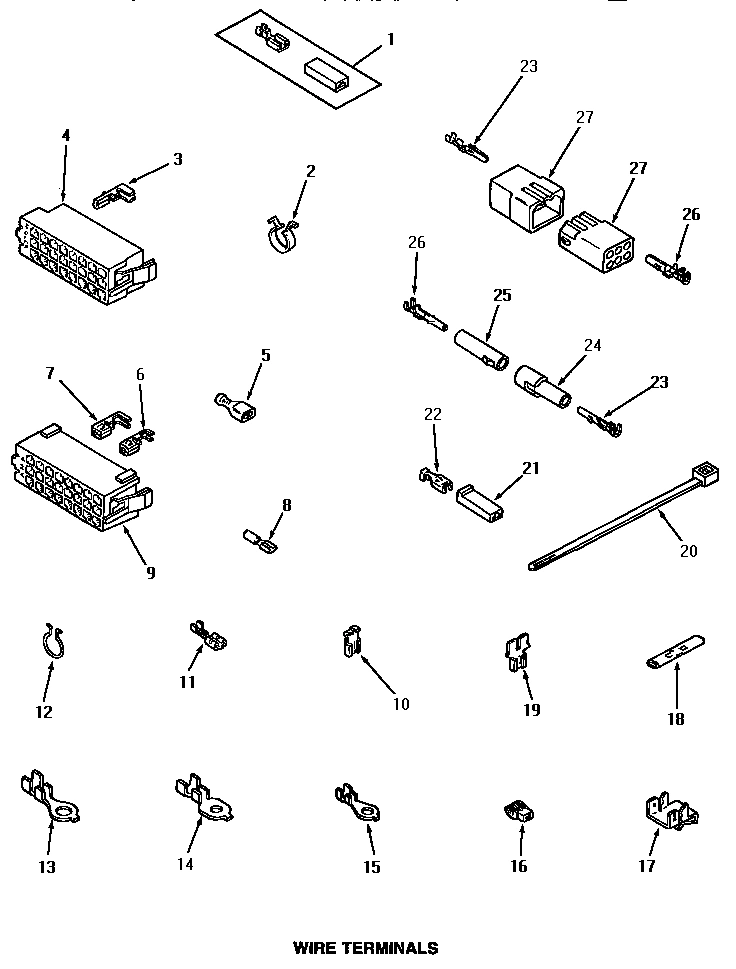

22 - WIRE TERMINALS

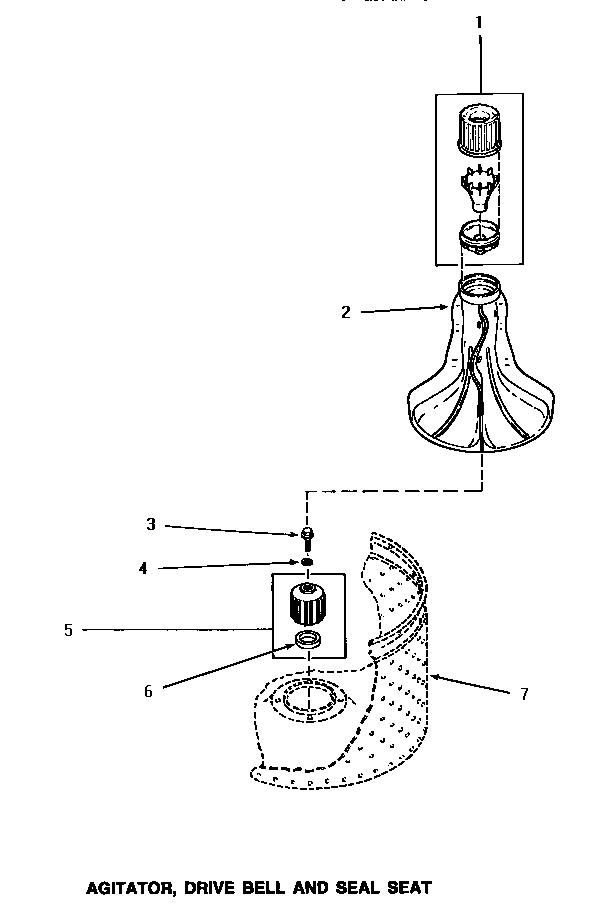

02 - AGITATOR, DRIVE BELL & SEAL SEAT

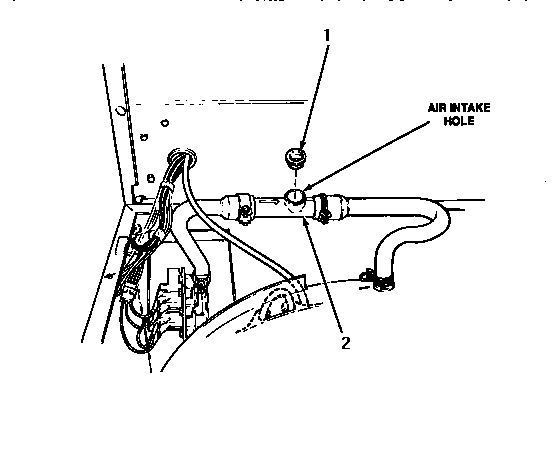

03 - BACK FLOW PREVENTER (CHANGE)

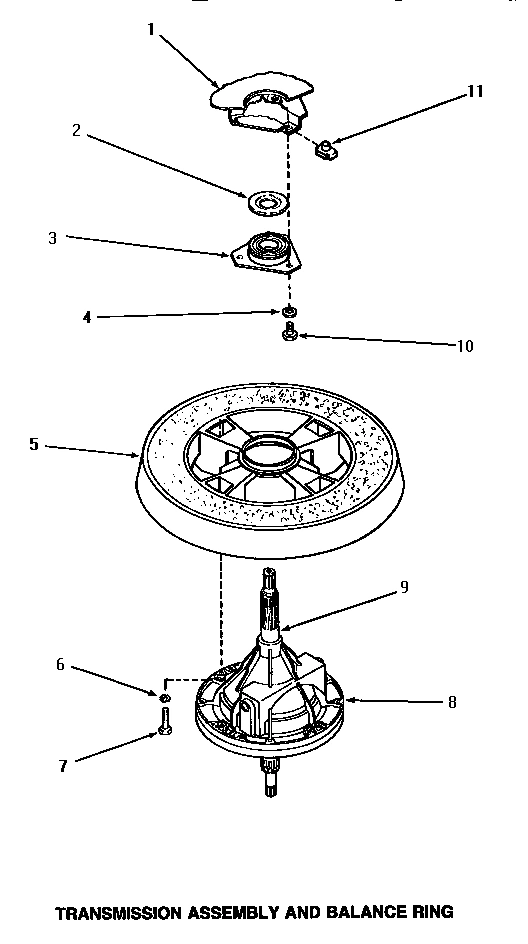

20 - TRANSMISSION ASSY & BALANCE RING

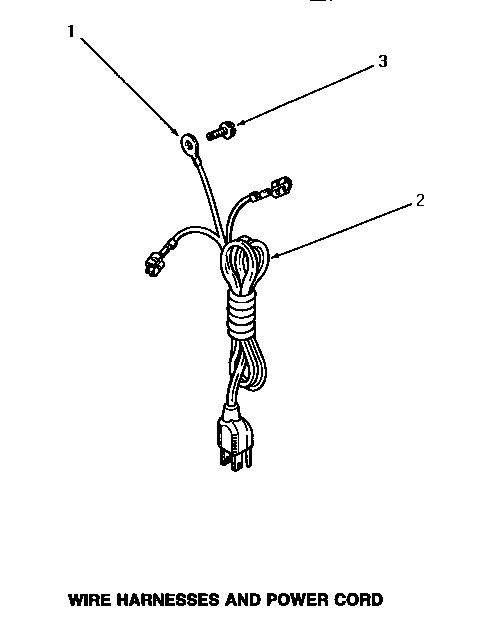

21 - WIRE HARNESSES & POWER CORD

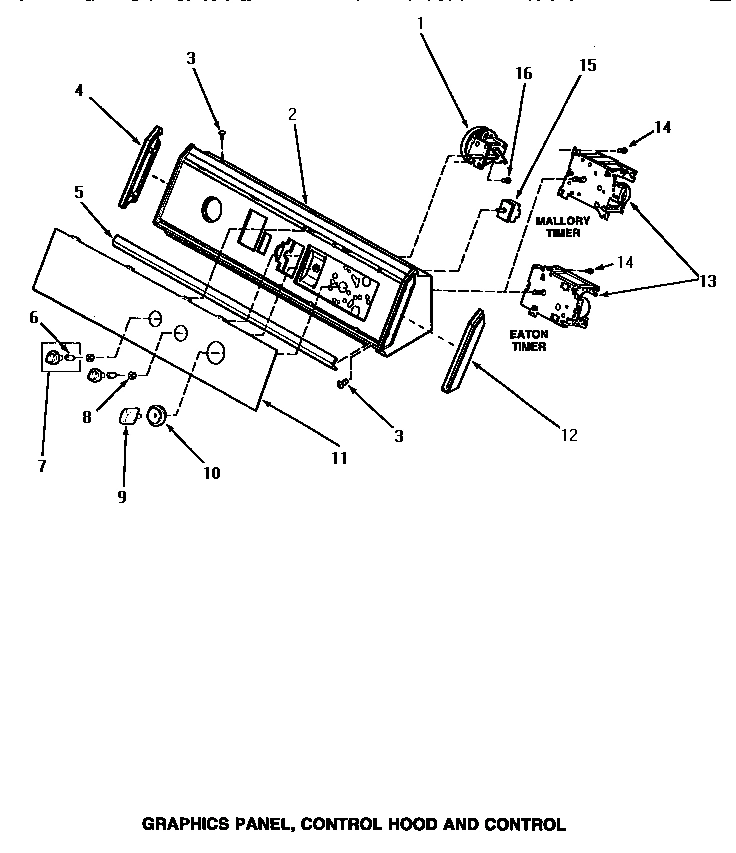

10 - GRAPHICS PANEL, CONTROL HOOD & CONTROL

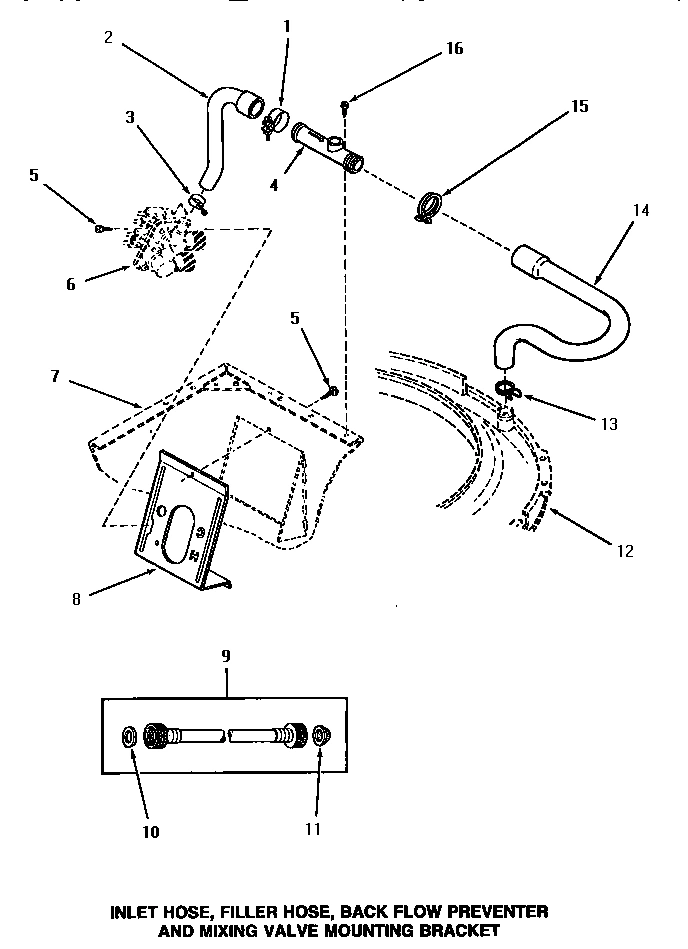

12 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT

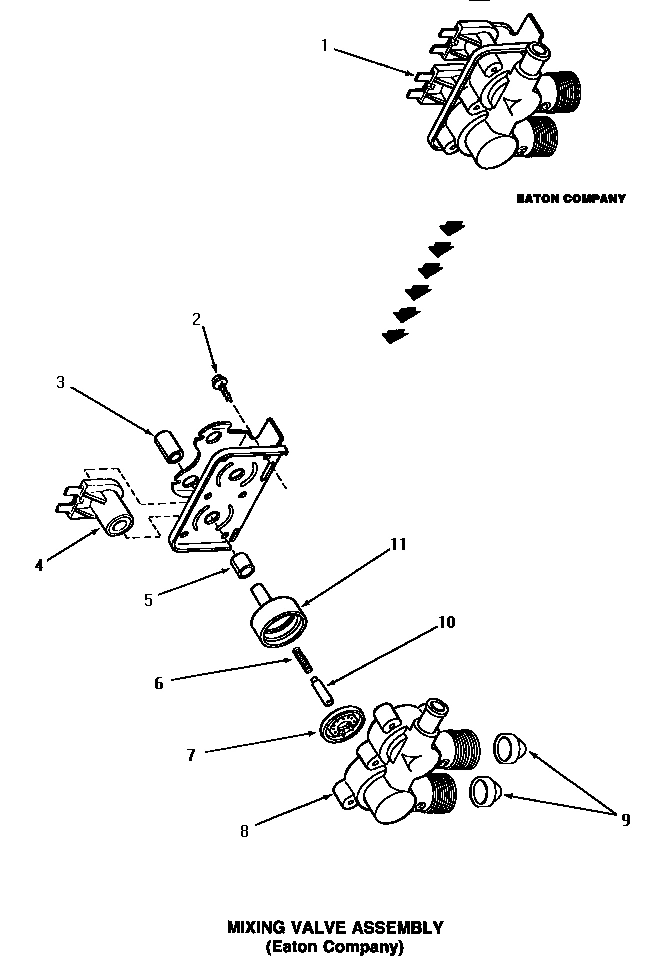

14 - MIXING VALVE ASSY (EATON COMPANY)

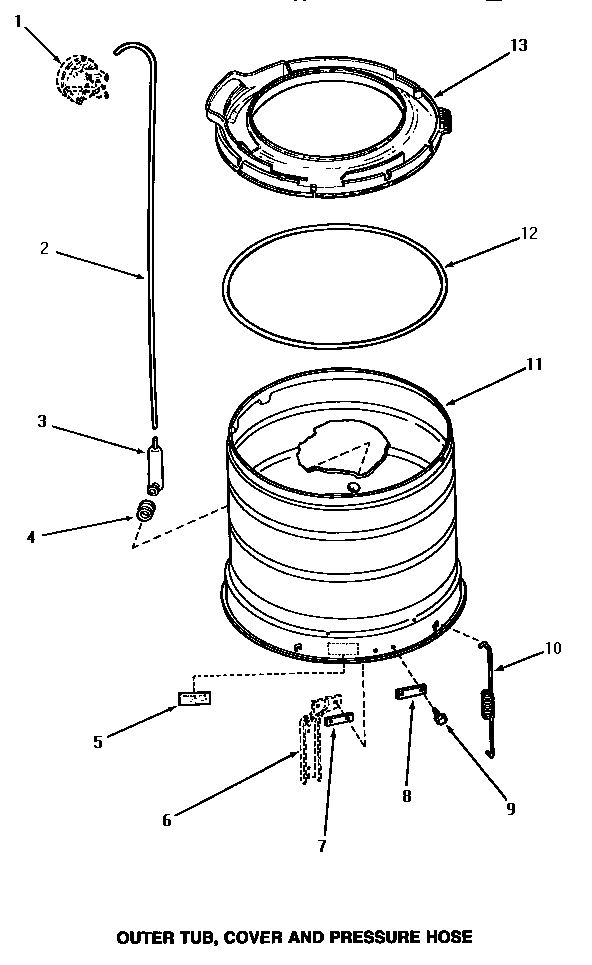

16 - OUTER TUB, COVER & PRESSURE HOSE

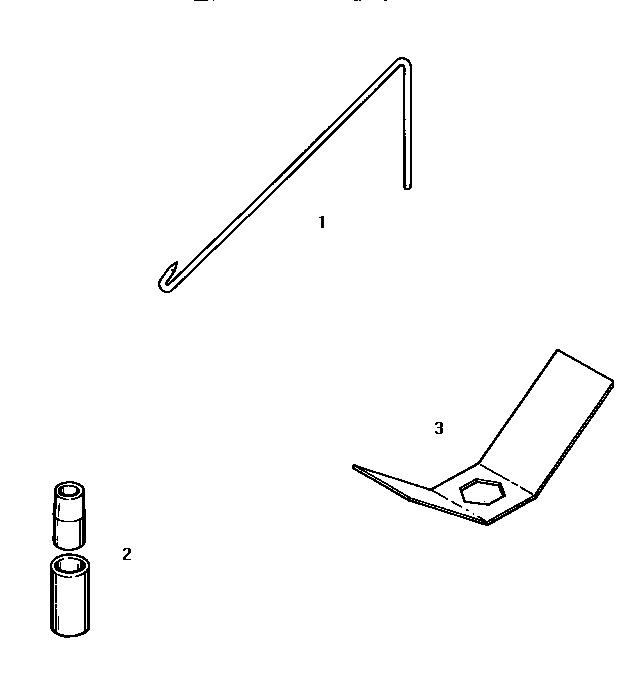

18 - SPECIAL TOOLS

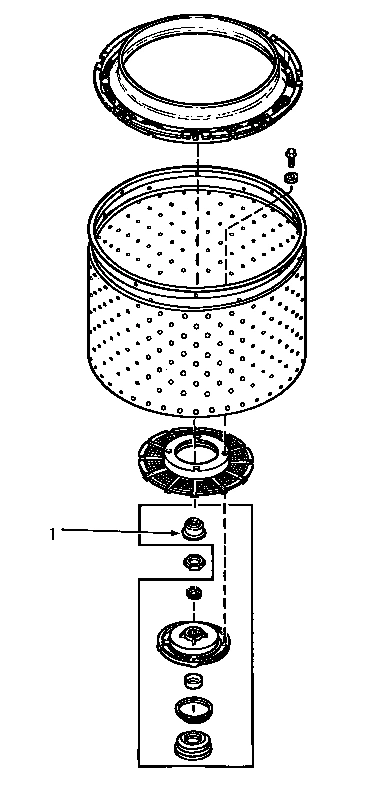

11 - HUB AND TRANSMISSION TUBE SEAL (CHANGE)

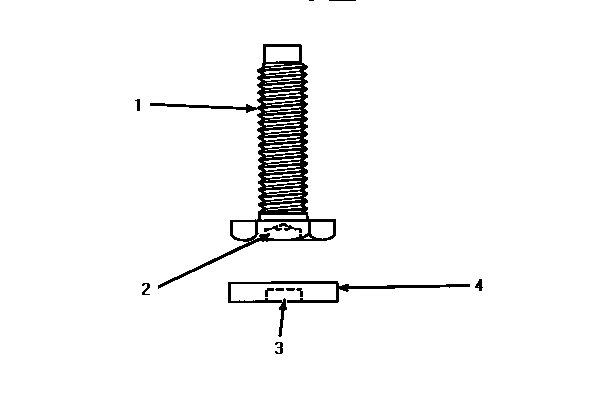

13 - LEVELING LEG (CHANGE)

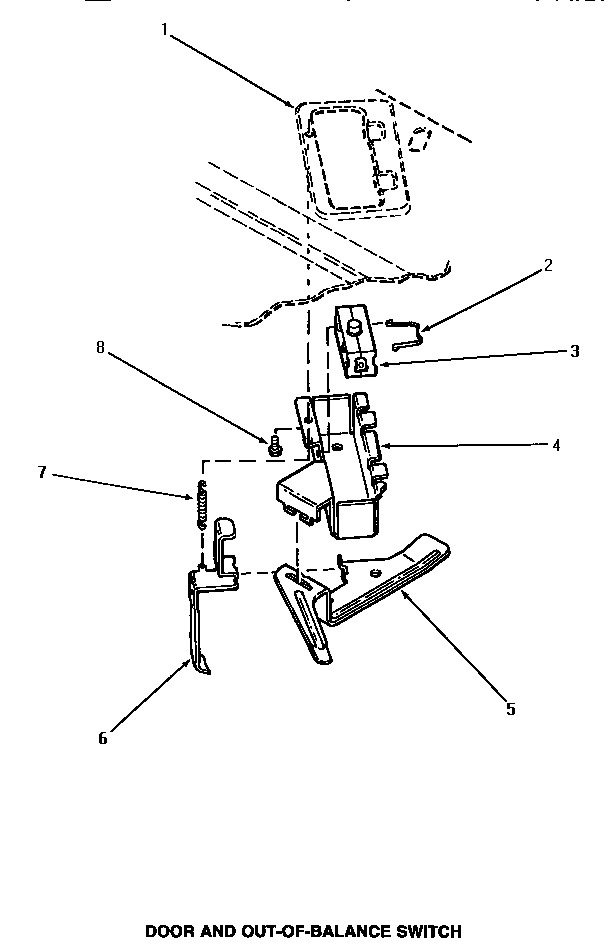

07 - DOOR & OUT-OF-BALANCE SWITCH

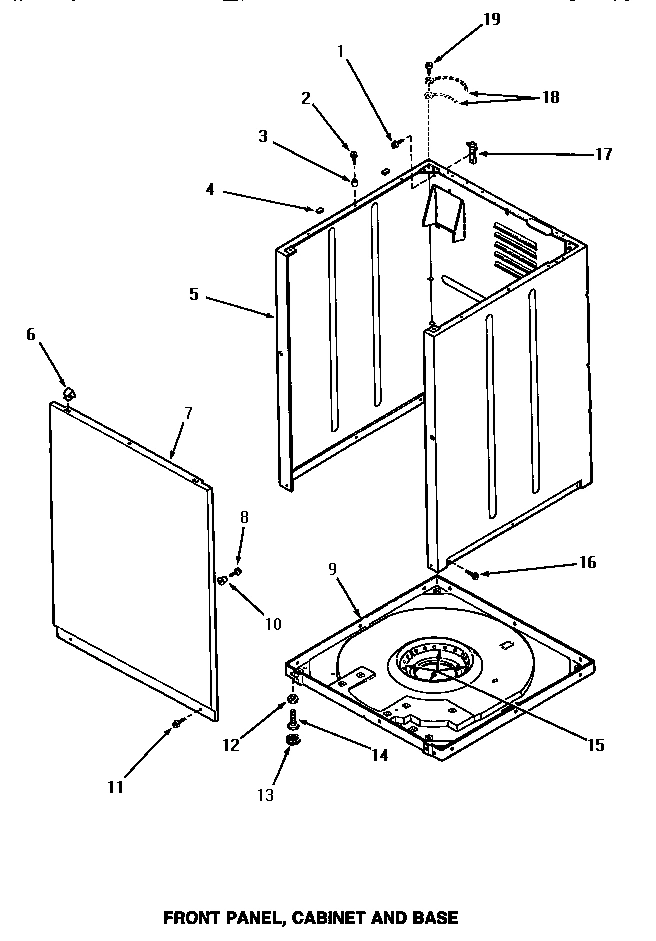

09 - FRONT PANEL, CABINET & BASE

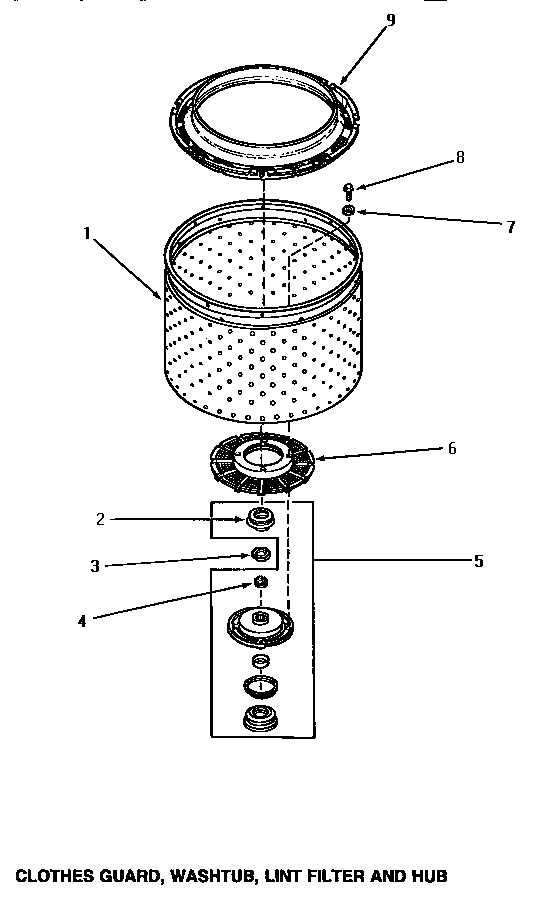

06 - CLOTHES GUARD/WASHTUB/LINT FILTER & HUB

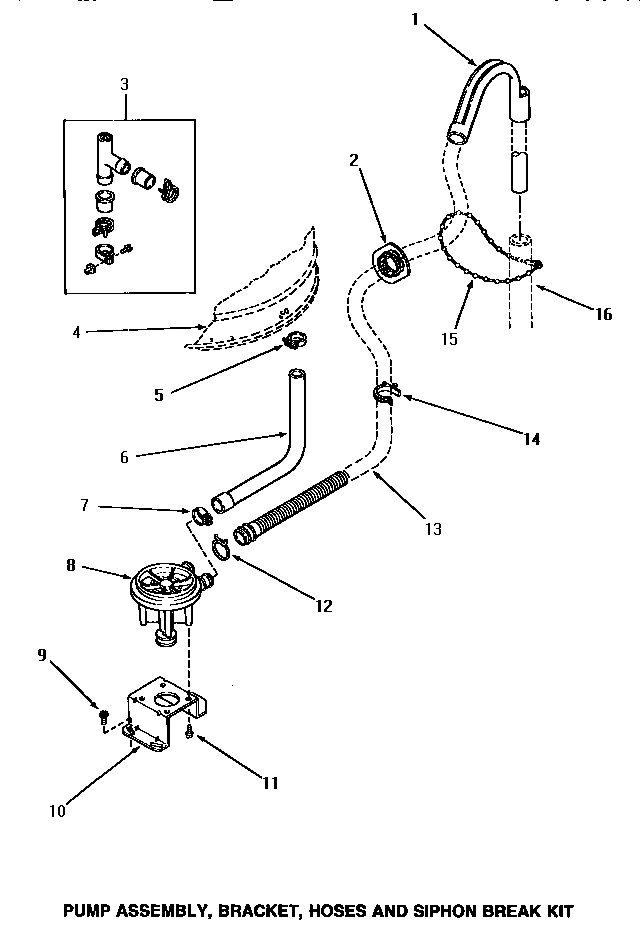

17 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

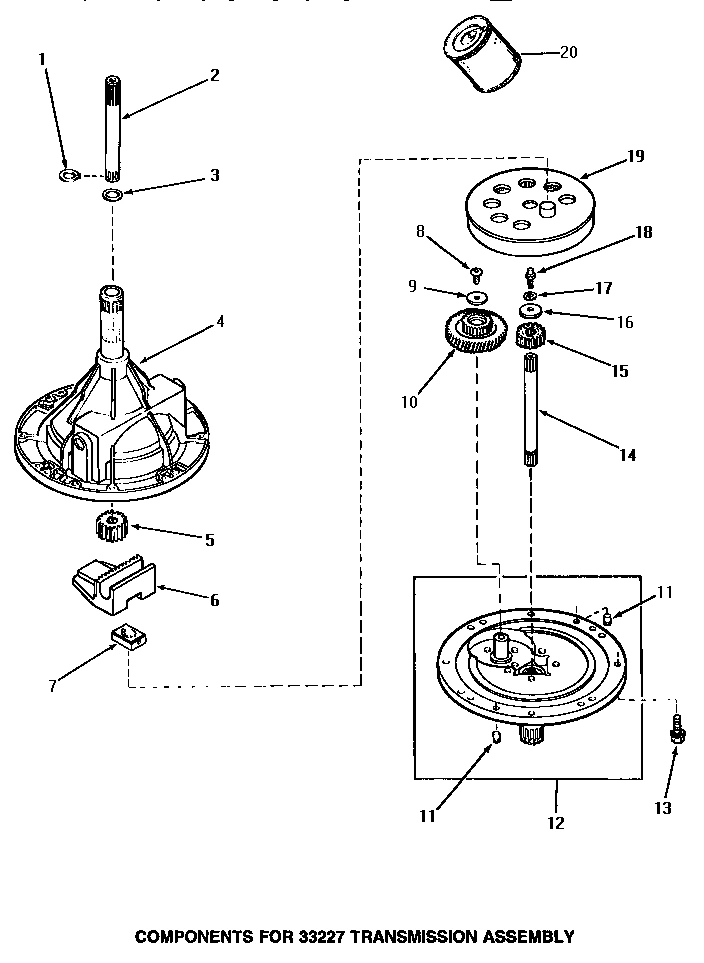

01 - 33227 TRANSMISSION ASSY COMPONENTS

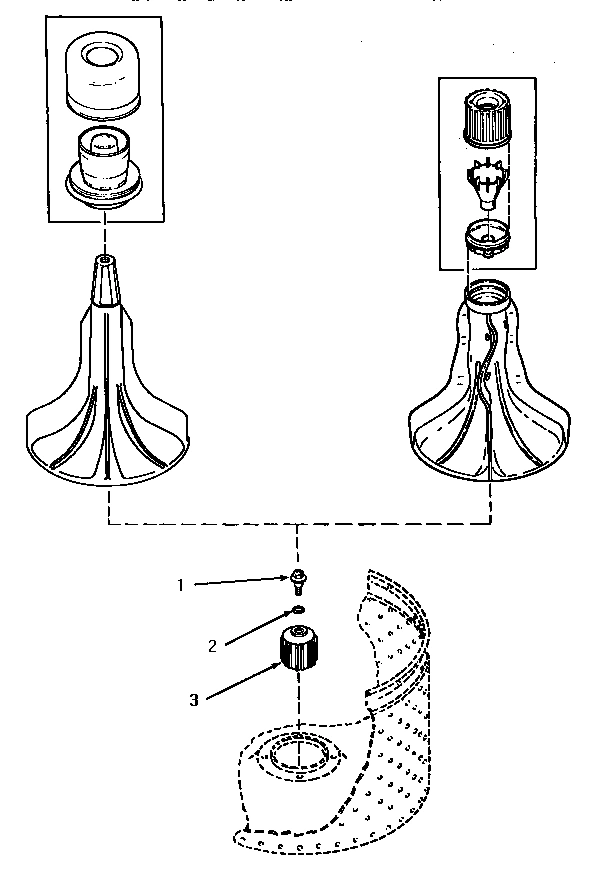

08 - DRIVE BELL (CHANGE)

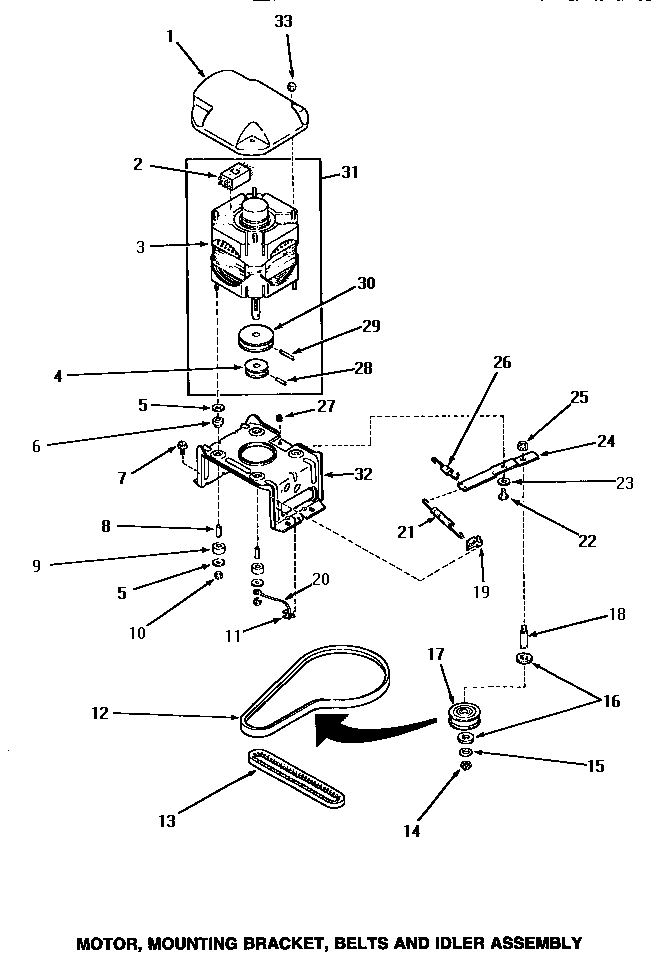

15 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY
Common parts from model Whirlpool AWM531 WASHER
STARTING SN R1624440YK ORANGE PLUG 34340 WILL WPL NOTE Contact Us For Availability
1
BEARING HOUSING ASSEMBLY WPL 28913 Contact Us For Availability
1
LOADING DOOR, HARVEST GOLD WPL 33541H Contact Us For Availability
1
LOADING DOOR, ALMOND WPL 33541L Contact Us For Availability
1
LOADING DOOR, WHITE WPL 33541W Contact Us For Availability
1
BELL TOOL WPL 253P4 Contact Us For Availability
1
TERMINAL,INSULATED WPL 00234 Contact Us For Availability
1
FABRIC SOFTENER DISPENSER WPL 34155 Contact Us For Availability
1
PLUG,BACKFLOW PREVENTE WPL 34340 Contact Us For Availability
1
SWITCH,PRESSURE-ROTARY WPL 31266 Contact Us For Availability
1
CLAMP HOSE WPL 27152 Contact Us For Availability
1
VALVE,MIXING WPL 33930 Contact Us For Availability
1
HOOK SPRING WPL 229P4 Contact Us For Availability
1
HUB AND TRANSMISSION TUBE SEAL WPL 34184 Contact Us For Availability
1
WASHTUB, STAINLESS STEEL WPL 33245 Contact Us For Availability
1
WASHTUB, PORCELAIN WPL 33295 Contact Us For Availability
1
WASHTUB WPL 33296 Contact Us For Availability
1
SLEEVE, DRAIN HOSE WPL 33615 Contact Us For Availability
1
RING,RETAINING WPL 27197 Contact Us For Availability
1
SHOULDER SCREW WPL 34288 Contact Us For Availability
1
SHIELD,MOTOR WPL 27136 Contact Us For Availability
2
BRAKE PAD KIT WPL 348P3 Contact Us For Availability
2
CONTROL HOOD REAR PANEL WPL 33619 Contact Us For Availability
2
TOOL,SEAL INSTALLING WPL 255P4 Contact Us For Availability
2
CLIP,WIRE WPL 61510 Contact Us For Availability
2
AGITATOR WPL 33174 Contact Us For Availability
2
FLINGER WPL 27187 Contact Us For Availability
2
POWER CORD AND PLUG WPL 22660 Contact Us For Availability
2
CONTROL HOOD ASSEMBLY WPL 34210 Contact Us For Availability
2
HOSE,MIXING VALVE WPL 27183 Contact Us For Availability
2
SCREW WPL 25817C Contact Us For Availability
2
PRESSURE HOSE WPL 29213 Contact Us For Availability
2
INSTALLER,SPRING WPL 242P4 Contact Us For Availability
2
CLIP,HOLDER-SWITCH WPL 33433 Contact Us For Availability
2
RELIEF, STRAIN WPL 32219 Contact Us For Availability
2
OUTPUT SHAFT WPL 29134 Contact Us For Availability
2
O-RING WPL 34289 Contact Us For Availability
2
SWITCH,MOTOR WPL 24139 Contact Us For Availability
2
SWITCH,MOTOR WPL 24140 Contact Us For Availability
2
MOTOR SWITCH, GENERAL ELECTRIC WPL 30895A Contact Us For Availability
2
MOTOR SWITCH, GENERAL ELECTRIC WPL 30897A Contact Us For Availability
3
SLEEVE,ANTI-ROTATION WPL 29993 Contact Us For Availability
3
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
3
ASSY,AGITATOR PULLER xREPLACE WPL 256P4P Contact Us For Availability
3
TERMINAL,FEMALE-MOLEX- WPL Y00188 Contact Us For Availability
3
SCREW,No.8-1/4 X 20 X 3/ WPL 30852 Contact Us For Availability
3
SCREW,No.8ABX3/4 POZIDRI WPL 31752 Contact Us For Availability
3
SLEEVE,LONG WPL 24128 Contact Us For Availability
3
PRESSURE BULB WPL 30907 Contact Us For Availability
3
HEX WRENCH WPL 237P4 Contact Us For Availability
3
SWITCH WPL 33445 Contact Us For Availability
3
LOCATER, PANEL WPL 56079 Contact Us For Availability
3
LOCKNUT WPL Y29220 Contact Us For Availability
3
WASHER,.626IDX1.00ODX. WPL 20212 Contact Us For Availability
3
DRIVE BELL WPL 34504 Contact Us For Availability
3
MOTOR, TWO SPEED WPL 30895 Contact Us For Availability
4
SPLINED INSERT WPL WP40008301 No Longer Available
4
SCREW,10-24 SHOULDER WPL 26547 Contact Us For Availability
4
AGITATOR HOOKS WPL 254P4P Contact Us For Availability
4
HOUSING,R.H.-24 POSITI WPL 32746 Contact Us For Availability
4
HOUSING,LH -24 POSITION WPL 34123 Contact Us For Availability
4
SEAL WPL 30853 Contact Us For Availability
4
BACK FLOW PREVENTER WPL 27118 Contact Us For Availability
4
LOCKWASHER,5/16INTSHKP WPL 04366 Contact Us For Availability
4
CAP,END-L.H.-CHROME WPL 31249 Contact Us For Availability
4
SOLENOID,MIXING VALVE WPL 33930A Contact Us For Availability
4
GROMMET WPL 29175 Contact Us For Availability
4
RUBBER FOOT WPL 34318 Contact Us For Availability
4
SWITCH HOLDER WPL 33440 Contact Us For Availability
4
PAD, BUMPER WPL Y56128 Contact Us For Availability
4
ASSY,TRANSMISSION CASE WPL 33223 Contact Us For Availability
4
PULLEY,MOTOR WPL Y27104 Contact Us For Availability
5
BRAKE ASSEMBLY WPL 31961 Contact Us For Availability
5
DRIVE BELL AND SEAL ASSEMBLY WPL 30071P Contact Us For Availability
5
BALANCE RING WPL 27143 Contact Us For Availability
5
TRIM WPL 33123R Contact Us For Availability
5
SLEEVE,SHORT WPL 24129 Contact Us For Availability
5
STICKER WPL Y27195 Contact Us For Availability
5
ARM,ACTUATOR WPL 33441 Contact Us For Availability
5
REPL BY 34475HP WPL 31669HP Contact Us For Availability
5
CABINET, ALMOND WPL 31669LP Contact Us For Availability
5
CABINET, WHITE WPL 31669WP Contact Us For Availability
5
HUB & SEAL KIT WPL 495P3 Contact Us For Availability
5
(CLAMP HOSE) WPL 32616 Contact Us For Availability
5
PINION,AGITATOR WPL 27003 Contact Us For Availability
5
WASHER WPL 03888 Contact Us For Availability
6
WASHER WPL 32651 Contact Us For Availability
6
STRAIN RELIEF WPL 21903 Contact Us For Availability
6
TERMINAL,FEMALE WPL 00180 Contact Us For Availability
6
LOCKWASHER,1/4 EXT SHK WPL 02431 Contact Us For Availability
6
RETAINER WPL 10519 Contact Us For Availability
6
SPRING WPL 24131 Contact Us For Availability
6
LEVER,UNBALANCED LOAD WPL 33442 Contact Us For Availability
6
LINT FILTER WPL 32998 Contact Us For Availability
6
HOSE,TUB TO PUMP-DRAIN WPL 27160 Contact Us For Availability
6
RACK WPL Y31526 Contact Us For Availability
6
MOUNTING,RUBBER WPL 01952A Contact Us For Availability
7
PULLEY ASSEMBLY WPL 30260 Contact Us For Availability
7
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
7
TERMINAL,FEMALE 2-WIRE WPL 00183 Contact Us For Availability
7
CAP SCREW WPL 27200 Contact Us For Availability
7
DIAPHRAGM WPL 24134 Contact Us For Availability
7
PLATE,LEG .032 WPL 27927 Contact Us For Availability
7
SPRING WPL 33443 Contact Us For Availability
7
PANEL,FRONT WPL 32708H Contact Us For Availability
7
FRONT PANEL, ALMOND WPL 32708L Contact Us For Availability
7
FRONT PANEL, WHITE WPL 32708W Contact Us For Availability
7
GASKET WPL 28094 Contact Us For Availability
7
SLIDE WPL 26493 Contact Us For Availability
8
HELIX WPL 27018 Contact Us For Availability
8
CABINET TOP, HARVEST GOLD WPL 33451H Contact Us For Availability
8
CABINET TOP, ALMOND WPL 33451L Contact Us For Availability
8
CABINET TOP, WHITE WPL 33451W Contact Us For Availability
8
TERMINAL,1/4 SPADE PRE WPL Y00214 Contact Us For Availability
8
TERMINAL,1/4 SPADE PRE WPL Y00215 Contact Us For Availability
8
TRANSMISSION ASSEMBLY WPL 33227 Contact Us For Availability
8
NUT WPL 57584 Contact Us For Availability
8
BRACKET,MIXING VALVE M WPL 32837 Contact Us For Availability
8
BODY,VALVE WPL Y24159 Contact Us For Availability
8
PLATE,LEG .063 WPL 27926 Contact Us For Availability
8
ASSY, PUMP NA WPL 31969 Contact Us For Availability
8
SCREW,1/4-20 X 3/8 WPL 29273 Contact Us For Availability
8
SPACER,MOTOR WPL 27181 Contact Us For Availability
9
SCREW WPL 27220 Contact Us For Availability
9
BARREL,SUPPORT WPL 56534 Contact Us For Availability
9
HOUSING,24 POSITION WPL 28856 Contact Us For Availability
9
NEVER-SEEZE 1 OZ TUBE WPL 27604P Contact Us For Availability
9
TIMER KNOB WHITE WPL 33898 Contact Us For Availability
9
SCREW AND LOCKWASHER WPL 27205 Contact Us For Availability
9
ASSY,BASE-COMPLETE-G90 WPL 31653P Contact Us For Availability
9
CLOTHES GUARD WPL 32989 Contact Us For Availability
9
WASHER WPL 29260 Contact Us For Availability
9
WASHER,LOWER MOTOR MOU WPL 01953 Contact Us For Availability
10
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
10
SCREW WPL 01355 Contact Us For Availability
10
TIMER KNOB SKIRT WPL 33818 Contact Us For Availability
10
WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability
10
ARMATURE WPL 24132 Contact Us For Availability
10
SPRING,LEG WPL 27239 Contact Us For Availability
10
LOCATOR,PANEL WPL 28102 Contact Us For Availability
10
BRACKET,PUMP MOUNTING WPL 27105 Contact Us For Availability
10
GEAR,REDUCTION WPL 29161 Contact Us For Availability
10
NUT,HEX 10-32 LOCK WPL 23604 Contact Us For Availability
11
DOME,PIVOT WPL 27124 Contact Us For Availability
11
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
11
SPADE TERMINAL(12 GAUGE) WPL Y00121 Contact Us For Availability
11
GROUND CLIP WPL Y00161 Contact Us For Availability
11
NUT,RETAINER 5/16-18 WPL 27222 Contact Us For Availability
11
PANEL,GRAPHIC WPL 33734 Contact Us For Availability
11
GUIDE,ARMATURE WPL 24130 Contact Us For Availability
11
OUTER TUB WPL 33178 Contact Us For Availability
11
SCREW,10-10 5/8 UNSLOT WPL 31098 Contact Us For Availability
11
PIN,DOWEL WPL 27172 Contact Us For Availability
12
USE 34776 WPL 33516 Contact Us For Availability
12
CLIP,WIRE WPL 51291 Contact Us For Availability
12
CAP,END-R.H.-CHROME WPL 31248 Contact Us For Availability
12
GASKET,TUB COVER SMALL WPL 32857 Contact Us For Availability
12
TRANSMISSION COVER ASSEMBLY WPL 33214 Contact Us For Availability
13
SCREW WPL 30016 Contact Us For Availability
13
TERMINAL,RING-1/4 STUD WPL Y00113 Contact Us For Availability
13
TIMER, 4 CYCLE WPL 32039 Contact Us For Availability
13
HOSE CLAMP WPL 29210 Contact Us For Availability
13
COVER,OUTER TUB xREPLACE WPL 32858 Contact Us For Availability
13
RUBBER PAD WPL 21749 Contact Us For Availability
13
DRAIN HOSE WPL 33613 Contact Us For Availability
13
SCREW,1/4-20X7/8 SERRA WPL 32814 Contact Us For Availability
13
BELT,PUMP WPL 27155 Contact Us For Availability
14
SPRING,CONICAL WPL 33435 Contact Us For Availability
14
GASKET,HINGE WPL 34338 Contact Us For Availability
14
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
14
HOSE,WATER INLET WPL 33186 Contact Us For Availability
14
CLAMP,HOSE-PLASTIC WPL 34321 Contact Us For Availability
14
SHAFT,INPUT WPL 27081 Contact Us For Availability
15
LEG,SUPPORT WPL 27090 Contact Us For Availability
15
BUSHING WPL 33446 Contact Us For Availability
15
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
15
SWITCH, TEMP WPL 32189 Contact Us For Availability
15
HOSE CLAMP, GREEN WPL 21976 Contact Us For Availability
15
KIT,SNUBBER PAD WPL 434P3 Contact Us For Availability
15
STRAP, STANDPIPE BEAD WPL 33489 Contact Us For Availability
15
PINION,DRIVE WPL Y29160 Contact Us For Availability
16
WASHER WPL 26509 Contact Us For Availability
16
HINGE,LID-RIGHT WPL 34325 Contact Us For Availability
16
INSULATOR,BLUE WPL 70210 Contact Us For Availability
16
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
16
WASHER,FELT WPL Y29443 Contact Us For Availability
17
HINGE WPL 34326 Contact Us For Availability
17
HINGE,HOLD-DOWN LUG WPL Y27103 Contact Us For Availability
17
LOCKWASHER,1/4 INTSHKP WPL 21456 Contact Us For Availability
17
WHEEL,IDLER WPL 28800 Contact Us For Availability
18
BUMPER WPL 21685 Contact Us For Availability
18
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
18
SCREW,1/4-20 SPECIAL WPL 27030 Contact Us For Availability
18
SHAFT,IDLER WPL 28802 Contact Us For Availability
19
DOUBLE CONNECTOR WPL 29673 Contact Us For Availability
19
SCREW,8-18 X 3/8 TAPPI WPL 56392 Contact Us For Availability
19
ASSY,GEAR & STUD WPL 26577 Contact Us For Availability
19
CLIP,SPRING WPL 28849 Contact Us For Availability
20
SEE NOTE GROUND WIRE, GREEN WPL Y00000000 Contact Us For Availability
20
WIRE TIE WPL 55881 Contact Us For Availability
20
OIL,CW TRANSMISSION F- WPL 27243P Contact Us For Availability
21
CONNECTOR WPL 90789 Contact Us For Availability
22
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
22
SHOULDER BOLT WPL 27229 Contact Us For Availability
23
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
23
WASHER WPL 81392 Contact Us For Availability
24
PLUG,1 CIRCUIT WPL 26302 Contact Us For Availability
24
IDLER LEVER WPL 31054 Contact Us For Availability
25
RECEPTACLE,MOLEX WPL 26301 Contact Us For Availability
26
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
26
SPRING,IDLER LEVER HEL WPL 30620 Contact Us For Availability
27
RECEPTACLE,6 CIRCUIT WPL 26708 Contact Us For Availability
28
PLUG,6 CIRCUIT WPL 23041 Contact Us For Availability
28
PIN,ROLL WPL 10416 Contact Us For Availability
29
PIN,ROLL WPL 23750 Contact Us For Availability
30
PULLEY,MOTOR WPL 27171 Contact Us For Availability
31
MOTOR ASSEMBLY, TWO SPEED WPL 27179 Contact Us For Availability
32
BRACKET,MOTOR MOUNT WPL 28791 Contact Us For Availability
33
LOCKNUT WPL 27201 Contact Us For Availability
NI
DRIVE BELL SEAL KIT WPL 442P3 Contact Us For Availability
NI
BASE WIRE HARNESS WPL 33658 Contact Us For Availability
NI
ASSY,WIRING HARNESS-MI WPL 33828 Contact Us For Availability
NI
ASSY,MOTOR HARNESS-2SP WPL Y28131 Contact Us For Availability
NI
DRAIN HOSE EXTENSION KIT WPL 406P3 Contact Us For Availability
NI
LOCTITE WPL 28434P Contact Us For Availability
NI
LUBE,HI TEMPERATURE-56 WPL 20605 Contact Us For Availability
NI
KIT,CAPACITOR WPL 258P3 Contact Us For Availability
× ![]()
Login and Registration Form
