Model Whirlpool ARR630L ELECTRIC RANGE – Common Parts & Diagrams
07 - STORAGE DRAWER ASSY

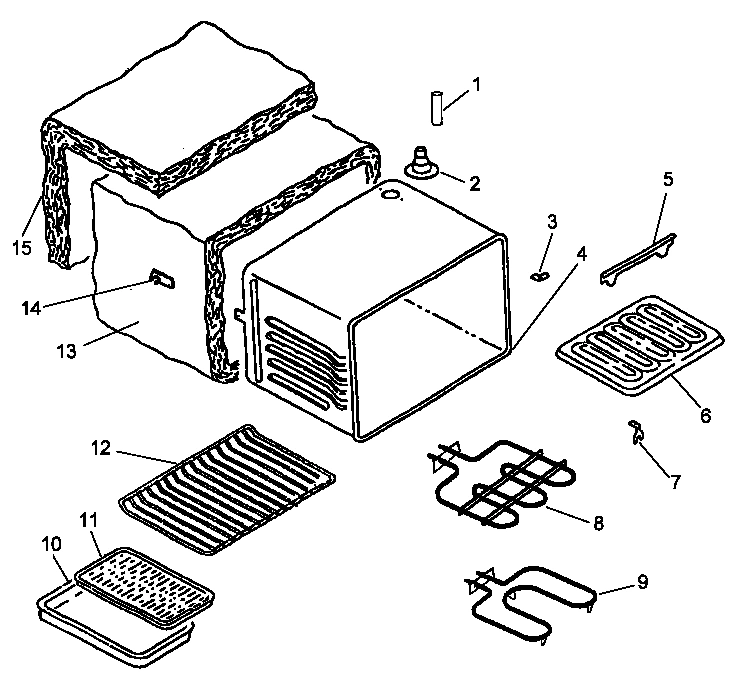

02 - CAVITY ASSY

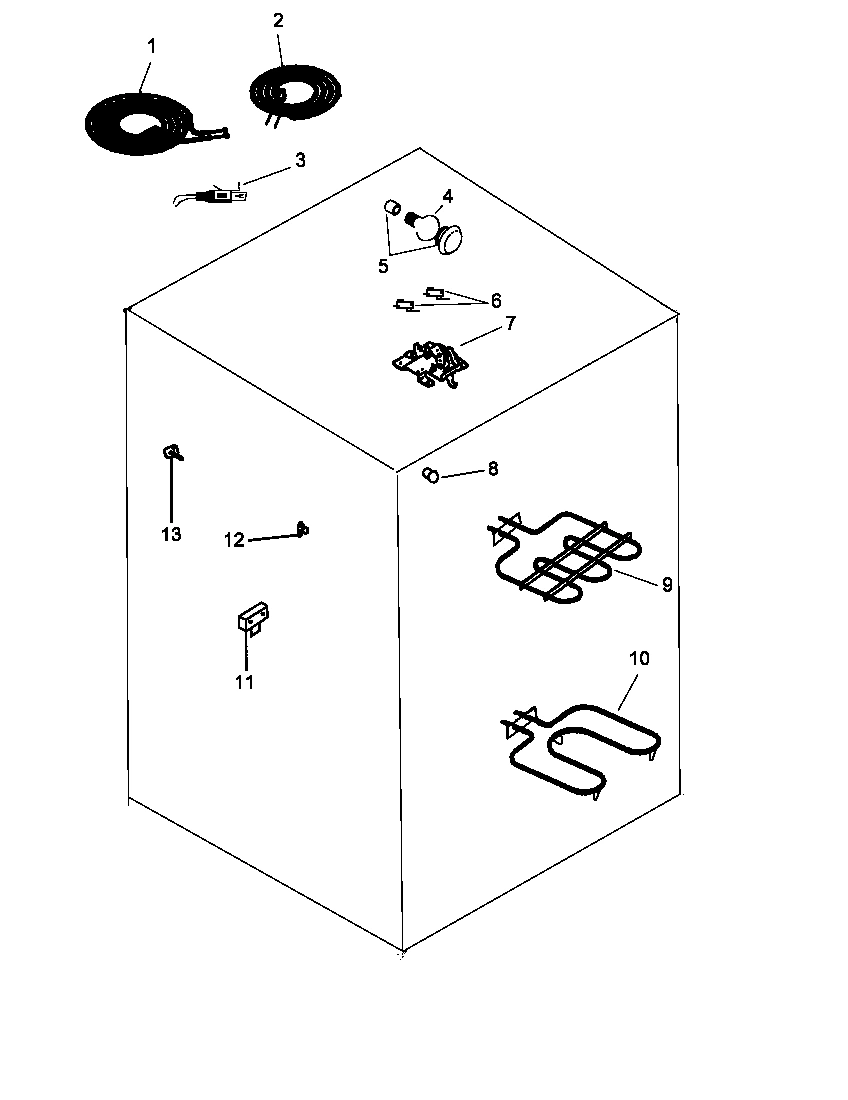

04 - ELECTRICAL COMPONENTS

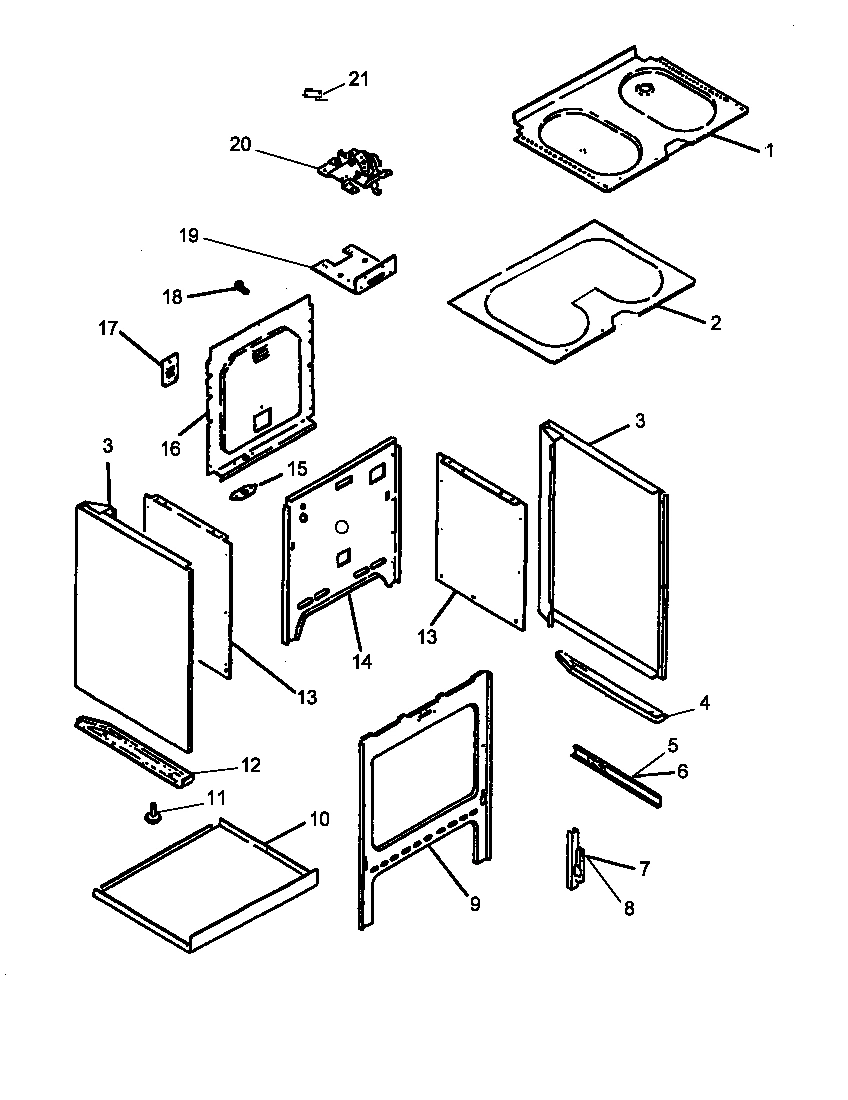

06 - OVEN ASSY

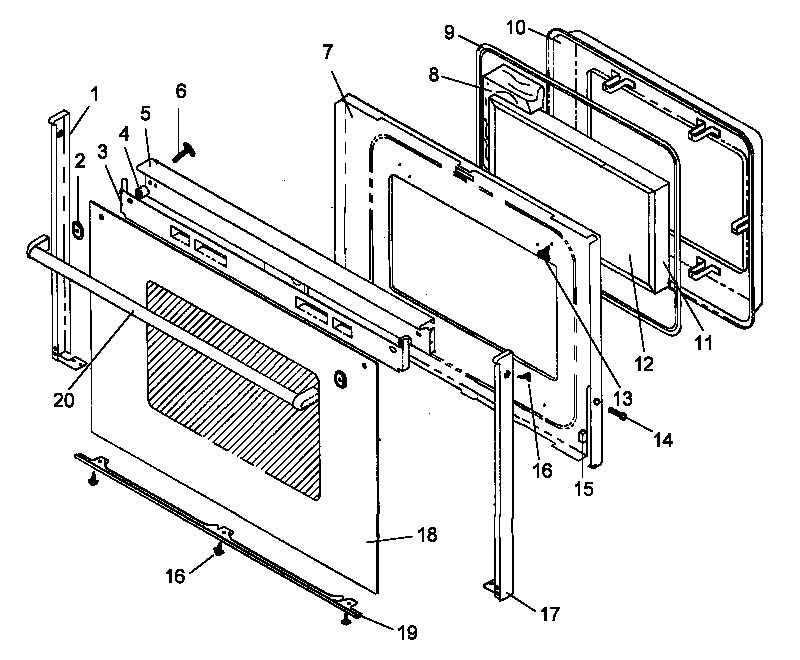

03 - DOOR ASSY

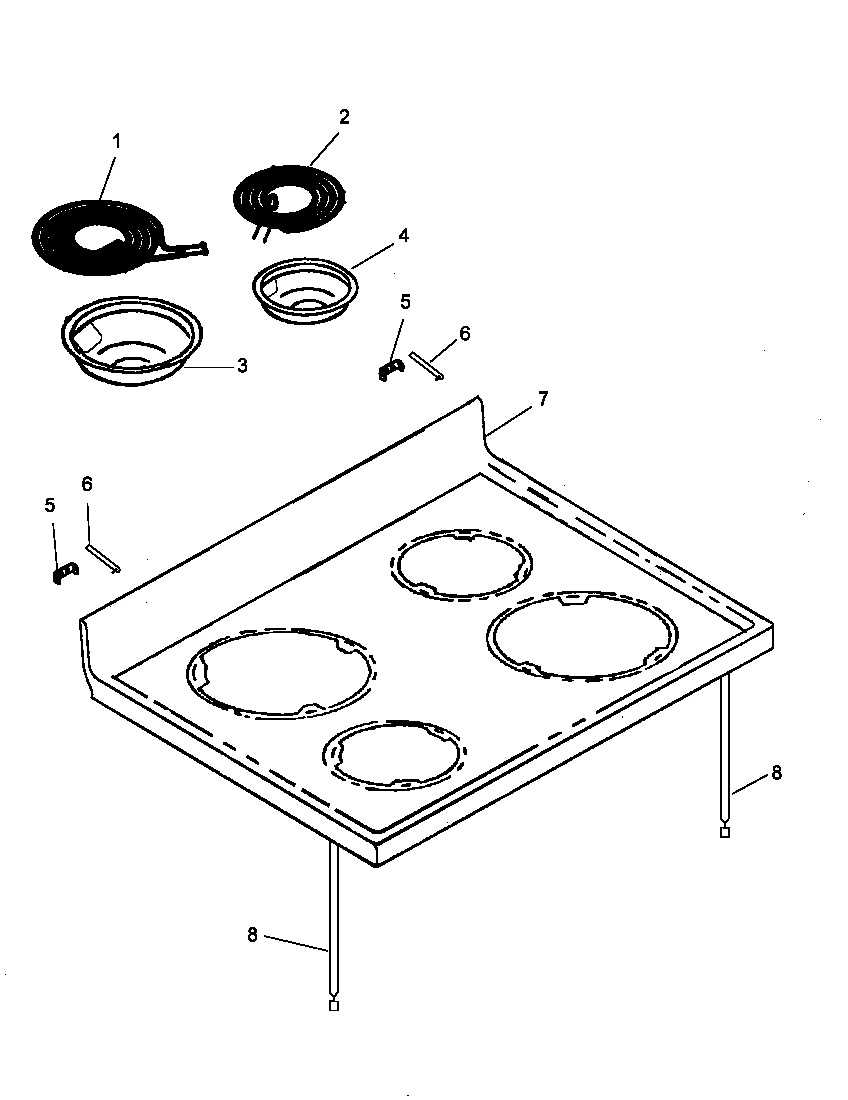

05 - MAIN TOP ASSY

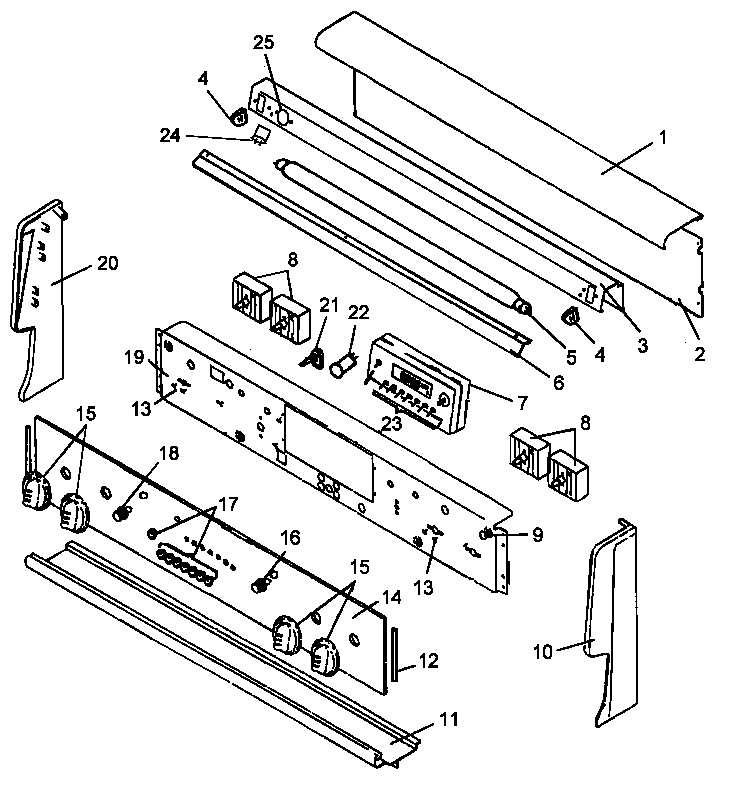

01 - BACKGUARD ASSY
Common parts from model Whirlpool ARR630L ELECTRIC RANGE
1
TUBE, VENT EXT. WPL 0063336 Contact Us For Availability
1
BAFFLE, DRIP (ENAMEL) WPL 309429CG Contact Us For Availability
1
END CAP, LT (BLK) WPL 309458B Contact Us For Availability
1
TRIM, TOP BACKGUARD (BLK) WPL 304955B Contact Us For Availability
2
DRAWER, STORAGE (WHT) WPL 309622W Contact Us For Availability
2
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
2
RETAINER, TOP INSULATION WPL Y0309773 Contact Us For Availability
2
SPACER, HANDLE (BLK) WPL 309882B Contact Us For Availability
2
COVER, BACKGUARD WPL 0309137 Contact Us For Availability
3
RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability
3
COVER, CHIP WPL Y0315022 Contact Us For Availability
3
PANEL, SIDE (ALM) WPL 306081L Contact Us For Availability
3
ASSY, GLASS HEAT SHIELD (BLK) WPL 309642B Contact Us For Availability
3
BRACKET, LIGHT WPL 307211B Contact Us For Availability
4
RIVET, POP WPL Y0076357 Contact Us For Availability
4
OVEN SHELL (EL. W/LT) WPL 58788CG Contact Us For Availability
4
BULB, LIGHT WPL Y0042175 Contact Us For Availability
4
BRACE, LEVELING LEG (RT) WPL 314885B Contact Us For Availability
4
BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability
4
LAMP HOLDER-FLOURES WPL Y0304559 Contact Us For Availability
5
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
5
TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability
5
TRIM, UPPER DOOR WPL 309456B Contact Us For Availability
5
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
6
LINER, DRAWER PANEL (WHT) WPL 309179W Contact Us For Availability
6
REFLECTOR, BROIL ELEMENT WPL Y0308294 Contact Us For Availability
6
TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability
6
SCREW, No.10-24X11/4 (TRS PH HD) WPL Y0309973 Contact Us For Availability
6
HINGE, STRAP WPL 0314373 Contact Us For Availability
6
SHIELD, LIGHT (BLK) WPL 314934B Contact Us For Availability
7
PANEL, DRAWER (BLK) WPL 309177B Contact Us For Availability
7
BRACKET, MOUNTING WPL 0061556 Contact Us For Availability
7
KIT, DOOR HINGE(RH-SS) WPL Y0314575 Contact Us For Availability
7
LINER, OVEN DOOR (ELEC) WPL 314563CG Contact Us For Availability
7
MAIN TOP-ELECTRIC UPSWEPT WPL 306899L Contact Us For Availability
7
ERC 3, ELEC. AUTO LATCH WPL Y0309441 Contact Us For Availability
8
SWITCH, OVEN DOOR WPL Y0305797 Contact Us For Availability
8
KIT, DOOR HINGE(LH-HS) WPL Y0314572 Contact Us For Availability
8
INSULATION,WRAPPER WPL Y0041966 Contact Us For Availability
8
SUPPORT, MAINTOP WPL Y0304115 Contact Us For Availability
9
SEE NOTE FRONT FRAME -- (NOT FIELD REPLACEABL WPL Y00000000 Contact Us For Availability
9
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
10
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
10
PAD, OVEN DOOR WPL 309781CG Contact Us For Availability
10
END CAP-BKGD LT/RT (BLK) WPL 304928B Contact Us For Availability
11
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
11
FRAME, WINDOW PACK WPL Y0309071 Contact Us For Availability
11
TRIM, LOWER BKGD (BLK) WPL 314603B Contact Us For Availability
12
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
12
BRACE, LEVELING LEG (LT) WPL 314884B Contact Us For Availability
12
GLASS WINDOW 18`` X 11`` X 3/16`` WPL Y0309074 Contact Us For Availability
12
CHANNEL GLASS (BLK) WPL 0305309 Contact Us For Availability
13
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
13
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
13
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
14
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
14
RETAINER, REAR INSUL. WPL 0309081 Contact Us For Availability
14
RIVET, POP WPL Y0302648 Contact Us For Availability
14
GLASS, BACKGUARD WPL 309667B Contact Us For Availability
15
INSULATION, REAR WPL Y0300974 Contact Us For Availability
15
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
15
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
15
KNOB, INFINITE SWITCH (BLK) WPL 309870B Contact Us For Availability
16
COVER, REAR WPL Y0307342 Contact Us For Availability
16
SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability
16
KNOB, CLOCK (BLACK) WPL 308385B Contact Us For Availability
17
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
17
END CAP, RT (BLK) WPL 309457B Contact Us For Availability
17
BUTTON, ERC (BLK) WPL 309887B Contact Us For Availability
18
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
18
PANEL, GLASS OVEN DOOR (BLK) WPL 314818B Contact Us For Availability
18
KNOB, LIGHT SWITCH (BLK) WPL 306674B Contact Us For Availability
19
BRACKET, LATCH MTG. WPL Y0309428 Contact Us For Availability
19
SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability
19
PANEL, CONTROL WPL Y0309723 Contact Us For Availability
20
LATCH, OVEN DOOR WPL Y0309430 Contact Us For Availability
20
HANDLE, OVEN DOOR (BLK) WPL 309624B Contact Us For Availability
20
END CAP-BKGD LT/RT (BLK) WPL 304927B Contact Us For Availability
21
SWITCH, DOOR LATCH WPL Y0314277 Contact Us For Availability
21
SWITCH, OVEN LIGHT, ROTARY WPL Y0306673 Contact Us For Availability
22
LIGHT, INDICATOR (RED) WPL Y0305660 Contact Us For Availability
23
PIN, ACTUATOR WPL 0309888 Contact Us For Availability
24
STARTER, FLOURESCENT WPL 0071920 Contact Us For Availability
25
START HOLDR-FLOUR.LMP WPL Y0304560 Contact Us For Availability
NI
RIVET, POP WPL Y0097822 Contact Us For Availability
NI
HEX NUT No.10-32 NICKEL WPL 0306381 Contact Us For Availability
NI
SCREW, GROUNDING WPL Y0072270 Contact Us For Availability
NI
SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability
NI
SCREW No.10-32 X .375 WPL Y0300830 Contact Us For Availability
NI
BRACKET WPL Y0301028 Contact Us For Availability
NI
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
NI
SUB 71668 PIN WPL 0091607 Contact Us For Availability
NI
CLIP,ELEMENT WPL 0308408 Contact Us For Availability
NI
WIRE CLIP WPL Y0041875 Contact Us For Availability
NI
SUPPORT, BKGD (LH) WPL 0306589 Contact Us For Availability
NI
SUPPORT, BKGD (RH) WPL 0306590 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PAN HD PH WPL Y0073657 Contact Us For Availability
NI
NUT WPL Y0076175 Contact Us For Availability
× ![]()
