Model Whirlpool ARHC7700E ELECTRIC RANGE – Common Parts & Diagrams
02 - CABINET ASSY

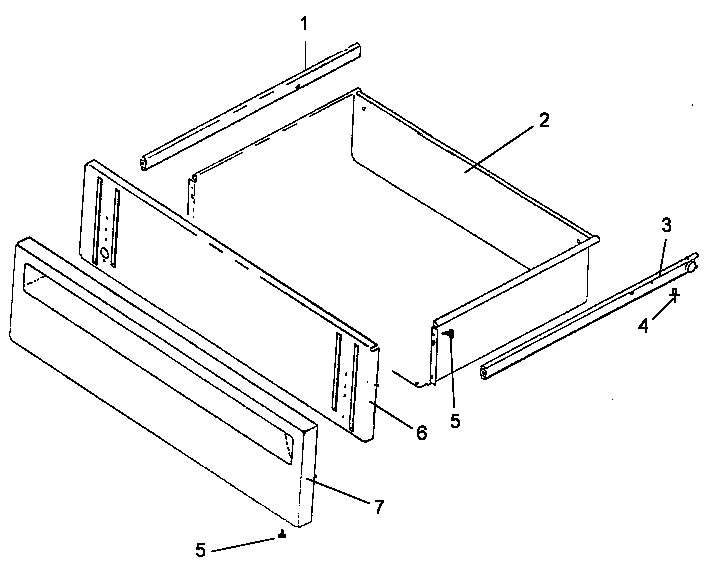

07 - STORAGE DRAWER ASSY

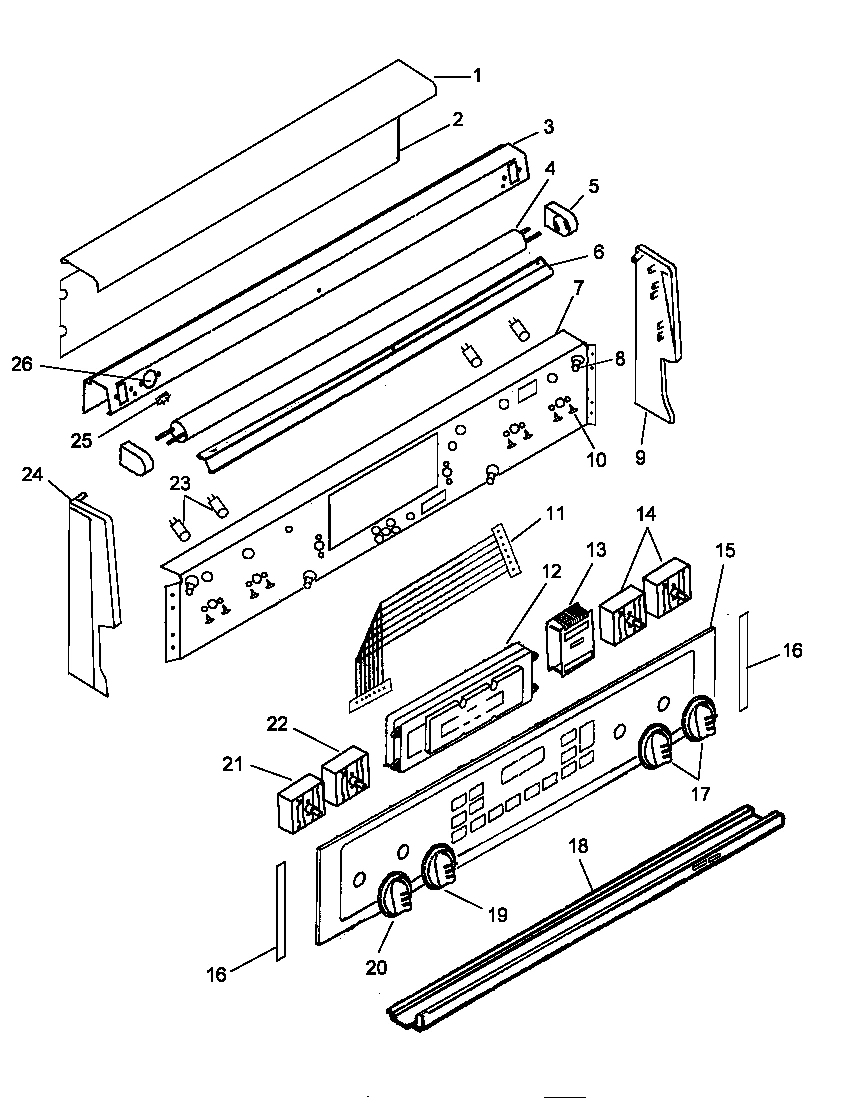

01 - BACKGUARD ASSY

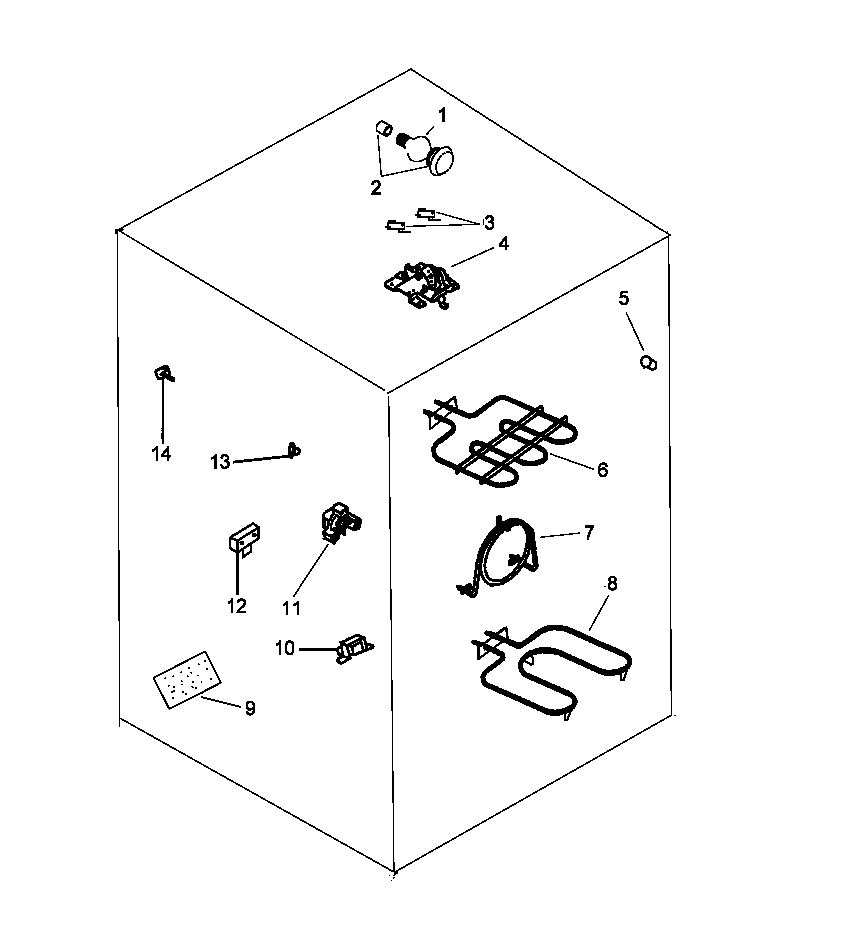

03 - ELECTRICAL COMPONENTS

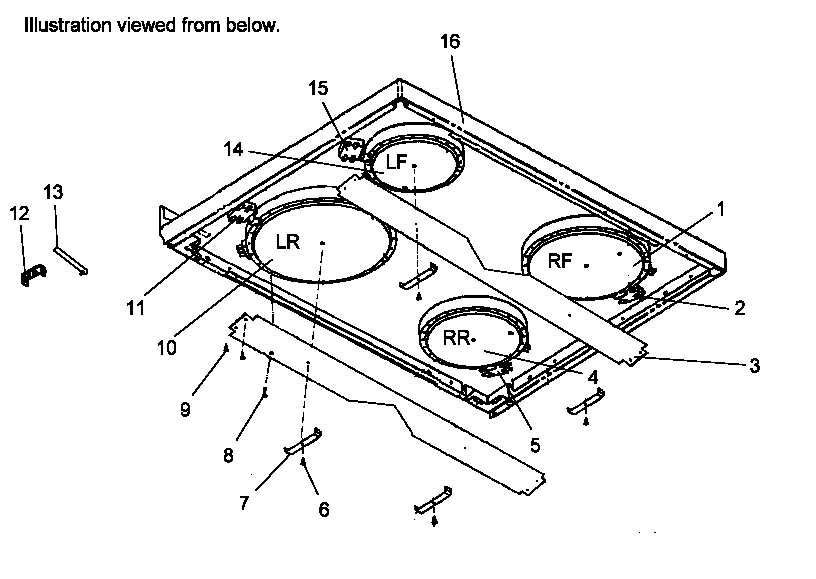

04 - MAIN TOP ASSY

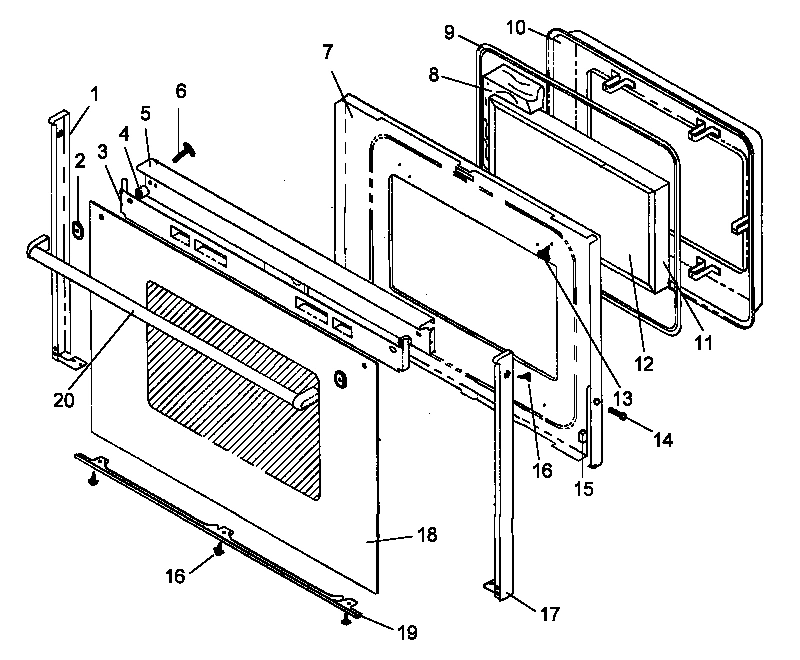

06 - OVEN DOOR ASSY

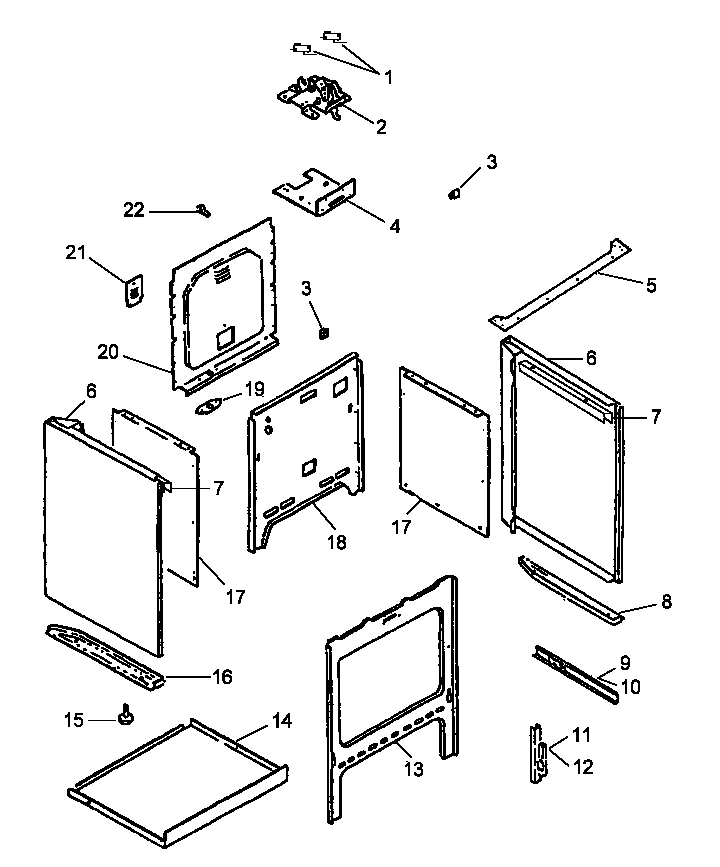

05 - OVEN ASSY
Common parts from model Whirlpool ARHC7700E ELECTRIC RANGE
1
RUNNER STORAGE DWR-LH WPL 0314664 Contact Us For Availability
1
TRIM, TOP BACKGUARD (BLK) WPL 304955B Contact Us For Availability
1
BULB, LIGHT WPL Y0042175 Contact Us For Availability
1
SWITCH, DOOR LATCH WPL Y0314277 Contact Us For Availability
1
ELEMENT, HALORING-1800 W WPL Y0307433 Contact Us For Availability
1
END CAP, LT (BLK) WPL 309458B Contact Us For Availability
2
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
2
DRAWER, STORAGE (WHT) WPL 309622W Contact Us For Availability
2
COVER, BACKGUARD WPL 0309137 Contact Us For Availability
2
LATCH, OVEN DOOR WPL Y0309430 Contact Us For Availability
2
LIMITER, TEMP, LARGE WPL 10061003 Contact Us For Availability
2
SPACER, HANDLE (BLK) WPL 309882B Contact Us For Availability
3
COVER, CHIP WPL Y0315022 Contact Us For Availability
3
RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability
3
BRACKET, LIGHT WPL 307211B Contact Us For Availability
3
BRKT, ELEMENT WPL Y0315354 Contact Us For Availability
3
ASSY, GLASS HEAT SHIELD (BLK) WPL 309642B Contact Us For Availability
3
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
4
OVEN, CAVITY (ENAMELLED) WPL 309775CG Contact Us For Availability
4
RIVET, POP WPL Y0076357 Contact Us For Availability
4
ELEMENT, HALORING-1500 W WPL Y0307432 Contact Us For Availability
4
BUSHING, HANDLE (BLK) WPL 309461B Contact Us For Availability
4
BRACKET, LATCH MTG. WPL Y0309428 Contact Us For Availability
5
LAMP HOLDER-FLOURES WPL Y0304559 Contact Us For Availability
5
SWITCH, OVEN DOOR WPL Y0305797 Contact Us For Availability
5
ELEMENT, HALORING-1500 W WPL 10061005 Contact Us For Availability
5
TRIM, UPPER DOOR WPL 309456B Contact Us For Availability
5
BRKT, MAINTOP (PAINTED) WPL Y0314891 Contact Us For Availability
6
WASHER (ZN) WPL 0307038 Contact Us For Availability
6
ELEMENT, BROIL (240V-3000W) WPL Y0060241 Contact Us For Availability
6
LINER, DRAWER PANEL (WHT) WPL 309179W Contact Us For Availability
6
LIGHT DIFFUSER BACKGUARD-CLEAR WPL 0304977 Contact Us For Availability
6
SHIELD, LIGHT (BLK) WPL 314934B Contact Us For Availability
6
SCREW, 8-18 X 3/8`` WPL Y059445 Contact Us For Availability
6
SCREW, No.10-24X11/4 (TRS PH HD) WPL Y0309973 Contact Us For Availability
6
PANEL, SIDE (BLK) WPL 306081B Contact Us For Availability
7
BLADE, FAN WPL Y0307036 Contact Us For Availability
7
ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability
7
PANEL, DRAWER (BLK) WPL 309177B Contact Us For Availability
7
PANEL, BKGD CONTROL WPL 0314556 Contact Us For Availability
7
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
7
LINER, OVEN DOOR (ELEC) WPL 314563CG Contact Us For Availability
7
CHANNEL, BROIL BURNER WPL Y0304019 Contact Us For Availability
8
NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability
8
BUMPER, RUBBER WPL Y0314643 Contact Us For Availability
8
SCREW, SHOULDER WPL 0306212 Contact Us For Availability
8
INSULATION,WRAPPER WPL Y0041966 Contact Us For Availability
8
BRACE, LEVELING LEG (RT) WPL 314885B Contact Us For Availability
9
END CAP-BKGD LT/RT (BLK) WPL 304928B Contact Us For Availability
9
CIRCUIT BOARD, ERC WPL Y0309305 Contact Us For Availability
9
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
9
TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability
10
COVER, FAN (ENAMELED) WPL 309774CG Contact Us For Availability
10
BALLAST WPL Y0071869 Contact Us For Availability
10
PAD, OVEN DOOR WPL 309781CG Contact Us For Availability
10
TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability
11
ASSY, CONV. FAN & BLADE WPL Y0305246 Contact Us For Availability
11
RACK, OVEN WPL 309988J Contact Us For Availability
11
HARNESS, WIRING WPL 0314521 Contact Us For Availability
11
FRAME, WINDOW PACK WPL Y0309071 Contact Us For Availability
11
KIT, DOOR HINGE(LH-HS) WPL Y0314572 Contact Us For Availability
12
ERC, 4800 SINGLE OVEN WPL Y0309320 Contact Us For Availability
12
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
12
GLASS WINDOW 18`` X 11`` X 3/16`` WPL Y0309074 Contact Us For Availability
12
KIT, DOOR HINGE(RH-SS) WPL Y0314575 Contact Us For Availability
13
RACK, BROILER WPL Y0306531 Contact Us For Availability
13
BOARD, ADAPTER WPL Y0314034 Contact Us For Availability
13
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
13
HINGE, STRAP WPL 0314373 Contact Us For Availability
13
SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability
13
SEE NOTE FRONT FRAME-S/C W/LIGHT SWITCH, NOT WPL Y00000000 Contact Us For Availability
14
SWITCH, SURFACE EL. 10 POS. WPL Y0309399 Contact Us For Availability
14
ELEMENT, RIBBON (1200 WATTS) WPL Y0314909 Contact Us For Availability
14
RIVET, POP WPL Y0302648 Contact Us For Availability
14
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
15
LIMITER WPL 10061016 Contact Us For Availability
15
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
15
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
16
SUPPORT WPL Y0091546 Contact Us For Availability
16
SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability
16
CHANNEL GLASS (BLK) WPL 0305309 Contact Us For Availability
16
ASSY, MAINTOP & GLASS (BLK) WPL 315209B Contact Us For Availability
16
BRACE, LEVELING LEG (LT) WPL 314884B Contact Us For Availability
17
KNOB, CONTROL-10 POSITION-BLK WPL 309506B Contact Us For Availability
17
END CAP, RT (BLK) WPL 309457B Contact Us For Availability
17
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
18
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
18
TRIM, LOWER BKGD (BLK) WPL 314603B Contact Us For Availability
18
PANEL, GLASS OVEN DOOR (BLK) WPL 314818B Contact Us For Availability
18
RETAINER, REAR INSUL. WPL 0309081 Contact Us For Availability
19
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
19
KNOB, DUAL INF SWITCH (BLK) WPL 0306233 Contact Us For Availability
19
SUPPORT, GLASS (BLK) WPL 309460B Contact Us For Availability
19
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
20
INSULATION, REAR WPL Y0300974 Contact Us For Availability
20
KNOB, INFINITE SWITCH (BLK) WPL 309870B Contact Us For Availability
20
HANDLE, OVEN DOOR (BLK) WPL 309624B Contact Us For Availability
20
COVER, REAR WPL Y0307342 Contact Us For Availability
21
SWITCH,INF(240TP-1244) WPL Y0307359 Contact Us For Availability
21
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
22
SWITCH, DUAL INFINITE (WHT) WPL 0309549 Contact Us For Availability
22
CLAMP, TUBE (1/2``) WPL Y0307456 Contact Us For Availability
23
INDICATOR LIGHT WPL Y0071820 Contact Us For Availability
24
END CAP-BKGD LT/RT (BLK) WPL 304927B Contact Us For Availability
25
STARTER, FLOURESCENT WPL 0071920 Contact Us For Availability
26
START HOLDR-FLOUR.LMP WPL Y0304560 Contact Us For Availability
NI
SUPPORT, BKGD (LH) WPL 0306589 Contact Us For Availability
NI
SUPPORT, BKGD (RH) WPL 0306590 Contact Us For Availability
NI
SCREW, No.6-20 X .375 PAN HD PH WPL Y0073657 Contact Us For Availability
NI
COLLAR, STARTER SOCKET WPL Y0305391 Contact Us For Availability
NI
HEX NUT No.10-32 NICKEL WPL 0306381 Contact Us For Availability
NI
SUPPORT-CIRCUIT BOARD WPL Y0306900 Contact Us For Availability
NI
HARNESS, WIRING WPL Y0314520 Contact Us For Availability
NI
HARNESS, WIRING WPL Y0314570 Contact Us For Availability
NI
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
NI
SCREW, No.8-18 X 7/8 PPH WPL Y0076035 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
NI
SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability
NI
SPACER, NYLON (.14``) WPL Y0062445 Contact Us For Availability
NI
BRACKET WPL Y0301028 Contact Us For Availability
NI
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
NI
SCREW, No.8-18 X .500 AB (BLK) WPL Y0305004 Contact Us For Availability
× ![]()
