Model Whirlpool ARC700LL ELECTRIC RANGE – Common Parts &amp; Diagrams

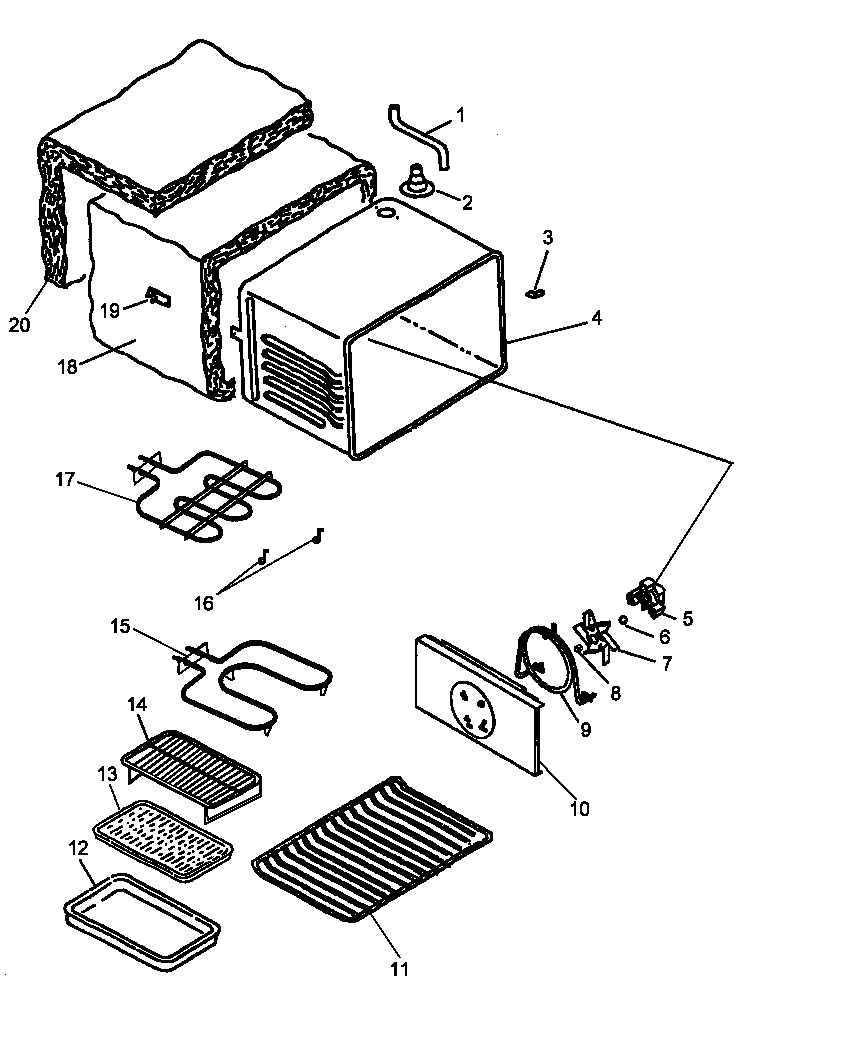

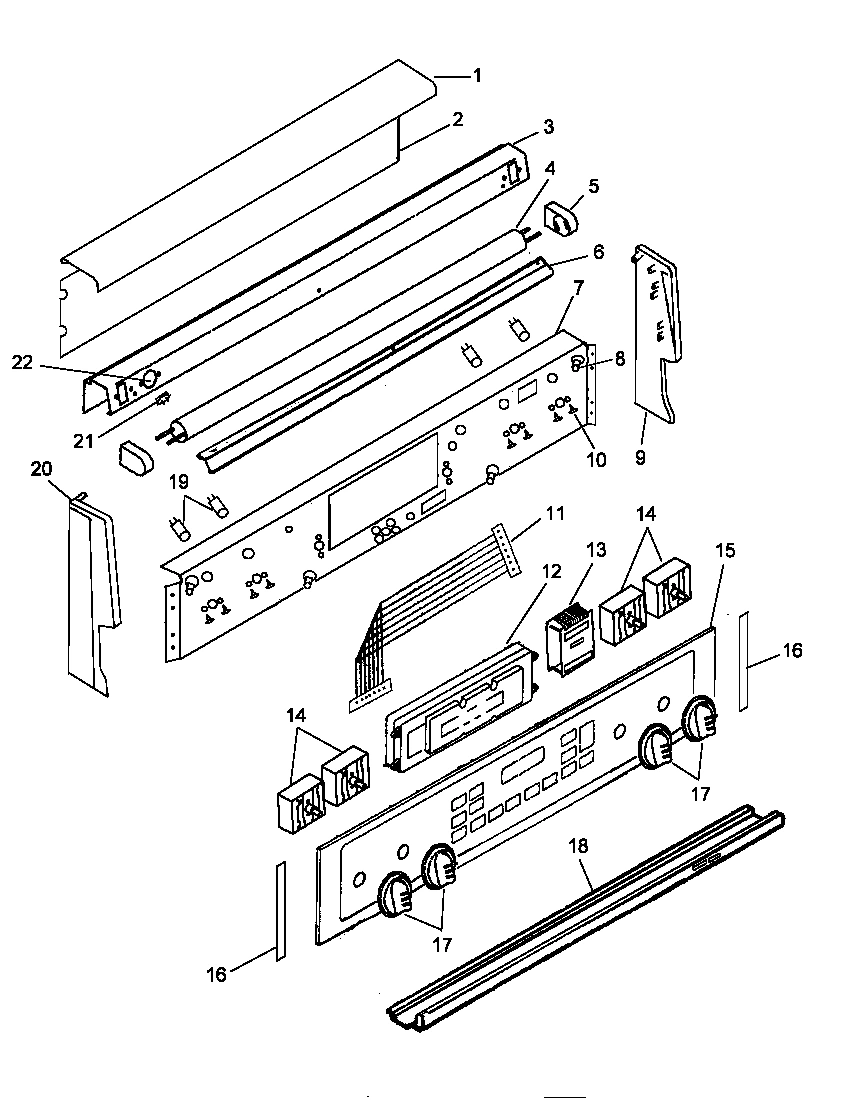

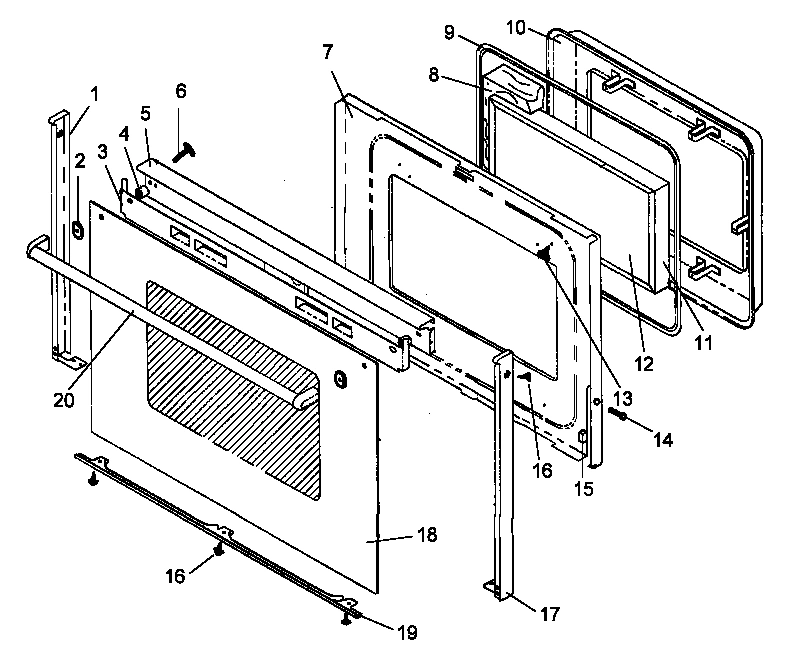

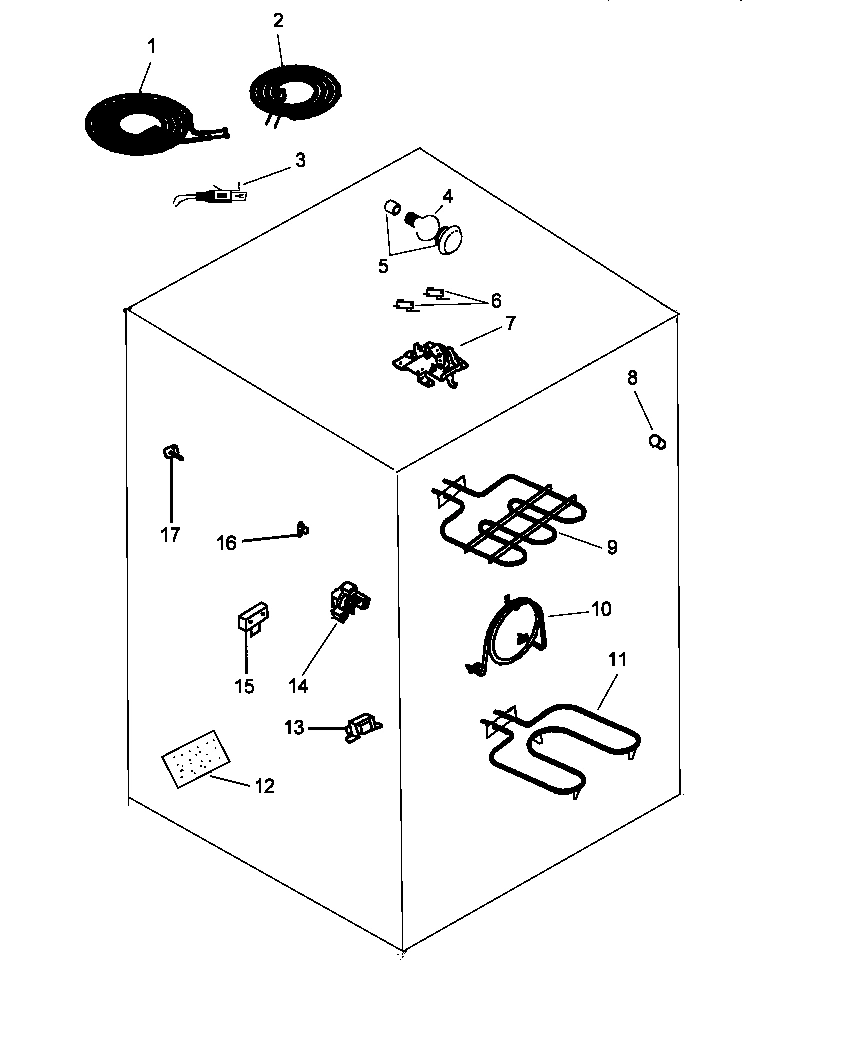

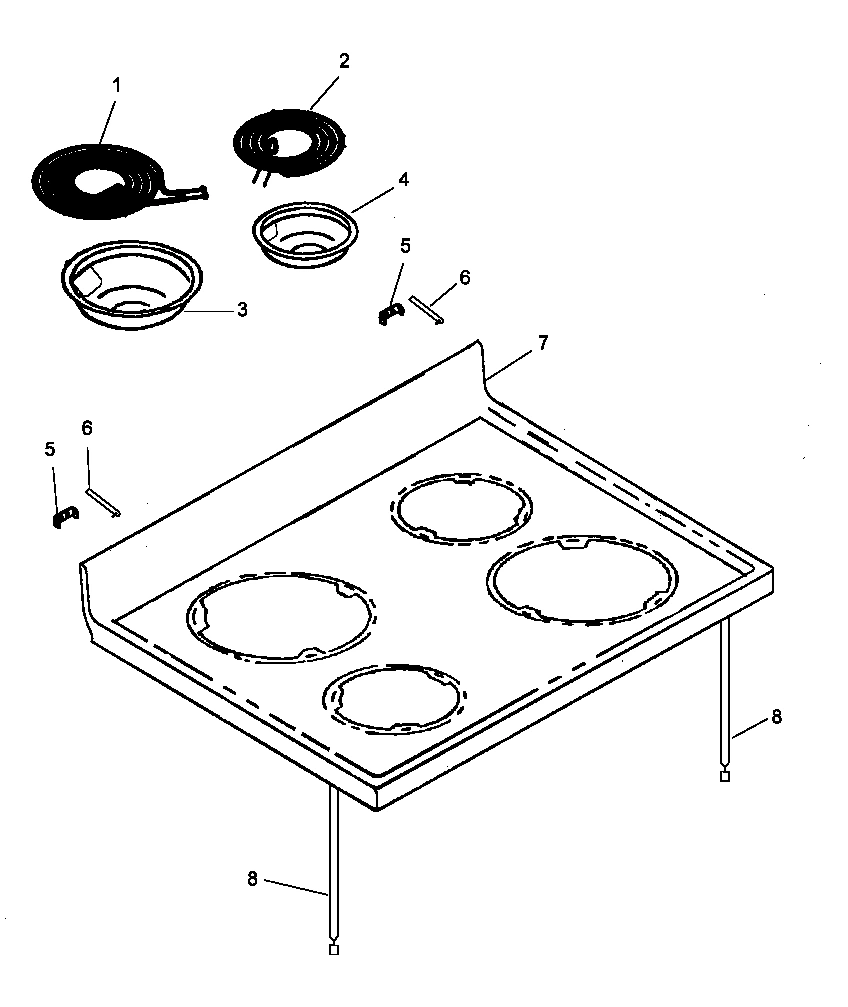

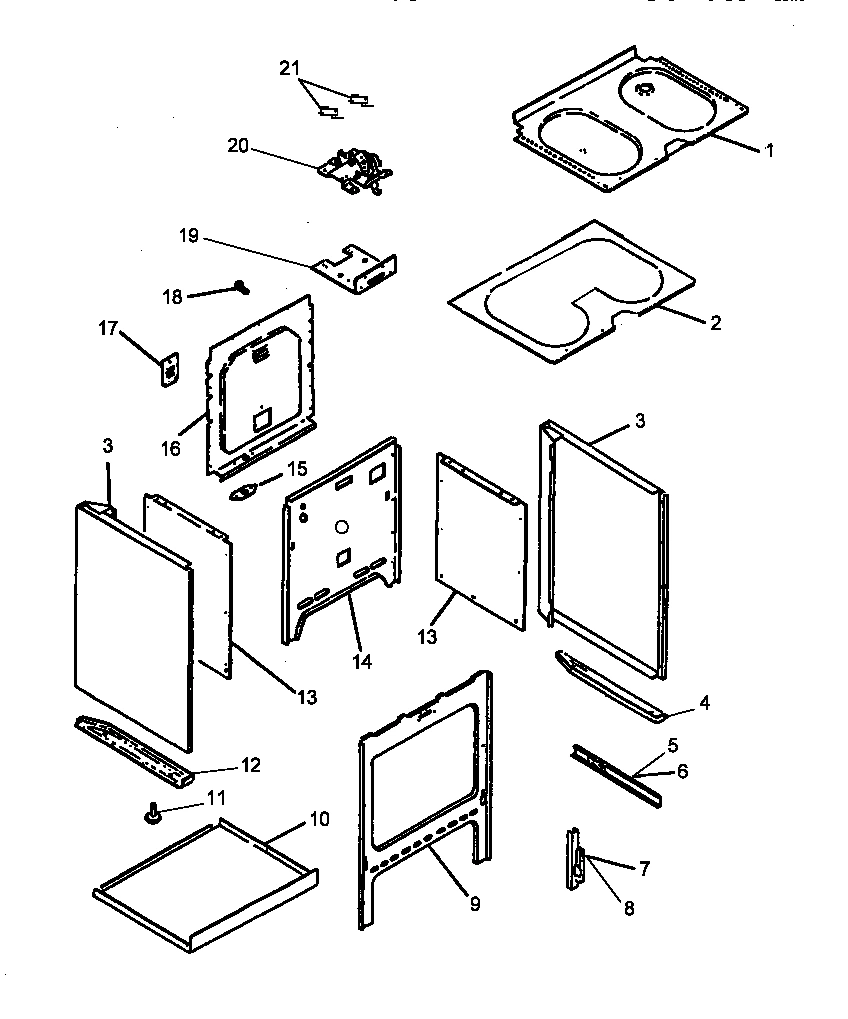

1

TRIM, TOP BACKGUARD (ALM) WPL 304955L Contact Us For Availability

1

BAFFLE, DRIP (ENAMEL) WPL 309429CG Contact Us For Availability

1

END CAP, LT (ALM) WPL 309458L Contact Us For Availability

1

TUBE, VENT EXT. WPL 0063336 Contact Us For Availability

2

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $84.34

2

DRAWER, STORAGE (WHT) WPL 309622W Contact Us For Availability

2

COVER, BACKGUARD WPL 0309137 Contact Us For Availability

2

RETAINER, TOP INSULATION WPL Y0309773 Contact Us For Availability

2

SPACER, HANDLE (ALM) WPL 309882L Contact Us For Availability

2

SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability

3

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $13.57

3

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $11.32

3

RUNNER STORAGE DWR-RH WPL Y0314665 Contact Us For Availability

3

BRACKET, LIGHT WPL 307211B Contact Us For Availability

3

PANEL, SIDE (ALM) WPL 306081L Contact Us For Availability

3

ASSY, GLASS HEAT SHIELD (ALM) WPL 309642L Contact Us For Availability

3

COVER, CHIP WPL Y0315022 Contact Us For Availability

4

WPW10290353 Whirlpool Drip Bowl 6" ClimaTek In Stock WPL WPW10290353 $15.75

4

WPY0067945 Whirlpool Light Lamp Backorder WPL WPY0067945 $18.30

4

RIVET, POP WPL Y0076357 Contact Us For Availability

4

BULB, LIGHT WPL Y0042175 Contact Us For Availability

4

BRACE, LEVELING LEG (RT) WPL 314885B Contact Us For Availability

4

BUSHING, HANDLE (NAL) WPL Y0309461 Contact Us For Availability

4

OVEN, CAVITY (ENAMELLED) WPL 309775CG Contact Us For Availability

5

WP74011278 Whirlpool Light Backorder WPL WP74011278 $78.30

5

LAMP HOLDER-FLOURES WPL Y0304559 Contact Us For Availability

5

ASSY, CONV. FAN & BLADE WPL Y0305246 Contact Us For Availability

5

BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability

5

TRACK, STORAGE DWR LH WPL Y0314662 Contact Us For Availability

5

TRIM, DOOR TOP (ALM) WPL 309456L Contact Us For Availability

6

LINER, DRAWER PANEL (WHT) WPL 309179W Contact Us For Availability

6

LIGHT DIFFUSER BACKGUARD-CLEAR WPL 0304977 Contact Us For Availability

6

SHIELD, LIGHT (BLK) WPL 314934B Contact Us For Availability

6

SHIELD, LIGHT (ALM) WPL 314934L Contact Us For Availability

6

SHIELD, LIGHT (WHT) WPL 314934W Contact Us For Availability

6

HINGE, STRAP WPL 0314373 Contact Us For Availability

6

TRACK, STORAGE DWR RH WPL 0314663 Contact Us For Availability

6

SCREW, No.10-24X11/4 (TRS PH HD) WPL Y0309973 Contact Us For Availability

6

WASHER (ZN) WPL 0307038 Contact Us For Availability

7

PANEL, DRAWER (ALM) WPL 309177L Contact Us For Availability

7

PANEL, BKGD CONTROL WPL 0314556 Contact Us For Availability

7

MAIN TOP-ELECTRIC UPSWEPT WPL 306899L Contact Us For Availability

7

KIT, DOOR HINGE(LH-HS) WPL Y0314572 Contact Us For Availability

7

LINER, OVEN DOOR (ELEC) WPL 314563CG Contact Us For Availability

7

BLADE, FAN WPL Y0307036 Contact Us For Availability

8

BUMPER, RUBBER WPL Y0314643 Contact Us For Availability

8

SWITCH, OVEN DOOR WPL Y0305797 Contact Us For Availability

8

SUPPORT, MAINTOP WPL Y0304115 Contact Us For Availability

8

KIT, DOOR HINGE(RH-SS) WPL Y0314575 Contact Us For Availability

8

INSULATION,WRAPPER WPL Y0041966 Contact Us For Availability

8

NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability

9

END CAP-BKGD LT/RT (ALM) WPL 304928L Contact Us For Availability

9

ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability

9

SEE NOTE FRONT FRAME, W/LIGHT SWITCH, NOT FIE WPL Y00000000 Contact Us For Availability

9

GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $4.26

RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability

PAD, OVEN DOOR WPL 309781CG Contact Us For Availability

COVER, FAN (ENAMELED) WPL 309774CG Contact Us For Availability

HARNESS, WIRING WPL 0314521 Contact Us For Availability

LEG,LEVELING xxx WPL 314187B Contact Us For Availability

FRAME, WINDOW PACK WPL Y0309071 Contact Us For Availability

RACK, OVEN WPL 309988J Contact Us For Availability

ERC, 4800 SINGLE OVEN WPL Y0309320 Contact Us For Availability

CIRCUIT BOARD, ERC WPL Y0309305 Contact Us For Availability

BRACE, LEVELING LEG (LT) WPL 314884B Contact Us For Availability

GLASS WINDOW 18`` X 11`` X 3/16`` WPL Y0309074 Contact Us For Availability

BOARD, ADAPTER WPL Y0314034 Contact Us For Availability

BALLAST WPL Y0071869 Contact Us For Availability

RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability

SCREW, No.8-18 X 3/8 P HEX WSH T WPL Y0309016 Contact Us For Availability

RACK, BROILER WPL Y0306531 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

WP74011243 Whirlpool Oven Switch Backorder WPL WP74011243 $99.24

RETAINER, REAR INSUL. WPL 0309081 Contact Us For Availability

RIVET, POP WPL Y0302648 Contact Us For Availability

WP77001094 Whirlpool Range Bake Element In Stock WPL WP77001094 $28.83

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $19.62

GLASS, TOUCH CONTROL (ALM) WPL 309180L Contact Us For Availability

PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability

BUMPER, RUBBER WPL Y0309627 Contact Us For Availability

CHANNEL, GLASS (ALM) WPL 305309L Contact Us For Availability

SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability

COVER, REAR WPL Y0307342 Contact Us For Availability

SUPPORT WPL Y0091546 Contact Us For Availability

WPY0314907 Whirlpool Sensor Backorder WPL WPY0314907 $165.28

KNOB, INF.SWITCH WPL 315122L Contact Us For Availability

ELEMENT, BROIL (240V-3000W) WPL Y0060241 Contact Us For Availability

ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability

END CAP, RT (ALM) WPL 309457L Contact Us For Availability

TRIM, LOWER BKGD (ALM) WPL 314603L Contact Us For Availability

CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability

GLASS, OUTER OVEN DOOR (ALM) WPL 309641L Contact Us For Availability

INSULATION, WRAPPER WPL 0300973 Contact Us For Availability

INDICATOR LIGHT WPL Y0071820 Contact Us For Availability

BRACKET, LATCH MTG. WPL Y0309428 Contact Us For Availability

SUPPORT, GLASS (ALM) WPL 309460L Contact Us For Availability

BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability

END CAP-BKGD LT/RT (ALM) WPL 304927L Contact Us For Availability

LATCH, OVEN DOOR WPL Y0309430 Contact Us For Availability

HANDLE, OVEN DOOR (ALM) WPL 309624L Contact Us For Availability

INSULATION, REAR WPL Y0300974 Contact Us For Availability

21

STARTER, FLOURESCENT WPL 0071920 Contact Us For Availability

21

SWITCH, DOOR LATCH WPL Y0314277 Contact Us For Availability

22

START HOLDR-FLOUR.LMP WPL Y0304560 Contact Us For Availability

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $8.89

W11245710 Whirlpool Refrigerator Screw Backorder WPL W11245710 $8.89

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $23.97

SUPPORT, BKGD (LH) WPL 0306589 Contact Us For Availability

SUPPORT, BKGD (RH) WPL 0306590 Contact Us For Availability

SCREW, No.6-20 X .375 PAN HD PH WPL Y0073657 Contact Us For Availability

HEX NUT No.10-32 NICKEL WPL 0306381 Contact Us For Availability

SUPPORT-CIRCUIT BOARD WPL Y0306900 Contact Us For Availability

HARNESS, WIRING WPL Y0314520 Contact Us For Availability

HARNESS, WIRING WPL Y0314570 Contact Us For Availability

W/H MAIN, COIL CONV. WPL Y0314713 Contact Us For Availability

SUB 71668 PIN WPL 0091607 Contact Us For Availability

CLIP, ELEMENT RETAINER WPL Y0307930 Contact Us For Availability

SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability

BRACKET WPL Y0301028 Contact Us For Availability

ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability

SCREW, No.8-18 X .500 AB (BLK) WPL Y0305004 Contact Us For Availability

LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
