Model Whirlpool AOGD2750E GAS COOK-TOP – Common Parts & Diagrams

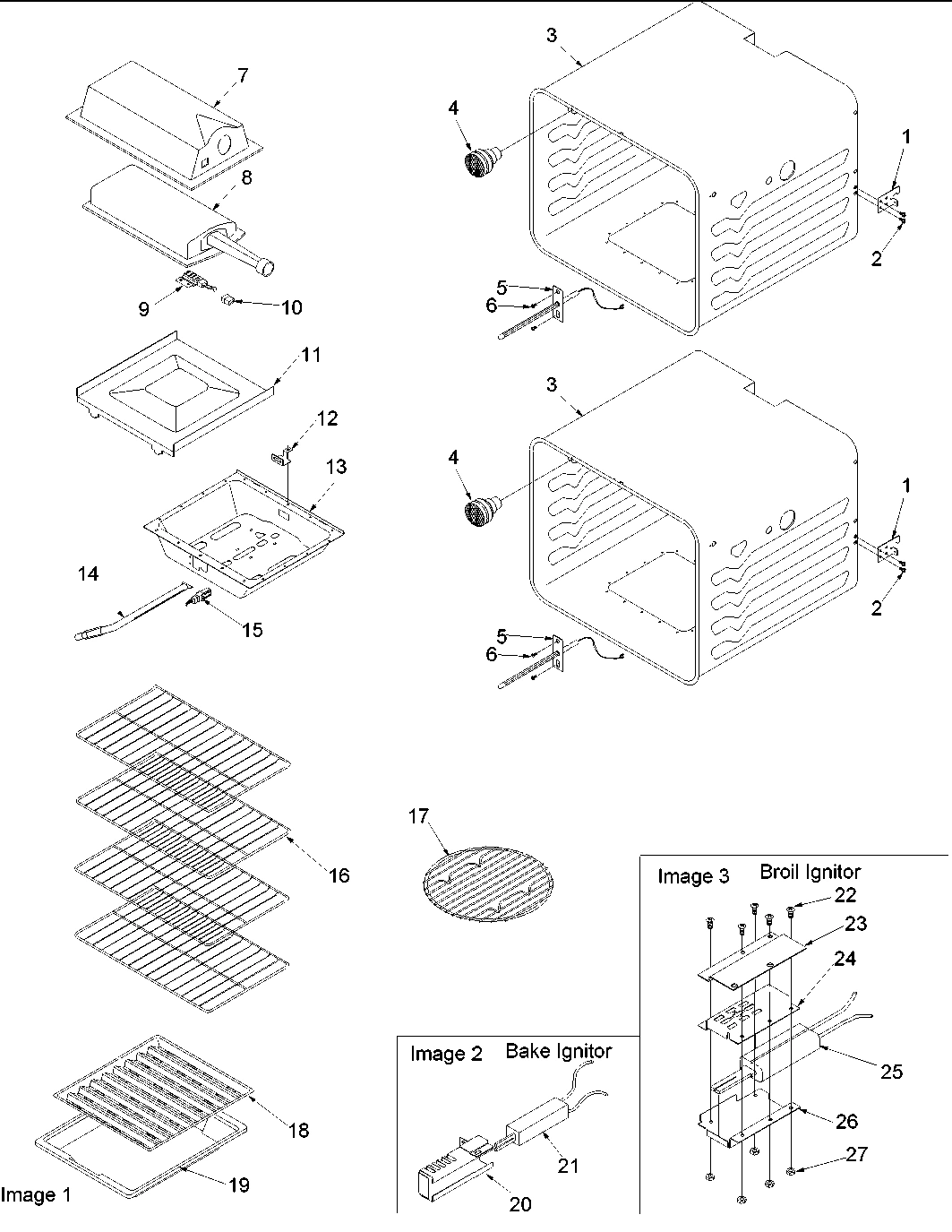

02 - Cavity
04 - Main Front
01 - Cabinet
03 - Control Compartment & Panel & Gas Supply
05 - Oven Door
Common parts from model Whirlpool AOGD2750E GAS COOK-TOP
Note: Wall Oven Has Two Doors. WPL NOTE Contact Us For Availability
1
FLUE, UPPER OVEN WPL Y0060799 Contact Us For Availability
1
PANEL, CABINET TOP WPL Y0060843 Contact Us For Availability
1
BACKER, OVEN DOOR (CG) WPL 40223CG Contact Us For Availability
2
FLUE, LOWER OVEN WPL Y0060805 Contact Us For Availability
2
PANEL, SIDE (DOUBLE) WPL Y0315144 Contact Us For Availability
2
GASKET, DOOR (76``) WPL 31715903 Contact Us For Availability
3
OVEN SHELL (CG) WPL 31813801CG Contact Us For Availability
3
VERTICAL FLUE, UPPER OVEN WPL Y0060802 Contact Us For Availability
3
CABINET BACK, UPPER WPL Y0059744 Contact Us For Availability
3
WASHER, FLAT 5/32 X 7/16 O.D. WPL 31750015 Contact Us For Availability
3
WINDOW ASSY WPL 0041491 Contact Us For Availability
4
SWITCH FAN SPDT WPL Y0042056 Contact Us For Availability
4
BACK CABINET WPL Y0059743 Contact Us For Availability
4
BRACKET-MOTOR MOUNT WPL Y0305242 Contact Us For Availability
4
RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability
5
VERTICAL FLUE WPL Y0060808 Contact Us For Availability
5
SCREW, No.6-32 X .375 FH (BLK) WPL 31750319 Contact Us For Availability
5
WASHER, FLAT 1/4 X 5/8 O.D. WPL 31750005 Contact Us For Availability
5
BAFFLE, INNER WPL Y0309286 Contact Us For Availability
6
RETAINER, INSULATION WPL Y0054295 Contact Us For Availability
6
TRIM, UPPER TOP (BLK) WPL 308982B Contact Us For Availability
6
BLADE, FAN WPL Y0314548 Contact Us For Availability
7
CHAMBER BROIL BURNER WPL Y0059415 Contact Us For Availability
7
RETAINER, INSULATION-REAR WPL 0305420 Contact Us For Availability
7
TRIM, LOWER TOP (BLK) WPL 308983B Contact Us For Availability
7
GROMMET-FAN WPL Y0305243 Contact Us For Availability
7
WINDOW MTG. BRKT. PK411 WPL Y0040955 Contact Us For Availability
8
BROIL BURNER ASSY WPL Y0054070 Contact Us For Availability
8
VERTICAL, AIR DUCT WPL 0060819 Contact Us For Availability
8
TRIM, CORNER-LT (BLK) WPL 307888B Contact Us For Availability
8
FAN MOTOR WPL Y0042226 Contact Us For Availability
8
LINER, DOOR (CG) WPL 31796701CG Contact Us For Availability
9
IGNITOR, BROIL WPL Y0059394 Contact Us For Availability
9
VENTURI, AIR DUCT-TOP WPL Y0060821 Contact Us For Availability
9
TRIM, SIDE LT (BLK) WPL 308980B Contact Us For Availability
9
PANEL, BACK CONTROL WPL Y0060841 Contact Us For Availability
9
SCREW, No.10-32 X .687 PAN HD WPL 31750524 Contact Us For Availability
10
PLUG, IGNITOR WIRES WPL Y0059417 Contact Us For Availability
10
WIRE PROTECTOR WPL Y0060787 Contact Us For Availability
10
TRIM, CORNER-RT (BLK) WPL 307887B Contact Us For Availability
10
RESISTOR WPL Y0042064 Contact Us For Availability
10
BUSHING, HANDLE WPL Y0307893 Contact Us For Availability
11
OVEN BOTTOM (CG) WPL 315521CG Contact Us For Availability
11
LATCH, DOOR WPL 31933401 Contact Us For Availability
11
BRKT, TRIM CORNER WPL Y0307205 Contact Us For Availability
11
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
11
BRKT, HANDLE MTG WPL 31796501 Contact Us For Availability
12
MTG. BRACKET, OVEN BURNER WPL Y0060766 Contact Us For Availability
12
RETAINER, INSULATION-SIDE WPL Y0316868 Contact Us For Availability
12
TRIM, CONTROL PANEL-BOT (BLK) WPL 308160B Contact Us For Availability
12
TERM BLK EO&GO 1M-2.5M-5M-10M WPL Y0042191 Contact Us For Availability
12
GLASS, DOOR (BLK)-27`` WALLOVEN WPL 31796401B Contact Us For Availability
13
BOX, LOWER BURNER WPL Y0315387 Contact Us For Availability
13
BRACKET, LATCH MOUNTING WPL 31848301 Contact Us For Availability
13
RELAY, MODULE WPL Y0314523 Contact Us For Availability
13
HANDLE, OVEN DOOR (BLK) WPL 31796301B Contact Us For Availability
14
BURNER, BAKE (WALL OVEN) WPL 31761901 Contact Us For Availability
14
COVER, CHIP WPL 31797201 Contact Us For Availability
14
SCREW, No.8 X .375 WAFER HD(BLK) WPL 31750706 Contact Us For Availability
14
TRIM, CONTROL PANEL-TOP (BLK) WPL 308159B Contact Us For Availability
14
COMPARTMENT, CONTROL RT WPL Y0314834 Contact Us For Availability
15
IGNITOR, BAKE WPL Y0059393 Contact Us For Availability
15
TRIM, CENTER LOWER (BLK) WPL 308155B Contact Us For Availability
15
OVEN TOP, UPPER OVEN WPL Y0060829 Contact Us For Availability
15
ANGLE, GLASS SUPPORT (BLK) WPL 305587B Contact Us For Availability
16
RACK, OVEN 19 3/16`` X 16 1/2`` WPL 314762J Contact Us For Availability
16
TRIM, UPPER CENTER (BLK) WPL 308979B Contact Us For Availability
16
FLUEWAY, CONTROL PANEL-TOP WPL 31824201 Contact Us For Availability
16
FRAME, OVEN DOOR (BLK) WPL 307886B Contact Us For Availability
17
MEAT RACK SLO/COOK WPL Y0042713 Contact Us For Availability
17
ASSY, OVEN HINGE LT WPL Y0315426 Contact Us For Availability
17
TRIM, BOTTOM (BLK) WPL 314137B Contact Us For Availability
17
COMPARTMENT, CONTROL LT WPL Y0314835 Contact Us For Availability
18
TRIM, SIDE RT (BLK) WPL 308981B Contact Us For Availability
18
SUPPORT, CIRCUIT BOARD WPL 31726801 Contact Us For Availability
19
COVER, CHIP WPL Y0315022 Contact Us For Availability
19
CIRCUIT BOARD, ERC WPL Y0309305 Contact Us For Availability
20
BRACKET, IGNITER MOUNTING WPL 31957101 Contact Us For Availability
20
ASSY, OVEN HINGE RT WPL Y0315425 Contact Us For Availability
20
BRACKET, FLUE SUPPORT WPL 0060824 Contact Us For Availability
21
SHIELD, BAKE ORIFICE WPL Y0060814 Contact Us For Availability
21
SAIL SWITCH WPL 0066207 Contact Us For Availability
22
SCREW, No.6-32 X .375 PANHD(BLK) WPL 31750308 Contact Us For Availability
22
BRACKET, BAKE ORIFICE WPL Y0060846 Contact Us For Availability
22
BRACKET, SWITCH WPL Y0052814 Contact Us For Availability
23
IGNITOR BRKT WPL Y0060826 Contact Us For Availability
23
AIR CHANNEL, UPPER BAKE WPL 0054274 Contact Us For Availability
23
CONTROL, LIMIT WPL 31833001 Contact Us For Availability
24
SHIELD, TOP IGNITER WPL 0063781 Contact Us For Availability
24
RETAINER, INSULATION-ORIFICE WPL 0060823 Contact Us For Availability
24
MOLEX RECEPTACLE 3 CIRCUIT WPL 31748901 Contact Us For Availability
25
IGNITOR, BAKE/BROIL WPL 31939701 Contact Us For Availability
25
SUPPORT, REAR OVEN WPL Y0305717 Contact Us For Availability
25
SUPPLY CORD WPL Y0054865 Contact Us For Availability
26
IGNITOR SHIELD-BOTTOM WPL Y0308104 Contact Us For Availability
26
OVEN TOP, LOWER OVEN WPL Y0060837 Contact Us For Availability
26
SCREW, No.6-20 X .375 PAN HD WPL 31750309 Contact Us For Availability
27
SUPPORT, OVEN FRONT WPL Y0060838 Contact Us For Availability
27
SEAL, ERC WPL 31846301 Contact Us For Availability
28
AIR CHANNEL, RT WPL 0060835 Contact Us For Availability
28
ERC-DOUBLE OVEN WPL 31799201 Contact Us For Availability
29
AIR CHANNEL, LT WPL Y0060834 Contact Us For Availability
29
BRKT, CONTROL PANEL MTG (BLK) WPL 31845301B Contact Us For Availability
30
OVEN BOTTOM-UPPER WPL Y0059593 Contact Us For Availability
30
BUMPER, RUBBER WPL Y0314643 Contact Us For Availability
31
RETAINER, INSUL. FLUE WPL 0060784 Contact Us For Availability
31
ASSY, MEMBRANE SWITCH (BLK) WPL 31796101B Contact Us For Availability
32
HORIZONTAL FLUE WPL 0060811 Contact Us For Availability
32
TUBING-LOWER UNION TO VALVE WPL 0304098 Contact Us For Availability
33
OVEN BOTTOM-LOWER WPL 0316866 Contact Us For Availability
33
TUBING-UPPER BAKE-UNION TO VAL WPL 31801901 Contact Us For Availability
34
RUNNER, BASE WPL Y0060849 Contact Us For Availability
34
VALVE, DUAL THERMAL-GAS WPL Y0060750 Contact Us For Availability
35
REGULATOR-5``/10`` SIDE INLET WPL Y0063684 Contact Us For Availability
36
AIR CHANNEL, LOWER BAKE WPL Y0054275 Contact Us For Availability
36
ELBOW, PIPE-1/2`` X 90 DEGREE WPL Y0097408 Contact Us For Availability
37
NIPPLE-1/2``-PRESSURE REGULATOR WPL Y0097320 Contact Us For Availability
38
VALVE, SHUT-OFF WPL Y0314271 Contact Us For Availability
39
SWITCH, PLUNGER WPL 31933601 Contact Us For Availability
39
MANIFOLD ASSY. WPL Y0060751 Contact Us For Availability
40
SWITCH, MICRO WPL 31899201 Contact Us For Availability
40
UNION STRAIGHT 3/8 TO 3/8CC WPL Y0304566 Contact Us For Availability
41
TUBING-LOWER UNION TO VALVE WPL Y0304097 Contact Us For Availability
42
NUT, PAL 3/4-16 X 1.062 WPL 31750116 Contact Us For Availability
43
ORIFICE, No.52 NAT WPL 31864801 Contact Us For Availability
43
ORIFICE, No.59 LP WPL 31865001 Contact Us For Availability
44
TUBING-UPPER BROIL TO VALVE WPL Y0054839 Contact Us For Availability
45
TUBING-LOWER BURNER TO UNION WPL Y0054837 Contact Us For Availability
46
HO WPL Y0054834 Contact Us For Availability
NI
BULB, LIGHT WPL Y0042175 Contact Us For Availability
NI
SCREW, No.8-18X 1 1/4 FLTHD(BLK) WPL 31750408 Contact Us For Availability
NI
WIRE CONNECTOR WPL Y0065084 Contact Us For Availability
NI
INSULATION, WRAPPER WPL Y0316948 Contact Us For Availability
NI
BUSHING, SNAP (BLK) WPL 308655B Contact Us For Availability
NI
WPL 31935301 WPL 31935301 Contact Us For Availability
NI
WPL Y0051941 WPL Y0051941 Contact Us For Availability
NI
WPL Y0091523 WPL Y0091523 Contact Us For Availability
NI
TAPE, FOAM WPL 0043184 Contact Us For Availability
NI
WASHER, LOCK 13/16 X 3/8 O.D. WPL 31750006 Contact Us For Availability
NI
INSULATION 2X20X72 WPL Y0041975 Contact Us For Availability
× ![]()
