Model Whirlpool AOCS2740E ELECTRIC WALL OVEN – Common Parts & Diagrams

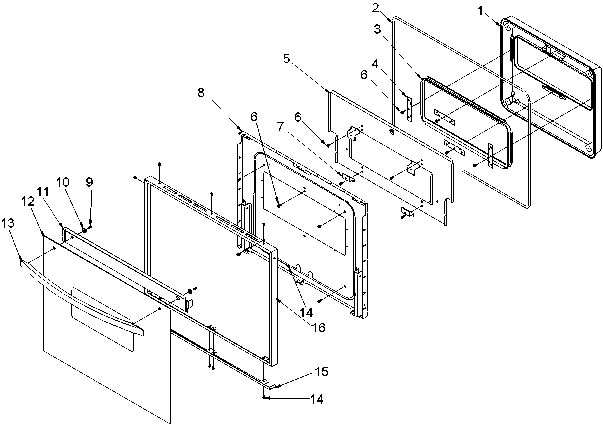

05 - Oven Door
02 - Cavity
03 - Control Compartment and Control Panel
01 - Cabinet
04 - Main Front
Common parts from model Whirlpool AOCS2740E ELECTRIC WALL OVEN
1
SMOKE ELIMINATOR VENT TUBE WPL Y0042409 Contact Us For Availability
2
GASKET, DOOR (76``) WPL 31715903 Contact Us For Availability
2
SIDE, UPPER CABINET WPL 0052855 Contact Us For Availability
2
BRACKET, LATCH MOUNTING WPL 31848301 Contact Us For Availability
3
WINDOW ASSY WPL 0041491 Contact Us For Availability
3
ASSY, CONV. FAN & BLADE WPL 31769301 Contact Us For Availability
3
WASHER, FLAT 5/32 X 7/16 O.D. WPL 31750015 Contact Us For Availability
3
PANEL, SIDE (SINGLE) WPL Y0315145 Contact Us For Availability
3
ASSY, AUTO LATCH & SWITCH WPL 31797301 Contact Us For Availability
4
RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability
4
OVEN SHELL (WALL OVEN) WPL 314312CG Contact Us For Availability
4
BRACKET-MOTOR MOUNT WPL Y0305242 Contact Us For Availability
4
CABINET TOP PYRO W.O. MM WPL Y0040286 Contact Us For Availability
5
BAFFLE, INNER WPL Y0309286 Contact Us For Availability
5
WASHER, FLAT 1/4 X 5/8 O.D. WPL 31750005 Contact Us For Availability
5
BACK, UPPER CABINET WPL Y0305628 Contact Us For Availability
6
PROBE RECEPT. COVER STAINLESS WPL Y0040848 Contact Us For Availability
6
BLADE, FAN WPL Y0314548 Contact Us For Availability
6
SCREW, No.6-32 X .375 FH (BLK) WPL 31750319 Contact Us For Availability
6
RETAINER, INSULATION-REAR WPL 0305420 Contact Us For Availability
7
WINDOW MTG. BRKT. PK411 WPL Y0040955 Contact Us For Availability
7
GROMMET-FAN WPL Y0305243 Contact Us For Availability
7
TRIM, CORNER-LT (BLK) WPL 307888B Contact Us For Availability
7
SHIELD, REFLECTOR (CG) WPL 40850CG Contact Us For Availability
8
LINER, DOOR (CG) WPL 31796701CG Contact Us For Availability
8
FAN MOTOR WPL Y0042226 Contact Us For Availability
8
TRIM, SIDE LEFT WPL 308487B Contact Us For Availability
9
SCREW, No.10-32 X .687 PAN HD WPL 31750524 Contact Us For Availability
9
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
9
BACK, CONTROL COMPARTMENT WPL Y0315557 Contact Us For Availability
9
TRIM, TOP (BLK) WPL 307719B Contact Us For Availability
9
RUNNER, BASE-PYRO W/O WPL Y0041019 Contact Us For Availability
10
BUSHING, HANDLE WPL Y0307893 Contact Us For Availability
10
BRACKET, OVEN MOUNTING-PYRO WPL Y0041017 Contact Us For Availability
10
RESISTOR WPL Y0042064 Contact Us For Availability
10
BRKT, TRIM CORNER WPL Y0307205 Contact Us For Availability
10
COVER, CHIP WPL 31797201 Contact Us For Availability
11
BRKT, HANDLE MTG WPL 31796501 Contact Us For Availability
11
NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability
11
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
11
TRIM, CONTROL PANEL-BOT (BLK) WPL 308160B Contact Us For Availability
11
SCREW, No.8-18 X .500 AB (BLK) WPL 31750719 Contact Us For Availability
12
GLASS, DOOR (BLK)-27`` WALLOVEN WPL 31796401B Contact Us For Availability
12
WASHER (ZN) WPL 0307038 Contact Us For Availability
12
TERMINAL BLOCK WPL Y0042222 Contact Us For Availability
12
ASSY, OVEN HINGE LT WPL Y0315426 Contact Us For Availability
13
HANDLE, OVEN DOOR (BLK) WPL 31796301B Contact Us For Availability
13
ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability
13
ASSY, CONDUIT WPL Y0052947 Contact Us For Availability
13
TRIM, CONTROL PANEL-TOP (BLK) WPL 308159B Contact Us For Availability
13
ASSY, OVEN HINGE RT WPL Y0315425 Contact Us For Availability
14
BLADE, FAN WPL Y0307036 Contact Us For Availability
14
COMPARTMENT, CONTROL RT WPL Y0314834 Contact Us For Availability
14
TRIM, CORNER-RT (BLK) WPL 307887B Contact Us For Availability
15
FRAME, OVEN DOOR (BLK) WPL 307886B Contact Us For Availability
15
COVER, FAN (CG) WPL 31843201CG Contact Us For Availability
15
LIMIT CONTROL-UPPER OVEN-200 WPL Y0042045 Contact Us For Availability
15
TRIM, BOTTOM (BLK) WPL 307720B Contact Us For Availability
16
ANGLE, GLASS SUPPORT (BLK) WPL 305587B Contact Us For Availability
16
REFLECTOR, BROIL ELEMENT WPL Y0306503 Contact Us For Availability
16
SWITCH FAN SPDT WPL Y0042056 Contact Us For Availability
16
TRIM, SIDE RIGHT WPL 308488B Contact Us For Availability
16
OVEN BOTTOM-LOWER WPL Y0316867 Contact Us For Availability
17
ELEMENT, BROIL (240V-2800W) WPL Y0042138 Contact Us For Availability
17
TERM BLK EO&GO 1M-2.5M-5M-10M WPL Y0042191 Contact Us For Availability
17
RETAINER, INSULATION-SIDE WPL Y0316868 Contact Us For Availability
18
BROIL ELEMENT SUPPORT PYRO WPL Y0040902 Contact Us For Availability
18
COMPARTMENT, CONTROL LT WPL Y0314835 Contact Us For Availability
18
COVER, CHIP WPL Y0315022 Contact Us For Availability
19
COVER FLUE BOX WPL Y040842G Contact Us For Availability
20
RACK, OVEN 19 3/16`` X 14 3/4`` WPL 314782J Contact Us For Availability
20
LIMIT SWITCH-OPEN 90 WPL Y0042066 Contact Us For Availability
21
RACK, OVEN 19 3/16`` X 14 3/4`` WPL 314781J Contact Us For Availability
21
BOX, UPPER OVEN FLUE WPL 306384B Contact Us For Availability
22
RACK, BROILER WPL Y0306531 Contact Us For Availability
22
TOP, UPPER OVEN WPL 31762101 Contact Us For Availability
23
CIRCUIT BOARD, ERC WPL Y0309305 Contact Us For Availability
24
SUPPORT, CIRCUIT BOARD WPL 31726801 Contact Us For Availability
25
MEAT RACK SLO/COOK WPL Y0042713 Contact Us For Availability
25
BRACKET, CONTOL PANEL (BLK) WPL 31760801B Contact Us For Availability
26
SCREW, No.6-20 X .375 PAN HD WPL 31750309 Contact Us For Availability
27
SEAL, ERC WPL 31846301 Contact Us For Availability
28
ERC, COMB MEMBRANE WPL 31799001 Contact Us For Availability
29
BUMPER, RUBBER WPL Y0314643 Contact Us For Availability
30
ASSY, MEMBRANE SWITCH (BLK) WPL 31796001B Contact Us For Availability
NI
SCREW, No.8 X .375 WAFER HD(BLK) WPL 31750706 Contact Us For Availability
NI
WASHER, LOCK 13/16 X 3/8 O.D. WPL 31750006 Contact Us For Availability
NI
INSULATION 2X20X72 WPL Y0041975 Contact Us For Availability
NI
BULB, LIGHT WPL Y0042175 Contact Us For Availability
NI
HARNESS, UPPER OVEN WPL 31795001 Contact Us For Availability
NI
INSULATION, WRAPPER WPL Y0316948 Contact Us For Availability
× ![]()
