Model LG AMV5164ACB OTR – Common Parts & Diagrams

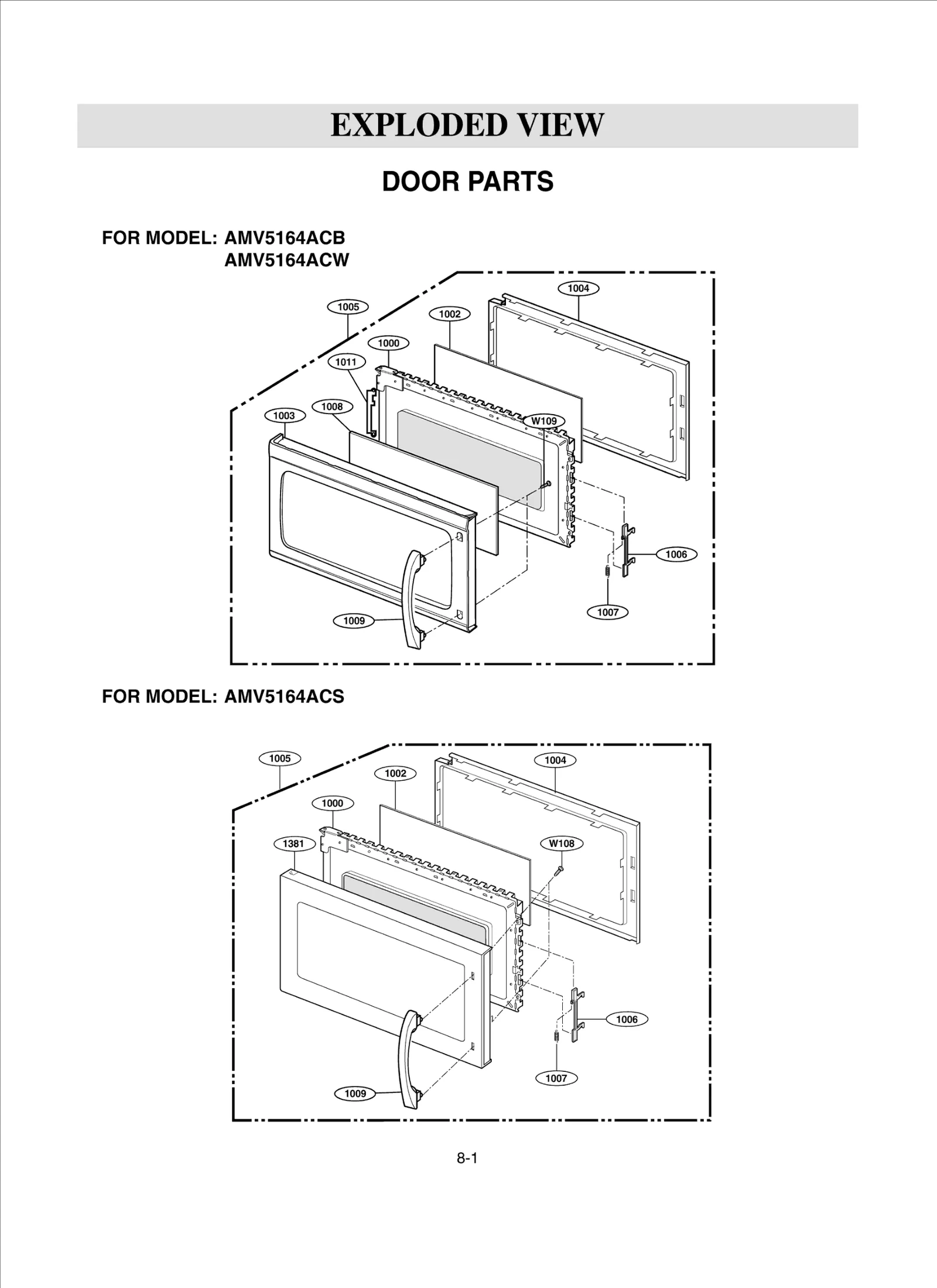

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG AMV5164ACB OTR
*01
LGE 3828W5A4186 LGE 3828W5A4186 Contact Us For Availability
*04
Manual,Installation LGE 3828W5U0363 Contact Us For Availability
*05
LGE 3850W1D013B LGE 3850W1D013B Contact Us For Availability
*06
TEMPLATE LGE 4922W5A060A Contact Us For Availability
*06
TEMPLATE LGE 4922W5A057A Contact Us For Availability
*07
LGE 3840W1T0001 LGE 3840W1T0001 Contact Us For Availability
*10
Box LGE 3890W3Y843A Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W2A012D Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V008A Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3037
PROTECTOR (MECH) LGE 3740W1A005A Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5002
BRACKET HVC MV-1320,SECC 0.5T LGE 4810W3C002A Contact Us For Availability
5004
BRACKET,SENSOR LGE 4810W1A314A Contact Us For Availability
5006
DUCT LGE 5208W0A006A Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D052B Contact Us For Availability
5010
POWER CORD ASSY LGE 6411W1A010L Contact Us For Availability
5014
HARNESS LGE 6877W1A409D Contact Us For Availability
5015
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
5034
PLATE,[BOTTOM PLATE] LGE 3300W1A003A Contact Us For Availability
5035
PLATE,BOTTOM LGE 3300W1A052A Contact Us For Availability
5036
COVER,MWO LGE 3550W3A095A Contact Us For Availability
5038
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
5041
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
5044
COVER,STIRRER FAN LGE 3550W1A126A Contact Us For Availability
5045
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
5046
FILTER ASSY,CHOKE LGE 6201W2A019D Contact Us For Availability
5337
PROTECTOR (MECH) LGE 3740W1A011A Contact Us For Availability
6000
BASE PLATE LGE 3302W0A013H Contact Us For Availability
6001
Plate Assembly,Base LGE 3303W1A041Y Contact Us For Availability
6008
PLATE ASSEMBLY LGE 3301W0A003A Contact Us For Availability
6009
KIT ASSEMBLY LGE 2B72771G Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
AR2
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
C01
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC LGE 0CE2276K618 Contact Us For Availability
C03
CAPACITOR ELECTROLYTIC 470UF S LGE 0CE4776J618 Contact Us For Availability
C04
CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability
C05
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C15
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C16
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C60
CAPACITOR CHIP[CERAMIC M/L HD LGE 0CH1223K566 Contact Us For Availability
C90
LGE 0CH1221K566 LGE 0CH1221K566 Contact Us For Availability
C95
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CR1
RESONATOR LGE 6212JB8001A Contact Us For Availability
CU1
CUSHION DIGITRON 9MM MA-695M J LGE 4850W4C001D Contact Us For Availability
D10
DIODE,RECTIFIERS LGE 0DRSB00093A Contact Us For Availability
D37
DIODE,SWITCHING LGE 0DSSB00083A Contact Us For Availability
D85
DIODE,SWITCHING LGE 0DSSB00023A Contact Us For Availability
DP1
DIGITRON LGE 6302W5A025A Contact Us For Availability
J202
Resistor,Carbon Film LGE 0RD4700F608 Contact Us For Availability
PT1
POWER TRANS 120/60 UL,12V/277M LGE 6010W2P008A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q02
TRANSISTOR LGE 0TR150509AC Contact Us For Availability
Q20
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q39
TRANSISTOR LGE 0TR105009AB Contact Us For Availability
Q50
TRANSISTOR LGE 0TR107009AC Contact Us For Availability
R02
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R10
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R13
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R20
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R22
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R30
RESISTOR,CHIP LGE 0RH0000L622 Contact Us For Availability
R41
RESISTOR,METAL GLAZED(CHIP) LGE 0RH3301L622 Contact Us For Availability
R51
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R61
RESISTOR FIXED CARBON FILM MV- LGE 0RD2701G608 Contact Us For Availability
R62
Resistor,Chip LGE 0RH2003L422 Contact Us For Availability
R63
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R68
LGE 0RN1002G408 LGE 0RN1002G408 Contact Us For Availability
R73
RESISTOR,METAL GLAZED(CHIP) LGE 0RH5103L622 Contact Us For Availability
R74
RESISTOR,METAL GLAZED(CHIP) LGE 0RH2703L622 Contact Us For Availability
R75
RESISTOR,METAL GLAZED(CHIP) LGE 0RH1503L622 Contact Us For Availability
R85
Resistor,Carbon Film LGE 0RD1202F608 Contact Us For Availability
R95
RESISTOR FIXED CARBON FILM 22 LGE 0RD2202G608 Contact Us For Availability
R111
RESISTOR,METAL GLAZED(CHIP) LGE 0RH4701L622 Contact Us For Availability
RY5
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
RY7
RELAY LGE 6920W5A009A Contact Us For Availability
S,F
LGE 6851W5B002D LGE 6851W5B002D Contact Us For Availability
U01
LGE 0IZZW5A278A LGE 0IZZW5A278A Contact Us For Availability
U02
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
ZD1
DIODE,ZENERS LGE 0DZSB00053B Contact Us For Availability
× ![]()
