  • Whirlpool AEW3630DDB Parts List

Model Whirlpool AEW3630DDB ELECTRIC WALL OVEN – Common Parts & Diagrams

1

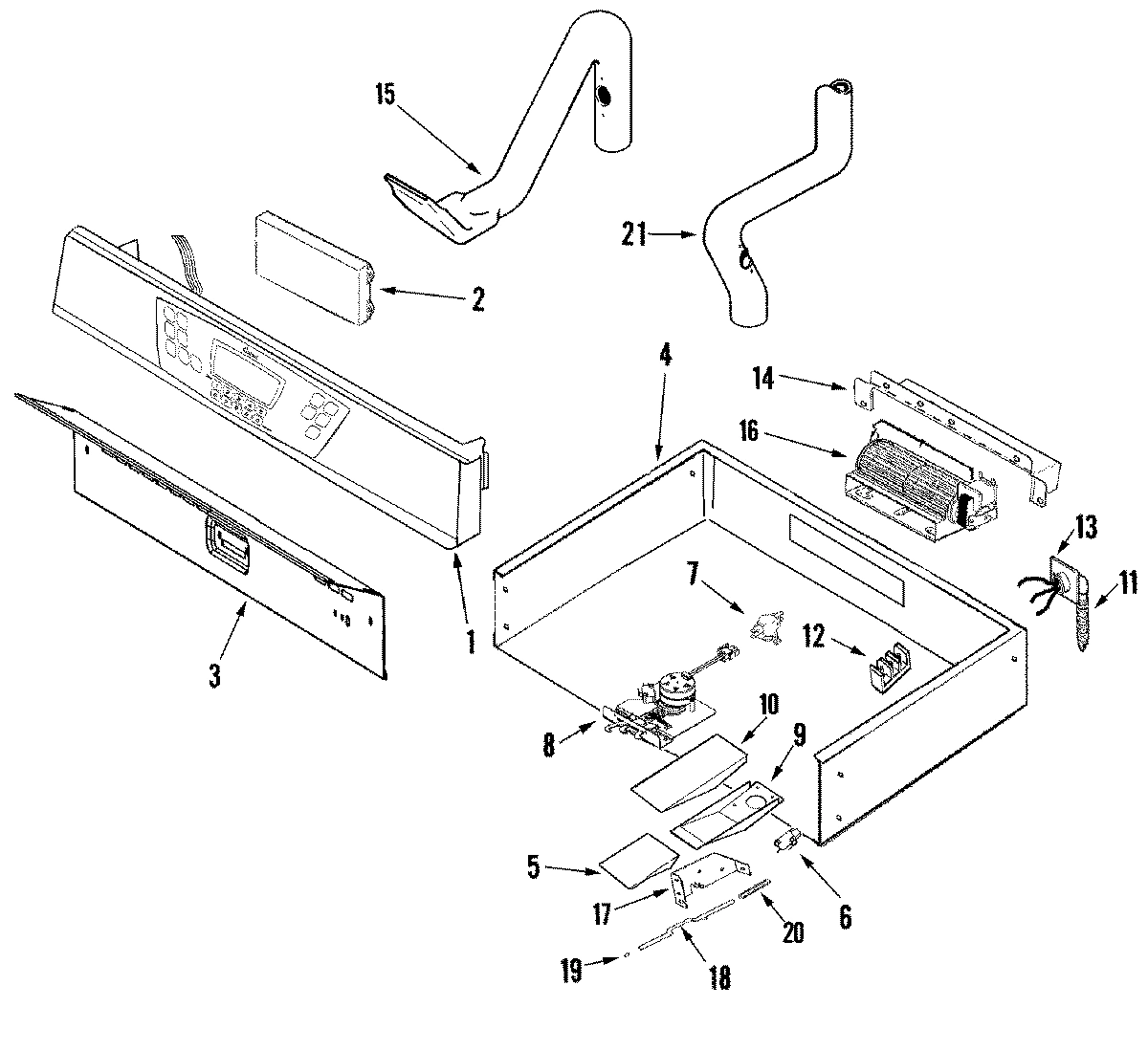

PANEL, CONTROL (BLK)
PANEL, CONTROL (BLK) WPL 74008790 Contact Us For Availability
View on Model
1

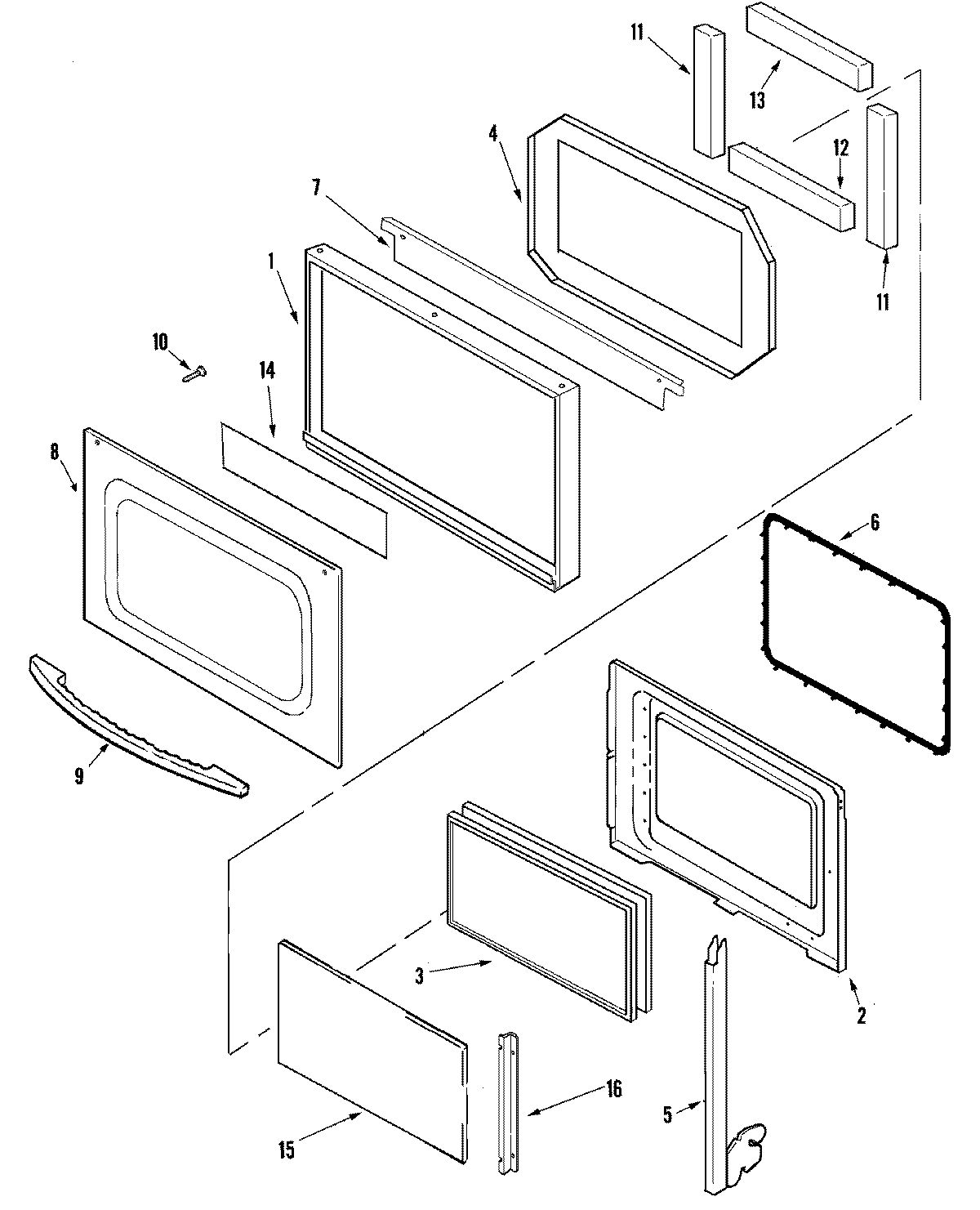

FRAME, DOOR (BLK)
FRAME, DOOR (BLK) WPL 74006751 Contact Us For Availability
View on Model
1

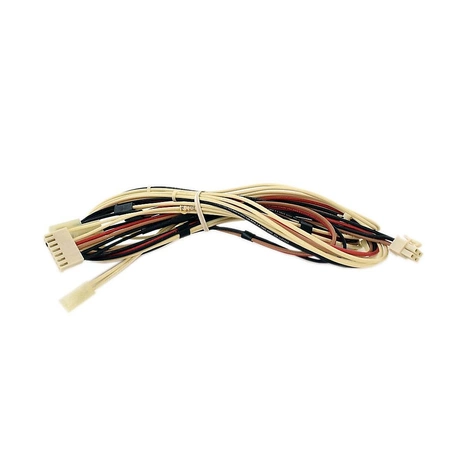

HARNESS, MAIN
HARNESS, MAIN WPL 74008292 Contact Us For Availability
View on Model
1

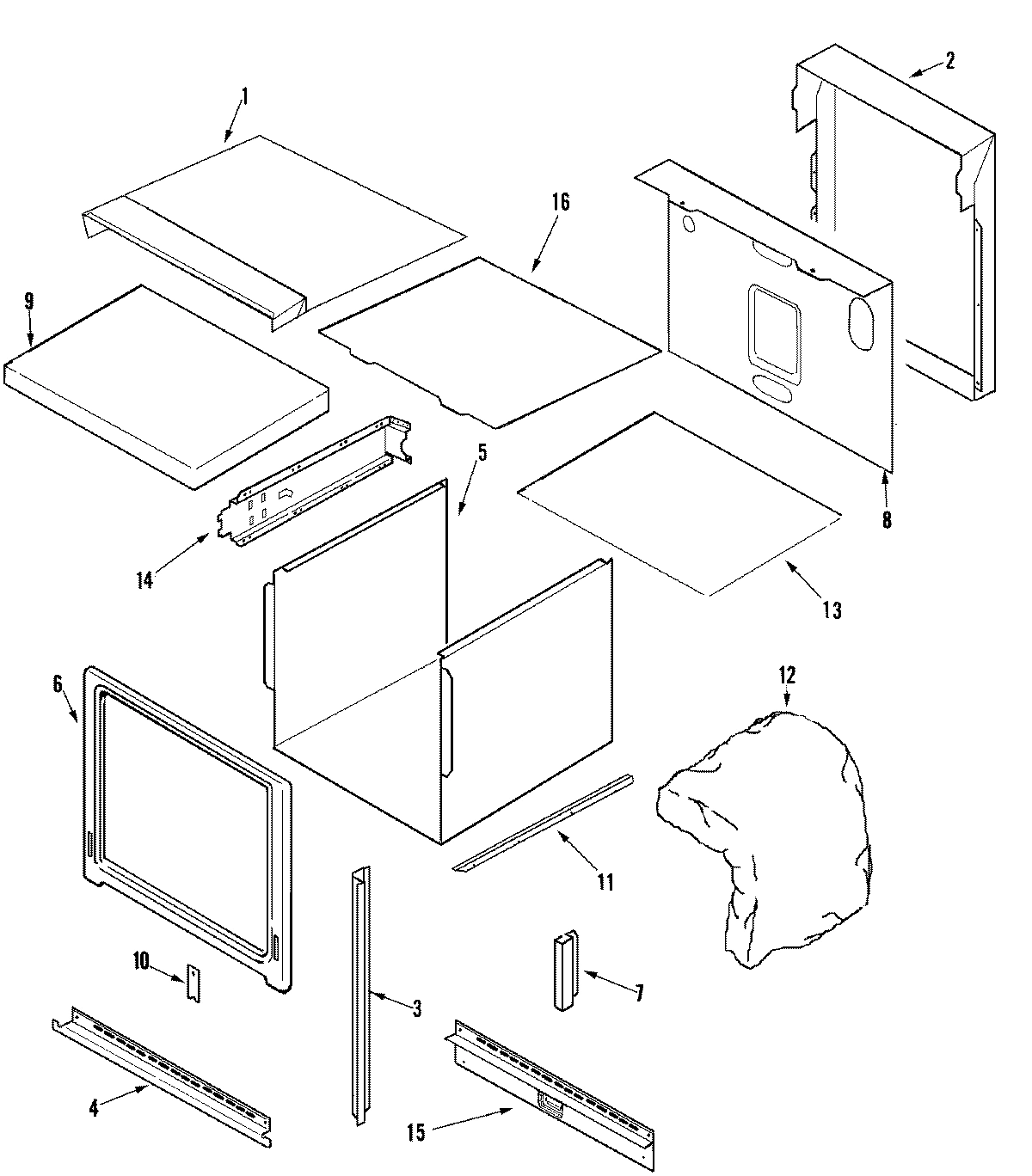

TOP (OUTER)
TOP (OUTER) WPL 74008271 Contact Us For Availability
View on Model
2
INSULATION
INSULATION WPL 74008268 Contact Us For Availability
View on Model
2
CONTROL, H2 (CLOCK-NO CONVECT)
CONTROL, H2 (CLOCK-NO CONVECT) WPL 74008930 Contact Us For Availability
View on Model
2
LINER, OVEN DOOR
LINER, OVEN DOOR WPL 74005642 Contact Us For Availability
View on Model
2
BACK, OUTER (LWR)
BACK, OUTER (LWR) WPL 71001883 Contact Us For Availability
View on Model
2
BACK, OUTER (UPR)
BACK, OUTER (UPR) WPL 74008272 Contact Us For Availability
View on Model
3
TRIM, CONTROL PANEL
TRIM, CONTROL PANEL WPL 74008261 Contact Us For Availability
View on Model
3
WINDOW ASSEMBLY
WINDOW ASSEMBLY WPL 74005641 Contact Us For Availability
View on Model
3
TRIM, SIDE (BLK)
TRIM, SIDE (BLK) WPL 74008273 Contact Us For Availability
View on Model
4
PANEL, TOP (INR)
PANEL, TOP (INR) WPL 74008262 Contact Us For Availability
View on Model
4
RETAINER, INSULATION
RETAINER, INSULATION WPL 74005648 Contact Us For Availability
View on Model
4
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 74008314 Contact Us For Availability
View on Model
4
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8112P32360 Contact Us For Availability
View on Model
4
MANUAL, USE & CARE
MANUAL, USE & CARE WPL W10169638 Contact Us For Availability
View on Model
4
TRIM, OVEN (LWR-BLK)
TRIM, OVEN (LWR-BLK) WPL 74005643 Contact Us For Availability
View on Model
5
EXTENSION, VENT
EXTENSION, VENT WPL 71001843 Contact Us For Availability
View on Model
5
SCREW, BLACK
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
View on Model
5
GUIDE, COOKING (TRILINGUAL)
GUIDE, COOKING (TRILINGUAL) WPL 74007136 Contact Us For Availability
View on Model
5
PANEL, SIDE
PANEL, SIDE WPL 74008275 Contact Us For Availability
View on Model
6
INSULATOR
INSULATOR WPL 74008264 Contact Us For Availability
View on Model
6
FRAME, OVEN
FRAME, OVEN WPL 71003180 Contact Us For Availability
View on Model
6
BUMPER, RUBBER
BUMPER, RUBBER WPL 74009646 Contact Us For Availability
View on Model
7
BRACKET, HANDLE
BRACKET, HANDLE WPL 74008284 Contact Us For Availability
View on Model
8
SCREW, SWITCH
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
View on Model
8
GLASS, OUTER DOOR (BLK)
GLASS, OUTER DOOR (BLK) WPL 74008328 Contact Us For Availability
View on Model
8
PANEL, BACK INSULATION RETAIN
PANEL, BACK INSULATION RETAIN WPL 74008276 Contact Us For Availability
View on Model
9
VENT (BTM)
VENT (BTM) WPL 74008294 Contact Us For Availability
View on Model
9
HANDLE, DOOR (BLK)
HANDLE, DOOR (BLK) WPL 74008318 Contact Us For Availability
View on Model
9
SPACER, HANDLE
SPACER, HANDLE WPL 8010P07360 Contact Us For Availability
View on Model
9
INSULATION (BACK/TOP)
INSULATION (BACK/TOP) WPL 74008279 Contact Us For Availability
View on Model
10
VENT (TOP)
VENT (TOP) WPL 71001847 Contact Us For Availability
View on Model
10
PLATE, HINGE TRAP
PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability
View on Model
11
INSULATION, DOOR (SIDE)
INSULATION, DOOR (SIDE) WPL 74008285 Contact Us For Availability
View on Model
11
GROMMET, ANTI-SHORT
GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability
View on Model
11
WIRE CABLE ASSY.
WIRE CABLE ASSY. WPL 74004726 Contact Us For Availability
View on Model
11
BOTTOM, BRACE
BOTTOM, BRACE WPL 74008280 Contact Us For Availability
View on Model
12
NUT, TERMINAL BLOCK
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
View on Model
12
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
View on Model
12
CONNECTOR, CABLE
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
View on Model
12
INSULATION (WRAP)
INSULATION (WRAP) WPL 74008278 Contact Us For Availability
View on Model
13

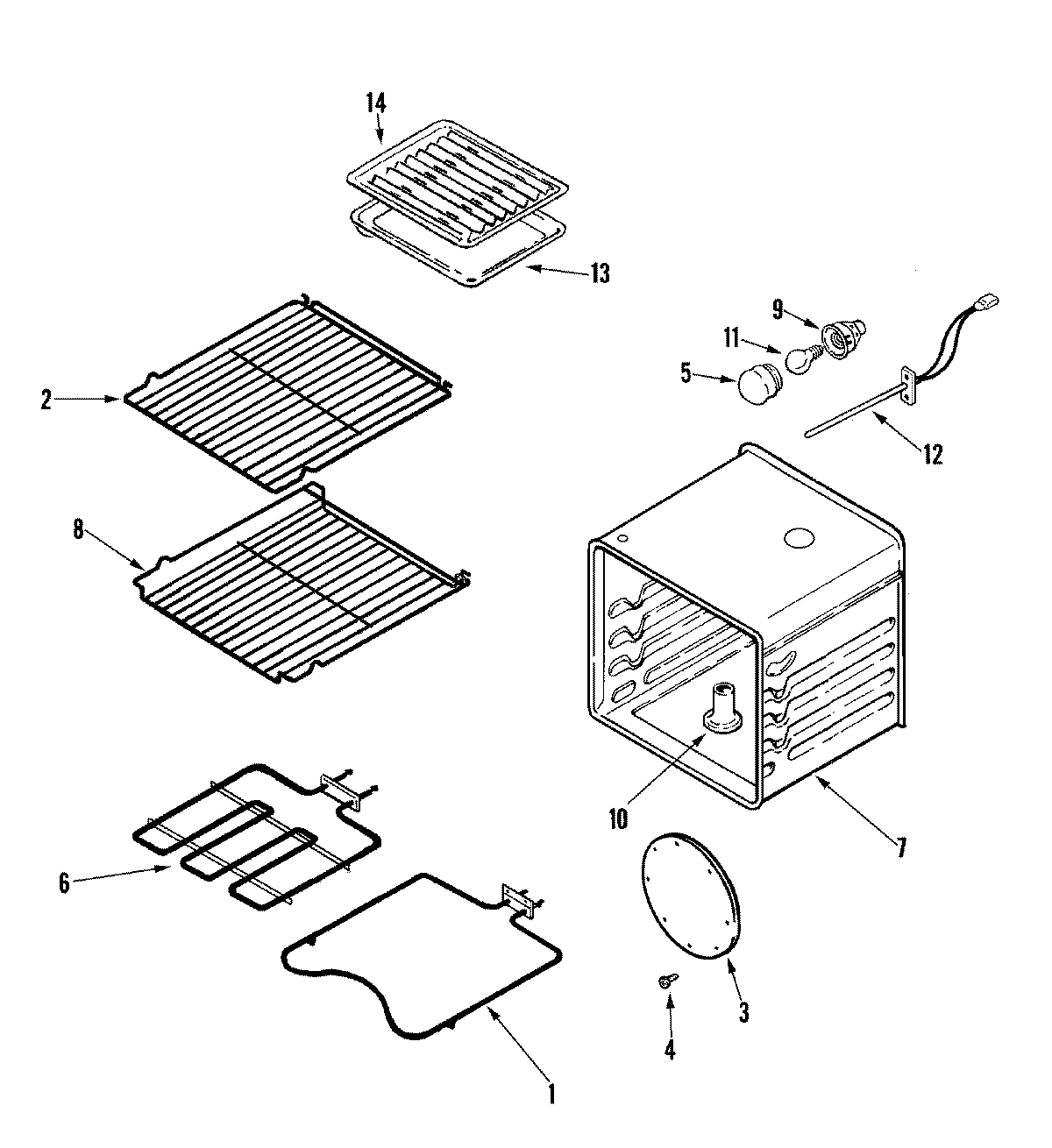

PAN, BROIL
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
View on Model
13
BRACKET, CABLE
BRACKET, CABLE WPL 74004712 Contact Us For Availability
View on Model
13
INSULATION (BTM)
INSULATION (BTM) WPL 71003614 Contact Us For Availability
View on Model
14
INSERT, BROIL PAN
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
View on Model
14
BRACKET, COOLING FAN MOUNTING
BRACKET, COOLING FAN MOUNTING WPL 74008330 Contact Us For Availability
View on Model
14
HEAT SHIELD, DOOR
HEAT SHIELD, DOOR WPL 74008288 Contact Us For Availability
View on Model
14
PLATE, COVER (CENTER SUPPORT)
PLATE, COVER (CENTER SUPPORT) WPL 71003411 Contact Us For Availability
View on Model
14
SUPPORT (CTR)
SUPPORT (CTR) WPL Y04100669 Contact Us For Availability
View on Model
15
TUBE, VENT (UPR)
TUBE, VENT (UPR) WPL 71002417 Contact Us For Availability
View on Model
15
GLASS, INNER W/TAPE
GLASS, INNER W/TAPE WPL 74008336 Contact Us For Availability
View on Model
15
SCREW (1/2``)
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
View on Model
15
EXTRUSION, CENTER
EXTRUSION, CENTER WPL 74008277 Contact Us For Availability
View on Model
16
FAN MOTOR ASSY.
FAN MOTOR ASSY. WPL 74008269 Contact Us For Availability
View on Model
16
NOT REQUIRED PART OR SEE NOTE CLAMP/RESISTOR
NOT REQUIRED PART OR SEE NOTE CLAMP/RESISTOR WPL W10124350 Contact Us For Availability
View on Model
16
FAN MOTOR ASSY.
FAN MOTOR ASSY. WPL 74009596 Contact Us For Availability
View on Model
16
CLAMP, RESISTOR
CLAMP, RESISTOR WPL 74009597 Contact Us For Availability
View on Model
16
RESISTOR ASSY.
RESISTOR ASSY. WPL 74009598 Contact Us For Availability
View on Model
16
RETAINER, GLASS
RETAINER, GLASS WPL 74003650 Contact Us For Availability
View on Model
16
PANEL, TOP (INR-CTR)
PANEL, TOP (INR-CTR) WPL 71001885 Contact Us For Availability
View on Model
17
BRACKET, SWITCH ACTUATOR
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
View on Model
18
ROD, DOOR LIGHT SWITCH
ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability
View on Model
19
COVER, PLUNGER (DOOR LIGHT)
COVER, PLUNGER (DOOR LIGHT) WPL 74007586 Contact Us For Availability
View on Model
20
SPRING, DOOR SWITCH
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
View on Model
21
TUBE, VENT (LWR)
TUBE, VENT (LWR) WPL 71002418 Contact Us For Availability
View on Model
NI

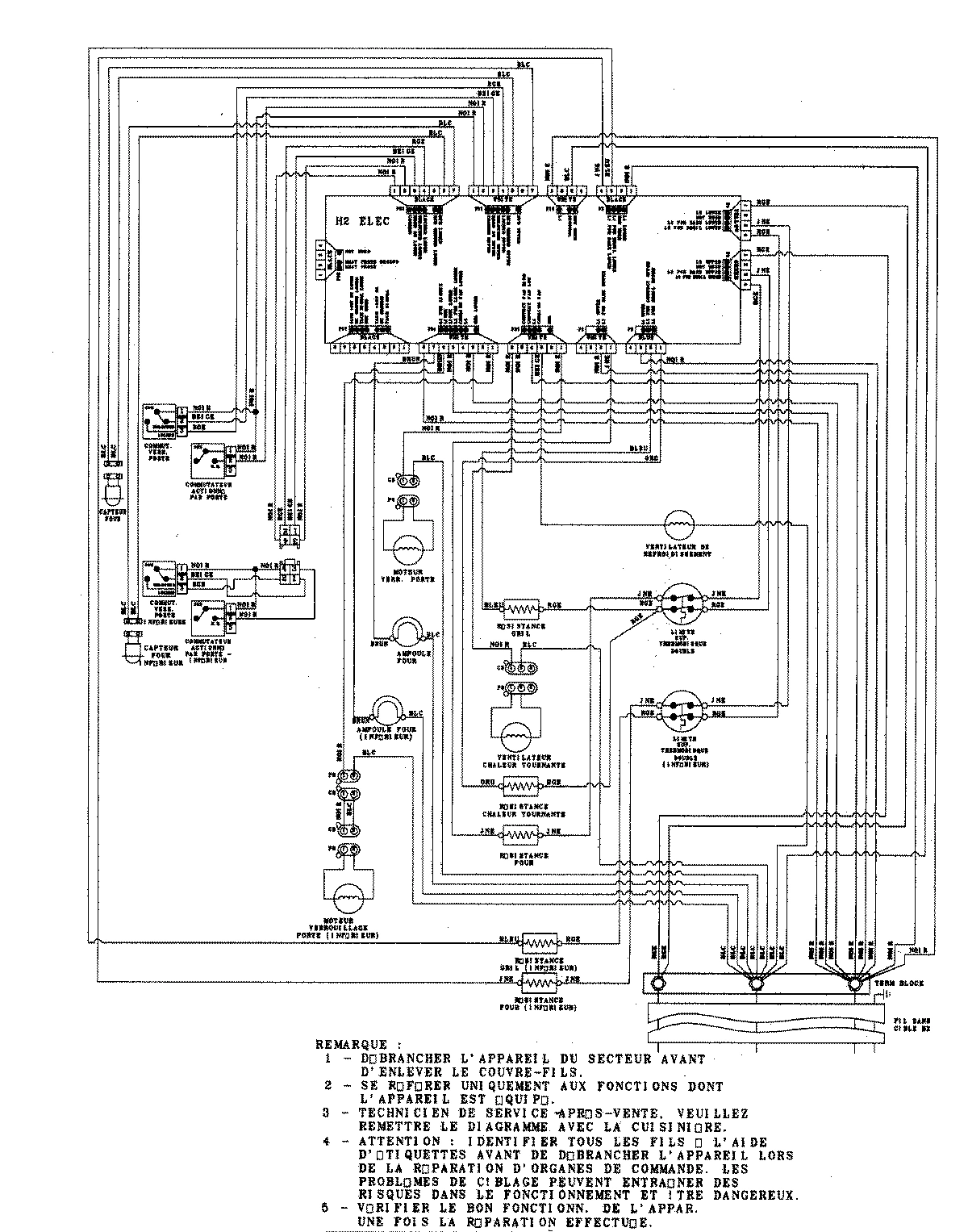

WIRING INFORMATION (FRC)
WIRING INFORMATION (FRC) WPL 15003245 Contact Us For Availability
View on Model
NI

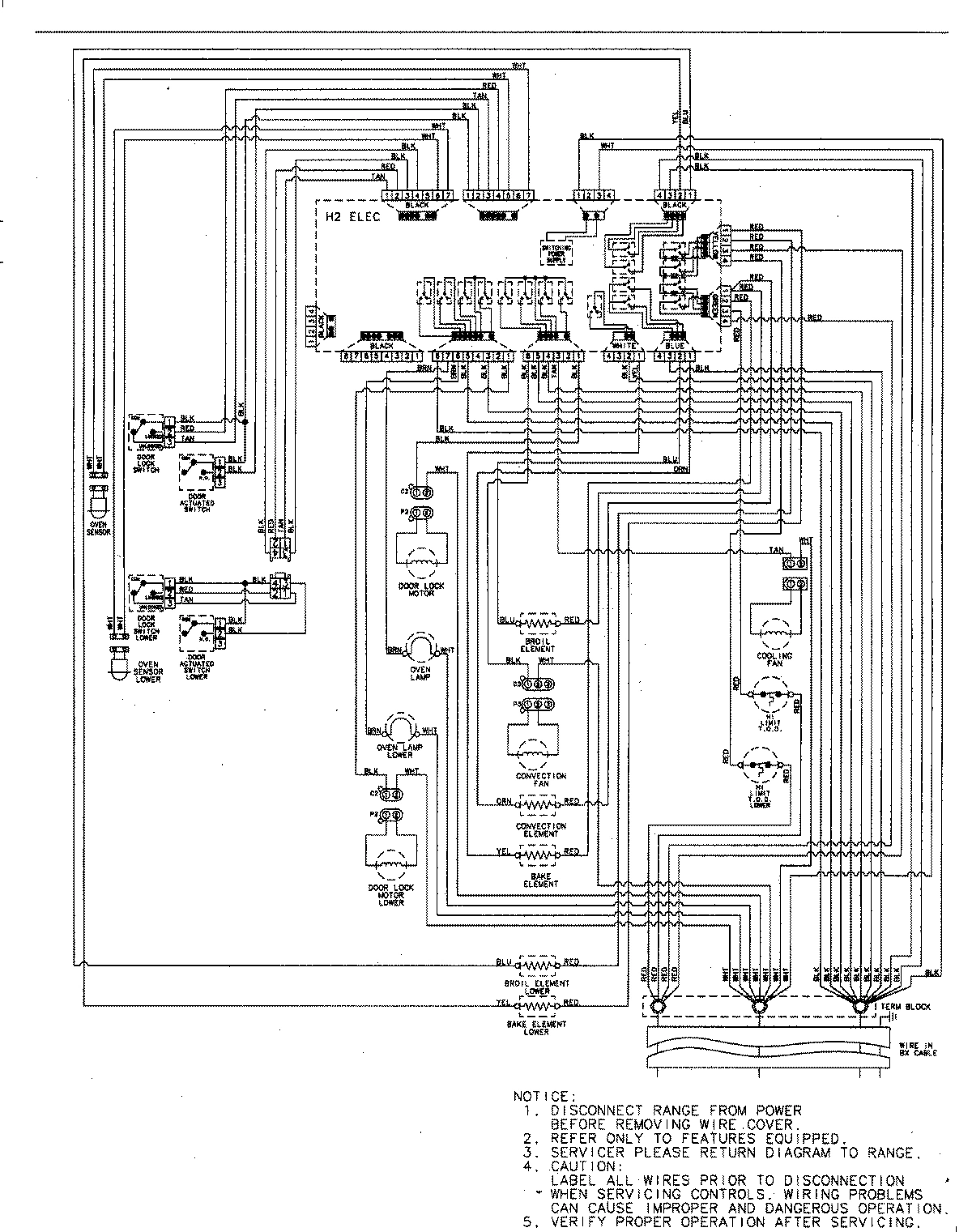

WIRING INFORMATION
WIRING INFORMATION WPL 15003244 Contact Us For Availability
