Model Whirlpool AER5722CAS ELECTRIC RANGE – Common Parts & Diagrams

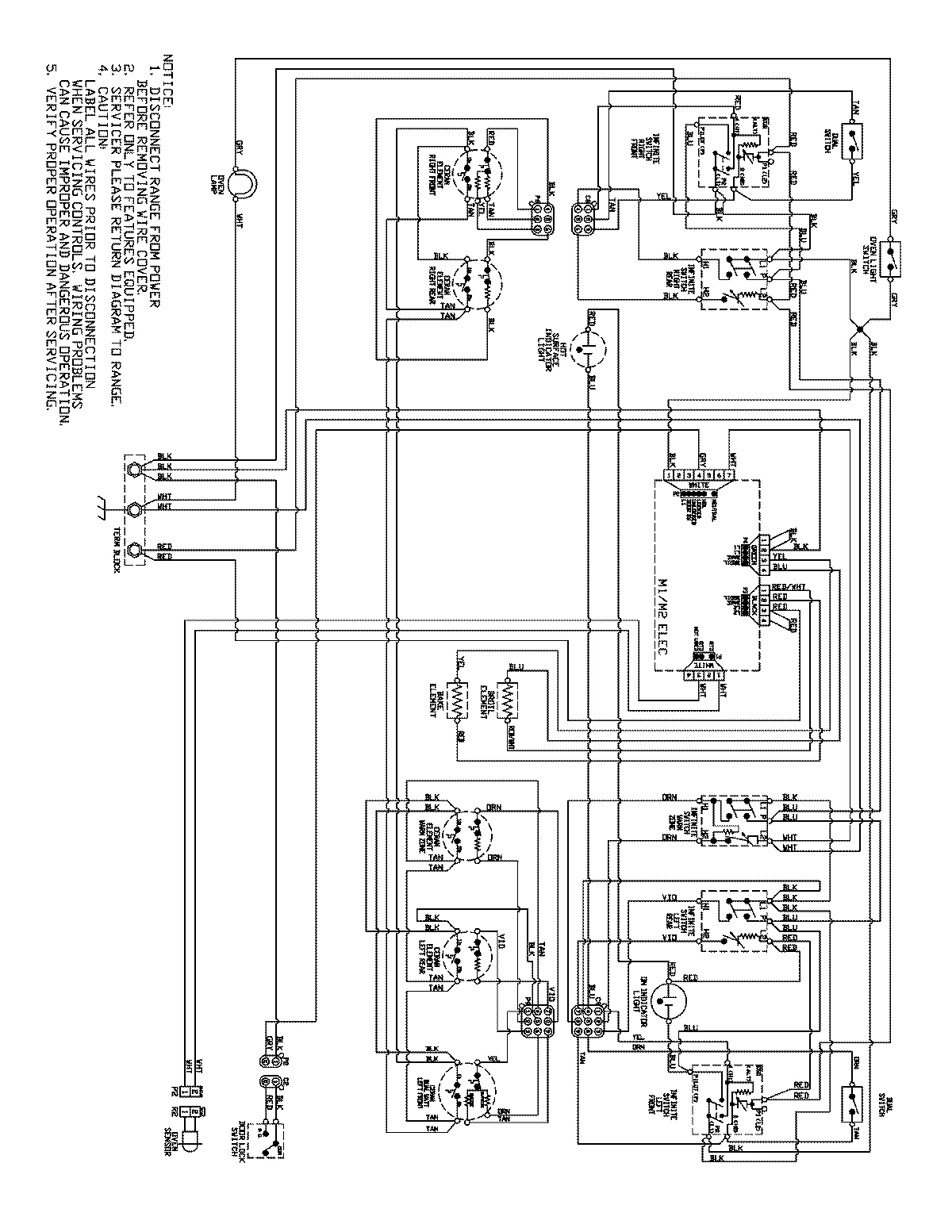

06 - WIRING INFORMATION
05 - SUPPLEMENTAL INFORMATION
02 - CONTROL PANEL/TOP ASSEMBLY
03 - DOOR/DRAWER (STL)
01 - BODY
04 - OVEN/BASE
Common parts from model Whirlpool AER5722CAS ELECTRIC RANGE
1
PANEL, BACKGUARD (SLV) (ELEC) WPL 74011343 Contact Us For Availability
1
HANDLE, DOOR WPL 74010924 Contact Us For Availability
1
BACK, MAIN (ELEC) WPL 74011304 Contact Us For Availability
1
VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability
2
BRACKET, CLOCK WPL 74008716 Contact Us For Availability
2
INSULATION, FOIL WPL 74010233 Contact Us For Availability
2
PANEL, DOOR (STL) WPL 74011227 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 74003283 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability
3
SWITCH, ROCKER (BLK) WPL 74008718 Contact Us For Availability
3
GLASS, OVEN DOOR (STL) WPL 74010042 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74003378 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74003379 Contact Us For Availability
5
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
SWITCH, INFINITE WPL 74011070 Contact Us For Availability
6
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
6
SWITCH, INFINITE (WARMING) WPL 74006589 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
RETAINER, DOOR GLASS WPL 74010041 Contact Us For Availability
6
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
7
GLASS, DOOR (INNER/COATED) WPL 74010231 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 74009744 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74006325 Contact Us For Availability
8
MANUAL, USE & CARE WPL 8113P53760 Contact Us For Availability
8
SUPPORT, BACKGUARD (RT-BLK) WPL 74010201 Contact Us For Availability
8
SUPPORT, BACKGUARD (LT-BLK) WPL 74010202 Contact Us For Availability
8
COVER, ACCESS WPL 74010256 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
9
SVC MAN, RANGE, ELECT WPL 16023528 Contact Us For Availability
9
SHIELD, WIRE WPL 74009978 Contact Us For Availability
9
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
10
LEVER, LOCK (BLK) WPL 74010244 Contact Us For Availability
10
COVER, REAR WIRE WPL 74010983 Contact Us For Availability
10
FRAME, GLASS WPL 74003644 Contact Us For Availability
11
LATCH, MANUAL DOOR LOCK WPL 74009764 Contact Us For Availability
11
SCREW WPL 7101P35260 Contact Us For Availability
12
TOP, MAIN (BLK) WPL 74011404 Contact Us For Availability
12
BAFFLE, OVEN DOOR WPL 74011339 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 74009201 Contact Us For Availability
12
RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability
13
SCREW WPL 7101P30960 Contact Us For Availability
13
SHIELD, DOOR (STL) WPL 74010040 Contact Us For Availability
13
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
13
COVER, BULB WPL 74003389 Contact Us For Availability
14
LINING, DOOR WPL 74003642 Contact Us For Availability
14
LINING, DOOR WPL 74011456 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
15
ELEMENT, DUAL (2400W) WPL 74009898 Contact Us For Availability
15
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
15
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
16
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
16
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
BULB-OVEN WPL 7407P10360 Contact Us For Availability
17
ELEMENT, WARMING WPL 74008571 Contact Us For Availability
17
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
17
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
17
HOUSING, BULB WPL 74003388 Contact Us For Availability
18
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
18
SHIELD, REAR SIGHT WPL 74009701 Contact Us For Availability
18
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
18
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
19
DRAWER, STORAGE WPL 74008337 Contact Us For Availability
19
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
20
NUT, LOCK WPL 7103P13960 Contact Us For Availability
20
SWITCH, DOOR LATCH WPL 74009591 Contact Us For Availability
20
BOTTOM, DUTCH OVEN WPL 74011042 Contact Us For Availability
21
KNOB (BLK) WPL 74008892 Contact Us For Availability
21
HANDLE, DRAWER (STL) WPL 74009841 Contact Us For Availability
21
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
21
SHIELD, WARMING DRAWER WPL 74006591 Contact Us For Availability
22
PANEL, DRAWER ELECT (STL) WPL 74009842 Contact Us For Availability
22
BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability
22
SCREEN, SMOKE ELIMINATOR WPL 74008597 Contact Us For Availability
22
EXTENSION, VENT (ELECT) WPL 74009987 Contact Us For Availability
23
STRAP, INSULATION WPL 74003385 Contact Us For Availability
23
RACK, OVEN (OFFSET) WPL 74008410 Contact Us For Availability
24
SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability
24
PLATE, VENT COVER WPL 74011044 Contact Us For Availability
24
BRACKET, VENT EXTENSION WPL 74009988 Contact Us For Availability
25
NUT WPL 7103P08260 Contact Us For Availability
25
INSULATOR, HEAT SHIELD WPL 74004532 Contact Us For Availability
26
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
26
SHIELD, ELEMENT WPL 74011046 Contact Us For Availability
27
SCREW WPL 7101P33760 Contact Us For Availability
× ![]()
