Model Maytag AER5715QCS ELECTRIC RANGE – Common Parts & Diagrams

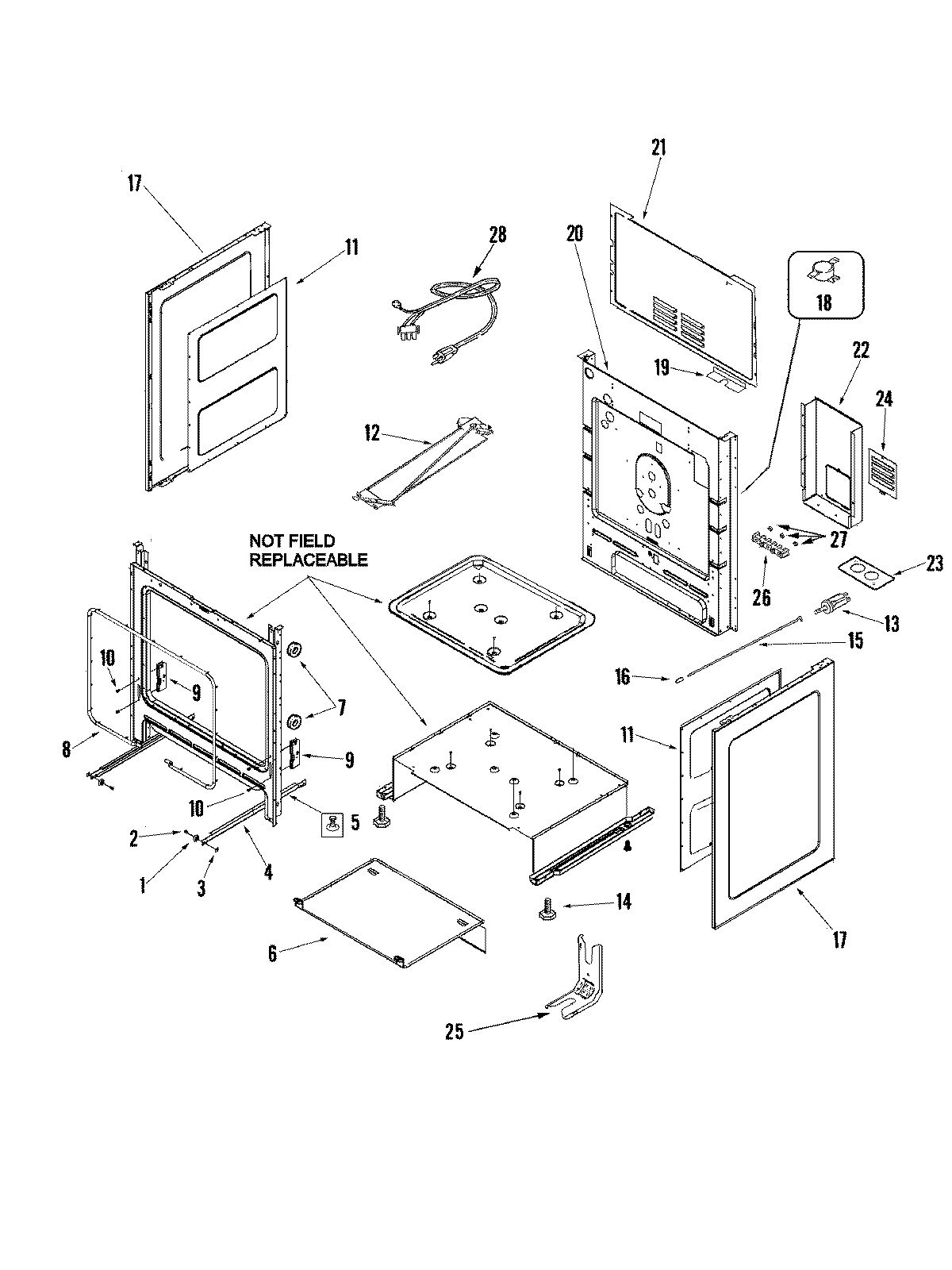

01 - CABINET

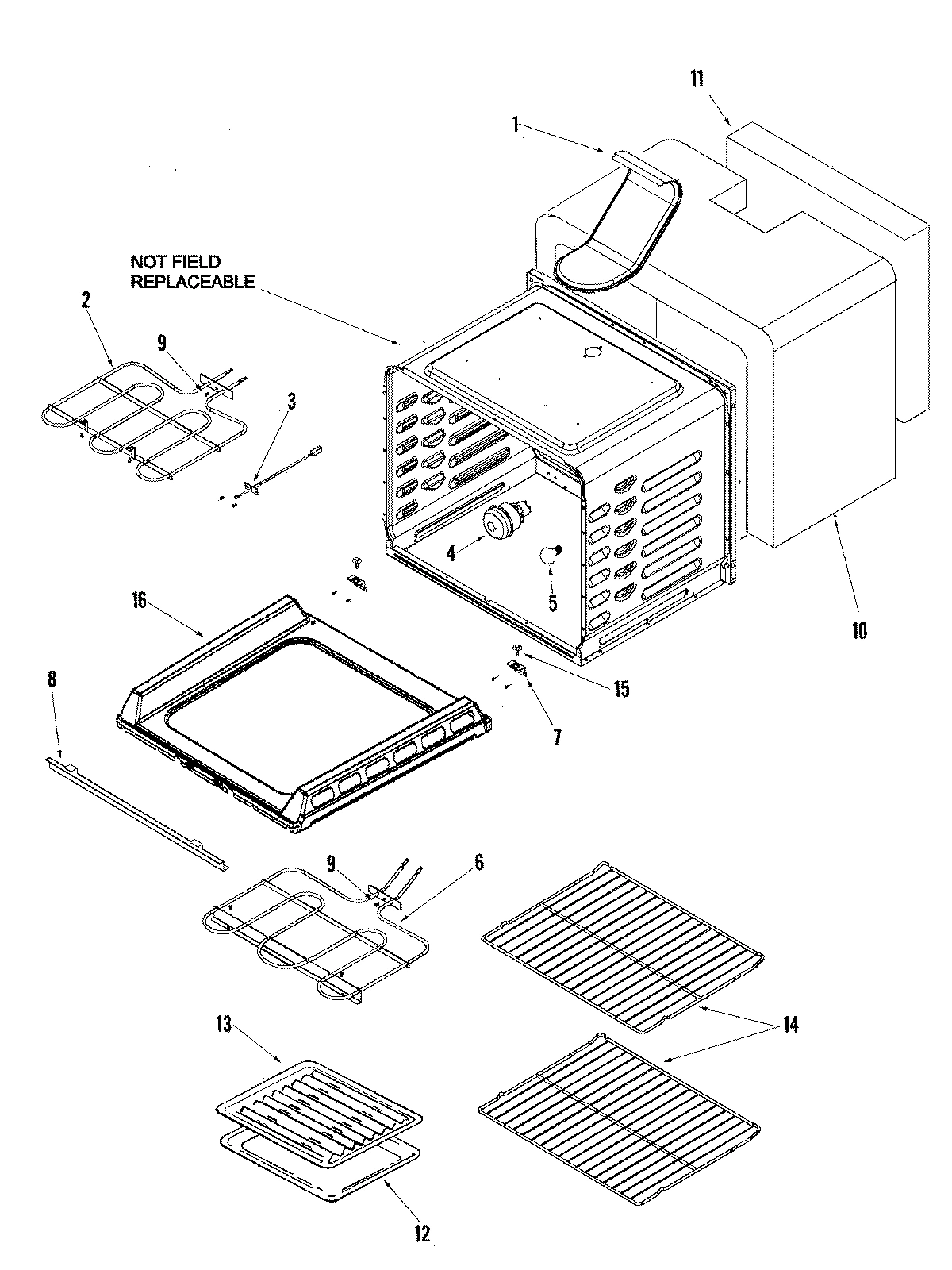

02 - CAVITY

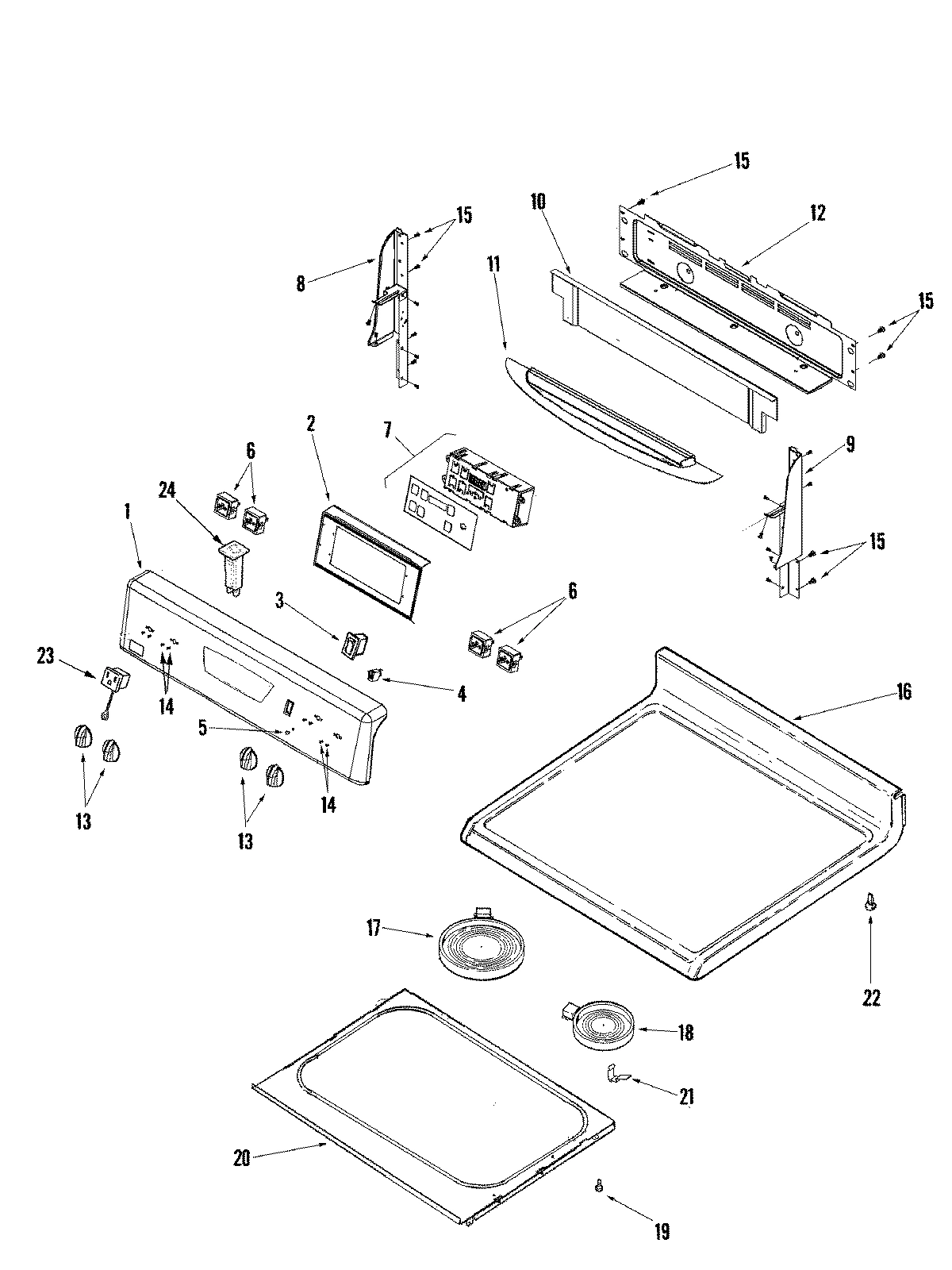

03 - CONTROL PANEL/TOP ASSEMBLY

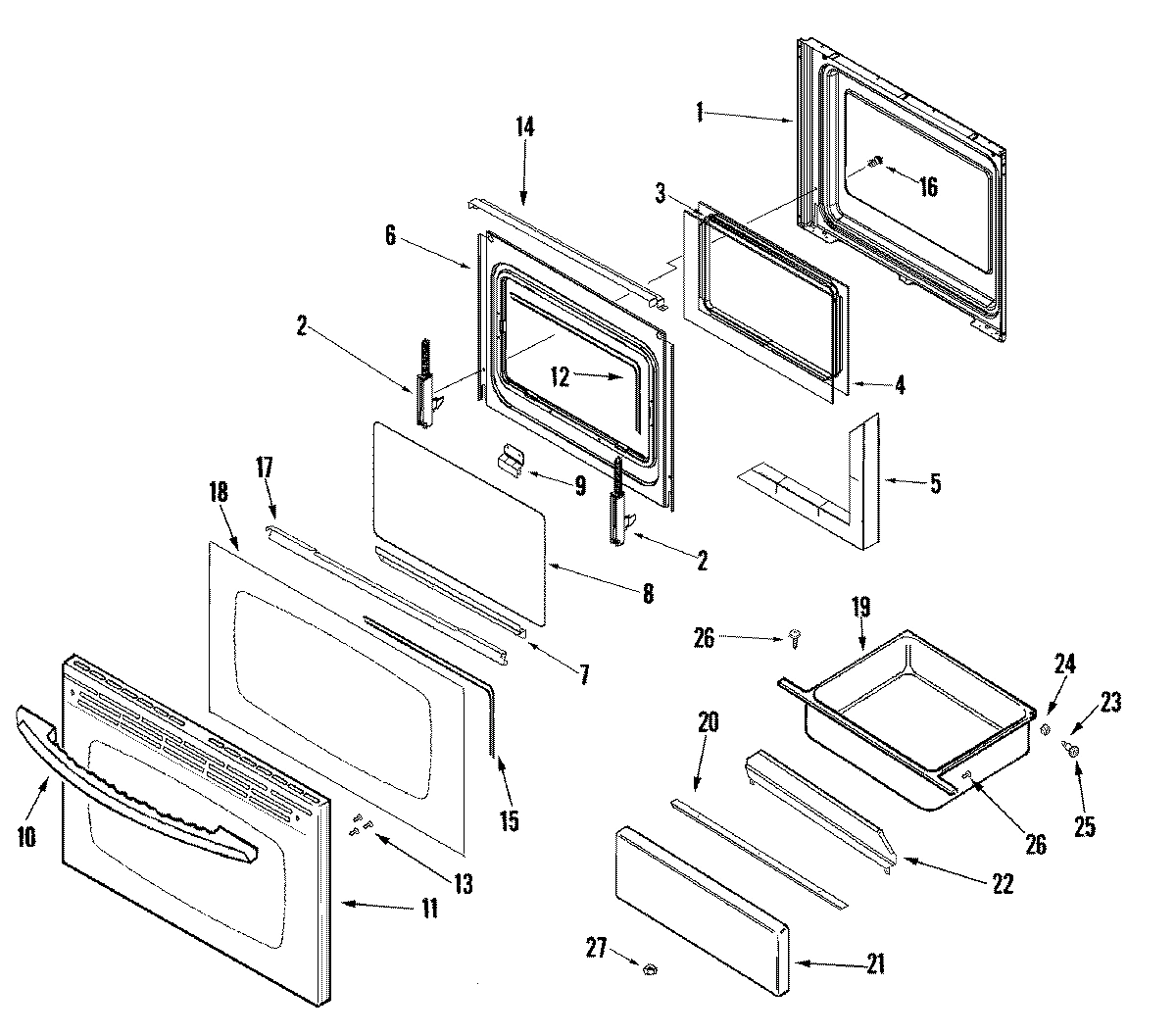

04 - DOOR/DRAWER (STL)
05 - SUPPLEMENTAL INFORMATION

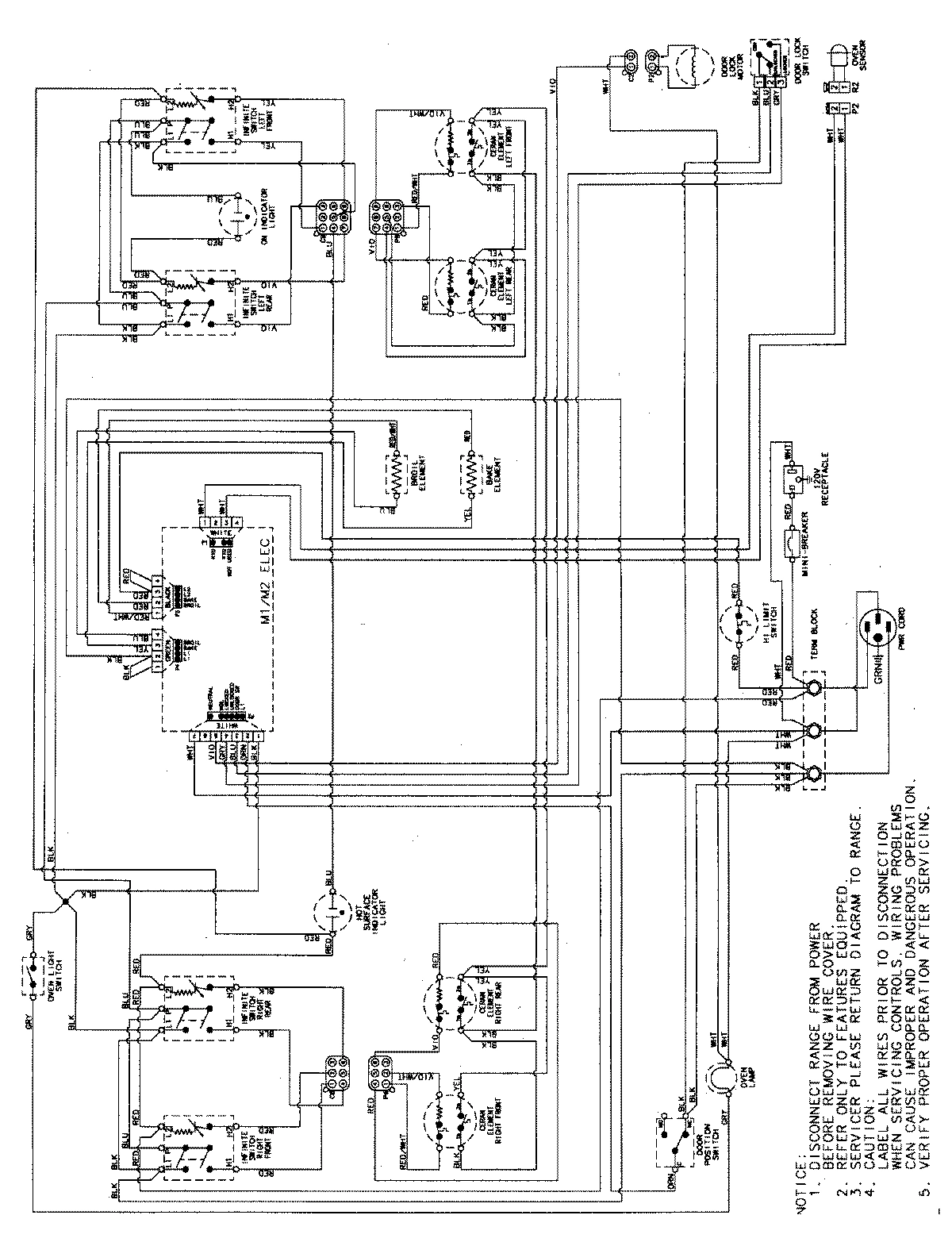

06 - WIRING INFORMATION

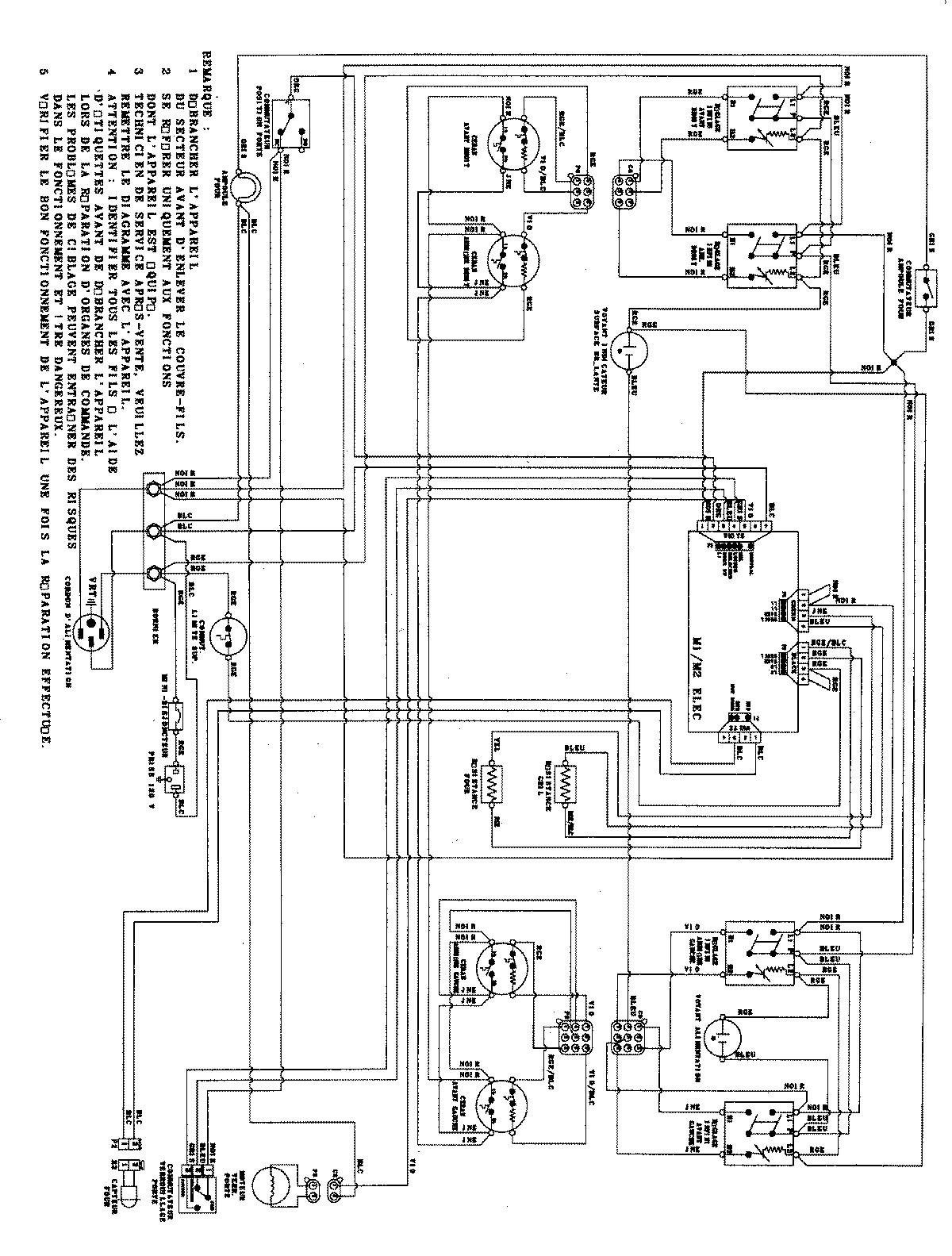

07 - WIRING INFORMATION (FRC)
Common parts from model Maytag AER5715QCS ELECTRIC RANGE
1
MAY 74008691 MAY 74008691 Contact Us For Availability
1
MAY 74009323 MAY 74009323 Contact Us For Availability
1
MAY 74008926 MAY 74008926 Contact Us For Availability
1
MAY 8113P388-60 MAY 8113P388-60 Contact Us For Availability
1
MAY 8113P546-60 MAY 8113P546-60 Contact Us For Availability
2
MAY 74008716 MAY 74008716 Contact Us For Availability
2
MAY 74009326 MAY 74009326 Contact Us For Availability
2
MAY 74009927 MAY 74009927 Contact Us For Availability
3
SWITCH, ROCKER (BLK) MAY 74008718 Contact Us For Availability
3
FRAME, GLASS MAY 74003644 Contact Us For Availability
3
MAY 74009327 MAY 74009327 Contact Us For Availability
4
MAY 71001867 MAY 71001867 Contact Us For Availability
4
MAY 74009328 MAY 74009328 Contact Us For Availability
5
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
5
MAY 74009329 MAY 74009329 Contact Us For Availability
6
MAY 74008744 MAY 74008744 Contact Us For Availability
6
MAY 74009330 MAY 74009330 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability
7
RETAINER, DOOR GLASS (LWR) MAY 74008745 Contact Us For Availability
7
MAY 20001080 MAY 20001080 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability
8
END CAP (RT-BLK) MAY 74009022 Contact Us For Availability
8
GLASS, DOOR MAY 74003649 Contact Us For Availability
9
END CAP (LT-BLK) MAY 74009023 Contact Us For Availability
9
MAY 74008746 MAY 74008746 Contact Us For Availability
10
INSULATION, WRAPPER MAY 74008700 Contact Us For Availability
10
MAY 74009205 MAY 74009205 Contact Us For Availability
10
MAY 74008324 MAY 74008324 Contact Us For Availability
11
MAY 74008698 MAY 74008698 Contact Us For Availability
11
SHIELD, HEAT VISOR (BLK) MAY 74009202 Contact Us For Availability
11
MAY 74008913 MAY 74008913 Contact Us For Availability
12
MAY 74008702 MAY 74008702 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
12
MAY 74008730 MAY 74008730 Contact Us For Availability
12
MAY 74008836 MAY 74008836 Contact Us For Availability
12
MAY 74008917 MAY 74008917 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL MAY W10124350 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
13
MAY 74008731 MAY 74008731 Contact Us For Availability
14
MAY 74009027 MAY 74009027 Contact Us For Availability
16
MAY 71001394 MAY 71001394 Contact Us For Availability
16
MAY 74008528 MAY 74008528 Contact Us For Availability
16
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
17
MAY 74009028 MAY 74009028 Contact Us For Availability
18
MAY 74008855 MAY 74008855 Contact Us For Availability
19
MAY 74008337 MAY 74008337 Contact Us For Availability
20
MAY 74008900 MAY 74008900 Contact Us For Availability
20
MAY 74008909 MAY 74008909 Contact Us For Availability
21
SPRING, ELEMENT SUPPORT MAY Y04100418 Contact Us For Availability
21
MAY 74008912 MAY 74008912 Contact Us For Availability
22
MAY 74009517 MAY 74009517 Contact Us For Availability
23
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
23
MAY 71003068 MAY 71003068 Contact Us For Availability
24
MAY 74008340 MAY 74008340 Contact Us For Availability
24
MAY 71003070 MAY 71003070 Contact Us For Availability
28
MAY 7402P050-60 MAY 7402P050-60 Contact Us For Availability
NI
MAY 15003370 MAY 15003370 Contact Us For Availability
NI
MAY 15003371 MAY 15003371 Contact Us For Availability
× ![]()
